2AB6UASL05-5GAugust WiFi Smart Lock

Installation Manual Prepare your existing deadbolt Place the supplied adhesive strip to hold the keyed side of the lock in place. Be sure to press down the tape against the keyhole when you install the smart lock on the inside of the door. Remove your existing thumbturn To remove your existing thumbturn, position your thumbturn to expose both screws, and remove the screws entirely. Be sure to unlock your deadbolt before removing the thumbturn entirely. If your deadbolt has a back plate, remove that as well. Prepare the Mounting Plate The included Mounting Plate has two adjustable screw-holes that can be repositioned as needed. Use the two screws from the thumbturn, and insert it through the screw-holes. Determine if you need the Cover Plate For oversized deadbolt holes, an optional cover plate is included with your smart lock. If your smart lock’s mounting plate does not fully cover the hole left by the removed thumbturn, you may want to use the included Cover Plate. Attach the Mounting Plate If using the optional Cover Plate, place it over the deadbolt hole. Take note of the DOOR SIDE and UP arrow. Pass the mounting plate screws through the larger opening in the Cover Plate, taking note of the UP arrow. Tighten the screws until the mounting plate is settled securely against the door. Choose your adapter Select your adapter from the Compatibility Chart above. If your lock brand is not in the chart, slide each adapter onto the tailpiece to find the right one. The correct adapter will have one of the teeth pointing up. Attach the correct adapter Place the correct adapter onto the tail piece. One of the triangle shaped teeth should be facing up if you have the correct adapter. Make sure the non teeth side of the adapter goes in through the tail piece first. Rotate to unlocked position Start by aligning the lock badge vertically to the logo, then rotate your smart lock’s outer shell to the unlocked position (it may take moderate force). Determine the turn direction based on how you turned the thumbturn to unlock the door. Open the wing latches Pull out both side wing latches to prepare for mounting on to the mounting plate. Attach the smart lock Slide the smart lock over the tailpiece and attach it to the mounting plate. The wing latches should align to both the right and left side of the mounting plate and the lock should fit through the adapter teeth. To secure the smart lock, clamp down both side wing latches to the mounting plate completely. Make sure the back of the lock is flush with the door, and the lock is able to lock and unlock the deadbolt manually by rotating the outer shell. Remove the faceplate Press down on the August logo located at the bottom of the face plate. Grab the top of the faceplate and remove it. Remove the battery tab While holding the batteries in place, remove the plastic battery isolation tab. Make sure that the battery is properly seated in its compartment. Reattach the faceplate Place the faceplate back onto the smart lock, with the August logo at the bottom Install August App Download the App from august.com/app The app will help you create an account and set up your August Smart Lock. We suggest that you protect your phone with a passcode in case it is lost or stolen. FCC regulations FCC caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IC regulations This device complies with Innovation, Science and Economic Development Canada license-exempt RSS standards(s). Operation is subject to the following three conditions: 1. This device may not cause harmful interference; 2. This device must accept any interference received, including interference that may cause undesired operation of the device. Français: Cet appareil est conforme aux flux RSS exemptés de licence d'Innovation, Science et Développement économique Canada. L'opération est soumise aux deux conditions suivantes: 1. Cet appareil ne doit pas provoquer d'interférence; et 2. Cet appareil doit accepter toute interférence, y compris les interférences susceptibles de provoquer un fonctionnement indésirable de l'appareil. RF Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must be at least 20 cm from the user and much not be co-located or operating in conjunction with any other antenna or transmitter. This equipment complies with the IC RSS-102 radiation exposure limits set forth for an uncontrolled …

Text truncated - open the document above for the full version.

August Home Inc ADD: 657 Bryant Street, San Francisco, California 94107, United States Tel: 415-652-4108 Fax: 415-652-4108 Mail: [email protected] Date: 2022-10-14 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Innovation, Science and Economic Development Canada Certification and Engineering Bureau P.O. Box 11490, Station ‘H’ 3701 Carling Ave., Building 94 Ottawa, Ontario K2H 8S2 Canada To whom it may concern: The RF chip, model CYW43012, which installed in our product August Smart Lock, Model: ASL05-5G, FCC ID: 2AB6UASL05-5G, IC: 12163A-ASL055G, supports 802.11a/b/g/n/ac, Bluetooth BR/EDR/LE 1M/LE 2M. For use in America and Canada, this chip will only support/enable 2.4G Wi-Fi, BLE 1M, and 5G Wi-Fi. Other functions have been disabled by the manufacturer through software. Also, since 5150-5250 MHz is indoor use only, this band will be disabled as well in Canada. Sincerely Yours, Aaron Treger Aaron Treger/ Director, Hardware Engineering 500 3 rd Street, Suite 110, San Francisco, 94107 Telephone: 415-483-7714 E-mail: [email protected]

QA-FR-170-B 7/29/2014 FCC Authorization November 30, 2022 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We August Home Inc, the undersigned, Hereby authorizes Bay Area Compliance Laboratories, Corp. to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratories, Corp. on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Aaron Treger Aaron Treger/ Director, Hardware Engineering 500 3rd Street, Suite 110, San Francisco, 94107 Telephone: 415-483-7714 E-mail: [email protected]

QA- FR-172-A FCC Confidential Authorization 2022-07-19 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2AB6UASL05-5G. In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, August Home Inc. hereby requests long-term confidential treatment of information accompanying this application as outlined below: Block Diagram Schematics Operation Description As well as short-term confidential treatment (180 days) of information accompanying this application as outlined below: Internal Photos User’s Manual External Photos Test Set-up Photos The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Aaron Treger Aaron Treger/ Director, Hardware Engineering 500 3 rd Street, Suite 110, San Francisco, 94107 Telephone: 415-483-7714 E-mail: [email protected] UNII Software Secutrity Declaration Letter

QA-FR-170-B 7/29/2014 Authorization Letter 8/12/2022 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: We, August Home Inc, hereby authorizes Aaron Treger to act on his behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Aaron Treger on behalf shall have the same effect as my action. Sincerely Yours, Signature: Shannon Petty/ Electronics Engineer 657 Bryant Street, San Francisco, 94107 Telephone: 415-652-4108 E-mail: [email protected]

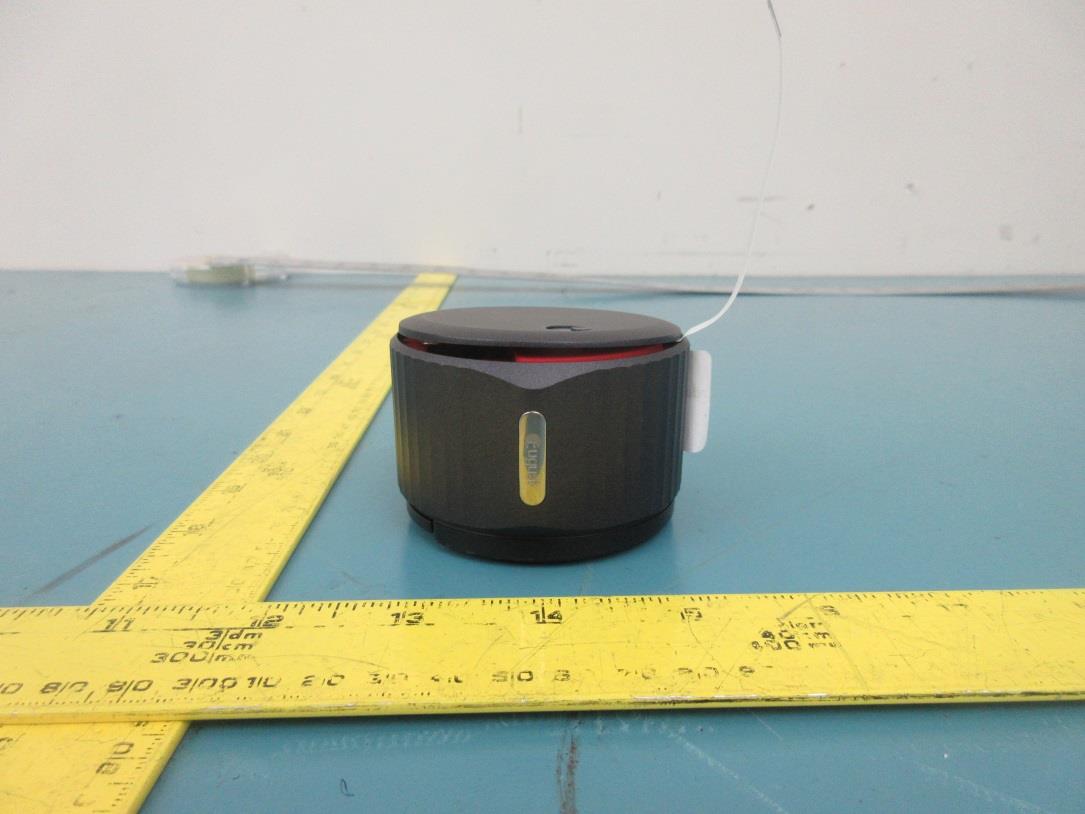

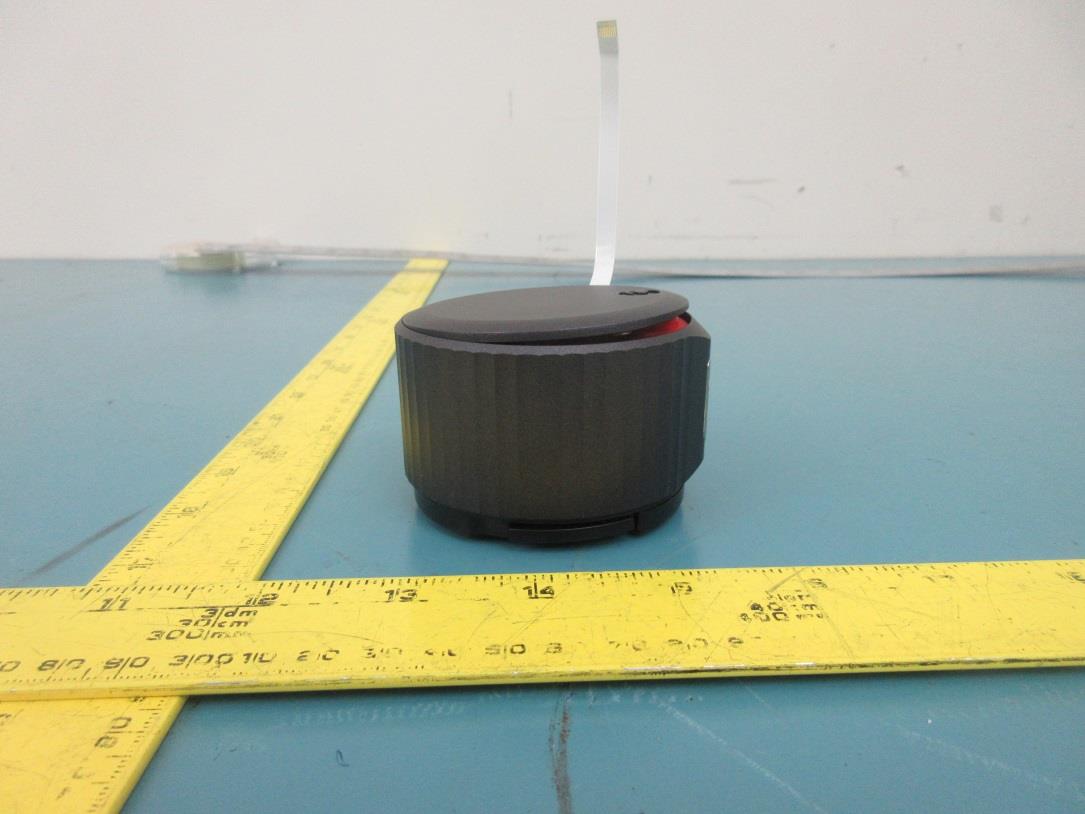

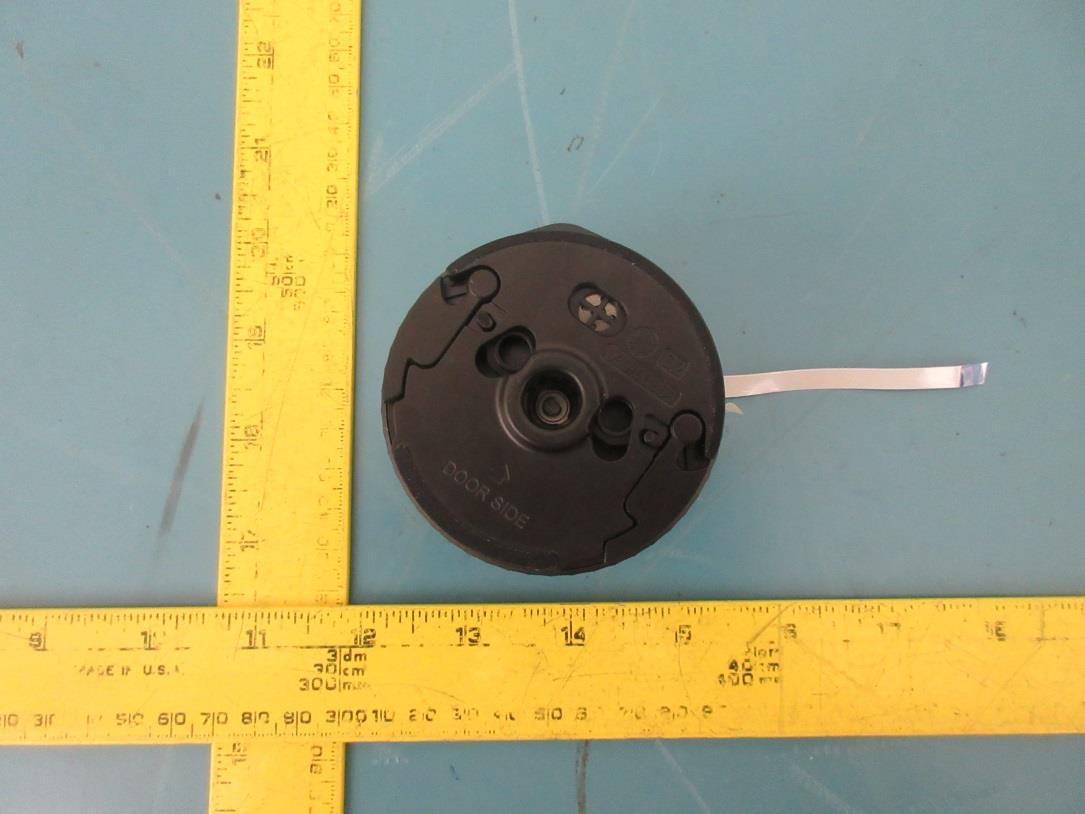

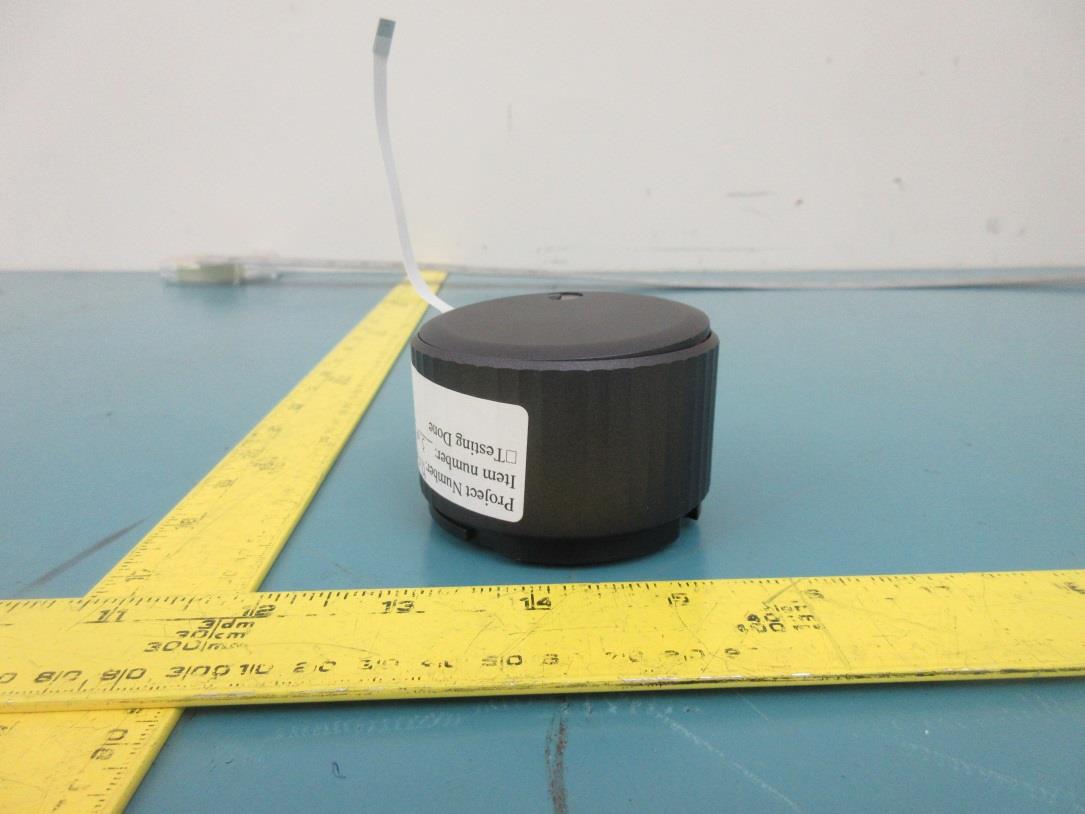

August Home, Inc. FCC ID: 2AB6UASL05-5G; IC: 12163A-ASL055G EUT External Photographs 1.1 EUT Front View 1.2 EUT Rear View August Home, Inc. FCC ID: 2AB6UASL05-5G; IC: 12163A-ASL055G 1.3 EUT Right View 1.4 EUT Left View August Home, Inc. FCC ID: 2AB6UASL05-5G; IC: 12163A-ASL055G 1.5 EUT Top View 1.6 EUT Bottom View

August Home, Inc. FCC ID: 2AB6UASL05-5G; IC: 12163A-ASL055G EUT Internal Photographs 1.1 EUT Open Case View 1.2 EUT Open Case View August Home, Inc. FCC ID: 2AB6UASL05-5G; IC: 12163A-ASL055G 1.3 EUT Main Board Top View 1.4 EUT Main Board Top View August Home, Inc. FCC ID: 2AB6UASL05-5G; IC: 12163A-ASL055G 1.5 EUT Main Board Bottom View

August Home, Inc. FCC ID: 2AB6UASL05-5G; IC: 12163A-ASL055G Report Number: R2209203-247 Page 16 of 68 FCC Part 15C/ISED RSS-247 Test Report 5 FCC §2.1091, §15.247(i) & ISEDC RSS-102 – RF Exposure 5.1 Applicable Standards According to FCC §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 * (100) 30 1.34-30 824/f 2.19/f * (180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density According to ISED RSS-102 Issue 5: August Home, Inc. FCC ID: 2AB6UASL05-5G; IC: 12163A-ASL055G Report Number: R2209203-247 Page 17 of 68 FCC Part 15C/ISED RSS-247 Test Report 5.2 MPE Prediction Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 S = PG/4R² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna 5.3 MPE Results 2.4 GHz Wi-Fi Maximum output power at antenna input terminal (dBm): 19.91 Maximum output power at antenna input terminal (mW): 97.95 Tuned up output power at antenna input terminal (dBm): 20.91 Tuned up output power at antenna input terminal (mW): 123.31 Prediction distance (cm): 20 Prediction frequency (MHz): 2462 Maximum Antenna Gain, typical (dBi): -0.87 Maximum Antenna Gain (numeric): 0.82 Power density of prediction frequency at 20.0 cm (mW/cm 2 ): 0.02 FCC MPE limit for uncontrolled exposure at prediction frequency (mW/cm 2 ): 1.0 The device is compliant with the requirement MPE limit for uncontrolled exposure. The tuned up power density at the distance of 20 cm is 0.02 mW/cm 2 . Limit is 1.0 mW/cm 2 . BLE Maximum peak output power at antenna input terminal (dBm): 6.24 Maximum peak output power at antenna input terminal (mW): 4.21 Tuned up output power at antenna input terminal (dBm): 7.24 Tuned up output power at antenna input terminal (mW): 5.30 Prediction distance (cm): 20 Prediction frequency (MHz): 2480 Maximum Antenna Gain, typical (dBi): -0.87 Maximum Antenna Gain (numeric): 0.82 Power density of prediction frequency at 20.0 cm (mW/cm 2 ): 0.00086 FCC MPE limit for uncontrolled exposure at prediction frequency (mW/cm 2 ): 1.0 The device is compliant with the requirement MPE limit for uncontrolled exposure. The maximum power density at the distance of 20 cm is 0.00086 mW/cm 2 . Limit is 1.0 mW/cm 2 . Note: Client declares that no combination of Bluetooth, 2.4 GHz Wi-Fi and 5GHz Wi-Fi cannot transmit simultaneously. August Home, Inc. FCC ID: 2AB6UASL05-5G; IC: 12163A-ASL055G Report Number: R2209203-247 Page 18 of 68 FCC Part 15C/ISED RSS-247 Test Report 5.4 RF exposure evaluation exemption for IC 2.4 GHz Wi-Fi 20.91 – 0.87 dBi = 20.04 dBm < 1.31×10 -2 f 0.6834 = 2.684 W = 34.29 dBm 2.4 GHz BLE 7.24 – 0.87 dBi = 6.37 dBm < 1.31×10 -2 f 0.6834 = 2.676 W = 34.28 dBm Therefore the RF exposure is not required. Note: Client declares that no combination of Bluetooth, 2.4 GHz Wi-Fi and 5GHz Wi-Fi cannot transmit simultaneously.

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA*, NIST, or any agency of the Federal Government. * This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “*” (Rev.2) FCC PART 15, SUBPART C ISEDC RSS-247, ISSUE 2, FEBRUARY 2017 TEST REPORT For August Home 657 Bryant Street, San Francisco, CA 94107, USA FCC ID: 2AB6UASL05-5G IC: 12163A-ASL055G R e p o r t T y p e : O r i g i n a l R e p o r t P r o d u c t T y p e: Wi-F i S m a r t L o c k Reviewed By: Christian McCaig Test Engineer Report Number: R2209203-247 Report Date: 2022-10-19 Bay Area Compliance Laboratories Corp. 1274 Anvilwood Avenue, Sunnyvale, CA 94089, USA Tel: (408) 732-9162, Fax: (408) 732-9164 August Home, Inc. FCC ID: 2AB6UASL05-5G; IC: 12163A-ASL055G Report Number: R2209203-247 Page 2 of 68 FCC Part 15C/ISED RSS-247 Test Report TABLE OF CONTENTS 1 General Description ..................................................................................................................................................... 5 1.1 Product Description for Equipment Under Test (EUT) ...................................................................................... 5 1.2 Objective ............................................................................................................................................................. 5 1.3 Test Methodology ............................................................................................................................................... 5 1.4 Measurement Uncertainty ................................................................................................................................... 5 1.5 Test Facility Registrations .................................................................................................................................. 6 1.6 Test Facility Accreditations ................................................................................................................................ 6 2 System Test Configuration.......................................................................................................................................... 9 2.1 Justification ......................................................................................................................................................... 9 2.2 EUT Exercise Software....................................................................................................................................... 9 2.3 Duty Cycle Correction Factor ........................................................................................................................... 10 2.4 Equipment Modifications.................................................................................................................................. 12 2.5 Local Support Equipment ................................................................................................................................. 12 2.6 Support Equipment ........................................................................................................................................... 12 2.7 Interface Ports and Cabling ............................................................................................................................... 12 3 Summary of Test Results ............................................................................................................................................ 13 4 FCC §15.203 & ISEDC RSS-Gen §6.8 - Antenna Requirements ............................................................................ 14 4.1 Applicable Standards ........................................................................................................................................ 14 4.2 Antenna Description ......................................................................................................................................... 15 5 FCC §2.1091, §15.247(i) & ISEDC RSS-102 – RF Exposure ................................................................................... 16 5.1 Applicable Standards ........................................................................................................................................ 16 5.2 MPE Prediction ................................................................................................................................................. 17 5.3 MPE Results ..................................................................................................................................................... 17 5.4 RF exposure evaluation exemption for IC ........................................................................................................ 18 6 FCC §15.209, §15.247(d) & ISEDC RSS-247 §5.5, RSS-Gen §8.9, §8.10 - Spurious Radiated Emissions ........... 19 6.1 Applicable Standards ........................................................................................................................................ 19 6.2 Test Setup ......................................................................................................................................................... 22 6.3 Test Procedure .................................................................................................................................................. 22 6.4 Corrected Amplitude and Margin Calculation .................................................................................................. 22 6.5 Test Setup Block Diagram ................................................................................................................................ 23 6.6 Test Equipmen…

Text truncated - open the document above for the full version.

Jan. 2012 Titan Antenna (DVT Dual-Band Non- matching) Provided by: Eason Chen Date: 2019-07-29 Rev.1.2 Content Summary RF Cable Soldering Point Dual Band 2.4/5G Antenna (non matching) Antenna Information VSWR Efficiency & Peak Gain 2D Radiation Pattern 3D Radiation Pattern 3 Confidential Material for Internal Use Only Summary –2.4G/5G Dual Band (non matching) The summary antenna performance results shown in below. –VSWR •WNC Dual Band ANT : Under 3.6 @ 2GHz_Encoder brush left •WNC Dual Band ANT : Under 5.4 @ 5GHz_Encoder brush left •WNC Dual Band ANT : Under 2.6 @ 2GHz_Encoder brush right •WNC Dual Band ANT : Under 4.9 @ 5GHz_Encoder brush right –Radiation efficiency •WNC Dual Band ANT : 11~12% @ 2GHz_Encoder brush left •WNC Dual Band ANT : 12~29% @ 5GHz_Encoder brush left •WNC Dual Band ANT : 15~22% @ 2GHz_Encoder brush right •WNC Dual Band ANT : 13~25% @ 5GHz_Encoder brush right –Peak gain •WNC Dual Band ANT : Max-3.8dBi @ 2GH_Encoder brush left •WNC Dual Band ANT : Max1.2dBi @ 5GH_Encoder brush left •WNC Dual Band ANT : Max-0.8dBi @ 2GH_Encoder brush right •WNC Dual Band ANT : Max0.6dBi @ 5GH_Encoder brush right 4 Confidential Material for Internal Use Only RF Cable Soldering Point Antenna Matching π WiFi/BT Module RF CONNECTOR By Colin RF cable soldering point before DVT by Eason RF cable soldering point for DVT sampleby Eason Dual Band 2.4/5 GHz Antenna (non matching) 6 Confidential Material for Internal Use Only Antenna Information Non Matching C6010 pF C61NC C62NC Dual Band Antenna Antenna height (max) : 7.0mm WNC_DualBand ANT 5GHz Pattern 10.5mm 7 Confidential Material for Internal Use Only VSWR WNC_DualBand ANTWNC_DualBand ANT Encoder brush rightEncoder brush left 8 Confidential Material for Internal Use Only 240024502500Avg.51505250535055505850Avg. Eff.12%12%11%12%19%25%29%15%12%20% Eff. dB-9.32-9.04-9.75-7.32-5.99-5.41-8.36-9.25 Peak Gain-4.12-3.82-4.92-4.29-1.60-0.631.25-2.77-2.36-1.22 WNC Dual Band ANT Encoder brush left 240024502500Avg.51505250535055505850Avg. Eff.15%22%18%19%15%25%22%21%13%19% Eff. dB-8.15-6.51-7.42-8.19-6.03-6.61-6.87-8.71 Peak Gain-2.82-0.87-2.06-1.92-2.53-1.11-0.100.67-3.11-1.24 WNC Dual Band ANT Encoder brush right Efficiency & Peak Gain WNC_DualBand ANT 9 Confidential Material for Internal Use Only WNC_DualBand 2G ANT 2D Radiation Pattern 10 Confidential Material for Internal Use Only 2D Radiation Pattern WNC_DualBand 2G ANT 11 Confidential Material for Internal Use Only 2D Radiation Pattern WNC_DualBand 5G ANT 12 Confidential Material for Internal Use Only 2D Radiation Pattern WNC_DualBand 5G ANT 13 Confidential Material for Internal Use Only 3D Radiation Pattern -X +X +Y-Y+Z -X +X +Y -Y +Z WNC_DualBand 2G ANT WNC_DualBand 2G ANT 14 Confidential Material for Internal Use Only 3D Radiation Pattern -X +X +Y-Y +Z -X +X +Y-Y+Z WNC_DualBand 5G ANT WNC_DualBand 5G ANT

August Home, Inc. FCC ID: 2AB6UASL05-5G; IC: 12163A-ASL055G EUT Test Setup Photographs 1.1 Radiated Spurious Emission below 1 GHz Front View 1.2 Radiated Spurious Emission below 1 GHz Rear View August Home, Inc. FCC ID: 2AB6UASL05-5G; IC: 12163A-ASL055G 1.3 Radiated Spurious Emission 1-18 GHz Front View at 3 meters 1.4 Radiated Spurious Emission 1-18 GHz Rear View at 3 meters August Home, Inc. FCC ID: 2AB6UASL05-5G; IC: 12163A-ASL055G 1.5 Radiated Spurious Emission 1-18 GHz Front View at 1 meter 1.6 Radiated Spurious Emission 1-18 GHz Rear View at 1 meter August Home, Inc. FCC ID: 2AB6UASL05-5G; IC: 12163A-ASL055G 1.7 18-26.5GHz Front View 1.8 18-26.5GHz Rear View
