User Manual A01­PAR38 LED Lamp LED + Wi­Fi Range Extender Features  Install like any other light bulb. Easy to setup and enjoy the extended Wi­Fi signal coverage evenly.  Supports two Wi­Fi network mode: Access Point (AP) / Repeater  Two build­in antennas for high throughput data exchange rate of maximum 300Mbps  Compatible with most smart phones, tablets and computers that support Wi­Fi IEEE 802.11b/g/n standard at 2.4GHz.  Remote LED lights ON/OFF and dimming control individually or by group  Download the free Boost Android or iOS App to explore even greater functionality Box Contents  One A01­PAR38 Bulb  User Manual  Limited Written Express Warranty Product Specifications  Power Supply: 120V AC, 60Hz, 0.12A (Typ.)  Lamp Socket: E26 (US Version)  Power Consumption: 12.3W, Peak 15W (LED+Wi­Fi Repeater)  Power factor: 0.85 (Min.)  Operating Temperature: ­20° C ~ +40° C  Store Temperature: ­40° C ~ +70° C  Operating Humidity: 10% ≤ RH ≤ 95%, Non condensation  Atmospheric Pressure: 86kPa ~ 106kPa  Colour: Neutral White  Dimensions: 5.27" (H) x Φ 4.77" (Dia.)  Weight: 19.05oz (approx.) LED Lights  Power: 7.8 Watts  Luminance: 930 lumens  Light Beam Angle: 34 degrees  Colour Temperature: 2700K ­ Warm White  CRI: 80  Dimming: Yes (Do not use with external or outside dimmers) Wi­Fi Extender  Wi­Fi Standard: IEEE 802.11b/g/n  Wi­Fi Transmitter Frequency Range: 2.412 ­ 2.484 GHz  Power: 1.8 Watts (Standby), 2.8 Watts (Full load)  2T2R MIMO wireless technology  Security Mode: 64/128 bit WPA­PSK/WPA2­PSK, WPA/WPA2  Encryption Type: WEP64/WEP128/TKIP/AES  Wi­Fi Transmitter power: @ 802.11b: +20dBm (Max.) @ 802.11g: +18dBm (Max.) @ 802.11n: +15dBm (Max.)  Wi­Fi Receiver power: @ 802.11b: ­89dBm @ 802.11g: ­81dBm @ 802.11n: ­711dBm  Distance Range between Router and A01­PAR38 Bulb: 115 feet (near line of sight) © 2014 SENGLED, Incorporated. All rights reserved. Boost by SENGLED is a trademark of SENGLED, Incorporated, registered in the United States and other countries. Specifications are subject to change without notice. Apple, iPhone, iPad, iPad mini and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. Other Trademarks and trade names are the property of their respective owners. INSTALLATION INSTRUCTIONS WARNING ­ TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE BACK COVER OR TAKE APART. THERE ARE NO SERVICEABLE PARTS INSIDE. 1. Before installing the Boost into an E26 light bulb socket, turn the light switch to the OFF position. (DO NOT USE WITH EXTERNAL OR OUTSIDE DIMMERS). 2. Screw the bulb into an E26 socket and turn the power on. 3. On the portable smart device (e.g. smartphone or tablet), make sure WLAN is turned on and has been connected to the wireless router with a proper passport. 4. Search for the “boost by Sengled” for corresponding operating system, download and install it on a portable smart device: Get App from Google Play Store for Android Devices; 5. Launch the boost by Sengled application, and a 'Welcome' page appears. At the beginning, press the "network" tab to initialize boost A01­PAR38 bulb's configuration. After that, click the “START” button to enter the configuration and control interface of the bulb/s. 6. The App will search and list out nearby available wireless router/s automatically. Choose one of the routers as the root router. Type in the Access Password and press “Next” to move forward. 7. The App will also search and list out nearby available boost A01­PAR38 bulb/s. The default SSID of the bulb is “SENGLED_AP”. (ATTENTION: Figure shows below, SSID Name of "LL_AP_00_**" only for engineering samples demo). Press the “Start” tab for configuring all nearby available boost A01­PAR38 bulbs. If the root router is encrypted, the initialized bulb is also encrypted with a default password of "12345678". Input the bulb password and wait for the configuration process complete. 8. After the process of bulb network configuration has been succeeded, boost A01­PAR38 bulb/s will reboot (THIS PROCESS MAY TAKE FEW MINUTES, PLEASE BE PATIENCE). Press “Done” and return to the home page. 9. The App begins to search the configured online LED bulb/s. (SINCE THE BULB REBOOT PROCESS MAY TAKES FEW MINUTES, PLEASE BE PATIENCE AND REFRESH THE LIST FROM TIME TO TIME). After searching out all configured bulbs, the interface shows a Main Control Page. This can be used to control the overall LED light dimming and ON/OFF. 10. To control the LED bulb individually, pull up the bulb list at the bottom, each bulb can be dimmed separately. Click the arrow on the right, and it goes to the bulb wireless network configuration page. 11. Under the 'General' tab, the wireless network parameters of the bulb are listed (such as MAC address, IP Address). User can change bulb's SSID (listed on the WLAN table, visible name to public), or Name (listed on the boost by Sengled App) to a more meaningful name, such as "Living Room AP" or "Living Room Wi­Fi". Press "Apple" to active such changes. Under the 'Security' tab, user can change the Encryption Mode, or change the bulb access Password. Press "Apply" to active such changes. 12. If re­configuration of the wireless network is needed, press the Setting Menu button on the Main Control Page and click the "Network" tab. Re­initialize all bulbs on the network and start setup wizard again. 13. If the bulb cannot be detected by the portable smart devices or App in any ways, user can press the physical RESET button to reset the configuration of the bulb (in the middle of the LED lens), as shown below. IMPORTANT SAFETY INSTRUCTIONS • Read and keep these safety instructions. • Heed all warnings contained within these instructions. • Please follow all user manual instructions when installing the product. • Clean SENGLED product only with a dry towel. • This Product is intended for indoor use only. • Do NOT use this product outdoors. • Do NOT get this product wet and do NOT use near any water source. •…

Text truncated - open the document above for the full version.

CAUTION:

Zhejiang shenghui lighting Co., Ltd. Shanghai Branch

Zhejiang shenghui lighting Co., Ltd. Shanghai Branch

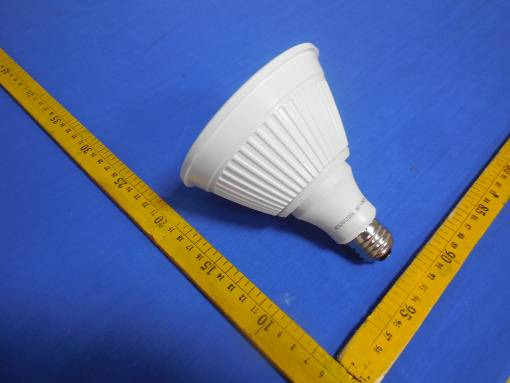

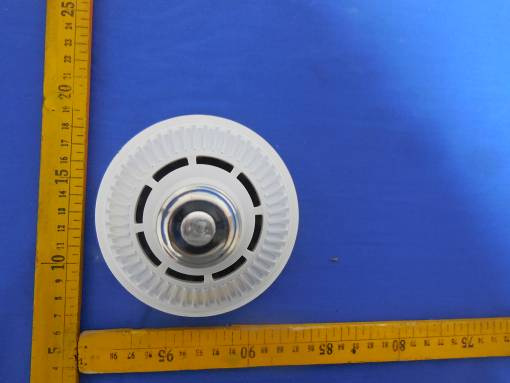

CERPASS TECHNOLOGY CORP. Report No.: SEFI1405042 Cerpass Technology Corp. Issued date : May 26, 2014 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 1 of 2 EXTERNAL PHOTOGRAPHS OF EUT 1) EUT Photo 2) EUT Photo CERPASS TECHNOLOGY CORP. Report No.: SEFI1405042 Cerpass Technology Corp. Issued date : May 26, 2014 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 2 of 2 3) EUT Photo 4) EUT Photo

CERPASS TECHNOLOGY CORP. Report No.: SEFI1405116 Cerpass Technology Corp. Issued date : Jun 11, 2014 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 1 of 3 INTERNAL PHOTOGRAPHS OF EUT 1) EUT Photo 2) EUT Photo(module) WIFI Antenna CERPASS TECHNOLOGY CORP. Report No.: SEFI1405116 Cerpass Technology Corp. Issued date : Jun 11, 2014 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 2 of 3 3) EUT Photo 4) EUT Photo CERPASS TECHNOLOGY CORP. Report No.: SEFI1405116 Cerpass Technology Corp. Issued date : Jun 11, 2014 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 3 of 3 5) EUT Photo 6) EUT Photo

MPE Calculation FCC ID: 2ABX8SH-000000002 Remark: Average ≤ Peak, which means that calculating the power density applying Peak power is worst case. The worst case operation mode generating the highest power in each frequency range is taken for calculation. Frequency range:2412-2462MHzTypical use distance: d ≥20cm Power density limit for mobile devices at 2.4 GHz: S ≤1mW/cm 2 Maximum measured conducted power (Peak): Pconducted =24.13dBm =258.82mW Antenna Gain: G = 1.93dBi =1.56on the linear scale Calculation: P radiated = P conducted + G linear =24.13dBm +1.93dBi =26.06dBm =403.65mW Power density S = (P radiated ) / (4π x d 2 ) =403.65/5026 =0.0803mW/cm 2 <1=> below limit Frequency range:2422-2452MHzTypical use distance: d ≥20cm Power density limit for mobile devices at 2.4 GHz: S ≤1mW/cm 2 Maximum measured conducted power (Peak): Pconducted =22.95dBm =197.24mW Antenna Gain: G = 1.93dBi =1.56on the linear scale Calculation: P radiated = P conducted + G linear =22.95dBm +1.93dBi =24.88dBm =307.61mW Power density S = (P radiated ) / (4π x d 2 ) =307.61/5026 =0.0612mW/cm 2 <1=> below limit

CERPASS TECHNOLOGY CORP. Report No.: SEFI1405042 Cerpass Technology Corp. Issued Date : May 26,2014 Tel:86 512 6917 5888 Fax: 86 512 6917 5666 Page No. : 1 of 90 FCC ID : 2ABX8 SH000000002 FCC TEST REPORT According to FCC CFR Title 47 Part 15 Subpart C Applicant : Zhejiang shenghui lighting Co., Ltd. Shanghai Branch Address : Rm. 801, 1st Xinye Building,388 Tianlin Rd., Caohejing Development Zone, Shanghai, 200233, China Equipment : LED Lamp Model No. : A01 PAR38 FCC ID : 2ABX8 SH000000002
The test result refers exclusively to the test presented test model / sample.
Without written approval of Cerpass Technology Corp. the test report shall not be reproduced except in full.
The test report must not be used by the clients to claim product certification approval by NVLAP or any agency of the Government. CERPASS TECHNOLOGY CORP. Report No.: SEFI1405042 Cerpass Technology Corp. Issued Date : May 26,2014 Tel:86 512 6917 5888 Fax: 86 512 6917 5666 Page No. : 2 of 90 FCC ID : 2ABX8 SH000000002 Table of Contents 1. Report of Measurements and Examinations ............................................................................................ 6 1.1 List of Measurements and Examinations .........................................................................................6 2. Test Configuration of Equipment under Test ........................................................................................... 7 2.1 Feature of Equipment under Test .....................................................................................................7 2.2 Carrier Frequency of Channels ........................................................................................................8 2.3 Test Manner ......................................................................................................................................9 2.4 Description of Test System .............................................................................................................10 2.5 General Information of Test ............................................................................................................11 2.6 Measurement Uncertainty ..............................................................................................................11 3. Antenna Requirements ............................................................................................................................. 12 3.1 Standard Applicable ........................................................................................................................12 3.2 Antenna Construction and Directional Gain ...................................................................................12 4. Test of Conducted Emission.................................................................................................................... 13 4.1 Test Limit.........................................................................................................................................13 4.2 Test Procedures..............................................................................................................................13 4.3 Typical Test Setup...........................................................................................................................14 4.4 Measurement Equipment ...............................................................................................................14 4.5 Test Result and Data ......................................................................................................................15 5. Test of Radiated Emission ....................................................................................................................... 17 5.1 Test Limit.........................................................................................................................................17 5.2 Test Procedures..............................................................................................................................17 5.3 Typical Test Setup...........................................................................................................................18 5.4 Measurement Equipment ...............................................................................................................19 5.5 Test Result and Data ......................................................................................................................20 6. Occupied Bandwidth................................................................................................................................. 33 6.1 Test Limit.........................................................................................................................................33 6.2 Test Procedures..............................................................................................................................33 6.3 Test Setup Layout ...........................................................................................................................33 6.4 Measurement Equipment ...............................................................................................................33 6.5 Test Result and Data ......................................................................................................................34 7. Maximum Peak Output Power ................................................................................................................. 46 7.1 Test Limit.........................................................................................................................................46 7.2 Test Procedure ...............................................................................................................................46 7.3 Test Setup Layout ...........................................................................................................................46 7.4 Measuremen…
