2ABX8SH-000000009Wireless Subwoofer Adapter

User Manual C01-BR30NA AMP Wireless Subwoofer Adapter Features  Easy setup and configuration  Wirelessly pairs with any Pulse Master bulb  Standard 3.5mm jack for quick connection to an existing subwoofer  Indicator lights for power, audio signal, and system connection  External power button for easy on/off Box Contents  Pulse Amp - C01-BR30NA AMP (one)  User Manual  Quick Start Guide  Limited Written Express Warranty Product Specifications (per device)  Model Number: C01-BR30NA AMP  Power Supply: 100~240V AC, 50/60Hz, 16~12mA  Power Consumption: 0.75W (Rated)  Operating Temperature: -20°C (-4°F) ~ +40°C (+104°F), Humidity: 10 ~ 90% Non-Condensing  Color: White  Dimensions: 3.78" (L) x 2.21" (W) x 0.95" (H)  Weight: 2.51oz/device (approx.)  Wireless connection between Pulse Amp and Master Bulb:5GHz wireless technology  Transmission Power between Pulse Amp and Master Bulb:9.74dBm § § Actual effective range will vary with network conditions and environmental factors including volume of network traffic, radio interference, building materials and construction, and network overhead. A maximum range of 60 to 100 feet is recommended between the Pulse Amp device and the Master bulb for optimal wireless transmission and audio quality. © 2015 Sengled, Incorporated. All rights reserved. Sengled pulse is a trademark of Sengled, Incorporated, registered in the United States and other countries. Specifications are subject to change without notice. Apple, iPhone, iPad, iPod, iPod touch and Retina are trademarks of Apple Inc., registered in the U.S. and other countries. iPad Air, iPad mini and Lightning are trademarks of Apple Inc. Other Trademarks and trade names are the property of their respective owners. EN Standard 3.5mm Line Out Power button Power Indicator: [ON] when the device is powered on. Wireless Connection Indicator: [ON – not blinking] when the device is connected to the Master Bulb; [ON – blinking] the device is waiting to be configured via the Pulse App. 3.5mm Line Out Indicator: [ON – not blinking] when a 3.5mm auxiliary cable is plugged into the device; [OFF] when a cable is not connected. HOW TO CONNECT PULSE AMP TO A MASTER BULB WARNING - TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, USE IN DRY LOCATIONS ONLY AND DO NOT EXPOSE TO RAIN OR LIQUIDS. WARNING - TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE BACK COVER OR TAKE APART. THERE ARE NO SERVICEABLE PARTS INSIDE. 1. Successfully configure Pulse (C01-BR30) bulbs (Master + AMP) before installing Pulse Amp 2. On your smart device, turn on Bluetooth and connect to the Pulse Master bulb 3. Plug in Pulse Amp near your subwoofer; Power on Pulse Amp and your subwoofer 4. Launch the Pulse App on your device 5. Select the “Add AMP” tab in the Settings menu 6. Select one of two methods to add the Pulse Amp to the Pulse speaker network: i. Select “Scan” to automatically scan the network, or ii. Manually type the “AD Code” as printed on the back of the Pulse Amp device NOTE: The AD code in QR format is labeled in two locations: The bottom side of the AMP packaging (near the bar code) and on the product itself. 7. Once the scanning is successful, select the “Link” option. Amp will then connect to the Master bulb after approximately 30 seconds. Do not turn any devices off during this process. 8. Pulse Amp should begin to blink, indicating that it has successfully connected to the Master bulb. Now you are able to enjoy Pulse wireless speakers supported with bass from your own subwoofer. To delete a connected AMP from the Master bulb 1. Ensure that the Pulse Master bulb and Pulse Amp devices are powered on and paired with your smart device via Bluetooth 2. Launch the Pulse App 3. Simply switch the Main Brightness ON/OFF button to confirm that all Pulse bulbs are connected under the same Master Bulb 4. Select the “Edit Label of Bulbs” tab in the Settings menu. 5. Select the AMP that you want to remove from the Audio Network, click Delete/Close button. 6. A delete confirmation will appear on the screen, click “OK” to continue 7. Wait for approximately 30 seconds. Do not power off the devices during this process 8. Click the “Refresh” tab in the Settings menu to confirm the device has been removed IMPORTANT SAFETY INSTRUCTIONS  Read and keep these safety instructions.  Heed all warnings contained within these instructions.  Please follow all user manual instructions when installing the product.  Only clean SENGLED product only with a dry towel.  This Product is intended for indoor use only.  Do NOT use this product outdoors.  Do NOT get this product wet and do NOT use near any water source.  The product should not be exposed to dripping or splashing liquids of any kind.  Do not install the product near any heat sources, such as heater, radiators, stove, heat registers or other apparatus that produce heat.  Ensure that the product is stable and secured in place during installation. If the product is dropped or falls out of the power socket, it may cause bodily harm.  If the product is dropped or falls out of the power socket, it may be damaged. Please check the product for any visible damage.  To reduce the risk of electric shock, do NOT remove the back cover or take apart. There are no serviceable parts inside.  To prevent product failure, the product should only be installed in operating environments ranging between -4 degrees Fahrenheit and +104 degrees Fahrenheit (-20 degrees Celsius and +40 degrees Celsius).  Never push any objects into the openings or slots on the product. Doing so may create an electric shock or fire hazard.  Maintain sufficient distance around your product for sufficient ventilation;  For best protection against lightning, unscrew the product from its power source during a storm.  Only use accessories specifically recommended by the manufacturer.  Refer all servicing to qualified SENGLED service technician.  Servicing is required when the product: 1. Has been damaged in any way 2.…

Text truncated - open the document above for the full version.

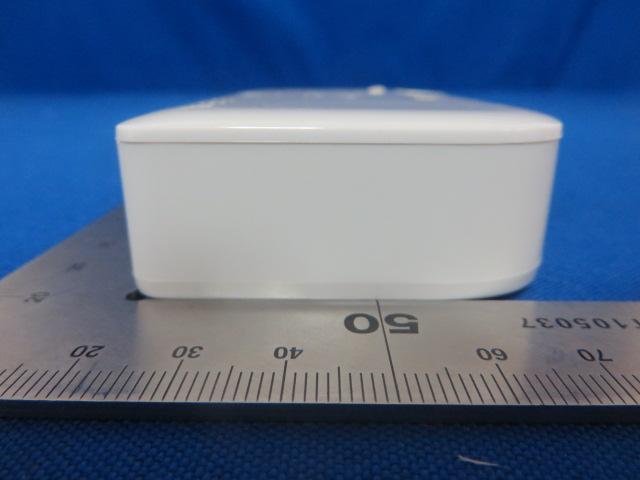

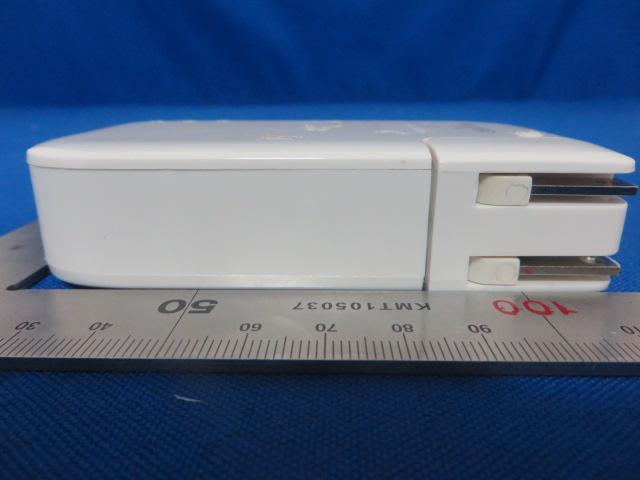

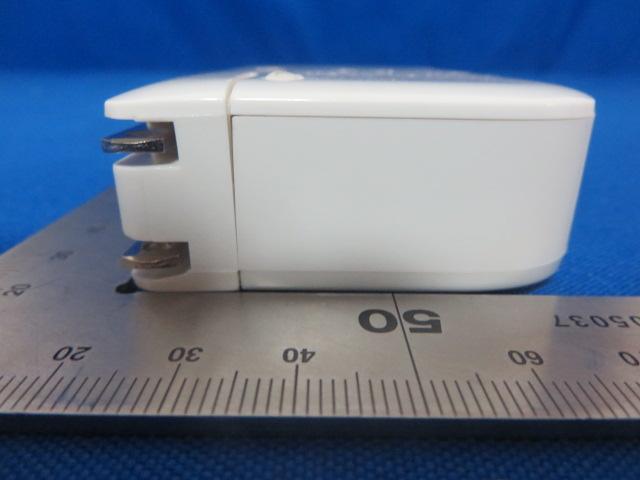

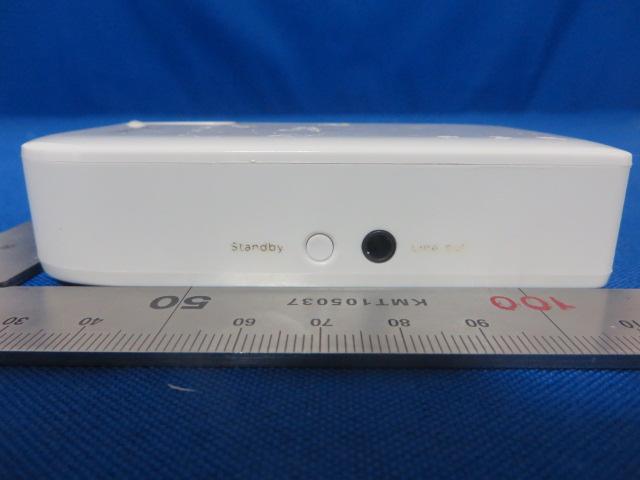

External Photo (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo (6) EUT Photo (7) EUT Photo

Label Location

Internal Photo (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo (6) EUT Photo (7) EUT Photo (8) EUT Photo (9) EUT Photo (10) EUT Photo (11) EUT Photo

MRT Technology (Suzhou) Co., Ltd Report No.: 1506RSU01702 Phone: +86-512-66308358 Report Version: V01 Fax: +86-512-66308368 Issue Date: 07-04-2015 Web: www.mrt-cert.com FCC ID: 2ABX8SH-000000009 Page Number: 1 of 5 RF Exposure Evaluation Declaration FCC ID: 2ABX8SH-000000009 APPLICANT: Zhejiang shenghui lighting Co., Ltd. Shanghai Branch Application Type: Certification Product: Wireless Subwoofer Adapter Model No.: C01-BR30NA AMP Brand Name: sengled FCC Classification: Unlicensed National Information Infrastructure (UNII) Reviewed By : ( Robin Wu ) Approved By : ( Marlin Chen ) The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standards through the calibration of the equipment and evaluated measurement uncertainty herein. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 1506RSU01702 FCC ID: 2ABX8SH-000000009 Page Number: 2 of 5 Revision History Report No. Version Description Issue Date 1506RSU01702 Rev. 01 Initial report 07-04-2015 Report No.: 1506RSU01702 FCC ID: 2ABX8SH-000000009 Page Number: 3 of 5 1. PRODUCT INFORMATION 1.1. Equipment Description 1.2. Operation Frequency / Channel list Channel Frequency Channel Frequency Channel Frequency 01 5180 MHz 02 5210 MHz 03 5240 MHz 04 5736 MHz 05 5762 MHz 06 5814 MHz 1.3. Antenna Description Antenna No. Antenna Type Frequency Band (GHz) Manufacturer Tx Paths Max Peak Gain (dBi) Antenna A PCB Antenna UNII-1 SMSC Inc. 1 3 UNII-3 1 3.2 Antenna B PCB Antenna UNII-1 SMSC Inc. 1 3 UNII-3 1 3.2 Product Name Wireless Subwoofer Adapter Model No. C01-BR30NA AMP Frequency Range 5150~5250MHz, 5725~5850MHz Type of Modulation QPSK Report No.: 1506RSU01702 FCC ID: 2ABX8SH-000000009 Page Number: 4 of 5 2. RF Exposure Evaluation 2.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- f/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- f/1500 6 1500-100,000 -- -- 1 30 f= Frequency in MHz Calculation Formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 r = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1mW/cm². If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Report No.: 1506RSU01702 FCC ID: 2ABX8SH-000000009 Page Number: 5 of 5 2.2. Test Result of RF Exposure Evaluation Product Wireless Subwoofer Adapter Test Item RF Exposure Evaluation Antenna Gain: Refer to Clause 1.2 of antenna description. CONCULISON: The Max Power Density at R (20 cm) = 0.0086mW/cm 2 < 1mW/cm 2 . So the EUT complies with the requirement. The End Test Mode Frequency Band (MHz) Maximum Average Output Power (dBm) Power Density at R = 20 cm (mW/cm 2 ) Limit (mW/cm 2 ) QPSK 5150 ~ 5250 12.34 0.0068 1 QPSK 5725 ~ 5850 13.18 0.0086 1

MRT Technology (Suzhou) Co., Ltd Report No.: 1506RSU01701 Phone: +86-512-66308358 Report Version: V01 Fax: +86-512-66308368 Issue Date: 07-04-2015 Web: www.mrt-cert.com FCC ID: 2ABX8SH-000000009 Page Number: 1 of 86 IC:12219A-00000000009 FCC ID: 2ABX8SH-000000009 IC: 12219A-00000000009 APPLICANT: Zhejiang shenghui lighting Co., Ltd. Shanghai Branch Application Type: Certification Product: Wireless Subwoofer Adapter Model No.: C01-BR30NA AMP Brand Name: Sengled FCC Classification: Unlicensed National Information Infrastructure (UNII) FCC Rule Part(s): Part 15.407 IC Rule(s): RSS-247 Issue 1 Test Procedure(s): ANSI C63.10-2013, KDB 789033 D02v01 Test Date: Jun.06 ~ 25, 2015 MEASUREMENT REPORT FCC PART 15.407 & RSS-247 Reviewed By : ( Robin Wu ) Approved By : ( Marlin Chen ) The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB 789033 D02v01. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 1506RSU01701 FCC ID: 2ABX8SH-000000009 Page Number: 2 of 86 IC:12219A-00000000009 Revision History Report No. Version Description Issue Date 1506RSU01701 Rev. 01 Initial report 07-04-2015 Report No.: 1506RSU01701 FCC ID: 2ABX8SH-000000009 Page Number: 3 of 86 IC:12219A-00000000009 CONTENTS Description Page 1. INTRODUCTION ..................................................................................................................... 6 1.1. Scope ........................................................................................................................... 6 1.2. MRT Test Location ....................................................................................................... 6 2. PRODUCT INFORMATION ..................................................................................................... 7 2.1. Equipment Description .................................................................................................. 7 2.2. Operation Frequency / Channel list ............................................................................... 7 2.3. Description of Available Antennas ................................................................................. 7 2.4. Device Capabilities ....................................................................................................... 8 2.5. Test Configuration ........................................................................................................ 9 2.6. EMI Suppression Device(s)/Modifications ..................................................................... 9 2.7. Labeling Requirements ................................................................................................. 9 3. DESCRIPTION OF TEST ...................................................................................................... 10 3.1. Evaluation Procedure ................................................................................................. 10 3.2. AC Line Conducted Emissions ................................................................................... 10 3.3. Radiated Emissions ..................................................................................................... 11 4. ANTENNA REQUIREMENTS ................................................................................................ 12 5. TEST EQUIPMENT CALIBRATION DATE ............................................................................ 13 6. MEASUREMENT UNCERTAINTY ......................................................................................... 14 7. TEST RESULT ...................................................................................................................... 15 7.1. Summary .................................................................................................................... 15 7.2. 26dB Bandwidth Measurement ................................................................................... 17 7.2.1. Test Limit .................................................................................................................... 17 7.2.2. Test Procedure used ................................................................................................... 17 7.2.3. Test Setting ................................................................................................................. 17 7.2.4. Test Setup .................................................................................................................. 17 7.2.5. Test Result .................................................................................................................. 18 7.3. 6dB Bandwidth Measurement ..................................................................................... 21 7.3.1. Test Limit .................................................................................................................... 21 7.3.2. Test Procedure used ................................................................................................... 21 7.3.3. Test Setting ................................................................................................................. 21 7.3.4. Test Setup .................................................................................................................. 21 7.3.5. Test Result .................................................................................................................. 22 7.4. Operation Frequency Range of 26dBc Bandwidth Measurement ................................ 24 Report No.: 1506RSU01701 FCC ID: 2ABX8SH-000000009 Page Number: 4 of 86 IC:12219A-00000000009 7.4.1. Test Limit ...................................................................................…

Text truncated - open the document above for the full version.

1 of 3 FCC 15E & RSS-247 Test Setup Photo Description: Front view of Conducted Emission Test Setup Description: Back view of Conducted Emission Test Setup Description: Radiated Emission Test Setup for 9kHz ~ 30MHz Description: Radiated Emission Test Setup for 30MHz ~ 1GHz Description: Radiated Emission Test Setup for 1GHz ~ 18GHz Description: Radiated Emission Test Setup for 18GHz ~ 25GHz
