2ABX8SH-000000013Pulse Link

User Manual C01-BR30NA LINK Features  Easy setup and configuration  Enjoy the energy saving from LED and high-quality JBL® stereo audio system  Create up to 7 wireless speaker bulbs system, control and playing synchronously  Quick connection via a standard 3.5mm AUX cable for audio playing  Compatible with most smart phones, tablets and computers that support Bluetooth® technology  Indicator lights for power, 3.5mm AUX audio signal, and Bluetooth connection  Sengled Pulse Android/iOS App provides greater functionality and control Box Contents  One Pulse Link (C01-BR30NA LINK), Two Pulse Satellite bulbs (C01-BR30)  User Manual  Quick Start Guide  Limited Written Express Warranty Product Specifications (Pulse Link, per device)  Model Number: C01-BR30NA LINK  Power Supply: 100~240V AC, 50/60Hz, 20mA(Max)  Power Consumption: 1.35W (Rated)  Operating Temperature: -20°C (-4°F) ~ +40°C (+104°F), Humidity: 10 ~ 90% Non-Condensing  Color: White  Dimensions: 3.78" (L) x 2.21" (W) x 0.95" (H)  Weight: 2.68oz/device (approx.)  Frequency Response: 100 Hz - 20 kHz  System Wireless Point-to-Point Latency < 20ms  Bluetooth Standard: v2.1 + EDR (Class 2), 2.402 - 2.480 GHz  Bluetooth Profiles: A2DP, AVRCP, SPP etc.  Bluetooth Transmission Power: 4dBm, 10 meters (near line of sight, without any hindrance)  Wireless Connection between Pulse Link and Satellite Bulb: 5GHz wireless technology  Transmission Power between Pulse Link and Satellite Bulb: 9.74dBm § § Actual effective range will vary with network conditions and environmental factors including volume of network traffic, radio interference, building materials and construction, and network overhead. A maximum range of 60 to 100 feet is recommended between the Pulse Link and the Satellite bulb for optimal wireless transmission and audio quality. © 2015 Sengled, Incorporated. All rights reserved. Sengled Pulse is a trademark of Sengled, Incorporated, registered in the United States and other countries. Specifications are subject to change without notice. Other Trademarks and trade names are the property of their respective owners. Pulse Link Introduction —Standard 3.5mm Line In —Power button Power Indicator: [ON] when the device is powered on. Wireless Connection Indicator: [ON – blinking] the device is waiting to be connected via Bluetooth. [ON – not blinking] when the device is connected to the smart device via Bluetooth; 3.5mm Line In Indicator: [OFF] when a cable is not connected. [ON – not blinking] when a 3.5mm auxiliary cable is plugged into the device; INSTALLATION INSTRUCTIONS WARNING - TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, USE IN DRY LOCATIONS ONLY AND DO NOT EXPOSE TO RAIN OR LIQUIDS. WARNING - TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE BACK COVER OR TAKE APART. THERE ARE NO SERVICEABLE PARTS INSIDE. 1. Before installing the Pulse Satellite bulb into a light bulb socket (E26), turn the light switch to the OFF position. (DO NOT USE WITH EXTERNAL OR OUTSIDE DIMMERS). 2. Screw the bulb into asocket (E26) and turn the power on. The LED light will turn on. NOTICE: The stereo sound effect is affected by the installation position in the lighting fixture, the distance between Pulse Link and Satellite bulbs, and the room space etc., to achieve the best stereo sound effect, please make sure the LED plastic cover is at the same level of the lighting fixtures (in Horizontal), and a distance around one to three meters between bulbs is recommended. 3. Plug in Pulse Link near Satellite bulbs. Power on Pulse Link, connect it with any device (e.g. TV, MP3, smartphone, tablet, or computer) which has a 3.5mm aux output via a 3.5mm Aux cable for audio output through Satellite bulbs. Or go to step 4 to connect Pulse Link via Bluetooth for wireless audio controlling. 4. On the portable smart device (e.g. smartphone, tablet, or computer), make sure Bluetooth is turned on. Then via Bluetooth, connect the smart device with the Pulse Link. The default Pulse Link’s Bluetooth ID is ‘C01-BR30’. Once connected, user can launch any media App on the smart device to enjoy music via the Pulse light speakers. Or go to Step 5 to download and install Pulse mobile App for greater control of the light and speakers. 5. Search for the 'Pulse by Sengled' or 'Sengled pulse' App for corresponding operating system, download and install it on a portable smart device: Get App from Google Play Store for Android Devices; Get App from App Store for Apple iOS Devices. Compatible with iPhone 6s Plus, iPhone 6s , iPhone 6 Plus, iPhone 6 ,iPhone 5s, iPhone 5c, iPhone 5, iPhone 4s, iPad Air, iPad mini with Retina display, iPad (4th generation), iPod touch (5th generation). Or get more information from www.sengled.com 6. Open the Pulse application, and a 'Welcome' page appears. Select Pulse Link and the Pulse App will search and connect to the Pulse Link automatically. The wizard guides you through the steps for connecting your portable smart device to the Pulse Link. If the application doesn't detect the Pulse Link, restart the application and setup wizard again. 7. Once the portable device has been successfully connected to the Pulse Link, the application will display the main control screen. Press the 'Lights' or 'Sounds' tab to switch between them and achieve different functions, such as Light Brightness & Settings, Sound Volume & Settings, and Equalizer (EQ) Settings etc. To add a new Satellite bulb to the Pulse Link 1. Successfully configure Pulse Link (C01-BR30) and the current Satellite bulbs before installing a new Satellite bulb. 2. On your smart device, turn on Bluetooth and connect to the Pulse Link. 3. Install the new Satellite bulb in the proper light socket. 4. Turn on the new Satellite bulb. 5. Launch the Pulse App on your device 6. Select one of two methods to add the Pulse Satellite bulb to the Pulse Link network: i. Select “Scan QR code” to automatically scan the network, or ii. Manually type the Satellite bulb “AD Code”. NOTE: The …

Text truncated - open the document above for the full version.

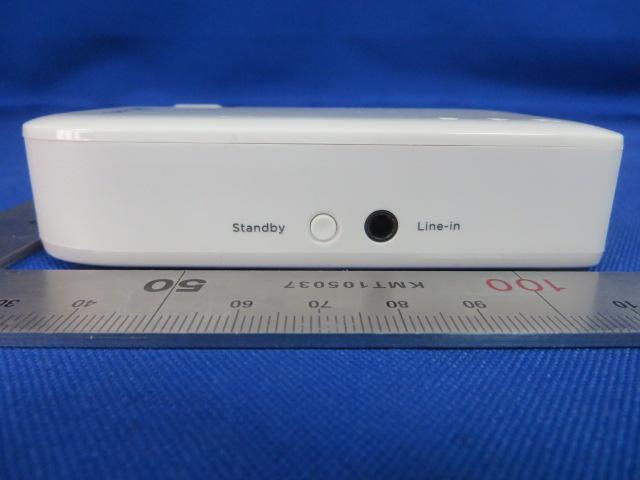

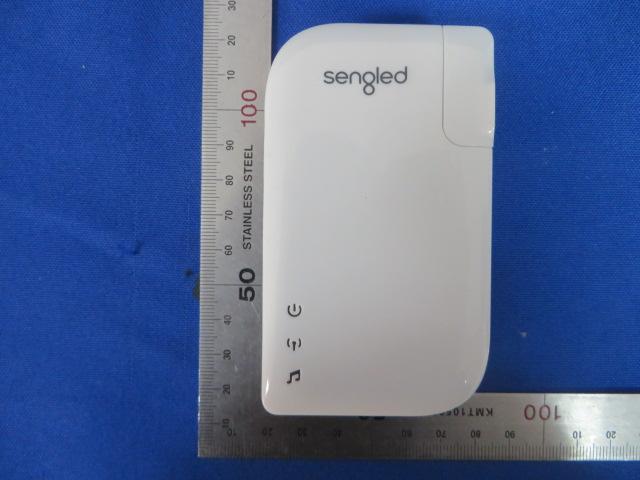

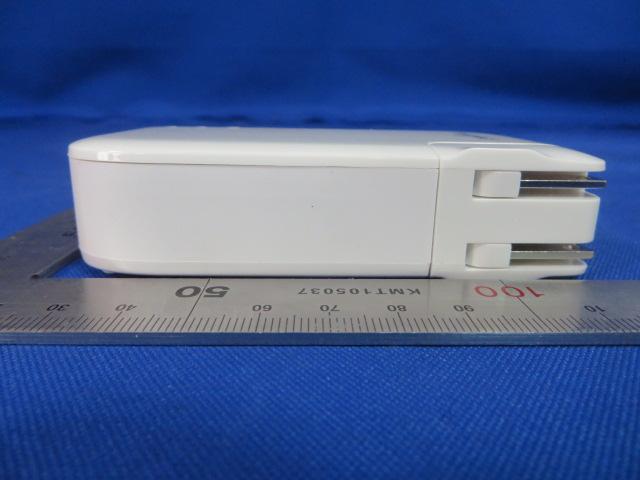

External Photo (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo (6) EUT Photo

Label Label Location

Internal Photo (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo (6) EUT Photo (7) EUT Photo (8) EUT Photo (9) EUT Photo (10) EUT Photo (11) EUT Photo (12) EUT Photo (13) EUT Photo (14) EUT Photo (15) EUT Photo

MRT Technology (Suzhou) Co., Ltd Report No.: 1601RSU00304 Phone: +86-512-66308358 Report Version: V01 Fax: +86-512-66308368 Issue Date: 01-14-2016 Web: www.mrt-cert.com FCC ID: 2ABX8SH-000000013 Page Number: 1 of 5 RF Exposure Evaluation Declaration FCC ID: 2ABX8SH-000000013 APPLICANT: Zhejiang shenghui lighting Co., Ltd. Shanghai Branch Application Type: Certification Product: Pulse Link Model No.: C01-BR30NA LINK Brand Name: sengled FCC Classification: FCC Part 15 Spread Spectrum Transmitter(DSS) Unlicensed National Information Infrastructure (UNII) Reviewed By : ( Robin Wu ) Approved By : ( Marlin Chen ) The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standards through the calibration of the equipment and evaluated measurement uncertainty herein. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 1601RSU00304 FCC ID: 2ABX8SH-000000013 Page Number: 2 of 5 Revision History Report No. Version Description Issue Date 1601RSU00304 Rev. 01 Initial report 01-14-2016 Report No.: 1601RSU00304 FCC ID: 2ABX8SH-000000013 Page Number: 3 of 5 1. PRODUCT INFORMATION 1.1. Equipment Description 1.2. Antenna Description Antenna No. Antenna Type Frequency Band (MHz) Manufacturer Tx Paths Max Peak Gain (dBi) Bluetooth Antenna Antenna PCB Antenna 2402 ~ 2480 Zhejiang shenghui lighting Co., Ltd. Shanghai Branch 1 3.1 Wireless Antenna Antenna A PCB Antenna 5180 ~ 5240 SMSC Inc. 1 3.0 5736 ~ 5814 1 3.2 Antenna B PCB Antenna 5180 ~ 5240 SMSC Inc. 1 3.0 5736 ~ 5814 1 3.2 Product Name Pulse Link Model No. C01-BR30NA LINK Frequency Range Buletooth: 2402~2480MHz Wireless: 5150~5250MHz, 5725~5850MHz Type of Modulation Buletooth: 1Mbps(GFSK), 2Mbps(Pi/4 DQPSK), 3Mbps (8DPSK) Wireless: QPSK Report No.: 1601RSU00304 FCC ID: 2ABX8SH-000000013 Page Number: 4 of 5 2. RF Exposure Evaluation 2.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- f/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- f/1500 6 1500-100,000 -- -- 1 30 f= Frequency in MHz Calculation Formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 r = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1mW/cm². If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Report No.: 1601RSU00304 FCC ID: 2ABX8SH-000000013 Page Number: 5 of 5 2.2. Test Result of RF Exposure Evaluation Product Pulse Link Test Item RF Exposure Evaluation Antenna Gain: Refer to Clause 1.2 of antenna description. CONCULISON: Both of the Bluetooth 2.4GHz and Wireless 5GHz can transmit simultaneously. Therefore, the Max Power Density at R (20 cm) = 0.0004mW/cm 2 + 0.0086mW/cm 2 = 0.0090mW/cm 2 < 1mW/cm 2 . So the EUT complies with the requirement. The End Test Mode Frequency Band (MHz) Maximum Output Power (dBm) Power Density at R = 20 cm (mW/cm 2 ) Limit (mW/cm 2 ) Bluetooth 2402 ~ 2480 0.44 0.0004 1 Wireless 5180 ~ 5240 9.46 0.0035 1 5736 ~ 5814 13.18 0.0086 1

MRT Technology (Suzhou) Co., Ltd Report No.: 1601RSU00303 Phone: +86-512-66308358 Report Version: V01 Fax: +86-512-66308368 Issue Date: 01-14-2016 Web: www.mrt-cert.com FCC ID: 2ABX8SH-000000013 Page Number: 1 of 4 FCC ID: 2ABX8SH-000000013 APPLICANT: Zhejiang shenghui lighting Co., Ltd. Shanghai Branch Application Type: Certification Product: Pulse Link Model No.: C01-BR30NA LINK Brand Name: Sengled FCC Classification: FCC Part 15 Spread Spectrum Transmitter(DSS) Unlicensed National Information Infrastructure (UNII) Test Date: June 06, 2015 ~ January 12, 2016 Co-location Report Reviewed By : ( Robin Wu ) Approved By : ( Marlin Chen ) The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4-2014. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 1601RSU00303 FCC ID: 2ABX8SH-000000013 Page Number: 2 of 4 Revision History Report No. Version Description Issue Date 1601RSU00303 Rev. 01 Initial report 01-14-2016 Report No.: 1601RSU00303 FCC ID: 2ABX8SH-000000013 Page Number: 3 of 4 1. Test Result of Radiated Emissions for Co-located Test Mode: 2.4GHz + 5GHz Transmit Test Site: AC1 Test Engineer: Lewis Huang Polarity: Horizontal Remark: There is the ambient noise within frequency range 9kHz~30MHz and 18GHz~40GHz, the permissible value is not show in the report. No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 7341.000 44.776 35.051 -29.224 74.000 9.725 PK 2 7341.000 33.365 23.640 -20.635 54.000 9.725 AV 3 9534.000 45.340 34.229 -28.660 74.000 11.112 PK 4 9534.000 32.451 21.340 -21.549 54.000 11.112 AV 5 12033.000 48.840 33.455 -25.160 74.000 15.385 PK 6 * 12033.000 35.525 20.140 -18.475 54.000 15.385 AV Note 1: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) – Pre_Amplifier Gain (dB). Note 2: We selected the 2.4GHz and 5GHz worst-case mode of radiated spurious emissions in the DSS reports. Report No.: 1601RSU00303 FCC ID: 2ABX8SH-000000013 Page Number: 4 of 4 Test Mode: 2.4GHz + 5GHz Transmit Test Site: AC1 Test Engineer: Lewis Huang Polarity: Vertical Remark: There is the ambient noise within frequency range 9kHz~30MHz and 18GHz~40GHz, the permissible value is not show in the report. No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 7137.000 43.487 33.991 -30.513 74.000 9.496 PK 2 7137.000 29.183 19.687 -24.817 54.000 9.496 AV 3 10010.000 45.845 33.825 -28.155 74.000 12.020 PK 4 10010.000 32.384 20.364 -21.616 54.000 12.020 AV 5 * 13027.000 34.446 18.348 -19.554 54.000 16.099 AV 6 13027.500 48.913 32.826 -25.087 74.000 16.086 PK Note 1: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) – Pre_Amplifier Gain (dB). Note 2: We selected the 2.4GHz and 5GHz worst-case mode of radiated spurious emissions in the DSS reports. The End

MRT Technology (Suzhou) Co., Ltd Report No.: 1601RSU00302 Phone: +86-512-66308358 Report Version: V01 Fax: +86-512-66308368 Issue Date: 01-14-2016 Web: www.mrt-cert.com FCC ID: 2ABX8SH-000000013 Page Number: 1 of 87 IC:12219A-00000000013 FCC ID: 2ABX8SH-000000013 IC: 12219A-00000000013 APPLICANT: Zhejiang shenghui lighting Co., Ltd. Shanghai Branch Application Type: Certification Product: Pulse Link Model No.: C01-BR30NA LINK Brand Name: Sengled FCC Classification: Unlicensed National Information Infrastructure (UNII) FCC Rule Part(s): Part 15.407 IC Rule(s): RSS-247 Issue 1, RSS-Gen Issue 4 Test Procedure(s): ANSI C63.10-2013, KDB 789033 D02v01r01 Test Date: June 06, 2015 ~ January 12, 2016 MEASUREMENT REPORT FCC PART 15.407 & RSS-247 Reviewed By : ( Robin Wu ) Approved By : ( Marlin Chen ) The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB 789033 D02v01r01. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 1601RSU00302 FCC ID: 2ABX8SH-000000013 Page Number: 2 of 87 IC:12219A-00000000013 Revision History Report No. Version Description Issue Date 1601RSU00302 Rev. 01 Initial report 01-14-2016 Report No.: 1601RSU00302 FCC ID: 2ABX8SH-000000013 Page Number: 3 of 87 IC:12219A-00000000013 CONTENTS Description Page 1. INTRODUCTION ..................................................................................................................... 6 1.1. Scope ........................................................................................................................... 6 1.2. MRT Test Location ....................................................................................................... 6 2. PRODUCT INFORMATION ..................................................................................................... 7 2.1. Equipment Description .................................................................................................. 7 2.2. Product Specification Subjective to this Standard ......................................................... 7 2.3. Operation Frequency / Channel list ............................................................................... 7 2.4. Description of Available Antennas ................................................................................. 7 2.5. Device Capabilities ....................................................................................................... 8 2.6. Test Configuration ........................................................................................................ 9 2.7. EMI Suppression Device(s)/Modifications ..................................................................... 9 2.8. Labeling Requirements ................................................................................................. 9 3. DESCRIPTION OF TEST ...................................................................................................... 10 3.1. Evaluation Procedure ................................................................................................. 10 3.2. AC Line Conducted Emissions ................................................................................... 10 3.3. Radiated Emissions ..................................................................................................... 11 4. ANTENNA REQUIREMENTS ................................................................................................ 12 5. TEST EQUIPMENT CALIBRATION DATE ............................................................................ 13 6. MEASUREMENT UNCERTAINTY ......................................................................................... 14 7. TEST RESULT ...................................................................................................................... 15 7.1. Summary .................................................................................................................... 15 7.2. 26dB Bandwidth Measurement ................................................................................... 17 7.2.1. Test Limit .................................................................................................................... 17 7.2.2. Test Procedure used ................................................................................................... 17 7.2.3. Test Setting ................................................................................................................. 17 7.2.4. Test Setup .................................................................................................................. 17 7.2.5. Test Result .................................................................................................................. 18 7.3. 6dB Bandwidth Measurement ..................................................................................... 21 7.3.1. Test Limit .................................................................................................................... 21 7.3.2. Test Procedure used ................................................................................................... 21 7.3.3. Test Setting ................................................................................................................. 21 7.3.4. Test Setup .................................................................................................................. 21 7.3.5. Test Result .................................................................................................................. 22 Report No.: 1601RSU00302 FCC ID: 2ABX8SH-000000013 Page Number: 4 of 87 IC:12219A-00000000013 7.4. Operation Frequency Range of 26dBc Bandwidth Measurement…

Text truncated - open the document above for the full version.

Report No.: 1601RSU00302 FCC ID: 2ABX8SH-000000013 Page Number: 46 of 87 IC:12219A-00000000013 Test Mode: Ant A Test Site: AC1 Test Channel: 05 Test Engineer: Roy Cheng Remark: 1. Average measurement was not performed if peak level lower than average limit. 2. Other frequency was 20dB below limit line within 1-18GHz, there is not show in the report. Mark Frequency (MHz) Reading Level (dBμV) Factor (dB) Measure Level (dBμV/m) Limit (dBμV/m) Margin (dB) Detector Polarization * 6950.0 39.6 6.7 46.3 68.2 -21.9 Peak Horizontal * 7902.0 36.9 8.3 45.2 68.2 -23.0 Peak Horizontal 9321.5 35.7 10.4 46.1 74.0 -27.9 Peak Horizontal 15620.0 39.9 12.1 52.0 74.0 -22.0 Peak Horizontal * 6950.0 41.3 6.7 48.0 68.2 -20.2 Peak Vertical * 7910.5 35.9 8.4 44.3 68.2 -23.9 Peak Vertical 9364.0 35.4 10.5 45.9 74.0 -28.1 Peak Vertical 15637.0 41.2 12.0 53.2 74.0 -20.8 Peak Vertical Note 1: “*” is not in restricted band, its limit is -27dBm/MHz. At a distance of 3 meters, the field strength limit in dBμV/m can be determined by adding a “conversion” factor of 95.2dB to the EIRP limit of -27dBm/MHz to obtain the limit for out of band spurious emissions. Note 2: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) – Pre_Amplifier Gain (dB) Report No.: 1601RSU00302 FCC ID: 2ABX8SH-000000013 Page Number: 47 of 87 IC:12219A-00000000013 Test Mode: Ant B Test Site: AC1 Test Channel: 05 Test Engineer: Roy Cheng Remark: 1. Average measurement was not performed if peak level lower than average limit. 2. Other frequency was 20dB below limit line within 1-18GHz, there is not show in the report. Mark Frequency (MHz) Reading Level (dBμV) Factor (dB) Measure Level (dBμV/m) Limit (dBμV/m) Margin (dB) Detector Polarization * 6950.0 40.4 6.7 47.1 68.2 -21.1 Peak Horizontal * 7987.0 35.7 8.7 44.4 68.2 -23.8 Peak Horizontal 9347.0 35.1 10.5 45.6 74.0 -28.4 Peak Horizontal 15628.5 40.2 12.1 52.3 74.0 -21.7 Peak Horizontal * 6950.0 40.9 6.7 47.6 68.2 -20.6 Peak Vertical * 7978.5 36.7 8.7 45.4 68.2 -22.8 Peak Vertical 9364.0 36.1 10.5 46.6 74.0 -27.4 Peak Vertical 15628.5 40.9 12.1 53.0 74.0 -21.0 Peak Vertical Note 1: “*” is not in restricted band, its limit is -27dBm/MHz. At a distance of 3 meters, the field strength limit in dBμV/m can be determined by adding a “conversion” factor of 95.2dB to the EIRP limit of -27dBm/MHz to obtain the limit for out of band spurious emissions. Note 2: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) – Pre_Amplifier Gain (dB) Report No.: 1601RSU00302 FCC ID: 2ABX8SH-000000013 Page Number: 48 of 87 IC:12219A-00000000013 Test Mode: Ant A Test Site: AC1 Test Channel: 06 Test Engineer: Roy Cheng Remark: 1. Average measurement was not performed if peak level lower than average limit. 2. Other frequency was 20dB below limit line within 1-18GHz, there is not show in the report. Mark Frequency (MHz) Reading Level (dBμV) Factor (dB) Measure Level (dBμV/m) Limit (dBμV/m) Margin (dB) Detector Polarization * 6984.0 38.6 6.8 45.4 68.2 -22.8 Peak Horizontal * 7842.5 35.5 8.4 43.9 68.2 -24.3 Peak Horizontal 9423.5 36.0 10.6 46.6 74.0 -27.4 Peak Horizontal 15713.5 39.9 11.8 51.7 74.0 -22.3 Peak Horizontal * 6984.0 40.9 6.8 47.7 68.2 -20.5 Peak Vertical * 7834.0 36.9 8.4 45.3 68.2 -22.9 Peak Vertical 9338.5 34.8 10.4 45.2 74.0 -28.8 Peak Vertical 15713.5 40.7 11.8 52.5 74.0 -21.5 Peak Vertical Note 1: “*” is not in restricted band, its limit is -27dBm/MHz. At a distance of 3 meters, the field strength limit in dBμV/m can be determined by adding a “conversion” factor of 95.2dB to the EIRP limit of -27dBm/MHz to obtain the limit for out of band spurious emissions. Note 2: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) – Pre_Amplifier Gain (dB) Report No.: 1601RSU00302 FCC ID: 2ABX8SH-000000013 Page Number: 49 of 87 IC:12219A-00000000013 Test Mode: Ant B Test Site: AC1 Test Channel: 06 Test Engineer: Roy Cheng Remark: 1. Average measurement was not performed if peak level lower than average limit. 2. Other frequency was 20dB below limit line within 1-18GHz, there is not show in the report. Mark Frequency (MHz) Reading Level (dBμV) Factor (dB) Measure Level (dBμV/m) Limit (dBμV/m) Margin (dB) Detector Polarization * 6984.0 38.9 6.8 45.7 68.2 -22.5 Peak Horizontal * 7876.5 36.1 8.4 44.5 68.2 -23.7 Peak Horizontal 9330.0 35.7 10.4 46.1 74.0 -27.9 Peak Horizontal 15713.5 40.5 11.8 52.3 74.0 -21.7 Peak Horizontal * 6984.0 41.2 6.8 48.0 68.2 -20.2 Peak Vertical * 7978.5 37.1 8.7 45.8 68.2 -22.4 Peak Vertical 9338.5 34.5 10.4 44.9 74.0 -29.1 Peak Vertical 15713.5 40.0 11.8 51.8 74.0 -22.2 Peak Vertical Note 1: “*” is not in restricted band, its limit is -27dBm/MHz. At a distance of 3 meters, the field strength limit in dBμV/m can be determined by adding a “conversion” factor of 95.2dB to the EIRP limit of -27dBm/MHz to obtain the limit for out of band spurious emissions. Note 2: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) – Pre_Amplifier Gain (dB) Report No.: 1601RSU00302 FCC ID: 2ABX8SH-000000013 Page Number: 50 of 87 IC:12219A-00000000013 The worst case of Radiated Emission below 1GHz: Site: AC1 Time: 2015/06/20 - 12:14 Limit: FCC_Part15.209_RE(3m) Engineer: Lewis Huang Probe: VULB9162_0.03-8GHz Polarity: Horizontal EUT: Pulse Link Power: AC 120V/60Hz Worst Mode: Transmit at channel 5180MHz No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 221.090 26.832 14.200 -19.168 46.000 12.632 QP 2 356.485 24.275 8.400 -21.725 46.000 15.875 QP 3 368.650 24.761 8.700 -21.239 46.000 16.061 QP 4 466.985 27.744 10.100 -18.256 46.000 17.644 QP 5 786.479 25.048 2.500 -20.952 46.000 22.548 QP 6 * 946.286 29.616 5.300 -16.384 46.000 24.315 QP Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (d…

Text truncated - open the document above for the full version.

1 of 3 Test Setup Photo Description: Front View of the Conducted Emission Test Setup for 0.15kHz ~ 30MHz Description: Back View of the Conducted Emission Test Setup for 0.15kHz ~ 30MHz Description: Radiated Emission Test Setup for 9kHz ~ 30MHz Description: Radiated Emission Test Setup for 30MHz ~ 1GHz Description: Radiated Emission Test Setup for 1GHz ~ 18GHz Description: Radiated Emission Test Setup for 18GHz ~ 40GHz
