2ABX8SH-000000008sengled snap

1 Snap User manual Parameter AS01-PAR38NAE26 100-120V 50/60Hz 145mA , 14W(rate) 800LM, 3000K ,E26 User operation instructor I Software download way Step1 : Log in https://appdownload.cloud.sengled.com:8099/ Step2: Can see the android and ios APP download address. Then knock the download button for set up . IIEquipment installation method Tighten the light clockwise on the lamp holder，Then the lamp counterclockwise Until the camera direction at 6 o 'clock. Light to electricity, to ensure that the state of the lamp is red，if is blue，Please long press the reset button until the led flashes after reset，then can use the Snap App for next setting .  III App Operation Method 1. Open the App, named Snap . The logo is as this , . 2. Log in sengled account . I f you haven’t the cloud account, need to log in firstly.(as the PIC 3.2.1 and 3.2.2) 2 PIC 3.2.1 PIC 3.2.2 3. When log in successfully, can see the main menu “My Snap”(as PIC3.3.1).You can add new Snap lamps follow the Interface prompt，or press the Shared icon. You also can see others Snap video by Discover icon. PIC3.3.1 4. Add new lamp method  My Snap interface ----- click the top-right “+”icon--follow the guidance to connect the lamp with router . Pls note it is some different between Android app with IOS app.  If your equipment is Android system，the setting steps are as below： （1） Insure the device is power on ；（PIC3.4.1） （2） Click the next to find Snap lamp--click the lamp to connect the lamp with wifi router---click the next(as PIC3.4.2). If you can’t search the Snap lamp , pls long time press the reset button, after LED flashed , then try again(as PIC3.4.3). 3 （3） App will search all signal list around your router, please select your router name. Please click this router , need to write your router password. When the password is right , will go into the next menu(as PIC3.4.4and3.4.5).When successfully, you can add other new lamp or go back the mail menu. If failed ,please press the reset button to try again. Note:If the password verification always fail ,but you can sure it’s right， please restart. PIC3.4.1 PIC3.4.2 PIC3.4.3 PIC3.4.4 4 PIC3.4.5 PIC3.4.6 If your equipment is IOS systerm，please refer the follow steps to set up： （1） Enter the “My snap” menuclick the top-right “+” icon  refer the picture prompt to know how to operate . （2） When come back the App，it will search all of the wifi list aroud your house. Please select your wifi router. （3） When connectting with your router，input your wifi password，once it be right, App will connect with your router automatically. After all of these finished , you can go into the main menu to use or to add new lamp with the same steps. If failed, please long press the reset button . Note:If the password verification always fail ,but you can sure it’s right， please restart. 5. Operation introduce The functions of Snap app as below PIC 3.5.1 showed: ●Camera show yours video . Also have the Security and Discover function . The Security function is for that as a security feature automatically grab for the user to check out the Motion related pictures and information. And by the Discover, you can find all of the shared CAM . ●Lighting showed all of added lamps. You can power on/off ,or adjust lamp light ●Device Management for name or delete your equipment； ●Account for manage your account information 5 ●About show the information about software version ,and OTA path. PIC3.5.1 5.1 Camera Click the CAM icon --enter My Snap-it will show all of the CAM list(as PIC 3.5.2).The video player can show lamp Name, light level, lamp on/off, share icon, cloud icon. There is also the quick lamp on/off icon at the top-right（as PIC3.5.3）. Click the player picture will see the live video. At this menu, you can control the lamp, e.g. adjust the LED light level for full-in light for the camera(as PIC 3.5.5). PIC3.5.2 PIC3.5.3 PIC 3.5.4 Click the replay icon in live light table , will enter your cloud video account. The cloud account record all of your video. You can operate those records like play-over or play-back. Even live and playback can be somehow screen switch full screen（as PIC3.5.5）。 6 PIC3.5.5 Click the top-right icon at the live video , you can find below functions(as PIC 3.5.7and 3.5.8) : 1. Night Vision mode . when night , you can adjust the LED light off by App, and open the infate lamp automatically. 2. Record mode . select it , will record video automatically. 3. Discover mode. Use this mode , you can share your video with your family or friends. There is also has the Snapshot function , if you select it , the lamp will recognize smile face or wave action. 4. Motion Detection mode. By this function , you can select the most Three surveliant zones ,those you care about. 5. Security mode. If you select this function , when something is moving though the lamp , its picture will be captured, the you can see it at the Security list (as PIC3.5.10)， Click what you want to see , it will show by big picture ,even horizontal screen(as PIC 3.5.12) . 7 PIC3.5.6 PIC3.5.7 PIC3.5.8 PIC3.5.9 PIC3.5.10 PIC3.5.11 PIC3.5.12 Enter Discover menu, you can watch others shared Snap lamp. You also can watch their 8 video records . Click the star icon , you can collect them , which will be shown at the top bar(as PIC 3.5.13 and 3.5.14). . PIC 3.5.13 PIC 3.5.14 By Snapshot function, you can see the smile face pictures and wave hand pictures those captured by Snap camera. You can open/close this function at Camera setting menu. About Snapshot, you can view big picture after click small picture, or can slide switch different images, even can view full-in-screen(as PIC 3.5.15and PIC 3.5.16). PIC3.5.15 PIC3.5.16 5.2 Lighting function The second of sidebar is the lighting function. By this function ,you can find all of LED lamp operations. You can control all of your snap lamp or juat only some (as PIC 3.5.17). Click the lamp icon , can see the setting menu(as PIC 9 3.5.18). ·keep last Brightness : select it on , means the …

Text truncated - open the document above for the full version.

Zhejiang shenghui lighting Co., Ltd. Shanghai Branch Date: Jun 28, 2015 Federal Communications Commission Authorization and Evaluation Division FCC ID: 2ABX8SH-000000008 ATTESTATION FCC ID: 2ABX8SH-000000008 Product: sengled snap Model: AS01-PAR38NAE26 We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Sincerely, __________________ Name: Jack Zhu Position: Design Verification Manager Zhejiang shenghui lighting Co., Ltd. Shanghai Branch

Zhejiang shenghui lighting Co., Ltd. Shanghai Branch Declaration of Authorization We Name: Zhejiang shenghui lighting Co., Ltd. Shanghai Branch Address: Rm. 801,1st Xinye Building, 388 Tianlin Rd, Shanghai, China 200233 Declare that: Name Representative of agent: Robin Wu Agent Company name: MRT Technology (Suzhou) Co., Ltd Address: D8 Building, Youxin Industrial Park, No.2 Tian'edang Rd., Wuzhong Economic Development Zone, City: Suzhou Country China is authorized to apply for Certification of the following product(s): Product description: sengled snap Type designation: AS01-PAR38NAE26 Trademark: sengled on our behalf. Date: Jun 28, 2015 Name: Jack Zhu Signature:

Zhejiang shenghui lighting Co., Ltd. Shanghai Branch Date: Jun 28, 2015 Federal Communications Commission Authorization and Evaluation Division FCC ID: 2ABX8SH-000000008 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: 1. Block Diagram 2. Schematics 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ---------------------------------------------------------- Name: Jack Zhu Zhejiang shenghui lighting Co., Ltd. Shanghai Branch

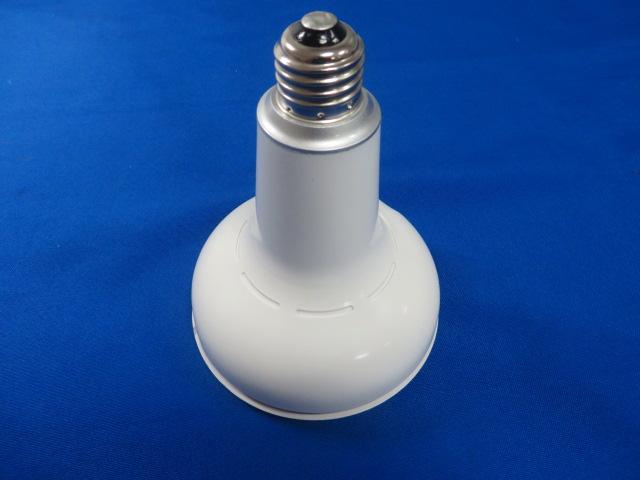

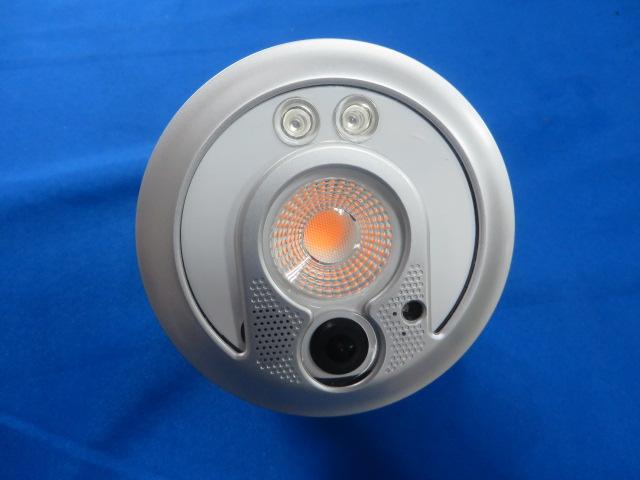

External Photo (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo

Internal Photo (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo (6) EUT Photo (7) EUT Photo (8) EUT Photo (9) EUT Photo (10) EUT Photo (11) EUT Photo (12) EUT Photo (13) EUT Photo (14) EUT Photo

MRT Technology (Suzhou) Co., Ltd Report No.: 1506RSU02103 Phone: +86-512-66308358 Report Version: V01 Fax: +86-512-66308368 Issue Date: 07-10-2015 Web: www.mrt-cert.com FCC ID: 2ABX8SH-000000008 Page Number: 1 of 6 RF Exposure Evaluation Declaration FCC ID: 2ABX8SH-000000008 APPLICANT: Zhejiang shenghui lighting Co., Ltd. Shanghai Branch Application Type: Certification Product: sengled snap Model No.: AS01-PAR38NAE26 Brand Name: sengled FCC Classification: Unlicensed National Information Infrastructure (UNII) Digital Transmission System (DTS) Reviewed By : ( Robin Wu ) Approved By : ( Marlin Chen ) The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standards through the calibration of the equipment and evaluated measurement uncertainty herein. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 1506RSU02103 FCC ID: 2ABX8SH-000000008 Page Number: 2 of 6 Revision History Report No. Version Description Issue Date 1506RSU02103 Rev. 01 Initial report 07-10-2015 Report No.: 1506RSU02103 FCC ID: 2ABX8SH-000000008 Page Number: 3 of 6 1. PRODUCT INFORMATION 1.1. Equipment Description 1.2. Operation Frequency / Channel list For 2.4GHz band: 802.11b/g/n-HT20 Channel Frequency Channel Frequency Channel Frequency 01 2412 MHz 02 2417 MHz 03 2422 MHz 04 2427 MHz 05 2432 MHz 06 2437 MHz 07 2442 MHz 08 2447 MHz 09 2452 MHz 10 2457 MHz 11 2462 MHz N/A N/A 802.11n-HT40 Channel Frequency Channel Frequency Channel Frequency 03 2422 MHz 04 2427 MHz 05 2432 MHz 06 2437 MHz 07 2442 MHz 08 2447 MHz 09 2452 MHz N/A N/A N/A N/A Product Name sengled snap Model No. AS01-PAR38NAE26 Brand Name sengled Frequency Range For 2.4GHz: 2412~2462MHz; For 5GHz: 5150~5350MHz, 5470~5725MHz, 5725~5850MHz Report No.: 1506RSU02103 FCC ID: 2ABX8SH-000000008 Page Number: 4 of 6 For 5GHz band: 802.11a/n-HT20 Channel Frequency Channel Frequency Channel Frequency 36 5180 MHz 40 5200 MHz 44 5220 MHz 48 5240 MHz 52 5260 MHz 56 5280 MHz 60 5300 MHz 64 5320 MHz 100 5500 MHz 104 5520 MHz 108 5540 MHz 112 5560 MHz 116 5580 MHz 120 5600 MHz 124 5620 MHz 128 5640 MHz 132 5660 MHz 136 5680 MHz 140 5700 MHz 149 5745 MHz 153 5765 MHz 157 5785 MHz 161 5805 MHz 165 5825 MHz 802.11n-HT40 Channel Frequency Channel Frequency Channel Frequency 38 5190 MHz 46 5230 MHz 54 5270 MHz 62 5310 MHz 102 5510 MHz 110 5550 MHz 118 5590 MHz 126 5630 MHz 134 5670 MHz 151 5755 MHz 159 5795 MHz -- -- 1.3. Antenna Description Antenna Type Frequency Band (GHz) Max Peak Gain (dBi) Directional Gain (dBi) PCB Antenna 2.4 ANT 1# 4.9, ANT 2# 5.8 8.4 5 ANT 1# 2.4, ANT 2# 4.4 6.5 Report No.: 1506RSU02103 FCC ID: 2ABX8SH-000000008 Page Number: 5 of 6 2. RF Exposure Evaluation 2.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- f/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- f/1500 6 1500-100,000 -- -- 1 30 f= Frequency in MHz Calculation Formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 r = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1mW/cm². If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Report No.: 1506RSU02103 FCC ID: 2ABX8SH-000000008 Page Number: 6 of 6 2.2. Test Result of RF Exposure Evaluation Product sengled snap Test Item RF Exposure Evaluation Antenna Gain: Refer to Clause 1.2 of antenna description. CONCULISON: The Max Power Density at R (20 cm) = 0.0444mW/cm 2 < 1mW/cm 2 . So the EUT complies with the requirement. The End Test Mode Frequency Band (MHz) Maximum Average Output Power (dBm) Power Density at R = 20 cm (mW/cm 2 ) Limit (mW/cm 2 ) 802.11b/g/n 2412 ~ 2462 17.69 0.0444 1 802.11a/n 5180 ~ 5320, 5500 ~ 5720, 5725 ~ 5850 17.50 0.0308 1

MRT Technology (Suzhou) Co., Ltd Report No.: 1506RSU02101 Phone: +86-512-66308358 Report Version: V01 Fax: +86-512-66308368 Issue Date: 07-10-2015 Web: www.mrt-cert.com FCC ID: 2ABX8SH-000000008 Page Number: 1 of 110 IC: 12219A-00000000008 FCC ID: 2ABX8SH-000000008 IC: 12219A-00000000008 APPLICANT: Zhejiang shenghui lighting Co., Ltd. Shanghai Branch Application Type: Certification Product: sengled snap Model No.: AS01-PAR38NAE26 Trademark: sengled FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 IC Rule(s): RSS-247 Issue 1 Test Procedure(s): ANSI C63.10-2013, KDB 558074 D01v03r03, KDB 662911 D01v02r01, KDB 662911 D02v01 Test Date: Jun.22 ~ Jul. 09, 2015 MEASUREMENT REPORT FCC PART 15.247 / RSS-247 WLAN 802.11b/g/n Reviewed By : ( Robin Wu ) Approved By : ( Marlin Chen ) The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB 558074 D01v03r03. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 1506RSU02101 FCC ID: 2ABX8SH-000000008 Page Number: 2 of 110 IC: 12219A-00000000008 Revision History Report No. Version Description Issue Date 1506RSU02101 Rev. 01 Initial report 07-10-2015 Report No.: 1506RSU02101 FCC ID: 2ABX8SH-000000008 Page Number: 3 of 110 IC: 12219A-00000000008 CONTENTS Description Page §2.1033 General Information ......................................................................................................... 5 1. INTRODUCTION ..................................................................................................................... 6 1.1. Scope ........................................................................................................................... 6 1.2. MRT Test Location ....................................................................................................... 6 2. PRODUCT INFORMATION ..................................................................................................... 7 2.1. Equipment Description .................................................................................................. 7 2.2. Operation Frequency / Channel List ............................................................................. 7 2.3. Description of Available Antennas ................................................................................ 8 2.4. Description of Antenna RF Port .................................................................................... 9 2.5. Test Mode .................................................................................................................... 9 2.6. Test Software ............................................................................................................... 9 2.7. Device Capabilities ..................................................................................................... 10 2.8. Test Configuration ....................................................................................................... 11 2.9. EMI Suppression Device(s)/Modifications .................................................................... 11 2.10. Labeling Requirements ................................................................................................ 11 3. DESCRIPTION OF TEST ...................................................................................................... 12 3.1. Evaluation Procedure ................................................................................................. 12 3.2. AC Line Conducted Emissions ................................................................................... 12 3.3. Radiated Emissions .................................................................................................... 13 4. ANTENNA REQUIREMENTS ................................................................................................ 14 5. TEST EQUIPMENT CALIBRATION DATE ............................................................................ 15 6. MEASUREMENT UNCERTAINTY ......................................................................................... 16 7. TEST RESULT ...................................................................................................................... 17 7.1. Summary .................................................................................................................... 17 7.2. 6dB Bandwidth Measurement ..................................................................................... 18 7.2.1. Test Limit ................................................................................................................ 18 7.2.2. Test Procedure used ............................................................................................... 18 7.2.3. Test Setting ............................................................................................................. 18 7.2.4. Test Setup ............................................................................................................... 18 7.2.5. Test Result .............................................................................................................. 19 7.3. Output Power Measurement ....................................................................................... 26 7.3.1. Test Limit ................................................................................................................ 26 Report No.: 1506RSU02101 FCC ID: 2ABX8SH-000000008 Page Number: 4 of 110 IC: 12219A-00000000008 7.3.2. Test Procedure Used .............................................................................................. 26 7.3.3. Test Setting ..................................................…

Text truncated - open the document above for the full version.

Report No.: 1506RSU02101 FCC ID: 2ABX8SH-000000008 Page Number: 42 of 110 IC: 12219A-00000000008 Channel 11 (2462MHz) High Band Edge Spurious Emission 802.11g Out-of-Band Emissions 100kHz PSD reference Level Channel 01 (2412MHz) Low Band Edge Spurious Emission Report No.: 1506RSU02101 FCC ID: 2ABX8SH-000000008 Page Number: 43 of 110 IC: 12219A-00000000008 Channel 06 (2437MHz) Spurious Emission Channel 11 (2462MHz) High Band Edge Spurious Emission 802.11n-HT20 Out-of-Band Emissions - Ant 0 / Ant 0 + 1 100kHz PSD reference Level Report No.: 1506RSU02101 FCC ID: 2ABX8SH-000000008 Page Number: 44 of 110 IC: 12219A-00000000008 Channel 01 (2412MHz) Low Band Edge Spurious Emission Channel 06 (2437MHz) Spurious Emission Channel 11 (2462MHz) High Band Edge Spurious Emission Report No.: 1506RSU02101 FCC ID: 2ABX8SH-000000008 Page Number: 45 of 110 IC: 12219A-00000000008 802.11n-HT40 Out-of-Band Emissions - Ant 0 / Ant 0 + 1 100kHz PSD reference Level Channel 03 (2422MHz) Low Band Edge Spurious Emission Channel 06 (2437MHz) Spurious Emission Report No.: 1506RSU02101 FCC ID: 2ABX8SH-000000008 Page Number: 46 of 110 IC: 12219A-00000000008 Channel 09 (2452MHz) High Band Edge Spurious Emission Report No.: 1506RSU02101 FCC ID: 2ABX8SH-000000008 Page Number: 47 of 110 IC: 12219A-00000000008 802.11b Out-of-Band Emissions - Ant 1 100kHz PSD reference Level Channel 01 (2412MHz) Low Band Edge Spurious Emission Channel 06 (2437MHz) Spurious Emission Report No.: 1506RSU02101 FCC ID: 2ABX8SH-000000008 Page Number: 48 of 110 IC: 12219A-00000000008 Channel 11 (2462MHz) High Band Edge Spurious Emission 802.11g Out-of-Band Emissions - Ant 1 100kHz PSD reference Level Channel 01 (2412MHz) Low Band Edge Spurious Emission Report No.: 1506RSU02101 FCC ID: 2ABX8SH-000000008 Page Number: 49 of 110 IC: 12219A-00000000008 Channel 06 (2437MHz) Spurious Emission Channel 11 (2462MHz) High Band Edge Spurious Emission 802.11n-HT20 Out-of-Band Emissions - Ant 1 / Ant 0 + 1 100kHz PSD reference Level Report No.: 1506RSU02101 FCC ID: 2ABX8SH-000000008 Page Number: 50 of 110 IC: 12219A-00000000008 Channel 01 (2412MHz) Low Band Edge Spurious Emission Channel 06 (2437MHz) Spurious Emission Channel 11 (2462MHz) High Band Edge Spurious Emission Report No.: 1506RSU02101 FCC ID: 2ABX8SH-000000008 Page Number: 51 of 110 IC: 12219A-00000000008 802.11n-HT40 Out-of-Band Emissions - Ant 1 / Ant 0 + 1 100kHz PSD reference Level Channel 03 (2422MHz) Low Band Edge Spurious Emission Channel 06 (2437MHz) Spurious Emission Report No.: 1506RSU02101 FCC ID: 2ABX8SH-000000008 Page Number: 52 of 110 IC: 12219A-00000000008 Channel 09 (2452MHz) High Band Edge Spurious Emission Report No.: 1506RSU02101 FCC ID: 2ABX8SH-000000008 Page Number: 53 of 110 IC: 12219A-00000000008 7.6. Radiated Spurious Emission Measurement 7.6.1. Test Limit All out of band emissions appearing in a restricted band as specified in Section 15.205 of the Title 47 CFR must not exceed the limits shown in Table per Section 15.209. FCC Part 15 Subpart C Paragraph 15.209 Frequency [MHz] Field Strength [V/m] Measured Distance [Meters] 0.009 – 0.490 2400/F (kHz) 300 0.490 – 1.705 24000/F (kHz) 30 1.705 - 30 30 30 30 - 88 100 3 88 - 216 150 3 216 - 960 200 3 Above 960 500 3 7.6.2. Test Procedure Used KDB 558074 D01v03r03 – Section 12.2.3 (quasi-peak measurements) KDB 558074 D01v03r03 – Section 12.2.4 (peak power measurements) KDB 558074 D01v03r03 – Section 12.2.5 (average power measurements) 7.6.3. Test Setting Peak Field Strength Measurements per Section 12.2.4 of KDB 558074 D01v03r03 1. Analyzer center frequency was set to the frequency of the radiated spurious emission of interest 2. RBW = as specified in Table 1 3. VBW = 3MHz 4. Detector = peak 5. Sweep time = auto couple Report No.: 1506RSU02101 FCC ID: 2ABX8SH-000000008 Page Number: 54 of 110 IC: 12219A-00000000008 6. Trace mode = max hold 7. Trace was allowed to stabilize Table 1—RBW as a function of frequency Frequency RBW 9 ~ 150 kHz 200 ~ 300 Hz 0.15 ~ 30 MHz 9 ~ 10 kHz 30 ~ 1000 MHz 100 ~ 120 kHz > 1000 MHz 1 MHz Average Field Strength Measurements per Section 12.2.5.3 of KDB 558074 D01v03r03 1. Analyzer center frequency was set to the frequency of the radiated spurious emission of interest 2. RBW = 1MHz 3. VBW ≥ 1/T 4. De As an alternative, the instrument may be set to linear detector mode. Ensure that video filtering is applied in linear voltage domain (rather than in a log or dB domain). Some instruments require linear display mode in order to accomplish this. Others have a setting for Average-VBW Type, which can be set to “Voltage” regardless of the display mode 5. Detector = Peak 6. Sweep time = auto 7. Trace mode = max hold 8. Allow max hold to run for at least 50 times (1/duty cycle) traces Report No.: 1506RSU02101 FCC ID: 2ABX8SH-000000008 Page Number: 55 of 110 IC: 12219A-00000000008 7.6.4. Test Setup 9kHz ~ 30MHz Test Setup: 30MHz ~ 1GHz Test Setup: Report No.: 1506RSU02101 FCC ID: 2ABX8SH-000000008 Page Number: 56 of 110 IC: 12219A-00000000008 1GHz ~ 18GHz Test Setup: 18GHz ~25GHz Test Setup: Report No.: 1506RSU02101 FCC ID: 2ABX8SH-000000008 Page Number: 57 of 110 IC: 12219A-00000000008 7.6.5. Test Result Test Mode: 802.11b Test Site: AC1 Test Channel: 01 Test Engineer: Roy Cheng Remark: 1. Average measurement was not performed if peak level lower than average limit. 2. Other frequency was 20dB below limit line within 1-18GHz, there is not show in the report. Mark Frequency (MHz) Reading Level (dBμV) Factor (dB) Measure Level (dBμV/m) Limit (dBμV/m) Margin (dB) Detector Polarization * 3218.5 45.9 -1.6 44.3 86.8 -42.5 PK Horizontal 4825.0 45.9 2.7 48.6 74.0 -25.4 PK Horizontal * 6053.5 35.9 4.1 40.0 86.8 -46.8 PK Horizontal 7239.0 43.4 7.8 51.2 74.0 -22.8 PK Horizontal * 3218.5 45.9 -1.6 44.3 86.8 -42.5 PK Vertical 4825.0 47.4 2.7 50.1 74.0 -23.9 PK Vertical * 6253.6 36.3 4.7 41.0 86.8 -45.8 PK Vertical 7239.0 42.8 7.8 50.6 74.0 -23.4 PK Vertical Note 1: “*” is not in restricted band, its limit is 20dBc of the fundamen…

Text truncated - open the document above for the full version.

Report No.: 1506RSU02101 FCC ID: 2ABX8SH-000000008 Page Number: 73 of 110 IC: 12219A-00000000008 Site: AC1 Time: 2015/06/20 - 12:20 Limit: FCC_Part15.209_RE(1m) Engineer: Roy Cheng Probe: BBHA9170_18-40GHz Polarity: Horizontal EUT: sengled snap Power: AC 120V/60Hz Note: There is the ambient noise within frequency range 18GHz~25GHz. No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 23943.000 49.776 35.866 -33.724 83.500 13.910 PK 2 * 24741.000 52.375 37.681 -31.125 83.500 14.694 PK Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) – Pre_Amplifier Gain (dB) Report No.: 1506RSU02101 FCC ID: 2ABX8SH-000000008 Page Number: 74 of 110 IC: 12219A-00000000008 Site: AC1 Time: 2015/06/20 - 12:32 Limit: FCC_Part15.209_RE(1m) Engineer: Roy Cheng Probe: BBHA9170_18-40GHz Polarity: Vertical EUT: sengled snap Power: AC 120V/60Hz Note: There is the ambient noise within frequency range 18GHz~25GHz. No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 23999.000 50.379 36.435 -33.121 83.500 13.944 PK 2 * 24846.000 52.503 37.735 -30.997 83.500 14.768 PK Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) – Pre_Amplifier Gain (dB) Report No.: 1506RSU02101 FCC ID: 2ABX8SH-000000008 Page Number: 75 of 110 IC: 12219A-00000000008 7.7. Radiated Restricted Band Edge Measurement 7.7.1. Test Result Site: AC 1 Time: 2015/06/23 - 14:05 Limit: FCC_Part15.209_RE(3m) Engineer: Lewis Huang Probe: BBHA9120D_1-18GHz Polarity: Horizontal EUT: sengled snap Power: AC 120V/60Hz Note: Test Mode: Transmit by 802.11b at channel 2412MHz No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 2390.000 60.268 29.065 -13.732 74.000 31.203 PK 2 * 2412.200 106.821 75.652 N/A N/A 31.169 PK Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m). Report No.: 1506RSU02101 FCC ID: 2ABX8SH-000000008 Page Number: 76 of 110 IC: 12219A-00000000008 Site: AC 1 Time: 2015/06/23 - 14:09 Limit: FCC_Part15.209_RE(3m) Engineer: Lewis Huang Probe: BBHA9120D_1-18GHz Polarity: Horizontal EUT: sengled snap Power: AC 120V/60Hz Note: Test Mode: Transmit by 802.11b at channel 2412MHz No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 2390.000 46.431 15.228 -7.569 54.000 31.203 AV 2 * 2412.704 102.204 71.036 N/A N/A 31.168 AV Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m). Report No.: 1506RSU02101 FCC ID: 2ABX8SH-000000008 Page Number: 77 of 110 IC: 12219A-00000000008 Site: AC 1 Time: 2015/06/23 - 14:10 Limit: FCC_Part15.209_RE(3m) Engineer: Lewis Huang Probe: BBHA9120D_1-18GHz Polarity: Vertical EUT: sengled snap Power: AC 120V/60Hz Note: Test Mode: Transmit by 802.11b at channel 2412MHz No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 2390.000 58.348 27.145 -15.652 74.000 31.203 PK 2 * 2412.032 105.346 74.176 N/A N/A 31.170 PK Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m). Report No.: 1506RSU02101 FCC ID: 2ABX8SH-000000008 Page Number: 78 of 110 IC: 12219A-00000000008 Site: AC 1 Time: 2015/06/23 - 14:12 Limit: FCC_Part15.209_RE(3m) Engineer: Lewis Huang Probe: BBHA9120D_1-18GHz Polarity: Vertical EUT: sengled snap Power: AC 120V/60Hz Note: Test Mode: Transmit by 802.11b at channel 2412MHz No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 2390.000 46.315 15.112 -7.685 54.000 31.203 AV 2 * 2411.136 100.608 69.437 N/A N/A 31.171 AV Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m). Report No.: 1506RSU02101 FCC ID: 2ABX8SH-000000008 Page Number: 79 of 110 IC: 12219A-00000000008 Site: AC 1 Time: 2015/06/23 - 14:13 Limit: FCC_Part15.209_RE(3m) Engineer: Lewis Huang Probe: BBHA9120D_1-18GHz Polarity: Horizontal EUT: sengled snap Power: AC 120V/60Hz Note: Test Mode: Transmit by 802.11b at channel 2462MHz No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 * 2461.864 106.198 75.063 N/A N/A 31.135 PK 2 2483.500 60.048 28.855 -13.952 74.000 31.194 PK Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m). Report No.: 1506RSU02101 FCC ID: 2ABX8SH-000000008 Page Number: 80 of 110 IC: 12219A-00000000008 Site: AC 1 Time: 2015/06/23 - 14:15 Limit: FCC_Part15.209_RE(3m) Engineer: Lewis Huang Probe: BBHA9120D_1-18GHz Polarity: Horizontal EUT: sengled snap Power: AC 120V/60Hz Note: Test Mode: Transmit by 802.11b at channel 2462MHz No Flag Mark Frequency (M…

Text truncated - open the document above for the full version.
