1 Element User manual User Manual Z01-A19NAE26 LED Wireless Bulb Features  Control on/off, brightnessremotely and color temperature via mobile app  brightness control via double click the switch;  Real-time power consumption reporting and instantaneous power reporting  iControlOpenHome TM ,Zigbee Alliance certified, Zigbee HA 1.2 compatible Product Specifications  Power: 9.8 Watts  Brightness: 800 lumens  Beam Angle: 270 degrees  Input: 100~120V AC, 60Hz, 88mA  Light Socket: E26  Operating Temperature: -20° C ~ +40° C  Store Temperature: -40° C ~ +70° C  Operating Humidity: 10% ≤ RH ≤ 95%, No condensing Installation Instructions 1. Turn the light switch to OFF position prior to installing the LED bulb in a standard 2 socket (E26). 2. Screw the bulb into the light socket and turn the switch on. The bulb will indicate pairing mode by power on for three minutes . If needed, power cycle the bulb (off then back on) to re-enter the pairing mode after the three minutes. 3. While the bulb is in pairing mode, initiate pairing on your hub . Once paired, the bulb can be controlled via mobile app, or the button on the bulb. Rejoining the bulb and resetting to factory settings 4. Rejoin wireless network: power cycle the bulb (off then back on) 5 times quickly. The LED will blink two times indicating network rejoin. 5. Factory default reset: power cycle the bulb (off then back on) more than10 times quickly. The LED will blink five times followed by subtle light pulsing indicating pairing mode. User operation instructor I Software download way Step1: Log in https://appdownload.cloud.sengled.com:8099/ Step2: you can see the android and IOS APP download address. Then click the download button for setup. IIEquipment installation method Tighten the Element bulb clockwise on the bulb holder and light to electricity. Power on the Element hub and connect the hub to your home network cable. To ensure that the state of the hub is right，Please long press the reset button on the hub over 7 seconds. Quickly power on and off the bulb10 times to make sure it is reset factory settings. The bulb will flashes 3times if it was factory mode.  IIIApp Operation Method 1. Open the App, named Element. The logo is as this, . 2. Log in singled account. If you haven’t the cloud account, you can register one or 3 continue without login (as the FIG 3.2.1). 3. If you don’t log in with a account, you can only use element local features. FIG 3.2.1 4. When log in successfully, we can see the main menu (as FIG3.5.1). Click “Devices” to open the devices page and you can add new hub and the new bulbs follow the Interface prompt.(3.3.1) You should add hub first, and then add bulbs to the hub. 4 FIG3.3.1 5. Add a new hub  Devices interface ----- click the top-right “+”icon--click “Add a Hub” and follow the guidance to connect the hub with your router .  The setting steps are as below： （1） Insure the hub is power on and connect to your router with an Ethernet cable；（FIG3.4.1） （2） Click the next  make sure your phone’s WIFI connect to the same router---click the next (as FIG3.4.2). enter the password of your router.(as FIG3.4.3) （3） After about 20 seconds, we will do this work and we can add bulbs now! (as FIG3.4.4 and FIG3.4.5) 5 FIG3.4.1 FIG3.4.2 FIG3.4.3 FIG3.4.4 6 FIG3.4.5 FIG3.4.6 6. Add a new bulbs  Devices interface ----- click the top-right “+”icon--click “Add a Bulb” and follow the guidance to connect the bulb to your hub.  The setting steps are as below： (1)Select the hub you added before；（FIG3.4.6） (2)Scan the QR code of every bulb which you want to add (as FIG3.4.7). The QR code is on your bulb like the FIG 3.4.8. (3) If you done step2, you will find the QR code on you App just like FIG3.4.9 (4) Click “Configure Bulb” to connect your new bulbs to the hub you added before to make sure they work together. 7 FIG3.4.7 FIG3.4.8 FIG3.4.9 FIG3.4.10 8 7. Operation introduce The functions of Element app as below FIG 3.5.1 showed: ●Main Show yours bulbs . You can control them together with the All page or single control with Individuals page. You can turn on or off your bulbs or change the brightness and color temperature. (FIG3.5.2 and 3.5.3) ●Devices Showed all your devices including all your hubs and its bulbs. You remove manage them in here. ●Scenes You can add your favorite scenes as the way you use all your bulbs. Then you can quickly make them effect by only click one button. ●Schedule You can add an alarm here to make the scene effect at the special time you wanted. ●Account You can manage your account information. ●About Show the information about software version and the firmware version of hubs and bulbs. You can update the firmware here. FIG3.5.1 9 7.1 Main “Main” is about light control and so on. It will show all of the element light as two way: All or Individuals (such as FIG 3.5.2 and FIG3.5.3). FIG3.5.2 FIG3.5.3 You can control all your bulbs together in the “All” page, including turn on and off the bulbs or change their brightness or color temperature if you want. The button on the top right corner, you can click it to show the performance information of all bulbs daily or weekly or monthly.(FIG3.5.4 and FIG3.5.5) 10 FIG3.5.4 FIG3.5.5 You can control your bulbs one by one in the “individuals” page. Click the right arrow and you will see FIG3.5.6. You can control the bulb and rename the bulb here and see its usage data by slide left. 11 FIG3.5.6 FIG3.5.7 7.2 Devices Devices allow you manage your devices both of hubs and bulbs. Click the setting icon, and you can rename the SSID of hub. You can also delete bulbs here. Add new hub or bulbs will be enable when you click the top right add button. (FIG3.6.1 and FIG 3.6.2). 12 FIG3.6.1 FIG3.6.2 7.3 Scenes You can add your favorite scenes as the way you use all your bulbs. Then you can quickly make them effect by only click one button. To add a scene, click the cross button on the top right and you will see FIG3.6.4. Need 3 steps to add a scene: First, nam…

Text truncated - open the document above for the full version.

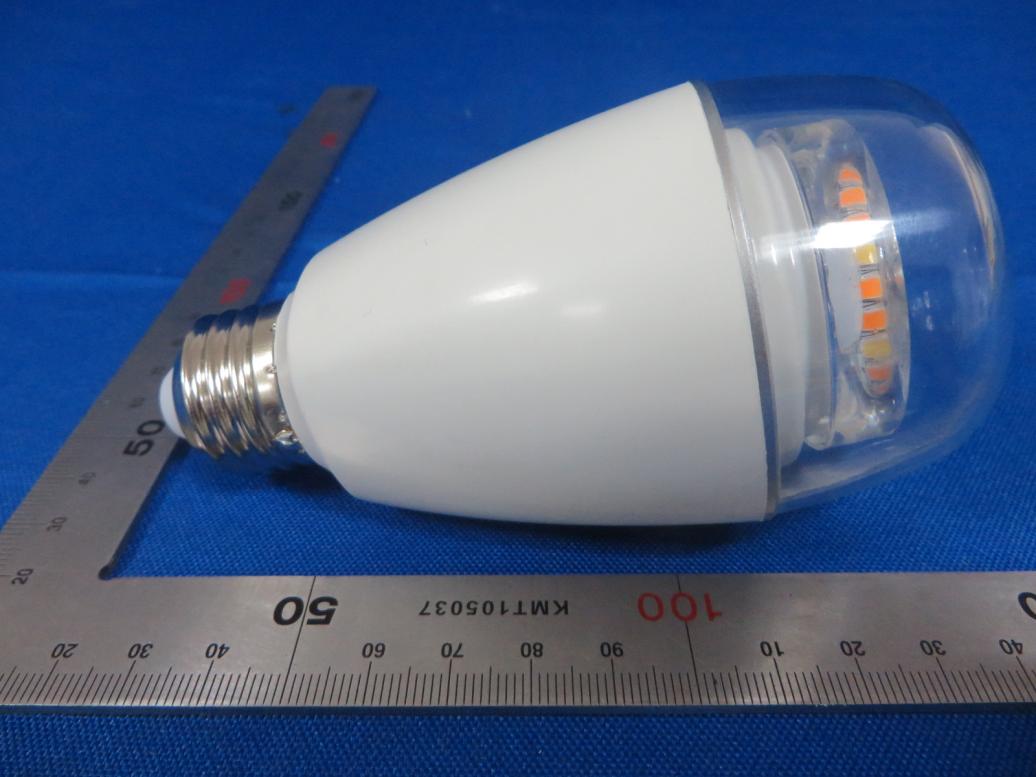

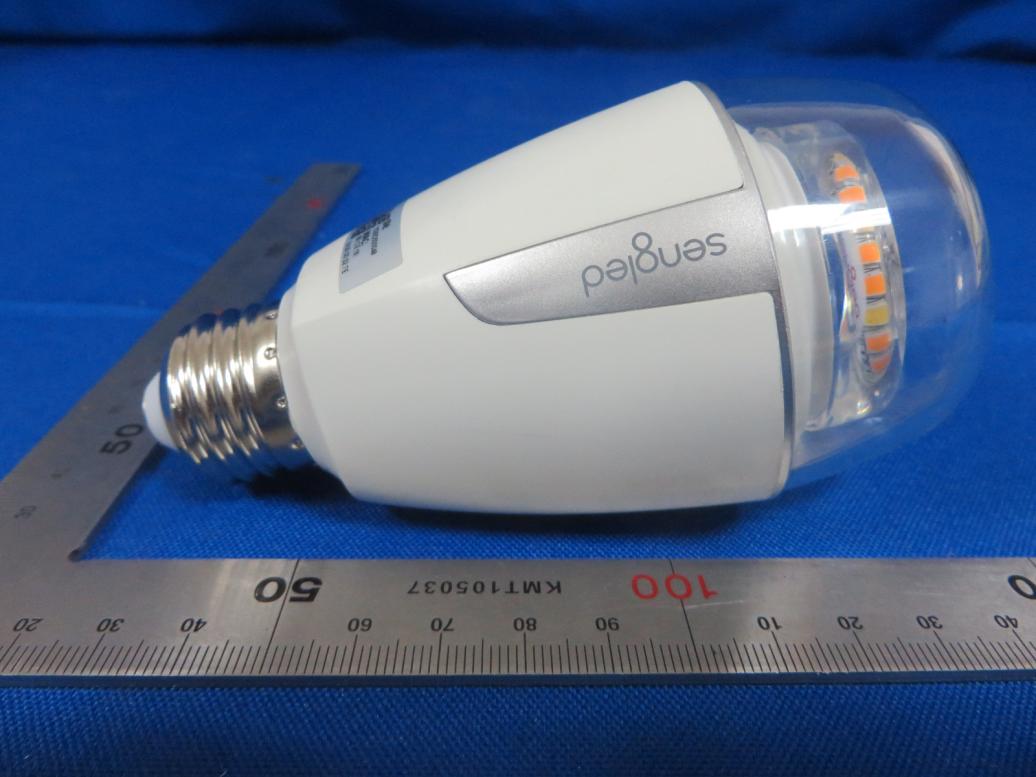

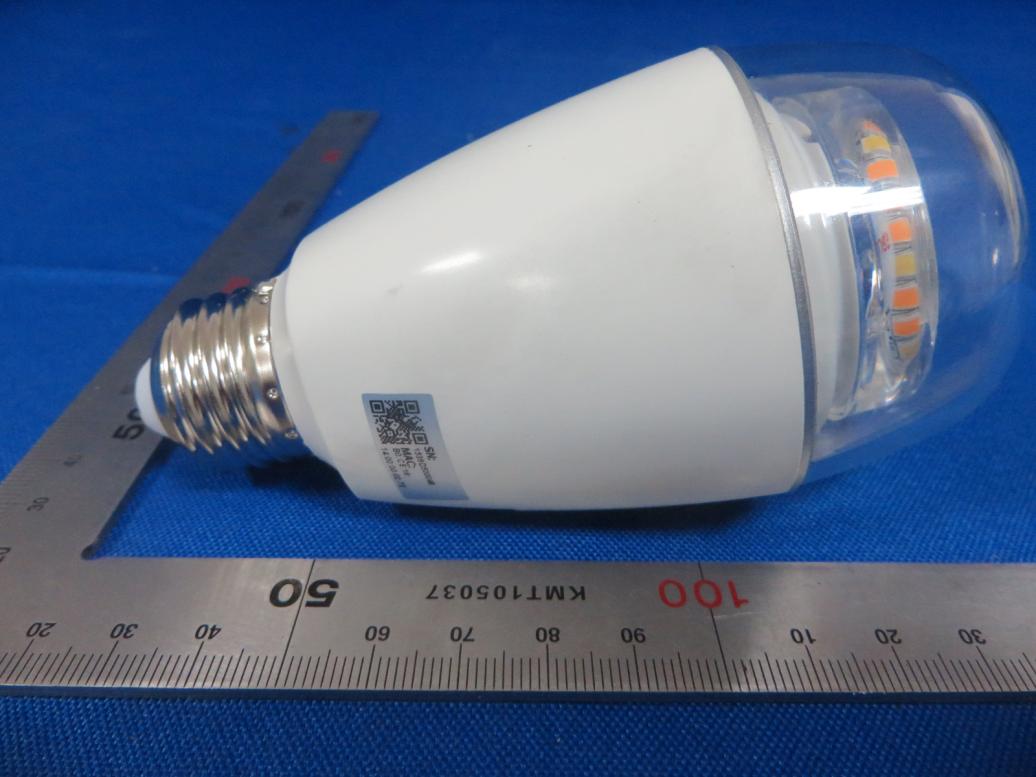

External Photo (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo (6) EUT Photo

Internal Photo (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo (6) EUT Photo (7) EUT Photo (8) EUT Photo (9) EUT Photo (10) EUT Photo (11) EUT Photo (12) EUT Photo

2 MRT Technology (Suzhou) Co., Ltd Report No.: 1508RSU01102 Phone: +86-512-66308358 Report Version: V01 Fax: +86-512-66308368 Issue Date: 09-24-2015 Web: www.mrt-cert.com FCC ID: 2ABX8SH-000000010 Page Number: 1 of 5 RF Exposure Evaluation Declaration FCC ID: 2ABX8SH-000000010 APPLICANT: Zhejiang shenghui lighting Co., Ltd. Shanghai Branch Application Type: Certification Product: sengled element Model No.: Z01-A19NAE26 Trademark: sengled FCC Classification: Digital Transmission System (DTS) Reviewed By : ( Robin Wu ) Approved By : ( Marlin Chen ) The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standards through the calibration of the equipment and evaluated measurement uncertainty herein. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 1508RSU01102 FCC ID: 2ABX8SH-000000010 Page Number: 2 of 5 Revision History Report No. Version Description Issue Date 1508RSU01102 Rev. 01 Initial report 09-24-2015 Report No.: 1508RSU01102 FCC ID: 2ABX8SH-000000010 Page Number: 3 of 5 1. PRODUCT INFORMATION 1.1. Equipment Description Product Name sengled element Model No. Z01-A19NAE26 Frequency Range 2405 ~ 2480 MHz Type of Modulation O-QPSK Max Average Output Power 5.66dBm Antenna Type PIFA Antenna Antenna Gain -6.20dBi Report No.: 1508RSU01102 FCC ID: 2ABX8SH-000000010 Page Number: 4 of 5 2. RF Exposure Evaluation 2.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- f/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- f/1500 6 1500-100,000 -- -- 1 30 f= Frequency in MHz Calculation Formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 r = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1mW/cm². If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Report No.: 1508RSU01102 FCC ID: 2ABX8SH-000000010 Page Number: 5 of 5 2.2. Test Result of RF Exposure Evaluation Product sengled element Test Item RF Exposure Evaluation Antenna Gain: The maximum Gain measured in fully anechoic chamber is -6.20dBi for Zigbee in logarithm scale. CONCULISON: The Safety Distance of the sengled element FCC ID: 2ABX8SH-000000010 was 0.27 cm. The End Test Mode Frequency Band (MHz) Maximum Average Output Power (dBm) Limit of Power Density S(mW/cm 2 ) Safety Distance (cm) 802.15.4 2405 ~ 2480 5.66 1 0.27

MRT Technology (Suzhou) Co., Ltd Report No.: 1508RSU01101 Phone: +86-512-66308358 Report Version: V01 Fax: +86-512-66308368 Issue Date: 09-24-2015 Web: www.mrt-cert.com FCC ID: 2ABX8SH-000000010 Page Number: 1 of 54 IC:12219A-00000000010 FCC ID: 2ABX8SH-000000010 IC: 12219A-00000000010 APPLICANT: Zhejiang shenghui lighting Co., Ltd. Shanghai Branch Application Type: Certification Product: sengled element Model No.: Z01-A19NAE26 Trademark: sengled FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 IC Rule(s): RSS-247 Issue 1 Test Procedure(s): ANSI C63.10-2013, KDB 558074 D01v03r03 Test Date: September 22 ~ 24, 2015 MEASUREMENT REPORT FCC PART 15.247 / RSS-247 ZigBee 802.15.4 Reviewed By : ( Robin Wu ) Approved By : ( Marlin Chen ) The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB 558074 D01v03r03. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 1508RSU01101 FCC ID: 2ABX8SH-000000010 Page Number: 2 of 54 IC:12219A-00000000010 Revision History Report No. Version Description Issue Date 1508RSU01101 Rev. 01 Initial report 09-24-2015 Report No.: 1508RSU01101 FCC ID: 2ABX8SH-000000010 Page Number: 3 of 54 IC:12219A-00000000010 CONTENTS Description Page §2.1033 General Information ......................................................................................................... 5 1. INTRODUCTION ..................................................................................................................... 6 1.1. Scope ........................................................................................................................... 6 1.2. MRT Test Location ....................................................................................................... 6 2. PRODUCT INFORMATION ..................................................................................................... 7 2.1. Equipment Description .................................................................................................. 7 2.2. Operation Frequency / Channel List ............................................................................. 7 2.3. Test Mode .................................................................................................................... 7 2.4. Test Software ............................................................................................................... 7 2.5. Device Capabilities ....................................................................................................... 8 2.6. Test Configuration ........................................................................................................ 8 2.7. EMI Suppression Device(s)/Modifications ..................................................................... 9 2.8. Labeling Requirements ................................................................................................. 9 3. DESCRIPTION OF TEST ...................................................................................................... 10 3.1. Evaluation Procedure ................................................................................................. 10 3.2. AC Line Conducted Emissions ................................................................................... 10 3.3. Radiated Emissions ..................................................................................................... 11 4. ANTENNA REQUIREMENTS ................................................................................................ 12 5. TEST EQUIPMENT CALIBRATION DATE ............................................................................ 13 6. MEASUREMENT UNCERTAINTY ......................................................................................... 14 7. TEST RESULT ...................................................................................................................... 15 7.1. Summary .................................................................................................................... 15 7.2. 6dB Bandwidth Measurement ..................................................................................... 16 7.2.1. Test Limit ................................................................................................................ 16 7.2.2. Test Procedure used ............................................................................................... 16 7.2.3. Test Setting ............................................................................................................. 16 7.2.4. Test Setup ............................................................................................................... 16 7.2.5. Test Result .............................................................................................................. 17 7.3. Output Power Measurement ....................................................................................... 18 7.3.1. Test Limit ................................................................................................................ 18 7.3.2. Test Procedure Used .............................................................................................. 18 7.3.3. Test Setting ............................................................................................................. 18 7.3.4. Test Setup ............................................................................................................... 18 Report No.: 1508RSU01101 FCC ID: 2ABX8SH-000000010 Page Number: 4 of 54 IC:12219A-00000000010 7.3.5. Test Result of Peak Output Power .........................................................…
