User Manual A01-A60 LED Lamp LED + Wi-Fi REPEATER Features  Install like any other light bulb. Easy to setup and enjoy the extended Wi-Fi signal coverage evenly.  Supports two Wi-Fi network mode: Access Point (AP) / Repeater  Two build-in antennas for high throughput data exchange rate of maximum 300Mbps  Compatible with most smart phones, tablets and computers that support Wi-Fi IEEE 802.11b/g/n standard at 2.4GHz.  Remote LED lights ON/OFF and dimming control individually or by group  Download the free Boost Android or iOS App to explore even greater functionality Box Contents  One A01-A60 Bulb  User Manual  Limited Written Express Warranty Product Specifications  Power Supply: 100~230V AC, 50/60Hz  Lamp Socket: E26/E27/B22  Power Consumption: 7.4W (LED + Wi-Fi Repeater), Peak 9W  Operating Temperature: -20° C ~ +40° C  Store Temperature: -40° C ~ +70° C  Operating Humidity: 10% ≤ RH ≤ 95%, Non condensation  Atmospheric Pressure: 86kPa ~ 106kPa  Colour: Neutral White  Dimensions: 120mm (H) x Φ 60mm (Dia.)  Weight: 290g (approx.) Spécifications de produit (par ampoule) • Alimentation: 100 ~ 230V AC, 50/60 Hz • Douille: E26 / E27 / B22 • Consommation d’énergie: 7.4W (LED + Wi-Fi Répéteur), Peak 9W • Température de service: -20 °C à + 40 °C • Stocker Température: -40 °C à + 70 °C • Humidité de fonctionnement: 10% ≤ HR ≤ 95%, sans condensation • Pression atmosphérique: 86 kPa ~ 106 kPa • Couleur: Blanc neutre • Dimensions: 120mm (H) x 60mm Φ (. Dia) • Poids: 290g (environ). LED Lights  Power: 6 Watts  Luminance: 470 lumens  Light Beam Angle: 240 degrees  Colour Temperature: 3000K - Warm White  CRI: 80  Dimming: Yes (Do not use with external or outside dimmers. APP SOFTWARE DIMMING CONTROL) Ampoules à LED • Puissance: 6 Watts • Luminance: 470 lumens • Angle du faisceau lumineux: 240 degrés • Température de couleur: 3000K - Blanc chaud • CRI: 80 • Dimming: Oui ( Ne pas utiliser avec des variateurs de lumière ou à l'extérieur APP LOGICIEL de commande de gradation) Wi-Fi Repeater  Wi-Fi Standard: IEEE 802.11b/g/n  Wi-Fi Transmitter Frequency Range: 2.412 - 2.462 GHz  Power: 1.8 Watts (Standby), 2.8 Watts (Full load)  2T2R MIMO wireless technology  Security Mode: 64/128 bit WPA-PSK/WPA2-PSK, WPA/WPA2  Encryption Type: WEP64/WEP128/TKIP/AES  Wi-Fi Transmitter power: @ 802.11b: +15dBm (Max) @ 802.11g: +15dBm (Max) @ 802.11n: +17dBm (Max)  Wi-Fi Receiver power: @ 802.11b: -89dBm @ 802.11g: -81dBm @ 802.11n: -71dBm  Distance Range between Router and A01-A60 Bulb: 115 feet (near line of sight) © 2014 SENGLED, Incorporated. All rights reserved. Sengled pulse is a trademark of SENGLED, Incorporated, registered in the United States and other countries. Specifications are subject to change without notice. Apple, iPhone, iPad, iPod, iPod touch and Retina are trademarks of Apple Inc., registered in the U.S. and other countries. iPad Air, iPad mini and Lightning are trademarks of Apple Inc. Other Trademarks and trade names are the property of their respective owners. INSTALLATION INSTRUCTIONS WARNING - TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE BACK COVER OR TAKE APART. THERE ARE NO SERVICEABLE PARTS INSIDE. 1. Before installing the Boost into an E26/E27/B22 light bulb socket, turn the light switch to the OFF position. (DO NOT USE WITH EXTERNAL OR OUTSIDE DIMMERS). 2. Screw the bulb into an E26/E27/B22 socket and turn the power on. 3. On the portable smart device (e.g. smartphone or tablet), make sure WLAN is turned on and has been connected to the wireless router with a proper passport. 4. Search for the “boost by Sengled” for corresponding operating system, download and install it on a portable smart device: Get App from Google Play Store for Android Devices; 5. Launch the boost by Sengled application, and a 'Welcome' page appears. At the beginning, press the "network" tab to initialize boost A01-A60 bulb's configuration. After that, click the “START” button to enter the configuration and control interface of the bulb/s. 6. The App will search and list out nearby available wireless router/s automatically. Choose one of the routers as the root router. Type in the Access Password and press “Next” to move forward. 7. Input the access password which is as the router Wi-Fi router, click “Next” to enter the Next step. At this point, APP will send multicast to make the lamp of the Factory Settings is connected to the root router, and the program will search out these lamps. The names of these lamps apply their MAC address the name of the last two as a suffix, and display them on the interface for users to choose whether to access the network. If there is no any equipment, please check if the lamp is powered on, and click the refresh button to try again. 8. The App will also search and list out nearby available boost A01-A60 bulb/s. The default SSID of the bulb is “SENGLED_AP”. (ATTENTION: Figure shows below, SSID Name of "LL_AP_00_**" only for engineering samples demo). Press the “Start” tab for configuring all chosen boost A01-A60 bulbs. And the lamps which are not chosen restore to the initial state of factory Settings. If the root router is encrypted, the initialized bulb is also encrypted with a default password of "12345678". Input the bulb password and wait for the configuration process complete. 9. After the process of bulb network configuration has been succeeded, boost A01-A60 bulb/s will reboot (THIS PROCESS MAY TAKE FEW MINUTES, PLEASE BE PATIENCE). Press “Done” and return to the home page. If the configuration failed, refresh the configuration to networking again. 10. The App begins to search the configured online LED bulb/s. (SINCE THE BULB REBOOT PROCESS MAY TAKES FEW MINUTES, PLEASE BE PATIENCE AND REFRESH THE LIST FROM TIME TO TIME). After searching out all configured bulbs, the interface shows a Main Control Page. This can be used to control the overall LED light dimming and ON/OFF. 11. To control the LED bulb individually, pull up the bulb list at…

Text truncated - open the document above for the full version.

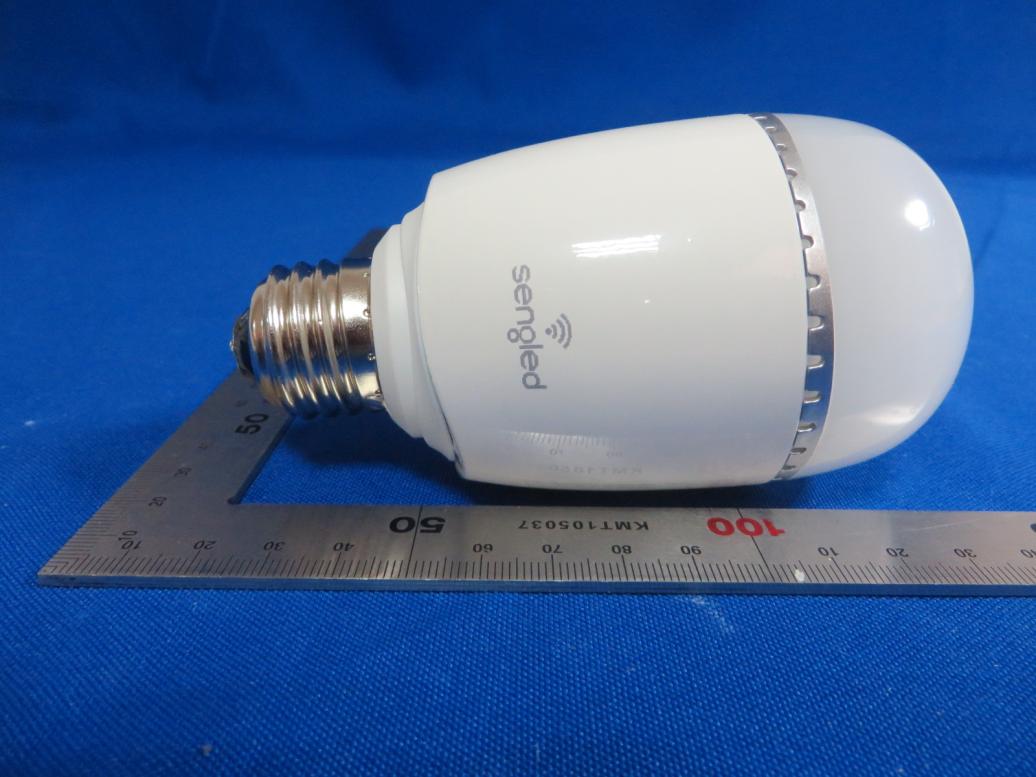

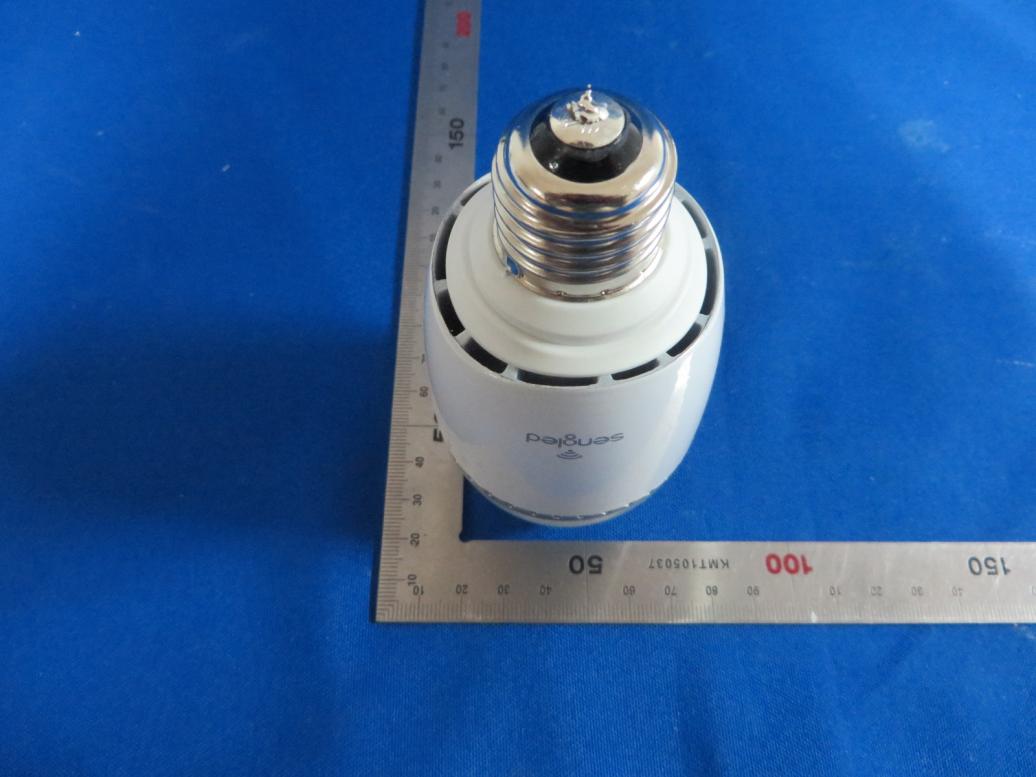

1 of 3 External EUT Photograph (1) EUT Photo (2) EUT Photo 2 of 3 (3) EUT Photo (4) EUT Photo 3 of 3 (5) EUT Photo

1 of 5 Internal EUT Photograph (1) EUT Photo (2) EUT Photo 2 of 5 (3) EUT Photo (4) EUT Photo 3 of 5 (5) EUT Photo (6) EUT Photo 4 of 5 (7) EUT Photo (8) EUT Photo 5 of 5 (9) EUT Photo (10) EUT Photo

MRT Technology (Suzhou) Co., Ltd Report No.: 1409RSU00802 Phone: +86-512-66308358 Report Version: V01 Fax: +86-512-66308368 Issue Date: 09-15-2014 Web: www.mrt-cert.com FCC ID: 2ABX8SH-000000004 Page Number: 1 of 5 RF Exposure Evaluation Declaration FCC ID: 2ABX8SH-000000004 APPLICANT: Zhejiang shenghui lighting Co., Ltd. Shanghai Branch Application Type: Certification Product: LED lamp Model No.: A01-A60XXE26(where X can be 0-9, A-Z, a-z or blank for different customer code which will not influence safety) Brand Name: sengled FCC Classification: Digital Transmission System (DTS) Reviewed By : ( Robin Wu ) Approved By : ( Marlin Chen ) The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standards through the calibration of the equipment and evaluated measurement uncertainty herein. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 1409RSU00802 FCC ID: 2ABX8SH-000000004 Page Number: 2 of 5 Revision History Report No. Version Description Issue Date 1409RSU00802 Rev. 01 Initial report 09-15-2014 Report No.: 1409RSU00802 FCC ID: 2ABX8SH-000000004 Page Number: 3 of 5 1. PRODUCT INFORMATION 1.1. Equipment Description Note: The difference of models is for different marketing requirement. Product Name LED lamp Model No. A01-A60XXE26(where X can be 0-9, A-Z, a-z or blank for different customer code which will not influence safety) Power Type 120VAC / 60Hz Frequency Range 802.11b/g/n-HT20: 2412 ~ 2462 MHz 802.11n-HT40: 2422 ~ 2452 MHz Type of Modulation 802.11b: DSSS 802.11g/n: OFDM Maximum Average Output Power 802.11b: 14.92dBm 802.11g: 15.15dBm 802.11n-HT20: 16.75dBm 802.11n-HT40: 16.40dBm Antenna Type PCB Antenna Antenna Gain 1.47dBi Report No.: 1409RSU00802 FCC ID: 2ABX8SH-000000004 Page Number: 4 of 5 2. RF Exposure Evaluation 2.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- f/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- f/1500 6 1500-100,000 -- -- 1 30 f= Frequency in MHz Calculation Formula: Pd = (Pout*G)/(4*pi*r2) Where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 r = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1mW/cm². If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Report No.: 1409RSU00802 FCC ID: 2ABX8SH-000000004 Page Number: 5 of 5 2.2. Test Result of RF Exposure Evaluation Product LED lamp Test Item RF Exposure Evaluation Antenna Gain: The maximum Gain measured in fully anechoic chamber is 1.47dBi for 2.4GHz in logarithm scale. For 2.4G ISM Band: Test Mode Frequency Band (MHz) Maximum Average Output Power (dBm) Power Density at R = 20 cm (mW/cm 2 ) Limit (mW/cm 2 ) 802.11b 2412 ~ 2462 14.92 0.0087 1 802.11g 2412 ~ 2462 15.15 0.0091 1 802.11n-HT20 2412 ~ 2462 16.75 0.0132 1 802.11n-HT40 2422 ~ 2452 16.40 0.0122 1 CONCULISON: Therefore, the Max Power Density at R (20 cm) = 0.0132mW/cm 2 < 1mW/cm 2 . So the EUT complies with the requirement. The End

MRT Technology (Suzhou) Co., Ltd Report No.: 1409RSU00801 Phone: +86-512-66308358 Report Version: V01 Fax: +86-512-66308368 Issue Date: 09-15-2014 Web: www.mrt-cert.com FCC ID: 2ABX8SH-000000004 Page Number: 1 of 179 IC: 12219A-00000000004 FCC ID: 2ABX8SH-000000004 IC: 12219A-00000000004 APPLICANT: Zhejiang shenghui lighting Co., Ltd. Shanghai Branch Application Type: Certification Product: LED lamp FCC Model No.: A01-A60XXE26(where X can be 0-9, A-Z, a-z or blank for different customer code which will not influence safety) IC Model No.: A01-A60NAE26 Brand Name: sengled FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 IC Rule(s): RSS-210 Issue 8 Test Procedure(s): KDB 558074 D01v03r02, KDB 662911 D01v02r01 Test Date: Sep. 02 ~ 14, 2014 MEASUREMENT REPORT FCC PART 15.247 / IC RSS-210 WLAN 802.11b/g/n Reviewed By : ( Robin Wu ) Approved By : ( Marlin Chen ) The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB 558074 D01v03r02. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 1409RSU00801 FCC ID: 2ABX8SH-000000004 Page Number: 2 of 179 IC: 12219A-00000000004 Revision History Report No. Version Description Issue Date 1409RSU00801 Rev. 01 Initial report 09-15-2014 Report No.: 1409RSU00801 FCC ID: 2ABX8SH-000000004 Page Number: 3 of 179 IC: 12219A-00000000004 CONTENTS Description Page §2.1033 General Information ......................................................................................................... 5 1. INTRODUCTION ..................................................................................................................... 6 1.1. Scope ........................................................................................................................... 6 1.2. MRT Test Location ....................................................................................................... 6 2. PRODUCT INFORMATION ..................................................................................................... 7 2.1. Equipment Description .................................................................................................. 7 2.2. Frequency / Channel Operation .................................................................................... 7 2.3. Test Mode .................................................................................................................... 8 2.4. Test Software ............................................................................................................... 8 2.5. Device Capabilities ....................................................................................................... 9 2.6. Test Configuration ........................................................................................................ 9 2.7. EMI Suppression Device(s)/Modifications ..................................................................... 9 2.8. Labeling Requirements ................................................................................................. 9 3. DESCRIPTION OF TEST ...................................................................................................... 10 3.1. Evaluation Procedure ................................................................................................. 10 3.2. AC Line Conducted Emissions ................................................................................... 10 3.3. Radiated Emissions ..................................................................................................... 11 4. ANTENNA REQUIREMENTS ................................................................................................ 12 5. TEST EQUIPMENT CALIBRATION DATE ............................................................................ 13 6. MEASUREMENT UNCERTAINTY ......................................................................................... 14 7. TEST RESULT ...................................................................................................................... 15 7.1. Summary .................................................................................................................... 15 7.2. 6dB Bandwidth Measurement ..................................................................................... 16 7.2.1. Test Limit ................................................................................................................ 16 7.2.2. Te s t Procedure used ............................................................................................... 16 7.2.3. Te s t Setting ............................................................................................................. 16 7.2.4. Te s t Setup ............................................................................................................... 16 7.2.5. Te s t Result .............................................................................................................. 17 7.3. Output Power Measurement ....................................................................................... 24 7.3.1. Te s t Limit ................................................................................................................ 24 7.3.2. Te s t Procedure Used .............................................................................................. 24 7.3.3. Te s t Setting ............................................................................................................. 24 7.3.4. Te s t Setup ............................................................................................................... 24 Report No.: 1409RSU00801 FCC ID: 2ABX8SH…

Text truncated - open the document above for the full version.

Report No.: 1409RSU00801 FCC ID: 2ABX8SH-000000004 Page Number: 39 of 179 IC: 12219A-00000000004 7.5. Conducted Band Edge and Out-of-Band Emissions 7.5.1. Test Limit §15.247(d); RSS-210 [A8.5] The limit for out-of-band spurious emissions at the band edge is 20dB below the fundamental emission level, as determined from the in-band power measurement of the DTS channel performed in a 100kHz bandwidth per the PSD procedure. 7.5.2. Test Procedure Used KDB 558074 D01v03r02 – Section 11.2 & Section 11.3 7.5.3. Test Settitng 1. Reference level measurement (a) Set instrument center frequency to DTS channel center frequency (b) Set the span to ≥ 1.5 times the DTS bandwidth (c) Set the RBW = 100 kHz (d) Set the VBW ≥ 3 x RBW (e) Detector = peak (f) Sweep time = auto couple (g) Trace mode = max hold (h) Allow trace to fully stabilize 2. Emission level measurement (a) Set the center frequency and span to encompass frequency range to be measured (b) RBW = 100kHz (c) VBW = 300kHz (d) Detector = Peak (e) Trace mode = max hold (f) Sweep time = auto couple (g) The trace was allowed to stabilize Report No.: 1409RSU00801 FCC ID: 2ABX8SH-000000004 Page Number: 40 of 179 IC: 12219A-00000000004 7.5.4. Test Setup Report No.: 1409RSU00801 FCC ID: 2ABX8SH-000000004 Page Number: 41 of 179 IC: 12219A-00000000004 7.5.5. Test Result Test Mode Data Rate (Mbps) Channel No. Frequency (MHz) Limit Result Ant 0 11b 1 01 2412 20dBc Pass 11b 1 06 2437 20dBc Pass 11b 1 11 2462 20dBc Pass 11g 6 01 2412 20dBc Pass 11g 6 06 2437 20dBc Pass 11g 6 11 2462 20dBc Pass 11n-HT20 6.5 01 2412 20dBc Pass 11n-HT20 6.5 06 2437 20dBc Pass 11n-HT20 6.5 11 2462 20dBc Pass 11n-HT40 13.5 03 2422 20dBc Pass 11n-HT40 13.5 06 2437 20dBc Pass 11n-HT40 13.5 09 2452 20dBc Pass Ant 1 11b 1 01 2412 20dBc Pass 11b 1 06 2437 20dBc Pass 11b 1 11 2462 20dBc Pass 11g 6 01 2412 20dBc Pass 11g 6 06 2437 20dBc Pass 11g 6 11 2462 20dBc Pass 11n-HT20 6.5 01 2412 20dBc Pass 11n-HT20 6.5 06 2437 20dBc Pass 11n-HT20 6.5 11 2462 20dBc Pass 11n-HT40 13.5 03 2422 20dBc Pass 11n-HT40 13.5 06 2437 20dBc Pass 11n-HT40 13.5 09 2452 20dBc Pass Report No.: 1409RSU00801 FCC ID: 2ABX8SH-000000004 Page Number: 42 of 179 IC: 12219A-00000000004 802.11b Out-of-Band Emissions - Ant 0 Channel 01 (2412MHz) 100kHz PSD Reference Level Low Band Edge Spurious Emission Channel 06 (2437MHz) 100kHz PSD Reference Level Spurious Emission Report No.: 1409RSU00801 FCC ID: 2ABX8SH-000000004 Page Number: 43 of 179 IC: 12219A-00000000004 Channel 11 (2462MHz) 100kHz PSD Reference Level High Band Edge Spurious Emission 802.11g Out-of-Band Emissions - Ant 0 Channel 01 (2412MHz) 100kHz PSD Reference Level Low Band Edge Report No.: 1409RSU00801 FCC ID: 2ABX8SH-000000004 Page Number: 44 of 179 IC: 12219A-00000000004 Spurious Emission Channel 06 (2437MHz) 100kHz PSD Reference Level Spurious Emission Channel 11 (2462MHz) 100kHz PSD Reference Level High Band Edge Report No.: 1409RSU00801 FCC ID: 2ABX8SH-000000004 Page Number: 45 of 179 IC: 12219A-00000000004 Spurious Emission 802.11n-HT20 Out-of-Band Emissions - Ant 0 Channel 01 (2412MHz) 100kHz PSD Reference Level Low Band Edge Spurious Emission Report No.: 1409RSU00801 FCC ID: 2ABX8SH-000000004 Page Number: 46 of 179 IC: 12219A-00000000004 Channel 06 (2437MHz) 100kHz PSD Reference Level Spurious Emission Channel 11 (2462MHz) 100kHz PSD Reference Level High Band Edge Spurious Emission Report No.: 1409RSU00801 FCC ID: 2ABX8SH-000000004 Page Number: 47 of 179 IC: 12219A-00000000004 802.11n-HT40 Out-of-Band Emissions - Ant 0 Channel 03 (2422MHz) 100kHz PSD Reference Level Low Band Edge Spurious Emission Channel 06 (2437MHz) 100kHz PSD Reference Level Spurious Emission Report No.: 1409RSU00801 FCC ID: 2ABX8SH-000000004 Page Number: 48 of 179 IC: 12219A-00000000004 Channel 09 (2452MHz) 100kHz PSD Reference Level High Band Edge Spurious Emission Report No.: 1409RSU00801 FCC ID: 2ABX8SH-000000004 Page Number: 49 of 179 IC: 12219A-00000000004 802.11b Out-of-Band Emissions - Ant 1 Channel 01 (2412MHz) 100kHz PSD Reference Level Low Band Edge Spurious Emission Channel 06 (2437MHz) 100kHz PSD Reference Level Spurious Emission Report No.: 1409RSU00801 FCC ID: 2ABX8SH-000000004 Page Number: 50 of 179 IC: 12219A-00000000004 Channel 11 (2462MHz) 100kHz PSD Reference Level High Band Edge Spurious Emission 802.11g Out-of-Band Emissions - Ant 1 Channel 01 (2412MHz) 100kHz PSD Reference Level Low Band Edge Report No.: 1409RSU00801 FCC ID: 2ABX8SH-000000004 Page Number: 51 of 179 IC: 12219A-00000000004 Spurious Emission Channel 06 (2437MHz) 100kHz PSD Reference Level Spurious Emission Channel 11 (2462MHz) 100kHz PSD Reference Level High Band Edge Report No.: 1409RSU00801 FCC ID: 2ABX8SH-000000004 Page Number: 52 of 179 IC: 12219A-00000000004 Spurious Emission 802.11n-HT20 Out-of-Band Emissions - Ant 1 Channel 01 (2412MHz) 100kHz PSD Reference Level Low Band Edge Spurious Emission Report No.: 1409RSU00801 FCC ID: 2ABX8SH-000000004 Page Number: 53 of 179 IC: 12219A-00000000004 Channel 06 (2437MHz) 100kHz PSD Reference Level Spurious Emission Channel 11 (2462MHz) 100kHz PSD Reference Level High Band Edge Spurious Emission Report No.: 1409RSU00801 FCC ID: 2ABX8SH-000000004 Page Number: 54 of 179 IC: 12219A-00000000004 802.11n-HT40 Out-of-Band Emissions - Ant 1 Channel 03 (2422MHz) 100kHz PSD Reference Level Low Band Edge Spurious Emission Channel 06 (2437MHz) 100kHz PSD Reference Level Spurious Emission Report No.: 1409RSU00801 FCC ID: 2ABX8SH-000000004 Page Number: 55 of 179 IC: 12219A-00000000004 Channel 09 (2452MHz) 100kHz PSD Reference Level High Band Edge Spurious Emission Report No.: 1409RSU00801 FCC ID: 2ABX8SH-000000004 Page Number: 56 of 179 IC: 12219A-00000000004 7.6. Radiated Spurious Emission Measurement 7.6.1. Test Limit §15.247(d) / §15.205 & §15.209; RSS-210 [A8.5] All out of band emissions appearing in a restricted band as specified in Section 15.205 of the Title 47 CFR must not exceed the limits shown in Table per Section 15.209. FCC Part 15 Subpart C Paragraph…

Text truncated - open the document above for the full version.

Report No.: 1409RSU00801 FCC ID: 2ABX8SH-000000004 Page Number: 98 of 179 IC: 12219A-00000000004 Engineer: Andy Zhu Site: AC1 Time: 2014/09/06 - 19:24 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: BBHA9120D_1-18GHz Polarity: Vertical EUT: LED lamp Power: AC 120V/60Hz Note: Mode 1: Transmit at channel 2412MHz by 802.11b Ant 0 No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 2370.928 60.335 29.608 -13.665 74.000 30.727 PK 2 2390.000 58.241 27.557 -15.759 74.000 30.684 PK 3 * 2413.432 95.540 64.897 N/A N/A 30.643 PK Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m). Report No.: 1409RSU00801 FCC ID: 2ABX8SH-000000004 Page Number: 99 of 179 IC: 12219A-00000000004 Engineer: Andy Zhu Site: AC1 Time: 2014/09/06 - 19:26 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: BBHA9120D_1-18GHz Polarity: Vertical EUT: LED lamp Power: AC 120V/60Hz Note: Mode 1: Transmit at channel 2412MHz by 802.11b Ant 0 No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 2390.000 45.335 14.651 -8.665 54.000 30.684 AV 2 * 2411.136 91.634 60.988 N/A N/A 30.646 AV Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m). Report No.: 1409RSU00801 FCC ID: 2ABX8SH-000000004 Page Number: 100 of 179 IC: 12219A-00000000004 Engineer: Andy Zhu Site: AC1 Time: 2014/09/06 - 19:27 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: BBHA9120D_1-18GHz Polarity: Horizontal EUT: LED lamp Power: AC 120V/60Hz Note: Mode 1: Transmit at channel 2462MHz by 802.11b Ant 0 No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 * 2463.544 91.305 60.691 N/A N/A 30.615 PK 2 2483.500 58.308 27.635 -15.692 74.000 30.673 PK 3 2495.152 60.221 29.514 -13.779 74.000 30.707 PK Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m). Report No.: 1409RSU00801 FCC ID: 2ABX8SH-000000004 Page Number: 101 of 179 IC: 12219A-00000000004 Engineer: Andy Zhu Site: AC1 Time: 2014/09/06 - 19:28 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: BBHA9120D_1-18GHz Polarity: Horizontal EUT: LED lamp Power: AC 120V/60Hz Note: Mode 1: Transmit at channel 2462MHz by 802.11b Ant 0 No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 * 2464.216 87.630 57.014 N/A N/A 30.616 AV 2 2483.500 45.482 14.809 -8.518 54.000 30.673 AV Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m). Report No.: 1409RSU00801 FCC ID: 2ABX8SH-000000004 Page Number: 102 of 179 IC: 12219A-00000000004 Engineer: Andy Zhu Site: AC1 Time: 2014/09/06 - 19:29 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: BBHA9120D_1-18GHz Polarity: Vertical EUT: LED lamp Power: AC 120V/60Hz Note: Mode 1: Transmit at channel 2462MHz by 802.11b Ant 0 No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 * 2463.616 98.164 67.549 N/A N/A 30.615 PK 2 2483.500 58.273 27.600 -15.727 74.000 30.673 PK 3 2490.784 60.045 29.351 -13.955 74.000 30.694 PK Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m). Report No.: 1409RSU00801 FCC ID: 2ABX8SH-000000004 Page Number: 103 of 179 IC: 12219A-00000000004 Engineer: Andy Zhu Site: AC1 Time: 2014/09/06 - 19:30 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: BBHA9120D_1-18GHz Polarity: Vertical EUT: LED lamp Power: AC 120V/60Hz Note: Mode 1: Transmit at channel 2462MHz by 802.11b Ant 0 No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 * 2464.672 94.480 63.862 N/A N/A 30.618 AV 2 2483.500 45.557 14.884 -8.443 54.000 30.673 AV Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m). Report No.: 1409RSU00801 FCC ID: 2ABX8SH-000000004 Page Number: 104 of 179 IC: 12219A-00000000004 Engineer: Andy Zhu Site: AC1 Time: 2014/09/06 - 19:31 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: BBHA9120D_1-18GHz Polarity: Horizontal EUT: LED lamp Power: AC 120V/60Hz Note: Mode 2: Transmit at channel 2412MHz by 802.11g Ant 0 No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 2343.712 59.660 28.853 -14.340 74.000 30.807 PK 2 2390.000 58.174 27.490 -15.826 74.000 30.684 PK 3 * 2410.464 90.546 59.899 N/A N/A 30.648 PK Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m). Report No.: 1409RSU00801 FCC ID: 2ABX8SH-000000004 Page Number: 105 of 179 IC: 12219A-00000000004 Engineer: Andy Zhu Site: AC1 Time: 2014/09/06 - 19:32 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: BBHA9120D_1-18GHz Polarity: Horizontal EUT: LED lamp Power: AC 120V/60Hz Note: Mode 2: Transmit at channel 2412MHz by 802.11g Ant 0 No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 2390.000 45.465 14.781 -8.535 54.000 30.684 AV 2 * 2405.032 81.303 50.647 N/A N/A 30.656 AV Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m). Report No.: 1409RSU00801 FCC ID: 2ABX8SH-000000004 Page Number: 106 of 179 IC: 12219A-00000000004 Engineer: Andy Zhu Site: AC1 Time: 2014/09/06 - 19:33 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: BBHA9120D_1-18GHz Polarity: Vertical EUT: LED lamp Power: AC 120V/60Hz Note: Mode 2: Transmit at channel 2412MHz by 802.11g Ant 0 No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 2390.000 60.447 29.763 -13.…

Text truncated - open the document above for the full version.

1 of 3 FCC Part15C Test Setup Photo Description: Front view of Conducted Emission Test Setup Description: Back view of Conducted Emission Test Setup Description: Radiated Emission Test Setup for 9kHz ~ 30MHz Description: Radiated Emission Test Setup for 30MHz ~ 1GHz Description: Radiated Emission Test Setup for 1GHz ~ 18GHz Description: Radiated Emission Test Setup for 18GHz ~ 25GHz
