2ABX8SH-000000005LED Lamp

User Manual C01-A66NAE26 C01-A66EUE27/B22 C01-A66AUE27/B22 LED Lamp Features  The world first LED light and stereo speakers in one bulb  Simple to install, no speaker wires, no remote control, no power cords, no installation hassle  Wirelessly connect Pulse Solo from any Bluetooth-enabled device to enjoy light and sound in a whole new way. LED Light Bulb makes fantastic energy savings and delivers high-quality audio from JBL® stereo audio system.  1.07" High-Fidelity JBL® Loudspeaker with surround sound effect, perform as Left-Right Stereo.  Our intuitive app offers seamless control of both light and sound while listening to your favorite streamed music or media Box Contents  C01-A66 Pulse Solo Speaker Bulb  User Manual  Quickstart Guide  Limited Written Express Warranty Product Specifications (per Bulb)  Power Supply: 100~240V AC, 50/60Hz, 120~80mA (Typ.)  Light Socket: E26, E27, B22  Power Consumption: 9.5W (Rated), 12.5W (LED+Speaker)  Operating Environment: -20° C ~ +35° C, 0-85% Relative Humidity  Colour: White  Dimensions: 140.0mm (H) x Φ 72.0mm (Dia.)  Weight: 340g/bulb (approx.), 410g/box (approx.) LED Lights  Power: 6 Watts  Luminance: 550 lumens  Colour Temperature: 2700K - Warm White  Ra : 80  Light Beam Angle: 105 degrees EN Audio System  Power: Two x 3 Watts (Rated) @ 8ohm  1.07’’ High Fidelity Loudspeaker  Frequency Response: 260 Hz - 18 kHz  Bluetooth Standard: v3.0 + EDR & BLE 4.0, 2.402 - 2.480 GHz  Bluetooth Profiles: A2DP, GAP, GATT etc.  Bluetooth Transmitter power: 4dBm, 10 meters (near line of sight, without any hindrance) © 2014 SENGLED, Incorporated. All rights reserved. Sengled pulse is a trademark of SENGLED, Incorporated, registered in the United States and other countries. Specifications are subject to change without notice. Apple, iPhone, iPad, iPod, iPod touch and Retina are trademarks of Apple Inc., registered in the U.S. and other countries. iPad Air, iPad mini and Lightning are trademarks of Apple Inc. Other Trademarks and trade names are the property of their respective owners. INSTALLATION INSTRUCTIONS WARNING - TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, USE IN DRY LOCATIONS ONLY AND DO NOT EXPOSE TO RAIN OR LIQUIDS. WARNING - TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE BACK COVER OR TAKE APART. THERE ARE NO SERVICEABLE PARTS INSIDE. 1. Before installing the Pulse Solo into a proper light bulb socket (E26/E27/B22), turn the light switch to the OFF position. (DO NOT USE WITH EXTERNAL OR OUTSIDE DIMMERS). 2. Screw the bulb into a proper socket (E26/E27/B22) and turn the power on. The LED light will turn on and an audio ‘ping’ should also be heard coming from the bulb only. NOTICE: The sound effect is affected by the installation position in the lighting fixture, the audio sounds and the room space etc., to achieve the best stereo sound effect, please make sure the LED plastic cover is at the same level of the lighting fixtures (in Horizontal) and should not be used in fully enclosed light fittings. 3. On the portable smart device (e.g. smartphone, tablet, or computer), make sure Bluetooth is turned on. Then via Bluetooth, connect the smart device to the Pulse Solo bulb with a default Bluetooth ID of ‘Pulse Solo C01-A66’. Once connected, an audio ‘ping’ should also be heard coming from the bulb. User can launch any media App on the smart device to enjoy music via the Pulse Solo light speakers. Or go to Step 4 to download and install Pulse mobile App for greater control of the light and speakers. 4. Search for the 'Sengled Pulse' or 'Pulse by Sengled' App for corresponding operating system, download and install it on a portable smart device: Get App from Google Play Store for Android Devices; (Compatibility: Requires Android 4.3 or later versions) Get App from App Store for Apple iOS Devices. (Compatibility: Requires iOS 7.0 or later versions. Compatible with iPhone 6 Plus, iPhone 6, iPhone 5s, iPhone 5c, iPhone 5, iPhone 4s, iPad Air, iPad mini with Retina display, iPad (4th generation), iPod touch (5th generation)) Or get more information from www.sengled.com. 5. Open the Pulse application, and a 'Welcome to Pulse' page appears. Click OK, the App will search and link to the previous Bluetooth connected Pulse Solo bulb. The wizard guides you through the steps for connecting your portable smart device to the Pulse solo bulb. (If you have more than 2 Pulse Solo bulbs nearby you, you can select which bulb prefer to link after the 'Welcome to Page'). If the application doesn't detect the Pulse Solo bulb, restart the application and setup wizard again. 6. Once the portable device has been successfully connected to the Pulse Solo bulb, the application will display the main control screen. Rotate the Brightness control wheel to dimming the LED lights , press the Sound tab to adjust the Volume up and down. 7. The user can also change the default name of the bulbs (e.g. C01-A66_Control) to a more meaningful name, such as ‘Living room’ or ‘Bedroom’. This button can be found in the inner semi-circle of the brightness control wheel. 8. More information about the application is introduced in detail in the 'About' tab. IMPORTANT SAFETY INSTRUCTIONS • Read and keep these safety instructions. • Heed all warnings contained within these instructions. • Please follow all user manual instructions when installing the product. • Only clean SENGLED product only with a dry towel. • This Product is intended for indoor use only. • Do NOT use this product outdoors. • Do NOT get this product wet and do NOT use near any water source. • The product should not be exposed to dripping or splashing liquids of any kind. • Do not install the product near any heat sources, such as heater, radiators, stove, heat registers or other apparatus that produce heat. • Ensure that the product is stable and secured in place during installation. If the product is dropped or falls out of the light socket, it may cause bodily harm. • If the product is dropped or …

Text truncated - open the document above for the full version.

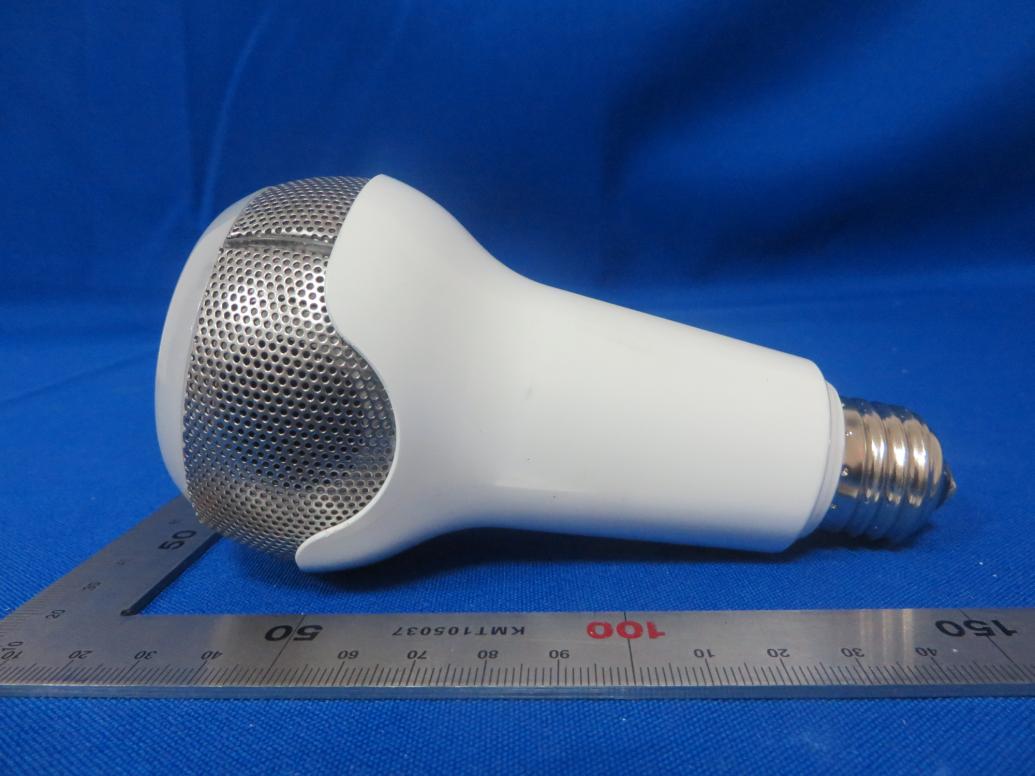

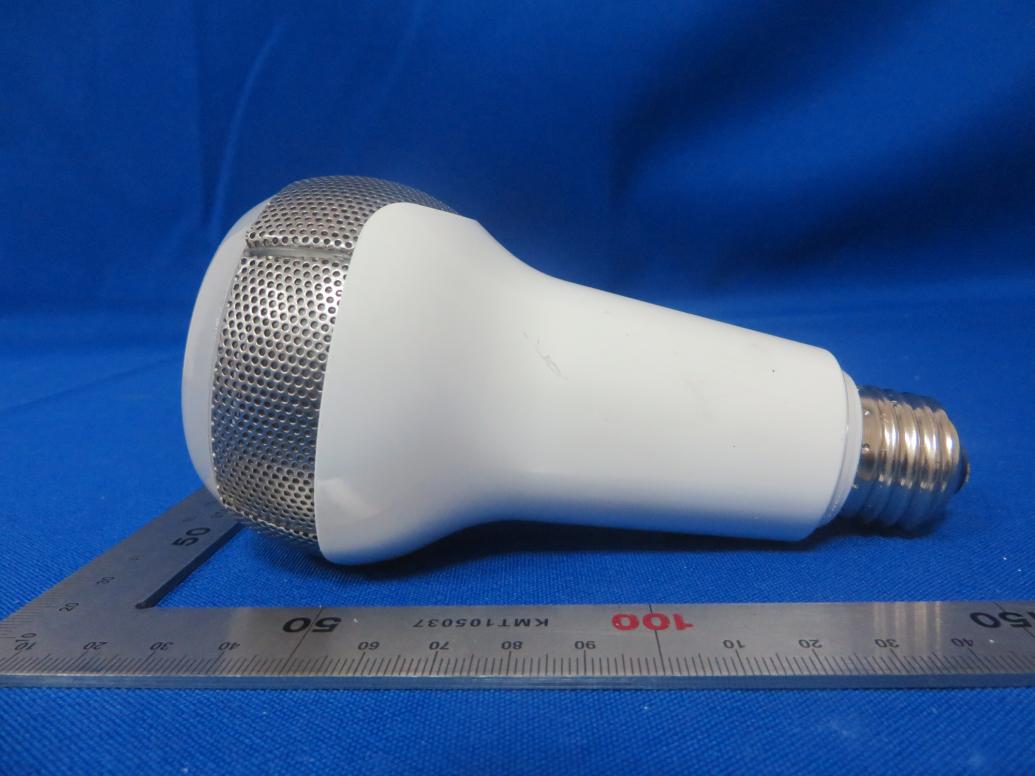

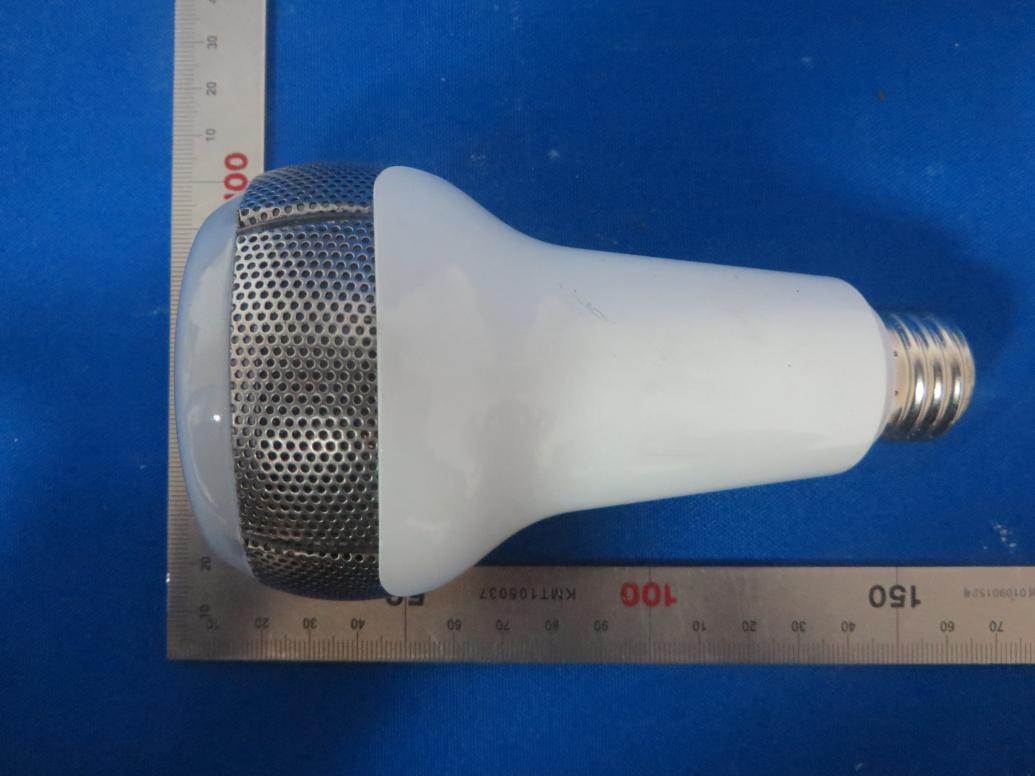

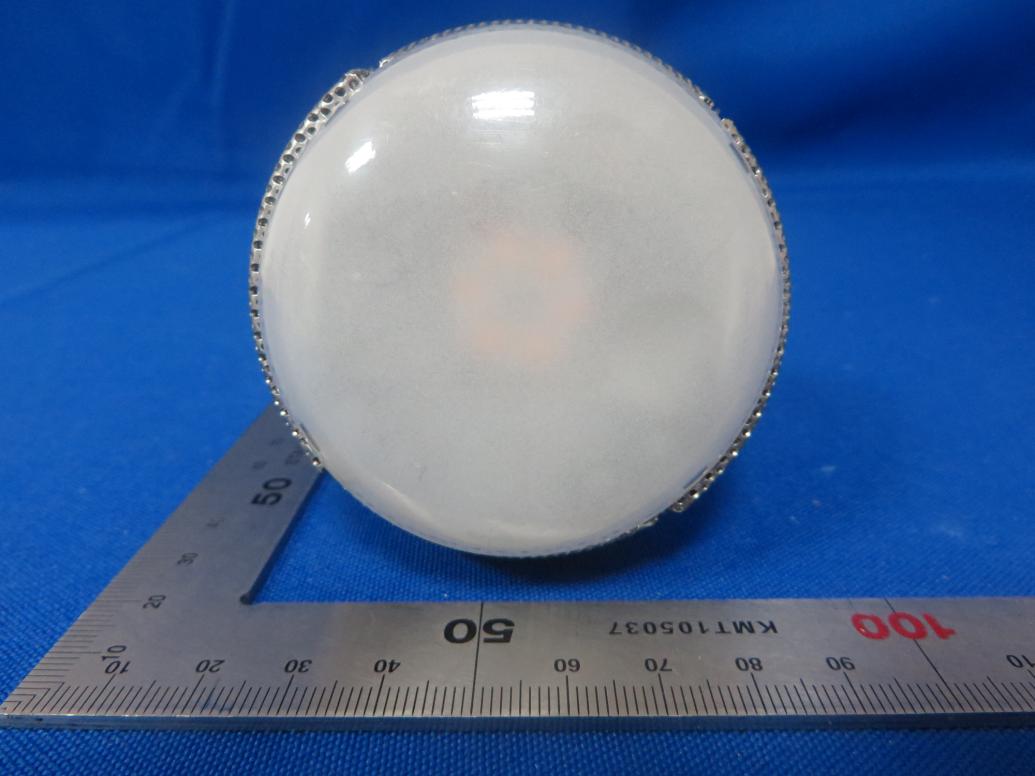

1 of 3 External Photo (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo (6) EUT Photo

1 of 12 Internal Photo (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo (6) EUT Photo (7) EUT Photo (8) EUT Photo (9) EUT Photo (10) EUT Photo (11) EUT Photo (12) EUT Photo (13) EUT Photo (14) EUT Photo (15) EUT Photo (16) EUT Photo (17) EUT Photo (18) EUT Photo (19) EUT Photo (20) EUT Photo (21) EUT Photo (22) EUT Photo (23) EUT Photo

MRT Technology (Suzhou) Co., Ltd Report No.: 1410RSU00903 Phone: +86-512-66308358 Report Version: V01 Fax: +86-512-66308368 Issue Date: 10-27-2014 Web: www.mrt-cert.com FCC ID: 2ABX8SH-000000005 Page Number: 1 of 5 RF Exposure Evaluation Declaration FCC ID: 2ABX8SH-000000005 APPLICANT: Zhejiang shenghui lighting Co., Ltd. Shanghai Branch Application Type: Certification Product: LED Lamp Model No.: C01-A66XXE26(where X can be 0-9, A-Z, a-z or blank for different customer code which will not influence safety) Brand Name: sengled FCC Classification: Digital Transmission System (DTS) Reviewed By : ( Robin Wu ) Approved By : ( Marlin Chen ) The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standards through the calibration of the equipment and evaluated measurement uncertainty herein. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 1410RSU00903 FCC ID: 2ABX8SH-000000005 Page Number: 2 of 5 Revision History Report No. Version Description Issue Date 1410RSU00903 Rev. 01 Initial report 10-27-2014 Report No.: 1410RSU00903 FCC ID: 2ABX8SH-000000005 Page Number: 3 of 5 1. PRODUCT INFORMATION 1.1. Equipment Description Note: The difference of models is for different marketing requirement. Product Name LED Lamp Model No. C01-A66XXE26(where X can be 0-9, A-Z, a-z or blank for different customer code which will not influence safety) Power Type 120VAC / 60Hz Frequency Range 2402 ~ 2480 MHz Type of Modulation FHSS Antenna Type Internal Antenna Antenna Gain 1.35dBi Report No.: 1410RSU00903 FCC ID: 2ABX8SH-000000005 Page Number: 4 of 5 2. RF Exposure Evaluation 2.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- f/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- f/1500 6 1500-100,000 -- -- 1 30 f= Frequency in MHz Calculation Formula: Pd = (Pout*G)/(4*pi*r2) Where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 r = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1mW/cm². If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Report No.: 1410RSU00903 FCC ID: 2ABX8SH-000000005 Page Number: 5 of 5 2.2. Test Result of RF Exposure Evaluation Product LED Lamp Test Item RF Exposure Evaluation Antenna Gain: The maximum Gain measured in fully anechoic chamber is 1.35dBi for 2.4GHz in logarithm scale. For 2.4G ISM Band: Test Mode Frequency Band (MHz) Maximum Average Output Power (dBm) Power Density at R = 20 cm (mW/cm 2 ) Limit (mW/cm 2 ) Bluetooth 2402 ~ 2480 2.56 0.0005 1 CONCULISON: Therefore, the Max Power Density at R (20 cm) = 0.0005mW/cm 2 < 1mW/cm 2 . So the EUT complies with the requirement. The End

MRT Technology (Suzhou) Co., Ltd Report No.: 1410RSU00902 Phone: +86-512-66308358 Report Version: V01 Fax: +86-512-66308368 Issue Date: 10-29-2014 Web: www.mrt-cert.com FCC ID: 2ABX8SH-000000005 Page Number: 1 of 50 IC: 12219A-00000000005 FCC ID: 2ABX8SH-000000005 IC: 12219A-00000000005 APPLICANT: Zhejiang shenghui lighting Co., Ltd. Shanghai Branch Application Type: Certification Product: LED Lamp FCC Model No.: C01-A66XXE26(where X can be 0-9, A-Z, a-z or blank for different customer code which will not influence safety) IC Model No.: C01-A66NAE26 Brand Name: sengled FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 IC Rule(s): RSS-210 Issue 8 Test Procedure(s): KDB 558074 D01v03r02, KDB 662911 D01v02r01 Test Date: Oct. 19 ~ 26, 2014 MEASUREMENT REPORT FCC PART 15.247 / IC RSS-210 BLE Reviewed By : ( Robin Wu ) Approved By : ( Marlin Chen ) The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB 558074 D01v03r02. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 1410RSU00902 FCC ID: 2ABX8SH-000000005 Page Number: 2 of 50 IC: 12219A-00000000005 Revision History Report No. Version Description Issue Date 1410RSU00902 Rev. 01 Initial report 10-29-2014 Report No.: 1410RSU00902 FCC ID: 2ABX8SH-000000005 Page Number: 3 of 50 IC: 12219A-00000000005 CONTENTS Description Page §2.1033 General Information ......................................................................................................... 5 1. INTRODUCTION ..................................................................................................................... 6 1.1. Scope ........................................................................................................................... 6 1.2. MRT Test Location ....................................................................................................... 6 2. PRODUCT INFORMATION ..................................................................................................... 7 2.1. Equipment Description .................................................................................................. 7 2.2. Frequency / Channel Operation .................................................................................... 7 2.3. Test Mode .................................................................................................................... 8 2.4. Test Software ............................................................................................................... 8 2.5. Device Capabilities ....................................................................................................... 9 2.6. Test Configuration ........................................................................................................ 9 2.7. EMI Suppression Device(s)/Modifications ..................................................................... 9 2.8. Labeling Requirements ................................................................................................. 9 3. DESCRIPTION OF TEST ...................................................................................................... 10 3.1. Evaluation Procedure ................................................................................................. 10 3.2. AC Line Conducted Emissions ................................................................................... 10 3.3. Radiated Emissions ..................................................................................................... 11 4. ANTENNA REQUIREMENTS ................................................................................................ 12 5. TEST EQUIPMENT CALIBRATION DATE ............................................................................ 13 6. MEASUREMENT UNCERTAINTY ......................................................................................... 14 7. TEST RESULT ...................................................................................................................... 15 7.1. Summary .................................................................................................................... 15 7.2. 6dB Bandwidth Measurement ..................................................................................... 16 7.2.1. Test Limit ................................................................................................................ 16 7.2.2. Te s t Procedure used ............................................................................................... 16 7.2.3. Te s t Setting ............................................................................................................. 16 7.2.4. Te s t Setup ............................................................................................................... 16 7.2.5. Te s t Result .............................................................................................................. 17 7.3. Output Power Measurement ....................................................................................... 18 7.3.1. Te s t Limit ................................................................................................................ 18 7.3.2. Te s t Procedure Used .............................................................................................. 18 7.3.3. Te s t Setting ............................................................................................................. 18 7.3.4. Te s t Setup ............................................................................................................... 18 Report No.: 1410RSU00902 FCC ID: 2ABX8SH-000000005 Page …

Text truncated - open the document above for the full version.

1 of 3 FCC Part15C Test Setup Photo Description: Front view of Conducted Emission Test Setup Description: Back view of Conducted Emission Test Setup Description: Radiated Emission Test Setup for 9kHz ~ 30MHz Description: Radiated Emission Test Setup for 30MHz ~ 1GHz Description: Radiated Emission Test Setup for 1GHz ~ 18GHz Description: Radiated Emission Test Setup for 18GHz ~ 40GHz
