User Manual Z01-CIA19NAE26 LED Wireless Bulb Features • Control on/off and brightnessremotely via iControl devices and mobile app • On/off and brightness control via button on-bulb • Automatic color temperature adjustment (2700K@25% brightness ~ 3300K@100%brightness) • Real-time power consumptionreporting • iControlOpenHome TM ,Zigbee Alliance certified, Zigbee HA 1.2 compatible Package Includes: • One Z01-CIA19 Bulb • User manual Product Specifications • Power: 9.8 Watts • Brightness: 800 lumens • Beam Angle: 233 degrees • Input: 100~120V AC, 50/60Hz, 120mA • Light Socket: E26 • Operating Temperature: -20° C ~ +52° C • Store Temperature: -40° C ~ +70° C • Operating Humidity: 10% ≤ RH ≤ 95%, No condensing Installation Instructions 1. Turn the light switch to OFF position prior to installing the LED bulb in a standard socket (E26). 2. Screw the bulb into the light socket and turn the switch on.The bulb will indicate pairing mode by subtle light pulsing for up to three minutes.If needed, power cycle the bulb (off then back on) to re-enter the pairing mode after the three minutes. 3. While the bulb is in pairing mode, initiate pairing on your iControl security controller panel using the instructions provided.Once paired, the bulb can be controlled via iControl’s panel, mobile app or the button on the bulb. Using the bulb’s button for operation Set brightness/off setting via simple button press: 100%->75%->50%->25%-off->100%, the color temperature will be automatically set to the brightness settings as follows. 100% @3300K 75% @3000K 50%@2800K 25%@2700K Rejoining the bulb and resetting to factory settings Rejoin wireless network: Press and holdthe button for minimum 10 seconds but no more than 20 seconds. The LED will blink two times indicating network rejoin. Factory default reset: Press and holdthe button for minimum 20 seconds. The LED will blink five times followed by subtle light pulsing indicating pairing mode. Troubleshoot the device Having trouble pairing with the Controller? • Trymoving the device to a location closer to the Controller.Remove obstacles or other wireless devices between the bulb and the Controller. • Ensure neither the device nor the Controller are located near other wireless devices like a Wi-Fi access point/router. Device was communicating with the controller but is no longer communicating? • Check if the powercord to the bulb has been disconnected or if the power switch is in the OFF position. • Power cycle the bulb using wall switch. Thebulb should rejoin the controller automatically Important Safety Instructions • THIS DEVICE IS NOT INTENDED FOR USE WITH EMERGENCY EXITS” or “NOT FOR EMERGENCY LIGHTING” • This product is intended for indoor use only • Recommend not use the bulb in completely enclosed fixtures • Recommend not use with external wall dimmers • Do NOT use the productnear any water source • Recommend not install this bulb in sockets controlled as group (ex: recessed lights, ceiling fan fixtures) • Operate the button on the bulb only when the bulb surface temperature is not high • Do not install the product near any heat sources, such as heater, radiators, stove, heat registers or other apparatus that produce heat • To reduce the risk of electric shock, do NOT take apart. There are no serviceable parts inside • Do not clean the device when it is on and connected to the power supply • For best protection against lightning, unplug the product from its power source during a storm • Ensure that the product is stable and secured in place during installation • Only connect the bulb to a fixture that can support the extra weight of the bulb • The bulb will be hot when in use and should not be touched without taking care Warranty Information For this product, the manufacturer grants a warranty of 2 years for workmanship and material. Warranty repairs may be performed exclusively by an authorized customer service. The original sales receipt has to be provided as proof of purchase. Excluded from this warranty are: normal wear and tear, alterations, rework, damage as a result of carelessness, outside influence, areas of application for which the product is not intended, or products that have been dismantled completely or partially. FCC STATEMENT FOR USERS This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. SECTION 15.21 The user’s manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. In cases where the manual is provided only in a form other than paper, such as on a computer disk or over the Internet, the information required by this section may be included in the manual in that alternative form, provided the user can reasonably be expected to have the capability to access information in that form. FEDERAL COMMUNICATION COMMISSION INTERFERENCE STATEMENT, SECTION 15.105(b) This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generate, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient…

Text truncated - open the document above for the full version.

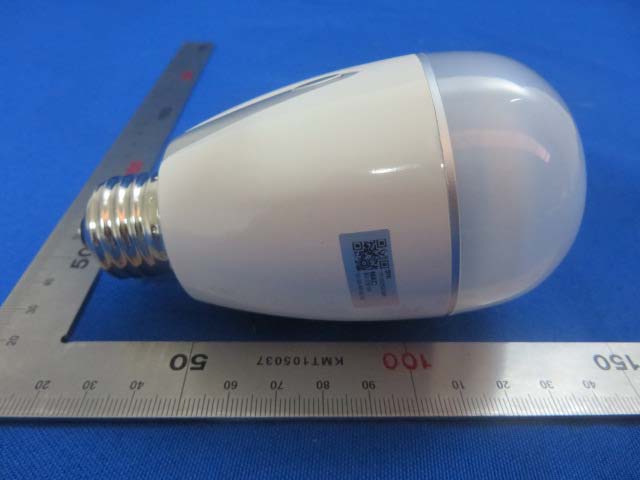

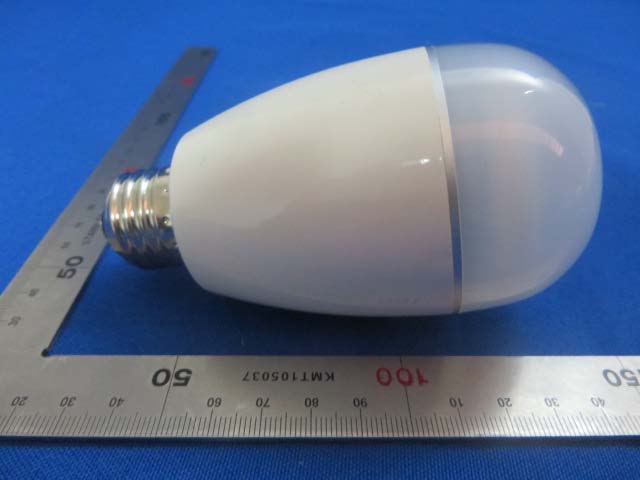

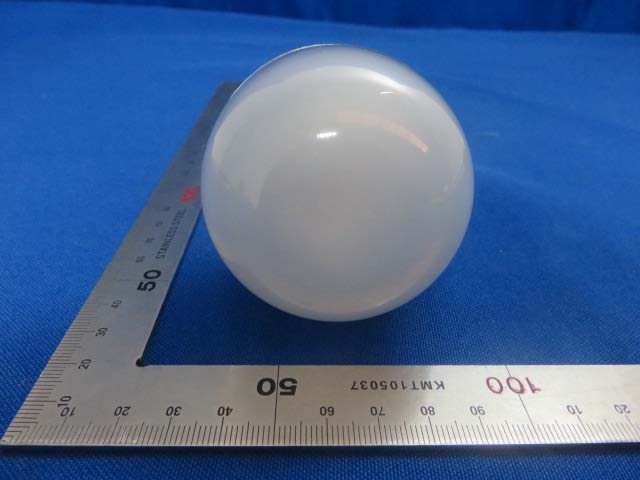

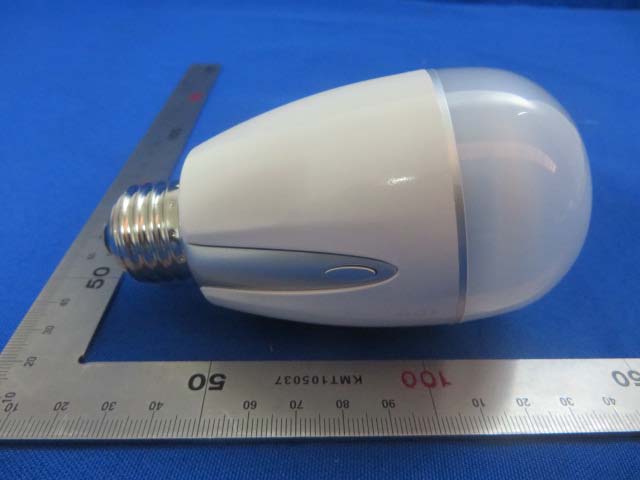

External Photo (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo

Internal Photo (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo (6) EUT Photo (7) EUT Photo (8) EUT Photo (9) EUT Photo (10) EUT Photo (11) EUT Photo (12) EUT Photo (13) EUT Photo (14) EUT Photo (15) EUT Photo (16) EUT Photo (17) EUT Photo

MRT Technology (Suzhou) Co., Ltd Report No.: 1505RSU00402 Phone: +86-512-66308358 Report Version: V01 Fax: +86-512-66308368 Issue Date: 05-18-2015 Web: www.mrt-cert.com FCC ID: 2ABX8SH-000000007 Page Number: 1 of 5 RF Exposure Evaluation Declaration FCC ID: 2ABX8SH-000000007 APPLICANT: Zhejiang shenghui lighting Co., Ltd. Shanghai Branch Application Type: Certification Product: sengled element Model No.: Z01-CIA19NAE26 Brand Name: sengled FCC Classification: Digital Transmission System (DTS) Reviewed By : ( Robin Wu ) Approved By : ( Marlin Chen ) The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standards through the calibration of the equipment and evaluated measurement uncertainty herein. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 1505RSU00402 FCC ID: 2ABX8SH-000000007 Page Number: 2 of 5 Revision History Report No. Version Description Issue Date 1505RSU00402 Rev. 01 Initial report 05-18-2015 Report No.: 1505RSU00402 FCC ID: 2ABX8SH-000000007 Page Number: 3 of 5 1. PRODUCT INFORMATION 1.1. Equipment Description 1.2. Operation Frequency / Channel List Channel Frequency Channel Frequency Channel Frequency 11 2405 MHz 12 2410 MHz 13 2415 MHz 14 2420 MHz 15 2425 MHz 16 2430 MHz 17 2435 MHz 18 2440 MHz 19 2445 MHz 20 2450 MHz 21 2455 MHz 22 2460 MHz 23 2465 MHz 24 2470 MHz 25 2475 MHz Product Name sengled element Model No. Z01-CIA19NAE26 Power Type AC 120V/60Hz Frequency Range 2405 ~ 2475 MHz Maximum Output Power 6.83dBm Type of Modulation O-QPSK Antenna Type Internal Antenna Gain 2dBi Report No.: 1505RSU00402 FCC ID: 2ABX8SH-000000007 Page Number: 4 of 5 2. RF Exposure Evaluation 2.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- f/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- f/1500 6 1500-100,000 -- -- 1 30 f= Frequency in MHz Calculation Formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 r = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1mW/cm². If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Report No.: 1505RSU00402 FCC ID: 2ABX8SH-000000007 Page Number: 5 of 5 2.2. Test Result of RF Exposure Evaluation Product sengled element Test Item RF Exposure Evaluation Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2.0dBi for 2.4GHz in logarithm scale. CONCULISON: The Safety Distance of the sengled element FCC ID: 2ABX8SH-000000007 was 0.78cm. The End Test Mode Frequency Band (MHz) Maximum Output Power (dBm) Limit of Power Density S(mW/cm 2 ) Safety Distance (cm) 802.15.4 2405 ~ 2475 6.83 1 0.78

MRT Technology (Suzhou) Co., Ltd Report No.: 1505RSU00401 Phone: +86-512-66308358 Report Version: V01 Fax: +86-512-66308368 Issue Date: 05-18-2015 Web: www.mrt-cert.com FCC ID: 2ABX8SH-000000007 Page Number: 1 of 51 IC:12219A-00000000007 FCC ID: 2ABX8SH-000000007 IC: 12219A-00000000007 APPLICANT: Zhejiang shenghui lighting Co., Ltd. Shanghai Branch Application Type: Certification Product: sengled element Model No.: Z01-CIA19NAE26 Trademark: sengled FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 IC Rule(s): RSS-210 Issue 8 Test Procedure(s): ANSI C63.10-2013, KDB 558074 D01v03r02 Test Date: M a y. 11 ~ 17, 2015 MEASUREMENT REPORT FCC PART 15.247 / RSS-210 Zigbee 802.15.4 Reviewed By : ( Robin Wu ) Approved By : ( Marlin Chen ) The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB 558074 D01v03r02. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 1505RSU00401 FCC ID: 2ABX8SH-000000007 Page Number: 2 of 51 IC:12219A-00000000007 Revision History Report No. Version Description Issue Date 1505RSU00401 Rev. 01 Initial report 05-18-2015 Report No.: 1505RSU00401 FCC ID: 2ABX8SH-000000007 Page Number: 3 of 51 IC:12219A-00000000007 CONTENTS Description Page §2.1033 General Information ......................................................................................................... 5 1. INTRODUCTION ..................................................................................................................... 6 1.1. Scope ........................................................................................................................... 6 1.2. MRT Test Location ....................................................................................................... 6 2. PRODUCT INFORMATION ..................................................................................................... 7 2.1. Equipment Description .................................................................................................. 7 2.2. Applicable Standards .................................................................................................... 7 2.3. Operation Frequency / Channel List ............................................................................. 8 2.4. Test Mode .................................................................................................................... 8 2.5. Test Software ............................................................................................................... 8 2.6. Device Capabilities ....................................................................................................... 9 2.7. Test Configuration ........................................................................................................ 9 2.8. EMI Suppression Device(s)/Modifications ..................................................................... 9 2.9. Labeling Requirements ................................................................................................. 9 3. DESCRIPTION OF TEST ...................................................................................................... 10 3.1. Evaluation Procedure ................................................................................................. 10 3.2. AC Line Conducted Emissions ................................................................................... 10 3.3. Radiated Emissions ..................................................................................................... 11 4. ANTENNA REQUIREMENTS ................................................................................................ 12 5. TEST EQUIPMENT CALIBRATION D ATE ............................................................................ 13 6. MEASUREMENT UNCERTAINTY ......................................................................................... 14 7. TEST RESULT ...................................................................................................................... 15 7.1. Summary .................................................................................................................... 15 7.2. 6dB Bandwidth Measurement ..................................................................................... 16 7.2.1. Test Limit ................................................................................................................ 16 7.2.2. Te s t Procedure used ............................................................................................... 16 7.2.3. Te s t Setting ............................................................................................................. 16 7.2.4. Te s t Setup ............................................................................................................... 16 7.2.5. Te s t Result .............................................................................................................. 17 7.3. Output Power Measurement ....................................................................................... 18 7.3.1. Te s t Limit ................................................................................................................ 18 7.3.2. Te s t Procedure Used .............................................................................................. 18 Report No.: 1505RSU00401 FCC ID: 2ABX8SH-000000007 Page Number: 4 of 51 IC:12219A-00000000007 7.3.3. Te s t Setting ............................................................................................................. 18 7.3.4. Te s t Setup ...................................................................…

Text truncated - open the document above for the full version.

1 of 3 FCC Part15C Test Setup Photo Description: Front view of Conducted Emission Test Setup Description: Back view of Conducted Emission Test Setup Description: Radiated Emission Test Setup for 9kHz ~ 30MHz Description: Radiated Emission Test Setup for 30MHz ~ 1GHz Description: Radiated Emission Test Setup for 1GHz ~ 18GHz Description: Radiated Emission Test Setup for 18GHz ~ 25GHz
