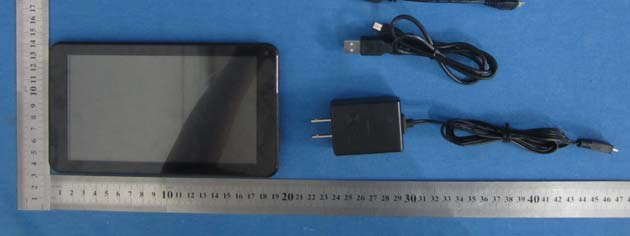

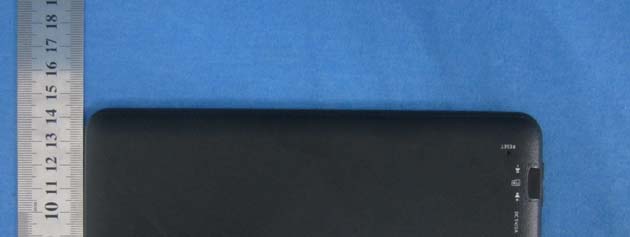

2ACDE-QD-700IITablet

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

FCC ID: 2ACDE-QD-700II-BK According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where --f(GHz) is the RF channel transmit frequency in GHz --Power and distance are rounded to the nearest mW and mm before calculation --The result is rounded to one decimal place for comparison EIRP = pt x gt = (EXd) 2 /30 Where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unit less), E = electric field strength in V/m, ---10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m) ---3m So pt = (Exd) 2 / 30 x gt Field strength = 96.67 dBuV/m @3m Ant gain =2dBi, so Ant numeric gain= 1.58 So pt={ [10 (96.67/20) /10 6 x 3] 2 / 30 x 1.58 } x 1000 mW = 0.879mW So (0.879mW /5mm) x √2.48 = 0.277<3 Then SAR evaluation is not required

Global United Technology Services Co., Ltd. Report No.: GTSE14080139602 Authorized Signature: Robinson Lo Laboratory Manager This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the GTS product certification mark. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of GTS or testing done by GTS in connection with, distribution or use of the product described in this report must be approved by GTS in writing. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. FCC REPORT(BT) Applicant: Cubix Latin America, LLC Address of Applicant: 2841 NW 107th Ave, Doral, Florida, United States 33172 Equipment Under Test (EUT) Product Name: Tablet Model No.: QD-700ii-BK, QD-700ii-WT FCC ID: 2ACDE-QD-700II Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.249:2013 Date of sample receipt: September 01, 2014 Date of Test: September 01-11, 2014 Date of report issued: September 11, 2014 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No.: GTSE14080139602 Global United Technology Services Co., Ltd. Project No.: GTSE140801396RF 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 24 2 Version Version No. Date Description 00 September 11, 2014 Original Prepared By: Date: September 11, 2014 Project Engineer Check By: Date: September 11, 2014 Reviewer Report No.: GTSE14080139602 Global United Technology Services Co., Ltd. Project No.: GTSE140801396RF 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 24 3 Contents Page 1 COVER PAGE ............................................................................................................................................ 1 2 VERSION .................................................................................................................................................. 2 3 CONTENTS .............................................................................................................................................. 3 4 TEST SUMMARY ..................................................................................................................................... 4 5 GENERAL INFORMATION ...................................................................................................................... 5 5.1 CLIENT INFORMATION ......................................................................................................................... 5 5.2 GENERAL DESCRIPTION OF EUT ......................................................................................................... 5 5.3 TEST MODE ........................................................................................................................................ 7 5.4 DESCRIPTION OF SUPPORT UNITS ....................................................................................................... 7 5.5 TEST FACILITY .................................................................................................................................... 7 5.6 TEST LOCATION ................................................................................................................................. 7 5.7 OTHER INFORMATION REQUESTED BY THE CUSTOMER ......................................................................... 7 6 TEST INSTRUMENTS LIST ..................................................................................................................... 8 7 TEST RESULTS AND MEASUREMENT DATA ...................................................................................... 9 7.1 ANTENNA REQUIREMENT: .................................................................................................................... 9 7.2 CONDUCTED EMISSIONS ................................................................................................................... 10 7.3 RADIATED EMISSION METHOD ........................................................................................................... 13 7.3.1 Field Strength of The Fundamental Signal ................................................................................ 15 7.3.2 Spurious emissions .................................................................................................................... 16 7.3.3 Bandedge emissions.................................................................................................................. 20 7.4 20DB OCCUPY BANDWIDTH .............................................................................................................. 21 8 TEST SETUP PHOTO ............................................................................................................................ 23 9 EUT CONSTRUCTIONAL DETAILS ..................................................................................................... 24 Report No.: GTSE14080139602 Global United Technology Services Co., Ltd. Project No.: GTSE140801396RF 2nd F…

Text truncated - open the document above for the full version.

Radiated Emission Conducted Emission
