2ACDEQSPR-312BTBluetooth Speaker

Production Introduction Model name:QSPR‐312BT Brand name:QUO FCC ID:2ACDEQSPR‐312BT Thank you for purchasing our products. This is a Bluetooth speaker system in fashionable design, with wireless Bluetooth stereo sound. It supports Bluetooth 2.1 agreement, not only being compatible with mobile phones, tablets, laptops and other Bluetooth enabled devices, let you get rid of cables completely, enjoy the joy of music freely, but also audio input from mobile phones, laptops, MP3, MP4 and other equipments. Please read the following instructions carefully before operating. Keep them safe for future reference. Features as shown in below: 1. Previous song/Volume decrease 2. Play/Pause 3. Next song/Volume increase 4. Lamp for working situation 5. Speakers 6. Micro USB power input port 7. AUX audio input port 8. ON/OFF 9. TF card slot 10. Bass strengthening unit Product Features ·Stereo sound output. ·Bass boost, make you rock. ·Fashionable facade ·MP3 music play, supports various kinds of music files. Update music online from TF card · Hands‐free function based on Bluetooth mode ·Control the music playing between speaker and mobile phone or other equipments has Bluetooth function ·Support more sound source input ·Built‐in rechargeable lithium battery, use freely. Technical Parameters ·2.0 Sound Channel Stereo Output ·Speaker Unit:2 ＂ 4Ω ·Frequency Response:100Hz～18KHz ·S/N Ratio:≥70dB ·Bluetooth standard 2.1+EDR,Class II ·Support A2DP, AVRCP, HFP,HSP and etc. ·Working range:10M ·Read music files like MP3,WAV,WMA,AMR,FLAC,APE from TF card. Supports updating music files online. ·Power: DC 5V 1.0A,built‐in rechargeable lithium battery ·Play Time:12 hours ( mid. Volume) ·Dimension: 196x88x71mm ·Weight:385g How to operate: Charging Under shutdown state, connect external DC(5V 500mA‐5V 2A) or PC to charge up speaker by USB cable, charging lights in red. Finished, working light is off. ※ Built‐in rechargeable lithium battery, please charge up before use. ※ Under off state, charging time about 4hrs. ※ Under on state, charging time will cost long. ON/OFF Push the power switch to ON position, work light is lit up, machine starts. Push the power switch to OFF position, work light is off, machine stops. Working Modes Changing There are different kinds of working modes. They can be changed between each other by long press Play/Pause button for 2 seconds. When AUX cable connected, the mode is confirmed AUX input mode; take out AUX cable, Bluetooth mode starts. Once insert TF card, enter MP3 mode automatically. Bluetooth Mode When turns on, it enters Bluetooth mode automatically, working lamp flicker: •Pair: It is necessary to pair this product for the first operating. Operation as below: Turn on and enter pairing status automatically, working light flashes in blue quickly; search for Bluetooth device, until find out “312”, select it, then lamp keeps lighting blue in slow flash, pair successfully.(Noted: if the pass code is required, entry "0000") ※ If timeout for pairing, the speaker will be in standby mode. Please restart the machine to make it re‐enter the pairing mode. •Connected: This speaker can store the devices which have paired with it. If devices close to this speaker enough (range 10 M),Bluetooth mode will start and pair automatically. If out of range or haven’t opened Bluetooth function on devices, this speaker will enter the pairing mode and search devices nearby. •Operation: After paired, you can control the music play/pause by buttons, adjust the volume, choose previous/next song. Short press ,music play and pause. Short press ,previous song, long press, volume decrease Short press ,next song, long press, volume increase Long press to change to MP3 mode. During incoming calls, short press to answer. Finished, press again to disconnect the call. Ps: Low power, indicator light will flash 3 times in blue, please charge up the speaker. There may be some difference between different devices, such as smart phones, computers, etc., which has Bluetooth function. Before pairing to this speaker, please check devices manual firstly. MP3 Mode ·Enter MP3 mode: Long press button of Play/Pause or insert TF card to enter MP3 mode. Indicator lamp lights in green. ·Support music files in MP3,WAV,WMA,AMR,FLAC,APE,etc.from TF card. Ps: Low power, indicator light will flash 3times in green, please charge up the speaker. AUX Mode Once inserted AUX cable into this speaker, Indicator lamp lights flash in green, AUX mode starts. It can play music from the external device connected. Under this mode, you can control the music or adjust volume through pressing buttons. Volume increasing(long press)/next song, volume decreasing(long press)/previous song. Low Power warning When the power is low, working light will flash 3times in green, alert the user to charge up speaker. If not charge timely, it will shut down automatically when the voltage is too low, please use after full charging. Instruction on Product Safety Maintenance ● Do not place this product under the high‐temperature and damp environment and make it be caught by rain or impacted by strong force. ● If this product gives out of smoke or encounters other exceptions, in order to avoid accidents, pull up the DC‐USB power cable instantly. Contact local franchiser or dial the seller for repair. ●The audio signal cable and power cable can not be pulled, tied, extruded, trampled or suspended with heavy objects to avoid damaging the insulation layer of the audio signal cable and USB power cable, which will lead to short circuit or bad contact, etc. ● Please power off this product when it is not operated for a long time. ● With Bluetooth function, it can be compatible with common smart phones and tablets, but there may be some differences once make use of some special devices or application program. Some functions may be not supported. Images of speaker and attachments Standard USB to Micro USB cable 3.5 mm stereo audio cable User manual Bluetooth speaker Package List ●Blue…

Text truncated - open the document above for the full version.

Aug.14, 2014 Federal Communication Commission Authorization and Evaluation Division FCC ID: 2ACDEQSPR-312BT Re: Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1: Block Diagram 2: Circuit Diagram 3: Parts List 4.Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rules 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Cubix Latin America, LLC Contact person: ELIAHU SIBONI Title: Commercial Director

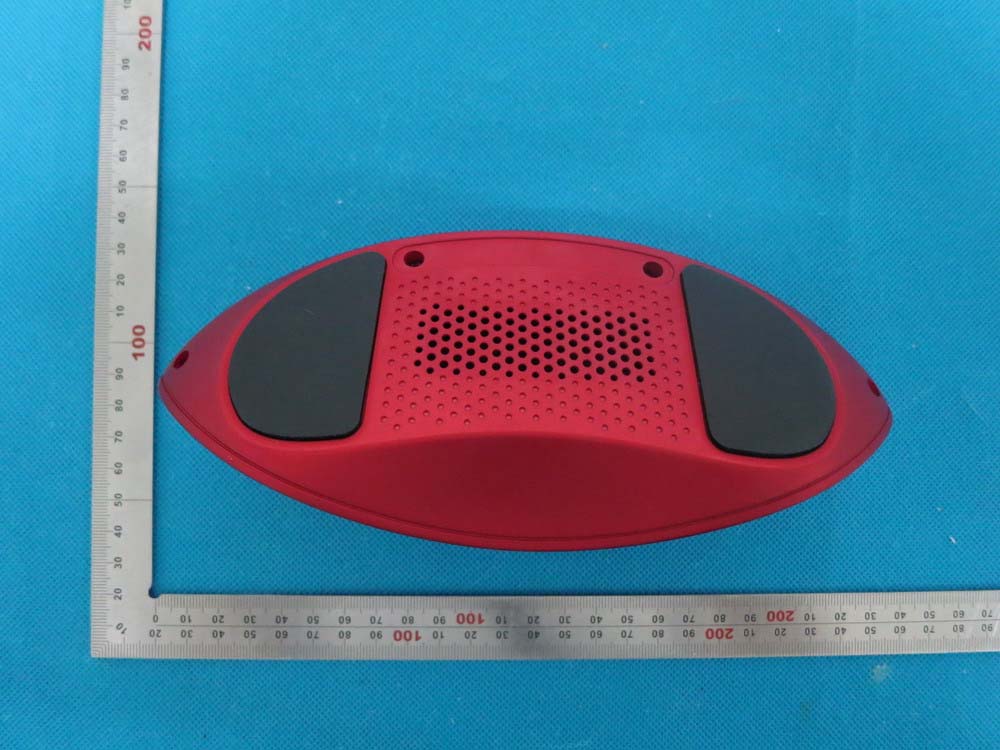

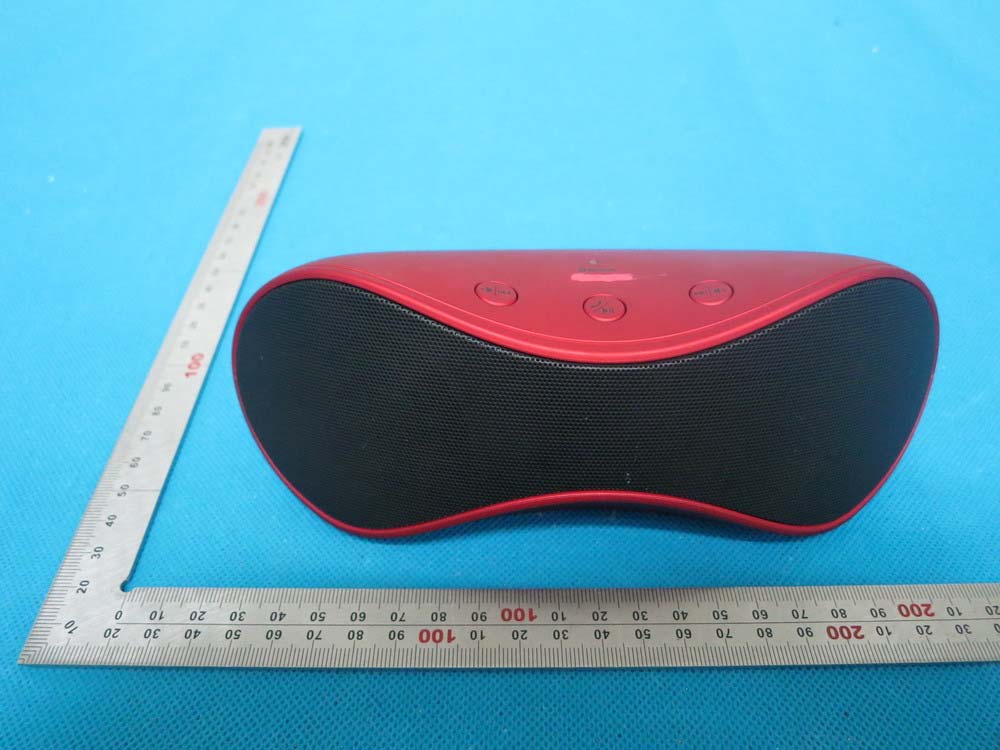

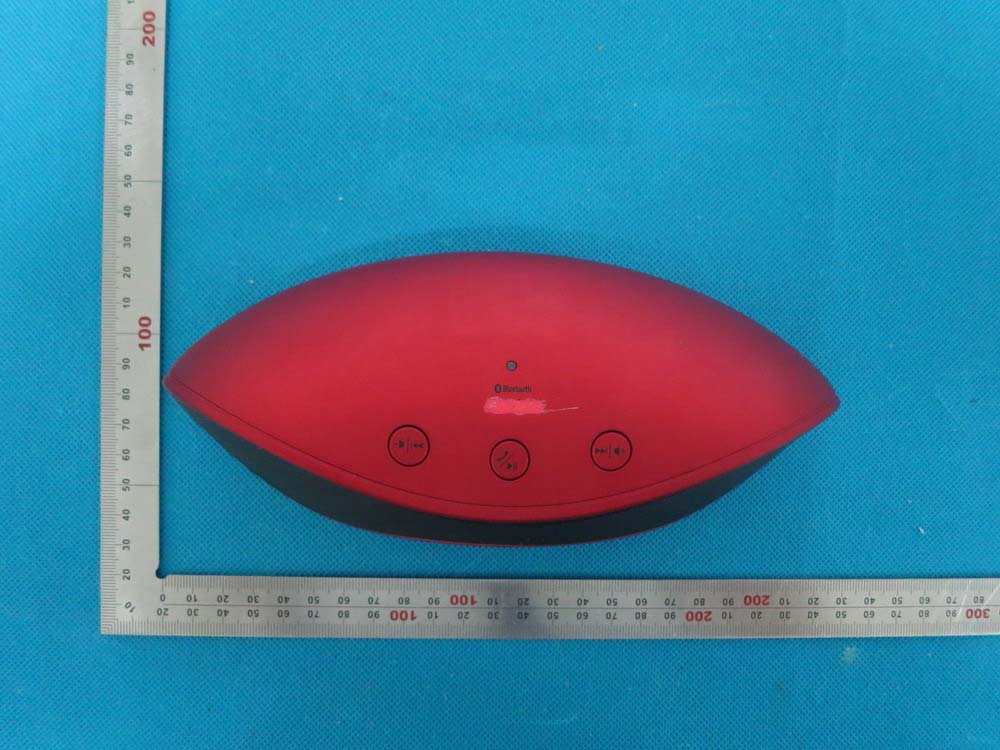

External Photos ALL VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location FCC ID:2ACDEQSPR‐312BT

Internal Photos OPEN VIEW OF EUT-1 OPEN VIEW OF EUT-2 INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 BT Antenna INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 INTERNAL VIEW OF EUT-5 INTERNAL VIEW OF EUT-6 INTERNAL VIEW OF EUT-7

Report No.: AGC00302140702FE03 Page 1 of 70 FCC Test Report Report No.: AGC00302140702FE03 FCC ID : 2ACDEQSPR‐312BT APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Mobile Bluetooth Speaker BRAND NAME : QUO MODEL NAME : QSPR‐312BT, T12 CLIENT : Cubix Latin America.LLC DATE OF ISSUE : Aug.19, 2014 STANDARD(S) : FCC Part 15 Rules REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC00302140702FE03 Page 2 of 70 Report Revise Record Report Version Revise Time Issued Date Valid VersionNotes V1.0 / Aug.19, 2014Valid Original Report Report No.: AGC00302140702FE03 Page 3 of 70 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ...................................................................................... 5 2. GENERAL INFORMATION .................................................................................................. 6 2.1. PRODUCT DESCRIPTION ........................................................................................................... 6 2.2. TABLE OF CARRIER FREQUENCYS .......................................................................................... 6 2.3. RECEIVER INPUT BANDWIDTH ................................................................................................. 7 2.4. EXAMPLE OF A HOPPING SEQUENCY IN DATA MODE ........................................................... 7 2.5. EQUALLY AVERAGE USE OF FREQUENCIES AND BEHAVIOUR ............................................ 7 2.6. RELATED SUBMITTAL(S) / GRANT (S) ....................................................................................... 8 2.7. TEST METHODOLOGY................................................................................................................ 8 2.8. SPECIAL ACCESSORIES ............................................................................................................ 8 2.9. EQUIPMENT MODIFICATIONS ................................................................................................... 8 3. MEASUREMENT UNCERTAINTY........................................................................................ 9 4. DESCRIPTION OF TEST MODES ........................................................................................ 9 5. SYSTEM TEST CONFIGURATION .................................................................................... 10 5.1. CONFIGURATION OF EUT SYSTEM ........................................................................................ 10 5.2. EQUIPMENT USED IN EUT SYSTEM ....................................................................................... 10 5.3. SUMMARY OF TEST RESULTS ................................................................................................ 10 6. TEST FACILITY .................................................................................................................. 11 7. PEAK OUTPUT POWER .................................................................................................... 12 7.1. MEASUREMENT PROCEDURE ................................................................................................ 12 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................... 12 7.3. LIMITS AND MEASUREMENT RESULT .................................................................................... 13 8. 20DB BANDWIDTH ............................................................................................................ 19 8.1. MEASUREMENT PROCEDURE ................................................................................................ 19 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................... 19 8.3. LIMITS AND MEASUREMENT RESULTS .................................................................................. 19 9. CONDUCTED SPURIOUS EMISSION ............................................................................... 26 9.1. MEASUREMENT PROCEDURE ................................................................................................ 26 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................... 26 9.3. MEASUREMENT EQUIPMENT USED ....................................................................................... 26 9.4. LIMITS AND MEASUREMENT RESULT .................................................................................... 26 10. RADIATED EMISSION ..................................................................................................... 30 10.1. MEASUREMENT PROCEDURE .............................................................................................. 30 10.2. TEST SETUP ............................................................................................................................ 32 10.3. TEST RESULT .......................................................................................................................... 32 Report No.: AGC00302140702FE03 Page 4 of 70 11. BAND EDGE EMISSION .................................................................................................. 39 11.1. MEASUREMENT PROCEDURE .............................................................................................. 45 11.2. TEST SET-UP ........................................................................................................................... 45 11.3. TEST RESULT .......................................................................................................................... 46 12. NUMBER OF HOPPING FREQUENCY ............................................................................ 50 12.1. MEASUREMENT PROCEDURE .............................................................................................. 50 12.2. TEST SETUP (BLOCK D…

Text truncated - open the document above for the full version.

APPENDIX IV PHOTOGRAPHS OF TEST SETUP FCC LINE CONDUCTED EMISSION TEST SETUP FCC RADIATED EMISSION TEST SETUP
