2ACDE-QD3GM-710-SLMID

mobility .com User Manual 3G BLAZE 7 2 3 User Manual 3G BLAZE 7 Introduction a. Package contents b. Safe handling of the product c. Battery instructions I.D. d. Disposal information 1. CHAPTER 1 • Basic configuration and setup 1.1. Charging your tablet 1.2. Switching your tablet on/off 2. CHAPTER 2 • Getting started 2.1. Home screen 2.2. Managing icons and several screens 3. CHAPTER 3 • Main applications 3.1. Internet access 3.2. Web browser 3.3. Email 4. CHAPTER 4 • Data transfer modes 4.1. Connection to a PC 4.2. Micro-SD card 5. CHAPTER 5 • Productivity applications 5.1. File manager 5.2. Search 5.3. Manage downloads 5.4. Clock 5.5. Calendar 6. CHAPTER 6 • Entertainment applications 6.1. Sound recorder 6.2. Music player 6.3. Camera 6.4. Camera and camcorder settings 6.5. Social applications 6.6. FM radio 6.7. FM transmission 7. CHAPTER 7 • Settings 7.1. Wireless and networks 7.2. 3G internet 7.3. GPS navigation 7.4. Device settings 7.5. Personal settings 7.6. System settings 7.7. About Tablet 8. CHAPTER 8 • Security 9. CHAPTER 9 • Backup and reset Appendix 1 Specifications Appendix 2 Troubleshooting checklist Appendix 3 FCC statement Thank you for purchasing the QUO BLAZE 7 3Gm Tablet. This manual guide will show you how to set up your device and use its functions. Once your tablet is up and running, you can visit www.quomobility.com to find out more about all the great features your new device has. a. Package contents • QUO BLAZE 7 3Gm Tablet with rechargeable lithium-ion battery • AC charger/USB sync data cable • Micro USB male to USB female adapter • Earbuds • Protective sleeve • User manual Note: If any of the listed items is missing, mismatched, damaged or broken, contact your local dealer immediately for replacement. b. Safe handling of the product • Never expose your tablet to direct sunlight or excessive heat. Avoid leaving the product inside a car with the windows closed. • Keep your tablet in a dry place. Never expose this product to rain or water. • Do not use or store your tablet in dusty, dirty areas. • Do not use harsh chemicals, soaps or detergents to clean your tablet. • Do not modify, disassemble, open, drop, crush, or puncture this product. • Never disconnect your tablet while a download or upload is in progress. • Switch off the device in restricted areas or where the use of electronic devices is prohibited. • To protect your hearing, make sure the volume level is not set too high when plugging the earbuds. c. Battery instructions • Use only the battery and battery charger specified by the manufacturer. • The battery has a limited service life so it will need replacing when it no longer holds enough charge. • Dispose of old batteries at directed places. • Do not throw batteries into a fire. • Do not force the battery when installing it. • If the battery overheats or changes color while charging it or storing it, stop using it. • Do not expose batteries to high temperatures. • Do not charge the battery for more than 24 hours. d. Disposal information Electrical and electronic products as well as batteries must not be discarded as regular household waste. As part of the company’s eco-friendly approach, we encourage you to recycle and follow all applicable local waste regulations to dispose of your used devices properly. Never dispose of batteries in a fire. CHAPTER 1 Basic setup 1.1. Charging your tablet • Fully charge the battery prior to using the tablet for the first time. Firmly insert the Micro-USB end of the supplied charger into the I/O port on the tablet, and the other end to a standard AC wall outlet or to an available USB port on your computer. • The battery must be initially charged for 5 hours and for 3 hours or so thereafter. • Let the battery drain completely, before recharging it to full capacity for a second time. From then on, allow the battery to charge until the icon on the screen becomes solid green. 1.2. Switching your tablet on/off • To turn on the tablet, press and hold the Power button for several seconds. The welcome screen will appear. • To switch off the tablet, press and hold down the Power button again. When the “Power off ” options menu comes up, select OK. The device will shut off completely. Note: make sure to follow the on-screen prompts for the initial setup of the tablet. 4 5 User Manual 3G BLAZE 7 2. Application view. A. In Desktop view, six default shortcuts will be displayed, which you can later customize based on your own particular needs and lifestyle. B. The Application view allows access to all the application available in your device. To open the main All Apps screen, touch the icon on any Home screen. Note: on the locked screen the most recent application icons will be displayed when accessing the system from either visualization mode. 2.2. Managing icons and different screens In order to see the different screens, slide your finger to the left or to the right. You may customize the home screen or any of the other screens by moving icons to another location. Just tap on the icon, drag it and drop it at the location where you want to place it. CHAPTER 3 Main applications 3.1. Internet access Configure the internet connection using your new tablet. • Go to Settings and click on Wi-Fi ON/OFF switch in order to enable the wireless Configuration on the tablet. • Choose a wireless access point, and enter your login and password • Select the Connect option on this menu to activate access to the internet. 3.2. Web browser The browser allows you to enjoy a seamless surfing experience using your new tablet. • Once you have successfully established an internet connection, you just need to tap on the Browser icon on the apps screen or the shortcut icon on a Home screen to launch this application. • At this stage, the following window will be displayed. • The user can then configure all related navigation settings based on his/her individual preferences. CHAPTER 2 Getting started 2.1. Home screen As soon as you power-on your tablet, you w…

Text truncated - open the document above for the full version.

Differences Declaration To whom concern, We company Cubix Latin America, LLC. hereby declares: The product model(s) QD3Gm-710-SL, QD3Gm-710-GD is identical in the same PCB layout, interior structure and electrical circuits with the model QD3Gm-710-SL which tested in TMC Rheinland Testing Services Corp Limited, the only differences are the model name for commercial purpose. Dated this / Day of 7/31/2014 / Agency agreement expiration date: 7/31/2015 By: ELIAHU SIBONI Signature Printed Title: Commercial Director On behalf of : Cubix Latin America, LLC Telephone: 786-515-9513

Cubix Latin America, LLC 2841 NW 107th Ave, Doral, FL 33172 DATE 2014-7-31 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2ACDE-QD3GM-710-SL Product Name: MID Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  Schematics  Block diagram  Operational Description  Bom  Tune up Procedure These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this / Day of 7/31/2014 / By: ELIAHU SIBONI Signature Printed Title: Commercial Director On behalf of : Cubix Latin America, LLC Telephone: 786-515-9513

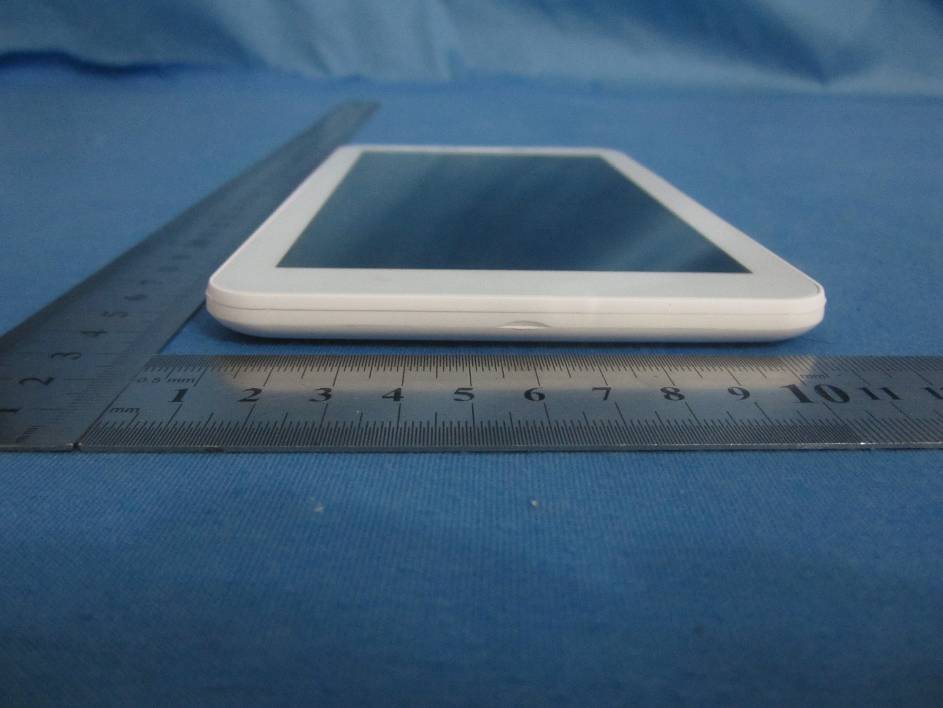

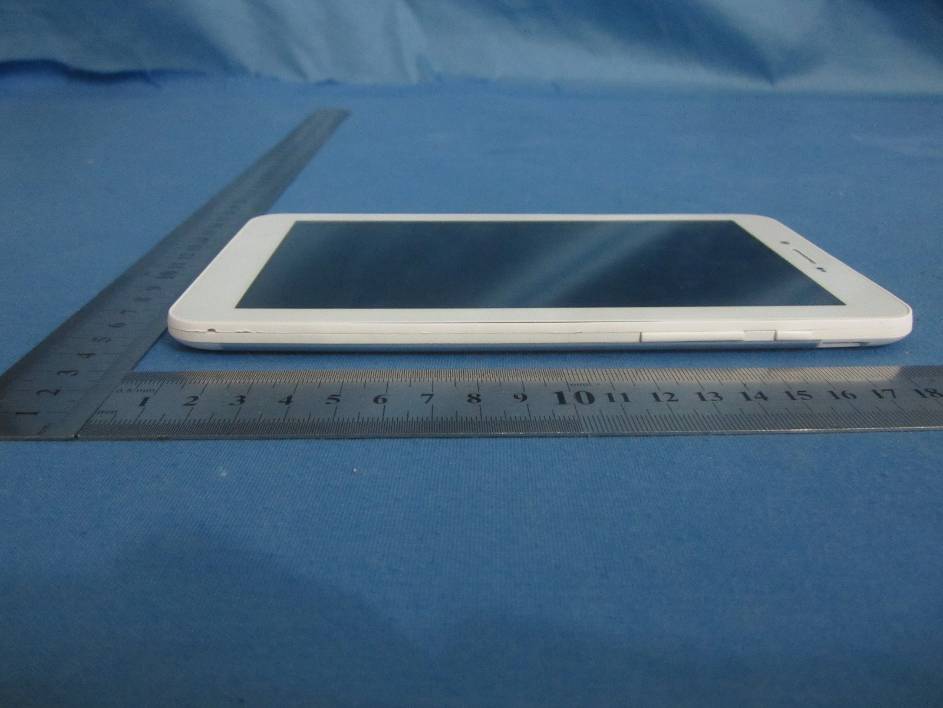

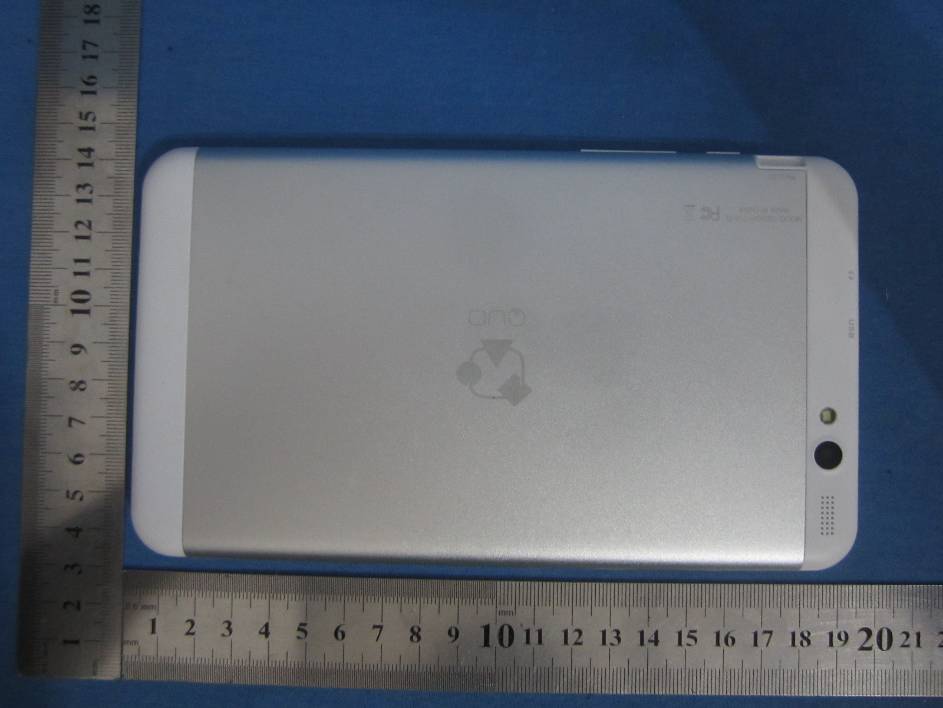

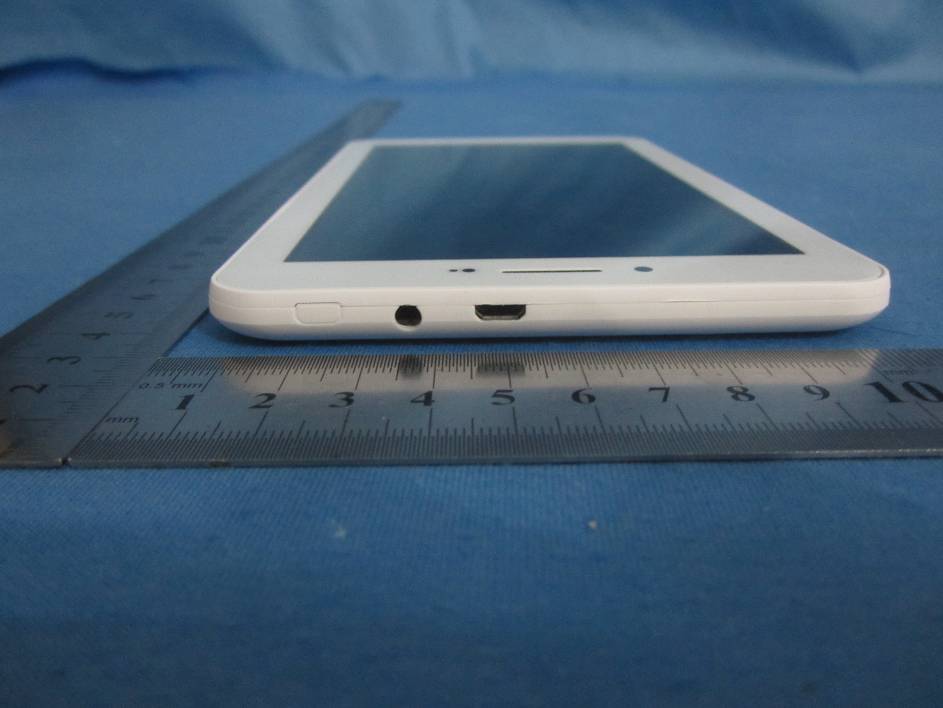

Report No.: TMC1407018801 Page: 42 of 50 9 EUT Constructional Details Report No.: TMC1407018801 Page: 43 of 50 Report No.: TMC1407018801 Page: 44 of 50

Label Length: 50mm Width: 30mm MID Trade Mark: QUO FCC ID: 2ACDE-QD3GM-710-SL This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Cubix Latin America, LLC

Label location

Report No.: TMC1407018801 Page: 45 of 50 Report No.: TMC1407018801 Page: 46 of 50 Report No.: TMC1407018801 Page: 47 of 50 Report No.: TMC1407018801 Page: 48 of 50 Report No.: TMC1407018801 Page: 49 of 50 Report No.: TMC1407018801 Page: 50 of 50 ------End------

Compliance Certification Services Inc. Report No: C140724S01-SF FCC ID: 2ACDE-QD3GM-710-SL Date of Issue :August 14, 2014 Page 1 of 109 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. ANSI/IEEE Std. C95.1-1992 In accordance with the requirements of FCC Report and Order: ET Docket 93-62；FCC 47 CFR Part 2 ( 2.1093) FCC SAR TEST REPORT For Product Name: MID Brand Name: QUO Model No.: QD3Gm-710-SL Series Model: QD3Gm-710-GD Test Report Number: C140724S01-SF Issued for Cubix Latin America, LLC 2841 NW 107th Ave, Doral, FL 33172 Issued by Compliance Certification Services Inc. Kun shan Laboratory No.10 Weiye Rd., Innovation park, Eco&Tec, Development Zone, Kunshan City, Jiangsu, China TEL: 86-512-57355888 FAX: 86-512-57370818 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by A2LA or any government agencies. The test results in the report only apply to the tested sample. Compliance Certification Services Inc. Report No: C140724S01-SF FCC ID: 2ACDE-QD3GM-710-SL Date of Issue :August 14, 2014 Page 2 of 109 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Revision REPORT NO. Date Page Revised Contents Original C140724S01-SF August 5, 2014 N/A N/A 01 C140724S01-SF August 14, 2014All report Change WCDMA Band V Middlechannel 834.4 to 836.6. revise WLAN mode 13.41802.11g. Add GSM 850 and WCDMA Band II Test data Compliance Certification Services Inc. Report No: C140724S01-SF FCC ID: 2ACDE-QD3GM-710-SL Date of Issue :August 14, 2014 Page 3 of 109 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) ........................................................... 4 2. EUT DESCRIPTION....................................................................................................................5 3. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC................................ 6 4. TEST METHODOLOGY.............................................................................................................. 6 5. TEST CONFIGURATION ............................................................................................................ 6 6. DOSIMETRIC ASSESSMENT SETUP........................................................................................ 7 6.1 MEASUREMENT SYSTEM DIAGRAM ...........................................................................................................8 6.2 SYSTEM COMPONENTS...............................................................................................................................9 7. EVALUATION PROCEDURES ................................................................................................. 12 8. MEASUREMENT UNCERTAINTY............................................................................................ 16 9. EXPOSURE LIMIT .................................................................................................................... 17 10. EUT ARRANGEMENT .............................................................................................................. 18 10.1 ANTHROPOMORPHIC HEAD PHANTOM .................................................................................................18 10.2 DEFINITION OF THE “CHEEK/TOUCH” POSITION...................................................................................19 10.3 DEFINITION OF THE “TILTED” POSITION ................................................................................................20 10.4 BODY TEST ................................................................................................................................................21 11. MEASUREMENT RESULTS..................................................................................................... 22 11.1 TEST LIQUIDS CONFIRMATION ...............................................................................................................22 11.2 LIQUID MEASUREMENT RESULTS ..........................................................................................................23 11.3 SYSTEM PERFORMANCE CHECK...........................................................................................................24 11.4 EUT TUNE-UP PROCEDURES AND TEST MODE....................................................................................26 11.5 SAR TEST CONFIGURATIONS..................................................................................................................32 11.6 BODY TEST EXCLUSION THRESHOLDS .................................................................................................33 11.7 EUT SETUP PHOTOS ................................................................................................................................34 11.8 SAR MEASUREMENT RESULTS...............................................................................................................35 11.9 REPEATED SAR MEASUREMENT ............................................................................................................38 11.10 SAR HANDSETS MULTI XMITER ASSESSMENT................................................................................39 12. EUT PHOTO ............................................................................................................................. 42 13. EQUIPMENT LIST & CALIBRATION STATUS........................................................................ 46 14. FACILITIES..........................................................…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No: C140724S01-SF FCC ID: 2ACDE-QD3GM-710-SL Date of Issue :August 14, 2014 Page 58 of 109 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. APPENDIX B: DASY CALIBRATION CERTIFICATE The DASY Calibration Certificates are showing as followings . Compliance Certification Services Inc. Report No: C140724S01-SF FCC ID: 2ACDE-QD3GM-710-SL Date of Issue :August 14, 2014 Page 59 of 109 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Compliance Certification Services Inc. Report No: C140724S01-SF FCC ID: 2ACDE-QD3GM-710-SL Date of Issue :August 14, 2014 Page 60 of 109 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Compliance Certification Services Inc. Report No: C140724S01-SF FCC ID: 2ACDE-QD3GM-710-SL Date of Issue :August 14, 2014 Page 61 of 109 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Compliance Certification Services Inc. Report No: C140724S01-SF FCC ID: 2ACDE-QD3GM-710-SL Date of Issue :August 14, 2014 Page 62 of 109 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Compliance Certification Services Inc. Report No: C140724S01-SF FCC ID: 2ACDE-QD3GM-710-SL Date of Issue :August 14, 2014 Page 63 of 109 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Compliance Certification Services Inc. Report No: C140724S01-SF FCC ID: 2ACDE-QD3GM-710-SL Date of Issue :August 14, 2014 Page 64 of 109 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Compliance Certification Services Inc. Report No: C140724S01-SF FCC ID: 2ACDE-QD3GM-710-SL Date of Issue :August 14, 2014 Page 65 of 109 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Compliance Certification Services Inc. Report No: C140724S01-SF FCC ID: 2ACDE-QD3GM-710-SL Date of Issue :August 14, 2014 Page 66 of 109 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Compliance Certification Services Inc. Report No: C140724S01-SF FCC ID: 2ACDE-QD3GM-710-SL Date of Issue :August 14, 2014 Page 67 of 109 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. D835V2,Serial No.4d114 Extended Dipole Calibrations Per IEEE Std 1528-2003,the dipole should have a return loss better than -20dB at the test frequency to reduce uncertainty in the power measurement. Per KDB 865664 D01,if dipoles are verified in return loss(<-20dB,within 20% of prior calibration),and in impedance (within 5 ohm of prior calibration),the annual calibration is not necessary and the calibration interval can be extended. Justification of the extended calibration D850V2 Serial No.4d114 850 Head Date of Measurement Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) 7.30.2013 -32.147 -- 52.127 -- -1.346 -- 7.29.2014 -32.293 0.45 48.878 3.249 -2.134 0.788 D850V2 Serial No.4d114 850 Body Date of Measurement Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) 7.30.2013 -29.073 -- 48.217 -- -2.961 -- 7.29.2014 -27.435 5.63 46.911 1.306 -2.689 0.272 The return loss is < -20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Compliance Certification Services Inc. Report No: C140724S01-SF FCC ID: 2ACDE-QD3GM-710-SL Date of Issue :August 14, 2014 Page 68 of 109 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Dipole Verification Data D850V2 Serial No.4d114 850MHz-Head Compliance Certification Services Inc. Report No: C140724S01-SF FCC ID: 2ACDE-QD3GM-710-SL Date of Issue :August 14, 2014 Page 69 of 109 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 850MHz-Body Compliance Certification Services Inc. Report No: C140724S01-SF FCC ID: 2ACDE-QD3GM-710-SL Date of Issue :August 14, 2014 Page 70 of 109 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Compliance Certification Services Inc. Report No: C140724S01-SF FCC ID: 2ACDE-QD3GM-710-SL Date of Issue :August 14, 2014 Page 71 of 109 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Compliance Certification Services Inc. Report No: C140724S01-SF FCC ID: 2ACDE-QD3GM-710-SL Date of Issue :August 14, 2014 Page 72 of 109 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Compliance Certification Services Inc. Report No: C140724S01-SF FCC ID: 2ACDE-QD3GM-710-SL Date of Issue :August 14, 2014 Page 73 of 109 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Compliance Certification Services Inc. Report No: C140724S01-SF FCC ID: 2ACDE-QD3GM-710-SL Date of Issue :August 14, 2014 Page 74 of 109 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Compliance Certification Services Inc. Report No: C140724S01-SF FCC ID: 2ACDE-QD3GM-710-SL Date of Issue :August 14, 2014 Page 75 of 109 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Compliance Certification Services Inc. Report No: C140724S01-SF FCC ID: 2A…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No: C140724S01-SF FCC ID: 2ACDE-QD3GM-710-SL Date of Issue :August 5, 2014 Page 1 of 55 GSM 850-Right Head Cheek High CH251........................................................................................ 3 GSM 850-Right Head Tilted High CH251......................................................................................... 4 GSM 850-Left Head Cheek High CH251.......................................................................................... 5 GSM 850-Left Head Tilted High CH251............................................................................................ 6 GSM 1900-Right Head Cheek Low CH512...................................................................................... 7 GSM 1900-Right Head Tilted Low CH512........................................................................................ 8 GSM 1900-Left Head Cheek Low CH512......................................................................................... 9 GSM 1900-Left Head Tilted Low CH512........................................................................................ 10 WCDMA Band II-Right Head Cheek Middle CH9400...................................................................11 WCDMA Band II-Right Head Tilted Middle CH9400.................................................................... 12 WCDMA Band II-Left Head Cheek Middle CH9400..................................................................... 13 WCDMA Band II-Left Head Tilted Middle CH9400....................................................................... 14 WCDMA BandV-Right Head Cheek CH4182................................................................................. 15 WCDMA BandV-Right Head Tilted CH4182.................................................................................. 16 WCDMA BandV-Left Head Cheek CH4182.................................................................................... 17 WCDMA BandV-Left Head Tilted CH4182..................................................................................... 18 WIFI-Right Head Cheek Middle CH6............................................................................................... 19 WIFI-Right Head Tilted Middle CH6................................................................................................ 20 WIFI-Left Head Cheek Middle CH6................................................................................................. 21 WIFI-Left Head Tilted Middle CH6................................................................................................... 22 GPRS850-Body Rear Low CH128................................................................................................... 23 GPRS850-Body Rear Middle CH190............................................................................................... 24 GPRS850-Body Rear High CH251................................................................................................... 25 GPRS850-Body Edge2 High CH251............................................................................................... 26 GPRS850-Body Edge3 High CH251............................................................................................... 27 GPRS850-Body Edge4 High CH251............................................................................................... 28 GSM 850-Body Rear HighCH251..................................................................................................... 29 GPRS1900-Body Rear Low CH512................................................................................................. 30 GPRS1900-Body Rear Middle CH661............................................................................................. 31 GPRS1900-Body Rear High CH810................................................................................................ 32 GPRS1900-Body-Edge 2 Low CH512............................................................................................. 33 GPRS1900-Body-Edge 3 Low CH512............................................................................................. 34 GPRS1900-Body-Edge 4 Low CH512............................................................................................. 35 GSM 1900-Body Rear Low CH512.................................................................................................. 36 WCDMA Band II-Body Rear Low CH9262..................................................................................... 37 WCDMA Band II-Body Rear Middle CH9400................................................................................ 38 WCDMA Band II-Body Rear High CH9538.................................................................................... 39 WCDMA Band II-Body-Edge 2 Middle CH9400............................................................................ 40 WCDMA Band II-Body-Edge 3 Middle CH9400............................................................................ 41 WCDMA Band II-Body-Edge 4 Middle CH9400............................................................................ 42 Compliance Certification Services Inc. Report No: C140724S01-SF FCC ID: 2ACDE-QD3GM-710-SL Date of Issue :August 5, 2014 Page 2 of 55 WCDMA BandV-Body Rear Low CH4132...................................................................................... 43 WCDMA BandV-Body Rear Middle CH4182................................................................................. 44 WCDMA BandV-Body Rear High CH4233..................................................................................... 45 WCDMA BandV-Body Edge2 Middle CH4182.............................................................................. 46 WCDMA BandV-Body Edge3 Middle CH4182.............................................................................. 47 WCDMA BandV-Body Edge4 Middle CH4182.....................................................................…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No: C140724S01-SF FCC ID: 2ACDE-QD3GM-710-SL Date of Issue :August 14, 2014 Page 1 of 5 GPRS850-Body Edge 3 Low CH128................................................................................................. 2 GPRS850-Body Edge 3 Middle CH190............................................................................................. 3 WCDMA Band II-Body-Edge 3 Low CH9262................................................................................... 4 WCDMA Band II-Body-Edge 3 High CH9538.................................................................................. 5 Compliance Certification Services Inc. Report No: C140724S01-SF FCC ID: 2ACDE-QD3GM-710-SL Date of Issue :August 14, 2014 Page 2 of 5 Test Laboratory: Compliance Certification Services Inc. Date: 8/14/2014 GPRS850-Body Edge 3 Low CH128 DUT: MID; Type: QD3Gm-710-SL; Serial: N/A Communication System: UID 0, Generic GSM (0); Communication System Band: GPRS 850 (880.0 - 915.0 MHz); Frequency: 824.2 MHz;Duty Cycle: 1:2.0797 Medium parameters used: f = 824.2 MHz; σ = 0.975 S/m; ε r = 54.421; ρ = 1000 kg/m 3 Room Ambient Temperature: 22°C; Liquid Temperature: 21.5°C Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY Configuration: • Probe: EX3DV4 - SN3753; ConvF(9.14, 9.14, 9.14); Calibrated: 3/26/2014; • Sensor-Surface: 2mm (Mechanical Surface Detection) • Electronics: DAE4 Sn914; Calibrated: 12/18/2013 • Phantom: ELI v4.0; Type: QDOVA001BB; Serial: TP:1102 • DASY52 52.8.8(1222); • SEMCAD X Version 14.6.10 (7331) GPRS850/ Body Edge 3 Low CH128/Area Scan (10x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.729 W/kg GPRS850/ Body Edge 3 Low CH128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 30.073 V/m; Power Drift = -0.11 dB Peak SAR (extrapolated) = 0.952 W/kg SAR(1 g) = 0.641 W/kg; SAR(10 g) = 0.406 W/kg Maximum value of SAR (measured) = 0.813 W/kg Compliance Certification Services Inc. Report No: C140724S01-SF FCC ID: 2ACDE-QD3GM-710-SL Date of Issue :August 14, 2014 Page 3 of 5 Test Laboratory: Compliance Certification Services Inc. Date: 8/14/2014 GPRS850-Body Edge 3 Middle CH190 DUT: MID; Type: QD3Gm-710-SL; Serial: N/A Communication System: UID 0, Generic GSM (0); Communication System Band: GPRS 850 (880.0 - 915.0 MHz); Frequency: 836.6 MHz;Duty Cycle: 1:2.0797 Medium parameters used: f = 836.6 MHz; σ = 0.989 S/m; ε r = 54.265; ρ = 1000 kg/m 3 Room Ambient Temperature: 22°C; Liquid Temperature: 21.5°C Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY Configuration: • Probe: EX3DV4 - SN3753; ConvF(9.14, 9.14, 9.14); Calibrated: 3/26/2014; • Sensor-Surface: 2mm (Mechanical Surface Detection) • Electronics: DAE4 Sn914; Calibrated: 12/18/2013 • Phantom: ELI v4.0; Type: QDOVA001BB; Serial: TP:1102 • DASY52 52.8.8(1222); • SEMCAD X Version 14.6.10 (7331) GPRS850/Body Edge3 Middle CH190/Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.622 W/kg GPRS850/Body Edge3 Middle CH190/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 27.266 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 0.930 W/kg SAR(1 g) = 0.585 W/kg; SAR(10 g) = 0.375 W/kg Maximum value of SAR (measured) = 0.769 W/kg Compliance Certification Services Inc. Report No: C140724S01-SF FCC ID: 2ACDE-QD3GM-710-SL Date of Issue :August 14, 2014 Page 4 of 5 Test Laboratory: Compliance Certification Services Inc. Date: 8/14/2014 WCDMA Band II-Body-Edge 3 Low CH9262 DUT: MID; Type: QD3Gm-710-SL; Serial: N/A Communication System: UID 0, FDD WCDMA (0); Communication System Band: Band II; Frequ…

Text truncated - open the document above for the full version.
