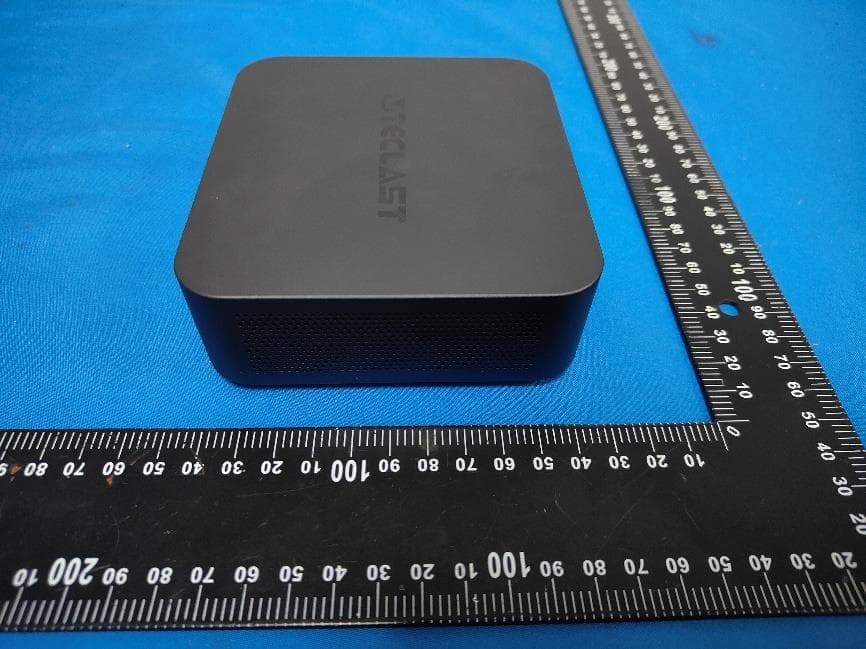

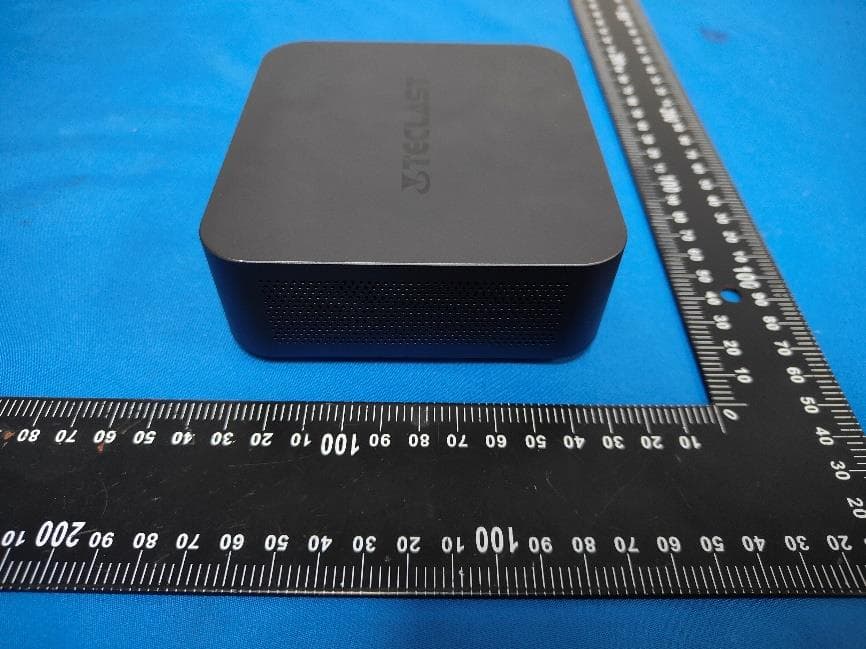

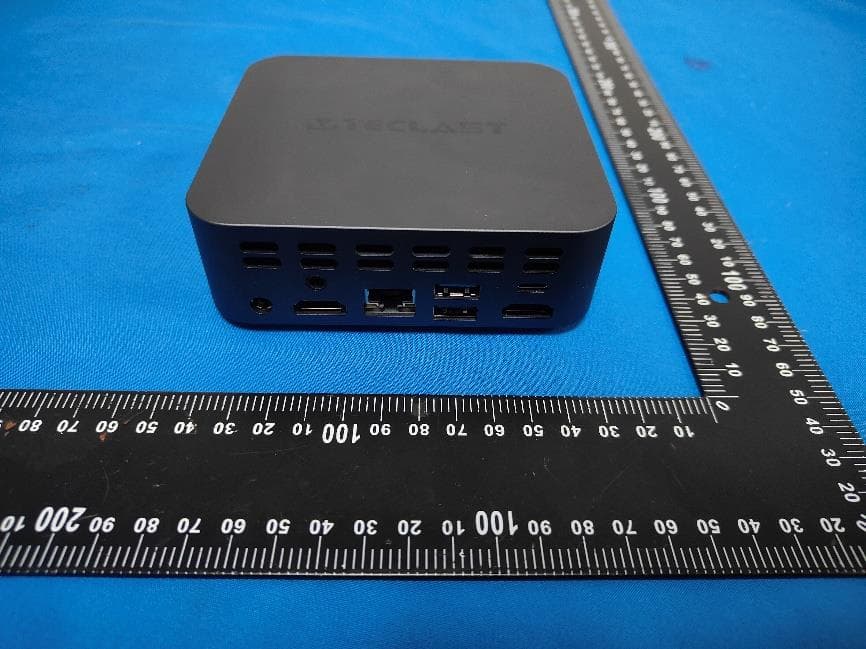

2ACGT-TLN002Mini PC

                     !  "       #  $!    "   #     "                  % "" "         &   "  '    ( ) '        "         *   #    +                          '          ' "  " #             #"         ,#                - '              #      "  '    #      "   "        .+        .-        '     .   '                  .   %   / 0     -  ( +   )%   '         %               '          $1     ""     2          "

1. Antenna Description: Antenna type FPC antenna Model TLN001-MAIN Frequency range 2402-2480MHz, 5180-5240MHz, 5745-5825MHz Manufacturer Guangzhou Shangke Information Technology Co., Ltd Address Room 1205-1212, R&F To-Win Building, No.30 Huaxia Road, Tianhe District, Guangzhou, Guangdong Province, 510000 China ANT Peak Gain 1.33 dBi for 2402-2480MHz 1.75 dBi for 5180-5240MHz 1.45 dBi for 5745-5825MHz 2. Antenna Photo: 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2402MHz 2440MHz 2580MHz 5180MHz 5220MHz 5220MHz 5745MHz 5785MHz 5825MHz

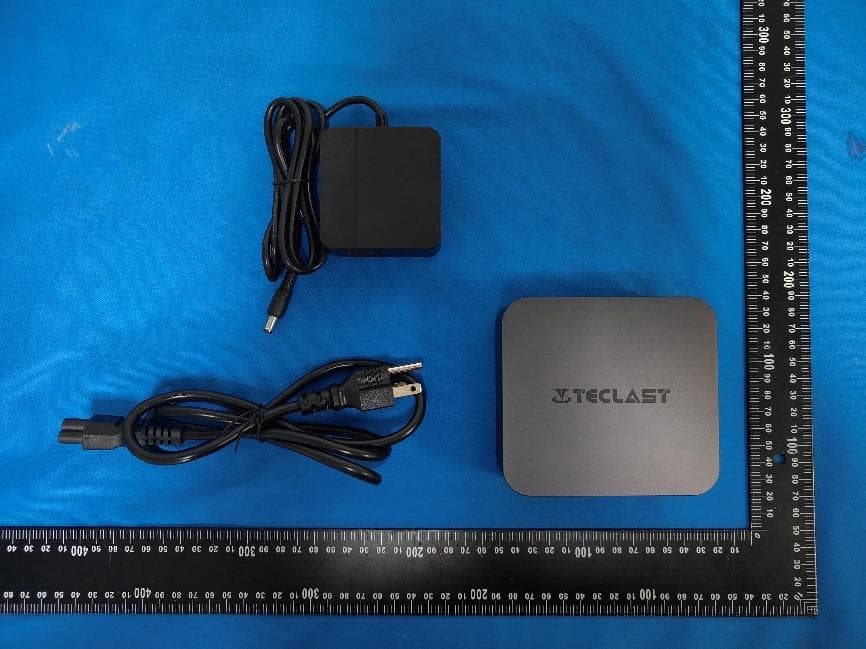

FCC ID: 2ACGT-TLN002 Test Setup Photos of the EUT Adapter 1 FCC ID: 2ACGT-TLN002 Adapter 2 FCC ID: 2ACGT-TLN002

1 FCC Appendix RF Test Data for BLE FCC ID : 2ACGT-TLN002 Company : Guangzhou Shangke Information Technology Co., Ltd. EUT : Mini PC Model Number : TLN001 Report No. : CTA26073001601 Reviewed By : Eric Wang 2 Appendix A: DTS Bandwidth Test Result TestMode Antenna Freq(MHz) DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 0.664 2401.680 2402.344 0.5 PASS 2440 0.632 2439.696 2440.328 0.5 PASS 2480 0.632 2479.692 2480.324 0.5 PASS 3 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 4 5 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 1.0044 2401.5207 2402.5251 --- --- 2440 1.0086 2439.5153 2440.5239 --- --- 2480 1.0093 2479.5175 2480.5268 --- --- 6 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 7 8 Appendix C: Maximum conducted output power Test Result Peak TestMode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict BLE_1M Ant1 2402 -3.26 ≤30 PASS 2440 -3.39 ≤30 PASS 2480 -3.75 ≤30 PASS 9 Appendix D: Maximum power spectral density Test Result TestMode Antenna Freq(MHz) Result[dBm/3kHz] Limit[dBm/3kHz] Verdict BLE_1M Ant1 2402 -19.10 ≤8.00 PASS 2440 -19.20 ≤8.00 PASS 2480 -19.49 ≤8.00 PASS 10 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 11 12 Appendix E: Band edge measurements Test Result TestMod e Antenn a ChNam e Freq(MHz ) RefLevel[dBm ] Result[dBm ] Limit[dBm ] Verdic t BLE_1M Ant1 Low 2402 -4.30 -55.83 ≤-24.3 PASS High 2480 -4.34 -56.05 ≤-24.34 PASS 13 Test Graphs BLE_1M_Ant1_Low_2402 BLE_1M_Ant1_High_2480 14 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 Reference -4.38 -4.38 --- PASS 30~1000 -4.38 -68.09 ≤-24.38 PASS 1000~26500 -4.38 -42.39 ≤-24.38 PASS 2440 Reference -4.31 -4.31 --- PASS 30~1000 -4.31 -61.44 ≤-24.31 PASS 1000~26500 -4.31 -45.06 ≤-24.31 PASS 2480 Reference -4.23 -4.23 --- PASS 30~1000 -4.23 -53.44 ≤-24.23 PASS 1000~26500 -4.23 -44.24 ≤-24.23 PASS 15 Test Graphs BLE_1M_Ant1_2402_0~Reference BLE_1M_Ant1_2402_30~1000 BLE_1M_Ant1_2402_1000~26500 16 BLE_1M_Ant1_2440_0~Reference BLE_1M_Ant1_2440_30~1000 17 BLE_1M_Ant1_2440_1000~26500 BLE_1M_Ant1_2480_0~Reference BLE_1M_Ant1_2480_30~1000 18 BLE_1M_Ant1_2480_1000~26500 19 Appendix G: Duty Cycle Test Result TestMode Antenna Freq(MHz) ON Time [ms] Period [ms] X DC [%] xFactor Limit Verdict BLE_1M Ant1 2402 0.41 0.62 0.6613 66.13 1.80 --- --- 2440 0.41 0.62 0.6613 66.13 1.80 --- --- 2480 0.41 0.62 0.6613 66.13 1.80 --- --- 20 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 21 22 Appendix H: Emissions in Restricted Bands Test Result TestMod e Antenn a ChNam e Freq(MH z) Detector Freq [MHz] Result [dBm] Gain [dB] DC Factor [dB] Result [dBuV/m] Limit [dBuV/m] Verdict BLE_1M Ant1 Low 2402 AV 2310.000 -61 2.00 1.80 38.00 ≤54 PASS AV 2378.960 -59.12 2.00 1.80 39.88 ≤54 PASS AV 2390.000 -59.69 2.00 1.80 39.31 ≤54 PASS Peak 2310.000 -51.72 2.00 0.00 45.48 ≤74 PASS Peak 2369.615 -48.7 2.00 0.00 48.50 ≤74 PASS Peak 2390.000 -53.04 2.00 0.00 44.16 ≤74 PASS High 2480 AV 2483.500 -58.79 2.00 1.80 40.21 ≤54 PASS AV 2484.000 -58.66 2.00 1.80 40.34 ≤54 PASS AV 2500.000 -60.33 2.00 1.80 38.67 ≤54 PASS Peak 2483.500 -50.27 2.00 0.00 46.93 ≤74 PASS Peak 2484.160 -48.59 2.00 0.00 48.61 ≤74 PASS Peak 2500.000 -51.78 2.00 0.00 45.42 ≤74 PASS Note： The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. 23 Test Graphs BLE_1M_Ant1_Low_2402_AV BLE_1M_Ant1_Low_2402_Peak BLE_1M_Ant1_High_2480_AV 24 BLE_1M_Ant1_High_2480_Peak

99 11G_Ant2_2412 11G_Ant2_2437 100 11G_Ant2_2462 11N20SISO_Ant2_2412 11N20SISO_Ant2_2437 101 11N20SISO_Ant2_2462 11N40SISO_Ant2_2422 102 11N40SISO_Ant2_2437 11N40SISO_Ant2_2452 103 Appendix H: Emissions in Restricted Bands Test Result TestMod e Antenn a ChNam e Frequen cy[MHz] Detector Freq [MHz] Result [dBm] Gain [dB] DC Factor [dB] Result [dBuV/m] Limit [dBuV/m] Verdict 11B Ant2 Low 2412 AV 2310.000 -59.98 2.00 1.14 38.36 ≤54 PASS AV 2388.270 -56.88 2.00 1.14 41.46 ≤54 PASS AV 2390.000 -57.21 2.00 1.14 41.13 ≤54 PASS Peak 2310.000 -51.6 2.00 0.00 45.60 ≤74 PASS Peak 2388.270 -46.94 2.00 0.00 50.26 ≤74 PASS Peak 2390.000 -49.36 2.00 0.00 47.84 ≤74 PASS High 2462 AV 2483.500 -56.68 2.00 1.13 41.65 ≤54 PASS AV 2483.560 -56.69 2.00 1.13 41.64 ≤54 PASS AV 2500.000 -58.26 2.00 1.13 40.07 ≤54 PASS Peak 2483.500 -48.12 2.00 0.00 49.08 ≤74 PASS Peak 2488.840 -47.13 2.00 0.00 50.07 ≤74 PASS Peak 2500.000 -51.28 2.00 0.00 45.92 ≤74 PASS 11G Ant2 Low 2412 AV 2310.000 -59.85 2.00 4.47 41.82 ≤54 PASS AV 2387.100 -57.74 2.00 4.47 43.93 ≤54 PASS AV 2390.000 -58.53 2.00 4.47 43.14 ≤54 PASS Peak 2310.000 -51.06 2.00 0.00 46.14 ≤74 PASS Peak 2375.010 -47.58 2.00 0.00 49.62 ≤74 PASS Peak 2390.000 -50.05 2.00 0.00 47.15 ≤74 PASS High 2462 AV 2483.500 -58.9 2.00 4.47 42.77 ≤54 PASS AV 2484.110 -58.22 2.00 4.47 43.45 ≤54 PASS AV 2500.000 -59.73 2.00 4.47 41.94 ≤54 PASS Peak 2483.500 -51.44 2.00 0.00 45.76 ≤74 PASS Peak 2485.870 -47.02 2.00 0.00 50.18 ≤74 PASS Peak 2500.000 -51.34 2.00 0.00 45.86 ≤74 PASS 11N20SI SO Ant2 Low 2412 AV 2310.000 -59.69 2.00 4.94 42.45 ≤54 PASS AV 2389.700 -58.13 2.00 4.94 44.01 ≤54 PASS AV 2390.000 -58.3 2.00 4.94 43.84 ≤54 PASS Peak 2310.000 -53.15 2.00 0.00 44.05 ≤74 PASS Peak 2387.360 -47.23 2.00 0.00 49.97 ≤74 PASS Peak 2390.000 -49.12 2.00 0.00 48.08 ≤74 PASS High 2462 AV 2483.500 -59.03 2.00 4.94 43.11 ≤54 PASS AV 2484.000 -57.84 2.00 4.94 44.30 ≤54 PASS AV 2500.000 -58.53 2.00 4.94 43.61 ≤54 PASS Peak 2483.500 -48.29 2.00 0.00 48.91 ≤74 PASS Peak 2483.560 -43.74 2.00 0.00 53.46 ≤74 PASS Peak 2500.000 -51.75 2.00 0.00 45.45 ≤74 PASS 104 11N40SI SO Ant2 Low 2422 AV 2310.000 -59.2 2.00 1.60 39.60 ≤54 PASS AV 2387.000 -56.39 2.00 1.60 42.41 ≤54 PASS AV 2390.000 -57.22 2.00 1.60 41.58 ≤54 PASS Peak 2310.000 -51.71 2.00 0.00 45.49 ≤74 PASS Peak 2384.450 -45.58 2.00 0.00 51.62 ≤74 PASS Peak 2390.000 -48.2 2.00 0.00 49.00 ≤74 PASS High 2452 AV 2483.500 -57.22 2.00 1.61 41.59 ≤54 PASS AV 2484.125 -57.25 2.00 1.61 41.56 ≤54 PASS AV 2500.000 -58.76 2.00 1.61 40.05 ≤54 PASS Peak 2483.500 -47.4 2.00 0.00 49.80 ≤74 PASS Peak 2486.500 -47.26 2.00 0.00 49.94 ≤74 PASS Peak 2500.000 -50.59 2.00 0.00 46.61 ≤74 PASS Note： The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. 105 Test Graphs 11B_Ant2_Low_2412_AV 11B_Ant2_Low_2412_Peak 11B_Ant2_High_2462_AV 106 11B_Ant2_High_2462_Peak 11G_Ant2_Low_2412_AV 107 11G_Ant2_Low_2412_Peak 11G_Ant2_High_2462_AV 11G_Ant2_High_2462_Peak 108 11N20SISO_Ant2_Low_2412_AV 11N20SISO_Ant2_Low_2412_Peak 109 11N20SISO_Ant2_High_2462_AV 11N20SISO_Ant2_High_2462_Peak 11N40SISO_Ant2_Low_2422_AV 110 11N40SISO_Ant2_Low_2422_Peak 11N40SISO_Ant2_High_2452_AV 111 11N40SISO_Ant2_High_2452_Peak

66 11G_Ant2_2462 11N20SISO_Ant2_2412 11N20SISO_Ant2_2437 67 11N20SISO_Ant2_2462 11N40SISO_Ant2_2422 68 11N40SISO_Ant2_2437 11N40SISO_Ant2_2452 69 Appendix C: Maximum conducted output power Test Result Peak Test Mode Antenna Frequency [MHz] Result [dBm] Limit [dBm] Verdict 11B Ant2 2412 14.21 ≤30.00 PASS 2437 14.02 ≤30.00 PASS 2462 13.47 ≤30.00 PASS 11G Ant2 2412 12.97 ≤30.00 PASS 2437 13.48 ≤30.00 PASS 2462 12.82 ≤30.00 PASS 11N20SISO Ant2 2412 13.68 ≤30.00 PASS 2437 13.42 ≤30.00 PASS 2462 13.14 ≤30.00 PASS 11N40SISO Ant2 2422 13.91 ≤30.00 PASS 2437 13.75 ≤30.00 PASS 2452 13.34 ≤30.00 PASS 70 Appendix D: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant2 2412 -13.05 ≤8.00 PASS 2437 -12.15 ≤8.00 PASS 2462 -13.05 ≤8.00 PASS 11G Ant2 2412 -20.79 ≤8.00 PASS 2437 -21.09 ≤8.00 PASS 2462 -21.64 ≤8.00 PASS 11N20SISO Ant2 2412 -20.85 ≤8.00 PASS 2437 -20.21 ≤8.00 PASS 2462 -20.32 ≤8.00 PASS 11N40SISO Ant2 2422 -23.50 ≤8.00 PASS 2437 -23.28 ≤8.00 PASS 2452 -23.68 ≤8.00 PASS 71 Test Graphs 11B_Ant2_2412 11B_Ant2_2437 11B_Ant2_2462 72 11G_Ant2_2412 11G_Ant2_2437 73 11G_Ant2_2462 11N20SISO_Ant2_2412 11N20SISO_Ant2_2437 74 11N20SISO_Ant2_2462 11N40SISO_Ant2_2422 75 11N40SISO_Ant2_2437 11N40SISO_Ant2_2452 76 Appendix E: Band edge measurements Test Result TestMode Antenn a ChNam e Frequency[MH z] RefLevel[dB m] Result[dB m] Limit[dBm ] Verdic t 11B Ant2 Low 2412 0.86 -51.42 ≤-19.14 PASS High 2462 1.00 -56.81 ≤-19 PASS 11G Ant2 Low 2412 -4.96 -53.97 ≤-24.96 PASS High 2462 -4.69 -57.92 ≤-24.69 PASS 11N20SIS O Ant2 Low 2412 -4.37 -54.02 ≤-24.37 PASS High 2462 -5.08 -57.11 ≤-25.08 PASS 11N40SIS O Ant2 Low 2422 -8.36 -55.64 ≤-28.36 PASS High 2452 -8.12 -56.38 ≤-28.12 PASS 77 Test Graphs 11B_Ant2_Low_2412 11B_Ant2_High_2462 11G_Ant2_Low_2412 78 11G_Ant2_High_2462 11N20SISO_Ant2_Low_2412 79 11N20SISO_Ant2_High_2462 11N40SISO_Ant2_Low_2422 11N40SISO_Ant2_High_2452 80 81 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant2 2412 Reference -0.23 -0.23 --- PASS 30~1000 -0.23 -69.07 ≤-20.23 PASS 1000~26500 -0.23 -46.3 ≤-20.23 PASS 2437 Reference 0.70 0.70 --- PASS 30~1000 0.70 -69.25 ≤-19.3 PASS 1000~26500 0.70 -46.59 ≤-19.3 PASS 2462 Reference 1.07 1.07 --- PASS 30~1000 1.07 -68.92 ≤-18.93 PASS 1000~26500 1.07 -45.98 ≤-18.93 PASS 11G Ant2 2412 Reference -7.97 -7.97 --- PASS 30~1000 -7.97 -68.24 ≤-27.97 PASS 1000~26500 -7.97 -46 ≤-27.97 PASS 2437 Reference -7.66 -7.66 --- PASS 30~1000 -7.66 -68.87 ≤-27.66 PASS 1000~26500 -7.66 -46.47 ≤-27.66 PASS 2462 Reference -9.09 -9.09 --- PASS 30~1000 -9.09 -69.46 ≤-29.09 PASS 1000~26500 -9.09 -45.73 ≤-29.09 PASS 11N20SISO Ant2 2412 Reference -7.88 -7.88 --- PASS 30~1000 -7.88 -67.99 ≤-27.88 PASS 1000~26500 -7.88 -44.58 ≤-27.88 PASS 2437 Reference -6.44 -6.44 --- PASS 30~1000 -6.44 -69.59 ≤-26.44 PASS 1000~26500 -6.44 -46.47 ≤-26.44 PASS 2462 Reference -5.27 -5.27 --- PASS 30~1000 -5.27 -69.14 ≤-25.27 PASS 1000~26500 -5.27 -46.29 ≤-25.27 PASS 11N40SISO Ant2 2422 Reference -10.93 -10.93 --- PASS 30~1000 -10.93 -68.89 ≤-30.93 PASS 1000~26500 -10.93 -46.82 ≤-30.93 PASS 2437 Reference -11.24 -11.24 --- PASS 30~1000 -11.24 -69.18 ≤-31.24 PASS 1000~26500 -11.24 -46.5 ≤-31.24 PASS 2452 Reference -11.42 -11.42 --- PASS 30~1000 -11.42 -68.6 ≤-31.42 PASS 1000~26500 -11.42 -46.15 ≤-31.42 PASS 82 Test Graphs 11B_Ant2_2412_0~Reference 11B_Ant2_2412_30~1000 11B_Ant2_2412_1000~26500 83 11B_Ant2_2437_0~Reference 11B_Ant2_2437_30~1000 84 11B_Ant2_2437_1000~26500 11B_Ant2_2462_0~Reference 11B_Ant2_2462_30~1000 85 11B_Ant2_2462_1000~26500 11G_Ant2_2412_0~Reference 86 11G_Ant2_2412_30~1000 11G_Ant2_2412_1000~26500 11G_Ant2_2437_0~Reference 87 11G_Ant2_2437_30~1000 11G_Ant2_2437_1000~26500 88 11G_Ant2_2462_0~Reference 11G_Ant2_2462_30~1000 11G_Ant2_2462_1000~26500 89 11N20SISO_Ant2_2412_0~Reference 11N20SISO_Ant2_2412_30~1000 90 11N20SISO_Ant2_2412_1000~26500 11N20SISO_Ant2_2437_0~Reference 11N20SISO_Ant2_2437_30~1000 91 11N20SISO_Ant2_2437_1000~26500 11N20SISO_Ant2_2462_0~Reference 92 11N20SISO_Ant2_2462_30~1000 11N20SISO_Ant2_2462_1000~26500 11N40SISO_Ant2_2422_0~Reference 93 11N40SISO_Ant2_2422_30~1000 11N40SISO_Ant2_2422_1000~26500 94 11N40SISO_Ant2_2437_0~Reference 11N40SISO_Ant2_2437_30~1000 11N40SISO_Ant2_2437_1000~26500 95 11N40SISO_Ant2_2452_0~Reference 11N40SISO_Ant2_2452_30~1000 96 11N40SISO_Ant2_2452_1000~26500 97 Appendix G: Duty Cycle Test Result TestMode Antenna Frequency[MHz] Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] DC Factor [dB] T Factor [dB] 11B Ant2 2412 8.38 10.89 76.95 1.14 0.12 2437 8.38 10.89 76.95 1.14 0.12 2462 8.38 10.88 77.02 1.13 0.12 11G Ant2 2412 1.39 3.89 35.73 4.47 0.72 2437 1.39 3.89 35.73 4.47 0.72 2462 1.39 3.89 35.73 4.47 0.72 11N20SISO Ant2 2412 1.18 3.68 32.07 4.94 0.85 2437 1.18 3.68 32.07 4.94 0.85 2462 1.18 3.68 32.07 4.94 0.85 11N40SISO Ant2 2422 5.60 8.10 69.14 1.60 0.18 2437 5.59 8.10 69.01 1.61 0.18 2452 5.59 8.10 69.01 1.61 0.18 98 Test Graphs 11B_Ant2_2412 11B_Ant2_2437 11B_Ant2_2462

35 11N20SISO_Ant1_2412_1000~26500 11N20SISO_Ant1_2437_0~Reference 11N20SISO_Ant1_2437_30~1000 36 11N20SISO_Ant1_2437_1000~26500 11N20SISO_Ant1_2462_0~Reference 37 11N20SISO_Ant1_2462_30~1000 11N20SISO_Ant1_2462_1000~26500 11N40SISO_Ant1_2422_0~Reference 38 11N40SISO_Ant1_2422_30~1000 11N40SISO_Ant1_2422_1000~26500 39 11N40SISO_Ant1_2437_0~Reference 11N40SISO_Ant1_2437_30~1000 11N40SISO_Ant1_2437_1000~26500 40 11N40SISO_Ant1_2452_0~Reference 11N40SISO_Ant1_2452_30~1000 41 11N40SISO_Ant1_2452_1000~26500 42 Appendix G: Duty Cycle Test Result TestMode Antenna Frequency[MHz] Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] DC Factor [dB] T Factor [dB] 11B Ant1 2412 8.38 10.88 77.02 1.13 0.12 2437 8.38 10.89 76.95 1.14 0.12 2462 8.38 10.89 76.95 1.14 0.12 11G Ant1 2412 1.39 3.90 35.64 4.48 0.72 2437 1.39 3.89 35.73 4.47 0.72 2462 1.39 3.89 35.73 4.47 0.72 11N20SISO Ant1 2412 1.18 3.68 32.07 4.94 0.85 2437 1.18 3.68 32.07 4.94 0.85 2462 1.18 3.68 32.07 4.94 0.85 11N40SISO Ant1 2422 0.59 3.09 19.09 7.19 1.69 2437 0.59 3.09 19.09 7.19 1.69 2452 0.58 3.09 18.77 7.27 1.72 43 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 44 11G_Ant1_2412 11G_Ant1_2437 45 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 46 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 47 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 48 Appendix H: Emissions in Restricted Bands Test Result TestMod e Antenn a ChNam e Frequen cy[MHz] Detector Freq [MHz] Result [dBm] Gain [dB] DC Factor [dB] Result [dBuV/m] Limit [dBuV/m] Verdict 11B Ant1 Low 2412 AV 2310.000 -60.48 2.00 1.13 37.85 ≤54 PASS AV 2386.060 -55.59 2.00 1.13 42.74 ≤54 PASS AV 2390.000 -57.84 2.00 1.13 40.49 ≤54 PASS Peak 2310.000 -52.77 2.00 0.00 44.43 ≤74 PASS Peak 2388.140 -46.78 2.00 0.00 50.42 ≤74 PASS Peak 2390.000 -47.64 2.00 0.00 49.56 ≤74 PASS High 2462 AV 2483.500 -56.78 2.00 1.14 41.56 ≤54 PASS AV 2487.850 -56.26 2.00 1.14 42.08 ≤54 PASS AV 2500.000 -58.22 2.00 1.14 40.12 ≤54 PASS Peak 2483.500 -50.05 2.00 0.00 47.15 ≤74 PASS Peak 2488.620 -46.79 2.00 0.00 50.41 ≤74 PASS Peak 2500.000 -50.59 2.00 0.00 46.61 ≤74 PASS 11G Ant1 Low 2412 AV 2310.000 -61.05 2.00 4.48 40.63 ≤54 PASS AV 2389.440 -58.1 2.00 4.48 43.58 ≤54 PASS AV 2390.000 -59.12 2.00 4.48 42.56 ≤54 PASS Peak 2310.000 -53.21 2.00 0.00 43.99 ≤74 PASS Peak 2375.270 -47.28 2.00 0.00 49.92 ≤74 PASS Peak 2390.000 -49.97 2.00 0.00 47.23 ≤74 PASS High 2462 AV 2483.500 -59.42 2.00 4.47 42.25 ≤54 PASS AV 2498.410 -58.82 2.00 4.47 42.85 ≤54 PASS AV 2500.000 -59.12 2.00 4.47 42.55 ≤54 PASS Peak 2483.500 -52.15 2.00 0.00 45.05 ≤74 PASS Peak 2487.520 -48.07 2.00 0.00 49.13 ≤74 PASS Peak 2500.000 -51.57 2.00 0.00 45.63 ≤74 PASS 11N20SI SO Ant1 Low 2412 AV 2310.000 -60.19 2.00 4.94 41.95 ≤54 PASS AV 2388.530 -58.29 2.00 4.94 43.85 ≤54 PASS AV 2390.000 -58.3 2.00 4.94 43.84 ≤54 PASS Peak 2310.000 -50.85 2.00 0.00 46.35 ≤74 PASS Peak 2378.910 -46.92 2.00 0.00 50.28 ≤74 PASS Peak 2390.000 -49.52 2.00 0.00 47.68 ≤74 PASS High 2462 AV 2483.500 -58.49 2.00 4.94 43.65 ≤54 PASS AV 2484.220 -58.25 2.00 4.94 43.89 ≤54 PASS AV 2500.000 -58.95 2.00 4.94 43.19 ≤54 PASS Peak 2483.500 -49.78 2.00 0.00 47.42 ≤74 PASS Peak 2483.780 -45.56 2.00 0.00 51.64 ≤74 PASS Peak 2500.000 -51.43 2.00 0.00 45.77 ≤74 PASS 49 11N40SI SO Ant1 Low 2422 AV 2310.000 -60 2.00 7.19 44.39 ≤54 PASS AV 2387.300 -58.34 2.00 7.19 46.05 ≤54 PASS AV 2390.000 -58.76 2.00 7.19 45.63 ≤54 PASS Peak 2310.000 -51.67 2.00 0.00 45.53 ≤74 PASS Peak 2378.900 -46.67 2.00 0.00 50.53 ≤74 PASS Peak 2390.000 -48.02 2.00 0.00 49.18 ≤74 PASS High 2452 AV 2483.500 -58.86 2.00 7.27 45.61 ≤54 PASS AV 2485.750 -58.15 2.00 7.27 46.32 ≤54 PASS AV 2500.000 -59.26 2.00 7.27 45.21 ≤54 PASS Peak 2483.500 -48.82 2.00 0.00 48.38 ≤74 PASS Peak 2489.875 -45.84 2.00 0.00 51.36 ≤74 PASS Peak 2500.000 -51.46 2.00 0.00 45.74 ≤74 PASS Note： The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. 50 Test Graphs 11B_Ant1_Low_2412_AV 11B_Ant1_Low_2412_Peak 11B_Ant1_High_2462_AV 51 11B_Ant1_High_2462_Peak 11G_Ant1_Low_2412_AV 52 11G_Ant1_Low_2412_Peak 11G_Ant1_High_2462_AV 11G_Ant1_High_2462_Peak 53 11N20SISO_Ant1_Low_2412_AV 11N20SISO_Ant1_Low_2412_Peak 54 11N20SISO_Ant1_High_2462_AV 11N20SISO_Ant1_High_2462_Peak 11N40SISO_Ant1_Low_2422_AV 55 11N40SISO_Ant1_Low_2422_Peak 11N40SISO_Ant1_High_2452_AV 56 11N40SISO_Ant1_High_2452_Peak 57 Appendix RF Test Data for 2.4GWIFI Antenna 2 Appendix A: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant2 2412 11.160 2406.000 2417.160 0.5 PASS 2437 11.120 2431.040 2442.160 0.5 PASS 2462 11.160 2456.000 2467.160 0.5 PASS 11G Ant2 2412 16.360 2403.880 2420.240 0.5 PASS 2437 16.320 2428.840 2445.160 0.5 PASS 2462 16.360 2453.840 2470.200 0.5 PASS 11N20SISO Ant2 2412 17.400 2403.280 2420.680 0.5 PASS 2437 17.520 2428.240 2445.760 0.5 PASS 2462 17.520 2453.280 2470.800 0.5 PASS 11N40SISO Ant2 2422 36.080 2404.000 2440.080 0.5 PASS 2437 36.080 2419.000 2455.080 0.5 PASS 2452 36.080 2434.000 2470.080 0.5 PASS 58 Test Graphs 11B_Ant2_2412 11B_Ant2_2437 11B_Ant2_2462 59 11G_Ant2_2412 11G_Ant2_2437 60 11G_Ant2_2462 11N20SISO_Ant2_2412 11N20SISO_Ant2_2437 61 11N20SISO_Ant2_2462 11N40SISO_Ant2_2422 62 11N40SISO_Ant2_2437 11N40SISO_Ant2_2452 63 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant2 2412 14.880 2404.5825 2419.4625 --- --- 2437 14.894 2429.5674 2444.4614 --- --- 2462 14.883 2454.5567 2469.4397 --- --- 11G Ant2 2412 16.508 2403.8013 2420.3093 --- --- 2437 16.502 2428.7776 2445.2796 --- --- 2462 16.496 2453.7798 2470.2758 --- --- 11N20SISO Ant2 2412 17.590 2403.2132 2420.8032 --- --- 2437 17.550 2428.2303 2445.7803 --- --- 2462 17.632 2453.1860 2470.8180 --- --- 11N40SISO Ant2 2422 36.192 2403.9580 2440.1500 --- --- 2437 36.160 2418.9637 2455.1237 --- --- 2452 36.173 2433.9433 2470.…

Text truncated - open the document above for the full version.

1 FCC Appendix RF Test Data for 2.4GWIFI FCC ID : 2ACGT-TLN002 Company : Guangzhou Shangke Information Technology Co., Ltd. EUT : Mini PC Model Number : TLN001 Report No. : CTA26073001603 Reviewed By : Eric Wang 2 Appendix RF Test Data for 2.4GWIFI Antenna 1 Appendix A: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 10.200 2406.920 2417.120 0.5 PASS 2437 11.160 2431.000 2442.160 0.5 PASS 2462 11.120 2456.040 2467.160 0.5 PASS 11G Ant1 2412 16.240 2403.920 2420.160 0.5 PASS 2437 16.320 2428.880 2445.200 0.5 PASS 2462 16.360 2453.840 2470.200 0.5 PASS 11N20SISO Ant1 2412 17.520 2403.280 2420.800 0.5 PASS 2437 17.360 2428.280 2445.640 0.5 PASS 2462 17.560 2453.240 2470.800 0.5 PASS 11N40SISO Ant1 2422 36.240 2403.920 2440.160 0.5 PASS 2437 36.080 2418.920 2455.000 0.5 PASS 2452 36.080 2434.000 2470.080 0.5 PASS 3 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 4 11G_Ant1_2412 11G_Ant1_2437 5 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 6 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 7 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 8 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 13.895 2405.0779 2418.9729 --- --- 2437 14.890 2429.5689 2444.4589 --- --- 2462 14.880 2454.5581 2469.4381 --- --- 11G Ant1 2412 16.498 2403.7881 2420.2861 --- --- 2437 16.471 2428.7697 2445.2407 --- --- 2462 16.508 2453.7618 2470.2698 --- --- 11N20SISO Ant1 2412 17.596 2403.2125 2420.8085 --- --- 2437 17.627 2428.2053 2445.8323 --- --- 2462 17.598 2453.2125 2470.8105 --- --- 11N40SISO Ant1 2422 36.232 2403.9452 2440.1772 --- --- 2437 36.211 2418.8947 2455.1057 --- --- 2452 36.291 2433.8975 2470.1885 --- --- 9 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 10 11G_Ant1_2412 11G_Ant1_2437 11 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 12 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 13 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 14 Appendix C: Maximum conducted output power Test Result Peak Test Mode Antenna Frequency[MHz] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 14.30 ≤30.00 PASS 2437 14.24 ≤30.00 PASS 2462 13.66 ≤30.00 PASS 11G Ant1 2412 13.41 ≤30.00 PASS 2437 13.29 ≤30.00 PASS 2462 12.76 ≤30.00 PASS 11N20SISO Ant1 2412 14.06 ≤30.00 PASS 2437 13.83 ≤30.00 PASS 2462 13.21 ≤30.00 PASS 11N40SISO Ant1 2422 13.76 ≤30.00 PASS 2437 13.47 ≤30.00 PASS 2452 13.06 ≤30.00 PASS 15 Appendix D: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -12.06 ≤8.00 PASS 2437 -12.23 ≤8.00 PASS 2462 -13.11 ≤8.00 PASS 11G Ant1 2412 -20.77 ≤8.00 PASS 2437 -20.69 ≤8.00 PASS 2462 -21.21 ≤8.00 PASS 11N20SISO Ant1 2412 -20.14 ≤8.00 PASS 2437 -20.86 ≤8.00 PASS 2462 -21.50 ≤8.00 PASS 11N40SISO Ant1 2422 -21.62 ≤8.00 PASS 2437 -22.31 ≤8.00 PASS 2452 -22.06 ≤8.00 PASS 16 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 17 11G_Ant1_2412 11G_Ant1_2437 18 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 19 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 20 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 21 Appendix E: Band edge measurements Test Result TestMode Antenn a ChNam e Frequency[MH z] RefLevel[dB m] Result[dB m] Limit[dBm ] Verdic t 11B Ant1 Low 2412 2.19 -45.15 ≤-17.81 PASS High 2462 1.27 -56.55 ≤-18.73 PASS 11G Ant1 Low 2412 -4.86 -54.27 ≤-24.86 PASS High 2462 -5.24 -57.03 ≤-25.24 PASS 11N20SIS O Ant1 Low 2412 -4.18 -53.41 ≤-24.18 PASS High 2462 -5.13 -57.4 ≤-25.13 PASS 11N40SIS O Ant1 Low 2422 -7.38 -54.65 ≤-27.38 PASS High 2452 -7.27 -52.48 ≤-27.27 PASS 22 Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 23 11G_Ant1_High_2462 11N20SISO_Ant1_Low_2412 24 11N20SISO_Ant1_High_2462 11N40SISO_Ant1_Low_2422 11N40SISO_Ant1_High_2452 25 26 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference 1.19 1.19 --- PASS 30~1000 1.19 -68.73 ≤-18.81 PASS 1000~26500 1.19 -46.04 ≤-18.81 PASS 2437 Reference 1.42 1.42 --- PASS 30~1000 1.42 -68.69 ≤-18.58 PASS 1000~26500 1.42 -46.35 ≤-18.58 PASS 2462 Reference 0.97 0.97 --- PASS 30~1000 0.97 -68.49 ≤-19.03 PASS 1000~26500 0.97 -46.17 ≤-19.03 PASS 11G Ant1 2412 Reference -4.95 -4.95 --- PASS 30~1000 -4.95 -69.03 ≤-24.95 PASS 1000~26500 -4.95 -46.93 ≤-24.95 PASS 2437 Reference -7.62 -7.62 --- PASS 30~1000 -7.62 -68.84 ≤-27.62 PASS 1000~26500 -7.62 -46.24 ≤-27.62 PASS 2462 Reference -7.92 -7.92 --- PASS 30~1000 -7.92 -69.27 ≤-27.92 PASS 1000~26500 -7.92 -46.97 ≤-27.92 PASS 11N20SISO Ant1 2412 Reference -6.83 -6.83 --- PASS 30~1000 -6.83 -69.13 ≤-26.83 PASS 1000~26500 -6.83 -46.76 ≤-26.83 PASS 2437 Reference -8.07 -8.07 --- PASS 30~1000 -8.07 -68.88 ≤-28.07 PASS 1000~26500 -8.07 -46.09 ≤-28.07 PASS 2462 Reference -7.90 -7.90 --- PASS 30~1000 -7.90 -68.16 ≤-27.9 PASS 1000~26500 -7.90 -46.66 ≤-27.9 PASS 11N40SISO Ant1 2422 Reference 1.75 1.75 --- PASS 30~1000 1.75 -67.77 ≤-18.25 PASS 1000~26500 1.75 -44.37 ≤-18.25 PASS 2437 Reference 2.05 2.05 --- PASS 30~1000 2.05 -68.49 ≤-17.95 PASS 1000~26500 2.05 -42.83 ≤-17.95 PASS 2452 Reference 1.22 1.22 --- PASS 30~1000 1.22 -44.05 ≤-18.78 PASS 1000~26500 1.22 -43.38 ≤-18.78 PASS 27 Test Graphs 11B_Ant1_2412_0~Reference 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~26500 28 11B_Ant1_2437_0~Reference 11B_Ant1_2437_30~1000 29 11B_Ant1_2437_1000~26500 11B_Ant1_2462_0~Reference 11B_Ant1_2462_30~1000 30 11B_Ant1_2462_1000~26500 11G_Ant1_2412_0~Reference 31 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 11G_Ant1_2437_0~Reference 32 11G_Ant1_2437_30~1000 11G_Ant1_2437_1000~26500 33 11G_Ant1_2462_0~Reference 11G_Ant1_2462_30~1000 11G_Ant1_2462_1000~26500 34 11N20SISO_Ant1_2412_0~Reference 11N20SISO_Ant1_2412_30~1000

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. .......................................... : CTA26073001603 2ACGT-TLN002 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Aug. 18, 2026 Testing Laboratory Name ............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : Guangzhou Shangke Information Technology Co., Ltd Address ............................................ : Room 1205-1212, R&F To-Win Building, No.30 Huaxia Road, Tianhe District, Guangzhou, Guangdong Province, 510000 China Test specification.......................... : Standard .......................................... : FCC Part 15.247 TRF Originator ................................. : Shenzhen CTA Testing Technology Co., Ltd. Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : Mini PC Trade Mark ....................................... : TECLAST Manufacturer .................................... : Guangzhou Shangke Information Technology Co., Ltd Model/Type reference ...................... : TLN001 Listed Models ................................... : Refer to page 2 Modulation Type .............................. : CCK/DSSS/OFDM Operation Frequency ....................... : From 2412 - 2462MHz Rating ............................................... : Input: 19V3.42A Result ............................................... : PASS Report No.: CTA26073001603 Page 2 of 36 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Mini PC Model /Type : TLN001 Listed Models : TLN002, TLN003, TLN004, TLN005, TLN006, TLM001, TLM002, TLM003, TLM004, TLM005, TLM006, N20, N20Pro, N30, N30Pro, N30Plus, N30Ultra, N35, N35Pro, N35Plus, N35Ultra, N10, N15, N40, N40Pro, N40Plus, N40Ultra, N45, N45Pro, N45Plus, N45Ultra, N50, N50Pro, N50Plus, N50Ultra, N55, N55Pro, N55Plus, N55Ultra Model difference : The PCB board, circuit, structure and internal of the…
