2ACGT-TLA001-2Tablet PC

FCC WARNING: This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. The rating information is located at the bottom of the unit. FCC RF Radiation Exposure and SAR Statements The device has been tested for body-worn Specific Absorption Rate (SAR) compliance. The FCChas established detailed SAR requirements and has established that these requirements. RF Exposure Information The radio module has been evaluated under FCC Bulletin C95.1 and IEEE 1528 and found to be compliant to RF Exposure from radio frequency devices. This model meets the applicable government requirements for exposure to radio frequency waves. The highest reported SAR level for usage near the body (0mm) is 1.486mW/kg.

LocalRepresentativeLetter ForCertificationServiceintheUSA FederalCommunicationsCommission EquipmentAuthorizationDivision,ApplicationProcessingBranch 7435OaklandMillsRoad Columbia,MD21048 Towhomitmayconcern PursuanttoSection2.911(d)(7),oftheCommission’sRules(47C.F.R.)weattestasfollowsfor theproductlistedbelow: FCCIDModelname 2ACGT-TLA001TLA001,TLA002,TLA005,TLA006,TLA007,TLA008,TLC005,TLA016,TLC006, TLC011,TLC007,TLC008,TL005,T65,T65Plus,T70,T70Pro,Artpad,ArtpadPro, T60Mini,P50,T50Plus,T50mini Weherebyacknowledgeasfollows: i.bothsigneesconfirmthatthepointofcontactacceptsresponsibilitytoactasaUS- AmericanRepresentativeonbehalfoftheapplicant ii.thepointofcontactprovidesthephysicalU.S.addressandemailaslistedbelow iii.bothpartiesmaintaintherequirementsofthisagreementfornolessthanoneyear afterthegranteehasterminatedallmarketingandimportationortheconclusionof anyCommission-relatedproceedinginvolvingtheequipment. iv.Anexpirationdateforthisletterdoesnotexist.IncasetheU.S.agentchanges,the granteeisobligatedtonotifytheFCCwithin30daysviathegrantingTCB. US-AmericanPointofContactApplicant/ApprovalHolder SignatureDate:2026-08-19SignatureDate:2026-08-19 CompanyName:GLOCERTSTECHNOLOGYINCGuangzhouShangkeInformation TechnologyCo.,Ltd. FRN:00363397370023660293 ContactName:HuiyingFanTonyLiang Address:19784SUNKISSEDRIDGEDR, RIVERSIDE,CA92507 Room1205-1212,R&FTo-Win Building,No.30HuaxiaRoad, TianheDistrict,Guangzhou, Guangdong,China Phone:(626)588-803900862038731000Extension:1608 Email:[email protected]@sk1999.com

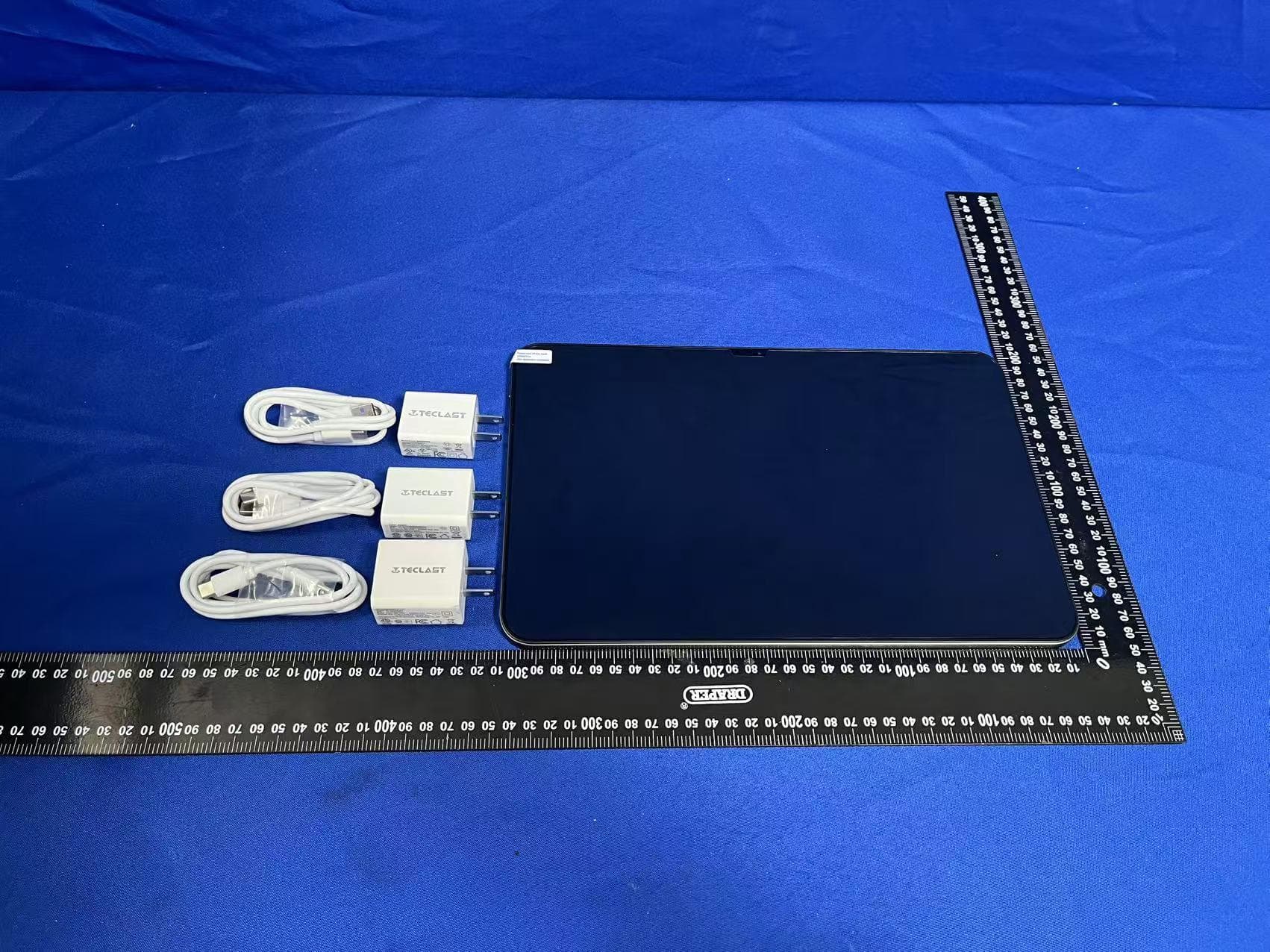

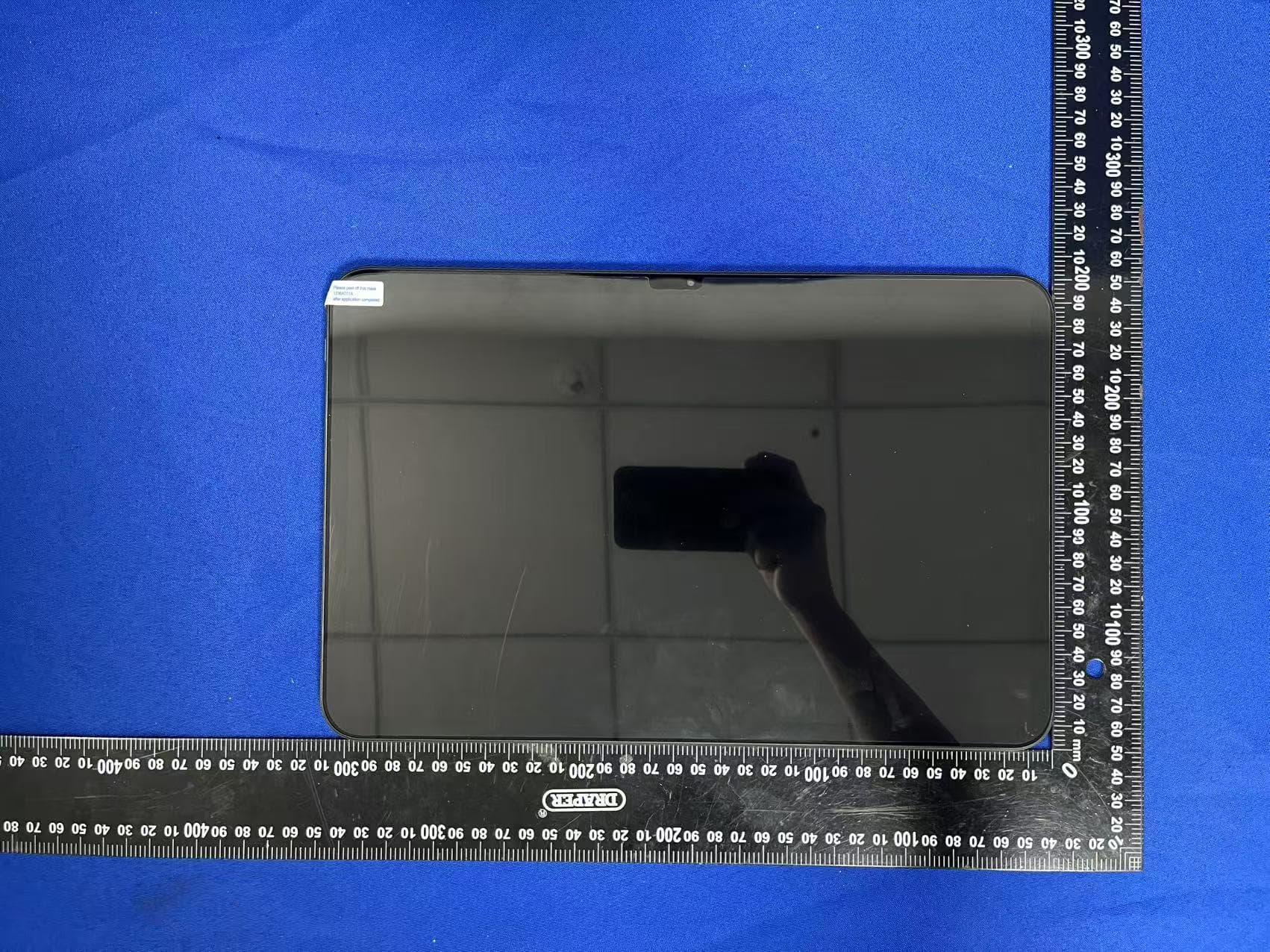

FCCID:2ACGT-TLA001 EUTPHOTO1-OverallviewformodelTLA001 EUTPHOTO2-ExternalviewformodeTL005 EUTPHOTO3-ExternalviewformodeTLA002 EUTPHOTO4-ExternalviewformodeTLA005 EUTPHOTO5-ExternalviewformodeTLA006 EUTPHOTO 6 -ExternalviewformodeTLA007 EUTPHOTO7-ExternalviewformodeTLA008 EUTPHOTO8-ExternalviewformodeTLA016 EUTPHOTO9-ExternalviewformodeTLC005 EUTPHOTO 10 -ExternalviewformodeTLC006 EUTPHOTO11-ExternalviewformodeTLC007 EUTPHOTO12-ExternalviewformodeTLC008 EUTPHOTO13-ExternalviewformodeTLC011 EUTPHOTO 14 -ExternalviewformodelArtpad EUTPHOTO15-ExternalviewformodelArtpadPro EUTPHOTO 16 -ExternalviewformodelT65 EUTPHOTO17-ExternalviewformodelT65Plus EUTPHOTO18-ExternalviewformodelT70 EUTPHOTO19-ExternalviewformodelT70Pro

FCCID:2ACGT-TLA001-2 WiFi/BT/GNSS Antenna LTE4GDIVAntenna LTE4GMainAntenna

Page 1 of 143 Report No.: N26061000401E FCC SAR EVALUATION REPORT In accordance with the requirements of FCC 47 CFR Part 2(2.1093), ANSI/IEEE C95.1-1992 and IEEE Std 1528-2013 Product Name： Tablet PC Trademark： TECLAST Model Name： TLA001 Family Model： TLA002、TLA005、TLA006、TLA007、TLA008、 TLC005、TLA016、TLC006、TLC011、TLC007、 TLC008、TL005、T65、T65Plus、T70、T70Pro、 Artpad、ArtpadPro、T60Mini、P50、T50Plus、 T50mini FCC ID： 2ACGT-TLA001-2 Report No.： N26061000401E Prepared for Guangzhou Shangke Information Technology Co., Ltd. Room 1205-1212, R&F To-Win Building, No.30 Huaxia Road, Tianhe District, Guangzhou, Guangdong, China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. No. 24 Xinfa East Road, Xiangshan Community, Xinqiao Street, Baoan District, Shenzhen, Guangdong, People's Republic of China Tel. 0755-23200050 Website:http://www.ntek.org.cn Page 2 of 143 Report No.: N26061000401E TEST RESULT CERTIFICATION Applicant’s name ................. : Guangzhou Shangke Information Technology Co., Ltd. Address ................................. : Room 1205-1212, R&F To-Win Building, No.30 Huaxia Road, Tianhe District, Guangzhou, Guangdong, China Manufacturer's Name .................................... : Guangzhou Shangke Information Technology Co., Ltd. Address ................................. : Room 1205-1212, R&F To-Win Building, No.30 Huaxia Road, Tianhe District, Guangzhou, Guangdong, China Product description Product name ........................ : Tablet PC Trademark ........................... : TECLAST Model Name ........................ : TLA001 Family Model ......................... : TLA002、TLA005、TLA006、TLA007、TLA008、TLC005、TLA016、TLC006、 TLC011、TLC007、TLC008、TL005、T65、T65Plus、T70、T70Pro、Artpad、ArtpadPro、 T60Mini、P50、T50Plus、T50mini Standards ............................. : FCC 47 CFR Part 2(2.1093); ANSI/IEEE C95.1-1992 IEEE Std 1528-2013; Published RF exposure KDB procedures This device described above has been tested by Shenzhen NTEK. In accordance with the measurement methods and procedures specified in IEEE Std 1528-2013 and KDB 865664 D01. Testing has shown that this device is capable of compliance with localized specific absorption rate (SAR) specified in FCC 47 CFR Part 2(2.1093) and ANSI/IEEE C95.1-1992. The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. This report shall not be reproduced except in full, without the written approval of Shenzhen NTEK, this document may be altered or revised by Shenzhen NTEK, personal only, and shall be noted in the revision of the document. Test Sample Number .............................. S2606100192-1# Date of Test Date (s) of performance of tests ............. : Jun. 24, 2026 ~ Jun. 30, 2026 Date of Issue .......................................... : Aug.07, 2026 Test Result .............................................. : Pass Prepared By : Reviewed By : Approved By : Owen Xiao (Project Engineer) Aaron Cheng (Supervisor) Alex Li (Manager) Page 3 of 143 Report No.: N26061000401E ※ ※ Revision History ※ ※ REV. DESCRIPTION ISSUED DATE REMARK Rev.1.0 Initial Test Report Release Aug.07, 2026 Owen Xiao Page 4 of 143 Report No.: N26061000401E TABLE OF CONTENTS 1. General Information .......................................................................................... 6 1.1. RF exposure limits .................................................................................. 6 1.2. Statement of Compliance ....................................................................... 7 1.3. EUT Description ..................................................................................... 7 1.4. Test specification(s) ................................................................................ 9 1.5. Ambient Condition ............................................................................... 10 1.6. Facilities And Accreditations ................................................................ 10 1.6.1. Facilities ......................................................................................... 10 1.6.2. Laboratory Accreditations And Listings .......................................... 10 2. SAR Measurement System ............................................................................... 11 2.1. SATIMO SAR Measurement Set-up Diagram ......................................... 11 2.2. Robot ................................................................................................... 12 2.3. E-Field Probe ........................................................................................ 13 2.3.1. E-Field Probe Calibration ................................................................ 13 2.4. SAM phantoms .................................................................................... 14 2.4.1. Technical Data ................................................................................ 15 2.5. Device Holder ...................................................................................... 16 2.6. Test Equipment List .............................................................................. 17 3. SAR Measurement Procedures ........................................................................ 20 3.1. Power Reference.................................................................................. 20 3.2. Area scan & Zoom scan ........................................................................ 20 3.3. Description of interpolation/extrapolation scheme ............................. 22 3.4. Volumetric Scan ................................................................................... 22 3.5. Power Drift .......................................................................................... 22 4. System Verification Procedure ......................................................................... 23 4.1. Tissue Verificatio…

Text truncated - open the document above for the full version.

Page 93 of 143 Report No.: N26061000401E Page 94 of 143 Report No.: N26061000401E Page 95 of 143 Report No.: N26061000401E Page 96 of 143 Report No.: N26061000401E Page 97 of 143 Report No.: N26061000401E Page 98 of 143 Report No.: N26061000401E Page 99 of 143 Report No.: N26061000401E Page 100 of 143 Report No.: N26061000401E Page 101 of 143 Report No.: N26061000401E Page 102 of 143 Report No.: N26061000401E Page 103 of 143 Report No.: N26061000401E Page 104 of 143 Report No.: N26061000401E Page 105 of 143 Report No.: N26061000401E Page 106 of 143 Report No.: N26061000401E Page 107 of 143 Report No.: N26061000401E Page 108 of 143 Report No.: N26061000401E Page 109 of 143 Report No.: N26061000401E Page 110 of 143 Report No.: N26061000401E Page 111 of 143 Report No.: N26061000401E Page 112 of 143 Report No.: N26061000401E Page 113 of 143 Report No.: N26061000401E Page 114 of 143 Report No.: N26061000401E Page 115 of 143 Report No.: N26061000401E Page 116 of 143 Report No.: N26061000401E Page 117 of 143 Report No.: N26061000401E Page 118 of 143 Report No.: N26061000401E Page 119 of 143 Report No.: N26061000401E

Page 120 of 143 Report No.: N26061000401E Page 121 of 143 Report No.: N26061000401E Page 122 of 143 Report No.: N26061000401E Page 123 of 143 Report No.: N26061000401E Page 124 of 143 Report No.: N26061000401E Page 125 of 143 Report No.: N26061000401E Page 126 of 143 Report No.: N26061000401E Page 127 of 143 Report No.: N26061000401E Page 128 of 143 Report No.: N26061000401E Page 129 of 143 Report No.: N26061000401E Page 130 of 143 Report No.: N26061000401E Page 131 of 143 Report No.: N26061000401E Page 132 of 143 Report No.: N26061000401E Page 133 of 143 Report No.: N26061000401E Page 134 of 143 Report No.: N26061000401E Page 135 of 143 Report No.: N26061000401E Page 136 of 143 Report No.: N26061000401E Page 137 of 143 Report No.: N26061000401E Page 138 of 143 Report No.: N26061000401E Page 139 of 143 Report No.: N26061000401E Page 140 of 143 Report No.: N26061000401E <Justification of the extended calibration> If dipoles are verified in return loss (<-20dB, within 20% of prior calibration for below 3GHz, and <-8dB, within 20% of prior calibration for 5GHz to 6GHz), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. <Head 835MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -46.216 7.88 51.571 1.071 Feb. 13, 2025 -46.314 0.212 48.792 2.779 Feb. 10, 2026 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 141 of 143 Report No.: N26061000401E <Head 2450MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -25.738 12.07 55.969 2.369 Feb. 13, 2025 -26.659 3.578 54.323 1.646 Feb. 10, 2026 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 142 of 143 Report No.: N26061000401E <Head 5200MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -9.494 1.51 26.574 0.774 Feb. 13, 2025 -10.328 8.784 25.063 1.511 Feb. 10, 2026 The return loss is <-8dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 143 of 143 Report No.: N26061000401E <Head 5800MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -15.039 0.865 40.791 2.261 Feb. 13, 2025 -16.048 6.709 41.217 0.426 Feb. 10, 2026 The return loss is <-8dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data _______________________________________END _____________________________________

深圳市顺达成科技有限公司 SHUN DACHENG TECHNOLOGY CO., LTD 承认书 SPECIFICATION FOR APPROVAL 审批/ Approval客户批准/Customer Approval 制作 Prepared By 审核 Checked By 批准 Approval By 审核 Checked By 批准 Approval By 签章 Signature 李瑶娜符学荣 日期 Dat 陈华明 e 2025.05.132025.05.132025.05.13 客户名称 Customer Name 客户项目名 Customer Project Nam 吉祥星有 Shenzhen Luckystar Technology Co.,Ltd. e T65-T 顺达成项目名 SDC Project Name T65-T 客户编码 Customer P/N 顺达成料号 SDC P/N WG6366B-0814R-140 频段 Band WiFi2.4G/5G/GPS/BT 版本号 Version A0 设计人信息/Designer Information 射频工程师 RF Engineer 杨永辉 研发主管 R&D Diretor 符学荣 结构工程师 ME Engineer 李瑶娜 2025.05.142025.05.15 Manufacturer: SHUN DA CHENG TECHNOLOGY CO., LTD Address: 4th Floor, Building B5, Xinfu Industrial Park, Chongqing Road, Fuyong Town, Baoan District, Shenzhen Company Address: 4th Floor, Building B5, Xinfu Industrial Park, Chongqing Road, Fuyong Town, Baoan District, Shenzhen Telephone :0755-27211658 Fax :0755-29485750 深圳市顺达成科技有限公司 SH UN DA CHENGTECHNOLOGYCO., LTD 目录/Catalogue 序号 No. 项目 Item 页码 PageNo. 1 图纸或实物图片 Drawingor ProductImage 3/5 2 尺寸测量报告 DimensionsTestReport 4/6 3 射频性能测试报告 RF PerformanceTestReport 7-9 4 可靠性测试报告 ReliabilityTestReport1 10 5 包装文件 PackageDocument 11 6 环境有害物质管控一览表 RoHSControllistfor Sample 12 7 安装事宜或其它 Install Wizard or Other 12 Company Address: 4th Floor, Building B5, Xinfu Industrial Park, Chongqing Road, Fuyong Town, Baoan District, Shenzhen Telephone :0755-27211658 Fax :0755-29485750 深圳市顺达成科技有限公司 SHUN DACHENG TECHNOLOGY CO., LTD 产品图纸或实物图片 Drawing or Product Image DESCRIPTION NO Q'TY 2 1 3 1 REMARK 140 Cable ? 0.81 Cable Black,50Ω FPC-黑油黑字 半对半基材，做抗氧化处理 3M 9471背胶 FPC 6 5 4 3 2 1 A B XX. X. .XX .XXX .X CHECKED ±1.0 DRAWING ±0.1 ±0.5 APPROVED ±3.0 ±5 FILE : SHEET : PART NAME: REV A0 UNIT m/m CUSTOMER: 2/4 6 5 4 C D E 3 2 2025.05.13 A0 F REV DATE New Issue G DESCRIPTION 1 深圳市顺达成科技有限公司 SDC P/NO : WG天线（T65-T) FPC(丝印 SDC A13 WG)+0.81黑色线+IPEX4 右 L=140mm 吉祥星 端子 IPEX4 1 符学荣 李瑶娜李瑶娜 W G6366B-0814R-140 全部为通孔 看到的 SDC A13 WG 手撕位    Company Address: 4th Floor, Building B5, Xinfu Industrial Park, Chongqing Road, Fuyong Town, Baoan District, Shenzhen Telephone :0755-27211658 Fax :0755-29485750 深圳市顺达成科技有限公司 SH UN DA CHENGTECHNOLOGYCO., LTD 样品尺寸测量报告 SampleDimensionsTestReport 测试日期 TestDate 2025.05.13 样品数量 SampleQty . 3 测试人 Inspector 许燕芳 尺寸编号 DimensionNo. 标准 Standard 样品1 Sample1 样品2 Sample2 样品3 Sample3 Pass /NG ①长度23.36±0.2mm23.423.423.5 Pass ②宽度18.67±0.2mm18.718.7518.7 Pass ③厚度0.1±0.03mm0.10.10.1 Pass ④线长140±2mm140140141 Pass 最终结论 Conclusion PASS 测试人&日期 Inspector& Date 许燕芳2025.05.13 批准&日期 Approval&D ate Company Address: 4th Floor, Building B5, Xinfu Industrial Park, Chongqing Road, Fuyong Town, Baoan District, Shenzhen Telephone :0755-27211658 Fax :0755-29485750 深圳市顺达成科技有限公司 SH UN DA CHENGTECHNOLOGYCO., LTD 射频性能测量报告 RF PerformanceTestReport 天线测试设备简介 AntennaTestEquipmentIntroduction 测试天线输入特性使用AgilentE5071CandAgilent5062A矢量网络分析仪；辐射特性利 用广屏三维近场暗室进行测试，并分别使用8960E5515和 AgilentE4438C进行了分析。暗房的测 试坐标如下: Testof antennainputcharacteristicsusingAgilentE5071C and Agilent5062Avectornetwork analyzer;The radiationpatternof the antennaare testedusingthe guangping3D nearfieldAnechoicChamber, and the instrumentis usedto agilent8960E5515and AgilentE4438C. The testcoordinatesof the darkroom areas follows: 1.S11参数测量/S11Parameter-VSWR 使用一根50 Ω同轴电缆连接到天线，然后该电缆连接到网络分析仪测量S11 参数，被测量产品远离金属至少 20 厘米。 MeasuringMethodis a 50Ωcoaxialcableis connectedto theantenna. Thenthiscableis connectedto a networkanalyzer to measuretheS11parameter,Keepingthisfixtureawayfrommetalat least20cm. S11 Parameter-VSWR 深圳市顺达成科技有限公司 SH UN DA CHENGTECHNOLOGYCO., LTD 2.天线匹配网络/ AntennaMatchingNetwork 深圳市顺达成科技有限公司 SH UN DA CHENGTECHNOLOGYCO., LTD 3.Gain& Efficiency 4.WIFIOTAData 深圳市顺达成科技有限公司 SH UN DA CHENGTECHNOLOGYCO., LTD 5.GPS 深圳市顺达成科技有限公司 SHUN DACHENG TECHNOLOGY CO., LTD High temperatur e work At +60°Cfor 24H Constant temperature and humidity box OKOKOKPass Work in low temperatur e At -20°Cunder the condition of power work for 24H Constant temperature and humidity box OKOKOKPass Salt spray test The pH value was 6.5 ~ 7.2, and the temperature of the experimental chamber was (35± 2)°C □24H☑48H Salt spray testing machine OKOKOKPass Connector riveting and drawing force 1.13Wire diameter ≥ 10N 0.81Wire diameter ≥ 8N RG174 ≥60N RG178 ≥50N Push pull meter ≥10N≥10N≥10NPass Conclusion Pass Inspector & Date Xu Yanfang2024.12.05 Approval &D ate Reliability Test Report Test Date2024.12.05Sample Qty.3Inspector Xu Yanfang Test ItemRequirement testing equipment Sample 1Sample 2Sample 3PASS/NG High temperatur e storage The test was carried out after 24H exposure at +85°C and 2H recovery Constant temperature and humidity box OKOKOKPass Low temperatur e storage The test was carried out after 24H exposure at -40°C and 2H recovery Constant temperature and humidity box OKOKOKPass 深圳市顺达成科技有限公司 SH UN DA CHENGTECHNOLOGYCO., LTD Company Address: 4th Floor, Building B5, Xinfu Industrial Park, Chongqing Road, Fuyong Town, Baoan District, Shenzhen Telephone :0755-27211658 Fax :0755-29485750 深圳市顺达成科技有限公司 SH UN DA CHENGTECHNOLOGYCO., LTD Install Wizard or Other Installation process: Take 1PCS of products and tear off the release paper on the back of the FPC by hand. Then align the positioning holes of the FPC with the positioning holes of the shell (positioning bars or positioning wires) and attach them to the shell smoothly. The specific positions are shown in the figure below: Precautions for installation: □ After attaching the antenna, ensure that the FPC is fully attached to the shell; □ The positioning hole is aligned with the position of the housing positioning column; □ FPC edges are aligned with housing edges; □ When connecting the antenna with terminal to the PCBA end of the motherboard, align the terminal first and then close it vertically. □ When removing the antenna terminal, use a tool (such as a dedicated crowbar) to lift the terminal vertically. Do not pull the cable to remove the terminal directly 深圳市顺达成科技有限公司 SH UN DA CHENGTECHNOLOGYCO., LTD ROHS

FCC TEST REPORT FCC ID: 2ACGT-TLA001-2 Product: Tablet PC Model Name : TLA001, TLA002, TLA005, TLA006, TLA007, TLA008, TLC005, TLA016, TLC006, TLC011, TLC007, TLC008, TL005, T65, T65Plus, T70, T70Pro, Artpad, ArtpadPro, T60Mini, P50, T50Plus, T50mini Brand: TECLAST Report No.: PTC26052917601E-FC02 Prepared for Guangzhou Shangke Information Technology Co., Ltd. Room 1205-1212, R&F To-Win Building, No.30 Huaxia Road, Tianhe District, Guangzhou, Guangdong, China Prepared by Precise Testing & Certification Co., Ltd. Building 1, No. 6, Tongxin Road, Dongcheng Street, Dongguan, Guangdong, China Report No.: PTC26052917601E-FC02 Page 2 of 85 1 TEST RESULT CERTIFICATION Applicant’s name: Guangzhou Shangke Information Technology Co., Ltd. Address: Room 1205-1212, R&F To-Win Building, No.30 Huaxia Road, TianheDistrict,Guangzhou,Guangdong,China Manufacture's name : Guangzhou Shangke Information Technology Co., Ltd. Address: Room 1205-1212, R&F To-Win Building, No.30 Huaxia Road, Tianhe District, Guangzhou, Guangdong, China Product name: Tablet PC Model name: TLA001, TLA002, TLA005, TLA006, TLA007, TLA008, TLC005, TLA016, TLC006, TLC011, TLC007, TLC008, TL005, T65, T65Plus, T70, T70Pro, Artpad, ArtpadPro, T60Mini, P50, T50Plus, T50mini Standards: FCC CFR47 Part 15 Section 15.247 Test procedure: ANSI C63.10-2020 Test Date: June 15, 2026 to July 10, 2026 Date of Issue: July 10, 2026 Test Result: Pass This device described above has been tested by PTC, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of PTC, this document may be altered or revised by PTC, personal only, and shall be noted in the revision of the document. Test Engineer: Jack zhou / Engineer Technical Manager: Simon Pu / Manager Report No.: PTC26052917601E-FC02 Page 3 of 85 Contents Page 1 TEST RESULT CERTIFICATION...............................................................................................................................2 2 TEST SUMMARY..........................................................................................................................................................5 3 TEST FACILITY.............................................................................................................................................................5 4 GENERAL INFORMATION..........................................................................................................................................6 4.1 G ENERAL D ESCRIPTION OF E.U.T.....................................................................................................................6 4.2 T EST M ODE .........................................................................................................................................................7 5 EQUIPMENT DURING TEST......................................................................................................................................9 5.1 E QUIPMENTS L IST ...............................................................................................................................................9 5.2 M EASUREMENT U NCERTAINTY .........................................................................................................................11 5.3 D ESCRIPTION OF S UPPORT U NITS ...................................................................................................................12 6 CONDUCTED EMISSION..........................................................................................................................................13 6.1 E.U.T. O PERATION ............................................................................................................................................13 6.2 EUT S ETUP .......................................................................................................................................................13 6.3 T EST SET-UP (B LOCK D IAGRAM OF C ONFIGURATION ).................................................................................14 6.4 M EASUREMENT P ROCEDURE :...........................................................................................................................14 6.5 C ONDUCTED E MISSION L IMIT ...........................................................................................................................14 6.6 M EASUREMENT D ESCRIPTION ..........................................................................................................................14 6.7 C ONDUCTED E MISSION T EST R ESULT .............................................................................................................14 7 RADIATED SPURIOUS EMISSIONS......................................................................................................................17 7.1 EUT O PERATION ...............................................................................................................................................17 7.2 T EST S ETUP ......................................................................................................................................................18 7.3 S PECTRUM A NALYZER S ETUP ..........................................................................................................................20 7.4 T EST P ROCEDURE .............................................................................................................................................21 7.5 S UMMARY OF T EST R ESULTS ...........................................................................................................................22 8 MAXIMUM PEAK OUTPUT POWER TEST............................................................................................................29 8.1 T EST S TANDARD AND L IMIT ...............…

Text truncated - open the document above for the full version.

Report No.: PTC26052917601E-FC02 Page 64 of 85 2DH5-Ant1-Hop_2402-PASS 2DH5-Ant1-Hop_2480-PASS Report No.: PTC26052917601E-FC02 Page 65 of 85 3DH5-Ant1-2402-PASS 3DH5-Ant1-2480-PASS Report No.: PTC26052917601E-FC02 Page 66 of 85 3DH5-Ant1-Hop_2402-PASS 3DH5-Ant1-Hop_2480-PASS Report No.: PTC26052917601E-FC02 Page 67 of 85 Conducted Emission Method Test Result TestModeAntennaFrequency[MHz] FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5Ant124020~Reference2.142.14---PASS DH5Ant1240230~10002.14-59.34≤-17.86 PASS DH5Ant124021000~265002.14-50.89≤-17.86 PASS DH5Ant124410~Reference2.842.84---PASS DH5Ant1244130~10002.84-59.8≤-17.16 PASS DH5Ant124411000~265002.84-50.85≤-17.16 PASS DH5Ant124800~Reference2.722.72---PASS DH5Ant1248030~10002.72-59.2≤-17.28 PASS DH5Ant124801000~265002.72-51.1≤-17.28PASS 2DH5Ant124020~Reference1.091.09---PASS 2DH5Ant1240230~10001.09-59.07≤-18.91 PASS 2DH5Ant124021000~265001.09-50.66≤-18.91 PASS 2DH5Ant124410~Reference0.900.90---PASS 2DH5Ant1244130~10000.90-59.09≤-19.1PASS 2DH5Ant124411000~265000.90-50.59≤-19.1PASS 2DH5Ant124800~Reference1.001.00---PASS 2DH5Ant1248030~10001.00-59.58≤-19PASS 2DH5Ant124801000~265001.00-49.87≤-19PASS 3DH5Ant124020~Reference-1.35-1.35---PASS 3DH5Ant1240230~1000-1.35-59.2≤-21.35 PASS 3DH5Ant124021000~26500-1.35-50.48≤-21.35PASS 3DH5Ant124410~Reference1.691.69---PASS 3DH5Ant1244130~10001.69-59.75≤-18.31 PASS 3DH5Ant124411000~265001.69-50.42≤-18.31 PASS 3DH5Ant124800~Reference1.161.16---PASS 3DH5Ant1248030~10001.16-59.83≤-18.84 PASS 3DH5Ant124801000~265001.16-50.15≤-18.84 PASS Report No.: PTC26052917601E-FC02 Page 68 of 85 Test Graphs: DH5-Ant1-2402-0~Reference-PASS DH5-Ant1-2402-30~1000-PASS Report No.: PTC26052917601E-FC02 Page 69 of 85 DH5-Ant1-2402-1000~26500-PASS DH5-Ant1-2441-0~Reference-PASS Report No.: PTC26052917601E-FC02 Page 70 of 85 DH5-Ant1-2441-30~1000-PASS DH5-Ant1-2441-1000~26500-PASS Report No.: PTC26052917601E-FC02 Page 71 of 85 DH5-Ant1-2480-0~Reference-PASS DH5-Ant1-2480-30~1000-PASS Report No.: PTC26052917601E-FC02 Page 72 of 85 DH5-Ant1-2480-1000~26500-PASS 2DH5-Ant1-2402-0~Reference-PASS Report No.: PTC26052917601E-FC02 Page 73 of 85 2DH5-Ant1-2402-30~1000-PASS 2DH5-Ant1-2402-1000~26500-PASS Report No.: PTC26052917601E-FC02 Page 74 of 85 2DH5-Ant1-2441-0~Reference-PASS 2DH5-Ant1-2441-30~1000-PASS Report No.: PTC26052917601E-FC02 Page 75 of 85 2DH5-Ant1-2441-1000~26500-PASS 2DH5-Ant1-2480-0~Reference-PASS Report No.: PTC26052917601E-FC02 Page 76 of 85 2DH5-Ant1-2480-30~1000-PASS 2DH5-Ant1-2480-1000~26500-PASS Report No.: PTC26052917601E-FC02 Page 77 of 85 3DH5-Ant1-2402-0~Reference-PASS 3DH5-Ant1-2402-30~1000-PASS Report No.: PTC26052917601E-FC02 Page 78 of 85 3DH5-Ant1-2402-1000~26500-PASS 3DH5-Ant1-2441-0~Reference-PASS Report No.: PTC26052917601E-FC02 Page 79 of 85 3DH5-Ant1-2441-30~1000-PASS 3DH5-Ant1-2441-1000~26500-PASS Report No.: PTC26052917601E-FC02 Page 80 of 85 3DH5-Ant1-2480-0~Reference-PASS 3DH5-Ant1-2480-30~1000-PASS Report No.: PTC26052917601E-FC02 Page 81 of 85 3DH5-Ant1-2480-1000~26500-PASS Report No.: PTC26052917601E-FC02 Page 82 of 85 14 Antenna Requirement 14.1 Test Standard and Requirement Test Standard FCC Part15 Section 15.203 /247(c) Requirement 1) 15.203 requirement: An intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be use…
