2ACS61TXController of Surveyor Drone

©2014 RadioShack Corporation. All rights reserved. RadioShack is a registered trademark used by RadioShack Corporation. 07A14 6001145 Printed in China Sur veyor Drone Install Batteries in the Transmitter 1. On the transmitter, set the ON/OFF switch to OFF. 2. Use a screwdriver to open the battery compartment. 3. Insert two AAA batteries (not included), matching the polarities marked inside. Use alkaline batteries for optimal performance. During play, if the transmitter’s LED flashes, replace the batteries. Age 14+ Get Ready to Fly 1. Open the drone battery compartment door and find the battery socket. 2. Plug the drone battery to the socket. The four LEDs (two in white in the front, two in green in the back) flash. 3. Insert the battery with its cable into the battery compartment. 4. Secure the compartment door. 5. Place the drone on level ground. 6. Switch on the transmitter. The transmitter’s LED lights. 7. Move the throttle all the way from the descend position to ascend and back to descend to pair the transmitter with the drone. The drone’s blades remain still during pairing. When paired, the drone’s LEDs stop flashing and remain on. Note: If pairing fails, switch off the drone and transmitter and repeat the steps above, or move locations to avoid interference. Fly Your Drone 1. After pairing, press the steering control to switch between high speed (double beep) and normal speed (single beep). 2. For beginners: With the drone on the ground, move the throttle forward to fly. For advanced users: Hold the transmitter with one hand, resting your thumb on the throttle. Then throw the drone about three meters away from you, and promptly move the throttle forward to fly. The drone adjusts itself automatically and flies stably. 3. To land your drone, slowly move the throttle backward to descend. Avoid moving the throttle too quickly, as that can stop the blades instantly and cause the drone to crash. 4. When you finish playing, disconnect and remove the drone battery and turn off the transmitter. We hope you enjoy your Surveyor Drone from RadioShack. Please read this user’s guide before setting up and using your drone. What’s Included • Surveyor Drone • Transmitter • USB Charging Cable • Spare Blades (4) • 3.7V Drone Battery • User’s Guide Charge the Drone Batter y Your drone uses a lithium polymer battery for power. 1. Hold the battery connector (NOT the cable) and carefully unplug the battery from the drone. 2. Use the USB charging cable to connect the battery to a USB power source, such as a laptop. The LED on the USB connector lights red during charging, and turns off when charging is complete. A full charge takes about 35 minutes. When the battery is fully charged, the drone can fly up to 5 minutes. 3. After charging, unplug the USB charging cable. Do not attempt to overcharge the battery. Caution: • Use only the supplied lithium battery. Using any other battery may damage the drone. • Only use the included USB charging cable to charge the drone battery. LED ON/OFF Steering • Move forward/ backward • Slide right/left • Switch between high and low speed Throttle • Speed up (ascend)/ slow down (descend) • Turn right/left • Play flip stunts 1 2 LED A A A A A A Camera Lens Front LEDs (white) Back LEDs (green) Rotor Blades (4) 6001145_UG_EN_072914.indd 17/30/2014 9:52:13 AM Perform Flip Stunts 1. Press and hold the throttle control. The transmitter beeps. 2. Move the steering control to perform flips: • Front flip: Move lever forward • Back flip: Move lever backward • Barrel roll: Move lever right or left 3. To exit stunt mode, release the throttle before moving the steering control. IMPORTANT: Make sure there is enough space for the drone to perform a flip. Avoid crashing on people or any object. Trim Your Drone Use the two trim pads to fine-tune your drone to avoid excess drift. Push the throttle forward and observe how the drone reacts. Forward/Reverse Movement Trim: If the drone tends to move forward, press the lower part on this pad; if it tends to move backward, press the upper part. Left/Right Slide Trim: If the drone tends to slide right, press the upper part on this pad; if it tends to slide left, press the lower part. Note: The transmitter sounds a short beep when you press any trim control. A long beep sounds when you reach maximum trim adjustment. Fly Safely • When flying outdoors, keep the drone away from power-lines, trees, weeds, and water. • When flying indoors, keep the drone away from walls, air conditioning, air vents, fans, breakable objects, and other obstacles. • Do not fly the drone near or at other people or animals. Use caution when flying, make sure people around you know that you are playing with the drone. • Keep eyes, hands, hair and loose clothing away from moving blades. • Fly the drone safely. If it crashes, the SD card may fall out and be lost. • Adult supervision is recommended at all times. CHOKING HAZARD! Small parts. Not for children under 3 years. Specif ications Power ..................2 × AAA batteries (transmitter) .....................3.7V lithium polymer battery (drone) Lens Resolution ......................................1080 × 720 Control Distance ....................................65 ft (20m) Specifications are subject to change and improvement without notice. Actual product may vary from the images found in this document. Troubleshooting Drone is not responding • Make sure the drone and transmitter are switched on and paired. When they are paired, the LEDs of the drone and transmitter are on. • The drone battery may be low. Charge the battery fully. (Refer to “Charge the Drone Battery“) • Transmitter battery may be low. Replace the batteries. • Make sure the drone is within the control range (65 ft./20m) and in line of sight. Drone dif f icult to control • The throttle control is very sensitive. Use small, fine movements of the throttle. • If you are a beginner, use the steering control to set to the normal speed mode. It is easier to control …

Text truncated - open the document above for the full version.

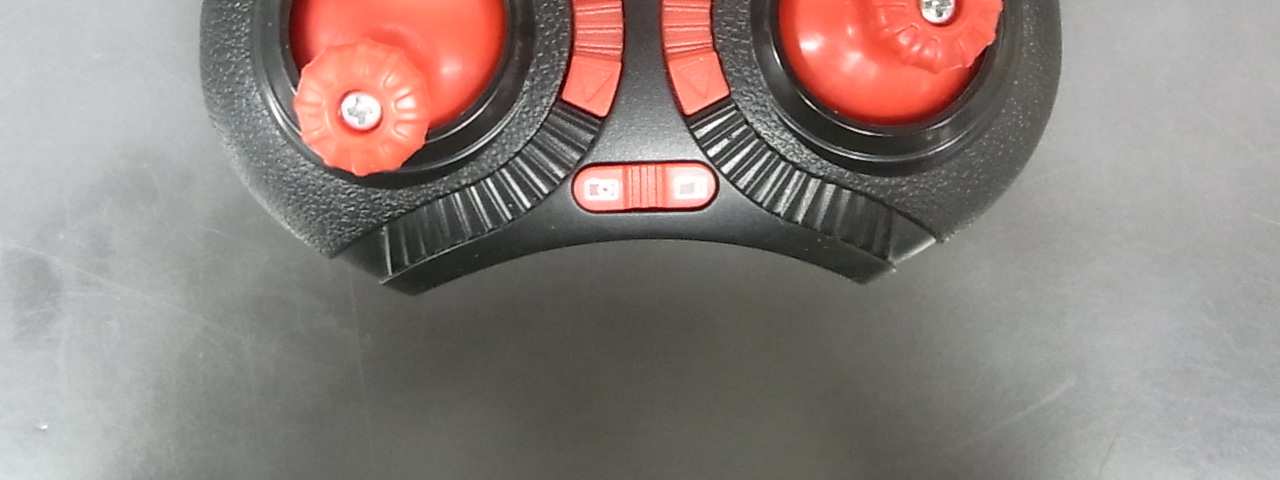

External Photo

Label

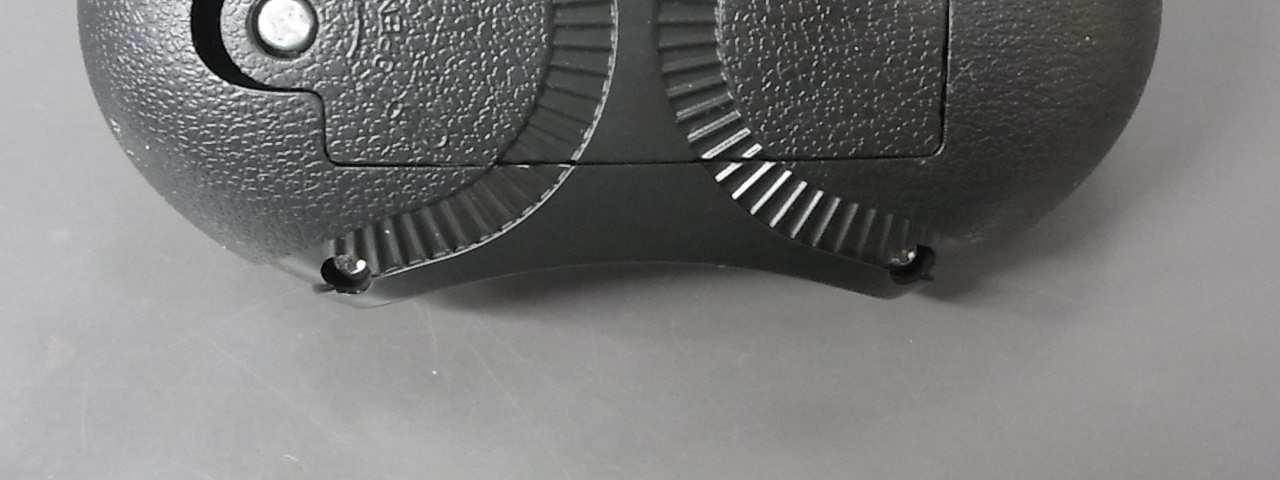

Internal Photo

Technical Description The equipment under test (EUT) is a 2.4GHz transmitter operating at 2402 - 2475 MHz. It is powered by 2 x 1.5V "AAA" batteries Antenna Type: Coaxial shielded antenna TX FUNCTION: The functions of TX main ICs are mentioned as below. 1. Main Control is MCU for system and gaming control. 2. POWER is LDO. 3. Peripheral keys as the direction of the stability of the regulation and rudder adjustment. 4. LED power indicator represents only 5. 16M Cystal is crystal oscillator which provide 16MHz clock to 2.4G Module

1 2 3 4 56 ABCD 6 5 4 3 2 1 D CBA Rev:Page:Date: ZEGO ELECTRONIC COMPANY LIMITED Project name: Drawn By: Approved by: 66 09 1 TX SCH （ RS ： 60 01 14 5TX ） 2014-7-15 1/1V1.0 JUNXIE 12345 6 7 8 9 10 1112131415 16 17 18 19 20 U3 BK2421 C19 104 C112.2P C8333P R1100K L447uH ANT1ANT C2110UF Y116M C12104 C1422UF R22.2K R1433K VOUT 2 GND 1 VIN 3 Q23.3V 1 161514121110 765324 13 8 9 U2 66 05 （ 66 09 ） TX 3.3v VCC VCC L33.9nH C1727P C1827P Q1SC8050 R61K R31K D1LED D2 IN5819 SCK SCK CSN CSN 前后 前后 左右 左右 左右转 油门 油门 3.3v 3.3v 3.3v 3.3v 3.3v LED1 LED1 LV LV 蜂鳴器 蜂鳴器 S3SW-PB MOSIMISO R2410R R1322K R1210K R21 3.3K R203.3K C2104 L24.7nH L18.2nH C104.7P C7104 R22 1M R41K C910UF C3104 C6104 VR2-B C5104 C4104后退 左侧飞 前进 VR2-B R81K R91K R101K R111K S4SW-PBS5SW-PBS6SW-PBS8SW-PBS7SW-PBS2SW-PBS1SW-PB R7100RR15220RR5390RR16560RR17820RR181.2KR191.8K R231K 3.3v MOSI MOSI MISO MISO C1104 U1SPK VCC 3.3v S10SW SPDT BT13V S9 T ADKEY ADKEY C150.5P IRQ C2210UF 5 5 3 3 4 4 8 8 6 6 7 7 VR20-5K 5 5 3 3 4 4 8 8 6 6 7 7 VR10-5K 翻滚（在 VR1 电位器上） 速度快慢模式键（ VR2 电位器上） 录像 / 拍照 / 左侧微调右侧微调前微调后微调 连发弹键（对战版）单发弹键（对战版） 左旋转右旋转 上升下降 右侧飞 左右转

TEST REPORT Report No. : AS0047563(3) Date : 11 Aug 2014 For and on behalf of CMA Industrial Development Foundation Limited Authorized Signature : Page 1 of 24 Mr. WONG Lap-pong, Andrew Manager Electrical Division FCC ID: 2ACS61TX Application No. : LS025878(8) Applicant : Zego Electronic Company Limited (Shenzhen Yangri Electronic Ltd) Room 703, Kowloon Building, 555 Nathan Road, Kowloon, HK Sample Description : One(1) item of submitted sample stated to be Controller of Surveyor Drone of Model No. 6001145 Sample registration No. : RS031557-001 Radio Frequency : 2402MHz – 2475 MHz Transceiver Rating : 2 x 1.5V AAA size batteries No. of submitted sample : Five (5) set (s) Date Received : 25 Jul 2014 Test Period : 25 Jul 2014 to 05 Aug 2014. Test Requested : FCC Part 15 Certificate Test Method : 47 CFR Part 15 (10-1-12 Edition) ANSI C63.4 – 2009 Test Engineer : Mr. LEUNG Shu-kan, Ken Test Result : See attached sheet(s) from page 2 to 24. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart B and C. TEST REPORT Report No. : AS0047563(3) Date : 11 Aug 2014 Page 2 of 24 FCC ID: 2ACS61TX Table of Contents 1 General Information ................................................................................................................................... 3 1.1 General Description ............................................................................................................................ 3 1.2 Location of the test site ....................................................................................................................... 4 1.3 List of measuring equipment............................................................................................................... 5 1.4 Measurement Uncertainty ................................................................................................................... 6 2 Description of the radiated emission test ................................................................................................... 7 2.1 Test Procedure .................................................................................................................................... 7 2.2 Test Result .......................................................................................................................................... 8 2.3 Radiated Emission Measurement Data ............................................................................................... 9 3 Description of the Line-conducted Test ................................................................................................... 12 3.1 Test Procedure .................................................................................................................................. 12 3.2 Test Result ........................................................................................................................................ 12 3.3 Graph and Table of Conducted Emission Measurement Data .......................................................... 12 4 Photograph ...............................................................................................................................................13 4.1 Photographs of the Test Setup for Radiated Emission and Conducted Emission ............................. 13 4.2 Photographs of the External and Internal Configurations of the EUT.............................................. 13 5 Supplementary document......................................................................................................................... 14 5.1 Bandwidth ......................................................................................................................................... 14 5.2 Duty cycle ......................................................................................................................................... 14 5.3 Transmission time ............................................................................................................................. 14 5.4 Power Spectral Density..................................................................................................................... 14 5.5 Average on time ................................................................................................................................ 14 6 Appendices...............................................................................................................................................15 TEST REPORT Report No. : AS0047563(3) Date : 11 Aug 2014 Page 3 of 24 FCC ID: 2ACS61TX 1 General Information 1.1 General Description The equipment under test (EUT) is a transmitter for helicopter. The EUT is power by 2 x 1.5V AAA size batteries. It operates at 2402MHz – 2475 MHz. There are buttons and joysticks on the EUT. When the buttons are pressed or the joysticks are moved, the EUT will transmit radio control signal to receiver. The brief circuit description is listed as follows: - U2 and its associated circuit act as encoder - U3 and its associated circuit act as RF circuit - Y1 and its associated circuit act as oscillator - Q2 and its associated circuit act as power supply circuit - S1, S2, S3, S4, S5, S6, S7, S8, VR1, VR2 and its associated circuit act as copter control TEST REPORT Report No. : AS0047563(3) Date : 11 Aug 2014 Page 4 of 24 FCC ID: 2ACS61TX 1.2 Location of the test site FCC Registered Test Site Number: 552221 Radiated emissions measurements are investigated and taken pursuant to the procedures of ANSI C63.4 – 2009. A Semi-Anechoic Chamber Testing Site is set up for investigation and located at: Ground Floor, Yan Hing Centre, 9 – 13 Wong Chuk Yeung Street, Fo Tan, Shatin, New Territories, Hong Kong. Conducted emissions measurements are investigated and also taken pursuant to the procedures of ANSI C63.4 – 2009. A shielded room is located at : Ground Floor, Yan Hing Centre, 9 – 13 Wong Chuk Yeung Street, Fo Tan, Shatin, N…
