Nokia Solutions and Networks, OY Date: 9/27/2023 Federal Communications Commissions Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 RE: CFR 47 §2.911 (d)(5) Attestation FCC ID: 2AD8UASOFWIFI-01 Grantee’s FRN: 0031452253 1. Nokia Solutions and Networks, OY (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. 2. Nokia Solutions and Networks, OY (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment and is not an affiliate or subsidiary of an entity identified on the Covered List. Sincerely yours, Signatory: Lee Klinkenborg Title: R&D Engineer – Regulatory Compliance Nokia Solutions and Networks TEL: 1.224.221.7580 E-mail: [email protected]

Nokia Solutions and Networks OY Date: 9/27/2023 Federal Communications Commissions Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 RE: CFR 47 §2.911 (d)(7) Agent Designation Attestation FCC ID: 2AD8UASOFWIFI-01 Grantee’s FRN: 0031452253 To whom it may concern: Nokia Solutions and Networks OY (“the applicant”) as required by section §2.911(d)(7), will also serve as the agent for service of process for the above referenced FCC ID. The applicant acknowledges that they will maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility under CFR 47 §2.929(c) to inform the FCC whenever the agent information changes. Designated U.S. Agent Information: FRN: 0031452253 Name: Nokia Solutions and Networks OY Address: 2000 W. Lucent Lane Naperville, IL 60563 Contact Person: Lee Klinkenborg Tel.: 224-221-7580 Email: [email protected] Sincerely yours, Company Name: Nokia Solutions and Networks, OY Contact Name: Lee Klinkenborg Address: 2000 W. Lucent Lane Naperville Illinois 60563 United States

Nokia Solutions and Networks, OY Date: 09/01/2023 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 To whom it may concern: I, the undersigned, hereby authorize UL-CCIC COMPANY LIMITED to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Verification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Verification Services Inc. as our representative, we still recognize that we are responsible to: a)comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h)ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i)keep a record of all complaints made known to us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the when requested; j)take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k)document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signatory: Lee Klinkenborg Title: R&D Engineer – Regulatory Compliance Nokia Solutions and Networks, OY TEL: 1.224.221.7580 E-mail: [email protected]

Nokia Solutions and Networks, OY DATE : 2023-09-01 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Request for Short-Term Confidentiality Company name: FCC ID: 2AD8UASOFWIFI-01 FCC Part 15 Certification Pursuant to Sections 0.457 and 0.459 of the commission rules, and in accordance with the FCC Public notice dated June 15, 2004 (DA 04-1705), we hereby request short-term confidentiality for the following items prior to marketing the device.: (1) Test Setup Photos (2) External Photos The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Sincerely, Company Name: Nokia Solutions and Networks, OY Contact Name: Lee Klinkenborg Address: 2000 W. Lucent Lane Naperville Illinois 60563 United States

Federal Communications Commission Authorization and Evaluation Division Permanent Confidentiality Request Letter Date: 07/21/2023 Confidentiality Request for: FCC ID: 2AD8UASOFWIFI-01 To Whom It May Concern, Pursuant to FCC 47 CRF 0.457(d) and 0.459, Section 10, Nokia Solutions and Networks requests that a part of the subject FCC and/or IC application listed below be held permanently confidential and permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Exhibit 5 Exhibit 6 Exhibit 7 Exhibit 8 Exhibit 9 Exhibit 14 Exhibit 15 Tune-Up Procedures Block Diagram, Operational Description Complete Circuit Diagrams Instruction Book Internal Photographs Parts List Non-Disclosure Agreement - NDA Confidentiality of the User Manual is maintained by requiring that any party that is supplied a user manual must first sign a non- disclosure agreement. Currently only cellular system operators have access to these manuals. Internal photos are kept confidential by virtue of the fact that the end product is a non-consumer product, certified and housed in a sealed enclosure, and is only accessible by trained /approved maintenance personnel. Further, the Applicant has spent substantial effort in developing this product, some aspects of which are deemed to be trade secret and proprietary. Having the subject information easily available to our competitors in this market would negate the advantage we have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Sincerely yours, Signatory: Lee Klinkenborg Title: R&D Engineer – Regulatory Compliance Nokia Solutions and Networks, OY TEL: 1.224.221.7580 FAX: 1.224.248.8208 E-mail: [email protected]

Nokia Solutions and Networks, OY Address: 2000 W. Lucent Lane Naperville Illinois 60563 United States Confirmation Letter We, Nokia Solutions and Networks, OY The product: ASOF And model No.: 476147A,476148A FCC ID: 2AD8UASOFWIFI-01 476148A has the same technical construction including circuit diagram, PCB Layout, components, and component layout as 476147A. The difference lies only in the power supply related electrical and mechanical construction (476147A is a DC-supply version and 476148A is an AC-supply version). These changes do not degrade the unwanted emissions of the certified product. Sincerely yours, Signatory: Lee Klinkenborg Title: R&D Engineer – Regulatory Compliance Nokia Solutions and Networks TEL: 1.224.221.7580 E-mail: [email protected] Date:09/01/2023

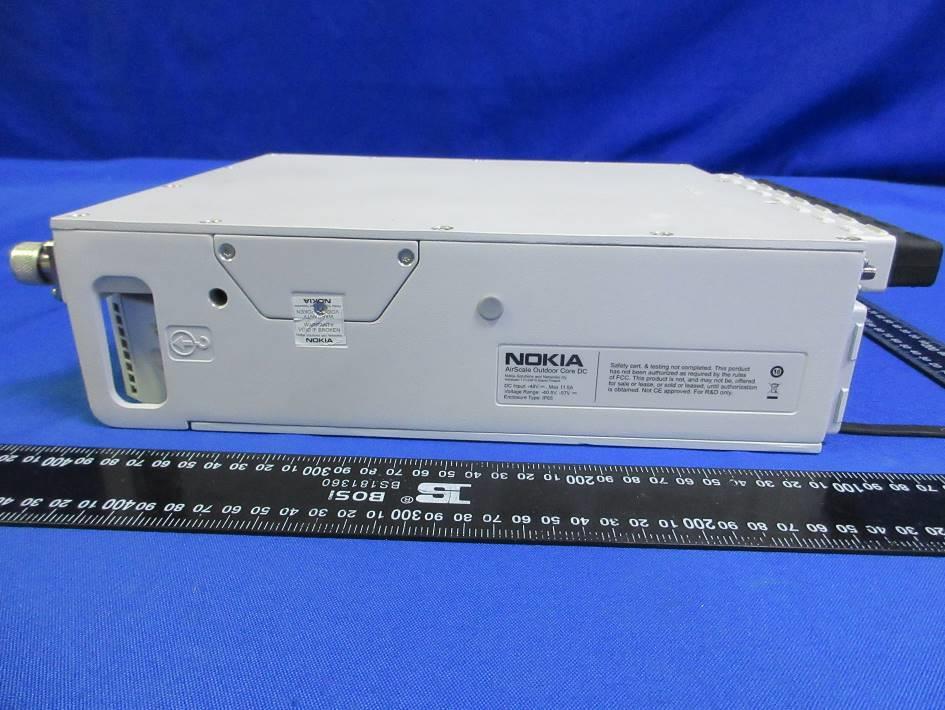

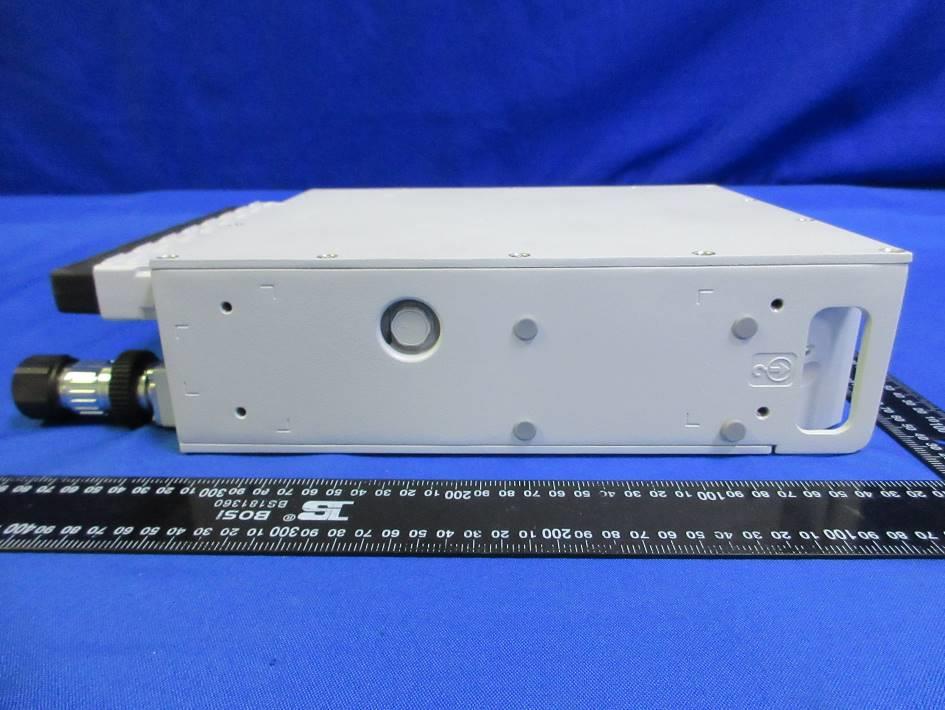

Appendix I External Photographs Page 2 of 5 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. All View of EUT Top View of EUT Page 3 of 5 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Bottom View of EUT Front View of EUT Page 4 of 5 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Back View of EUT Left View of EUT Page 5 of 5 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Right View of EUT

TA label Product label (With 47 code & SN) TA label ASOFA: ASOF: 25mm 120mm Note: The label is attached to the surface of the device with a permanent adhesive. Product label AC: DC: 31 mm 9mm Note: The label is attached to the surface of the device with a permanent adhesive.

Form-ULID-008536-13 V3.0 The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. FCC RF EXPOSURE REPORT For ASOF MODEL NUMBER: 476148A ADDITIONAL MODEL NUMBER: 476147A PROJECT NUMBER: 4790799929 REPORT NUMBER: 4790799929-3 FCC ID: 2AD8UASOFWIFI-01 ISSUE DATE: Jul. 06, 2023 Prepared for FCC: Nokia Solutions and Networks, OY Prepared by UL-CCIC COMPANY LIMITED No. 2, Chengwan Road, Suzhou Industrial Park, Suzhou 215122, China Tel: +86 512-6808 6400 Fax: +86 512-6808 4099 Website: www.ul.com Report No.: 4790799929-3 Page 2 of 8 Form-ULID-008536-13 V3.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Revision History Rev. Issue Date Revisions Revised By V0 07/06/2023 Initial Issue Report No.: 4790799929-3 Page 3 of 8 Form-ULID-008536-13 V3.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. TABLE OF CONTENTS 1. APPLICANT INFORMATION ............................................................................................. 4 2. TEST METHODOLOGY ..................................................................................................... 5 3. FACILITIES AND ACCREDITATION ................................................................................. 5 4. MEASUREMENT UNCERTAINTY ...................................................................................... 6 5. REQUIREMENT ................................................................................................................. 7 Report No.: 4790799929-3 Page 4 of 8 Form-ULID-008536-13 V3.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. 1. APPLICANT INFORMATION Applicant Information FCC Company Name: Nokia Solutions and Networks, OY FCC Company Address: 2000 W. Lucent Lane Naperville Illinois 60563 United States EUT Description Product Name: ASOF Model Name: 476148A Additional No.: 476147A Model Difference: The two models are identical except the power supply unit, the power supply unit of model 476148A is an AC power supply unit, the power supply unit of 476147A is a DC power supply unit. Sample Number: 5992994 Data of Receipt Sample: Apr. 17, 2023 Test Date: Apr. 17, 2023~ Jul. 05, 2023 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC Guidelines for Human Exposure IEEE C95.1 Complies Prepared By: Reviewed By: Tom Tang Leon Wu Authorized By: Chris Zhong EMC&RF Lab Operations Manager Report No.: 4790799929-3 Page 5 of 8 Form-ULID-008536-13 V3.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. 2. TEST METHODOLOGY The tests documented in this report were performed in accordance with KDB 447498 D01 General RF Exposure Guidance v06 and FCC Guidelines for Human Exposure IEEE C95.1. 3. FACILITIES AND ACCREDITATION Accreditation Certificate A2LA (Certificate No.: 4829.01) UL-CCIC COMPANY LIMITED has been assessed and proved to be in compliance with A2LA. FCC (FCC Designation No.: CN1247) UL-CCIC COMPANY LIMITED has been recognized to perform compliance testing on equipment subject to the Commission's Declaration of Conformity (DoC) and Certification rules. IC (IC Designation No.: 25056; CAB No.: CN0073) UL-CCIC COMPANY LIMITED has been recognized to perform compliance testing on equipment subject to the Commission's Declaration of Conformity (DoC) and Certification rules. Note 1: All tests measurement facilities use to collect the measurement data are located at No. 2, Chengwan Road, Suzhou Industrial Park, Suzhou 215122, China. Note 2: For below 30MHz, lab had performed measurements at test anechoic chamber and comparing to measurements obtained on an open field site. These measurements below 30MHz had been correlated to measurements performed on an OFS. Note 3: The test anechoic chamber in UL-CCIC COMPANY LIMITED had been calibrated and compared to the open field sites and the test anechoic chamber is shown to be equivalent to or worst case from the open field site. Report No.: 4790799929-3 Page 6 of 8 Form-ULID-008536-13 V3.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. 4. MEASUREMENT UNCERTAINTY Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the apparatus: Test Item Uncertainty Output Power to Antenna 3.1 dB Note: This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. Report No.: 4790799929-3 Page 7 of 8 Form-ULID-008536-13 V3.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. 5. REQUIREMENT LIMIT Limits for General Population/Uncontrolled Exposure Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Time |E| 2 , |H| 2 or S (minutes) 0.3-1.34 614 1.63 (100) * 30 1.34-30 824/f 2.19/f (180/f 2 ) * 30 30-300 27.5 0.073 0.2 30 300-1500 -- -- f/1500 30 1500-100,000 -- -- 1.0 30 Note 1: f = frequency in MHz, * means Plane-wave equivalent power density Note 2: General population/uncontrolled exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or cannot exercise control over their exposure. N…
