2AD9I-BEACONBLE-Beacon

BLE ‐ Beacon User Manual 8 ‐ 14 ‐ 2015 BLE ‐ Beacon User Manual 8 ‐ 14 ‐ 2015 Revision: Draft Revision date: 8 ‐ 14 ‐ 2015 1 DANLAW Inc. 41131 Vicenti Court Novi, MI 48375 USA Tel: (248) 987-7364 Fax: (248) 471-4485 Last edited: 14 August 2015Copyright © 2011 Danlawinc. All rights reserved.No part of this publication may be reproduced, transm itted, transcribed, stored in a retrieval system, or translated into any language, in any form or by any m eans, electronic, mechanical, photocopying, recording, or otherwise, without prior written permission from Danlawinc. All copyright, confidential information, patents, design rights and all other intellectual property rights of whatsoever nature contained herein are and shall remain the sole and exclusive property of Danlawinc. The information furnished herein is believed to be accurate and reliable.However, no responsibility is assumed by Danlawinc fo r its use, or for any infringements of patents or other rights of third parties resulting from its use.The Danlawinc name and Danlawinc logo are tradem arks or registered tr ademarks of Danlawinc. All other trademarks are the prope rty of their respective owners. 2 Ta b l e of Contents page Product overview 4 Product pictures 5 Label definition 6 How to use it 7 Product specification 8 Revision history 9 3 Product Overview • BLE ‐ Beacon Card was developed to provide customers with an easy to carry and protect Card Driver Identification. • The BLE ‐ Beacon Card is a wireless device which works with the Danlawinc’s Data Logger • The Data Logger device is a monitoring and logging vehicle network message data device. • Once the Data Logger device is installed in any vehicle if a BLE ‐ Beacon device is presented within 10’ (feet) distance a wireless communication between them is establish instantaneously and the Data Logger can read the BLE ‐ Beacon’ identity number. Danlawinc’s BLE ‐ Beacon Danlawinc’s Data Logger Wire less communication 4 Product pictures: top and bottom views Bottom view Top view Bottom view with out label 5 Label definition: 6 How to use it • By simply putting it in your valet • Or by attaching it to your car keys 7 8 Product specification • TX Active Current 8mA (at ‐ 4dBm out) • Sleep Current 4uA • Maximum Transmit Power ‐ 4 dBm • Frequency Accuracy < 30 ppm • Conducted Harmonic Level < ‐ 42 dBm • Power Supply 3V battery • Measured Operational Range >10` • Temperature Range ‐ 40 to +85 Celsius degree • Certification RoHS Compliant • Physical Dimensions Regular Credit Card Dimensions • Package BLE ‐ Beacon’ enclosure FCC ID: 2AD9I-BEACON Model: DL-BLE-10 IC: 20087-BEACONThis device complies with Part 15 of the FCC Rules and with Indus try Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2). This device must acceptany interference received, including interference that may cause undesired operation.Le présent appareil est conforme aux CNR d'I ndustrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit p as produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.This portable transmitter with its antenna complies with FCC and Industry Canada RF exposure limits for general population / uncontrolled exposure.Cet émetteur portatif et son antenne sont conformes aux limites d'exposition RF de la FCC et d'Industrie Canada pour la population générale / exposition non contrôlée .Note: Changes or modifications not expressively approved by th e party responsible for compliance could void the user's authority to operate the equipment. Revision Number Revision Date Summary of Changes Author V 1.0 August 14 2015 For release G.Galben Revision History 9

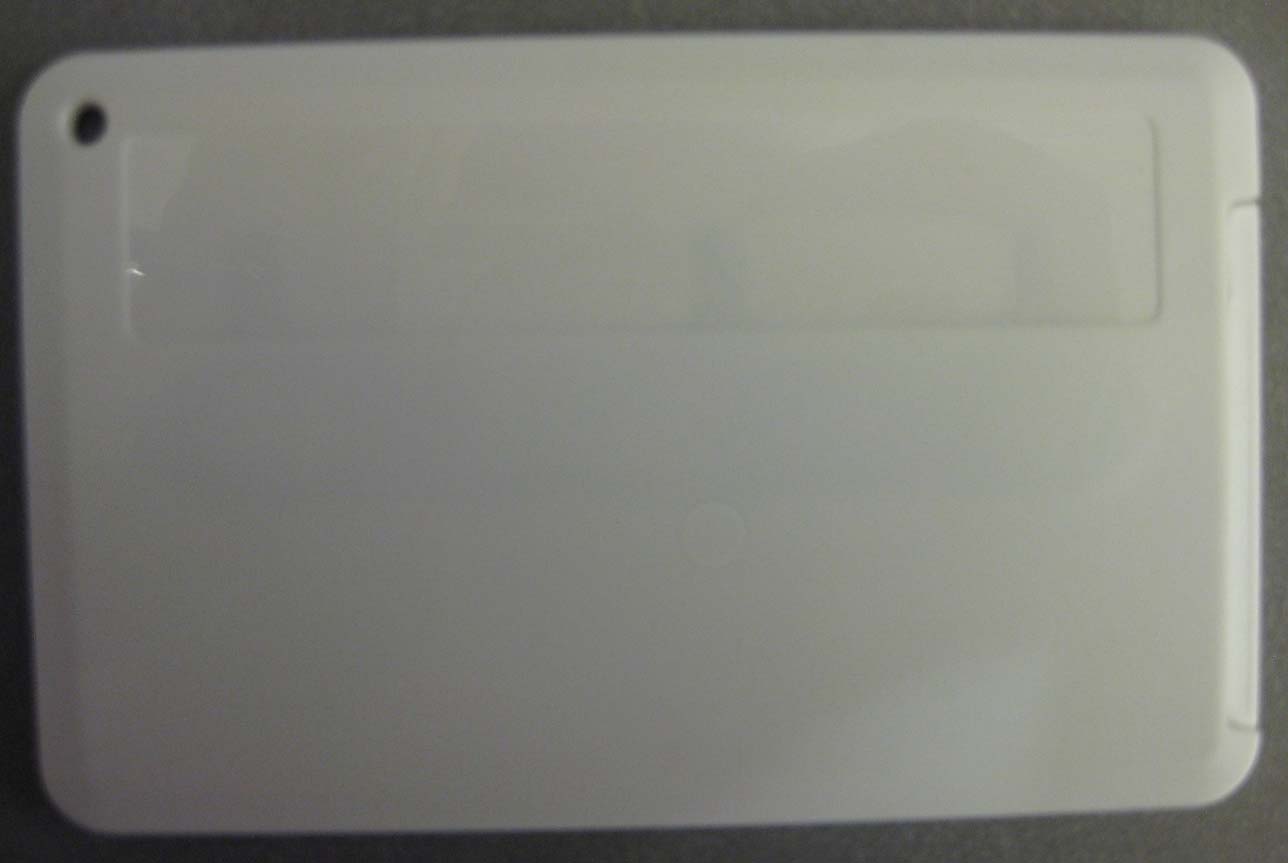

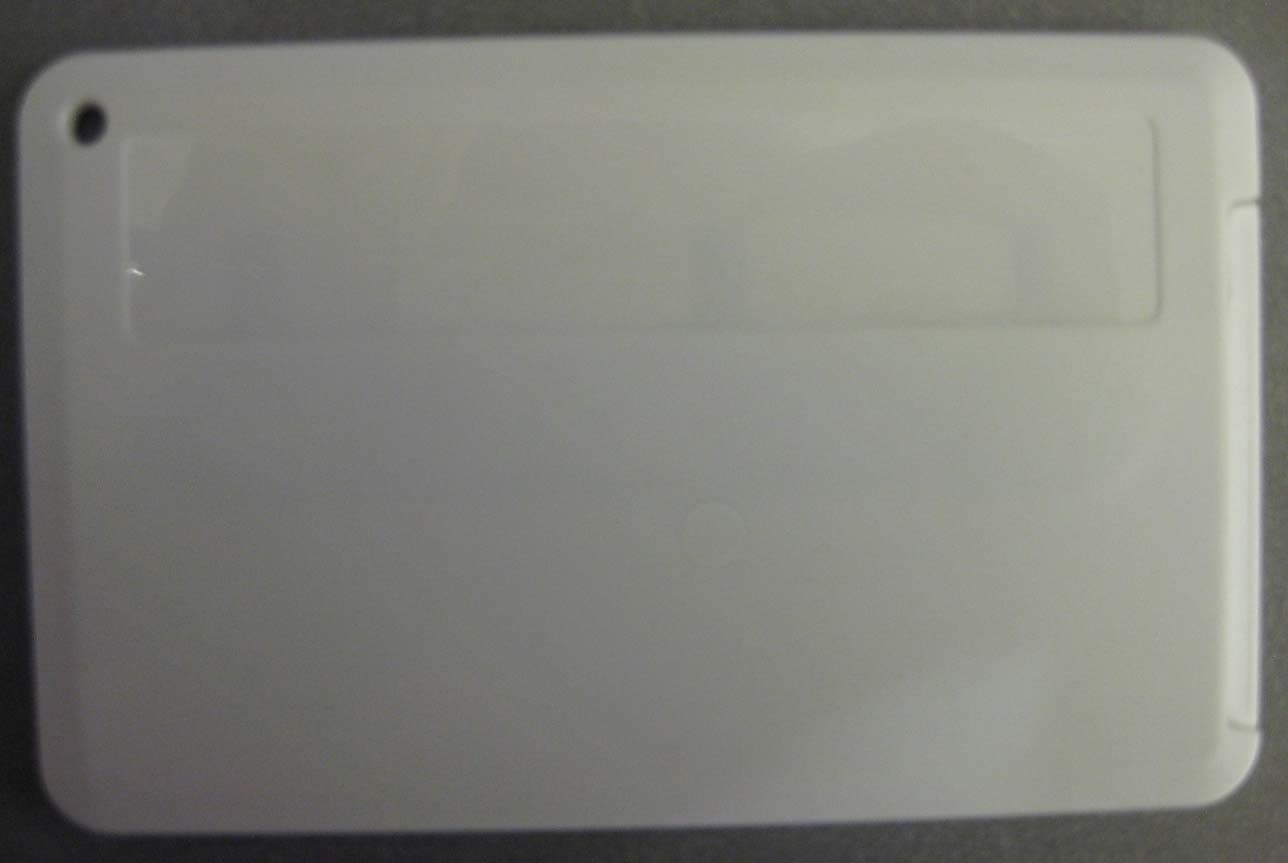

EXTERNAL PHOTOS Company Name Danlaw Inc Model # DL‐BLE‐10 FCC ID # 2AD9I‐BEACON IC # 20087‐BEACON Page 1 of 2 EXTERNAL PHOTOS Company Name Danlaw Inc Model # DL‐BLE‐10 FCC ID # 2AD9I‐BEACON IC # 20087‐BEACON Page 2 of 2

FCC ID: 2AD9I ‐ BEACON SERIAL #: 303 ‐ 284 ‐ 4962 Product #: DL ‐ BLE ‐ 10 MADE IN TAIWAN BLE TAG/BEACON LABEL DEFINITION _ V1.2 Danlaw Confidential BRIGHT WHITE LABEL MATERIAL BARCODE IS THE SERIAL NUMBER YMMDDFXXXXY  year Example : 5 for 2015 MM  month example : 02 for Feb DD  date F  facility code (1 for DL, 2 for WNC) XXXX  4 digit number starting with 0001 MAC: xxxxxxxx IC: 20087 ‐ BEACON

INTERNAL PHOTOS Company Name Danlaw Inc Model # DL‐BLE‐10 FCC ID # 2AD9I‐BEACON IC # 20087‐BEACON Page 1 of 2 INTERNAL PHOTOS Company Name Danlaw Inc Model # DL‐BLE‐10 FCC ID # 2AD9I‐BEACON IC # 20087‐BEACON Page 2 of 2

Danlaw Low‐profile BLE Beacon Theory of Operation The Danlaw Low‐profile BLE Beacon is a small credit card sized device that is meant to be carried by a user in a wallet, in a purse or on a keychain. The Danlaw Low‐profile BLE Beacon communicates with the Danlaw OBDII Wireless Datalogger products via Bluetooth Low Energy (Bluetooth Smart) to pass the vehicle driver or occupant information. The Danlaw Low‐profile BLE Beacon consists of a plastic enclosure, battery holder, 3 CR2412 batteries and a wireless flexible printed circuit assembly. The wireless flexible printed circuit assembly consists of a radio transceiver, a 32.768 kHz crystal, a 16 MHz crystal, battery contacts, programming contacts, discrete balun components, matching components and a trace antenna. The radio solution uses the Nordic nRF51822‐QFAA module with an ARM Cortex M0‐based core. This is a low power 2.4 GHz system‐in‐package module solution for Bluetooth Low Energy applications. The design utilizes GFSK modulation. The nRF51822‐QFAA uses 39 channels, spaced 2 MHz apart, spanning 2402 MHz to 2480 MHz with a transmit power set to approximately ‐4 dBm but capable of +4 dBm. The nRF51822‐QFAA has a very small footprint, approximately 6 x 6 x .85 mm.

W66 N220 Commerce Court ● Cedarburg, WI 53012 USA ● Phone: 262.375.4400 ● Fax: 262.375.4248 ● www.lsr.com Prepared For: Nelson Irrigation Name: VRS(TWIG) Report: TR 314035 Model: NIC-11543-01 LSR: C-1898 Serial: See Section 2.1 Page 1 of 10 i. Title Page ENGINEERING TEST REPORT # 315001 LSR Job #: C-2140 RF Exposure Compliance of: BLE-Beacon ID Card Test Date(s): February 6-18, 2015 Prepared For: Danlaw Attn: Gheorghe Galben 41131 Vicenti Court Novi, MI 48375 This Test Report is issued under the Authority of: Peter Feilen, EMC Engineer Signature: Date: 8-18-15 This Test Report may not be reproduced, except in full, without written approval of LS Research, LLC. Prepared For: Nelson Irrigation Name: VRS(TWIG) Report: TR 314035 Model: NIC-11543-01 LSR: C-1898 Serial: See Section 2.1 Page 2 of 10 ii. Table of Contents Table of Contents i. Title Page ................................................................................................................................... 1 ii. Table of Contents ....................................................................................................................... 2 iii. LS Research, LLC ...................................................................................................................... 3 1.0 Conformance Summary ............................................................................................................. 4 2.0 Equipment Under Test (EUT) Information ................................................................................ 4 2.1 Product Description ................................................................................................................... 4 2.2 Additional Information .............................................................................................................. 4 3.0 RF Conducted Measurement Data ............................................................................................. 5 4.0 MPE Calculation ........................................................................................................................ 6 5.1 FCC SAR Test Exclusion Calculation ....................................................................................... 8 5.2 FCC Conformance Summary ..................................................................................................... 8 6.0 Industry Canada Low Power Exemption ................................................................................... 9 6.1 Output Power Evaluation .......................................................................................................... 9 6.2 IC Conformance Summary ........................................................................................................ 9 Prepared For: Nelson Irrigation Name: VRS(TWIG) Report: TR 314035 Model: NIC-11543-01 LSR: C-1898 Serial: See Section 2.1 Page 3 of 10 iii. LS Research, LLC LS Research, LLC in Review As an EMC Testing Laboratory, our Accreditation and Assessments are recognized through the following: A2LA – American Association for Laboratory Accreditation Accreditation based on ISO/IEC 17025: 2005 with Electrical (EMC) Scope of Accreditation A2LA Certificate Number: 1255.01 Federal Communications Commission (FCC) – USA Listing of 3 Meter Semi-Anechoic Chamber based on Title 47 CFR – Part 2.948 FCC Registration Number: 90756 Industry Canada On file, 3 Meter Semi-Anechoic Chamber based on RSS-212 – Issue 1 File Number: IC 3088-A On file, 3 and 10 Meter OATS based on RSS-212 – Issue 1 File Number: IC 3088 U. S. Conformity Assessment Body (CAB) Validation Validated by the European Commission as a U. S. Competent Body operating under the U. S./EU, Mutual Recognition Agreement (MRA) operating under the European Union Electromagnetic Compatibility –Council Directive 2004/108/EC (formerly 89/336/EEC, Article 10.2). Date of Validation: January 16, 2001 Validated by the European Commission as a U.S. Notified Body operating under the U.S. /EU, Mutual Recognition Agreement (MRA) operating under the European Union Telecommunication Equipment – Council Directive 99/5/EC, Annex V. Date of Validation: November 20, 2002 Notified Body Identification Number: 1243 Prepared For: Nelson Irrigation Name: VRS(TWIG) Report: TR 314035 Model: NIC-11543-01 LSR: C-1898 Serial: See Section 2.1 Page 4 of 10 1.0 Conformance Summary The EUT was found to MEET the MPE threshold for FCC (portable) using methods of FCC KDB 447498 D01 General RF Exposure Guidance v05r02 as a standalone device. 2.0 Equipment Under Test (EUT) Information The following information has been supplied by the applicant. Product Name: BLE-Beacon ID Card Model Number: DL-BLE-10 Serial Number: Engineering Sample FCC ID 2AD9I-BEACON IC Number 20087-BEACON 2.1 Product Description The Danlaw Low-profile BLE Beacon is a small credit card sized device that is meant to be carried by a user in a wallet, in a purse or on a keychain. The Danlaw Low-profile BLE Beacon communicates with the Danlaw OBDII Wireless Datalogger products via Bluetooth Low Energy (Bluetooth Smart) to pass the vehicle driver or occupant information. 2.2 Additional Information Programmed for continuous transmit or receive on low (2402 MHz), middle (2440 MHz), and high channel (2480 MHz) using a cell phone application utilizing BLE. Continuous transmit modulated mode at all channels is available via test tool. Prepared For: Nelson Irrigation Name: VRS(TWIG) Report: TR 314035 Model: NIC-11543-01 LSR: C-1898 Serial: See Section 2.1 Page 5 of 10 3.0 RF Conducted Measurement Data Prepared For: Nelson Irrigation Name: VRS(TWIG) Report: TR 314035 Model: NIC-11543-01 LSR: C-1898 Serial: See Section 2.1 Page 6 of 10 4.0 MPE Calculation 2440 MHz Type: RF Evaluation Evaluated Against: General Population/Uncontrolled Exposure Duty Cycle: 100 % Document Used for Evaluation: KDB 447498 / OET 65 Measurement Distance: <5 cm Power Density Limit: 1.0 mW/cm 2 Calculated Value: Prepared For: Nelson Irrigation Name: VRS(TW…
