DANLAW DATA LOGGER DL970 USER MANUAL Revision: V2 Revision date: January 15 th , 2020 1.1 Product Overview Danlaw Data Logger – Vehicle Data Over the Air Danlaw’s Data Logger was developed to provide companies with an easy to install, wireless communication device for monitoring and logging vehicle network message data. The need for the DDL was driven by Danlaw’s own experience with Networked Automotive Electronics solution development, and perfected to provide our customers with the benefits of our experience. The Danlaw Data Logger provides: • Support for all major passenger car & light truck protocols • Simple plug-n-go via the vehicle’s OBDII connector • OBD Vehicle Data logging with real-time data stamp • LTE & 3G communication • Support for FTP, TCP/IP data transfer • Firmware Over-The-Air (FOTA) Re-flash • Rugged, compact field-hardened design • No external antenna connections needed • Completely self contained Danlaw Data Logger - Advantage DL970 Features: • High Speed Data Upload – DDL has been demonstrated to significantly reduce the Data Upload time as compared to the speed of other wired and wireless OBDII interface solutions. • Stand Alone Simplicity – Easy plug in and even easier to use. No external connections needed. Eliminates the need for costly power adapters, antenna connections and knowledgeable resources to install the module. • Portability – The DDL has been designed to maximize in-the- field efficiency, light weight, robust, and compact design. • Low Cost Solution – Low data transmission cost due to optimized data transmission, cost effective hardware – no maintenance and no batteries. • Rugged Design – it’s field ready. • Flexible – Supports all major OEMs including: GM, Ford, DCX, Honda, Toyota, Nissan, BMW, Audi, Volvo and more. 1.2 Product Specifications Danlaw Data Logger - Specifications OPERATING VOLTAGE: 12V POWER CONSUMPTION: < 100 mA @ 12VDC (Data Upload) < 3 mA Average (during Sleep mode) HUMIDITY: 90% RH – non condensing CERTIFICATIONS: RoHS Compliant VEHICLE COMMUNICATION: Vehicle Protocol Support: GMLAN, FNOS, ISO-9141-2, SAE J1850 VPW, SAE J1850 PWM, ISO 14230-4, ISO 15765 (11bit CAN & 29bit CAN), SW CAN Vehicle Message Data: Time Stamped Event and Vehicle Message Bus Data Recording including: (All OEM Supported OBDII Data including: VIN, ODO, Time &Date, Vehicle Speed, module connect/disconnect events) PHYSICAL DIMENSIONS: Ultra Compact PACKAGING: Danlaw Data Logger Enclosure INSTALLATION TIME: 10 Seconds NUMBER OF TRIPS: Unlimited DATA RECORDING INTERVAL: Selectable (1 Hz and up) 2.0 Installation Instructions 1. Locate the OBD connector: If you are not able to locate the OBD connector, please refer to the Vehicle User Manual 2. Install the DL970 device by plugging it into the OBD connector Warning: The device has to be installed in such a way that at all times a minimum distance of at least 20cm shall be kept between the device and the user. 3.0 Electronic Code of Federal Regulations The device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution: changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. RF Exposure safety This device complies with the FCC RF exposure limits and has ben evaluated in compliance with portable exposure condition. 4.0 Canada Innovation, Science and Economic Development Canada (ISED) Regulations This Class ICES B digital apparatus complies with Canadian Innovation, Science and Economic Development Canada (ISED) ICES-003 regulations. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device. This device has been evaluated and shown compliant with the ISED RF Exposure limits under mobile exposure conditions. The distance between the antenna and the person’s body shall be greater than 20cm at all times. This device has been certified for use in Canada. Status of the listing in the Innovation, Science and Economic Development’s REL (Radio Equipment List) can be found at the following web address: https://sms-sgs.ic.gc.ca/equipmentSearch/searchRadioEquipments?execution=e1s1&lang=en Additional Canadian information on RF exposure also can be found at the following web address: http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08792.html Régulations Innovation, Sciences et Développement Economique (ISED) Canada L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement Economique Canada applicables aux appareils radio exempts de licence. L'expl…

Text truncated - open the document above for the full version.

FCB012_02 //DEKRA Testing and Certification, S.A.U. // www.dekra-product-safety.com/wireless Date: 10/10/2019 DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía C/ Severo Ochoa 2 & 6 29590 Campanillas Málaga, España Ref: Confidentiality request for FCC ID: 2AD9I-DL970 To whom it may concern: Pursuant to §0.457(d)(1)(ii) and §0.459 of the Commission’s Rules (47 C.F.R.) and §552 (b)(4) of the Freedom of Information Act, Danlaw inc hereby request requests that a part of the subject FCC application be held confidential to avoid release of sensitive information of the product to the public. For the product stated above, we request that the following information be withheld from public disclose: Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Internal Photos Short Term Permanent Operation Description Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term User’s Manual Permanent Confidentiality: The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to us and provide unjustified benefits to our competitors. Short-Term Confidentiality: We hereby request short-term confidentiality for the product stated above to avoid premature release of sensitive information prior to marketing or release of the product to the public. Release date of short term confidentiality is: 45 days from grant date marked 90 days from grant date marked 135 days from grant date marked 180 days from grant date marked Specific date: We are also aware that we are responsible to notify DEKRA in the event information regarding the product or the product is made available to the public. DEKRA will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Sincerely, __________________________ By: Eugenijus Sumskas Title: VP Operations Company: Danlaw inc Telephone: +1 (248) 522 2509 e-mail: [email protected]

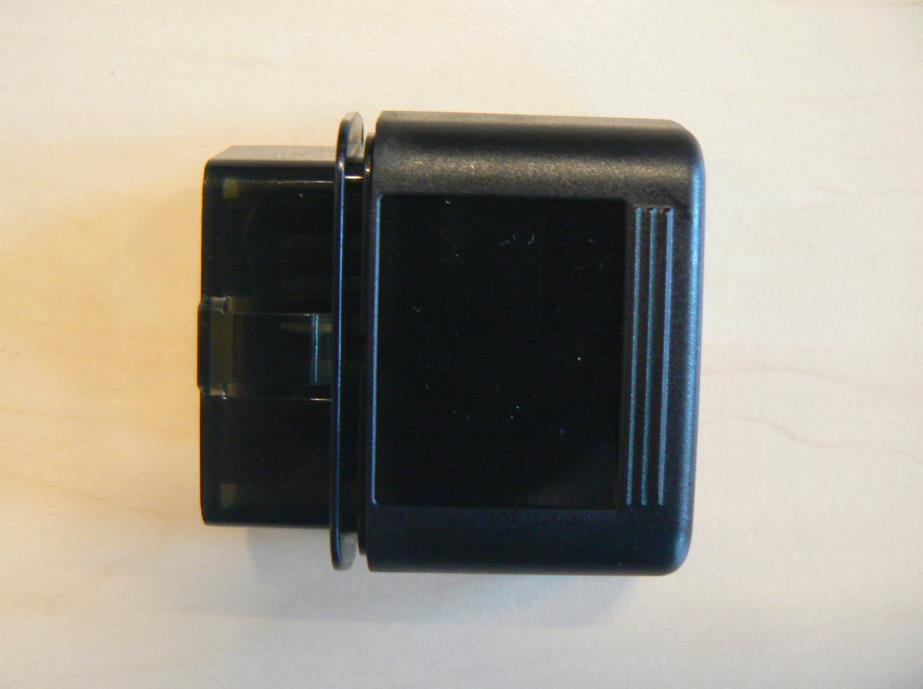

Data Logger DL970 External Pictures Confidential Page 1 of 4 4 September 2019 This confidential document is the property of Danlaw and may not be copied or circulated without permission Data Logger External Pictures Model no.: DL970 Data Logger DL970 External Pictures Confidential Page 2 of 4 4 September 2019 This confidential document is the property of Danlaw and may not be copied or circulated without permission • EXTERNAL PHOTO (TOP VIEW) • EXTERNAL PHOTO (BOTTOM VIEW) Data Logger DL970 External Pictures Confidential Page 3 of 4 4 September 2019 This confidential document is the property of Danlaw and may not be copied or circulated without permission • EXTERNAL PHOTO (SIDE VIEW; RIGHT) • EXTERNAL PHOTO (SIDE VIEW LEFT) Data Logger DL970 External Pictures Confidential Page 4 of 4 4 September 2019 This confidential document is the property of Danlaw and may not be copied or circulated without permission • EXTERNAL PHOTO (FRONT VIEW) • EXTERNAL PHOTO (REAR VIEW)

DL970 FCC label Confidential Page 1 of 2 6 September 2019 This confidential document is the property of Danlaw Inc and may not be copied or circulated without permission Data Logger DL970 FCC label and location Model no.: DL970 DL970 FCC label Confidential Page 2 of 2 6 September 2019 This confidential document is the property of Danlaw Inc and may not be copied or circulated without permission FCC LABEL LABEL LOCATION

Data Logger DL970 Internal Pictures Confidential Page 1 of 3 5 September 2019 This confidential document is the property of Danlaw and may not be copied or circulated without permission Data Logger Internal Pictures Model no.: DL970 Data Logger DL970 Internal Pictures Confidential Page 2 of 3 5 September 2019 This confidential document is the property of Danlaw and may not be copied or circulated without permission • INTERNAL PHOTO WITH LID (TOP VIEW) • INTERNAL PHOTO WITH LID (BOTTOM VIEW) Data Logger DL970 Internal Pictures Confidential Page 3 of 3 5 September 2019 This confidential document is the property of Danlaw and may not be copied or circulated without permission • INTERNAL PHOTO WITHOUT LID (TOP VIEW) • INTERNAL PHOTO WITH LID (BOTTOM VIEW)

DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29 507 456 Report No: (NIE) 61457RAN.001 2019-09-24 Test report No: NIE: 61457RAN.001 Assessment report RF EXPOSURE REPORT ACCORDING TO FCC 47 CFR Part 2.1091 ISED RSS-102 Issue 5:2015 (*) Identification of item under evaluation Data Logger (*) Trademark Danlaw (*) Model and /or type reference DL970 Other identification of the product FCC ID: 2AD9I-DL970 IC ID: 20087-DL970 HW version: 2.0 SW version: 1.4.0.0 (*) Features LTE, 3G, GPS, WLAN, Bluetooth (BLE) Manufacturer Company name: DANLAW INC Postal Address: 41211 Vincenti Court, Novi, Michigan 48375, USA Novi, Michigan 48375, USA Test method requested, standard FCC 47 CFR Part 2.1091 Radiofrequency radiation exposure evaluation: mobile devices. ISED RSS-102 Issue 5 (2015-03) – Radio Frequency Exposure Compliance of Radiocommunication Apparatus (All Frequency Bands) IEEE Std C95.3 TM -2002 (R2008). IEEE Recommended Practice for Measurements and Computations of Radio Frequency Electromagnetic Fields With Respect to Human Exposure to Such Fields, 100 kHz–300 GHz Summary IN COMPLIANCE Approved by (name / position & signature) Miguel Lacave Antennas Lab Manager Date of issue 2019-09-24 Report template No FAN36_01 (*) “Data provided by the client” DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29 507 456 Report No: (NIE) 61457RAN.001 Page 2 of 12 2019-09-24 Index Competences and guarantees .................................................................................................... 3 General conditions ...................................................................................................................... 3 Data provided by the client .......................................................................................................... 3 Identification of the client............................................................................................................. 4 Document history ........................................................................................................................ 4 General description of the device under evaluation ..................................................................... 4 RF Exposure Assessment result and verdict ............................................................................... 5 Appendix A: FCC RF Exposure information ................................................................................ 7 FCC RF Exposure evaluation ................................................................................................. 8 FCC MPE Evaluation ............................................................................................................. 9 Appendix B: ISED RF Exposure information ............................................................................. 10 ISED RF Exposure evaluation for mobile devices ................................................................. 11 ISED MPE Evaluation .......................................................................................................... 12 DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29 507 456 Report No: (NIE) 61457RAN.001 Page 3 of 12 2019-09-24 Competences and guarantees In order to assure the traceability to other national and international laboratories, DEKRA Testing and Certification S.A.U. has a calibration and maintenance program for its measurement equipment. DEKRA Testing and Certification S.A.U. guarantees the reliability of the data presented in this report, which is the result of the measurements and the tests performed to the item under test on the date and under the conditions stated on the report and, it is based on the knowledge and technical facilities available at DEKRA Testing and Certification at the time of performance of the test. DEKRA Testing and Certification S.A.U. is liable to the client for the maintenance of the confidentiality of all information related to the item under test and the results of the test. The results presented in this Assessment Report apply only to the particular item under test established in this document. IMPORTANT: No parts of this report may be reproduced or quoted out of context, in any form or by any means, except in full, without the previous written permission of DEKRA Testing and Certification S.A.U. General conditions 1. This report is only referred to the item that has undergone the assessment. 2. This report does not constitute or imply on its own an approval of the product by the Certification Bodies or competent Authorities. 3. This document is only valid if complete; no partial reproduction can be made without previous written permission of DEKRA Testing and Certification S.A.U. 4. This test report cannot be used partially or in full for publicity and/or promotional purposes without previous written permission of DEKRA Testing and Certification S.A.U. and the Accreditation Bodies Data provided by the client The following data has been provided by the client: 1. Information relating to the description of the sample ("Identification of the item tested", "Trademark", "Model and/or type reference tested"). 2. Maximum output power and maximum antenna gain information for WLAN mode. 3. The sample consists of a Data Logger. Danlaw’s Data Logger was developed to provide companies with an easy to install, wireless communication device for monitoring and logging vehicle network message data. The Danlaw Data Logger provides:  Support for all major passenger car & light truck protocols  Simple plug-n-go via the vehicle’s OBDII connector  OBD Vehicle Data logging with real-time data stamp  LTE & 3G communication  Support for FTP, TCP/IP data transfer  Firmware Over-The-Air (FOTA) Re-flash …

Text truncated - open the document above for the full version.

DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 2692ERM.001 12-13-2019 FCC LISTED, REGISTRATION NUMBER: 2764.01 ISED LISTED REGISTRATION NUMBER: 23595-1 Test report No: 2692ERM.001 Test report USA FCC Part 15.247, 15.209, 15.207 CANADA RSS-247, RSS-Gen Radio Frequency Devices. Operation within the bands 902 - 928 MHz, 2400 -2483.5 MHz, and 5725 - 5850 MHz. Digital Transmission Systems (DTSs), Frequency Hopping Systems (FHSs) and License-Exempt Local Area Network (LE-LAN) Devices. Identification of item tested Data Logger Trademark Danlaw Model and /or type reference DL970 Other identification of the product FCC ID: 2AD9I-DL970 IC ID: 20087-DL970 HW Version: 2.0 SW Version: 1.4.1.0 Features LTE, 3G, GPS, WLAN, Bluetooth (BLE) Manufacturer DANLAW INC 41211 Vincenti Court, Novi, Michigan 48375, USA Test method requested, standard USA FCC Part 15.247, 10-1-18 Edition: Operation within the bands 902 - 928 MHz, 2400 -2483.5 MHz, and 5725 - 5850 MHz. USA FCC Part 15.209, 10-1-18 Edition: Radiated emission limits; general requirements CANADA RSS-247 Issue 2 (February 2017). CANADA RSS-Gen Issue 5 (April 2018). 558074 D01 15.247 Meas Guidance v05r02. Guidance for Compliance Measurements on Digital Transmission Systems, Frequency Hopping Spread Spectrum System, and Hybrid System Devices Operating Under section §15.247 of the FCC Rules ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices. Summary IN COMPLIANCE Approved by (name / position & signature) Domingo Galvez EMC&RF Lab Manager Date of issue 12-13-2019 Report template No FDT08_21 DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 2692ERM.001 Page 2 of 111 12-13-2019 Index Competences and guarantees .................................................................................................... 3 General conditions ...................................................................................................................... 3 Uncertainty ................................................................................................................................. 3 Data provided by the client .......................................................................................................... 4 Usage of samples ....................................................................................................................... 4 Test sample description .............................................................................................................. 5 Identification of the client............................................................................................................. 6 Testing period and place ............................................................................................................. 7 Document history ........................................................................................................................ 7 Environmental conditions ............................................................................................................ 7 Remarks and comments ............................................................................................................. 7 Testing verdicts ........................................................................................................................... 8 Summary .................................................................................................................................... 8 List of equipment used during the test......................................................................................... 9 Appendix A: Test results (Bluetooth Low Energy) ..................................................................... 10 Appendix B: Test results (WI-FI 2.4GHz) .................................................................................. 44 DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 2692ERM.001 Page 3 of 111 12-13-2019 Competences and guarantees DEKRA Certification Inc. is a testing laboratory accredited by A2LA (The American Association for Laboratory Accreditation), to perform the tests indicated in the Certificate 2764.01 DEKRA Certification Inc. is a testing laboratory competent to carry out the tests described in this report. In order to assure the traceability to other national and international laboratories, DEKRA Certification Inc. has a calibration and maintenance program for its measurement equipment. DEKRA Certification Inc. guarantees the reliability of the data presented in this report, which is the result of the measurements and the tests performed to the item under test on the date and under the conditions stated on the report and, it is based on the knowledge and technical facilities available at DEKRA Certification at the time of performance of the test. DEKRA Certification Inc. is liable to the client for the maintenance of the confidentiality of all information related to the item under test and the results of the test. The results presented in this Test Report apply only to the particular item under test established in this document. IMPORTANT: No parts of this report may be reproduced or quoted out of context, in any form or by any means, except in full, without the previous written permission of DEKRA Certification Inc. General conditions 1. This report is only referred to the item that has undergone the test. 2. This report does not constitute or imply on its own an approval of the product by the Certification Bodies or competent Authorities. 3. This document is only valid if complete; no partial reproduction can be made without previous written permission of DEKRA Certification Inc. 4. This test report cannot be used partially or in full for publicity and/or promotional purposes without previous written permission of DEKRA Certification Inc. and the Ac…

Text truncated - open the document above for the full version.

DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 2692ERM.001 Page 61 of 111 12-13-2019 TEST B.2: MAXIMUM CONDUCTED OUTPUT POWER AND ANTENNA GAIN LIMITS: Product standard: Part 15 Subpart C §15.247 and RSS-247 Test standard: Part 15 Subpart C §15.247(b) and RSS-247 5.4(d) LIMITS For systems using digital modulation in the 2400 -2483.5 MHz band: 1 watt (30 dBm). The e.i.r.p. shall not exceed 4 W (RSS-247). TEST SETUP The EIRP power (dBm) is calculated by adding the declared maximum antenna gain to the measured conducted power DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 2692ERM.001 Page 62 of 111 12-13-2019 TESTED SAMPLES: S/01 TESTED CONDITIONS MODES: TC#01 (b mode) TEST RESULTS: PASS Maximum declared antenna gain: 2.2 dBi Lowest frequency 2412 MHz Middle frequency 2437 MHz Highest frequency 2462 MHz Maximum conducted power (dBm) 15.0 15.2 14.6 Maximum EIRP power (dBm) 17.2 17.4 16.8 Measurement uncertainty (dB) <±0.78 The maximum directional gain of the antenna is less than 6 dBi and therefore the maximum output power is not required to be reduced from the stated values. Lowest Channel DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 2692ERM.001 Page 63 of 111 12-13-2019 TEST RESULTS (Cont.): CONDUCTED OUTPUT POWER Middle Channel Highest Channel DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 2692ERM.001 Page 64 of 111 12-13-2019 TESTED SAMPLES: S/01 TESTED CONDITIONS MODES: TC#02 (g mode) TEST RESULTS: PASS Maximum declared antenna gain: 2.2 dBi Lowest frequency 2412 MHz Middle frequency 2437 MHz Highest frequency 2462 MHz Maximum conducted power (dBm) 12.7 12.6 12.2 Maximum EIRP power (dBm) 14.9 14.8 14.4 Measurement uncertainty (dB) <±0.78 The maximum directional gain of the antenna is less than 6 dBi and therefore the maximum output power is not required to be reduced from the stated values. Lowest Channel DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 2692ERM.001 Page 65 of 111 12-13-2019 TEST RESULTS (Cont.): CONDUCTED OUTPUT POWER Middle Channel Highest Channel DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 2692ERM.001 Page 66 of 111 12-13-2019 TESTED SAMPLES: S/01 TESTED CONDITIONS MODES: TC#03 (n20 mode 20 MHz) TEST RESULTS: PASS Maximum declared antenna gain: 2.2 dBi Lowest frequency 2412 MHz Middle frequency 2437 MHz Highest frequency 2462 MHz Maximum conducted power (dBm) 15.8 15.8 15.1 Maximum EIRP power (dBm) 18.0 18.0 17.3 Measurement uncertainty (dB) <±0.78 The maximum directional gain of the antenna is less than 6 dBi and therefore the maximum output power is not required to be reduced from the stated values. Lowest Channel DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 2692ERM.001 Page 67 of 111 12-13-2019 TEST RESULTS (Cont.) Middle Channel Highest Channel DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 2692ERM.001 Page 68 of 111 12-13-2019 TEST B.3: BAND-EDGE EMISSIONS COMPLIANCE (TRANSMITTER) LIMITS: Product standard: Part 15 Subpart C §15.247 and RSS-247 Test standard: Part 15 Subpart C §15.247(d) and RSS-247 5.5 LIMITS In any 100 kHz bandwidth outside the frequency band in which the digitally modulated intentional radiator is operating, the radio frequency power that is produced by the intentional radiator shall be at least 20 dB below that in the 100 kHz bandwidth within the band that contains the highest level of the desired power. If the transmitter complies with the conducted power limits based on the use of RMS averaging over a time interval, the attenuation required shall be 30 dB instead of 20 dB. TEST SETUP DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 2692ERM.001 Page 69 of 111 12-13-2019 TESTED SAMPLES: S/01 TESTED CONDITIONS MODES: TC#01 (b mode) TEST RESULTS: PASS Lowest Channel DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 2692ERM.001 Page 70 of 111 12-13-2019 TEST RESULTS (Cont.): Measurement Setting Instrument Value Instrument Value Start Frequency 2.31000 GHz 2.40000 GHz Stop Frequency 2.40000 GHz 2.48350 GHz Span 90.000 MHz 83.500 MHz RBW 100.000 kHz 100.000 kHz VBW 300.000 kHz 300.000 kHz Sweep Points 1800 1670 Sweep time 113.672 μs 94.727 μs Reference Level 10.000 dBm 10.000 dBm Attenuation 30.000 dB 30.000 dB Detector MaxPeak MaxPeak Sweep Count 100 100 Filter 3 dB 3 dB Trace Mode Max Hold Max Hold Sweep type FFT FFT Preamp off off Stable mode Trace Trace Stable value 0.50 dB 0.50 dB Run 4/ max. 150 13 / max. 150 Stable 3 / 3 3 / 3 Max Stable Difference 0.00 dB 0.49 dB DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 2692ERM.001 Page 71 of 111 12-13-2019 TEST RESULTS (Cont.): Highest Channel Highest Channel DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 2692ERM.001 Page 72 of 111 12-13-2019 TEST RESULTS (Cont.): Measurement Setting Instrument Value Instrument Value Start Frequency 2.40000 GHz 2.48350 GHz Stop Frequency 2.48350 GHz 2.50000 GHz Span 83.500 MHz 16.500 MHz RBW 100.000 kHz 100.000 kHz VBW 300.000 kHz 300.000 kHz Sweep Points 1670 330 Sweep time 94.727 μs 18.945 μs Reference Level 10.000 dBm 10.000 dBm Attenuation 30.000 dB 30.000 dB Detector MaxPeak MaxPeak Sweep Count 100 100 Filter 3 dB 3 dB Trace Mode Max Hold Max Hold Sweep type FFT FFT Preamp off off Stable mode Trace Trace Stable value 0.50 dB 0.50 dB Run 9 / max. 150 4 / max. 150 Stable 3 / 3 3 / 3 Max Stable Difference 0.28 dB 0.00 dB DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA …

Text truncated - open the document above for the full version.

DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29 507 456 Report No: (NIE) 61457RRF.002A1 2019-10-28 Test report No: NIE: 61457RRF.002A1 Test report Reference Standard: USA FCC Part 22 CANADA RSS-132 (*) Identification of item tested Data Logger (*) Trademark Danlaw (*) Model and /or type reference DL970 Other identification of the product HW Version: 2.0 SW Version: 1.4.0.0 FCC ID: 2AD9I-DL970 IC: 20087-DL970 (*) Features LTE, 3G, GPS, WLAN, Bluetooth (BLE) Applicant DANLAW INC 41211 Vincenti Court, Novi, Michigan 48375, USA Test method requested, standard USA FCC Part 22 (10-1-18 Edition). CANADA RSS-132 Issue 3, Jan. 2013. ANSI C63.26-2015. ANSI/TIA-603-E: 2016 KDB 971168 D01 Power Meas License Digital Systems v03r01, April. 2018. Summary IN COMPLIANCE Approved by (name / position & signature) José Carlos Luque RF Lab. Supervisor Date of issue 2019-10-28 Report template No FDT08_22 (*) “Data provided by the client” DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29 507 456 Report No: (NIE) 61457RRF.002A1 Page 2 of 90 2019-10-28 Index Competences and guarantees ...................................................................................................................... 3 General conditions ......................................................................................................................................... 3 Uncertainty ......................................................................................................................................…

Text truncated - open the document above for the full version.
