2ADCB-ATG2Asset Tag

www.acuitybrands.com www.acuitybrands.com USER MANUAL ATG2 This product is a battery powered Bluetooth® Low Energy beacon. It works with Acuity Brands’ Atrius™ Assets – Asset tracking and management software service. The product communicates its position to Atrius Assets. This product does not have any end user interface. All of the BLE beacon position information are gathered and processed in the cloud. ATG2 Regulatory Warning Sheet Warning: Changes or modifications to this device not expressly approved by Acuity Brands Lighting, Inc. could void the user’s authority to operate the equipment. “NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced radio/TV technician for help.” This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. RF Exposure Warning! This equipment complies with FCC and Industry Canada RSS-102 radiation exposure limits set forth for an uncontrolled environment. This device contains transmitters and receivers which emit Radio Frequency (RF) energy. The device is designed to comply with the limits for exposure to RF energy set by the Federal Communications Commission (FCC) of the United States, Industry Canada (IC) of Canada, and the regulating entities of other countries. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.” Cet équipement est conforme aux limites d'exposition aux radiations FCC et Industrie Canada RSS-102 établies pour un environnement non contrôlé. Cet appareil contient des émetteurs et des récepteurs qui émettent de l'énergie de radiofréquence (RF). L'appareil est conçu pour respecter les limites d'exposition à l'énergie RF fixées par la Federal Communications Commission (FCC) des États-Unis, Industrie Canada (IC) du Canada et les organismes de réglementation d'autres pays. Cet émetteur ne doit pas être situé à proximité ou fonctionner en conjonction avec une autre antenne ou un autre émetteur. » Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante. This radio transmitter (IC: 6715C-ATG2) has been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device. www.acuitybrands.com www.acuitybrands.com Le présent émetteur radio (IC: 6715C-ATG2) a été approuvé par Industrie Canada pour fonctionner avec les types d'antenne énumérés ci-dessous et ayant un gain admissible maximal et l'impédance requise pour chaque type d'antenne. Les types d'antenne non inclus dans cette liste, ou dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour l'exploitation de l'émetteur. Antenna type: PCB Antenna Maximum Gain: 4 dBi This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.

DATE: 2020/04/30 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2ADCB-ATG2 Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schematics  Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Signature Name/Title: Fred Carpenter Company Name: Acuity Brands Lighting, Inc. Address: One Lithonia Way, Conyers, GA 30012, United States TEL: 7708602184 FAX: 7708602042 Email: [email protected]

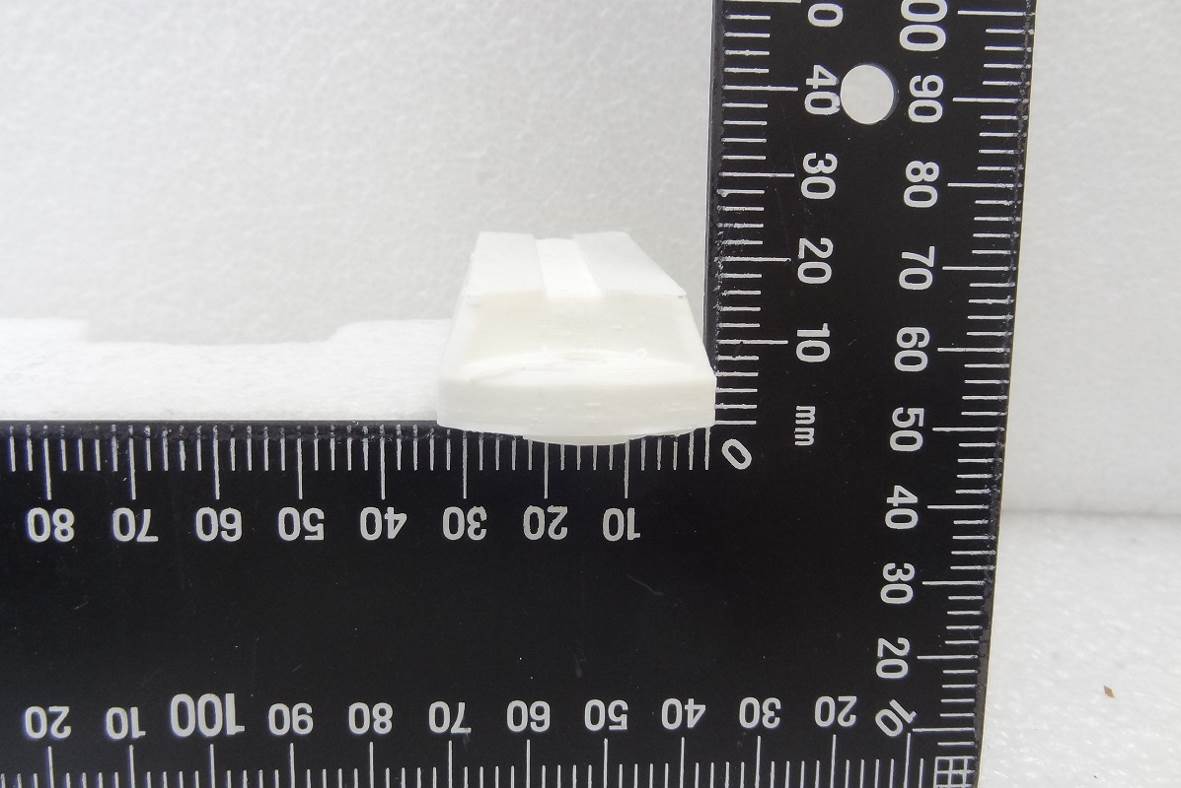

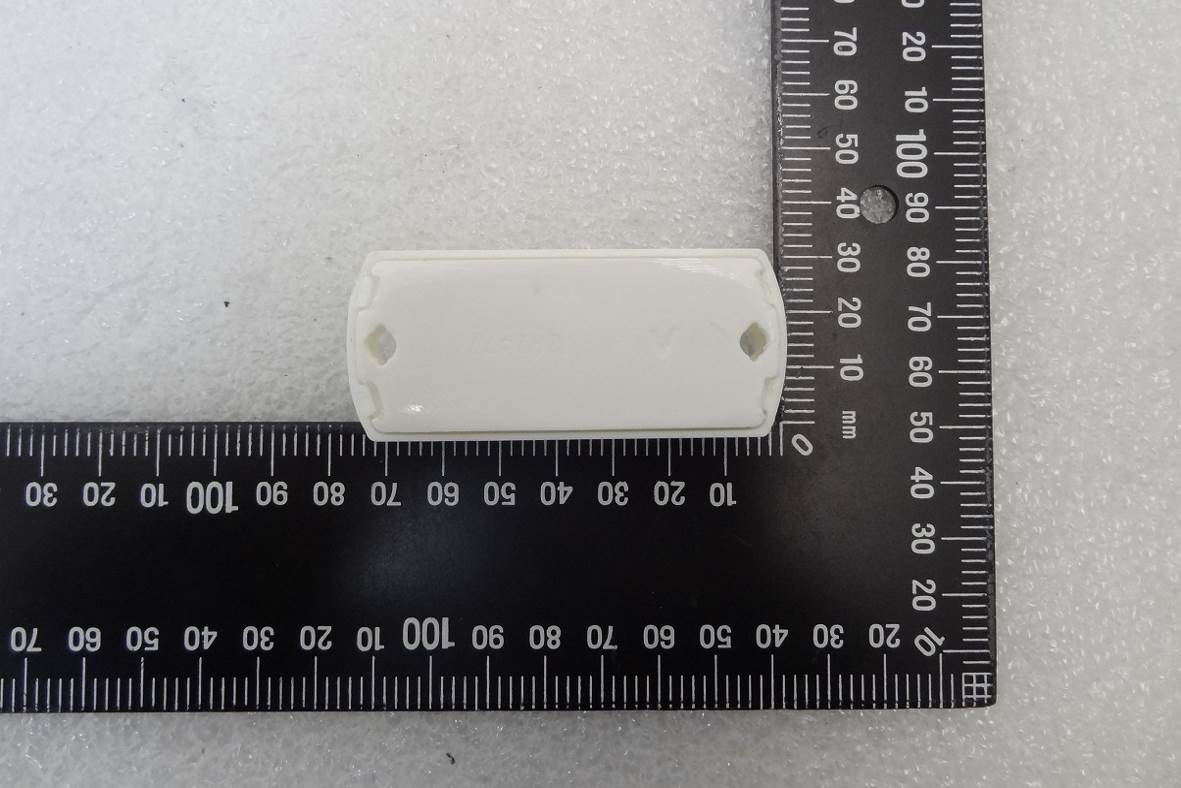

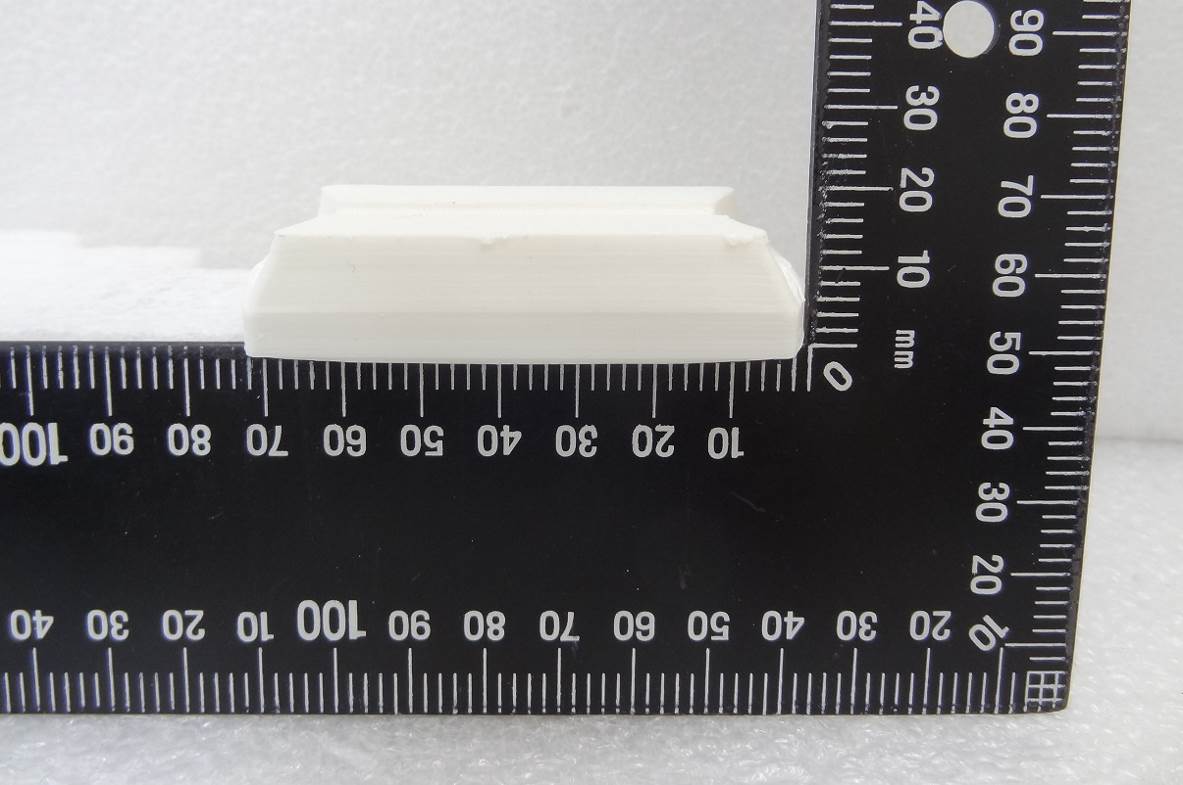

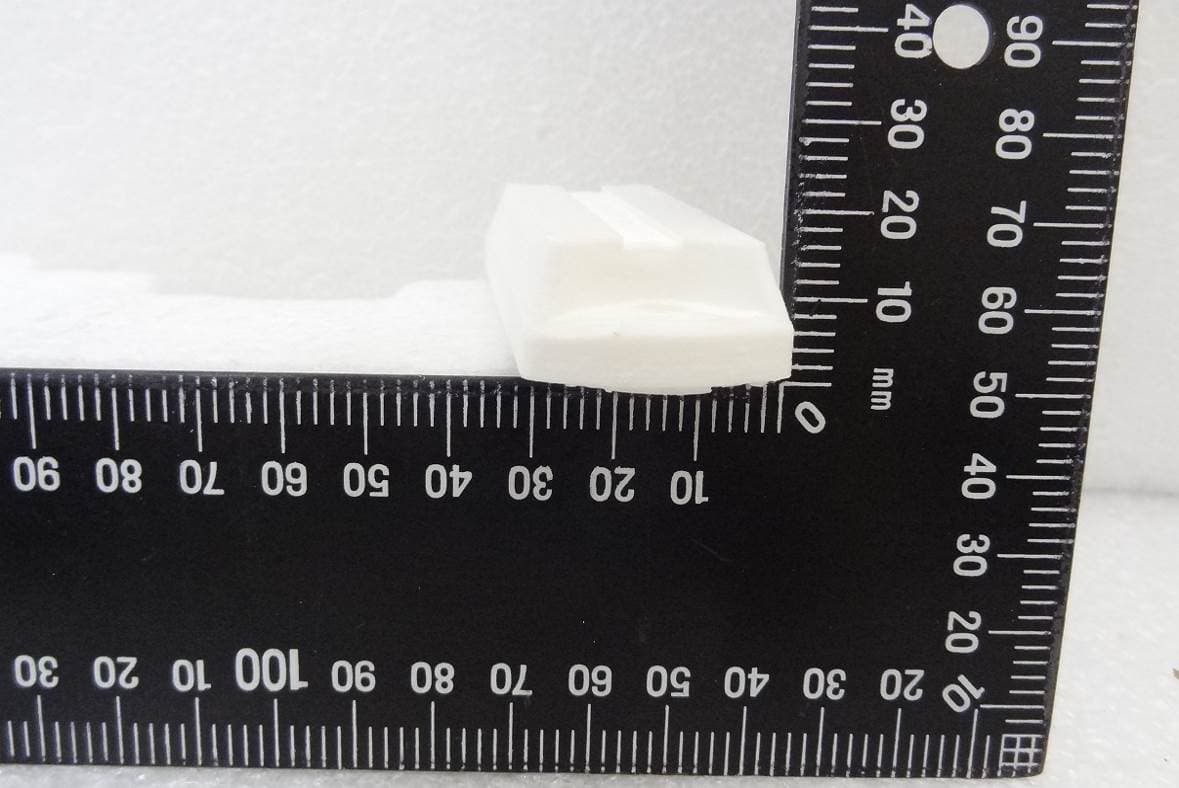

FCC ID: 2ADCB-ATG2 IC: 6715C-ATG2 International Standards Laboratory Corp. Report Number: ISL-20LR097FC EUT 1 EUT 2 FCC ID: 2ADCB-ATG2 IC: 6715C-ATG2 International Standards Laboratory Corp. Report Number: ISL-20LR097FC EUT 3 EUT 4 FCC ID: 2ADCB-ATG2 IC: 6715C-ATG2 International Standards Laboratory Corp. Report Number: ISL-20LR097FC EUT 5 EUT 6

FCC ID: 2ADCB-ATG2 IC: 6715C-ATG2 International Standards Laboratory Corp. Report Number: ISL-20LR097FC EUT 1 EUT 2 FCC ID: 2ADCB-ATG2 IC: 6715C-ATG2 International Standards Laboratory Corp. Report Number: ISL-20LR097FC EUT 3 EUT 4 Antenna

FCC ID: 2ADCB-ATG2 IC: 6715C-ATG2 International Standards Laboratory Corp. Radio Frequency Exposure Evaluation Standard Applicable FCC SAR test exclusion According to KDB 447498 Section: 4.3.1. Standalone SAR test exclusion considerations a) For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation  The result is rounded to one decimal place for comparison  The values 3.0 and 7.5 are referred to as numeric thresholds in step b) below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm, and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 4.1 f) is applied to determine SAR test exclusion. FCC ID: 2ADCB-ATG2 IC: 6715C-ATG2 International Standards Laboratory Corp. RSS 102 Issue 5 Mar. 2015 2.5.1 Exemption Limits for Routine Evaluation – SAR Evaluation SAR evaluation is required if the separation distance between the user and/or bystander and the antenna and/or radiating element of the device is less than or equal to 20 cm, except when the device operates at or below the applicable output power level (adjusted for tune-up tolerance) for the specified separation distance defined in Table 1. FCC ID: 2ADCB-ATG2 IC: 6715C-ATG2 International Standards Laboratory Corp. SAR Exclusion Calculation Table Frequency (MHz) Max power (dBm) Antenna Gain (dBi) EIRP Power (dBm) tune-up tolerance (dB) Max power (mW) Min Distance (mm) Result Limit (3.0 @ 1g SAR) 2480 1.15 4.00 5.15 0.5 3.6728235.00 1.157 3.0 IC EIRP level Frequency:2480MHz Maximum output power at antenna input terminal:1.15dBm Tune-Up power Tolerance:0.5dBm Duty cycle:100(%) Antenna gain (typical):4dBi EIRP:3.672823005mW EIRP Limit4mW Measurement Result: The EIRP level is 3.67 mW which less than RSS102 section 2.5.1 Exemption Limits above 300 MHz and below 6 GHz condition. ~ end ~

Page: 1 of 65 TEST REPORT of FCC Part 15 Subpart C AND CANADA RSS-247 New Application; Class I PC; Class II PC Product : Asset Tag Brand: AcuityControls Model: ATG2 Model Difference: N/A FCC ID: IC: 2ADCB-ATG2 6715C-ATG2 FCC Rule Part: IC Rule Part: §15.247, Cat: DTS RSS-247 issue 2: 2017 RSS-Gen issue 5: 2018 Applicant: Acuity Brands Lighting, Inc. Address: One Lithonia Way, Conyers, GA 30012, United States Test Performed by: International Standards Laboratory Corp. <LT Lab.> *Site Registration No. BSMI: SL2-IN-E-0013; MRA TW0997; TAF: 0997; IC: IC4067B-4 *Address: No. 120, Lane 180, Hsin Ho Rd. Lung-Tan Dist., Tao Yuan City 325, Taiwan *Tel : 886-3-407-1718; Fax: 886-3-407-1738 Report No.: ISL-20LR097FC Issue Date : 2020/04/30 Test results given in this report apply only to the specific sample(s) tested and are traceable to national or interna- tional standard through calibration of the equipment and evaluating measurement uncertainty herein. This report MUST not be used to claim product endorse- ment by TAF or any agency of the Government. This test report shall not be reproduced except in full, without the written approval of International Standards Laboratory Corp. -2 of 45- FCC ID: 2ADCB-ATG2 IC: 6715C-ATG2 International Standards Laboratory Corp. Report Number: ISL-20LR097FC VERIFICATION OF COMPLIANCE Applicant: Acuity Brands Lighting, Inc. Product Description: Asset Tag Brand Name: AcuityControls Model No.: ATG2 Model Difference: N/A FCC ID: 2ADCB-ATG2 IC: 6715C-ATG2 Date of test: 2020/04/17 ~ 2020/04/29 Date of EUT Received: 2020/04/17 We hereby certify that: All the tests in this report have been performed and recorded in accordance with the standards de- scribed above and performed by an independent electromagnetic compatibility consultant, Interna- tional Standards Laboratory Corp. The test results contained in this report accurately represent the measurements of the characteristics and the energy generated by sample equipment under test at the time of the test. The sample equip- ment tested as described in this report is in compliance with the limits of above standards. Test By: Date: 2020/04/30 Barry Lee / Senior Engineer Prepared By: Date: 2020/04/30 Elisa Chen / Senior Engineer Approved By: Date: 2020/04/30 Jerry Liu / Technical Manager -3 of 45- FCC ID: 2ADCB-ATG2 IC: 6715C-ATG2 International Standards Laboratory Corp. Report Number: ISL-20LR097FC Version Version No. Date Description 00 2020/04/30 Initial creation of document Uncertainty of Measurement Description Of Test Uncertainty Conducted Emission (AC power line) 2.586 dB Field Strength of Spurious Radiation ≤30MHz: 2.96dB 30-1GHz: 4.22 dB 1-40 GHz: 4.08 dB Conducted Power 2.412 GHz: 1.30 dB 5.805 GHz: 1.55 dB Power Density 2.412 GHz:1.30 dB 5.805 GHz: 1.67 dB Frequency 0.0032% Time 0.01% DC Voltage 1% -4 of 45- FCC ID: 2ADCB-ATG2 IC: 6715C-ATG2 International Standards Laboratory Corp. Report Number: ISL-20LR097FC Table of Contents 1 General Information ................................................................................................................... 6 1.1 Related Submittal(s) / Grant (s) ..................................................................................................... 7 1.2 Test Methodology .......................................................................................................................... 7 1.3 Test Facility .................................................................................................................................... 7 1.4 Special Accessories ........................................................................................................................ 7 1.5 Equipment Modifications ............................................................................................................... 7 2 System Test Configuration ......................................................................................................... 8 2.1 EUT Configuration ........................................................................................................................ 8 2.2 EUT Exercise ................................................................................................................................. 8 2.3 Test Procedure ................................................................................................................................ 8 2.4 Configuration of Tested System ..................................................................................................... 9 3 Summary of Test Results .......................................................................................................... 10 4 Description of Test Modes ........................................................................................................ 10 5 Conduced Emission Test .......................................................................................................... 11 5.1 Standard Applicable: .................................................................................................................... 11 5.2 Measurement Equipment Used: ................................................................................................... 11 5.3 EUT Setup: ................................................................................................................................... 11 5.4 Measurement Procedure: ............................................................................................................. 12 5.5 Measurement Result: ................................................................................................................... 12 6 Peak Output Power Measurement ........................................................................................ 13 6.1 Standard Applicable: .................................................................................................................... 13 6.2 Measurement Equipment Used: ..................................…

Text truncated - open the document above for the full version.

FCC ID: 2ADCB-ATG2 IC: 6715C-ATG2 International Standards Laboratory Corp. Report Number: ISL-20LR097FC Radiated Emission Setup Photos (below 1G) FCC ID: 2ADCB-ATG2 IC: 6715C-ATG2 International Standards Laboratory Corp. Report Number: ISL-20LR097FC Radiated Emission Setup Photos (above 1G)
