2ADCB-DELCBLE Module for Lighting Applications

The OEM will be the only integrator for this module and it is not available for sale to any 3 rd party integrators; therefore the module manual integration instructions are kept confidential in the operational description exhibit.

www.acuitybrands.com Acuity Brands Lighting, Inc. One Lithonia Way Conyers, GA 30012-3957 Date 11/22/2022 TUV SUD America Inc. 10 Centennial Drive Peabody, MA 01960, USA Dear Sir or Madam, We, Acuity Brands Lighting at 1 Acuity Way, Decatur, GA 30035 hereby authorize Kirby Munroe of TUV SUD America, 5945 Cabot Parkway,Alpharetta, to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Yours sincerely, Name: Fred Carpenter Title: VP of Standards & Testing

www.acuitybrands.com Acuity Brands Lighting, Inc. One Lithonia Way Conyers, GA 30012-3957 Date 11/22/2022 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Confidentiality Request FCC ID: 2ADCB-DELC Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Acuity Brands, Inc. hereby requests permanent confidential treatment of information accompanying this application as outlined below: Schematics Bill of Materials/Parts List Block Diagrams Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Name: Albert Lu Title: Distinguished Engineer

www.acuitybrands.com Acuity Brands Lighting, Inc. One Lithonia Way Conyers, GA 30012-3957 Date 11/23/2022 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Modular Approval Request FCC ID: 2ADCB-DELC The following attestation addresses the requirements to support modular approval: Modular approval requirement Yes (provide brief statement) No * (a) The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly Yes. All the radio element is under the shield with some tuning circuits outside. (b) The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal Yes, the data input is buffered and verified by the MCU. (c) The module must contain power supply regulation on the module Yes. The output voltage is constant. (d) The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per Sections 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b) Yes. The IFA antenna is on the PCB. It can’t be removed (e) The module must demonstrate compliance in a stand-alone configuration Yes. (f) The module must be labelled with its permanently affixed FCC ID label, or use an electronic display (See KDB Publication 784748 about labelling requirements) Yes (g) The module must comply with all specific rules applicable to the transmitter. The grantee must provide comprehensive instructions to explain compliance requirements Yes. This module can only transmit 1Mbps with GFSK modulation using factory Bluetooth Stack. www.acuitybrands.com Acuity Brands Lighting, Inc. One Lithonia Way Conyers, GA 30012-3957 Modular approval requirement Yes (provide brief statement) No * (h) The module must comply with RF exposure requirements Yes. The device will pass the exposure requirement since the output power is limited by the IC design. * Please provide a detailed explanation if the answer is “No.” Yours sincerely, Name: Albert Lu Company: Acuity Brands Lighting, Inc.

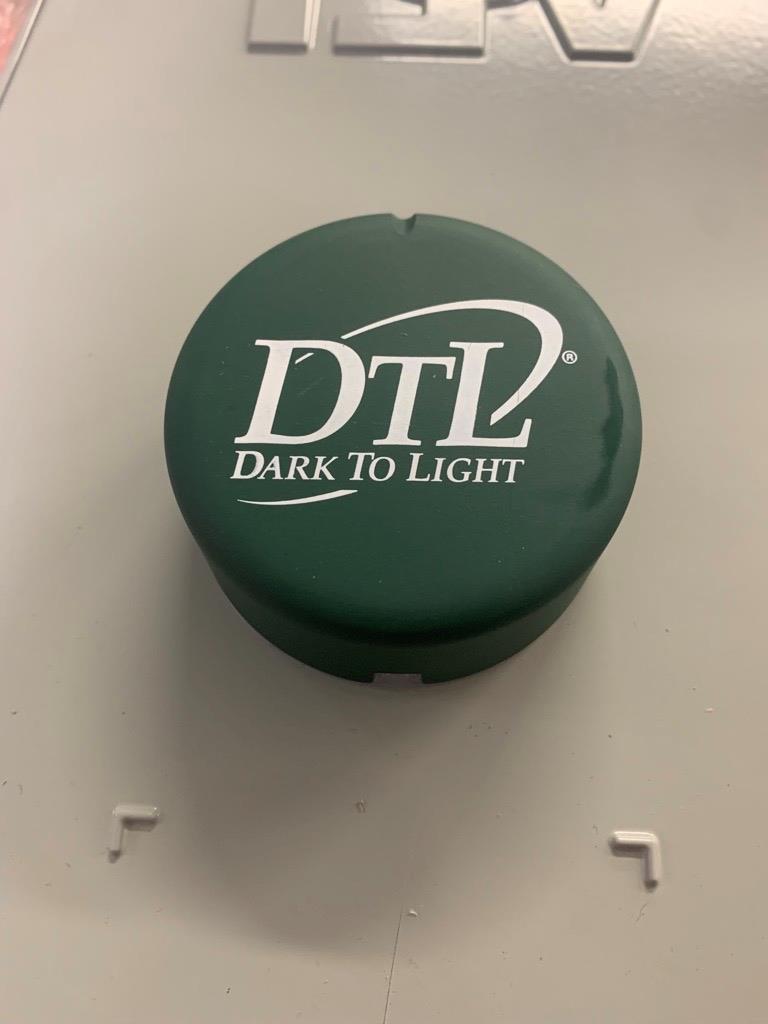

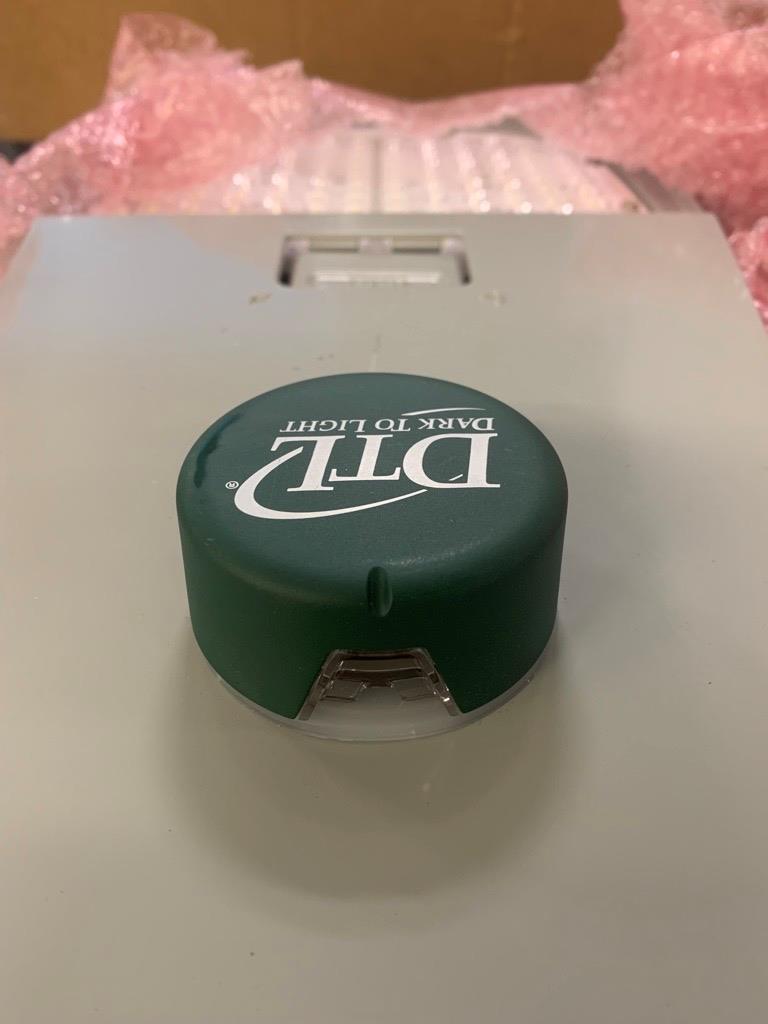

Figure 1: View 1 Figure 2: View 2 Figure 3: View 3

Label Location D4i LC

Figure 1: Model D4i Top View Figure 2: Model D4i Bottom View Figure 3: Model LC Top View Figure 4: Model LC Bottom Vuew

5945 Cabot Parkway Suite 100 Alpharetta, GA 30005 USA Certification Exhibit FCC ID: 2ADCB-DELC FCC Rule Part: 47 CFR Part 2.1091 Project Number: 72184157 Manufacturer: Acuity Brands Model Name (s) / Number (s): DTL DELC/ D4i, LC RF Exposure Model Name (s) / Number (s): DTL DELC / D4i, LC FCC ID: 2ADCB-DELC Report: AT72184157-2C0 Page 2 General Information: Applicant: Acuity Brands Device Category: Mobile Environment: General Population/Uncontrolled Exposure Technical Information (BLE) – “Device 1” – D4i Variant: Frequency Range (MHz): 2402 - 2480 Antenna Type: Inverted-F Antenna (IFA) Antenna Gains: 4.8 dBi *Maximum Transmitter Conducted Power: 10dBm, 10mW Maximum System EIRP: 14.8dBm, 30.2mW Exposure Conditions: 20 centimeters Note: * - Power listed above is the maximum power including tune-up tolerances. Technical Information (BLE) – “Device 2” – LC Variant: Frequency Range (MHz): 2402 - 2480 Antenna Type: Inverted-F Antenna (IFA) Antenna Gains: 4.8 dBi *Maximum Transmitter Conducted Power: 10dBm, 10mW Maximum System EIRP: 14.8dBm, 30.2mW Exposure Conditions: 20 centimeters Note: * - Power listed above is the maximum power including tune-up tolerances. Table 1: Device Characteristics (BLE) Technical Parameters Device 1 Device 2 Frequency (GHz) 2.402 2.402 Frequency (MHz) 2402 2402 Separation Distance (cm) 20.00 20.00 Separation Distance (m) 0.2000 0.2000 Antenna Gain (dBi) 4.80 4.80 ERP Easily Determined YES YES Conducted Power (dBm) 10 10 Conducted Power (mW) 10.0 10.0 Duty Factor (Source-Based) % 100.0 100.0 Maximum (Source-Based) Time-Averaged Conducted Power (mW) 10.0 10.0 Maximum (Source-Based) Time-Averaged ERP (mW) 18.41 18.41 Maximum (Source-Based) Time-Averaged EIRP (mW) 30.20 30.20 Maximum Output (mW) 18.41 18.41 Model Name (s) / Number (s): DTL DELC/ D4i, LC FCC ID: 2ADCB-DELC Report: AT72184157-2C0 Page 3 Test Exemption Criteria Test exemption is determined by 47 CFR 1.1307(b)(3)(i)(C) where at the minimum separation distance (R in meters) from the body of a nearby person for the frequency (f in MHz) at which the source operates, the ERP (watts) is no more than the calculated value prescribed for that frequency according to the following table. For the exemption in Table 1 of 47 CFR 1.1307(b)(3)(i)(C) (table 2 below) to apply, R must be at least λ/2π, where λ is the free-space operating wavelength in meters. If the ERP of a single RF source is not easily obtained, then the available maximum time-averaged power may be used in lieu of ERP if the physical dimensions of the radiating structure(s) do not exceed the electrical length of λ/4 or if the antenna gain is less than that of a half-wave dipole (1.64 linear value). Table 2: 47 CFR 1.1307(b)(3)(i)(C) - Single RF Sources Subject to Routine Environmental Evaluation Test Exemption Determination Table 3: 47 CFR 1.1307(b)(3)(i)(c) MPE-Based Exemption ERP (W) – (BLE) Technical Parameters Device 1 Device 2 λ / 2π (m) 0.020 0.020 R≥ λ / 2π YES YES Maximum (Source-Based) Time-Averaged ERP (W) 0.0184 0.0184 ERP Threshold (W) 0.7680 0.7680 Exemption YES YES

TÜV SÜD America 5945 Cabot Parkway, Suite 100 Alpharetta, GA 3005 Phone: 678-341-5900 www.tuv-sud-america.com TÜV SÜD SIGNATURE NAME JOB TITLE RESPONSIBLE FOR ISSUE DATE Divya Adusumilli Senior Wireless Engineer TUV SUD America Inc. Authorized Signatory 11/14/2022 Signatures in this approval box have checked this document in line with the requirements of TÜV SÜD America, Inc. document control rules. FCC Accreditation Designation Number US1233 FCC Test Site Registration Number 967699 Innovation, Science, and Economic Development Canada Lab Code 23932 EXECUTIVE SUMMARY A sample of this product was tested and found to be compliant with the standards listed above. A2LA Cert. No. 2955.09 DISCLAIMER AND COPYRIGHT This non-binding report has been prepared by TÜV SÜD America with all reasonable skill and care. The document is confidential to the potential Client and TÜV SÜD America. No part of this document may be reproduced without the prior written approval of TÜV SÜD America. © TÜV SÜD. ACCREDITATION Our A2LA Accreditation does not cover opinions and interpretations and any expressed are outside the scope of our A2LA Accreditation. Report on the Testing of the Acuity Brands DTL DELC In accordance with: FCC 47 CFR part 15.247 ISED RSS-247 Issue 2, February 2017 Prepared for: Acuity Brands 1 Acuity Way Decatur, Georgia 30035 USA COMMERCIAL-IN-CONFIDENCE Document Number: AT72184157.1C0 Document Number: AT72184157.1C0 COMMERCIAL-IN-CONFIDENCE Page 2 of 43 Contents Report Summary .........................................................................................................................3 Report Modification Record ...........................................................................................................3 Introduction ....................................................................................................................................3 Brief Summary of Results .............................................................................................................5 Product Information .......................................................................................................................6 Deviations from the Standard ........................................................................................................9 EUT Modification Record ..............................................................................................................9 Test Location .............................................................................................................................. 10 Test Details ............................................................................................................................... 11 Antenna Requirement ................................................................................................................ 11 Power Line Conducted Emissions ............................................................................................. 12 Fundamental Emission Output Power ........................................................................................ 15 6dB / 99% Bandwidth ................................................................................................................. 18 Maximum Power Spectral Density in the Fundamental Emission ............................................. 23 Band-Edge Compliance of RF Conducted Emissions ............................................................... 26 RF Conducted Spurious Emissions ........................................................................................... 28 Radiated Spurious Emissions into Restricted Frequency Bands ............................................... 30 Test Equipment Used ................................................................................................................. 40 Diagram of Test Set-ups .......................................................................................................... 41 Accreditation, Disclaimers and Copyright............................................................................. 43 Document Number: AT72184157.1C0 COMMERCIAL-IN-CONFIDENCE Page 3 of 43 Report Summary Report Modification Record Alterations and additions to this report will be issued to the holders of each copy in the form of a complete document. Table 1.1-1 – Modification Record Issue Description of Change Date of Issue 0 First Issue 11/14/2022 Introduction The purpose of this report is to demonstrate compliance with Part 15 Subpart C of the FCC’s Code of Federal Regulations Section 15.247 and Innovation Science and Economic Development Canada’s Radio Standards Specification RSS-247 for the tests documented herein. Applicant Mr. Albert Lu Manufacturer Acuity Brands Applicant’s Email Address [email protected] Model Name DTL DELC Model Number D4i LC Serial Number N/A FCC ID 2ADCB-DELC ISED Certification Number 6715C-DELC Hardware Version(s) REV4 Software Version(s) C1677001_DELC_MANUF_0.0.220.s37 Number of Samples Tested 2 Test Specification/Issue/Date US Code of Federal REgulation (CFR): Title 47, Part 15, Subpart C: Radio Frequency Devices, Intentional Radiators, 2021 ISED Canada Radio Standards Specification: RSS-247 – Digital Transmission Systems (DTSs), Frequency Hopping Systems (FHSs) and License-Exempt Local Area Network (LE-LAN) Devices, Issue 2, February 2017. Order Number 72184157 Date of Receipt of EUT 10/12/2022 Start of Test 10/13/2022 Document Number: AT72184157.1C0 COMMERCIAL-IN-CONFIDENCE Page 4 of 43 Finish of Test 10/24/2022 Related Document(s) ANSI C63.10-2013: American National Standard of Procedures for Compliance Testing of Unlicensed Wireless Device. FCC OET KDB 558074 D01 15.247 Meas Guidance v05r02: Guidance for Compliance Measurements on Digital Transmission System, Frequency Hopping Spread Spectrum System, and Hybrid System Devices Operating under Section 15.247 of the FCC Rules, April 2, 2019 US Code of Federal Regulations (CFR): T…

Text truncated - open the document above for the full version.

Antenna Gain Test Report Page 2 of 9 This test report shall not be reproduced except in full without the written and signed permission of Acuity Brands Lighting, Inc.. Table of Contents 1. CUSTOMER INFORMATION ............................................................................................................................................................... 3 2. LOCATION OF TESTING ..................................................................................................................................................................... 3 TEST LABORATORY ........................................................................................................................................................................................................ 3 LIST OF TEST EQUIPMENT .............................................................................................................................................................................................. 3 3. TEST SAMPLE(S) (EUT/DUT) ............................................................................................................................................................... 4 DESCRIPTION OF THE EUT ............................................................................................................................................................................................ 4 4. TEST METHODS & APPLICABLE REGULATORY LIMITS .................................................................................................................... 5 5. APPLIED LIMITS AND REGULATORY LIMITS: .................................................................................................................................... 5 6. FCC NOTICE: ....................................................................................................................................................................................... 5 7. MEASUREMENT/CALCULATION PROCEDURE ................................................................................................................................. 6 8. EQUATIONS ........................................................................................................................................................................................ 8 9. RF EXPOSURE RESULTS ...................................................................................................................................................................... 9 Page 3 of 9 This test report shall not be reproduced except in full without the written and signed permission of Acuity Brands Lighting, Inc.. 1. Customer Information Applicant: Acuity Brands Lighting, Inc Address: One Lithonia Way Conyers, GA 30012 Tel: 770-922-9000 2. Location of Testing Test Laboratory Testing was performed at Acuity Brands Lighting, Inc. permanent laboratory located at Conyers, GA List of Test Equipment Test Equipment Type Device Manufacturer Model SN# Current Cal Cal Due Antenna Dual polarized horn antenna Howland Company QR-4 1069 7/13/22 7/13/23 CHAMBER CHAMBER Howland Company 3500D N/A 7/13/22 7/13/23 Power Meter dual channel power meter Rohde & Schwarz NRX 101261-JA 7/13/22 7/13/23 Power Meter Sensor 2x Power Sensor Rohde & Schwarz NRP8S 105196-AU 108195-JG 7/13/22 7/13/23 Dates of Testing: 8/18 Signature: Name & Title: Yenpao Albert Lu , Principal Engineer Date of Signature 1/26/2023 Page 4 of 9 This test report shall not be reproduced except in full without the written and signed permission of Acuity Brands Lighting, Inc.. 3. Test Sample(s) (EUT/DUT) The test sample was received: 4/18/2022 Description of the EUT A description as well as unambiguous identification of the EUT(s) tested. Where more than one sample is required for technical reasons (such as the use of connected units for the purpose of conducted output power testing where the product units will have integral antennas), each specific test shall identify which unit was tested. Identification FCC ID: 2ADCB-DELC Brief Description 2.4 GHz Wireless lighting control Type of Modular N/A Model(s) # LC Technical Characteristics Technology Light Switch Frequency Range 2.402~2.480 GHz RF O/P Power (Max.) 9.86 dBm Modulation GFSK Bandwidth & Emission Class 1 Mbps Number of Channels 40 Duty Cycle 33% Antenna Connector None Voltage Rating (AC or Batt.) 5V DC Nominal Page 5 of 9 This test report shall not be reproduced except in full without the written and signed permission of Acuity Brands Lighting, Inc.. 4. Test methods & Applicable Regulatory Limits Test methods/Standards/Guidance: Test procedures and guidance for measuring transmitters are provided in ANSI C63.10-2013. 1) ANSI C63.10-2013 2) 353028 D01 Antennas Part 15 Transmitters v01r01 5. Applied Limits and Regulatory Limits: 3) FCC CFR 47 Part 15.203 6. FCC Notice: All part 15 applications will need to show how the antenna gain was derived either from a manufacturer data sheet or a measurement. Where the gain of the antenna is inherently accounted for as a result of the measurement, such as field strength measurements on a part 15.249 or 15.231 device, so the gain does not necessarily need to be verified. However, enough information regarding the construction of the antenna shall be provided. Such information maybe photographs, length of wire antenna etc. 1. Part 15 applications with equipment classes DSC, DXX, DCD, 8CC, etc. which do not have an EIRP limit. We need at least the following antenna info: Antenna photos/or drawings, including antenna dimensions. • This info cannot be held short term confidential. If necessary, we will have to request the customer to provide a separate exhibit for that antenna photo/or drawing, if the internal photos are being held short term confidential. Alternatively, antenna info can be placed in the test report. That would make things easier to review and process. (We plan on providing guidance to customers in our newsletter to identify the antenna info vs. inter…

Text truncated - open the document above for the full version.

Model(s) Name / Number: DTL DELC - D4i, LC FCC ID: 2ADCB-DELC IC: 6715C-DELC Project: 72184157 Page 1 Certification Exhibit FCC ID: 2ADCB-DELC IC: 6715C-DELC FCC Rule Part: 15.247 ISED Canada Radio Standards Specification: RSS-247 Project Number: 72184157 Manufacturer: Acuity Brands Model Name / Number: DTL DELC / D4i, LC Test Setup Photos Model(s) Name / Number: DTL DELC - D4i, LC FCC ID: 2ADCB-DELC IC: 6715C-DELC Project: 72184157 Page 2 Figure 1: Test Setup – Radiated Emissions <30MHz Figure 2: Test Setup – Radiated Emissions <1GHz Model(s) Name / Number: DTL DELC - D4i, LC FCC ID: 2ADCB-DELC IC: 6715C-DELC Project: 72184157 Page 3 Figure 3: Test Setup – Radiated Emissions >1GHz Figure 4: Test Setup – Radiated Emissions >10GHz Model(s) Name / Number: DTL DELC - D4i, LC FCC ID: 2ADCB-DELC IC: 6715C-DELC Project: 72184157 Page 4 Figure 5: Test Setup – Radiated Emissions >18GHz Figure 6: Test Setup – Conducted Emissions Model(s) Name / Number: DTL DELC - D4i, LC FCC ID: 2ADCB-DELC IC: 6715C-DELC Project: 72184157 Page 5 Figure 7: Test Setup – Antenna Port Measurement
