2ADCB-REG127IEEE 802.15.4 Radio Module

Acuity Brands Lighting, Inc.

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Mar 12, 2020
Application Purpose: Original Equipment
Date of Application: Mar 12, 2020
Equipment Note: IEEE 802.15.4 Radio Module
Frequency Range: 2405.00000000 - 2480.00000000
Company: Acuity Brands Lighting, Inc.
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

2ADCB-REG127 Radio User Manual Version 1.0 ●March 12, 2020 Document Name: Radio User Manual © 2020. All rights reserved. Page 2 of 27 Acuity Brands Lighting, Inc. One Lithonia Way Conyers, GA 30012 Last edited: 12 March 2020 Copyright © 2019 Acuity Brands Lighting. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without prior written permission from Acuity Brands Lighting. All copyright, confidential information, patents, design rights and all other intellectual property rights of whatsoever nature contained herein are and shall remain the sole and exclusive property of Acuity Brands Lighting. The information furnished herein is believed to be accurate and reliable. However, no responsibility is assumed by Acuity Brands Lighting for its use, or for any infringements of patents or other rights of third parties resulting from its use. The Acuity Brands Lighting name and Acuity Brands Lighting logo are trademarks or registered trademarks of Acuity Brands Lighting. All other trademarks are the property of their respective owners Page 3 of 27 © Acuity Brands Lighting 2020. All rights reserved 2ADCB-REG127 Radio User Manual ROAM/Acuity Brands Version: [1.0] Revision Date [4/30/2019] Executive Sponsor Acuity Brands Lighting Signature Date Executive Sponsor [Name] [Email] [Telephone] Signature Date [Name] [Email] [Telephone] Signature Date [Name] [Email] [Telephone] Signature Date Document Name: Radio User Manual © 2020. All rights reserved. Page 4 of 27 Table of Contents 1 EXECUTIVE SUMMARY ...................................................... ERROR! BOOKMARK NOT DEFINED. 2 GENERAL INFORMATION .................................................. ERROR! BOOKMARK NOT DEFINED. 2.1 COMPANY DETAILS ......................................................................... ERROR! BOOKMARK NOT DEFINED. 2.2 COMPANY(S) PROFILE ..................................................................... ERROR! BOOKMARK NOT DEFINED. 3 UNDERSTANDING OF REQUIREMENTS........................... ERROR! BOOKMARK NOT DEFINED. 3.1 BENEFITS ....................................................................................... ERROR! BOOKMARK NOT DEFINED. 3.2 MAIN ARGUMENTS .......................................................................... ERROR! BOOKMARK NOT DEFINED. 3.3 AGENCY EFFORT REQUIRED ............................................................ ERROR! BOOKMARK NOT DEFINED. 4 SOLUTION OVERVIEW ....................................................... ERROR! BOOKMARK NOT DEFINED. 4.1 RESPONSE TO REQUIREMENTS ........................................................ ERROR! BOOKMARK NOT DEFINED. 5 PROJECT MANAGEMENT .................................................. ERROR! BOOKMARK NOT DEFINED. 5.1 PROJECT PLAN ............................................................................... ERROR! BOOKMARK NOT DEFINED. 5.2 PROJECT ESTIMATING ..................................................................... ERROR! BOOKMARK NOT DEFINED. 5.2.1 Work Days by Phase .................................................................. Error! Bookmark not defined. 5.2.2 Work Days by Role ..................................................................... Error! Bookmark not defined. 5.2.3 Experience .................................................................................. Error! Bookmark not defined. 5.3 RISKS ............................................................................................. ERROR! BOOKMARK NOT DEFINED. 5.4 ISSUES ........................................................................................... ERROR! BOOKMARK NOT DEFINED. 5.5 ASSUMPTIONS ................................................................................ ERROR! BOOKMARK NOT DEFINED. 6 QUALIFICATIONS ................................................................ ERROR! BOOKMARK NOT DEFINED. 6.1 SAMPLE PEN PORTRAIT................................................................... ERROR! BOOKMARK NOT DEFINED. 6.2 REFERENCES .................................................................................. ERROR! BOOKMARK NOT DEFINED. 6.2.1 Reference # 1.............................................................................. Error! Bookmark not defined. 6.2.2 Reference # 2.............................................................................. Error! Bookmark not defined. 6.2.3 Reference # 3.............................................................................. Error! Bookmark not defined. 7 COSTS .................................................................................. ERROR! BOOKMARK NOT DEFINED. 7.1 FIXED PRICE COSTS........................................................................ ERROR! BOOKMARK NOT DEFINED. 7.2 ITEMIZED COST BREAKDOWN ........................................................... ERROR! BOOKMARK NOT DEFINED. 7.3 TECHNICAL SUPPORT ...................................................................... ERROR! BOOKMARK NOT DEFINED. 8 CONCLUSIONS .................................................................... ERROR! BOOKMARK NOT DEFINED. 9 APPENDIX ............................................................................ ERROR! BOOKMARK NOT DEFINED. Page 5 of 27 © Acuity Brands Lighting 2020. All rights reserved 9.1 GLOSSARY OF TERMS ..................................................................... ERROR! BOOKMARK NOT DEFINED. Document Name: Radio User Manual © 2020. All rights reserved. Page 6 of 27 Document History Paper copies are valid only on the day they are printed. Contact the author if you are in any doubt about the accuracy of this document. Revision History Revision Number Revision Date Summary of Changes Author Version 1.0 1/7/2020 Initial Draft Szabolcs Zigovszki Reference Documents Please see the following documents for more information: …

Text truncated - open the document above for the full version.

Cover Letter(s)

3505 Francis Circle Alpharetta, GA 30004 PH: 770-740-0717 www.ustech-lab.com Request for Confidentiality Date: January 22, 2020 Subject: Confidentiality Request for: FCC ID: 2ADCB-REG127, IC: 6715C-REG127 Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 12.4, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Schematics Acuity Brands Lighting, Inc. has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Sincerely, By: __________________________ ___Sandi McEnery__- Agent (Signature/Title) (Print name)

Cover Letter(s)

3505 Francis Circle Alpharetta, GA 30004 PH: 770-740-0717 Fax: 770-740-1508 www.ustech-lab.com MODULAR APPROVAL LETTER Grantee: Acuity Brands Lighting, Inc. Model: 2ADCB-REG127 FCC ID: 2ADCB-REG127 IC: 6715C-REG127 Modular Approval Requirement Yes No (i) The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. X (ii) The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with part 15 requirements under conditions of excessive data rates or over- modulation. X (iii) The modular transmitter must have its own power supply regulation. X (iv) The modular transmitter must comply with the antenna and transmission system requirements of §§ 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a ‘‘unique’’ antenna coupler (at all connections between the module and the antenna, including the cable). The ‘‘professional installation’’ provision of § 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. X (v) The modular transmitter must be tested in a stand-alone configuration X (vi) The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. X (vii) The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. X (viii) The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. X Name: Sandi McEnery Signature: Title: Agent for Acuity Brands Lighting, Inc. Date: January 22, 2020

External Photos

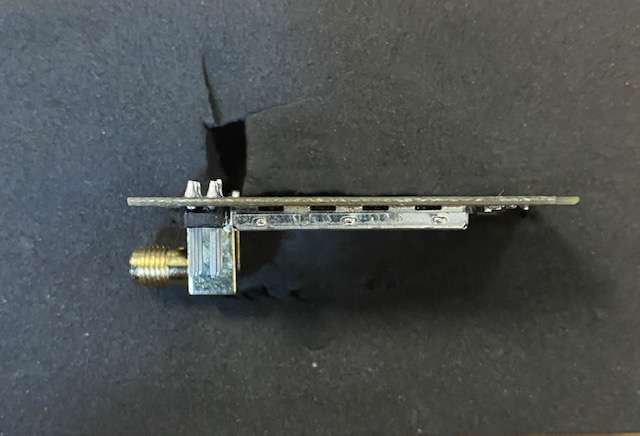

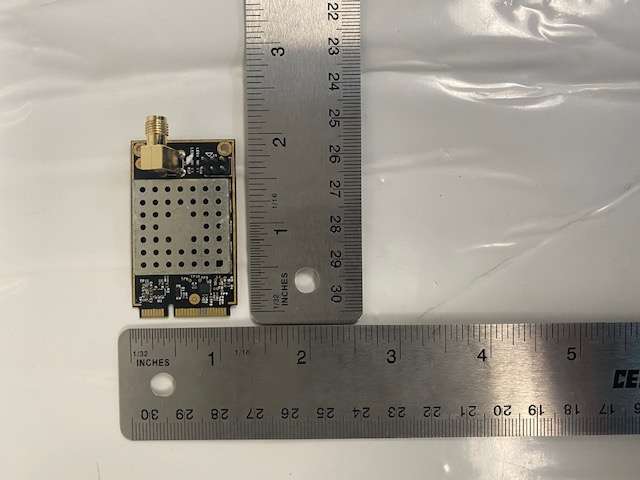

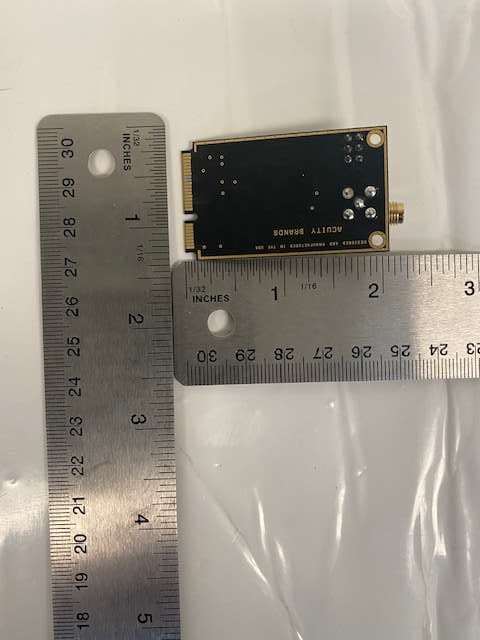

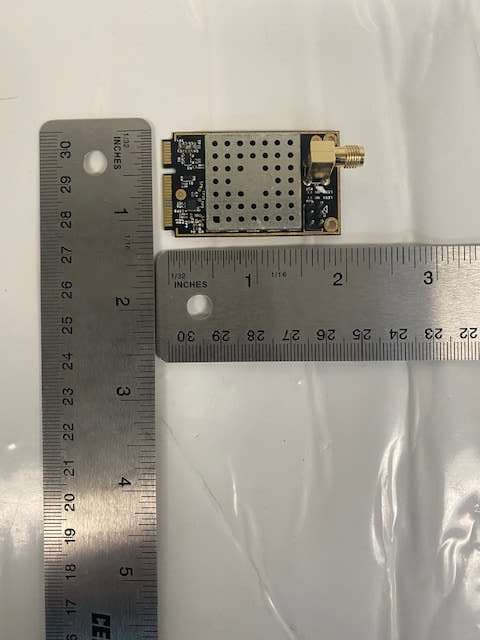

US Tech Test Report: FCC Part 15 Certification/ RSS 210 FCC ID: 2ADCB-REG127 IC: 6715C-REG127 Test Report Number: 19-0493 Issue Date: January 22, 2020 Customer: Acuity Brands Lighting, Inc Model: 2ADCB-REG127 Page 1 of 7 EXTERNAL PHOTOGRAPHS Figure 1. Top of EUT US Tech Test Report: FCC Part 15 Certification/ RSS 210 FCC ID: 2ADCB-REG127 IC: 6715C-REG127 Test Report Number: 19-0493 Issue Date: January 22, 2020 Customer: Acuity Brands Lighting, Inc Model: 2ADCB-REG127 Page 2 of 7 Figure 2. Back of EUT US Tech Test Report: FCC Part 15 Certification/ RSS 210 FCC ID: 2ADCB-REG127 IC: 6715C-REG127 Test Report Number: 19-0493 Issue Date: January 22, 2020 Customer: Acuity Brands Lighting, Inc Model: 2ADCB-REG127 Page 3 of 7 Figure 3. Left Side of EUT US Tech Test Report: FCC Part 15 Certification/ RSS 210 FCC ID: 2ADCB-REG127 IC: 6715C-REG127 Test Report Number: 19-0493 Issue Date: January 22, 2020 Customer: Acuity Brands Lighting, Inc Model: 2ADCB-REG127 Page 4 of 7 Figure 4. Right Side of EUT US Tech Test Report: FCC Part 15 Certification/ RSS 210 FCC ID: 2ADCB-REG127 IC: 6715C-REG127 Test Report Number: 19-0493 Issue Date: January 22, 2020 Customer: Acuity Brands Lighting, Inc Model: 2ADCB-REG127 Page 5 of 7 Figure 5. Front of EUT US Tech Test Report: FCC Part 15 Certification/ RSS 210 FCC ID: 2ADCB-REG127 IC: 6715C-REG127 Test Report Number: 19-0493 Issue Date: January 22, 2020 Customer: Acuity Brands Lighting, Inc Model: 2ADCB-REG127 Page 6 of 7 Figure 6. Bottom of EUT US Tech Test Report: FCC Part 15 Certification/ RSS 210 FCC ID: 2ADCB-REG127 IC: 6715C-REG127 Test Report Number: 19-0493 Issue Date: January 22, 2020 Customer: Acuity Brands Lighting, Inc Model: 2ADCB-REG127 Page 7 of 7 Figure 7. Antenna for Acuity Brands Lighting, Inc. Radio Figure 8. Antenna Attached to EUT

ID Label/Location Info

Module Label A label will be stamped to the shield cover. The size of this label will be 25x25mm. The label can also contain information related to manufacturing identification. The above information is the only required information. 25 mm 25 m m Final Specification: Module Label Picture:

Internal Photos

RF Exposure Info

US Tech Test Report: FCC Part 15/IC RSS Certification FCC ID: 2ADCB-REG127 IC: 6715C-REG127 Test Report Number: 19-0493 Issue Date: January 22, 2020 Customer: Acuity Brands Lighting, Inc Model: 2ADCB-REG127 Page 1 of 2 Maximum Permissible Exposure to RF (MPE) CFR 15.247 (i), CFR 1.1310 (e) The maximum exposure level to the public from the RF power of the EUT shall not exceed a power density, S as per the respective limits in Table 1 below, at a distance, d, of 20 cm from the EUT. TABLE 1—LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *100 30 1.34-30 824/f 2.19/f *180/f 2 30 30-300 27.5 0.073 0.2 30 300-1,500 f/1500 30 1,500-100,000 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density Therefore, for: MPE for 2400 MHz – 2483.5 MHz Limit: (1) mW/cm 2 Peak Power (dBm) = 18.94 dBm Peak Power (Watts) = 0.078 W Gain of Transmit Antenna = 6.0 dB i = 3.98, numeric d = Distance = 20 cm = 0.2 m S = (PG/ 4d 2 ) = EIRP/4A = 0.078*(3.98)/4*π*0.2*0.2 =0.3104/0.5030 = 0.6172 W/m 2 = (0.6172 W/m 2 ) (1m 2 /W) (0.1 mW/cm 2 ) = 0.06172 mW/cm 2 which is << less than S = 1.0 mW/cm 2 US Tech Test Report: FCC Part 15/IC RSS Certification FCC ID: 2ADCB-REG127 IC: 6715C-REG127 Test Report Number: 19-0493 Issue Date: January 22, 2020 Customer: Acuity Brands Lighting, Inc Model: 2ADCB-REG127 Page 2 of 2 RSS-102 Issue 5, 2.5.2 Exemption Limits for Routine Evaluation – RF Exposure Evaluation RF exposure evaluation is required if the separation distance between the user and/or bystander and the device’s radiating element is greater than 20 cm, except when the device operates as follows: • below 20 MHz 6 and the source-based, time-averaged maximum e.i.r.p. of the device is equal to or less than 1 W (adjusted for tune-up tolerance); • at or above 20 MHz and below 48 MHz and the source-based, time- averaged maximum e.i.r.p. of the device is equal to or less than 4.49/ƒ0.5W (adjusted for tune-up tolerance), where ƒ is in MHz; • at or above 48 MHz and below 300 MHz and the source-based, time- averaged maximum e.i.r.p. of the device is equal to or less than 0.6 W (adjusted for tune-up tolerance); • at or above 300 MHz and below 6 GHz and the source-based, time- averaged maximum e.i.r.p. of the device is equal to or less than 1.31 x 10-2 ƒ0.6834 W (adjusted for tune-up tolerance), where ƒ is in MHz; • at or above 6 GHz and the source-based, time-averaged maximum e.i.r.p. of the device is equal to or less than 5 W (adjusted for tune-up tolerance). In these cases, the information contained in the RF exposure technical brief may be limited to information that demonstrates how the e.i.r.p. was derived. The limits for this radio is: Limit= 1.31 x 10 -2 ƒ 0.6834 Watt = 2.71 W EUT source based time averaged (SBTA) = (output power + antenna gain * duty cycle) SBTA= 18.94 + 6.0 * 1.0 = 24.94 dBm = 0.312 W Result: 0.312 W << 2.71 W.

Test Report

Page 1 of 52 Application For Part 2, Subpart J, Paragraph 2.907 Equipment Authorization of Certification for an Intentional Radiator per Part 15, Subpart C, paragraphs 15.207, 15.209 and 15.247 And Innovation, Science, and Economic Development Canada Certification Per IC RSS-Gen General Requirements for Radio Apparatus And RSS-247 Digital Transmission Systems (DTSs), Frequency Hopping Systems (FHSs) and License-Exempt Local Area Network (LE-LAN) Devices For the Acuity Brands Lighting, Inc. Model Number: 2ADCB-REG127 FCC ID: 2ADCB-REG127 IC: 6715C-REG127 UST Project: 19-0493 Issue Date: January 22, 2020 Total Pages:52 3505 Francis Circle Alpharetta, GA 30004 PH: 770-740-0717 Fax: 770-740-1508 www.ustech-lab.com Page 2 of 52 I certify that I am authorized to sign for the Test Agency and that all of the statements in this report and in the Exhibits attached hereto are true and correct to the best of my knowledge and belief: US TECH (Agent Responsible For Test): By: Alan Ghasiani Name: Title: Compliance Engineer – President Date: January 22, 2020 This report shall not be reproduced except in full. This report may be copied in part only with the prior written approval of US Tech. The results contained in this report are subject to the adequacy and representative character of the sample provided. This report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the Federal Government. 3505 Francis Circle Alpharetta, GA 30004 PH : 770-740-0717 Fax : 770-740-1508 www.ustech-lab.com US Tech Test Report: FCC Part 15/IC RSS Certification FCC ID: 2ADCB-REG127 IC: 6715C-REG127 Test Report Number: 19-0493 Issue Date: January 22, 2020 Customer: Acuity Brands Lighting, Inc. Model: 2ADCB-REG127 Page 3 of 52 MEASUREMENT TECHNICAL REPORT COMPANY NAME: Acuity Brands Lighting, Inc. MODEL: 2ADCB-REG127 FCC ID: 2ADCB-REG127 IC: 6715C-REG127 DATE: January 22, 2020 This report concerns (check one): Original grant X Class II change Equipment type: IEEE 802.15.4 Radio Module Report prepared by: US Tech 3505 Francis Circle Alpharetta, GA 30004 Phone Number: (770) 740-0717 Fax Number: (770) 740-1508 US Tech Test Report: FCC Part 15/IC RSS Certification FCC ID: 2ADCB-REG127 IC: 6715C-REG127 Test Report Number: 19-0493 Issue Date: January 22, 2020 Customer: Acuity Brands Lighting, Inc. Model: 2ADCB-REG127 Page 4 of 52 Table of Contents Paragraph Title Page 1 General Information ......................................................................................... 7 1.1 Purpose of this Report .................................................................................. 7 1.2 Characterization of Test Sample ................................................................... 7 1.3 Product Description ...................................................................................... 7 1.4 Configuration of Tested System .................................................................... 8 1.5 Test Facility ................................................................................................... 8 1.6 Related Submittal(s)/Grant(s) ....................................................................... 8 2 Tests and Measurements ............................................................................... 10 2.1 Test Equipment ........................................................................................... 10 2.2 Modifications to EUT Hardware .................................................................. 10 2.3 Number of Measurements for Intentional Radiators (CFR 15.31(m), RSS- Gen 6.8) ............................................................................................................... 11 2.4 Frequency Range of Radiated Measurements (CFR 15.33, RSS-Gen 6.13) 11 2.4.1 Intentional Radiator .................................................................................. 11 2.4.2 Unintentional Radiator ............................................................................. 11 2.5 Measurement Detector Function and Bandwidth (CFR 15.35, RSS-Gen 6.9, 6.13) 12 2.5.1 Detector Function and Associated Bandwidth ......................................... 12 2.5.2 Corresponding Peak and Average Requirements .................................... 12 2.5.3 Pulsed Transmitter Averaging .................................................................. 12 2.6 Transmitter Duty Cycle (Part15.35 (c), RSS-Gen 6.10) .............................. 13 2.7 Restricted Bands of Operation (Part 15.205, RSS-Gen 8.10) ..................... 14 2.8 EUT Antenna Requirements (CFR 15.203, RSS-Gen 6.7) ......................... 14 2.9 Maximum Peak Conducted Output Power (CFR 15.247(b)(3), RSS-247 (5.4(d))) ................................................................................................................ 15 2.10 Power Spectral Density (CFR 15.247(e), RSS-247 (5.2(b))) ................... 17 2.11 Antenna Conducted Intentional and Spurious Emissions (CFR 15.209, 15.247(d)) (RSS-247 (5.5), RSS-Gen 8.9) ........................................................... 19 2.12 Intentional Radiator, Radiated Emissions (CFR 15.209, 15.247(d), RSS- 247 (5.2),(5.5)) ..................................................................................................... 32 2.13 Band Edge Measurements – (CFR 15.247(d), RSS-Gen 8.10) ............... 35 2.14 Six (6) dB Bandwidth (CFR 15.247(a)(2), RSS-247 (5.2(a))) .................. 38 2.15 99% Occupied Bandwidth (RSS-GEN (6.6))............................................ 42 2.16 Intentional Radiator Power Lines Conducted Emissions (CFR 15.207) ... 46 US Tech Test Report: FCC Part 15/IC RSS Certification FCC ID: 2ADCB-REG127 IC: 6715C-REG127 Test Report Number: 19-0493 Issue Date: January 22, 2020 Customer: Acuity Brands Lighting, Inc. Model: 2ADCB-REG127 Page 5 of 52 2.17 Unintentional Radiator and Intentional Radiator, Radiated Emissions (CFR 15.109, 15.209, RSS-Gen 8.9 ) .....................................…

Text truncated - open the document above for the full version.

Test Setup Photos

US Tech Test Report: FCC Part 15/ISED RSS Certification FCC ID: 2ADCB-REG127 IC: 6715C-REG127 Test Report Number: 19-0493 Issue Date: January 22, 2020 Customer: Team Precision America, LLC. Model: 2ADCB-REG127 Test Configuration Photographs EUT Figure 1. Radiated Emissions EUT Test Setup (Below 1000 MHz) US Tech Test Report: FCC Part 15/ISED RSS Certification FCC ID: 2ADCB-REG127 IC: 6715C-REG127 Test Report Number: 19-0493 Issue Date: January 22, 2020 Customer: Team Precision America, LLC. Model: 2ADCB-REG127 EUT Figure 2. Radiated Emissions EUT Test Setup (Above 1000 MHz) US Tech Test Report: FCC Part 15/ISED RSS Certification FCC ID: 2ADCB-REG127 IC: 6715C-REG127 Test Report Number: 19-0493 Issue Date: January 22, 2020 Customer: Team Precision America, LLC. Model: 2ADCB-REG127 Figure 3. Close-up of EUT Test Setup on Foam Block US Tech Test Report: FCC Part 15/ISED RSS Certification FCC ID: 2ADCB-REG127 IC: 6715C-REG127 Test Report Number: 19-0493 Issue Date: January 22, 2020 Customer: Team Precision America, LLC. Model: 2ADCB-REG127 Figure 4. Radiated Emissions Test Configuration (9 kHz – 30 MHz) US Tech Test Report: FCC Part 15/ISED RSS Certification FCC ID: 2ADCB-REG127 IC: 6715C-REG127 Test Report Number: 19-0493 Issue Date: January 22, 2020 Customer: Team Precision America, LLC. Model: 2ADCB-REG127 Figure 5. Radiated Emissions Test Configuration (30 MHz – 200 MHz) US Tech Test Report: FCC Part 15/ISED RSS Certification FCC ID: 2ADCB-REG127 IC: 6715C-REG127 Test Report Number: 19-0493 Issue Date: January 22, 2020 Customer: Team Precision America, LLC. Model: 2ADCB-REG127 Figure 6. Radiated Emissions Test Configuration (200 MHz – 1000 MHz) US Tech Test Report: FCC Part 15/ISED RSS Certification FCC ID: 2ADCB-REG127 IC: 6715C-REG127 Test Report Number: 19-0493 Issue Date: January 22, 2020 Customer: Team Precision America, LLC. Model: 2ADCB-REG127 Figure 7. Radiated Emissions Test Configuration (Above 1000 MHz) US Tech Test Report: FCC Part 15/ISED RSS Certification FCC ID: 2ADCB-REG127 IC: 6715C-REG127 Test Report Number: 19-0493 Issue Date: January 22, 2020 Customer: Team Precision America, LLC. Model: 2ADCB-REG127 Figure 3. Power Lines Conducted Emissions Test Configuration EUT

Contact Information

Applicant

Vaske Mikani

[email protected]6786757273Fax: 7708602042

Test Firm

US TechGeorge Yang

[email protected]770-740-0717Fax: 770-740-1508

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	2.40 GHz - 2.48 GHz	78.00 mW

Modular Type

Single Modular Approval

Confidentiality

Long Term

Grant Notes

Output power listed is conducted. Single Modular Approval for mobile RF Exposure condition. The module antenna must be installed to meet the RF exposure compliance separation distance of 20 cm, and any additional testing and authorization process as required. Co-location of this module with other transmitters that operate simultaneously are required to be evaluated using the FCC multi-transmitter procedures. Approved for OEM integration only. The grantee must provide OEM integrators, or end-users if marketed directly to end-users, with installation and operating instructions for satisfying FCC multi-transmitter product guidelines. This grant is valid only when the device is sold to OEM integrators and the OEM integrators are instructed to ensure that the end user has no manual instructions to remove or install the device.
