2ADXK-6600Health Monitor

Checkme TM Health Monitor 1. The Basics ........................................................................................ 1 2. Intended Use ................................................................................... 4 3. Getting Started ................................................................................ 8 4. Using Checkme ................................................................................ 9 5. Settings .......................................................................................... 26 6. Review ........................................................................................... 30 7. Maintenance ................................................................................. 32 8. Accessories .................................................................................... 36 9. Specifications ................................................................................ 37 10. Electromagnetic Compatibility ...................................................... 40 User’s Manual Knowing and Tracking Your Health 1 1. The Basics This manual contains the instructions necessary to operate the product safely and in accordance with its function and intended use. Observance of this manual is a prerequisite for proper product performance and correct operation and ensures patient and operator safety. This manual is based on the maximum configuration of Checkme Pro health monitor. Some functions may be not available on your model. 1.1 Safety Warnings and Cautionary Advices  Before using the device, please ensure that you have read this manual thoroughly and fully understand corresponding precautions and risks.  This device has been designed for practical use, but is not a substitute for a visit to the doctor.  The data and results displayed on the device are for reference only and cannot be directly used for diagnostic interpretation or treatment.  We recommend not to use this device if you have a pacemaker or other implanted devices. Follow the advice given by your doctor, if applicable.  Do not use this device with a defibrillator.  Do not use this device during MRI examination.  Do not use the device in a combustible environment (i.e., oxygen- enriched environment).  Never submerge the device in water or other liquids. Do not clean the device with acetone or other volatile solutions.  Do not drop this device or subject it to strong impact.  Do not place this device in pressure vessels or gas sterilization device.  Do not dismantle the device, as this could cause damage or malfunctions or impede the operation of the device.  This device is not intended for use by people (including children) with restricted physical, sensory or mental skills or a lack of 2 experience and/or a lack of knowledge, unless they are supervised by a person who has responsibility for their safety or they receive instructions from this person on how to use the device. Children should be supervised around the device to ensure they do not play with it.  Do not allow the electrodes of the device to come into contact with other conductive parts (including earth).  Do not use the device with persons with sensitive skin or allergies.  Do not store the device in the following locations: locations in which the device is exposed to direct sunlight, high temperatures or levels of moisture, or heavy contamination; locations near to sources of water or fire; or locations that are subject to strong electromagnetic influences.  Do not swing the device with the strip, which may result in injury.  This device displays changes in the heart rhythm and blood oxygenation etc. which may have various different causes. These may be harmless, but may also be triggered by illnesses or diseases of differing degree of severity. Please consult a medical specialist if you believe you may have an illness or disease.  Vital signs measurements, such as those taken with this device, cannot identify all diseases. Regardless of the measurement taken using this device, you should consult your doctor immediately if you experience symptoms that could indicate acute disease.  Do not self-diagnose or self-medicate on the basis of this device without consulting your doctor. In particular, do not start taking any new medication or change the type and/or dosage of any existing medication without prior approval.  This device is not a substitute for a medical examination or your heart or other organ function, or for medical electrocardiogram recordings, which require more complex measurements.  It is not possible to use this device to diagnose illness or diseases. This is exclusively the responsibility of your doctor.  We recommend that you record the ECG curves and other measurements and provide them to your doctor if required.  Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 3 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Co…

Text truncated - open the document above for the full version.

2014-12-30 To whom it may concern, Letter of Agency I, an officer of Shenzhen Viatom Technology Co., Ltd. do hereby authorize Intertek Testing Services (Mr. Shawn Xing) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and/or Part 95 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2007) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, Bing Wang Manager of R&D

2014-12-30 To whom it may concern, Request for Permanent Confidentiality Under FCC Part 15 Certification FCC ID: 2ADXK-6600 Request is hereby submitted by Shenzhen Viatom Technology Co., Ltd. to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR § 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential and Shenzhen Viatom Technology Co., Ltd. reserves the right to discern which parties can obtain access to these information: Schematics Detailed Block diagrams Detailed Operational/Functional Description The rationale for request for confidentiality is as followings: This information represents intellectual property of Shenzhen Viatom Technology Co., Ltd. and it is subject to competition. We have invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Regards, Bing Wang Manager of R&D

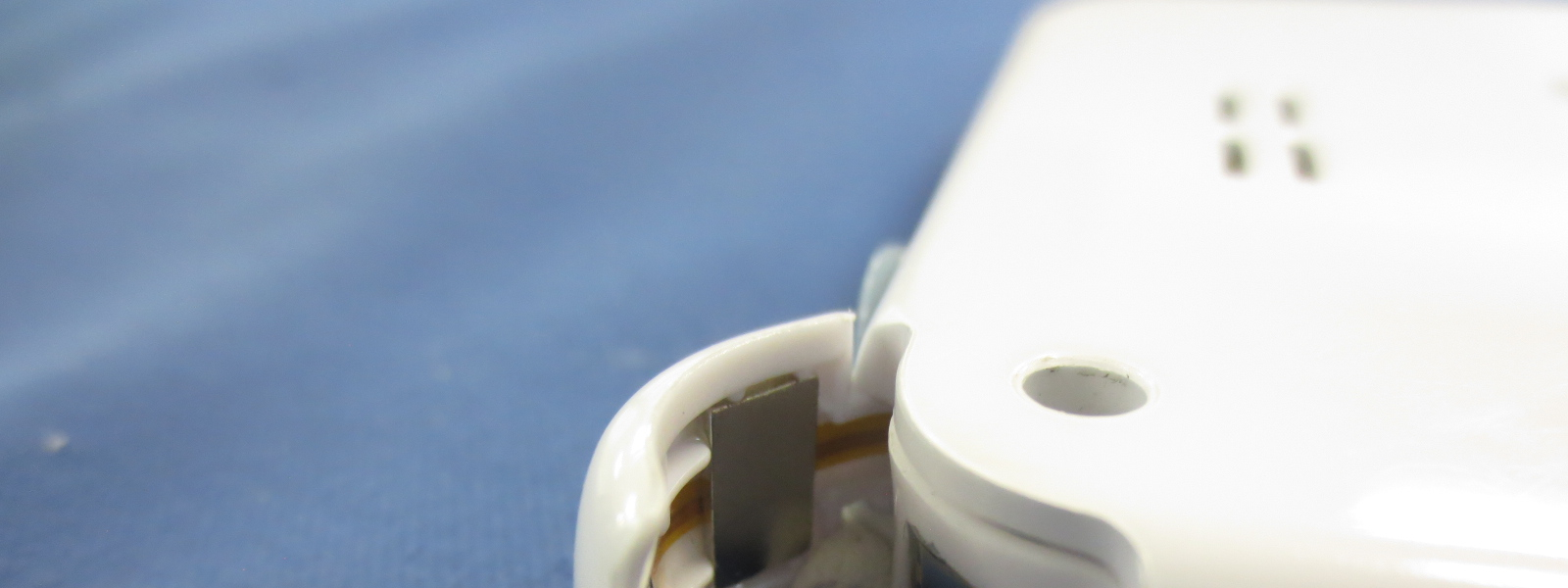

External photos (For model Checkme Pro and Checkme Plus) External photos (For model Checkme Pod)

SN 1407101008 Shenzhen Viatom Technology Co., Ltd. Health Monitor Power 3.7V IP22 0197 Model Checkme Pro Li-ion 560mAh Manufactured by: FCC ID:2ADXK-6600 1 7 . 8 6 m m 28.84 mm 16.74 mm

Internal Photos (For model Checkme Pro and Checkme Plus) Internal Photos (For model Checkme Pod)

INTERTEK TESTING SERVICES RF Exposure The equipment under test (EUT) is a Health Monitor with Bluetooth function. The EUT was powered by the fully-charged DC 3.7V, 2.07Wh new rechargeable battery which was charged by USB port (DC 5V). For more detail information pls. refer to the user manual. Modulation Type: GFSK for BT 4.0 and GFSK, π/ 4DQPSK, 8DPSK for BT 2.1+EDR. Bluetooth Version: 4.0 and 2.1 with EDR. Antenna Type: Integral antenna. Antenna Gain: 2.5dBi max. The nominal conducted output power specified: 3.5dBm +/-3dB. The nominal radiated output power (e.i.r.p) specified: 6dBm (+/- 3dB) According to the KDB 447498: T he maximun peak radiated emission for the EUT is 103.4dBV/m at 3m in the frequency 2402MHz of BT 4.0 The EIRP = [(FS*D) ^2 / 30] mW = 8.17dBm which is within the production variation. The minimum peak radiated emission for the EUT is 100 .8dBV/m at 3m in the frequency 2480MHz of BT 2.1+EDR The EIRP = [(FS*D) ^2 / 30] mW = 5.57dBm which is within the production variation. The maximun conducted output power specified is 6. 5dBm = 4.5mW The source- based time-averaging conducted output power = 4.5 * Duty Cycle mW (where Duty Cycle≤100%) ≤ 4.5 mW T he SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.480) mW = 9.5 mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. FCC ID: 2ADXK-6600

Bandedge Plot B T 2.1+EDR A Att 20 dB * MAXH Ref 12.7 dBm Offset 2.7 dB LVL Center 2.4 GHzSpan 10 MHz1 MHz/ 3DB SWT 2.5 ms * 1 PK RBW 100 kHz VBW 300 kHz -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] 4.64 dB m 2.402100000 GHz 1 Delta 1 [T1 ] -45.71 dB -2.200000000 MHz A Att 20 dB * MAXH Ref 12.7 dBm Offset 2.7 dB LVL 1 PK Center 2.4835 GHzSpan 10 MHz1 MHz/ * 3DB RBW 100 kHz VBW 300 kHz SWT 2.5 ms -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] 4.32 dB m 2.480100000 GHz 1 Delta 1 [T1 ] -52.52 dB 3.900000000 MHz Note: Offset including Antenna Gain and Cable Loss BT 4.0 A Offset 2.7 dB LVL Att 20 dB * Ref 12.7 dBm Center 2.4 GHzSpan 10 MHz1 MHz/ * * 3DB RBW 100 kHz VBW 300 kHz SWT 2.5 ms 1 PK VIEW -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] 8.49 dB m 2.402000000 GHz 1 Delta 1 [T1 ] -60.05 dB -2.160000000 MHz A Att 20 dB * Ref 12.7 dBm Offset 2.7 dB LVL Center 2.4835 GHzSpan 10 MHz1 MHz/ * * 3DB RBW 100 kHz VBW 300 kHz SWT 2.5 ms 1 PK VIEW -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] 7.57 dB m 2.480000000 GHz 1 Delta 1 [T1 ] -61.68 dB 4.840000000 MHz Note: Offset including Antenna Gain and Cable Loss

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results referenced from this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. TRF No.: FCC 15C_TX_b Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, D Block, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Website: www.china.intertek-etlsemko.com Shenzhen Viatom Technology Co., Ltd. Application For Certification FCC ID: 2ADXK-6600 Health Monitor Model: Checkme Pro Additional Model: Checkme Plus, Checkme Pod Brand name: Viatom 2.4GHz Transceiver Report No.: 141230013SZN-001 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [ 10-1-13] Prepared and Checked by: Approved by: Sign on file Jenner Liu Assistant Engineer Andy Yan Senior Project Engineer Date: February 10, 2015 INTERTEK TESTING SERVICES TRF No.: FCC 15C_TX_b FCC ID: 2ADXK-6600 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information EXHIBIT 9: Confidentiality Request EXHIBIT 10: Test Equipment List INTERTEK TESTING SERVICES TRF No.: FCC 15C_TX_b FCC ID: 2ADXK-6600 ii MEASUREMENT/TECHNICAL REPORT Shenzhen Viatom Technology Co., Ltd. - MODEL: Checkme Pro Additional Model: Checkme Plus, Checkme Pod Brand name: Viatom FCC ID: 2ADXK-6600 This report concerns (check one:) Original Grant X Class II Change Equipment Type: DXX - Part 15 Low Power Communication Device Transmitter Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator − the new 47 CFR [10-1-13 Edition] provision. Report prepared by: Jenner Liu Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, Block D, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Phone: (86 755) 8614 0639 Fax: (86 755) 8601 6751 INTERTEK TESTING SERVICES TRF No.: FCC 15C_TX_b FCC ID: 2ADXK-6600 iii Table of Contents 1.0 General Description ............................................................................................................................................ 2 1.1 Product Description ........................................................................................................................................... 2 1.2 Related Submittal(s) Grants ............................................................................................................................. 2 1.3 Test Methodology .............................................................................................................................................. 3 1.4 Test Facility ....................................................................................................................................................... 3 2.0 System Test Configuration ................................................................................................................................ 5 2.1 Justification ......................................................................................................................................................... 5 2.2 EUT Exercising Software .................................................................................................................................. 5 2.3 Special Accessories .......................................................................................................................................... 5 2.4 Equipment Modification ..................................................................................................................................... 5 2.5 Measurement Uncertainty ................................................................................................................................. 6 2.6 Support Equipment List and Description ......................................................................................................... 6 3.0 Emission Results ................................................................................................................................................ 8 3.1 Radiated Test Results ....................................................................................................................................... 9 3.1.1 Field Strength Calculation ....................................................................................................................…

Text truncated - open the document above for the full version.

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results referenced from this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. TRF No.: FCC 15C_TX_b Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, D Block, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Website: www.china.intertek-etlsemko.com Shenzhen Viatom Technology Co., Ltd. Application For Certification FCC ID: 2ADXK-6600 Health Monitor Model: Checkme Pro Additional Model: Checkme Plus, Checkme Pod Brand name: Viatom 2.4GHz Transceiver Report No.: 141230013SZN-002 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [ 10-1-13] Prepared and Checked by: Approved by: Sign on file Jenner Liu Assistant Engineer Andy Yan Senior Project Engineer Date: February 10, 2015 INTERTEK TESTING SERVICES TRF No.: FCC 15C_TX_b FCC ID: 2ADXK-6600 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information EXHIBIT 9: Confidentiality Request EXHIBIT 10: Test Equipment List INTERTEK TESTING SERVICES TRF No.: FCC 15C_TX_b FCC ID: 2ADXK-6600 ii MEASUREMENT/TECHNICAL REPORT Shenzhen Viatom Technology Co., Ltd. - MODEL: Checkme Pro Additional Model: Checkme Plus, Checkme Pod Brand name: Viatom FCC ID: 2ADXK-6600 This report concerns (check one:) Original Grant X Class II Change Equipment Type: DXX - Part 15 Low Power Communication Device Transmitter Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator − the new 47 CFR [10-1-13 Edition] provision. Report prepared by: Jenner Liu Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, Block D, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Phone: (86 755) 8614 0639 Fax: (86 755) 8601 6751 INTERTEK TESTING SERVICES TRF No.: FCC 15C_TX_b FCC ID: 2ADXK-6600 iii Table of Contents 1.0 General Description ............................................................................................................................................ 2 1.1 Product Description ........................................................................................................................................... 2 1.2 Related Submittal(s) Grants ............................................................................................................................. 2 1.3 Test Methodology .............................................................................................................................................. 3 1.4 Test Facility ....................................................................................................................................................... 3 2.0 System Test Configuration ................................................................................................................................ 5 2.1 Justification ......................................................................................................................................................... 5 2.2 EUT Exercising Software .................................................................................................................................. 5 2.3 Special Accessories .......................................................................................................................................... 5 2.4 Equipment Modification ..................................................................................................................................... 5 2.5 Measurement Uncertainty ................................................................................................................................. 6 2.6 Support Equipment List and Description ......................................................................................................... 6 3.0 Emission Results ................................................................................................................................................ 8 3.1 Radiated Test Results ....................................................................................................................................... 9 3.1.1 Field Strength Calculation ....................................................................................................................…

Text truncated - open the document above for the full version.

Radiated Emission
