2ADXK-S10Pulse Oximeter

制作说明： 封面 200g铜版纸彩色印刷，覆哑膜 内页80g书写纸黑白双面印刷 骑马钉装订 尺寸/公差：95mm*140mm/±1mm 此页不印刷 PulseOximeter Model:S10 UserManual Contactus:[email protected] Website:www.getwellue.com User’sManual Contents 1.Introduction........................................................................1 2UsingtheMonitor................................................................5 3PCsoftware..........................................................................9 4Maintenance......................................................................10 5Troubleshooting.................................................................11 6Specifications.....................................................................11 7FCCStatement....................................................................13 8ElectromagneticCompatibility...........................................14 1 1.Introduction 1.1IntendedUse Thisproductisintendedtobeusedformeasuring,displaying andstoringofoxygenlevel(SpO 2 ),pulserateofadults. It'snotamedicaldevice.ThisdeviceisforSportsand Aviationuseonlyandnotintendedformedicaluse. Note: Thedataandresultsprovidedbythisdeviceareforpre-checkscreening purposeonlyandcannotbedirectlyusedfordiagnosticortreatment. ThedataprovidedbytheAPPandPCsoftware(optional)isnotintended fordiagnosisortreatmentpurpose,alwaysconsultyourdoctorforany healthcondition. WarningsandCautionaryAdvices DONOTsqueezethesensororapplyexcessiveforceon thesensor&cable. DonotusethisdeviceduringMRIexamination. Neversubmergethedeviceinwaterorotherliquids.Do notcleanthedevicewithacetoneorothervolatile solutions. Donotplacethisdeviceinpressurevesselsorgas sterilizationdevice. Consultyourdoctorimmediatelyifyouexperience symptomsthatcouldindicateacutedisease. 2 Donotself-diagnoseorself-medicateonthebasisofthis devicewithoutconsultingyourdoctor.Inparticular,do notstarttakinganynewmedicationorchangethetype and/ordosageofanyexistingmedicationwithoutprior approval. Useonlycables,sensorsandotheraccessoriesspecified inthismanual. Prolongedcontinuousoxygenlevelrecordingmay increasetheriskofundesirablechangesinskin characteristics,suchasirritation,reddening,blisteringor burns. Checktheoxygenlevelsensorapplicationsiteevery6-8 hourstodeterminethepositioningofthesensorandthe circulationandskinsensitivityofthepatient.Patient sensitivityvariesdependingonmedicalstatusorskin condition.Forpatientswithpoorperipheralblood circulationorsensitiveskin,inspectthesensorsitemore frequently. Functionaltestercannotbeusedtoassesstheaccuracy ofaoxygenlevelsensororadevice. Thisdeviceisdesignedtodeterminethearterialoxygen saturationpercentageoffunctionalhemoglobin.Factors thatmaydegradepulseoximeterperformanceoraffect theaccuracyofthemeasurementincludethefollowing: -excessambientlight -excessivemotion -electrosurgicalinterference -bloodflowrestrictors (arterialcatheters,bloodpressurecuffs,infusionlines, etc.) -moistureinthesensor 3 -improperlyappliedsensor -incorrectsensortype -poorpulsequality -venouspulsations -anemiaorlowhemoglobin-concentrations -cardiogreenandother-intravasculardyes -carboxyhemoglobin -methemoglobin -dysfunctionalhemoglobin 1.2GuidetoSymbols SymbolDescription Manufacturer Dateofmanufacture Serialnumber Uniquedeviceidentifier MRunsafe Indicatesthattheproductshouldnotbe discardedasunsortedwastebutmustbe senttoseparatecollectionfacilitiesfor recoveryandrecycling IP22 Indicatesthattheproductisprotected againstsolidforeignobjectsof12,5mmØ andgreater;andprotectedagainstvertically 4 1.3Unpacking MainUnit×1 RingSensor×1 Cable×1 UserManual×1 fallingwaterdropswhenenclosuretiltedup to15° Refertoinstructionmanual TypeBFAppliedPart Noalarmsystem. Indicatesthattheproductcomplieswiththe applicableFCCrequirements Non-ionizingradiation Temperaturelimit Humiditylimitation Atmosphericpressurelimitation Indicatesthatthemarkeditemoritsmaterial ispartofarecoveryorrecyclingprocess 5 2UsingtheMonitor 2.1Overview 1.Pulseoximeter 2.Wristband 3.Sensorinterface/charginginterface 4.Powerbutton 5.Oxygenlevelsensor Screendisplayitemdescription: Oxygenlevel Pulserate Wearthesensor Time Remainingbatterycapacity Reminderison Reminderisoff 2 3 1 1 4 1 6 Bluetoothisconnecting 2.2Charging Chargethebatterybeforeusing. Usethechargecabletochargethebatteryofdeviceinthe USBPortofthecomputerorwithUSBchargingadapter. Afterbeingfullycharged,thedevicewillpoweroff automatically. 2.3POWERON/OFF POWERON: Pressthebuttonfor1secondtoturnonthedevice. POWEROFF: Automaticallypoweroff:Thedevicewillturnoff automaticallyin2minutesifnomeasurement,nooperation orwithoutAppconnection. Manuallypoweroff:Youcanpressthebuttonforabout2 secondstoturnoff. 2.4TAKETHEFIRSTRECORDING START.WearthedeviceandtheRingSensor,pressthe buttontopoweron.Andkeepyourselfinthequiet environment. (Forthesakeofclarity,recommendedtheuserwearthe monitorwatchontheirleftwristandputtheringsensoron thethumb.Ifitistootight,tryanotherfinger.Avoidbeing loose.) 7 STOP.Aftertherecord,takeofftheRingSensor(andthe device),therecordingwillbesaveafter thecountdown.(Iftheworkingtimeis lessthan1minute,thedatawillnotbe saved.) Note: Pleaseavoidexcessivemotionforthesensedfinger duringrecordingandavoidanystrongambientlight condition. 2.5Stopmonitoring&syncdata Takeoffthesensor,thecountdownwill begin. Duringthecountdown,ifyouwearthe sensoragain,therecordwillberesumed. Afterthecountdown,thedatawillbe readyforsync. Note: Thedurationoftherecordingis1mins~10hours.Andthe devicecancollectandstoremaximum4recording,whenthe 5threcordingcoming,thefirstrecordingwillbewillcovered. SyncdatatotheViHealthApp YoucanSyncthedatatoyourappafterthe countdownornexttimeafteryouturnon thedevice. 8 Note:RefertheViHealthappmanualformoredetails. 2.5.1HowtofindtheSerialNumber？ 1）Detachthemainunitfromwristband. 2）Flipthemainunitover,theseriesnumberis printedonthelabelofproduct. Note: Theserialnumberisonthebackofthedevice. 2.6Howtosynchronizethetimeofthedevice Thetimeofthemonitorwillbeautomaticallysynchronized withthenetworktimeonyoursmartdeviceafterconnected withtheapp. Note:…

Text truncated - open the document above for the full version.

ShenzhenViatomTechnologyCo.,Ltd. Address：901,BuildingWest,LepuTower,No.66XingkeRoad,XiliCommunity,XiliStreet, NanshanDistrict,Shenzhen,518055,Guangdong,P.R.China Date:2026-01-16 FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 Ref:AttestationStatementsPart2.911(d)(7)Filing SUBJECT:FCCApplicationforFCCID:2ADXK-S10 FRN:0024194888 (“ShenzhenViatomTechnologyCo.,Ltd.”)certifiesthat,asofthedateofthefilingofthe application,GOLDENVICTORYINTERNATIONALTRADINGCOLTDisourdesignatedU.S. agentforserviceofprocessfortheabovereferencedFCCID.(“ShenzhenViatomTechnology Co.,Ltd.”)acceptstomaintainanagentfornolessthanoneyearafterthegranteehas terminatedallmarketingandimportationortheconclusionofanyCommission-related proceedinginvolvingtheequipment. GOLDENVICTORYINTERNATIONALTRADINGCOLTDaccepts,asofthedateofthefiling oftheapplication,theobligationofthedesignatedU.S.agentforserviceofprocessforthe abovereferencedFCCID. DesignatedU.S.AgentInformation: Name:GOLDENVICTORYINTERNATIONALTRADINGCOLTD Address:11016THSTREETSUITE1400DENVER,CO80202UnitedStates FRN：0036377570 ContactPerson:LeonHowar Tel.:(337)255-0461 Email:[email protected] Sincerely, Signedonbehalfof（ShenzhenViatom TechnologyCo.,Ltd.） SignedonbehalfofGOLDENVICTORY INTERNATIONALTRADINGCOLTD Name:BingWangName:LeonHowar Title:ManagerTitle:Manager Date:2026-01-16Date:2026-01-16

Rev1/26/2023 (ShenzhenViatomTechnologyCo.,Ltd.) FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 USA Date:1-16-2026 Ref:AttestationStatementsPart2.911(d)(5)(i)Filing FCCID:2ADXK-S10 (“ShenzhenViatomTechnologyCo.,Ltd.”)certifiesthattheequipmentforwhichauthorizationissought isnot“covered”equipmentprohibitedfromreceivinganequipmentauthorizationpursuanttosection 2.903oftheFCCrules. (“ShenzhenViatomTechnologyCo.,Ltd.”)certifiesthattheequipmentforwhichauthorizationissought doesnotincludecybersecurityoranti-virussoftwareproducedorprovidedbyKasperskyLab,Inc.orany ofitssuccessorsandassignees,includingequipmentwithintegratedKasperskyLab,Inc.(oranyofits successorsandassignees)cybersecurityoranti-virussoftwarepursuanttoDA-24-886andKDB986446 D01CoveredEquipmentGuidancesectionB(2a). Deviceisinherentlycompliantbasedonhardwarelimitationsorsoftwarecontrols. or ASoftwareBillofMaterials(SBOM)isprovidedtotheTCBforreview,and Theend-userorthirdpartiescannotinstalladditionalsoftwareonthisdevice. Sincerely, (Applicantsignature): (Applicantprintedname):BingWang Rev1/26/2023 (ShenzhenViatomTechnologyCo.,Ltd.) FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 USA Date:1-16-2026 Ref:AttestationStatementsPart2.911(d)(5)(ii)Filing FCCID:2ADXK-S10 (“ShenzhenViatomTechnologyCo.,Ltd.”)certifiesthat,asofthedateofthefilingoftheapplication, ShenzhenViatomTechnologyCo.,Ltd.isnotidentifiedontheCoveredList(asaspecificallynamedentity oranyofitssubsidiariesoraffiliates)asanentityproducing“covered”equipment. Sincerely, (Applicantsignature): (Applicantprintedname):BingWang

ShenzhenViatomTechnologyCo.,Ltd. Date:January16,2026 ProductModelNumber:S10,S12 FCCID:2ADXK-S10 Towhomitmayconcern, Re:ProductCertificationRepresentativeAuthorizationLetter WeauthorizeQAILaboratoriesLtd.3980NorthFraserWay,BurnabyB.C. CanadaV5J5K5toactonourbehalfonallmattersconcerningtheabove namedequipment. Thisshallincludethefollowing: Testing Approvalapplicationsandprocedures WedeclarethatQAILaboratoriesLtd.isallowedtoforwardallinformation relatedtotheapprovalprojecttotheappliedcertificationbodyandtothe notificationentitiesandtodiscussanyissuesconcerningtheapproval application.AnyandallactscarriedoutbyQAILaboratoriesLtd.onour behalfshallhavethesameeffectasactsofourown. By: ContactListedonFCCWesbite Title:Manager Email:[email protected] Telephone:+8675586638929 Onbehalfof:ShenzhenViatomTechnologyCo.,Ltd.

ShenzhenViatomTechnologyCo.,Ltd. OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USA Date:January16,2026 Subject;RequestforConfidentiality FCCID:2ADXK-S10 ToWhomItMayConcern, PursuanttotheprovisionsoftheCommission’srulesTitle47Sections§0.457and§0.459,we arerequestingtheCommissiontowithholdthefollowingattachment(s)asconfidential documentsfrompublicdisclosureindefinitely. Thesedocumentscontaindetailedsystemandequipmentdescriptionsandareconsideredas proprietaryinformationinoperationoftheequipment.Thepublicdisclosureofthese documentsmightbeharmfultoourcompanyandwouldgivecompetitorsanunfairadvantage inthemarket. SchematicDiagram BlockDiagram PartsList OperationalDescription Tune-upProcedure SoftwareSecurityRequirementsforUNIIdevices Inadditionaltoabovementioneddocuments,inordertocomplywiththemarketingregulations inTitle47CFR§2.803andtheimportationrulesinTitle47CFR§2.1204,whileensuringthat businesssensitiveinformationremainsconfidentialuntiltheactualmarketingofnewly authorizeddevices,werequestShortTermConfidentialityofthefollowingattachment(s); ExternalPhotos TestSetupPhotos InternalPhotos UserManual For45days,pursuanttoPublicNoticeDA04-1705. OR For180dayspursuanttoKDB726920D01. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondenceduringthecertificationreviewprocesscannotbegrantedasconfidential documentsandthisinformationwillbeavailableforpublicreviewoncethegrantofequipment authorizationisissued. Sincerely, Signature: Name:BingWang Title:Manager

ShenzhenViatomTechnologyCo.,Ltd. ModelDifference Date:Jun.16,2026 Productdescription:PulseOximeter Modelname:S10,S12 FCCID:2ADXK-S10 S10andS12aretestmodels,whiletheothermodelsarederivativemodels.Thesemodels havethesamecircuitdesign,butdifferinmodelnamesandshapeandchargingportand batterycapacityandaccessories. Client’ssignature: Client’sname/title:BingWang/Manager Contactinformation/address:901,BuildingWest,LepuTower,No.66XingkeRoad, XiliCommunity,XiliStreet,NanshanDistrict,Shenzhen,518055,Guangdong,P.R. China

2.4GHzChipAntenna:AAN8010H2R2G45 Application: WLAN,802.11b/g,Bluetooth,etc... Features SMD,highreliability,ultraImpact,Omni-directional... Partnumber AAN8010H2R2G45 (1)(2)(3)(4)(5) (1)ProductType ChipAntenna (2)SizeCode 8.0x1.0mm (3)TypeCodeH2 (4)Packing Tapeandreel (5)Frequency2.45GHz ElectricalSpecification WorkingFrequencyRange2400~2484MHz PeakGain2.85dBi(Typ.) Impedance 50Ohm Returnloss 10dB(Min) PolarizationLinear AzimuthBeamwidth Omni-directional OperationTemperature(°C)-40~85°C ThespecificationisdefinedonEVB. DimensionandTerminalConfiguration Dimension(mm) L 8.0+-0.20 No.TerminalName W 1.0+-0.20 1Feeding 2Soldering T 1.30+-0.20 A 0.20+-0.20 2.4GHzChipAntenna:AAN8010H2R2G45 EvaluationBoardReference PCBDimension&AntennaLayoutReference unit:mm ElectricalCharacteristics ReturnLoss&Radiation ReturnLoss Frequency (MHz) S11(dB) 2400-12.8 2442-19.8 2484-11.9 Radiation 2.45GHz Frequency2445MHz Peakgain2.85dBi Efficiency 78.5% 2.4GHzChipAntenna:AAN8010H2R2G45 TapingSpecifications ReelTapingBlisterTape Internaldiameterofreel A 60.20±0.50 Externaldiameterof reel B 178±1.00 Quantity/perreel3000pcs Tapematerial Plastic (embossed) Sprockethole D0 1.50+0.10/-0.00 Distancesprocketholetooutside E1 1.75±0.10 Distancesprocketholetopocket F 5.50±0.05 Distancesprocketholeto sprockethole P0 4.00±0.10 Distancepockettopocket P1 4.00±0.10 Distancesprocketholetopocket P2 2.00±0.05 Tapewidth W 12.00+0.30/-0.10 Pocketwidthnominalclearance A0 2.28±0.13 PocketlengthnominalclearanceB0 5.70±0.13 Pocketdepthminimumclearance K0 1.58±0.10 Thicknessoftape T 0.23±0.02 2.4GHzChipAntenna:AAN8010H2R2G45 ReliabilityTable TestItemProcedure Requirements CeramicType Remark (Reference) Electrical Characterization Fulfilltheelectrical specification UserSpec. Thermal Shock 1.Preconditioning: 50±10°C/1hr,thenkeepfor24±1hrsatroomtemp. 2.Initialmeasure:Spec:referInitialspec. 3.Rapidchangeoftemperaturetest: -30°Cto+85°C;100cycles; 15minutesatLowercategorytemperature; 15minutesatUppercategorytemperature. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 107 Temperature Cycling 1.Initialmeasure:Spec:referInitialspec. 2.100Cycles(-30°Cto+85°C),SoakMode=1(2Cycle/hours). 3.Measurementat24±2Hoursaftertestcondition. NoVisibleDamage. Fulfilltheelectrical specification. JESD22 JA104 HighTemperature Exposure 1.Initialmeasure:Spec:referInitialspec. 2.Unpowered;500hours@T=+85°C. 3.Measurementat24±2hoursaftertest. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 108 LowTemperature Storage 1.Initialmeasure:Spec:referInitialspec. 2.Unpowered:500hours@T=-30°C. 3.Measurementat24±2hoursaftertest. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 108 Solderability (SMDBottomSide) Dippingmethod: a.Temperature:235±5°C b.Dippingtime:3±0.5s Thesoldershouldcover over95%ofthecritical areaofbottomside. IEC60384-21/22 4.10 SolderingHeat Resistance (RSH) Preheatingtemperature:150±10°C. Preheatingtime:1~2min. Soldertemperature:260±5°C. Dippingtime:5±0.5s NoVisibleDamage. IEC60384-21/22 4.10 Vibration5g'sfor20min.,12cycleseachof3orientations Note:Use8"X5"PCB.031"thick7securepointson,onelong sideand2securepointsatcornersofoppositesides.Parts mountedwithin2"fromanysecurepoint.Testfrom10-2000 Hz. NoVisibleDamage. MIL-STD-202 Method204 Mechanical Shock Threeshocksineachdirectionshallbeappliedalongthethree mutuallyperpendicularaxesofthetestspecimen(18shocks) Peakvalue:1,500g’s Duration:0.5ms Velocitychange:15.4ft/s Waveform:Half-sine NoVisibleDamage. MIL-STD-202 Method213 Humidity Bias 1.Humidity:85%R.H.,Temperature:85±2°C. 2.Time:500±24hours. 3.Measurementat24±2hrsaftertestcondition. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 Method106 2.4GHzChipAntenna:AAN8010H2R2G45 Board Flex (SMD) 1.Mountingmethod: IR-Reflow.PCBSize(L:100×W:40×T:1.6mm) 2.Applytheloadindirectionofthearrowuntilbendingreaches NoVisibleDamage. AEC-Q200 005 2mm. AdhesionForceof1.8Kgfor60seconds.NoVisibleDamage Magnificationof20Xor greatermaybeemployed forinspectionofthe mechanicalintegrityofthe devicebodyterminalsand body/terminaljunction. AEC-Q200 006 Physical Dimension Anyapplicablemethodusingx10magnification,micrometers, calipers,gauges,contourprojectors,orothermeasuring equipment,capableofdeterminingtheactualspecimen dimensions. Inaccordancewith specification. JESD22 JB100 RevisionHistory RevisionDateContent 12019/7/20 Newissue

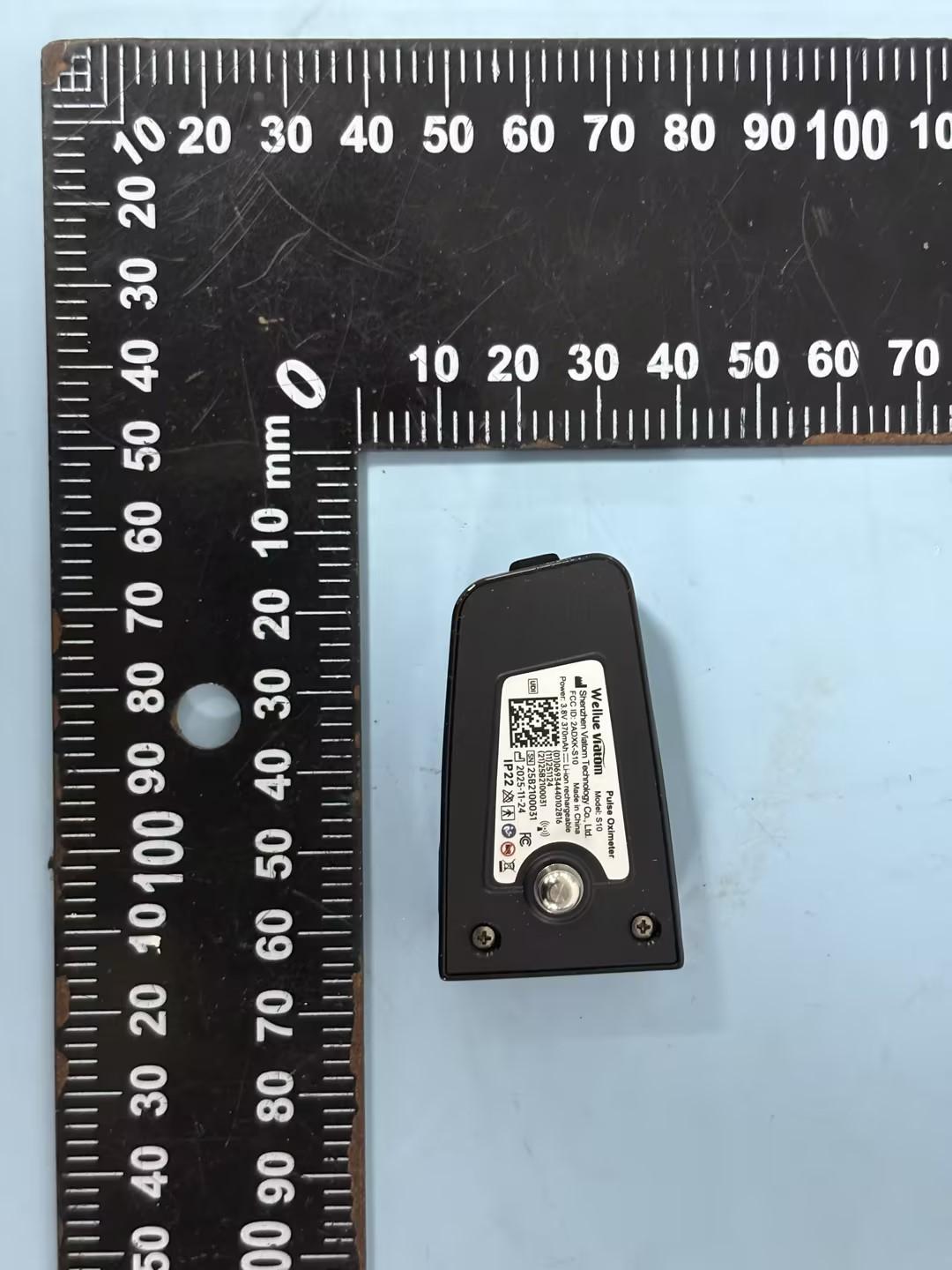

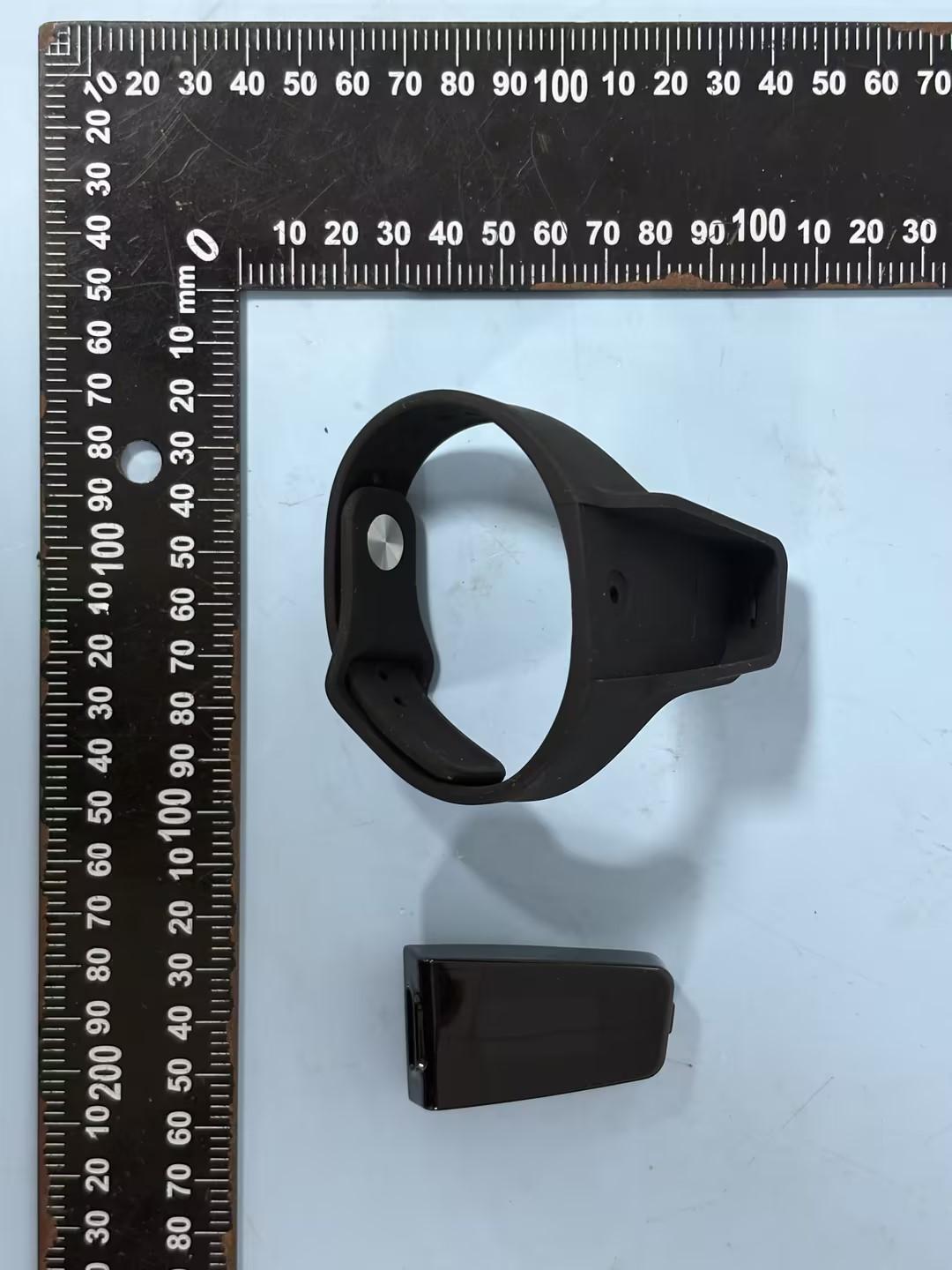

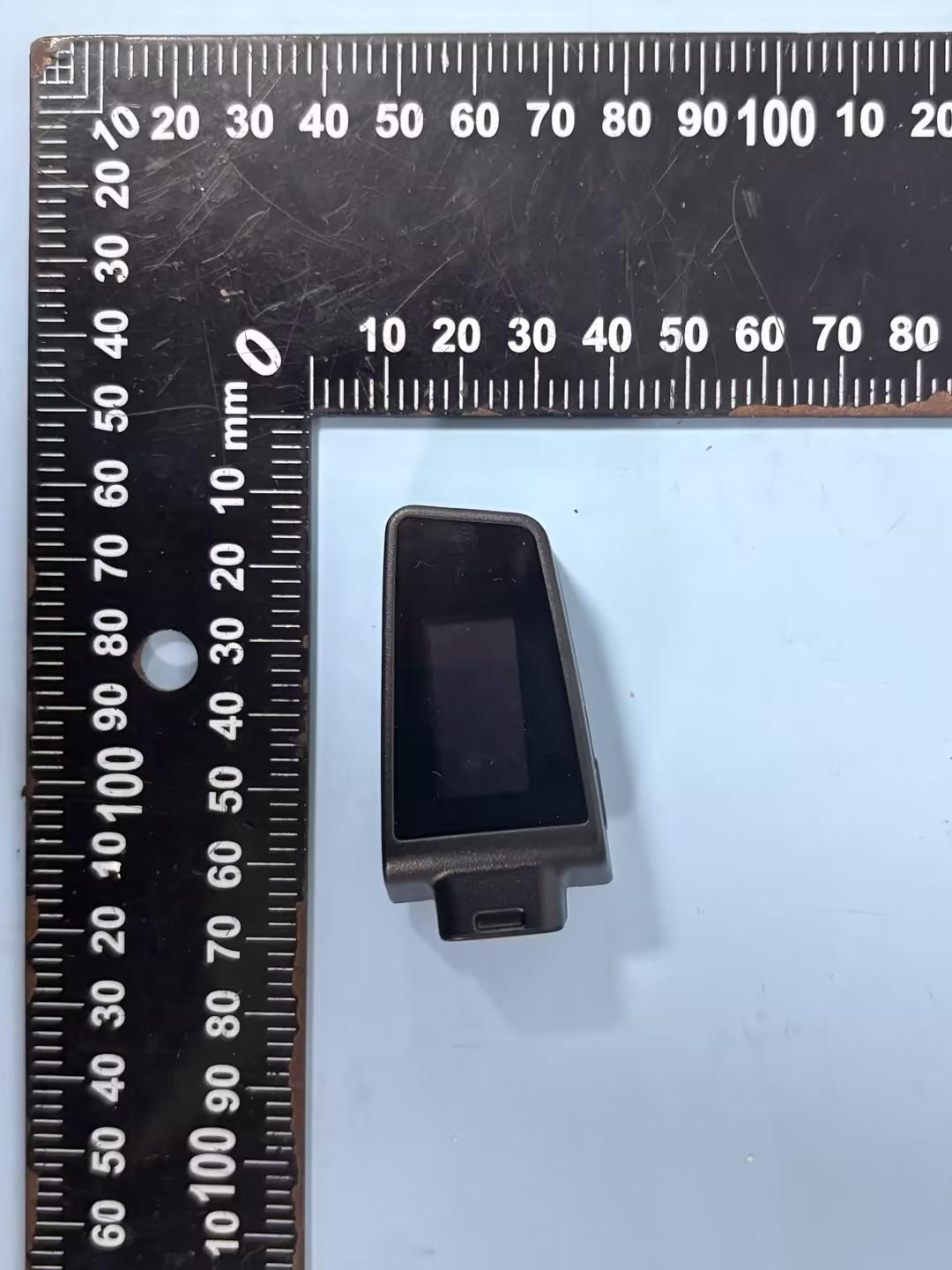

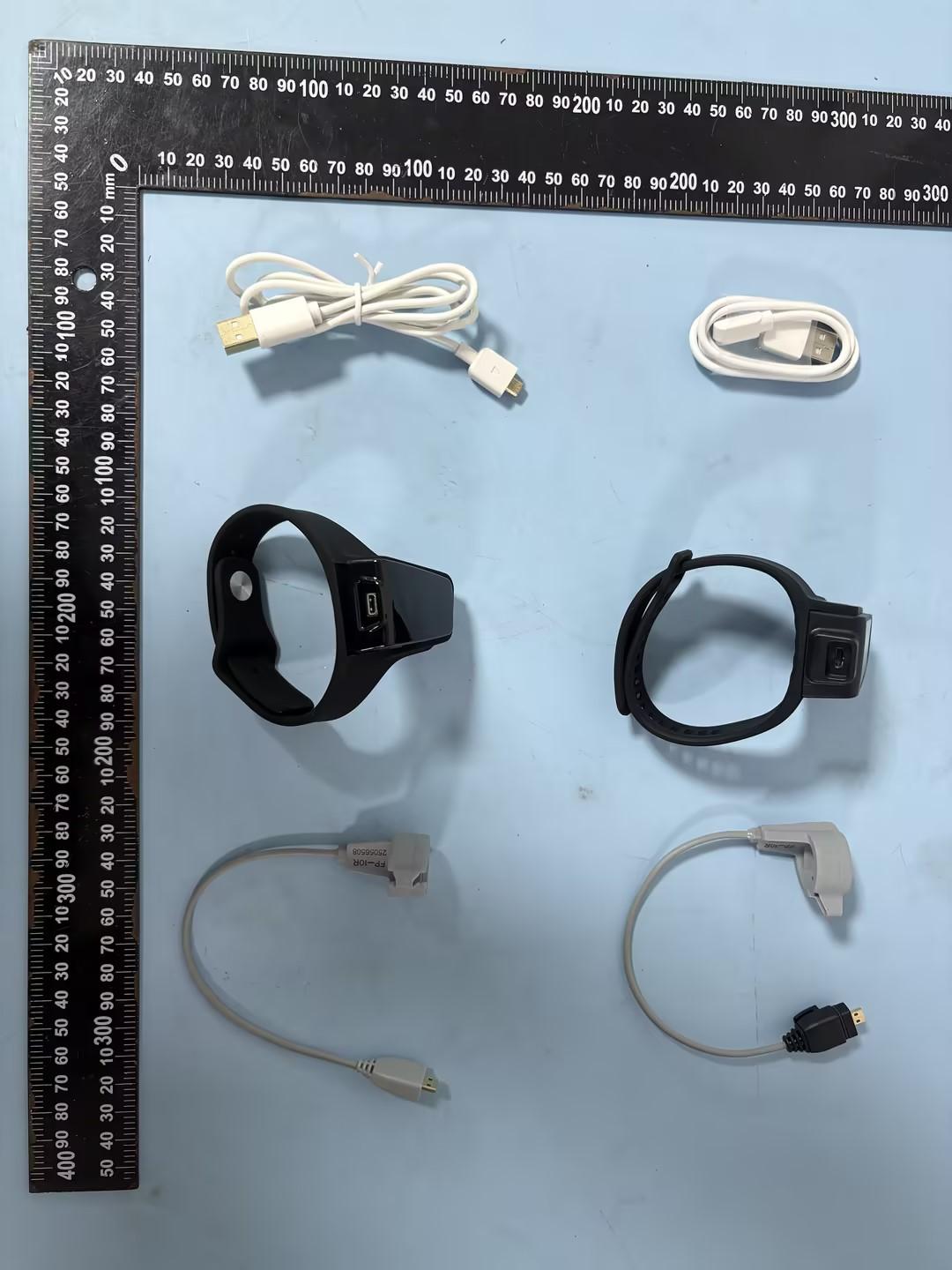

FCCID:2ADXK-S10 EUTPHOTOSExternalPhotos Model:S10 FCCID:2ADXK-S10 FCCID:2ADXK-S10 FCCID:2ADXK-S10 FCCID:2ADXK-S10 Model:S12 FCCID:2ADXK-S10 FCCID:2ADXK-S10 FCCID:2ADXK-S10 ※※※※※ENDOFREPORT※※※※※
