2AENY-356-1399Outdoor lamp

Questions, problems, missing parts? Before returning to your retailer, call our customer service at 1-800-887-6326 Monday – Friday 9:00 a.m. – 5:00 p.m. CST SKU Number: 356-1399 LED Outdoor Wall Light Model Number: 356-1399 PACKAGE CONTENTS 251107 SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install the product. WARNING • Turn off electricity at main fuse box (or circuit breaker box) before beginning installation by removing fuse (or switching off circuit breaker). • Be careful not to damage or cut the wire insulation (covering) during fixture installation. Do not permit wires to contact any surface having a sharp edge. To do so may damage or cut the wire insulation, which could cause serious injury or death from electric shock. • LED electronics can be damaged by electro static discharge (ESD) shock. Before installation, discharge yourself by touching a grounded bare metal surface to remove this hazard. To avoid damage, do not touch the LED module. HARDWARE CONTENTS Note: Hardware not shown actual size. Mounting Screw X2 Wire Connector X3 AABB Set Screw X2 DDCC EE Mounting Plate Unit X1 Rubber Pad X2 Page 2 of 18 251107 Before beginning assembly, installation or operation of product, make sure all parts are present. Compare parts with package contents list and diagram on previous page. If any part is missing or damaged, do not attempt to assemble, install or operate the product. Contact customer service for replacement parts. Tools Required for Assembly (not included): Slotted Screwdriver, Phillips Screwdriver, Pliers, Electrical Tape, Wire Cutters, Safety Glasses, Ladder. Only a general ON/OFF wall switch applies for this fixture, a dimmable wall switch shouldn’t be used. If you are unfamiliar with electrical installation, it is recommended to use a qualified electrician for your installation(s). Mobile device requirementsIphone 4S or newer running IOS 9.0 x or later. Android v5.0 or later. SAFETY INFORMATION (continued) PREPARATION CAUTION • All electrical connections must be in agreement with local codes, ordinances or the national electric code (NEC). Contact your municipal building department to learn about your local codes, permits and/or inspections. • Risk of fire – most dwellings built before 1985 have supply wire rated for 140°F/60ºC. Consult a qualified electrician before installation. • Do not connect this fixture to an electrical system that does not provide a means for equipment grounding. Never use a fixture in a two-wire system that is not grounded. If you are not sure your lighting system has a grounding means, do not attempt to install this fixture. Contact a qualified, licensed electrician for information with regards to proper grounding methods as required by the local electrical code in your area. ASSEMBLY INSTRUCTIONS Turn off the power at fuse or circuit box. Turn on the power at fuse or circuit box. 1. Unscrew the two set screws (DD). Remove the rubber pads (EE) and the mounting plate unit (AA) from the fixture. 2. Attach mounting plate unit (AA) to the outlet box using two mounting screws (BB). Note: Make sure that two set holes are lined up vertically to make the fixture level. 2 AA BB Outlet Box 3. Pull out the source wires from the outlet box. Make wire connections using wire connectors (CC) as follows: • Connect the hot wire (black insulation) from the fixture to the black wire from the power source. • Connect the neutral wire (white insulation) from the fixture to the white wire from the power source. • Attach the fixture ground wire (bare wire) to the mounting plate unit (AA) with the green ground screw, then depending on local code, connect it to the house ground wire with the wire connector (CC). Carefully put all of the wires back into the outlet box. AA 3 CC Green Ground Screw AA Fixture DD 1 EE AA Fixture DD 4 EE 4. Attach the fixture to the mounting plate unit (AA) by aligning holes, then secure two rubber pads (EE) and set screws (DD) from the holes of the fixture into the open holes of the mounting plate unit (AA). Page 3 of 18 251107 REGISTRATION / LOGIN / PASSWORD RETRIEVAL Seng for sin gl e li ght th rough mobil e device (Take iOS for example as below. Android will be slightly di erent). Before you start 2. Click “Sign up” to enter the next page shown in Fig.3. 1. Download the Smart Life APP from the Apple App Store or Android Google play store. Registration If you do not have the app account, you may choose to register. The registration process is described on this page and the next. Click “Agree” to proceed to the registration page. Account ID + Password Login Smart Life Login. Page 4 of 18 251107 USER GUIDE Auto Scan Please make sure the lamplight on the smart device is flashing rapidly, if the lamplight is not flashing rapidly, you can use the wall switch by off-on-off-on-off-on to make it flash state. 1. Click "+" and "Add Device" at the top right corner of the App home page shown in Fig.1, and enter the next page shown in Fig.2. 2. Click "Add" to enter the next page shown in Fig. 3. 3. Enter the Wi-Fi account and password and click "Next" to enter the next page shown in Fig.4. Note: The Wi-Fi account and password in the APP must be the same as on the mobile phone. 3 The Smart Life app supports two configurations: Add Manually mode, Auto scan search device mode. Turn on Bluetooth and connect to 2.4GHz Wi-Fi before connecting lights with the APP. 4a4 4b 4c 4. Entry the page and Click "Done" to complete connecting as shown in Fig.4, Fig.4a, Fig.4b. Page 5 of 18 251107 USER GUIDE (continued) Add Manually mode 1. Click "+" and "Add Device" at the top right corner of the App home page upper right corner and enter the next page shown in Fig.2. 2. Click "lighting+light Source (BLE+WIFI)" to enter the next page shown in Fig. 3. 3. Click on the upper right corner and select "WiFi Mode" to enter the next page shown in Fig.4. 4. Click "Next" to enter the next page shown in Fig.5. 6. Click "…

Text truncated - open the document above for the full version.

* theapplicantmustdesignateacontactlocatedintheUnitedStatesforpurposesofactingasthe applicant’sagentforserviceofprocess,regardlessofwhethertheapplicantisadomesticorforeign entity.AnapplicantlocatedintheUnitedStatesmaydesignateitselfastheagentforserviceofprocess. SC5120041 U.S.AgentDesignationforServiceofProcess- CertificationAttestationLetter 12/9/2025 TO:FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 ATTN.:ReviewingEngineer FCCID:2AENY-356-1399 FRNofapplicant:0024557688 Persection2.911(d)(7)oftheFCCrules,[LuminexInternationalCo.,Ltd](“theapplicant”) certifiesthattheequipmentforwhichauthorizationissoughtisdesignatedtothefollowingU.S. agent*forserviceofprocess: CompanyName:GlobalProductServicesandConsultationLLC FCCRegistrationNumber(FRN):0033406703 PhysicalU.S.CompanyAddress:328WPalmAve.,Monrovia,CA91016,UnitedStates ContactPerson:MichaelChan Tel:+16263664358 AgentEmailAddress:[email protected] Theabovecontactpersonacceptstheobligationforserviceofprocess. Theapplicantacceptstomaintainanagentfornolessthanoneyearafterthegranteehas terminatedallmarketingandimportationortheconclusionofanyCommission-related proceedinginvolvingtheequipment. ApplicantSigned:AgentSigned(ifdifferentfromApplicant): Signed: Printedname:AvianDai Title:Manager CompanyName:LuminexInternationalCo., Ltd Address:5F,No.30,YeeShien Rd.,Taipei,Taiwan Signed: Printedname:MichaelChan Title:TechnicalDirector CompanyName:GlobalProductServices andConsultationLLC Date:12/10/2025 Date:12/9/2025

Luminex International Co., Ltd 2025-12-09 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID: 2AENY-356-1399) [Luminex International Co., Ltd] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, the equipment does not utilize cyber-security or anti-virus software from Kaspersky Lab, Inc, or any of its successors and assignees, which is also on the “covered list”. Sincerely, Avian Dai Manager Luminex International Co., Ltd 5F, No.30, Yee Shien Rd.,Taipei,Taiwan Luminex International Co., Ltd 2025-12-09 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID: 2AENY-356-1399) [Luminex International Co., Ltd] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Avian Dai Manager Luminex International Co., Ltd 5F, No.30, Yee Shien Rd.,Taipei,Taiwan

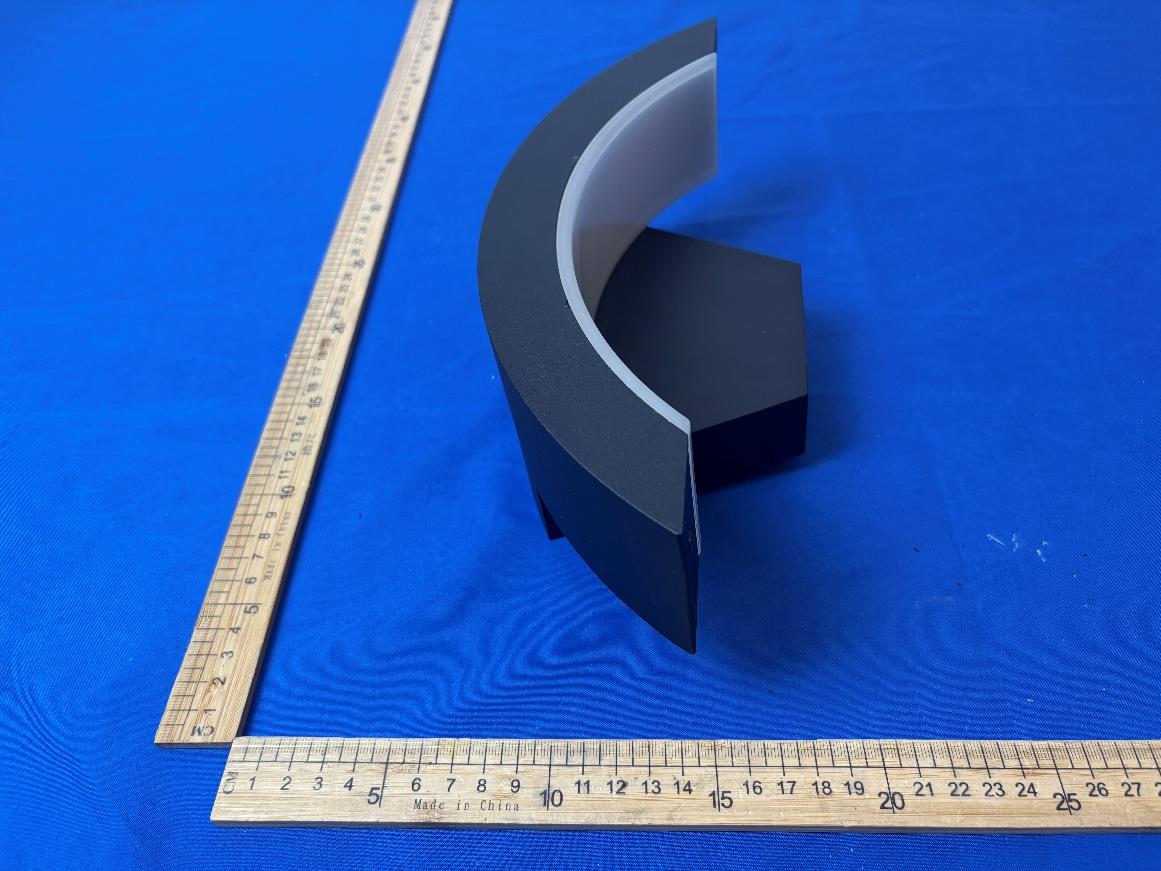

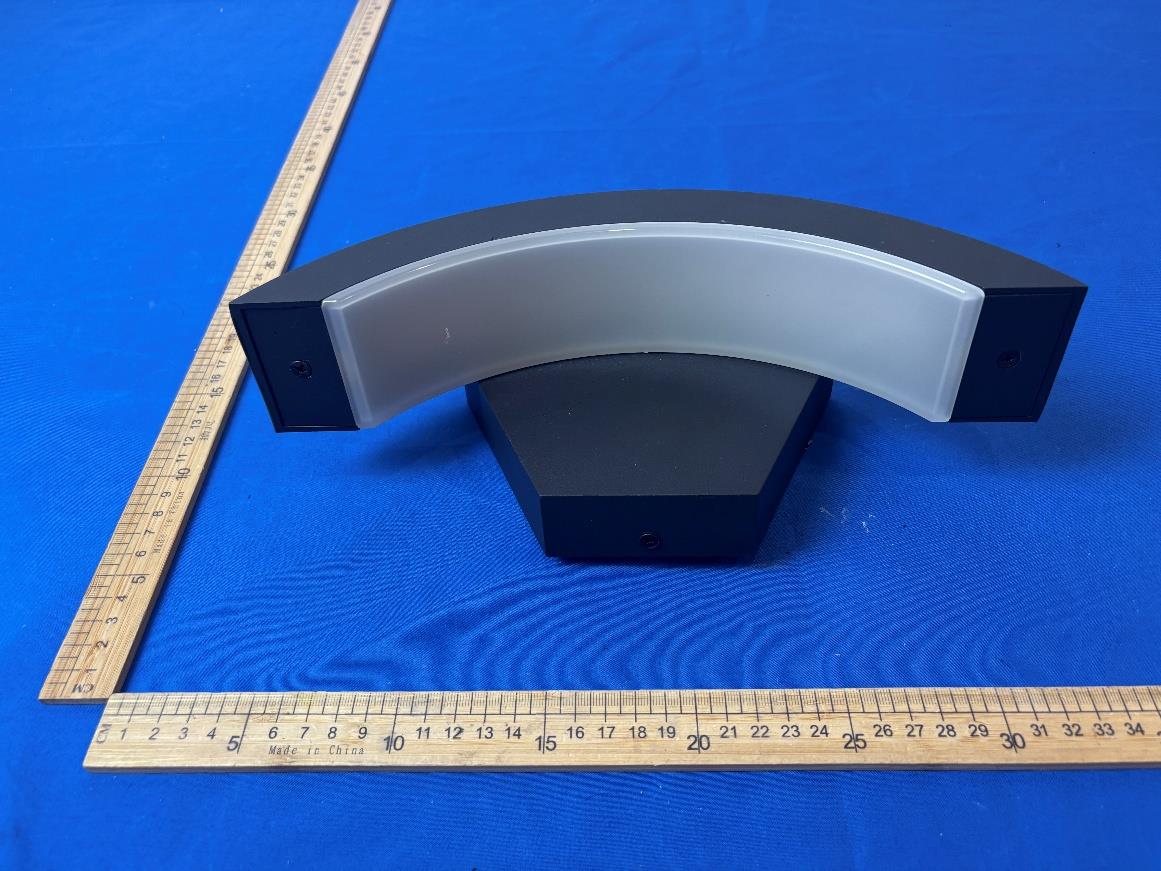

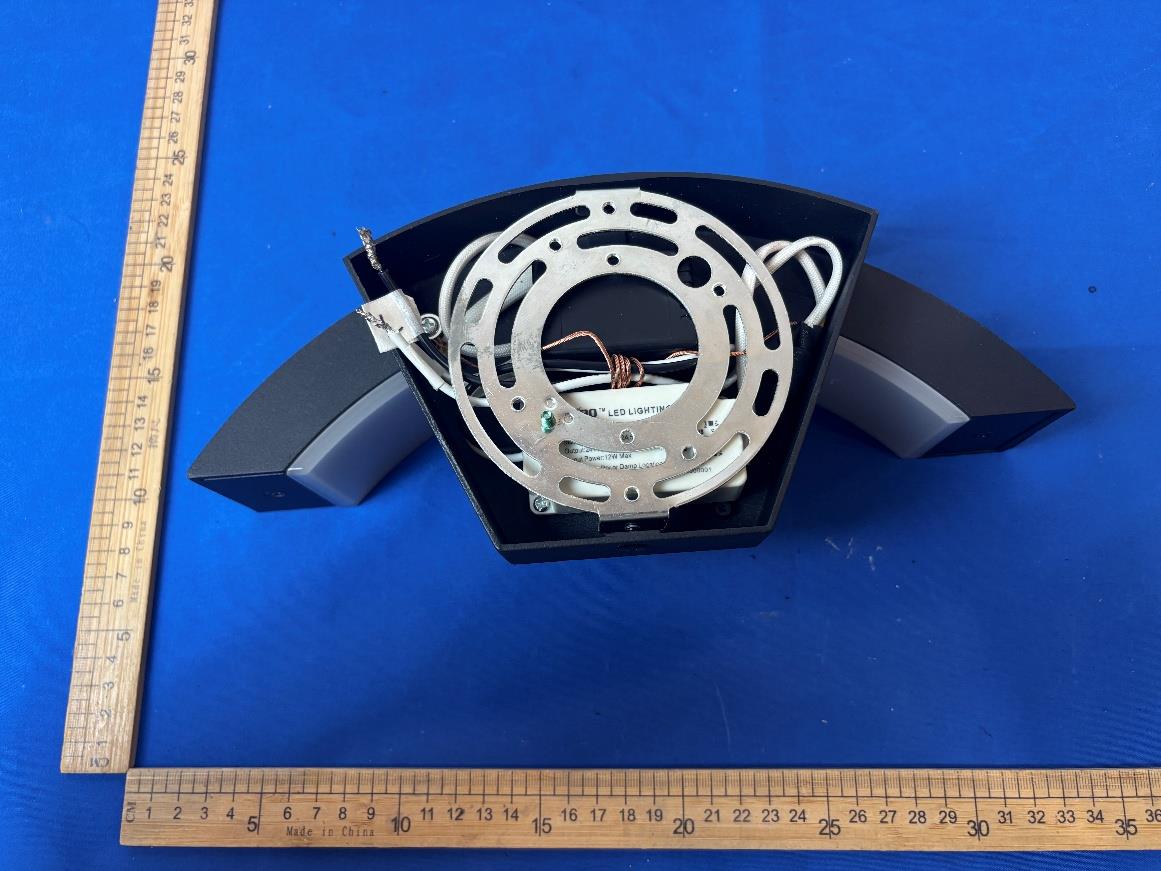

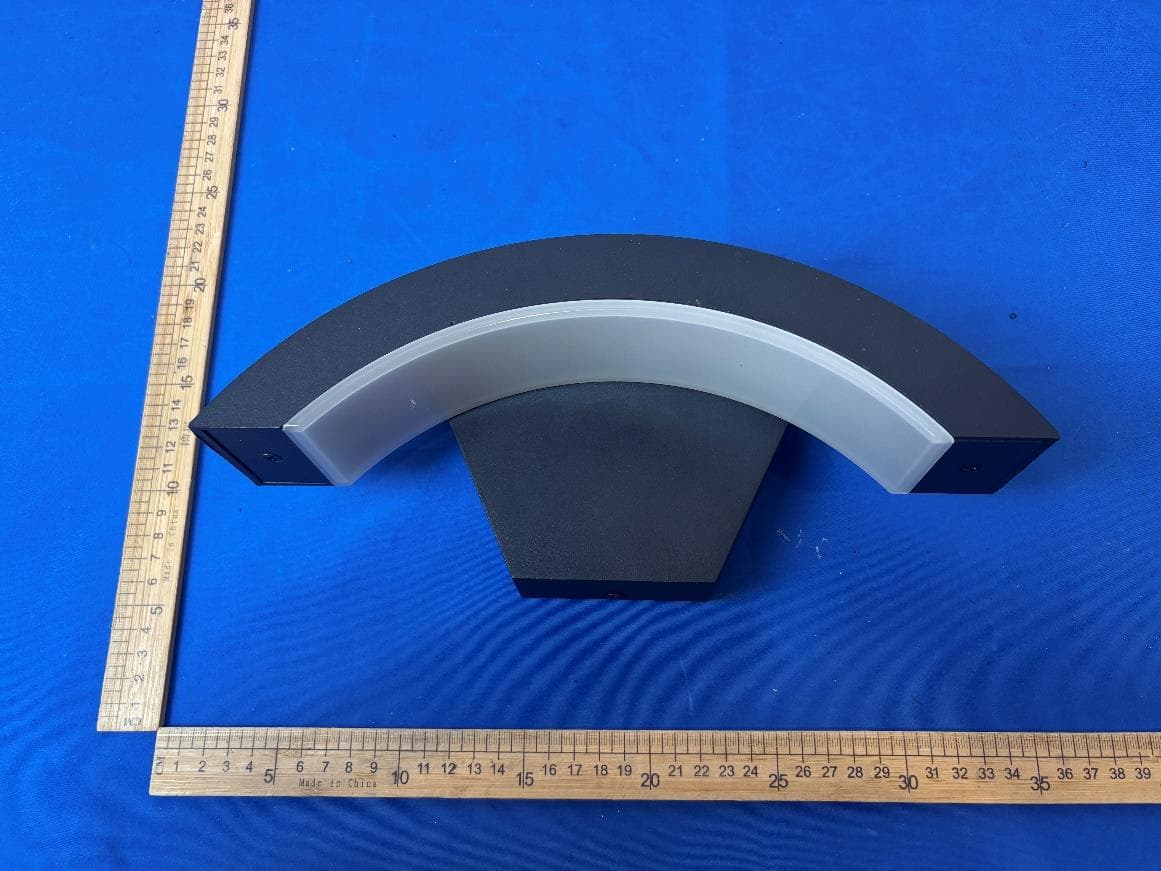

External Photographs View of EUT-1 View of EUT-2 Page 2 of 3 View of EUT-3 View of EUT-4 Page 3 of 3 View of EUT-5 View of EUT-6

50mmx25mm Label location:

Internal Photographs Internal View of EUT-1 Internal View of EUT-2 Page 2 of 6 Internal View of EUT-3 Internal View of EUT-4 Page 3 of 6 Internal View of EUT-5 Internal View of EUT-6 Page 4 of 6 Internal View of EUT-7 Internal View of EUT-8 Antenna Page 5 of 6 Internal View of EUT-9 Internal View of EUT-10 Page 6 of 6 Internal View of EUT-11

RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in ß1.1307(b) FCC ID: 2AENY-356-1399 EUT Specification EUT Outdoor lamp Frequency band (Operating) BLE: 2.402GHz ~ 2.480GHz WIFI: 2.412GHz ~ 2.462GHz Device category Portable (<20cm separation) Mobile (>20cm separation) Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power BLE BLE 1M: 0.74 dBm 2.4G WIFI 802.11b: 15.79 dBm 802.11g: 14.85 dBm 802.11n HT20: 14.36 dBm Antenna gain (Max) BLE: 1.68dBi 2.4G WIFI: 1.36dBi Evaluation applied MPE Evaluation SAR Evaluation Page 2 of 3 Limits for Maximum Permissible Exposure(MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500-100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 6 1500-100000 -- -- 1 30 Friis transmission formula: P d =(P out *G)\(4*pi*R 2 ) Where P d = Power density in mW/cm 2 , P out =output power to antenna in mW. G= gain of antenna in linear scale, Pi=3.1416 R= distance between observation point and center of the radiator in cm=20cm P d the limit of MPE, 1mW/cm 2 . If we know the maximum gain of the antenna and total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. For multiple RF sources: Multiple RF sources are exempt if: in the case of fixed RF sources operating in the same time-averaging period, or of multiple mobile or portable RF sources within a device operating in the same time averaging period, if the sum of the fractional contributions to the applicable thresholds is less than or equal to 1 as indicated in the following equation Evaluated k : the maximum reported SAR or MPE of fixed, mobile, or portable RF source k either in the device or at the transmitter site from an existing evaluation at the location of exposure. Exposure Limit k : either the general population/uncontrolled maximum permissible exposure (MPE) or specific Absorption rate (SAR) limit for each fixed, mobile, or portable RF source k. Page 3 of 3 Measurement Result BLE: Mode Max Measured Power (dBm) Tune up tolerance (dBm) Max tune up conducted power(dBm) Output Peak power (mW) Ant. Gain (dBi) Ant. Gain (numeric) Power density at 20cm (mW/ cm 2 ) Power density Limits (mW/ cm 2 ) BLE 1M 0.74 0±1 1 1.259 1.68 1.472 0.00037 1 2.4G WIFI: Mode Max Measured Power (dBm) Tune up tolerance (dBm) Max tune up conducted power(dBm) Output Peak power (mW) Ant. Gain (dBi) Ant. Gain (numeric) Power density at 20cm (mW/ cm 2 ) Power density Limits (mW/ cm 2 ) 802.11b 15.79 15±1 16 25.119 1.36 1.368 0.01083 1 802.11g 14.85 14±1 15 19.953 1.36 1.368 0.00860 1 802.11n HT20 14.36 14±1 15 15.849 1.36 1.368 0.00860 1 Maximum Simultaneous transmission MPE Ratio for Bluetooth & 2.4G WIFI Maximum MPE ratio (Bluetooth) Maximum MPE ratio (2.4G WIFI) ∑ MPE ratios Limit Results 0.00037 0.01083 0.01120 1.000 Pass Signature: Shawn Wen Date: 2025-12-9

AntennaSpecification Manufacture：TUYA ProductName：T1-3SAntenna AntennaType：PCB TestDate：2025.2.25 Testedby：YJC Approvedby：Licco Content 1.GeneralDescription.................................................................................1 2.TestConfigurations...................................................................................2 2.1TestEnvironment............................................................................2 2.2TestEquipment...............................................................................2 2.3TestPrinciple...................................................................................2 3.TestResults..............................................................................................3 3.1GainandEfficiency..........................................................................3 3.2RadiationPattern............................................................................4 4.AntennaDimensions................................................................................6 5.EUTPhoto................................................................................................6 6.TestSetupPhoto......................................................................................6 1 1.GeneralDescription ManufacturerHangzhouTuyaInformationTechnologyCo.,Ltd Address Room701,Building3,MoreCenter,No.87GuDunRoad, Hangzhou,Zhejiang,China TestLocation Room106,Building3,LetongSciencePark,No.500, QiuyiRoad,BinjiangDistrict,Hangzhou ProductNameT1-3SAntenna Productmodel T1-3S AntennaType PCBAntenna TestItems Gain;Efficiency;RadiationPattern TestFrequency 2400-2500MHz TestStandard ANSI/IEEEStd149-1979 2 2.TestConfigurations 2.1TestEnvironment Temperature(°C)25 Humidity(%RH)60 AtmosphericPressure(kPa)100.5 2.2TestEquipment TestSystemTEM24Multi-probeMicrowaveChamber TestInstrumentAgilentE5071B 2.3TestPrinciple 3 3.TestResults 3.1GainandEfficiency Frequency(MHz)PeakGain(dBi)Efficiency(%) 24001.38 42.95 24101.23 43.95 24201.35 45.39 24301.23 46.56 24401.03 46.34 24501.36 51.17 24601.21 51.64 24701.38 52.6 24801.68 51.52 24901.12 52.84 25001.17 50.12 4 3.2RadiationPattern Phi02D Phi902D Theta902D 5 2400MHz3D 2450MHz3D 2500MHz3D 6 4.AntennaDimensions(mm) Unit:mm 5.EUTPhoto 6.TestSetupPhoto Antenna

1 / 42 Duty Cycle Condition Mode Frequency (MHz) Antenna On Time (ms) Period (ms) Duty Cycle (%) Correction Factor (dB) 1/T (kHz) NVNT b 2412 Ant1 8.39 8.48 98.94 0 0.12 NVNT b 2437 Ant1 8.39 8.47 99.06 0 0.12 NVNT b 2462 Ant1 8.39 8.48 98.94 0 0.12 NVNT g 2412 Ant1 5.49 5.54 99.1 0 0.18 NVNT g 2437 Ant1 5.49 5.54 99.1 0 0.18 NVNT g 2462 Ant1 5.49 5.54 99.1 0 0.18 NVNT n20 2412 Ant1 0.1659 0.1695 97.876 0 6.03 NVNT n20 2437 Ant1 0.1659 0.1695 97.876 0 6.03 NVNT n20 2462 Ant1 0.1659 0.1695 97.876 0 6.03 2 / 42 Test Graphs Duty Cycle NVNT b 2412MHz Ant1 Duty Cycle NVNT b 2437MHz Ant1 3 / 42 Duty Cycle NVNT b 2462MHz Ant1 Duty Cycle NVNT g 2412MHz Ant1 4 / 42 Duty Cycle NVNT g 2437MHz Ant1 Duty Cycle NVNT g 2462MHz Ant1 5 / 42 Duty Cycle NVNT n20 2412MHz Ant1 Duty Cycle NVNT n20 2437MHz Ant1 6 / 42 Duty Cycle NVNT n20 2462MHz Ant1 7 / 42 Maximum Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Limit (dBm) Verdict NVNT b 2412 Ant1 15.79 30 Pass NVNT b 2437 Ant1 15.37 30 Pass NVNT b 2462 Ant1 15.61 30 Pass NVNT g 2412 Ant1 14.57 30 Pass NVNT g 2437 Ant1 14.56 30 Pass NVNT g 2462 Ant1 14.85 30 Pass NVNT n20 2412 Ant1 14.04 30 Pass NVNT n20 2437 Ant1 13.81 30 Pass NVNT n20 2462 Ant1 14.36 30 Pass 8 / 42 -6dB Bandwidth Condition Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) Limit -6 dB Bandwidth (MHz) Verdict NVNT b 2412 Ant1 9.05 0.5 Pass NVNT b 2437 Ant1 8.57 0.5 Pass NVNT b 2462 Ant1 9.02 0.5 Pass NVNT g 2412 Ant1 16.2 0.5 Pass NVNT g 2437 Ant1 17.02 0.5 Pass NVNT g 2462 Ant1 16.01 0.5 Pass NVNT n20 2412 Ant1 15.13 0.5 Pass NVNT n20 2437 Ant1 15.14 0.5 Pass NVNT n20 2462 Ant1 15.13 0.5 Pass 9 / 42 Test Graphs -6dB Bandwidth NVNT b 2412MHz Ant1 -6dB Bandwidth NVNT b 2437MHz Ant1 10 / 42 -6dB Bandwidth NVNT b 2462MHz Ant1 -6dB Bandwidth NVNT g 2412MHz Ant1 11 / 42 -6dB Bandwidth NVNT g 2437MHz Ant1 -6dB Bandwidth NVNT g 2462MHz Ant1 12 / 42 -6dB Bandwidth NVNT n20 2412MHz Ant1 -6dB Bandwidth NVNT n20 2437MHz Ant1 13 / 42 -6dB Bandwidth NVNT n20 2462MHz Ant1 14 / 42 Occupied Channel Bandwidth Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) NVNT b 2412 Ant1 13.773 NVNT b 2437 Ant1 13.968 NVNT b 2462 Ant1 13.987 NVNT g 2412 Ant1 17.151 NVNT g 2437 Ant1 17.189 NVNT g 2462 Ant1 17.263 NVNT n20 2412 Ant1 17.823 NVNT n20 2437 Ant1 17.815 NVNT n20 2462 Ant1 17.82 15 / 42 Test Graphs OBW NVNT b 2412MHz Ant1 OBW NVNT b 2437MHz Ant1 16 / 42 OBW NVNT b 2462MHz Ant1 OBW NVNT g 2412MHz Ant1 17 / 42 OBW NVNT g 2437MHz Ant1 OBW NVNT g 2462MHz Ant1 18 / 42 OBW NVNT n20 2412MHz Ant1 OBW NVNT n20 2437MHz Ant1 19 / 42 OBW NVNT n20 2462MHz Ant1 20 / 42 Maximum Power Spectral Density Level Condition Mode Frequency (MHz) Antenna Conducted PSD (dBm/3kHz) Limit (dBm/3kHz) Verdict NVNT b 2412 Ant1 -10 8 Pass NVNT b 2437 Ant1 -10.57 8 Pass NVNT b 2462 Ant1 -10.11 8 Pass NVNT g 2412 Ant1 -10.85 8 Pass NVNT g 2437 Ant1 -11.48 8 Pass NVNT g 2462 Ant1 -10.84 8 Pass NVNT n20 2412 Ant1 -12.17 8 Pass NVNT n20 2437 Ant1 -9.46 8 Pass NVNT n20 2462 Ant1 -11.79 8 Pass 21 / 42 Test Graphs PSD NVNT b 2412MHz Ant1 PSD NVNT b 2437MHz Ant1 22 / 42 PSD NVNT b 2462MHz Ant1 PSD NVNT g 2412MHz Ant1 23 / 42 PSD NVNT g 2437MHz Ant1 PSD NVNT g 2462MHz Ant1 24 / 42 PSD NVNT n20 2412MHz Ant1 PSD NVNT n20 2437MHz Ant1 25 / 42 PSD NVNT n20 2462MHz Ant1 26 / 42 Band Edge Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT b 2412 Ant1 -40.2 -20 Pass NVNT b 2462 Ant1 -53.48 -20 Pass NVNT g 2412 Ant1 -41.21 -20 Pass NVNT g 2462 Ant1 -47.48 -20 Pass NVNT n20 2412 Ant1 -41.44 -20 Pass NVNT n20 2462 Ant1 -49.34 -20 Pass 27 / 42 Test Graphs Band Edge NVNT b 2412MHz Ant1 Ref Band Edge NVNT b 2412MHz Ant1 Emission 28 / 42 Band Edge NVNT b 2462MHz Ant1 Ref Band Edge NVNT b 2462MHz Ant1 Emission 29 / 42 Band Edge NVNT g 2412MHz Ant1 Ref Band Edge NVNT g 2412MHz Ant1 Emission 30 / 42 Band Edge NVNT g 2462MHz Ant1 Ref Band Edge NVNT g 2462MHz Ant1 Emission 31 / 42 Band Edge NVNT n20 2412MHz Ant1 Ref Band Edge NVNT n20 2412MHz Ant1 Emission 32 / 42 Band Edge NVNT n20 2462MHz Ant1 Ref Band Edge NVNT n20 2462MHz Ant1 Emission 33 / 42 Conducted RF Spurious Emission Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT b 2412 Ant1 -47.65 -20 Pass NVNT b 2437 Ant1 -46.05 -20 Pass NVNT b 2462 Ant1 -46.39 -20 Pass NVNT g 2412 Ant1 -36.46 -20 Pass NVNT g 2437 Ant1 -41.59 -20 Pass NVNT g 2462 Ant1 -39.5 -20 Pass NVNT n20 2412 Ant1 -40.99 -20 Pass NVNT n20 2437 Ant1 -39.29 -20 Pass NVNT n20 2462 Ant1 -39.81 -20 Pass 34 / 42 Test Graphs Tx. Spurious NVNT b 2412MHz Ant1 Ref Tx. Spurious NVNT b 2412MHz Ant1 Emission 35 / 42 Tx. Spurious NVNT b 2437MHz Ant1 Ref Tx. Spurious NVNT b 2437MHz Ant1 Emission 36 / 42 Tx. Spurious NVNT b 2462MHz Ant1 Ref Tx. Spurious NVNT b 2462MHz Ant1 Emission 37 / 42 Tx. Spurious NVNT g 2412MHz Ant1 Ref Tx. Spurious NVNT g 2412MHz Ant1 Emission 38 / 42 Tx. Spurious NVNT g 2437MHz Ant1 Ref Tx. Spurious NVNT g 2437MHz Ant1 Emission 39 / 42 Tx. Spurious NVNT g 2462MHz Ant1 Ref Tx. Spurious NVNT g 2462MHz Ant1 Emission 40 / 42 Tx. Spurious NVNT n20 2412MHz Ant1 Ref Tx. Spurious NVNT n20 2412MHz Ant1 Emission 41 / 42 Tx. Spurious NVNT n20 2437MHz Ant1 Ref Tx. Spurious NVNT n20 2437MHz Ant1 Emission 42 / 42 Tx. Spurious NVNT n20 2462MHz Ant1 Ref Tx. Spurious NVNT n20 2462MHz Ant1 Emission

1 / 22 Duty Cycle Condition Mode Frequency (MHz) Antenna On Time (ms) Period (ms) Duty Cycle (%) Correction Factor (dB) 1/T (kHz) NVNT BLE 1M 2402 Ant1 0.41 0.63 65.08 1.87 2.46 NVNT BLE 1M 2440 Ant1 0.41 0.63 65.08 1.87 2.46 NVNT BLE 1M 2480 Ant1 0.42 0.63 66.67 1.76 2.39 2 / 22 Test Graphs Duty Cycle NVNT BLE 1M 2402MHz Ant1 Duty Cycle NVNT BLE 1M 2440MHz Ant1 3 / 22 Duty Cycle NVNT BLE 1M 2480MHz Ant1 4 / 22 Maximum Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Limit (dBm) Verdict NVNT BLE 1M 2402 Ant1 -0.38 30 Pass NVNT BLE 1M 2440 Ant1 -0.2 30 Pass NVNT BLE 1M 2480 Ant1 0.74 30 Pass 5 / 22 Test Graphs Power NVNT BLE 1M 2402MHz Ant1 Power NVNT BLE 1M 2440MHz Ant1 6 / 22 Power NVNT BLE 1M 2480MHz Ant1 7 / 22 -6dB Bandwidth Condition Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) Limit -6 dB Bandwidth (MHz) Verdict NVNT BLE 1M 2402 Ant1 0.67 0.5 Pass NVNT BLE 1M 2440 Ant1 0.68 0.5 Pass NVNT BLE 1M 2480 Ant1 0.7 0.5 Pass 8 / 22 Test Graphs -6dB Bandwidth NVNT BLE 1M 2402MHz Ant1 -6dB Bandwidth NVNT BLE 1M 2440MHz Ant1 9 / 22 -6dB Bandwidth NVNT BLE 1M 2480MHz Ant1 10 / 22 Occupied Channel Bandwidth Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) NVNT BLE 1M 2402 Ant1 1.03 NVNT BLE 1M 2440 Ant1 1.034 NVNT BLE 1M 2480 Ant1 1.036 11 / 22 Test Graphs OBW NVNT BLE 1M 2402MHz Ant1 OBW NVNT BLE 1M 2440MHz Ant1 12 / 22 OBW NVNT BLE 1M 2480MHz Ant1 13 / 22 Maximum Power Spectral Density Level Condition Mode Frequency (MHz) Antenna Conducted PSD (dBm/3kHz) Limit (dBm/3kHz) Verdict NVNT BLE 1M 2402 Ant1 -15.92 8 Pass NVNT BLE 1M 2440 Ant1 -15.84 8 Pass NVNT BLE 1M 2480 Ant1 -14.65 8 Pass 14 / 22 Test Graphs PSD NVNT BLE 1M 2402MHz Ant1 PSD NVNT BLE 1M 2440MHz Ant1 15 / 22 PSD NVNT BLE 1M 2480MHz Ant1 16 / 22 Band Edge Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT BLE 1M 2402 Ant1 -46.45 -20 Pass NVNT BLE 1M 2480 Ant1 -45.39 -20 Pass 17 / 22 Test Graphs Band Edge NVNT BLE 1M 2402MHz Ant1 Ref Band Edge NVNT BLE 1M 2402MHz Ant1 Emission 18 / 22 Band Edge NVNT BLE 1M 2480MHz Ant1 Ref Band Edge NVNT BLE 1M 2480MHz Ant1 Emission 19 / 22 Conducted RF Spurious Emission Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT BLE 1M 2402 Ant1 -42.45 -20 Pass NVNT BLE 1M 2440 Ant1 -41.46 -20 Pass NVNT BLE 1M 2480 Ant1 -42.13 -20 Pass 20 / 22 Test Graphs Tx. Spurious NVNT BLE 1M 2402MHz Ant1 Ref Tx. Spurious NVNT BLE 1M 2402MHz Ant1 Emission 21 / 22 Tx. Spurious NVNT BLE 1M 2440MHz Ant1 Ref Tx. Spurious NVNT BLE 1M 2440MHz Ant1 Emission 22 / 22 Tx. Spurious NVNT BLE 1M 2480MHz Ant1 Ref Tx. Spurious NVNT BLE 1M 2480MHz Ant1 Emission

TRF No.: 04-E001-0B TRF Originator: GTG TRF Date: 2023-12-13 Web: www.gtggroup.com E-mail: [email protected] Tel.: 86-400 755 8988 CFR 47 FCC PART 15 SUBPART C(DTS) TEST REPORT For Outdoor lamp MODEL NUMBER: 003302, 356-1399, DJ25088-BK REPORT NUMBER: E04A25110728F00101 ISSUE DATE: December 9, 2025 FCC ID: 2AENY-356-1399 Prepared for Luminex International Co., Ltd 5F, No.30, Yee Shien Rd.,Taipei,Taiwan Prepared by Guangdong Global Testing Technology Co., Ltd. Room 101-105, 203-210, Building 1, No.2, Keji 8 Road, Songshan Lake Park, Dongguan city, Guangdong, People’s Republic of China, 523808 This report is based on a single evaluation of the submitted sample(s) of the above mentioned product, it does not imply an assessment of the production of the products. This report shall not be reproduced, except in full, without the written approval of Guangdong Global Testing Technology Co., Ltd. REPORT NO.: E04A25110728F00101 Page 2 of 40 TRF No.: 04-E001-0B Global Testing , Great Quality. Revision History Rev. Issue Date Revisions Revised By V0 December 9, 2025 Initial Issue REPORT NO.: E04A25110728F00101 Page 3 of 40 TRF No.: 04-E001-0B Global Testing , Great Quality. Summary of Test Results Test Item Limit/Requirement Result Antenna Requirement FCC Part 15.203/15.247 (c) Pass AC Power Line Conducted Emission FCC Part 15.207 Pass Conducted Output Power FCC Part 15.247 (b)(3) Pass 6dB Bandwidth and 99% Occupied Bandwidth FCC Part 15.247 (a)(2) Pass Power Spectral Density FCC Part 15.247 (e) Pass Conducted Band edge and spurious emission FCC Part 15.247(d) Pass Radiated Band edge and Spurious Emission FCC Part 15.205/15.209 Pass Duty Cycle None; for reporting purposes only. Pass Note: 1. N/A: In this whole report not applicable. *This test report is only published to and used by the applicant, and it is not for evidence purpose in China. *The measurement result for the sample received is <Pass> according to <CFR 47 FCC PART 15 SUBPART C(DTS)> when <Accuracy Method> decision rule is applied. REPORT NO.: E04A25110728F00101 Page 4 of 40 TRF No.: 04-E001-0B Global Testing , Great Quality. CONTENTS 1. ATTESTATION OF TEST RESULTS ..................................................................................... 5 2. TEST METHODOLOGY ......................................................................................................... 6 3. FACILITIES AND ACCREDITATION ..................................................................................... 6 4. CALIBRATION AND UNCERTAINTY ................................................................................... 7 4.1. MEASURING INSTRUMENT CALIBRATION ........................................................... 7 4.2. MEASUREMENT UNCERTAINTY ............................................................................ 7 5. EQUIPMENT UNDER TEST .................................................................................................. 8 5.1. DESCRIPTION OF EUT ........................................................................................... 8 5.2. CHANNEL LIST ........................................................................................................ 8 5.3. MAXIMUM CONDUCTED OUTPUT POWER ........................................................... 9 5.4. TEST CHANNEL CONFIGURATION ........................................................................ 9 5.5. THE WORSE CASE POWER SETTING PARAMETER ............................................ 9 5.6. DESCRIPTION OF AVAILABLE ANTENNAS ......................................................... 10 5.7. SUPPORT UNITS FOR SYSTEM TEST ................................................................. 10 5.8. SETUP DIAGRAM .................................................................................................. 10 6. MEASURING EQUIPMENT AND SOFTWARE USED......................................................... 11 7. ANTENNA PORT TEST RESULTS ..................................................................................... 13 7.1. Conducted Output Power ........................................................................................ 13 7.2. 6dB Bandwidth and 99% Occupied Bandwidth ....................................................... 14 7.3. Power Spectral Density ........................................................................................... 16 7.4. Conducted Band edge and spurious emission ........................................................ 17 7.5. Duty Cycle .............................................................................................................. 19 8. RADIATED TEST RESULTS ............................................................................................... 20 8.1. Radiated Band edge and Spurious Emission .......................................................... 25 9. ANTENNA REQUIREMENT ................................................................................................ 37 10. AC POWER LINE CONDUCTED EMISSION ......................................................... 38 REPORT NO.: E04A25110728F00101 Page 5 of 40 TRF No.: 04-E001-0B Global Testing , Great Quality. 1. ATTESTATION OF TEST RESULTS Applicant Information Company Name: Luminex International Co., Ltd Address: 5F, No.30, Yee Shien Rd.,Taipei,Taiwan Manufacturer Information Company Name: DongGuan City Rising Stars Lighting Co., LTD Address: YuanQuan Road No.6 BaiHao Village HouJie Town DongGuan City GuangDong Province EUT Information Product Description: Outdoor lamp Model: 356-1399 Series Model: 003302, DJ25088-BK Brand: VAXCEL, Luminex, Patriot lighting.Dualux Sample Received Date: November 18, 2025 Sample Status: Normal Sample ID: A25110728 001 Date of Tested: November 18, 2025 to December 8, 2025 APPLICABLE STANDARDS STANDARD TEST RESULTS CFR 47 FCC PART 15 SUBPART C(DTS) Pass Prepared By: Checked By: Jok Yang Alan He Project Engineer Laboratory Leader Approved By: Shawn Wen Laboratory Manager REPORT NO.: E04A25110728F00101 Page 6…

Text truncated - open the document above for the full version.

TRF No.: 04-E001-0B TRF Originator: GTG TRF Date: 2023-12-13 Web: www.gtggroup.com E-mail: [email protected] Tel.: 86-400 755 8988 CFR 47 FCC PART 15 SUBPART C(DTS) TEST REPORT For Outdoor lamp MODEL NUMBER: 003302, 356-1399, DJ25088-BK REPORT NUMBER: E04A25110728F00102 ISSUE DATE: December 9, 2025 FCC ID: 2AENY-356-1399 Prepared for Luminex International Co., Ltd 5F, No.30, Yee Shien Rd.,Taipei,Taiwan Prepared by Guangdong Global Testing Technology Co., Ltd. Room 101-105, 203-210, Building 1, No.2, Keji 8 Road, Songshan Lake Park, Dongguan city, Guangdong, People’s Republic of China, 523808 This report is based on a single evaluation of the submitted sample(s) of the above mentioned product, it does not imply an assessment of the production of the products. This report shall not be reproduced, except in full, without the written approval of Guangdong Global Testing Technology Co., Ltd. REPORT NO.: E04A25110728F00102 Page 2 of 40 TRF No.: 04-E001-0B Global Testing , Great Quality. Revision History Rev. Issue Date Revisions Revised By V0 December 9, 2025 Initial Issue REP…

Text truncated - open the document above for the full version.
