2AENYVX21301Fixed Luminaires

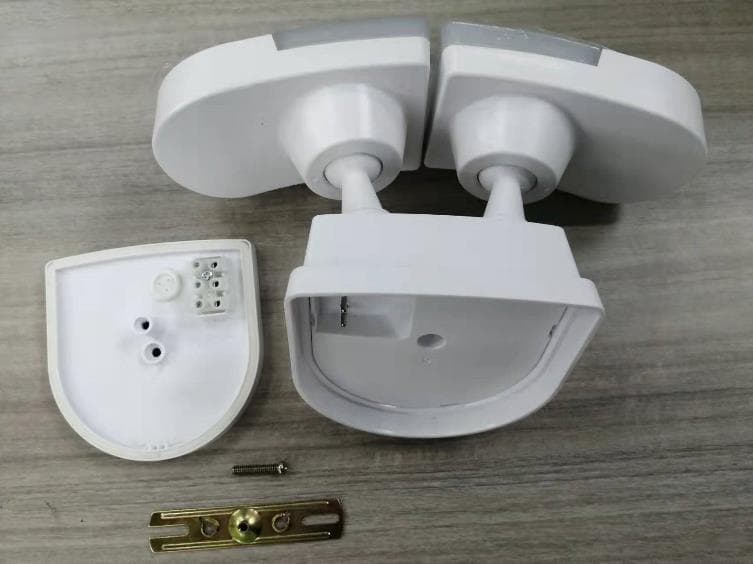

Page 1 / 4 211221 Important to Know: 1. If you are not familiar with state and local electrical codes, it is recommended that you consult with a qualified electrician. 2. This fixture requires a 120 VAC, 60 Hz power source. 3. For general safety and to avoid any possible damage to the sensor, be sure the power is switched "off" before adjustment. Maximum Wattage: 32 W Working Temperature Range: -13°F ~ 113°F ASSEMBLY AND INSTALLATION INSTRUCTIONS NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements. 2. READ AND SAVE THESE INSTRUCTIONS. T0626/T0627 Features: WARNING: TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE. Note: Fixture can be wall mounted or eave mounted. Wall Mounted Eave Mounted 1. Energy saving LED fixture. 2. Motion sensor: turns light ON automatically when motion is detected and turns light OFF automatically when motion stops. 3. Photocell keeps the light OFF during daylight hours. 4. When in manual override mode, use wall switch to change the function and perform the function conversion. Hardware Package (included): Mounting Screw X2 #8/32X1/2 in Fixture Mounting Screw Mounting Strap Wire Connector X3 Mounting Screw X2 #6/32 X1/2 in Mounting Screw X2 #10/24 X1/4 in Decorative cover Sensor Backplate Light Fixture Fixture Mounting Screw Decorative cover Mounting Bracket Mounting Strap Outlet Box Mounting Screw FRONT VX21301W / VX21301BZ Choose a mode by rotating the switch on the bottom of the sensor of the fixture. (See Fig.4) Note: When power is first applied, the light will be on and warm up lasts 30 seconds. 1. Switch Control Mode (No network,No Linkage) ● In "Switch Control"Mode,the light turn on 100% brightness and pre-selected CCT color(2700K~5000K). ● In "Switch Control"Mode,turn the wall switch “OFF" then turn it "ON" twice within 3 seconds,the light switch 100% brightness to 30% brightness and pre-selected CCT color(2700k~5000k).To shift back 100% brightness ,turn on "OFF" and "ON" within 3 seconds again. ● Power off for 5 seconds,then turn on the light,which will return to 100% brightness. 2. Motion Link Mode ● In "Motion Link" Mode,the light will be on 30% brightness and 2700k CCT color. When the light receive the motion signal: In daytine,the Motion light will turn off due to the Photo sensor, and also send a signal to motion link mode light for turning off. Dusk Early Evening: Receive Motion Light signal and turn on the light (Low Level 30% 2700K CCT). Motion Detection: Receive Motion Light signal and turn on the light (High Levek 100% 5000K CCT). Dawn Morning: Receive Motion Light signal and turn off the light (perform same as motion light). 3. Not Link ● Press and hold the Link button on the body of light for 3 seconds,the light will flash 3 times to exit linkage. ● In RF Link State,shift the switch from Motion Link Mode to Switch Control Mode,the light will return to Switch Control function. Page 2 / 4 Installation Steps Turn off the power at fuse or circuit box. Turn on the power at the main fuse or circuit breaker box. Adjusting the Light Head: 1. Gently grasp the light heads and tilt them up or down, left or right to adjust the light coverage area. Keep the light heads at least 1 ̋ (25mm) away from the sensor.(See Fig. 4) 2. Keep the light heads 30 ̊ below horizontal to avoid water damage and electrical shock. Fig. 4 1. The fixture mounting bracket is pre-assembled on the light fixture. Unscrew both the decorative cover and the fixture mounting screw in order to remove the mounting bracket. 2. Install the mounting strap to the outlet box with the stamped word “FRONT” facing away from the outlet box, using two mounting screws that best fit the outlet box. Mounting bracket should sit flush against wall surface when secured. (Choose one matching pair of suitable mounting screws from the 3 pairs provided). 3. Pull out the source wires from the outlet box.Connect the black wire from the outlet box to the "L" interface of the terminal station on the mounting bracket. Connect the white wire from the outlet box to the "N" interface of the terminal station on the mounting bracket. Carefully tuck the wires back into the outlet box. 4. Place mounting bracket against the outlet box, insert the mounting bracket screw through the mounting bracket hole, thread mounting bracket screw into the center hole of the mounting strap. Tighten the mounting bracket screw securely. 5. Attach the backplate of the light fixture to the mounting fixture mounting screw. Then push the decorative cover firmly into the fixture mounting screw hole on the light fixture. 6. With silicone caulking compound, caulk completely around where the back plate meets the wall surface. CAUTION: Be sure to caulk completely where the back plate meets the wall surface to prevent water from seeping into the outlet box. 211221 4. RF Linking Network Setup From all the light units, select one as the main unit and the others as the sub-units; First to setup all the sub-units by press the Link button twice within 3 seconds, the sub-units will flash once every 1 second meaning it is waiting to receive matching signal from the main light. Then to setup the main unit by press and hold the Link button for 5 seconds, the main unit will flash slowly (once every 3 seconds), and when the sub-units have paired with the signal, the sub-units will stop flashing confirming it have paired with the main unit. (if pairing not successful, the sub-unit will keep flashing). When all the sub-units have stop flashing, press the Link button on the main unit once to complete the pairing process. (the main unit will stop flashing) After complete the pairing process, any light within the Link group range can send or receive the photo sensor or motion sensor signal from the other light and response accordingly. Note: Maximum link up to 10 units per link group, each light can link within 120ft apart. 5. Unlink the unit from the Link Group…

Text truncated - open the document above for the full version.

LABEL AREA FCC ID: 2AENYVX21301 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 85mm 44mm

Intertek Testing Services Shenzhen Ltd. Guangzhou Branch Room 02, & 101/E201/E301/E401/E501/E601/E701/E801 of Room 01 1-8/F., No. 7-2. Caipin Road, Science City, GETDD, Guangzhou, Guangdong, China Job No.: 210817171G ZU FCC ID: 2AENYVX21301 Version: 08 July 2020 Page 1 of 1 FCC RF Exposure-Portable RF Exposure Compliance Requirement Model no.: VX21301W,T0626,VX21110BZ, T0627 The product belongs to standalone portable device base the FCC rule part 2.1091&2.1093. The transmission frequencies of the device are between 100 MHz and 6 GHz. The worst case test separation distance is 5mm. The Max Conducted Output Power and SAR Test Exclusion Threshold (mW) are listed below: Transmit frequency (GHz) Max Conducted Output Power (dBm) Max Conducted Output Power (mW) SAR Test Exclusion Threshold (mW) 2.402-2.480 -1.89 0.65 9.5 The SAR Test Exclusion Threshold is calculated from: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR ⚫ f(GHz) is the RF channel transmit frequency in GHz ⚫ Power and distance are rounded to the nearest mW and mm before calculation17 ⚫ The result is rounded to one decimal place for comparison According to SAR Exclusion Threshold in KDB 447498 (D01) General RF Exposure Guidance v06, the SAR report is not required. Test Location: Intertek Testing Services Shenzhen Ltd. Guangzhou Branch All tests were performed at: Room102/104, No 203, KeZhu Road, Science City, GETDD Guangzhou, China

Luminex International Co.,Ltd TEST REPORT SCOPE OF WORK EMC TESTING–VX21301W,T0626,VX21301BZ,T0627 REPORT NUMBER 210817171G ZU-006 ISSUE DATE [REVISED DATE] 15-February-2022 [--------------------] PAGES 39 DOCUMENT CONTROL NUMBER FCC BT 4.0-e © 2017 INTERTEK TEST REPORT Room 02, & 101/E201/E301/ E401/E501/E601/E701/E801 of Room 01 1-8/F., No. 7-2. Caipin Road, Science City, GETDD, Guangzhou, Guangdong, China Telephone: +86 20 8213 9688 Facsimile: +86 20 3205 7538 www.intertek.com.cn This report is for the exclusive use of Intertek's Client and is provide d pursuant to the agreement between Intertek and its Clien t. Intertek's responsibi lity an d liabi lity are limi ted to the terms and co ndi tions of the agreement. Intertek assumes no l iabil ity to any party, other than to the Clien t in acc ordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Clien t is au thorized to permit copying or d istribution of this report and then only in its e ntirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, produ ct or service must f irst be a pproved in writing by Intertek. The observations and test results in th is report are relevant only to the sample teste d. This report by itself does not im ply tha t the material, product, or service is or has ever been under an Intertek certif icati on program. Intertek Testing Services Shenzhen Ltd. Guangzhou Branch Room 02, & 1 01/E201/E301/E401/E501/E601/E701/E801 of Room 01 1-8/F., No. 7-2. Caip in Road, Science Ci ty, GETDD, Guangzhou, Guangdong, China Version: 03 September 2021 Page 2 of 39 FCC BT 4.0-e Applicant Name & Address : Luminex International Co.,Ltd 5F, No. 30, Yee Shien Rd, TAIPEI CITY 110, Taiwan (Greater China) Manufacturing Site : Site1: Living Style Enterprises Limited Room 101, Building 2, No. 46, Huangtang Road, Xinsi, Hengli Town, DONGGUAN CITY, Guangdong, China Site2: Sheng Jay Automation Technologies No. 12, Wulin Street, Shulin District,NEW TAIPEI CITY 238, Taiwan(Greater China) Intertek Report No: FCC ID: 210817171GZU-006 2AENYVX21301 Test standards 47 CFR PART 15 Subpart C: 2020 section 15.247 Sample Description Product : Fixed Luminaires Model No. : VX21301W,T0626,VX21301BZ,T0627 Electrical Rating : 120VAC, 60Hz Serial No. : Not Labeled Date Received : 17 August 2021 Date Test Conducted : 25 December 2021-30 December 2021 Prepared and Checked By Elena Lei Engineer Approved By: Dean Liu Project Engineer TEST REPORT Intertek Report No.: 210817171GZU-006 Version: 03 September 2021 Page 3 of 39 FCC BT 4.0-e CONTENT TEST REPORT ....................................................................................................................1 CONTENT......................................................................................................................3 1.0 TEST RESULT SUMMARY......................................................................................4 2.0 GENERAL DESCRIPTION .......................................................................................5 2.1 PRODUCT DESCRIPTION ........................................................................................5 2.2 RELATED SUB MITTAL(S) GRANTS ..............................................................................5 2.3 TEST METH ODOLOG Y ...........................................................................................5 2.4 TEST FACILITY ....................................................................................................6 3.0 SYSTEM TEST CONFIGURATION ............................................................................6 3.1 JUSTIFICATION ...................................................................................................6 3.2 EUT EXERCISING SOFTW ARE...................................................................................7 3.3 SPECIAL ACCESSORIES...........................................................................................7 3.4 MEASUR EMEN T UNCERTAINTY ................................................................................7 3.5 EQUIPMENT MODIFICATION ...................................................................................8 3.6 SUPPORT EQUIP MEN T LIST AND DESCRIPTION...............................................................8 4.0 MEASUREMENT RESULTS ....................................................................................9 4.1 ANTEN NA REQUIREMEN T ......................................................................................9 4.2 6 DB BANDWIDTH (DTS BANDWIDTH) ..................................................................... 10 4.3 MAXIMUM PEAK CONDUCTED OUTPUT POW ER .......................................................... 13 4.4 PEAK POW ER SPECTR AL DENSITY............................................................................ 16 4.5 OUT OF BAND CONDUCTED EMISSI ONS .................................................................... 19 4.6 OUT OF BAND RADIATED EMISSI ONS ....................................................................... 22 4.7 RADIATED EMISSIONS IN RESTRICTED BANDS .............................................................. 22 4.8 BAND EDGES REQUIREMEN T................................................................................. 34 4.9 CONDUCTED EMISSION TEST................................................................................. 36 5.0 TEST EQUIPMENT LIST ...................................................................................... 39 TEST REPORT Intertek Report No.: 210817171GZU-006 Version: 03 September 2021 Page 4 of 39 FCC BT 4.0-e 1.0 TEST RESULT SUMMARY Test Item Test Requirement Test Method Result Antenna Requirement FCC PART 15 C section 15.247 (c) and Section 15.203 FCC PART 15 C section 15.247 (c) and Section 15.203 PASS 6 dB Bandwidth (DTS bandwidth) FCC PART 15 C section 15.247 (a)(2) ANSI C63.10: Clause 11.8 PASS Maximum Peak Conducted Outpu…

Text truncated - open the document above for the full version.

Note:EUT is positioned at the center of the turntable to keep 3 m between the measurement antenna and EUT for the radiated emissions measurements Radiated Emission (Below 1G) Radiated Emission (Above 1GHz) Conducted Emissions at Mains Terminals
