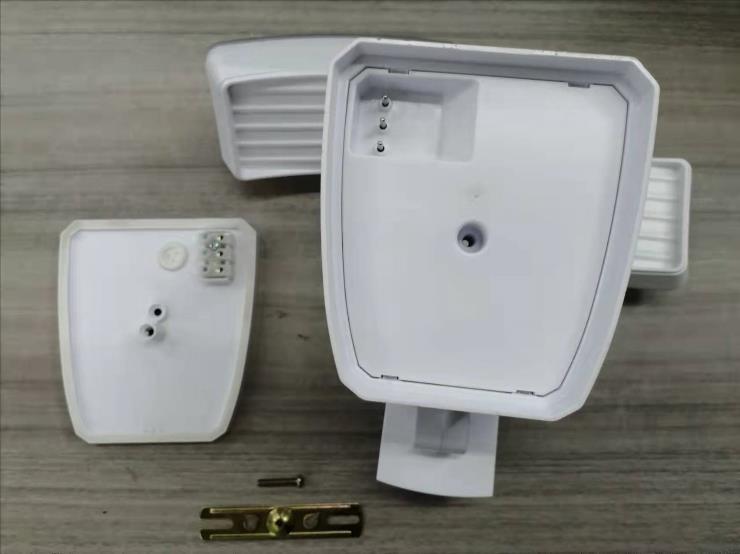

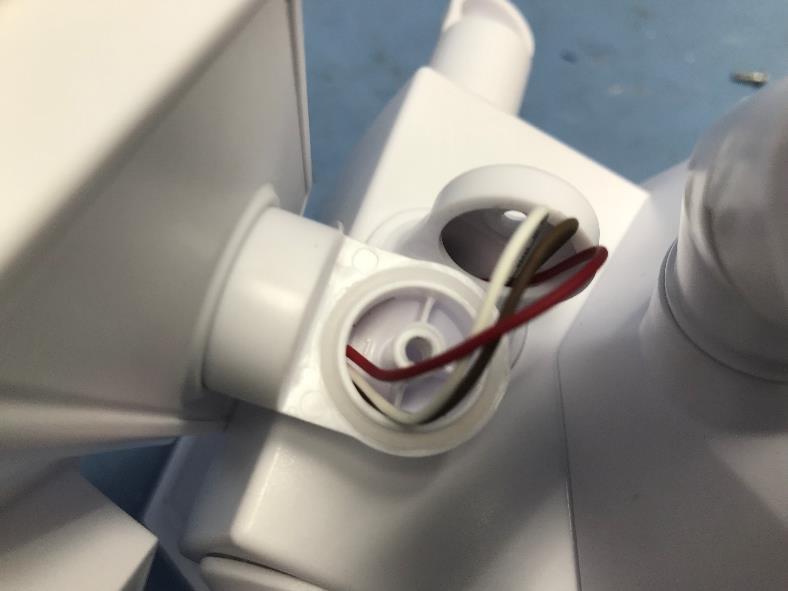

2AENYVX21111Fixed Luminaires

Important to Know: 1. If you are not familiar with state and local electrical codes, it is recommended that you consult with a qualified electrician. 2. This fixture requires a 120 VAC, 60 Hz power source. 3. For general safety and to avoid any possible damage to the sensor, be sure the power is switched "off" before adjustment. Maximum Wattage: 35 W Working Temperature Range: --13°F ~ 113°F ASSEMBLY AND INSTALLATION INSTRUCTIONS NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements. 2. READ AND SAVE THESE INSTRUCTIONS. T0620 / T0621 VX21111W / VX21111BZ Features: WARNING: TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE. Note: Fixture can be wall mounted or eave mounted. Wall Mounted Eave Mounted Read notes section on page.4 for additional information about mounting location of fixture. Light fixture and sensor should be mounted as shown above when installed (depending upon type of installation) Before installing the light fixture under an eave, the sensor head must be rotated as shown in the next two steps for proper operation and to avoid the risk of electrical shock. For eave mounted only: Swing the sensor head towards the mounting bracket. 5RWDWHWKHVHQVRUKHDGFORFNZLVHÛVRWKHFRQWUROVIDFHGRZQ Controls Controls Controls 1. Energy saving LED fixture. 2. Motion sensor: turns light ON automatically when motion is detected and turns light OFF automatically when motion stops. 3. Photocell keeps the light OFF during daylight hours. 4. When in manual override mode, use wall switch to change the function and perform the function conversion. Hardware Package (included): Mounting Screw X2 #8/32X1/2 in Mounting Strap Backplate Mounting Screw X2 #6/32 X1/2 in Mounting Screw X2 #10/24 X1/4 in Fixture Mounting Screw Decorative cover Page 1 / 17 211231 Installation Steps Adjusting the Sensor Head: 1. Aim sensor head toward desired detection area, maintaining a 5° - 40° downward angle to allow moisture to drain. Note: Make sure sensor head is positioned with control knob facing towards the ground. 2. You can rotate the sensor head up and down to change the coverage area. (See Fig. 1) Note: Range set too high may increase false triggering. (See Fig. 2 and Fig. 3) Turn off the power at fuse or circuit box. Turn on the power at the main fuse or circuit breaker box. sensor Fig. 1 Page 2 / 17 Sensor Backplate Light Fixture Fixture Mounting Screw Decorative cover Mounting Strap Outlet Box Mounting Screw Mounting Bracket FRONT 1. The fixture mounting bracket is pre-assembled on the light fixture. Unscrew both the decorative cover and the fixture mounting screw in order to remove the mounting bracket. 2. Install the mounting strap to the outlet box with the stamped word “FRONT” facing away from the outlet box, using two mounting screws that best fit the outlet box. Mounting bracket should sit flush against wall surface when secured. (Choose one matching pair of suitable mounting screws from the 3 pairs provided). 3. Pull out the source wires from the outlet box.Connect the black wire from the outlet box to the "L" interface of the terminal station on the mounting bracket. Connect the white wire from the outlet box to the "N" interface of the terminal station on the mounting bracket. Carefully tuck the wires back into the outlet box. 4. Place mounting bracket against the outlet box, insert the mounting bracket screw through the mounting bracket hole, thread mounting bracket screw into the center hole of the mounting strap. Tighten the mounting bracket screw securely. 5. Attach the backplate of the light fixture to the mounting fixture mounting screw. Then push the decorative cover firmly into the fixture mounting screw hole on the light fixture. 6. With silicone caulking compound, caulk completely around where the back plate meets the wall surface. CAUTION: Be sure to caulk completely where the back plate meets the wall surface to prevent water from seeping into the outlet box. 211231 Sensor Adjustment Lower For Short Coverage Sensor Adjustment Higher For Long Coverage Fig. 4 1. Gently grasp the light heads and tilt them up or down, left or right to DGMXVWWKHOLJKWFRYHUDJHDUHD.HHSWKHOLJKWKHDGVDWOHDVWÝ PP  away from the sensor.(See Fig. 4) 2. .HHSWKHOLJKWKHDGVÛEHORZKRUL]RQWDOWRDYRLGZDWHUGDPDJHDQG electrical shock. Fig. 2 Fig. 3 Adjusting the Light Head: Sensitivity of Motion Sensor: 1. You can adjust the sensitivity of the motion sensor by using the “Sens” selector located on the bottom surface of the sensor. 2. Adjust motion sensor sensitivity to HIGH (H), MEDIUM (M), or LOW (L) to achieve desired performance. 3. Approximate range for each setting: 30 ft. (L), 50 ft. (M), 70 ft. (H). Choose a mode by sliding the switch on the bottom of the sensor. (See Fig.5) Note: When power is first applied, the light will turn on to 100% brightness. The sensor will take 30 seconds to warm up. 1. TEST MODE (daytime and nighttime operation.) Ɣ6OLGHWKH7LPHVZLWFKWKH³7HVW ́SRVLWLRQ Ɣ7KHOLJKWWXUQVWRKLJKOHYHOEULJKWQHVV . ZKHQPRWLRQLVGHWHFWHGDQGVWD\VRQDVORQJDVWKHPRWLRQ continues. Then it revert back to 2700K CCT Color and the low-level brightness (0~50%) as per setting about 5 seconds after motion is no longer detected. 2. AUTO MODE (nighttime operation only) Ɣ7R³$872 ́PRGH slide the Time switch to the desired time setting (30s/1min/3min). At dusk, the light turns on to pre-selected low-level brightness (2700K). When motion is detected, the light turns to high-level brightness (5000K) and stays on as long as motion continues. When the motion is no longer detected, the light at high-level brightness (5000K) remains on for the predetermined time you set (30s/1min/3min), then switches back to pre-selected low-level brightness (2700K) automatically. Ɣ7KHOLJKWWXUQVRIIDXWRPDWLFDOO\DWGDZQ Note: You can adjust the low-level brightn…

Text truncated - open the document above for the full version.

FCC ID: 2AENYVX21111 Contains FCC ID: 2ACSVHF-LPT270 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. LABEL AREA 91mm 41mm

Intertek Testing Services Shenzhen Ltd. Guangzhou Branch Room 02, & 101/E201/E301/E401/E501/E601/E701/E801 of Room 01 1-8/F., No. 7-2. Caipin Road, Science City, GETDD, Guangzhou, Guangdong, China Job No.: 210817171GZU FCC ID: 2AENYVX21111 Version: 06 November 2020 Page 1 of 3 FCC simultaneously transmitter-Mobile (MPE) RF Exposure Compliance Requirement Model no.: VX21111W,T0620,VX21111BZ,T0621 1. Standard requirement Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2m normally can be maintained between the user and the device. (a) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S)(mW/cm 2 ) Averaging Times ׀E׀ 2 ׀, H׀ 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f 2 )* 6 30-300 61.4 0.163 1.0 6 300-1500 -- -- f/300 6 1500-100000 -- -- 5 6 (b) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S)(mW/cm 2 ) Averaging Times ׀E׀ 2 ׀,H׀ 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f 2 )* 30 30-300 27.5 0.073 0.2 30 300-1500 -- -- F/1500 30 1500-100000 -- -- 1.0 30 Note: f=frequency in MHz; *Plane-wave equivalent power density Intertek Testing Services Shenzhen Ltd. Guangzhou Branch Room 02, & 101/E201/E301/E401/E501/E601/E701/E801 of Room 01 1-8/F., No. 7-2. Caipin Road, Science City, GETDD, Guangzhou, Guangdong, China Job No.: 210817171GZU FCC ID: 2AENYVX21111 Version: 06 November 2020 Page 2 of 3 FCC simultaneously transmitter-Mobile (MPE) 2. MPE Calculation Method E (V/m)=(30*P*G) 0.5 /d Power Density: Pd(W/m 2 )=E 2 /377 E=Electric Field (V/m) P=Peak RF output Power (W) G=EUT Antenna numeric gain (numeric) d= Separation distance between radiator and human body (m) The formula can be changed to Pd= (30*P*G)/(377*d 2 ) From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. 3. Calculated Result and Limit 2.4G: Peak Output Power = -1.89dBm(max.value declared by client),antenna gain = -1dBi(declared by client) Frequency (MHz) Antenna Gain (Numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 2410-2450 0.79 -1.89 0.65 0.00010 1 Complies MPE ratio: 0.0001 (mW/cm2)/1(mW/cm2) = 0.0001 The WIFI+BLE module(HF-LP270),Peak Output Power According to FCC ID: 2ACSVHF-LPT270 Report No. : RSHD201021002-00A WIFI: Peak Output Power = 20.5dBm (max.value declared by client), antenna gain = 2dBi(declared by client) Frequency (MHz) Antenna Gain (Numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 2412-2462 1.58 20.5 112.20 0.03538 1 Complies MPE ratio: 0.03538(mW/cm 2 )/1(mW/cm 2 ) = 0.03538 Intertek Testing Services Shenzhen Ltd. Guangzhou Branch Room 02, & 101/E201/E301/E401/E501/E601/E701/E801 of Room 01 1-8/F., No. 7-2. Caipin Road, Science City, GETDD, Guangzhou, Guangdong, China Job No.: 210817171GZU FCC ID: 2AENYVX21111 Version: 06 November 2020 Page 3 of 3 FCC simultaneously transmitter-Mobile (MPE) Bluetooth: Peak Output Power = 15.0dBm(max.value declared by client), antenna gain = 2dBi(declared by client) Frequency (MHz) Antenna Gain (Numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 2402 1.58 15.0 31.62 0.00997 1 Complies MPE ratio: 0.00997(mW/cm 2 )/1(mW/cm 2 ) = 0.00997 Sum of the MPE ratio for all simultaneously transmitting antennas: 0.0001+0.03538+0.00997= 0.04545< 1 According to MPE test Exclusion condition in KDB 447498 (D01) General RF Exposure Guidance D01 v06, the MPE report is not required. Test Location: Intertek Testing Services Shenzhen Ltd. Guangzhou Branch All tests were performed at: Room102/104, No 203, KeZhu Road, Science City, GETDD Guangzhou, China

Luminex International Co.,Ltd TEST REPORT SCOPE OF WORK EMC TESTING–VX21111W,T0620,VX21111BZ,T0621 REPORT NUMBER 210817171G ZU-008 ISSUE DATE [REVISED DATE] 15-February-2022 [--------------------] PAGES 39 DOCUMENT CONTROL NUMBER FCC BT 4.0-e © 2017 INTERTEK TEST REPORT Room 02, & 101/E201/E301/ E401/E501/E601/E701/E801 of Room 01 1-8/F., No. 7-2. Caipin Road, Science City, GETDD, Guangzhou, Guangdong, China Telephone: +86 20 8213 9688 Facsimile: +86 20 3205 7538 www.intertek.com.cn This report is for the exclusive use of Intertek's Client and is provide d pursuant to the agreement between Intertek and its Clien t. Intertek's responsibi lity an d liabi lity are limi ted to the terms and co ndi tions of the agreement. Intertek assumes no l iabil ity to any party, other than to the Clien t in acc ordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Clien t is au thorized to permit copying or d istribution of this report and then only in its e ntirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, produ ct or service must f irst be a pproved in writing by Intertek. The observations and test results in th is report are relevant only to the sample teste d. This report by itself does not im ply tha t the material, product, or service is or has ever been under an Intertek certif icati on program. Intertek Testing Services Shenzhen Ltd. Guangzhou Branch Room 02, & 1 01/E201/E301/E401/E501/E601/E701/E801 of Room 01 1-8/F., No. 7-2. Caip in Road, Science Ci ty, GETDD, Guangzhou, Guangdong, China Version: 03 September 2021 Page 2 of 39 FCC BT 4.0-e Applicant Name & Address : Luminex International Co.,Ltd 5F, No. 30, Yee Shien Rd, TAIPEI CITY 110, Taiwan (Greater China) Manufacturing Site : Site1: Living Style Enterprises Limited Room 101, Building 2, No. 46, Huangtang Road, Xinsi, Hengli Town, DONGGUAN CITY, Guangdong, China Site2: Sheng Jay Automation Technologies No. 12, Wulin Street, Shulin District,NEW TAIPEI CITY 238, Taiwan(Greater China) Intertek Report No: FCC ID: 210817171GZU-008 2AENYVX21111 Test standards 47 CFR PART 15 Subpart C: 2020 section 15.247 Sample Description Product : Fixed Luminaires Model No. : VX21111W,T0620,VX21111BZ, T0621 Electrical Rating : 120VAC, 60Hz Serial No. : Not Labeled Date Received : 17 August 2021 Date Test Conducted : 25 December 2021-30 December 2021 Prepared and Checked By Elena Lei Engineer Approved By: Dean Liu Project Engineer TEST REPORT Intertek Report No.: 210817171GZU-008 Version: 03 September 2021 Page 3 of 39 FCC BT 4.0-e CONTENT TEST REPORT ....................................................................................................................1 CONTENT......................................................................................................................3 1.0 TEST RESULT SUMMARY......................................................................................4 2.0 GENERAL DESCRIPTION .......................................................................................5 2.1 PRODUCT DESCRIPTION ........................................................................................5 2.2 RELATED SUB MITTAL(S) GRANTS ..............................................................................5 2.3 TEST METH ODOLOG Y ...........................................................................................5 2.4 TEST FACILITY ....................................................................................................6 3.0 SYSTEM TEST CONFIGURATION ............................................................................6 3.1 JUSTIFICATION ...................................................................................................6 3.2 EUT EXERCISING SOFTW ARE...................................................................................7 3.3 SPECIAL ACCESSORIES...........................................................................................7 3.4 MEASUR EMEN T UNCERTAINTY ................................................................................7 3.5 EQUIPMENT MODIFICATION ...................................................................................8 3.6 SUPPORT EQUIP MEN T LIST AND DESCRIPTION...............................................................8 4.0 MEASUREMENT RESULTS ....................................................................................9 4.1 ANTEN NA REQUIREMEN T ......................................................................................9 4.2 6 DB BANDWIDTH (DTS BANDWIDTH) ..................................................................... 10 4.3 MAXIMUM PEAK CONDUCTED OUTPUT POW ER .......................................................... 13 4.4 PEAK POW ER SPECTR AL DENSITY............................................................................ 16 4.5 OUT OF BAND CONDUCTED EMISSI ONS .................................................................... 19 4.6 OUT OF BAND RADIATED EMISSI ONS ....................................................................... 22 4.7 RADIATED EMISSIONS IN RESTRICTED BANDS .............................................................. 22 4.8 BAND EDGES REQUIREMEN T................................................................................. 34 4.9 CONDUCTED EMISSION TEST................................................................................. 36 5.0 TEST EQUIPMENT LIST ...................................................................................... 39 TEST REPORT Intertek Report No.: 210817171GZU-008 Version: 03 September 2021 Page 4 of 39 FCC BT 4.0-e 1.0 TEST RESULT SUMMARY Test Item Test Requirement Test Method Result Antenna Requirement FCC PART 15 C section 15.247 (c) and Section 15.203 FCC PART 15 C section 15.247 (c) and Section 15.203 PASS 6 dB Bandwidth (DTS bandwidth) FCC PART 15 C section 15.247 (a)(2) ANSI C63.10: Clause 11.8 PASS Maximum Peak Conducted Outp…

Text truncated - open the document above for the full version.

Note:EUT is positioned at the center of the turntable to keep 3 m between the measurement antenna and EUT for the radiated emissions measurements Radiated Emission (Below 1G) Radiated Emission (Above 1GHz) Conducted Emissions at Mains Terminals
