1 Thingsee AIR User Guide Version 1.0 Thingsee AIR Product description Thingsee AIR is a state of the art battery powered wireless IoT sensor for your indoor air quality monitoring. Together with CO 2 , TVOC, temperature, barometric pressure and humidity sensors, it is a perfect device to provide extensive overlook to both history and present air quality data. Thingsee AIR is part of Haltian Thingsee IoT solution and product family. 2 Product information Product name Thingsee AIR Product description Indoor AIR quality measurement Vendor name Haltian Products Oy Product type Wirepas sensor Internal Model Code (IMC prefix for TUID) • TSAR01 • XXAR01 Sensor measurement specifications CO₂ • Measure CO₂ levels indoors • Measurement range 400 ... 5000 ppm • Accuracy is ±(30ppm +3% of reading) • Automatic baseline calibration takes 8 days, and requires that the CO₂ level drops at least once per day • Possibility for manual baseline calibration • CO₂ sensor is a nondispersive infrared sensor (NDIR) TVOC • Total volatile organic compounds • Resolution is 1ppb at range 0ppb-2008ppb • Resolution is 6ppb at range 2008ppb – 11110ppb • Resolution is 32 ppb at range 11110ppb - 60000ppb • Automatic baseline calibration takes 24 hours. Temperature • Measurement range -40 ... 85 °C • Accuracy is ±0.2°C Relative humidity • Accuracy is ±2% Barometric pressure • Measurement range 300 ... 1200 hPa • Absolute accuracy ±1hPa • Barometric sensor precision ±0.002hPa Ambient light • Measurement is not calibrated • Use only for indicative purposes 3 Hardware info Northbound interfaces nRF52832 (Wirepas) Battery type 2 x AA (replaceable) Dimensions Width 55.95mm Height 26.88mm Length 92.95mm Weight 100 g Environment info Environment • Operating temperature 5°C ... +50°C • Operating humidity 0% ... 85% RH non-condensing • Storage temperature 5°C ... +25°C • Storage humidity 45% ... 85% RH non-condensing • IP rating IP30 Certifications CE Available FCC Not yet available ISED Not yet available 4 Thingsee AIR installation instructions Using Thingsee AIR sensor • Thingsee AIR is for indoor use only • Environment humidity should be <85% RH at all time. • Usage temperature range: +5 ºC to +50 ºC, non-condensing environments only. Please note that the correct TVOC and CO 2 data are available only after the sensor device has conducted baseline calibration for the environment. • TVOC sensor conducts baseline calibration for the TVOC levels and valid data is available after 24h of continuous use. • Accurate CO 2 baseline level is set by autocalibration during the first 8 days of usage. The autocalibration is based on the outdoor CO 2 level. CO 2 level in normal air pressure is 400 ppm. • There must be “free of people” moments with full ventilation in the space, so the device works best in locations where there are no people 24h. Note: Thingsee AIR requires ‘free of people’ moments in the space, when the indoor air is fully changed, to set the correct 400 ppm baseline. This is why places such as schools and offices are good places to use the sensor, as the baseline can be set during the night. Note before installation Please make sure the Thingsee GATEWAY is installed before you install the sensor. To ensure strong enough signal strength for data delivery, keep the maximum distance between installed sensors under 20 m. If the distance between a measuring sensor and the Gateway is > 20m or if the sensors are separated by a fire door or other thick building materials, use extra sensors as routers to ensure adequate signal strength. 5 Things to avoid in installation Avoid installing Thingsee products near the following • Thick concrete structures or thick fire doors • Thick electrical wires • Electrical transformers • Escalators • Nearby heating or cooling devices and/or vents • Direct sun light • Nearby halogen lamps, fluorescent lamps or similar lamps with hot surface • Nearby radio equipment like WiFi routers or any other similar high power RF transmitters. • Avoid installing the sensor in close proximity to a spot where there’s people presence constantly, such as right next to workstations. Installation Open the box and follow the instructions of this user and installation guide. Take product from the box and open it with the opening key. Select a place where to install Thingsee AIR (see ‘Things to avoid in installation’ before) - recommended height 1,4 m – 1,8 m. 6 Take the B-cover and place it on the wall on the decided location. Screw the B- cover to the wall (use anchor with concrete wall or gypsum board. Place the batteries inside the A-cover. Take A-cover and identify the product by reading the QR code in the side of the A-cover. To identify the device over Thingsee API, please follow the link for further information: https://support.haltian.com/api/open-services-api/api- sequences/ Attach the A-cover to the B-cover attached to the wall. (Make sure the Thingsee logo is right way). Note: Make sure the sensor is installed max. 20 meters form the next sensor or gateway. This is to ensure full coverage mesh network between the sensors and the gateway. Detection Capability • CO 2 measurement range 400 – 5 000 ppm; extended range up to 10 000 ppm. Accuracy ±3% (In extended range ±10%) • TVOC measurement range 0 – 600000 ppb. Resolution 1ppb at range 0ppb- 2008ppb, 6ppb at range 2008ppb – 11110ppb, 32 ppb at range 11110ppb - 60000ppb • Temperature -40 ºC to + 85 ºC. Please note recommended operation temperature -0º C to +50 ºC. Accuracy ±0,2C. • Relative humidity can be measured between 0-100% RH. Accuracy ±2%. • Barometric pressure can be measured between 300-1200hPa. Absolute accuracy is ±1hPa. Pressure sensor precision is ±0.002hPa in high precision mode. • Ambient light sensing between 0-100k lux. Light level measurement not calibrated. Only for indicative purposes. 7 Default measurement and reporting Event based reporting • Measures every 5 minutes: • CO 2 • TVOC • Temperature • Humidity • Barometric pressure • Ambient lig…

Text truncated - open the document above for the full version.

FCB011_02 //DEKRA Testing and Certification, S.A.U. // www.dekra-product-safety.com/wireless Date: 20.10.2020 DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía C/ Severo Ochoa 2 & 6 29590 Campanillas Málaga, España Ref: Agent letter for FCC ID: 2AEU3TSAIR We, Haltian Products Oy Yrttipellontie 1 D 90230 Oulu, Finland hereby authorize Grant4Com Oy Yrttipellontie 6 90230 Oulu, Finland Mr. Jukka Ollila e-mail: [email protected] Phone: +358405433264 to act as our agent in the preparation of this application for equipment certification, including the signing of all documents relating to these matters. The present authorization considers the development of documents on behalf of the client, written under his own letterhead and related to the necessary information to be provided on his behalf to complete the certification process. We also hereby certify that neither we nor any party to this application are subject to a denial of U.S. Federal benefits, which include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862 because of conviction for possession or distribution of controlled substance. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by DEKRA Testing and Certification, S.A.U., still resides with us. This agreement expires one year from the current date. Sincerely, __________________________ By: Jyrki Okkonen Title: CTO Company: Haltian Products Oy Telephone: +358405459870 e-mail: [email protected] DocuSign Envelope ID: 3DA983C7-F878-4DF4-8A6F-317DD9E3A864

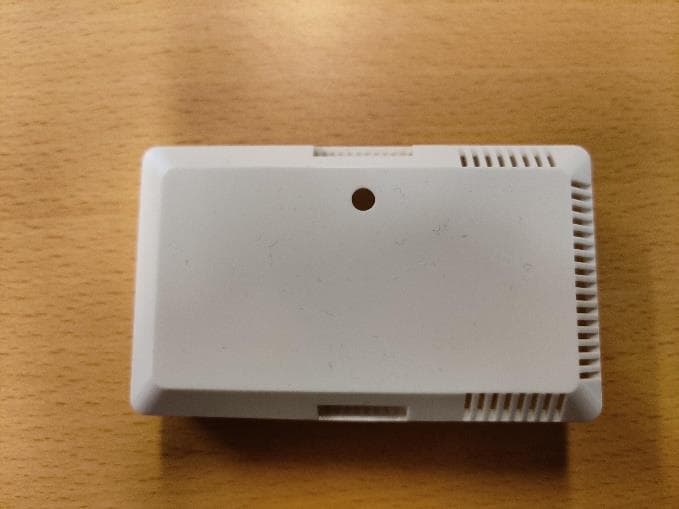

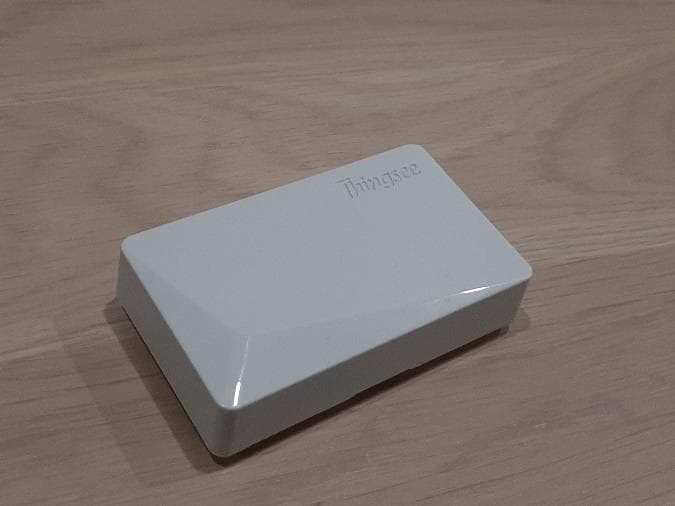

TCO external photos 1 Product general 2 Product top 3 Product bottom

TCO type label design and placement v1.0 TCO type label design and placement Size of the label: 50,80 x 25,40 mm The markings are done by laser to the device cover QR code size 8x8mm

TCO internal photos 1 PWB bottom 2 PWB top 3 A cover inside with PWB 4 A cover inside with PWB and batteries 5 B cover inside

Copyright©Verkotan FCC SAR test report_Thingsee AIR_ID4409_05102020 SAR Compliance Test Report Date of Report 5/10/2020 Client’s Contact person: Juha Soininen Number of pages: 4 Responsible Test engineer: Kirsi Kyllönen Testing laboratory: Verkotan Oy Elektroniikkatie 17 90590 Oulu Finland Client: Haltian Products Oy Yrttipellontie 1D 90230 Oulu Finland Tested devices Thingsee AIR Related reports: - Testing has been carried out in accordance with: 47CFR §2.1093 Radiofrequency Radiation Exposure Evaluation: Portable Devices FCC published RF exposure KDB procedures Documentation: The test report must always be reproduced in full; reproduction of an excerpt only is subject to written approval of the testing laboratory Test Results: The DUT complies with the requirements in respect of all parameters subject to the test. The test results relate only to devices specified in this document Date and signatures: 05.10.2020 For the contents: Laboratory Manager Copyright©Verkotan FCC SAR test report_Thingsee AIR_ID4409_05102020 TABLE OF CONTENTS 1. SUMMARY OF SAR TEST REPORT ............................................................................................... 4 1.1 TEST DETAILS ........................................................................................................................... 4 1.2 EVALUATION RESULTS ............................................................................................................ 4 2. DESCRIPTION OF THE DEVICE UNDER TEST (DUT) .................................................................... 4 2.1 SUPPORTED FREQUENCY BANDS AND OPERATIONAL MODES ............................................. 4 2.2 TEST EXCLUSIONS ................................................................................................................... 5 3. OUTPUT POWER ............................................................................................................................ 5 3.1 MAXIMUM DEFINED OUTPUT POWER .................................................................................... 5 4. RESULTS.......................................................................................................................................... 5 Copyright©Verkotan FCC SAR test report_Thingsee AIR_ID4409_05102020 1. SUMMARY OF SAR TEST REPORT 1.1 Test Details Device under Test (DUT): Product: Thingsee AIR Manufacturer: Haltian Products Oy Model: TSAIR Hardware Version: TCO_01 FCC ID: 2AEU3TSAIR Document ID: FCC SAR test report_Thingsee AIR_ID4409_05102020 1.2 Evaluation Results The device conforms to the requirements of the standards when the maximum output power is less than or equal to the Test Exclusion Threshold Limit. 2. DESCRIPTION OF THE DEVICE UNDER TEST (DUT) Thingsee AIR is a battery powered wireless IoT sensor for indoor air quality monitoring. Together with Co², TVOC, temperature, barometric pressure and humidity sensors, it can provide overlook to both history and present air quality data. Exposure Environment General population, uncontrolled 2.1 Supported Frequency Bands and Operational Modes Bands Modes of Operation Transmitter Frequency Range (MHz) 2.4 Bluetooth 2.402- 2.480 Regulator System Equipment Class Test Exclusion Threshold/ Exemption Limit at 5mm separation [mW] Maximum Output Power [mW] Result FCC BT DTS 10 2.5 PASS Copyright©Verkotan FCC SAR test report_Thingsee AIR_ID4409_05102020 2.2 Test Exclusions FCC SAR test exclusion thresholds in 447498D01 are shown in a table below. 3. OUTPUT POWER 3.1 Maximum defined Output Power Transmission mode Output power [dBm] Output power [mW] BT 4.0 2.5 4. RESULTS According Appendix A in 447498D01 the SAR test exclusion power threshold for 2450MHz is 10mW at 5 mm separation distance. The maximum output power of the DUT is 2.51mW thus it is below the test exclusion threshold.

DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29507456 Report No: (NIE) 64983RRF.001 2020-10-14 Test report No: NIE: 64983RRF.001 Test Report USA FCC Part 15.247, 15.209 CANADA RSS-247, RSS-Gen Radio Frequency Devices. Operation within the bands 902 - 928 MHz, 2400 -2483.5 MHz, and 5725 - 5850 MHz. Digital Transmission Systems (DTSs), Frequency Hopping Systems (FHSs) and Licence-Exempt Local Area Network (LE-LAN) Devices. General Requirements and Information for the Certification of Radio Apparatus. (*) Identification of item tested Thingsee AIR is an IoT device for monitoring indoor air quality (*) Trademark Thingsee AIR (*) Model and /or type reference TCO Other identification of the product HW version: TCO_01 SW version: ts-air-wp50_2020.08.18.4_rel_0.0.17 FCC ID: 2AEU3TSAIR IC: 20236-TSAIR (*) Features BLE radio Applicant HALTIAN PRODUCTS OY Yrttipellontie 1 D, 90230 Oulu, Finland Test method requested, standard USA FCC Part 15.247 (10-1-19 Edition): Operation within the bands 902 - 928 MHz, 2400 -2483.5 MHz, and 5725 - 5850 MHz. USA FCC Part 15.209 (10-1-19 Edition): Radiated emission limits; general requirements. CANADA RSS-247 Issue 2 (February 2017). CANADA RSS-Gen Issue 5, Amendment 1 (March 2019). Guidance for Performing Compliance Measurements on Digital Transmission System, Frequency Hopping Spread Spectrum System, and Hybrid Systems Devices Operating Under Section 15.247 of the FCC Rules. 558074 D01 Meas Guidance v05r02 dated April 2, 2019. ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices. Summary IN COMPLIANCE Approved by (name / position & signature) José Carlos Luque RF Lab. Supervisor Date of issue 2020-10-14 Report template No FDT08_22 (*) “Data provided by the client” DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29507456 Report No: (NIE) 64983RRF.001 Page 2 of 34 2020-10-14 Index Competences and guarantees ...................................................................................................................... 3 General conditions ......................................................................................................................................... 3 Uncertainty ..................................................................................................................................................... 3 Data provided by the client ............................................................................................................................ 3 Usage of samples .......................................................................................................................................... 4 Test sample description ................................................................................................................................. 5 Identification of the client ............................................................................................................................... 6 Testing period and place ............................................................................................................................... 6 Document history ........................................................................................................................................... 7 Environmental conditions .............................................................................................................................. 7 Remarks and comments ................................................................................................................................ 7 Testing verdicts .............................................................................................................................................. 9 Summary ....................................................................................................................................................... 9 Appendix A: Test results. Bluetooth Low Energy ........................................................................................10 DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29507456 Report No: (NIE) 64983RRF.001 Page 3 of 34 2020-10-14 Competences and guarantees DEKRA Testing and Certification S.A.U. is a testing laboratory accredited by the National Accreditation Body (ENAC -Entidad Nacional de Acreditación), to perform the tests indicated in the Certificate No. 51/LE 147. DEKRA Testing and Certification is a FCC-recognized accredited testing laboratory with appropriate scope of accreditation that include testing performed in this test report. DEKRA Testing and Certification is an ISED-recognized accredited testing laboratory with appropriate scope of accreditation that include testing performed in this test report. In order to assure the traceability to other national and international laboratories, DEKRA Testing and Certification S.A.U. has a calibration and maintenance program for its measurement equipment. DEKRA Testing and Certification S.A.U. guarantees the reliability of the data presented in this report, which is the result of the measurements and the tests performed to the item under test on the date and under the conditions stated on the report and, it is based on the knowledge and technical facilities available at DEKRA Testing and Certification S.A.U. at the time of performance of the test. DEKRA Testing and Certification S.A.U. is liable to the client for the maintenance of the confidentiality of all information related to the item under test and the results of the test. The results presented in this Test Report apply only to the particular item under test established in this document. IMPORTANT: No parts of this report may be reproduced or quoted out o…
