PD2 USER INSTRUCTIONS 1. INTENDED USE OF PD2 PD2 is used for measurements of several physical quantities and resulting data is sent wirelessly to a Wirepas protocol mesh network. The device has sensors for temperature, humidity, air pressure, ambient light, magnetism and acceleration. It also includes an LED for indication purposes. Typically PD2 is used together with MTXH Thingsee Gateway in use cases where the measurements are performed in several locations and this data is wirelessly collected and sent via 2G cellular connection to a data server / cloud. 2. GENERAL Place two AAA batteries (recommended model Varta Industrial) inside the device, the correct direction is shown on the PWB. Plus sign indicates the positive node of the battery. Snap the B cover in place. The device starts making measurements with all the sensors. Measurements are made once a minute (default, can be changed by configuration). The device starts seeking any other nearby devices having the same pre- programmed Wirepas network ID as the device itself. If it finds any, it connects to this Wirepas network and starts sending measurement results from all the sensors to the network once a minute (default, can be changed by configuration). 3. INSTALLATION GUIDELINES The device B cover has a double-sided tape which can be used for attachment; remove the cover tape and attach the device to the desired position for measurement. The surface for attachment needs to be flat and clean. Press the device from both sides for 5 seconds to make sure that the tape is correctly attached to the surface. Remove the cover tape from here The device operates with fresh Varta Industrial batteries typically for more than 2 years (this time depends heavily on the configuration used for measurement and reporting intervals). If there is a need to change the batteries, spread the side of the A cover gently as shown in the picture below. Be careful while opening the cover that locking snaps don’t break. Remove the B cover, remove the batteries and place new batteries as described earlier. If the device is already attached to some surface, opening needs to be performed with a special tool: The tool can be ordered from Haltian Products Oy. The device can also be ordered with batteries pre-installed. In this case just pull out the tape disconnecting batteries in order to power on the device. 4. PRECAUTIONS - PD2 is intended for indoor use only and shall not be exposed to rain. The operating temperature range for the device is -20...+50 °C. - Remove the batteries from the PD2 device if you are taking it inside an aeroplane (unless you have the pre-installed pull-out tape still in place). The device has a Bluetooth LE receiver/transmitter which must not be operational during a flight. - Please take care that the used batteries are recycled by taking them to appropriate collection point. - When changing batteries, replace both of them at the same time using identical brand and type. - Do not swallow batteries. - Do not throw batteries into water or fire. - Do not short-circuit batteries. - Do not try to charge primary batteries. - Do not open or disassemble batteries. - Batteries should be stored in a dry place and at room temperature. Avoid large temperature changes and direct sunlight. At higher temperature the electrical performance of the batteries may be reduced. - Keep batteries away from children. 5. CERTIFICATION INFORMATION EU DECLARATION OF CONFORMITY Hereby, Haltian Products Oy declares that the radio equipment type PD2 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://thingsee.com Haltian Products Oy vakuuttaa, etta radiolaitetyyppi PD2 on direktiivin 2014/53/EU mukainen. EU-vaatimustenmukaisuusvakuutuksen täysimittainen teksti on saatavilla seuraavassa internetosoitteessa: https://thingsee.com PD2 operates at Bluetooth® 2.4 GHz frequency band. Maximum radio-frequency power transmitted is +4.0 dBm. Manufacturer name and address: Haltian Products Oy Yrttipellontie 1 D 90230 Oulu Finland FCC REQUIREMENTS FOR OPERATION IN THE UNITED STATES FCC Information for the User This product does not contain any user serviceable components and is to be used with approved, internal antennas only. Any product changes of modifications will invalidate all applicable regulatory certifications and approvals. FCC Guidelines for human Exposure This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance of 5 mm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Federal Communications Commission Statement This device complies with Part 15 Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received, including interference that may cause undesired operation. FCC Radio Frequency Interference Warnings & Instructions This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following methods: • Increase the separation between the equipment and the receiver. • Connect the equipme…

Text truncated - open the document above for the full version.

FCB011_02 //DEKRA Testing and Certification, S.A.U. // www.dekra-product-safety.com/wireless Date: 7.5.2020 DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía C/ Severo Ochoa 2 & 6 29590 Campanillas Málaga, España Ref: Agent letter for FCC ID: 2AEU3TSENV We, Haltian Products Oy Yrttipellontie 1 D 90230 Oulu, Finland hereby authorize Grant4Com Oy Yrttipellontie 6 90230 Oulu, Finland Mr. Jukka Ollila e-mail: [email protected] Phone: +358405433264 to act as our agent in the preparation of this application for equipment certification, including the signing of all documents relating to these matters. The present authorization considers the development of documents on behalf of the client, written under his own letterhead and related to the necessary information to be provided on his behalf to complete the certification process. We also hereby certify that neither we nor any party to this application are subject to a denial of U.S. Federal benefits, which include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862 because of conviction for possession or distribution of controlled substance. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by DEKRA Testing and Certification, S.A.U., still resides with us. This agreement expires one year from the current date. Sincerely, __________________________ By: Jyrki Okkonen Title: CTO, COB Company: Haltian Products Oy Telephone: +358405459870 e-mail: [email protected] DocuSign Envelope ID: 1BC97808-A4F7-4814-BAD7-231E3D00176F

APPLICANT LETTERHEAD FCB012_02 //DEKRA Testing and Certification, S.A.U. // www.dekra-product-safety.com/wireless Date: 13.5.2020 DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía C/ Severo Ochoa 2 & 6 29590 Campanillas Málaga, España Ref: Confidentiality request for FCC ID: 2AEU3TSENV To whom it may concern: Pursuant to §0.457(d)(1)(ii) and §0.459 of the Commission’s Rules (47 C.F.R.) and §552 (b)(4) of the Freedom of Information Act, Haltian Products Oy hereby request requests that a part of the subject FCC application be held confidential to avoid release of sensitive information of the product to the public. For the product stated above, we request that the following information be withheld from public disclose: Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Internal Photos Short Term Permanent Operation Description Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term User’s Manual Permanent Confidentiality: The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to us and provide unjustified benefits to our competitors. Short-Term Confidentiality: We hereby request short-term confidentiality for the product stated above to avoid premature release of sensitive information prior to marketing or release of the product to the public. Release date of short term confidentiality is: 45 days from grant date marked 90 days from grant date marked 135 days from grant date marked 180 days from grant date marked Specific date: We are also aware that we are responsible to notify DEKRA in the event information regarding the product or the product is made available to the public. DEKRA will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. DocuSign Envelope ID: C0F48638-B8EF-4A5B-ACBA-EFA550B49B05 APPLICANT LETTERHEAD FCB012_02 //DEKRA Testing and Certification, S.A.U. // www.dekra-product-safety.com/wireless Sincerely, __________________________ By: Jyrki Okkonen Title: CTO, COB Company: Haltian Products Oy Telephone: +358405459870 e-mail: [email protected] DocuSign Envelope ID: C0F48638-B8EF-4A5B-ACBA-EFA550B49B05

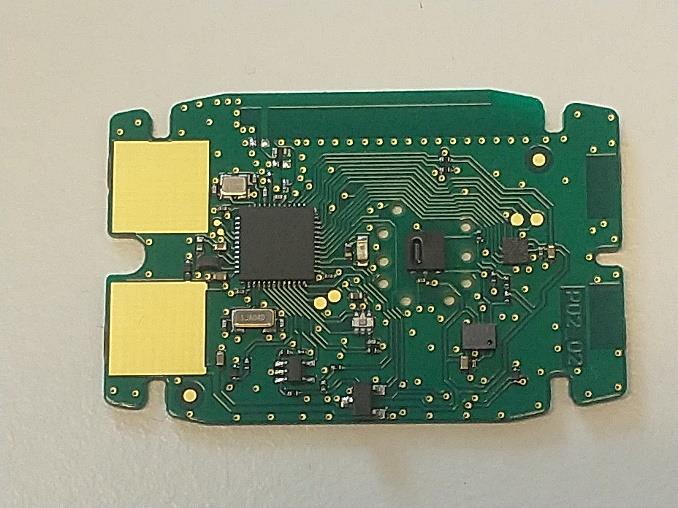

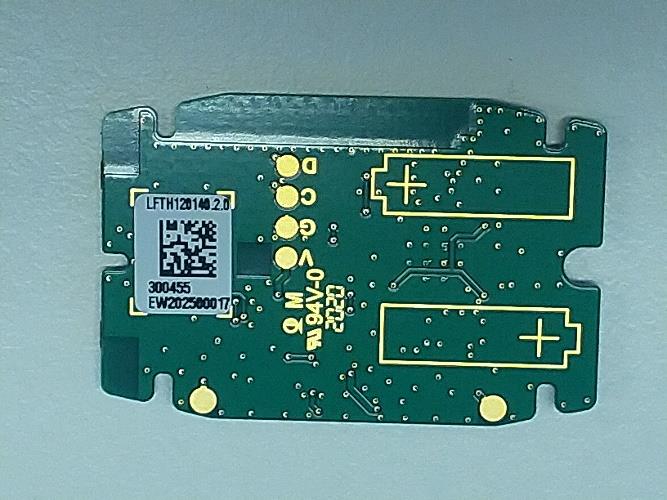

PD2 photos 1 PWB bottom 2 PWB top 3 Product general 4 Product top 5 Product bottom

PD2 photos 1 PWB bottom 2 PWB top 3 Product general 4 Product top 5 Product bottom

DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29 507 456 Report No: (NIE) 64656REM.001 2020-06-01 Test report No: NIE: 64656REM.001 Test report FCC Rules and Regulations CFR 47, Part 15, Subpart B (10-1-19 Edition) & ICES-003 Issue 6 (January 2016, Updated April 2019) (*) Identification of item tested Sensor device with Wirepas mesh network connectivity (*) Trademark Thingsee Environment (*) Model and /or type reference PD2 Other identification of the product HW Version: PD2_02 SW Version: 2020.03.26.1_ts_pod3wp34 FCC ID: 2AEU3TSENV IC: 20236-TSENV (*) Features Measurement of several physical quantities. Wirepas protocol stack using BT LE radio. Manufacturer HALTIAN PRODUCTS OY Yrttipellontie 1 D, 90230 Oulu, Finland. Test method requested, standard FCC CFR 47, Part 15, Subpart B (10-1-19 Edition) & ICES-003 (Updated 04-2019) Summary IN COMPLIANCE Approved by (name / position & signature) Rafael López Martín EMC Consumer & RF Lab. Manager Date of issue 2020-06-01 Report template No FDT08_22 (*) “Data provided by the client” DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29 507 456 Report No: (NIE) 64656REM.001 Page 2 of 16 2020-06-01 Index Competences and guarantees .................................................................................................... 3 General conditions ...................................................................................................................... 3 Uncertainty ................................................................................................................................. 3 Data provided by the client .......................................................................................................... 4 Usage of samples ....................................................................................................................... 4 Test sample description .............................................................................................................. 4 Identification of the client............................................................................................................. 5 Testing period and place .............................................................................................................. 5 Document history ........................................................................................................................ 5 List of equipment used during the test......................................................................................... 6 Environmental conditions ............................................................................................................ 7 Remarks and comments ............................................................................................................. 8 Testing verdicts ........................................................................................................................... 8 Summary .................................................................................................................................... 8 DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29 507 456 Report No: (NIE) 64656REM.001 Page 3 of 16 2020-06-01 Competences and guarantees DEKRA Testing and Certification is a testing laboratory accredited by the National Accreditation Body (ENAC - Entidad Nacional de Acreditación), to perform the tests indicated in the Certificate No. 51/LE 147. DEKRA Testing and Certification is a FCC recognized accredited testing laboratory with appropriate scope of accreditation that include testing performed in this test report, FCC designation number ES0004. In order to assure the traceability to other national and international laboratories, DEKRA Testing and Certification has a calibration and maintenance program for its measurement equipment. DEKRA Testing and Certification guarantees the reliability of the data presented in this report, which is the result of the measurements and the tests performed to the item under test on the date and under the conditions stated on the report and, it is based on the knowledge and technical facilities available at DEKRA Testing and Certification at the time of performance of the test. DEKRA Testing and Certification is liable to the client for the maintenance of the confidentiality of all information related to the item under test and the results of the test. The results presented in this Test Report apply only to the particular item under test established in this document. IMPORTANT: No parts of this report may be reproduced or quoted out of context, in any form or by any means, except in full, without the previous written permission of DEKRA Testing and Certification. General conditions 1. This report is only referred to the item that has undergone the test. 2. This report does not constitute or imply on its own an approval of the product by the Certification Bodies or competent Authorities. 3. This document is only valid if complete; no partial reproduction can be made without previous written permission of DEKRA Testing and Certification. 4. This test report cannot be used partially or in full for publicity and/or promotional purposes without previous written permission of DEKRA Testing and Certification and the Accreditation Bodies. Uncertainty Uncertainty (factor k=2) was calculated according to the DEKRA Testing and Certification internal document PODT000. DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29 507 456 Report No: (NIE) 64656REM.001 Page 4 of 16 2020-06-01 Data provided by the client The following data has been provided by the client: 1. Information…
