User Instructions, Thingsee Nano TTG USER INSTRUCTIONS INTRODUCTION AND INTENDED USE OF TTG INSTALLATION AND COMMISSIONING GUIDELINES PRECAUTIONS LEGAL NOTICES RECYCLING FCC REQUIREMENTS FOR OPERATION IN THE UNITED STATES FCC Information for the User FCC Guidelines for human Exposure Federal Communications Commission Statement FCC Radio Frequency Interference Warnings & Instructions FCC Caution The following document describes how the Nano tag is installed and used in asset tracking use cases. TTG USER INSTRUCTIONS INTRODUCTION AND INTENDED USE OF TTG TTG (Thingsee Nano Tag) is a 0.5” x 1.0” x 0.25” sized Bluetooth device that is used for tracking assets. Device has 5 years of operation time in specific use cases where the main functionality is to beacon in specified interval. Communication happens using Wirepas 5.1 DA communication protocol. Construction of the tag is very simple by including only two mechanical covers, PWB assembly and two batteries. The appearance of TTG is shown in the picture below. INSTALLATION AND COMMISSIONING GUIDELINES TTG is delivered as batteries pre-installed in place. The device has two CR1025 lithium batteries, recommended manufacturer is Renata. Before installation of the device, make sure that the needed infrastructure (gateways, routers and mini beacons) is installed correctly for asset tracking. TTG has a plastic slip serving two purposes. It protects the two sided tape used for attachment and disconnects the batteries from the electronics when the device is not yet taken into use. The surface for attachment needs to be flat and clean, IPA solvent (isopropyl alcohol) should be used for cleaning the surface. Pull the slip from covering the two sided attachment tape first. When placing the device in the desired position, press the device for 5 seconds to make sure that the tape is correctly attached on the surface. Pull away the plastic slip from the device and it powers on and connects automatically to the surrounding asset tracking infrastructure. If you need to change the batteries, first push the snap on the side inwards using a suitable small tool in order to open the device. Push the batteries out from the device end having a smaller opening in the cover. Push the new batteries in from the end having a larger opening in the cover. Snap the bottom cover back to its place. PRECAUTIONS This equipment is not suitable for use in locations where children are likely to be present. TTG is intended for indoor use only and shall not be exposed to rain. The operating temperature range for the device is -20...+50 °C. Remove the batteries from the TTG device if you are taking it inside an aeroplane (unless you have the pre-installed pull-out tape still in place). The device has a Bluetooth LE receiver/transmitter which must not be operational during a flight. Please take care that the used batteries are recycled by taking them to appropriate collection point. When changing batteries, replace both of them at the same time using identical brand and type. Do not swallow batteries. Do not throw batteries into water or fire. Do not short-circuit batteries. Do not try to charge primary batteries. Do not open or disassemble batteries. Batteries should be stored in a dry place and at room temperature. Avoid large temperature changes and direct sunlight. At higher temperature the electrical performance of the batteries may be reduced. Keep batteries away from children. Risk of explosion if the battery is replaced with an incorrect type of battery Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery can cause in an explosion. Leaving a battery in an extremely high temperature surrounding environment can cause an explosion or the leakage of flammable liquid or gas. A battery subjected to extremely low air pressure can cause an explosion or the leakage of flammable liquid or gas. LEGAL NOTICES Hereby, Haltian Oy declares that the radio equipment type TTG is in compliance with Directive 2014/53/EU. Haltian Oy vakuuttaa, että radiolaitetyyppi TTG on direktiivin 2014/53/EU mukainen. TTG operates at Bluetooth® 2.4 GHz frequency band. Maximum radio-frequency power transmitted is 0 dBm. Manufacturer name and address: Haltian Oy Yrttipellontie 1 D 90230 Oulu Finland RECYCLING Check the local regulations for proper disposal of electronic products. The Directive on Waste Electrical and Electronic Equipment (WEEE), which entered into force as European law on 13th February 2003, resulted in a major change in the treatment of electrical equipment at end- of-life. The purpose of this Directive is, as a first priority, the prevention of WEEE, and in addition, to promote the reuse, recycling and other forms of recovery of such wastes so as to reduce disposal. The crossed-out wheelie-bin symbol on your product, battery, literature, or packaging reminds you that all electrical and electronic products and batteries must be taken to separate collection at the end of their working life. Do not dispose of these products as unsorted municipal waste: take them for recycling. For info on your nearest recycling point, check with your local waste authority. FCC REQUIREMENTS FOR OPERATION IN THE UNITED STATES FCC Information for the User This product does not contain any user serviceable components and is to be used with approved, internal antennas only. Any product changes of modifications will invalidate all applicable regulatory certifications and approvals. FCC Guidelines for human Exposure This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance of 20 cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Federal Communications Commission Statement This device complies with Part 15 Rules. Operation is subject to the following two conditions: This dev…

Text truncated - open the document above for the full version.

Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 5/2/2022 Request for Permanent Confidentiality Company name: Haltian Oy FCC ID: 2AEU3TSNANO FCC Part 15 Certification Gentlemen, In accordance with CFR 47 § 0.457 and CFR 47 § 0.459 Haltian Oy hereby requests confidentiality of following attachments: (1) schematic diagrams, (2) detailed block diagrams, (3) detailed operational descriptions, (4) parts lists. These documents contain detailed system and equipment description and related information about the product which Haltian Oy considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, Haltian Oy considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Signature Jyrki Okkonen CTO Haltian Oy Yrttipellontie 1 D 90230 Oulu, Finland DocuSign Envelope ID: EF20356C-6EF5-4D9B-B18E-F5233FDCB93C

Declaration concerning Antenna Specification It is hereby declared that the product Model No.: Thingsee Nano Tag FCC ID: 2AEU3TSNANO fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for internal antenna type described below: Model No. of antenna: N/A Type of antenna: Implemented as a PWB strip line Peak Gain of the antenna: +0.4 dBi Frequency range: 2400 – 2483.5 MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: Haltian Oy Address: Yrttipellontie 1 D City: Oulu ZIP / Postal code: 90230 Country: Finland Place: Oulu Date: October 17, 2022 Signature: Jyrki Okkonen CTO DocuSign Envelope ID: 1C96EDA3-8D6A-40CA-8A7D-C14C2F0EB267

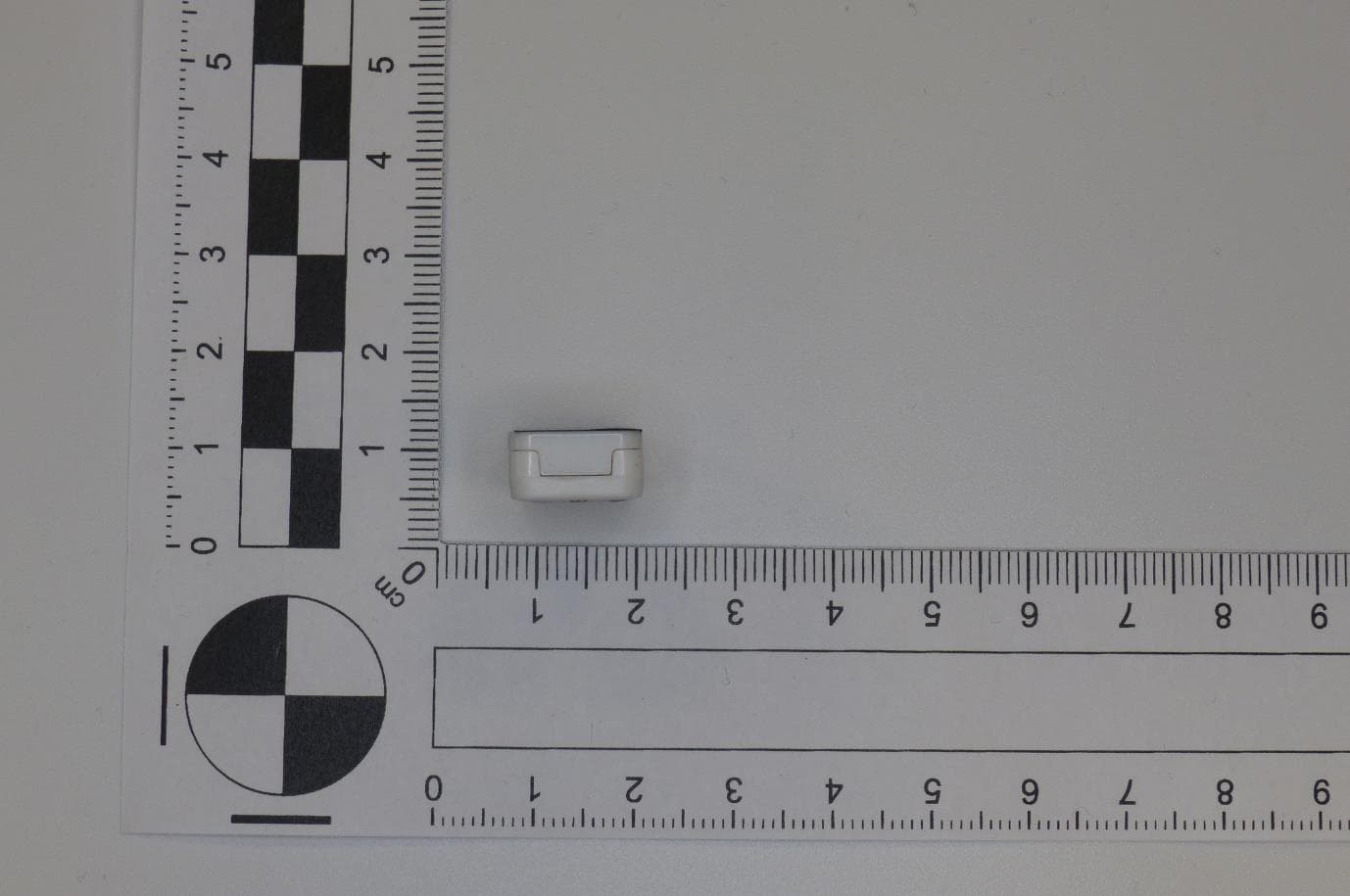

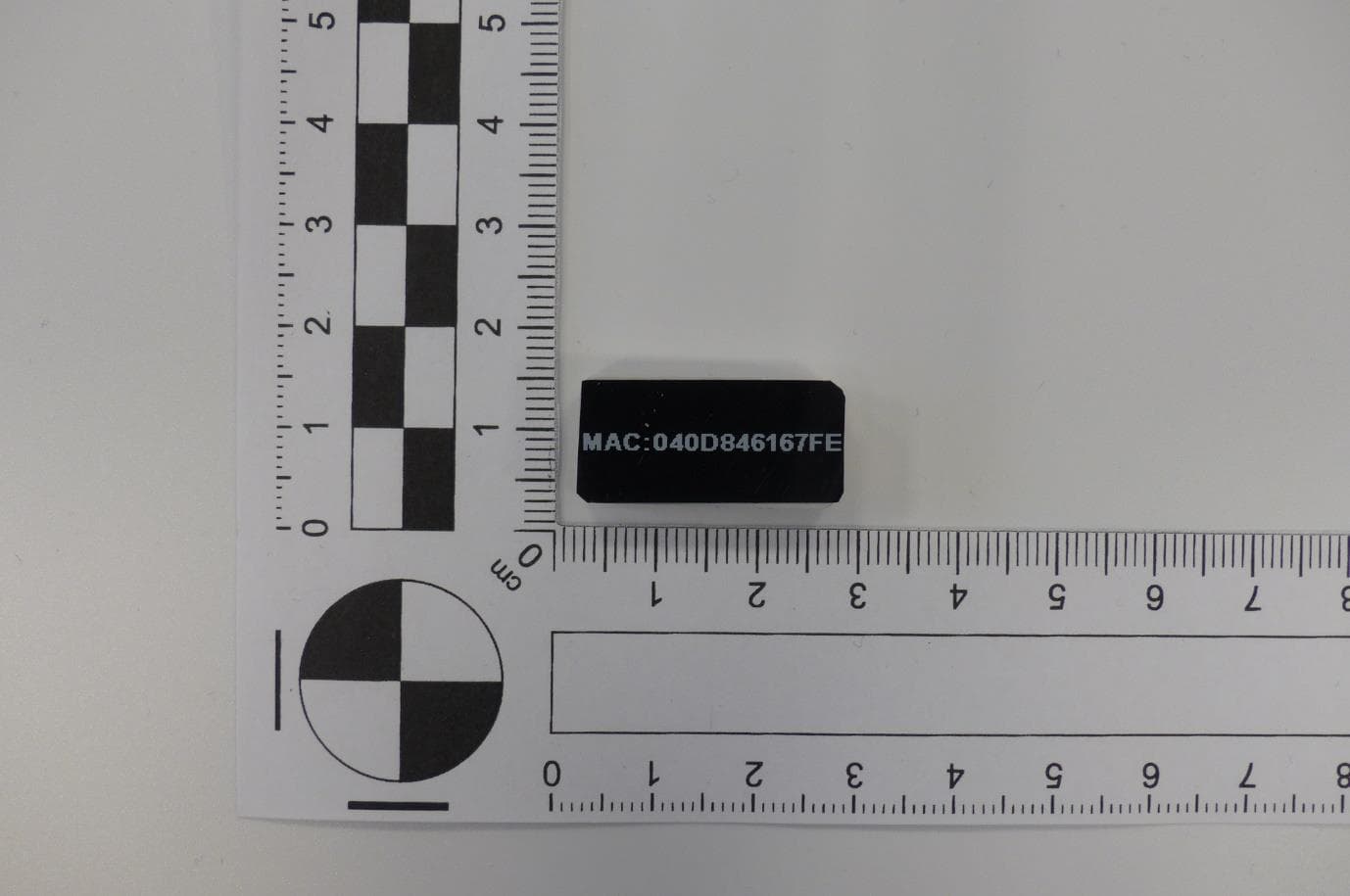

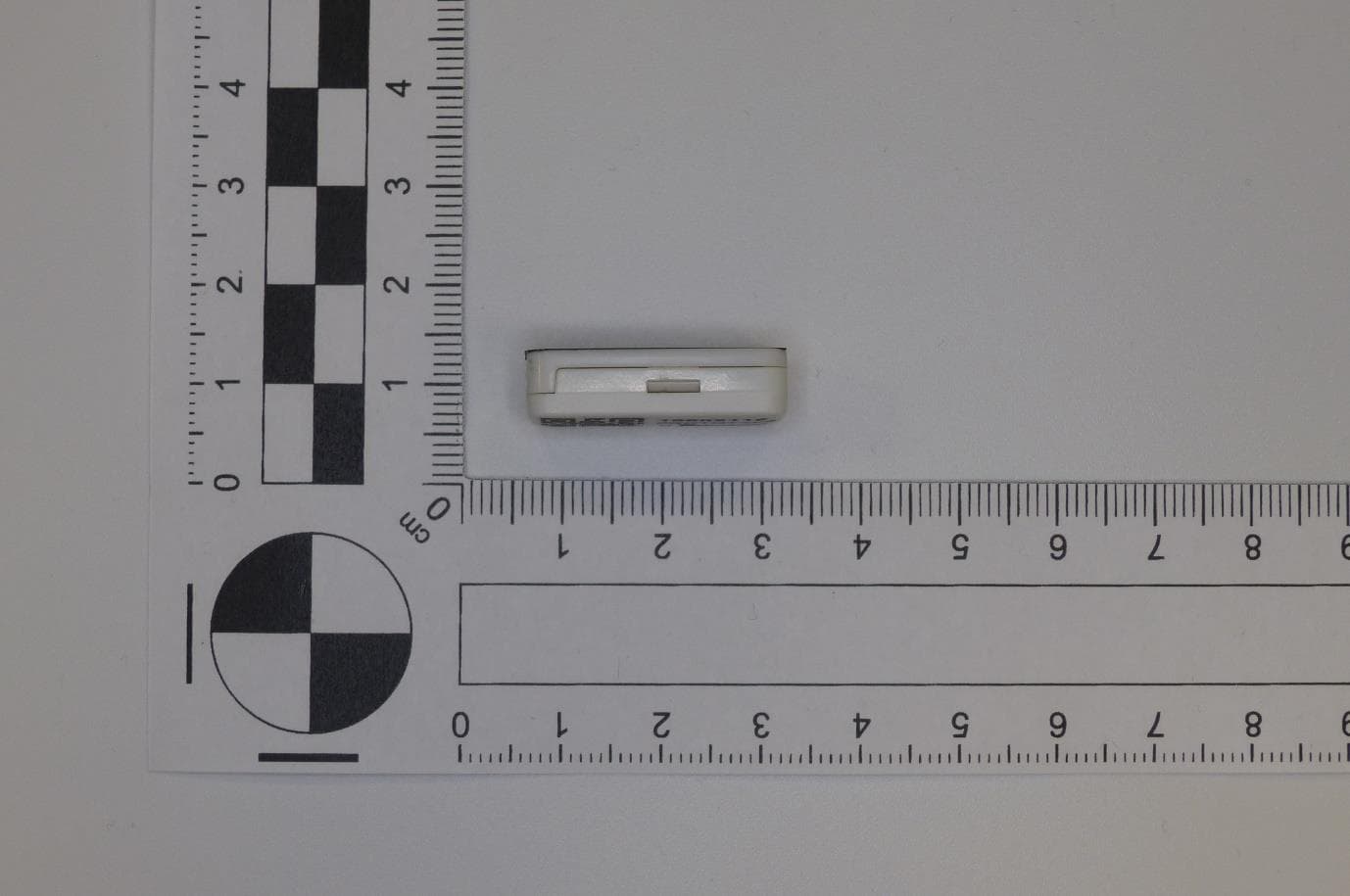

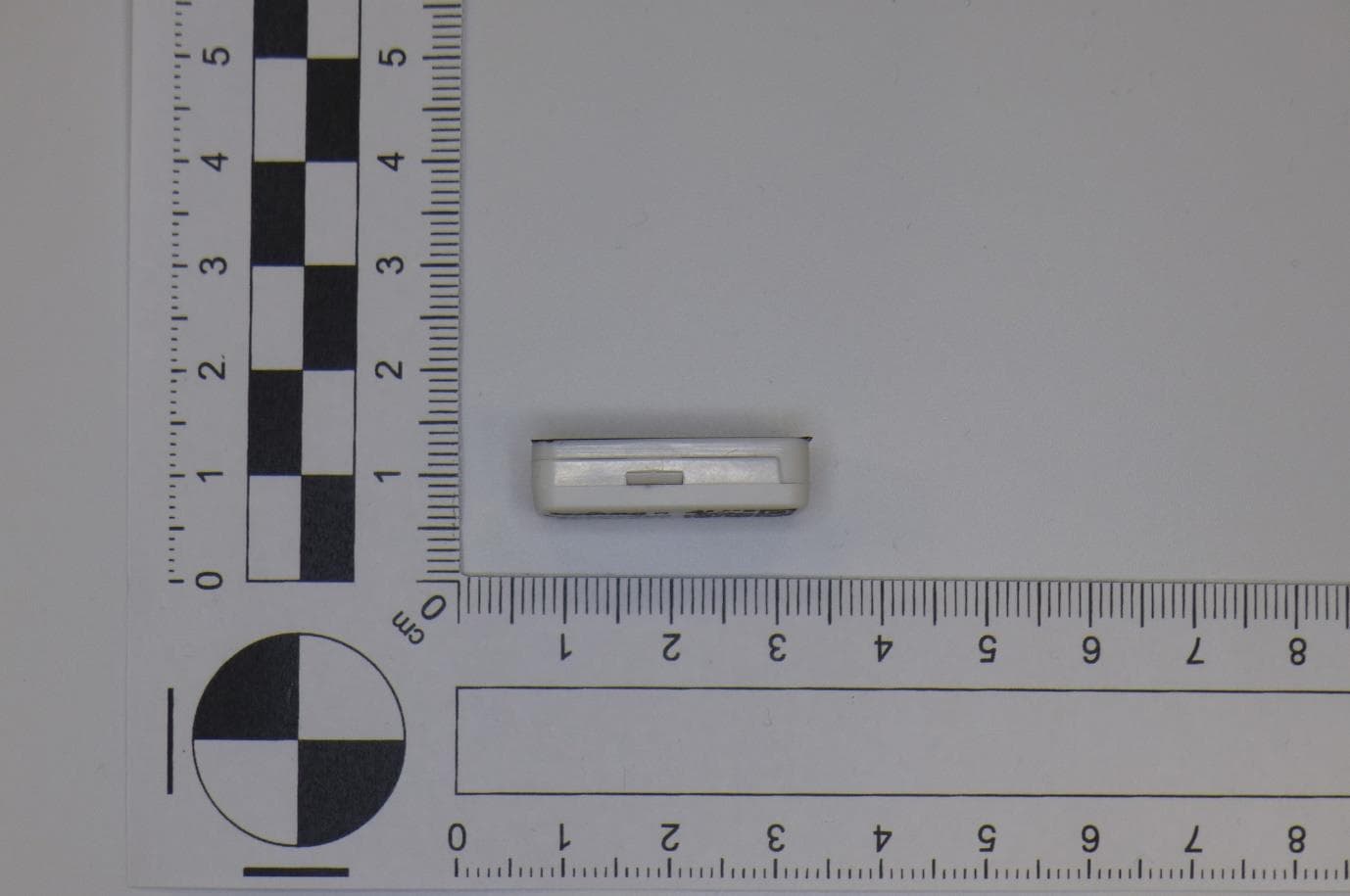

Top: Bottom: Front: Back: Left: Right:

Declaration concerning Device Labeling It is hereby declared that the product Model No.: Thingsee Nano Tag FCC ID: 2AEU3TSNANO is so small that the FCC Identifier defined in 47 CFR § 2.926 is impractical to be implemented on the device. Therefore, we will place the FCC Identifier in the user manual and the device packaging as stated in 47 CFR § 2.925. Company name: Haltian Oy Address: Yrttipellontie 1 D City: Oulu ZIP / Postal code: 90230 Country: Finland Place: Oulu Date: September 1, 2022 Signature: Jyrki Okkonen CTO DocuSign Envelope ID: C9EA2CE6-AA25-4676-B7DB-68A06BD4721F

7.2 mm 25.4mm 12.7mm QR code contains the identification code of the device. The size needs to be as large as possible for automatic reading. The identification is needed also as alphanumerical for human reading. Model marking is required by CE. Manufacturer name or brand is required by CE.

Interior photo: Interior photo in detail: PCB top: PCB Bottom:

Test Report No.: G0M-2210-1706-TFC091MP-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 1 of 14 RF-EXPOSURE REPORT FCC 47 CFR Part 2.1091 ISED RSS-102 Maximum permissible exposure Report Reference No G0M-2210-1706-TFC091MP-V01 Testing Laboratory Eurofins Product Service GmbH Address Storkower Str. 38c 15526 Reichenwalde Germany Accreditation A2LA Accredited Testing Laboratory, Certificate No.: 1983.01 FCC Test Firm Designation Number: DE0008 ISED Testing Laboratory site: 3470A-2 ISED Testing Laboratory site: 3470A-3 Applicant Haltian Oy Address Yrttipellontie 1 D 90230 Oulu Finland Test Specification According to FCC/ISED rules Standard FCC 47 CFR 2.1091 ISED RSS-102 Non-Standard Test Method None Equipment under Test (EUT): Product Description Asset tracking tag Model(s) TTG Additional Model(s) None Brand Name(s) Thingsee Nano Tag Hardware Version(s) TTG_04S Software Version(s) thingsee_tag_silabs_01b_wp51_2022.02.01.1 FCC ID 2AEU3TSNANO IC 20236-TSNANO Test Result PASSED Test Report No.: G0M-2210-1706-TFC091MP-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 3 of 14 VERSION HISTORY Version History Version Issue Date Remarks Revised By 01 2022-11-29 Initial Release Test Report No.: G0M-2210-1706-TFC091MP-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 4 of 14 ABBREVIATIONS AND ACRONYMS Acronyms Acronym Description EIRP Equivalent Isotropic Radiated Power EUT Equipment Under Test MPE Maximum Permissible Exposure Test Report No.: G0M-2210-1706-TFC091MP-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 5 of 14 REPORT INDEX 1 Equipment (Test Item) Under Test................................................................................................... 6 1.1 Reference Documents ................................................................................................................................... 7 1.2 Power density radiation sources.................................................................................................................... 8 1.3 Field strength radiation sources .................................................................................................................... 8 1.4 Concurrent Sources ...................................................................................................................................... 8 2 Result Summary ................................................................................................................................. 9 3 RF-Exposure classification ............................................................................................................ 10 4 RF-Exposure limits .......................................................................................................................... 11 5 RF-Exposure Evaluation ................................................................................................................. 12 6 Single Source Evaluation Results - FCC ...................................................................................... 13 7 Single Source Evaluation Results - ISED ..................................................................................... 14 Test Report No.: G0M-2210-1706-TFC091MP-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 6 of 14 1 Equipment (Test Item) Under Test Description Asset tracking tag Model TTG Additional Model(s) None Brand Name(s) Thingsee Nano Tag Serial Number(s) Prototype Hardware Version(s) TTG_04S Software Version(s) thingsee_tag_silabs_01b_wp51_2022.02.01.1 PMN Thingsee Nano Tag HVIN TTG FVIN thingsee_tag_silabs_01b_wp51_2022.02.01.1 HMN N/A FCC ID 2AEU3TSNANO IC 20236-TSNANO Equipment type End Product Environment General public Test Report No.: G0M-2210-1706-TFC091MP-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 7 of 14 1.1 Reference Documents Document Type Document No. Issued by Date Radio test report FCC 47 CFR Part 15C ISED Canada RSS-247 G0M-2210-1706- TFC247BL-V01 Eurofins Product Service GmbH 2022-11-29 Test Report No.: G0M-2210-1706-TFC091MP-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 8 of 14 1.2 Power density radiation sources Power density radiation Mode Operating Frequency [MHz] Maximum conducted power [dBm] Maximum radiated power [dBm EIRP] Maximum duty cycle [%] Maximum antenna gain [dBi] Maximum antenna diameter [cm] Bluetooth LE 2440 0.99 1.39 100 0.4 N/A Comment: 1.3 Field strength radiation sources None 1.4 Concurrent Sources No concurrent radiation sources Test Report No.: G0M-2210-1706-TFC091MP-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 9 of 14 2 Result Summary FCC MPE Evaluation - Single radiation sources Product Standard Reference Requirement Reference Method Mode Distance [m] Verdict 47 CFR 2.1091 Maximum permissible exposure FCC KDB 447498 Bluetooth LE 0.20 PASS Comment: ISED MPE Evaluation - Single radiation sources Product Standard Reference Requirement Reference Method Mode Distance [m] Verdict ISED RSS-102 Maximum permissible exposure ISED RSS-102 Bluetooth LE 0.20 PASS Comment: Test Report No.: G0M-2210-1706-TFC091MP-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 10 of 14 3 RF-Exposure classification RF-Exposure Categories Fixed A fixed device is defined as a device physically secured at one fixed location and cannot be easily re-located. Mobile A mobile device is defined as a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter's radiating structure(s) and the body of the user or nearby persons. Portable A portable device is defined as a transmitting device d…

Text truncated - open the document above for the full version.

Test Report No.: G0M-2210-1706-EF0115B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 1 of 23 CUSTOMER SPECIFIC EMC TEST REPORT FCC CFR Title 47 / Chapter I / Subchapter A / Part 15 / Subpart B ISED ICES-003 Issue 7 Report Reference No G0M-2210-1706-EF0115B-V01 Testing Laboratory Eurofins Product Service GmbH Address Storkower Str. 38c 15526 Reichenwalde Germany Accreditation A2LA - Registration number: 1983.01 (ISED) ISED wireless device testing laboratory: CN 3470A DAkkS - Registration number : D-PL-12092-01-04 (FCC) FCC Filed Test Laboratory, Reg.-No.: 96970 Applicant Haltian Oy Address Yrttipellontie 1 D 90230 Oulu Finland Test Specification Standard(s) FCC CFR Title 47 / Chapter I / Subchapter A / Part 15 / Subpart B ISED ICES-Gen Issue 1 ; Amendment 1 (February 2021) ISED ICES-003 Issue 7 ANSI C63.4:2014+A1:2017 Non-Standard Test Method None Equipment under Test (EUT): Product Description Asset tracking tag Model(s) TTG Additional Model(s) None Brand Name(s) Thingsee Nano Tag Hardware Version(s) TTG_04S Software Version(s) thingsee_tag_silabs_01b_wp51_2022.02.01.1 FCC-ID 2AEU3TSNANO IC 20236-TSNANO Test Result PASSED Test Report No.: G0M-2210-1706-EF0115B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 3 of 23 ABBREVIATIONS AND ACRONYMS Acronyms Acronym Description EUT Equipment Under Test FCC Federal Communications Commission ISED Innovation, Science and Economic Development Canada T NOM Nominal operating temperature V NOM Nominal supply voltage Test Report No.: G0M-2210-1706-EF0115B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 4 of 23 VERSION HISTORY Version History Version Issue Date Remarks Revised By 01 2022-11-30 Initial Release - Test Report No.: G0M-2210-1706-EF0115B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 5 of 23 REPORT INDEX 1 Equipment (Test Item) Under Test................................................................................................... 6 1.1 Equipment Ports ............................................................................................................................................ 7 1.2 Equipment Photos – Internal ......................................................................................................................... 8 1.3 Equipment Photos - External ......................................................................................................................... 9 1.4 Support Equipment ...................................................................................................................................... 14 1.5 Operational Modes ...................................................................................................................................... 14 1.6 EUT Configuration ....................................................................................................................................... 14 1.7 Sample emission level calculation ............................................................................................................... 15 2 Result Summary ............................................................................................................................... 16 2.1 Test Conditions and Results - Radiated emissions acc. to ANSI C63.4 ...................................................... 17 3 Measurement Uncertainty .............................................................................................................. 23 Test Report No.: G0M-2210-1706-EF0115B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 6 of 23 1 Equipment (Test Item) Under Test Description Asset tracking tag Intended use EUT is a part of a system for modular, reliable, and flexible solution for smart buildings. The Thingsee solution includes connectivity from device to device over BLE. Model TTG Additional Model(s) None Brand Name(s) Thingsee Nano Tag Hardware Version(s) TTG_04S Software Version(s) thingsee_tag_silabs_01b_wp51_2022.02.01.1 Number of tested samples 1 Sample Identification Sample-ID Serial Number 41732 MAC: 040D84BEAE7F EUT Dimensions [cm] 2.54 x 1.27 x 0.72 FCC-ID 2AEU3TSNANO IC 20236-TSNANO Class Class B Equipment type Table top Highest internal frequency [MHz] 2483.5 Protective Earth N/A Radio Module Type BLE Model EFR32BG22C224F512GM32-C SoC Manufacturer Silicon Labs FCC-ID N/A IC N/A Supply Voltage V NOM 3 V DC by internal lithium battery (LiMnO2) AC/DC-Adaptor N/A Manufacturer Haltian Oy Yrttipellontie 1 D 90230 Oulu Finland Test Report No.: G0M-2210-1706-EF0115B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 7 of 23 1.1 Equipment Ports Name Type Attributes Comment None Description: AC AC mains power input/output port DC DC power input/output port BAT DC power input port connected to external battery IO Input/Output port TP Telecommunication port NE Non-electrical port Test Report No.: G0M-2210-1706-EF0115B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 8 of 23 1.2 Equipment Photos – Internal EUT 41732 internal top EUT #41732 internal bottom Test Report No.: G0M-2210-1706-EF0115B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 9 of 23 1.3 Equipment Photos - External EUT #41732 with cable and battery holder EUT #41732 external top Test Report No.: G0M-2210-1706-EF0115B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 10 of 23 EUT #41732 external bottom EUT #41732 external front Test Report No.: G0M-2210-1706-EF0115B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 11 of 23 EUT #41732 external rear EUT #41732 external left Test Report No.: G0M-2210-1706-EF0115B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde…

Text truncated - open the document above for the full version.

Test Report No.: G0M-2210-1706-TFC247BL-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 1 of 76 RADIO REPORT FCC 47 CFR Part 15C ISED Canada RSS-247 Digital transmission systems operating within the 2400.0 MHz - 2483.5 MHz band Report Reference No G0M-2210-1706-TFC247BL-V01 Testing Laboratory Eurofins Product Service GmbH Address Storkower Str. 38c 15526 Reichenwalde Germany Accreditation DAkkS - Registration number : D-PL-12092-01-03 (ISED) ISED Testing Laboratory site: 3470A DAkkS - Registration number : D-PL-12092-01-04 (FCC) FCC Filed Test Laboratory, Reg.-No.: 96970 Applicant Haltian Oy Address Yrttipellontie 1 D 90230 Oulu Finland Test Specification 47 CFR Part 15C RSS-247, Issue 2, 2017-02 RSS-Gen, Issue 5, Amendment 2, 2021-02 Non-Standard Test Method None Equipment under Test (EUT): Product Description Asset tracking tag Model(s) TTG Additional Model(s) None Brand Name(s) Thingsee Nano Tag Hardware Version(s) TTG_04S Software Version(s) thingsee_tag_silabs_01b_wp51_2022.02.01.1 FCC ID 2AEU3TSNANO IC 20236-TSNANO Test Result PASSED Test Report No.: G0M-2210-1706-TFC247BL-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 3 of 76 VERSION HISTORY Version History Version Issue Date Remarks Revised By 01 2022-11-29 Initial Release Test Report No.: G0M-2210-1706-TFC247BL-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 4 of 76 ABBREVIATIONS AND ACRONYMS Acronyms Acronym Description EUT Equipment Under Test FCC Federal Communications Commission ISED Innovation, Science and Economic Development Canada RBW Resolution bandwidth RMS Root mean square VBW Video bandwidth V NOM Nominal supply voltage Test Report No.: G0M-2210-1706-TFC247BL-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 5 of 76 REPORT INDEX 1 Equipment (Test Item) Under Test................................................................................................... 6 1.1 Photos – Equipment External ........................................................................................................................ 7 1.2 Photos – Equipment Internal ....................................................................................................................... 12 1.3 Support Equipment ...................................................................................................................................... 13 1.4 Test Modes ................................................................................................................................................. 14 1.5 Test Frequencies ......................................................................................................................................... 15 1.6 Sample emission level calculation ............................................................................................................... 16 2 Result Summary ............................................................................................................................... 17 3 Test Conditions and Results .......................................................................................................... 18 3.1 Test Conditions and Results - Occupied bandwidth .................................................................................... 18 3.2 Test Conditions and Results - 6 dB bandwidth ............................................................................................ 23 3.3 Test Conditions and Results - Maximum peak conducted output power ..................................................... 28 3.4 Test Conditions and Results - Power spectral density ................................................................................ 33 3.5 Test Conditions and Results - Band-edge compliance ................................................................................ 38 3.6 Test Conditions and Results - Conducted spurious emissions .................................................................... 42 3.7 Test Conditions and Results - Transmitter radiated emissions ................................................................... 47 3.8 Test Conditions and Results - Receiver radiated emissions ....................................................................... 52 ANNEX A Transmitter spurious emissions ....................................................................................................... 56 ANNEX B Receiver spurious emissions ........................................................................................................... 73 Test Report No.: G0M-2210-1706-TFC247BL-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 6 of 76 1 Equipment (Test Item) Under Test Description Asset tracking tag Model TTG Additional Model(s) None Brand Name(s) Thingsee Nano Tag Serial Number(s) Prototype Test Sample Id(s) Radiated sample: 41732 Conducted sample: 39791 Hardware Version(s) TTG_04S Software Version(s) thingsee_tag_silabs_01b_wp51_2022.02.01.1 PMN Thingsee Nano Tag HVIN TTG FVIN thingsee_tag_silabs_01b_wp51_2022.02.01.1 HMN N/A FCC ID 2AEU3TSNANO IC 20236-TSNANO Equipment type End Product Radio type Transceiver Assigned frequency bands 2400.0 MHz - 2483.5 MHz Radio technology Bluetooth LE Hardware Supported datarate(s) 1MBit/s Modulation GFSK Number of antenna ports 1 Antenna Type Integrated Model PCB antenna Manufacturer Hattian Oy Gain 0.4 dBi (declared by manufacturer) Supply Voltage V NOM 3 VDC (Battery) Operating Temperature T NOM 25 °C AC/DC-Adaptor None Manufacturer Haltian Oy Yrttipellontie 1 D 90230 Oulu Finland Test Report No.: G0M-2210-1706-TFC247BL-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 7 of 76 1.1 Photos – Equipment External EUT Top View EUT Bottom View Test Report No.: G0M-2210-1706-TFC247BL-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 …

Text truncated - open the document above for the full version.

1 Takki antennameasurementreportin freespace 28.9.2022 Mikko Linnanmäki Innovative antenna system partner Ourexcellenttheoreticalunderstandingtogetherwith experiencedtop industrialantenna design methods& tools enablesyouto benefitof cost-efficientsolutionsand fastertime-to-market 2 Measurementsetup S11 measurementsetup:Total efficiencyand maxgainmeasurementsetup: Anechoicchamber: Satimostarlab 3 S11 Comments: •S11 at BT 2.4 GHz bandis -3.2 ... -12.3 dB 4 Max gain Comments: •Maximum gainat BT 2.4 GHz bandis +0.4 dBi 5 Total efficiency Comments: •Total efficiencyat BT 2.4 GHz bandis -6.2...-3.8 dB 6 Radiationpatterns ANTENNA ANTENNA ANTENNA
