2AEWYNL08-0800LED Light Bulb

Date: 2015.06.23 Designer: JEFF NL -08 Warning & Warr anty Size:124mm(L)x70mm(W) Size:124mm(L)x70mm(W) 2 1 Package Content: • The package contains the Nanoleaf Ivy LED light bulb, 800 Lumens. • The package does NOT contain a hub to control the light; hubs that uses Zigbee Home Automation 1.2, e.g. Almond+™, SmartThings™ and Wink™, have to be purchased separately. Installation: To install device, screw into an E26/E27 screw fitting. Then switch on the power. The bulb will then be ready to use with compatible hubs. Control the light using your smart device through the instructions that come with your compatible hub. Additional Dimming Functionality – Dim* Your Lights Using the Existing Light Switch Nanoleaf Ivy LED light bulb also comes with Nanoleaf Bloom functions, which means it can be dimmed using a standard on/off light switch. The steps are: Reboot and Factory Reset: To reboot Nanoleaf Ivy LED light bulb, switch off the power for at least five seconds, then power it back on. To reset Nanoleaf Ivy LED light bulb to factory default follow these steps: 1. Power on the bulb for at least five seconds. 2. Switch the bulb off-on rapidly five times, such that off time is about 0.3 seconds and on time is about 1 second. The bulb will at this point start flashing. 3. Wait until the flashing stops, which is a matter of a few seconds. 4. Switch off the light for at least five seconds. After these steps the light bulb will be reset to factory defaults next time it is powered on. Troubleshooting: • If your Nanoleaf Ivy LED light bulb does not pair with the home control system: o Move the Nanoleaf Ivy LED light bulb closer to the controller. o Remove obstacles in the path between the Nanoleaf Ivy LED light bulb and the controller, such as large appliances, mirrors, file cabinets, and ensure the Nanoleaf Ivy LED light b ulb nor the controller are located near other wireless devices like a Wi-Fi access point/router. 14 Nanoleaf bulb prefers to stay dry. 7. To ensure a long and happy life for your Nanoleaf bulb, only use in operating environments ranging between -20C to 40C. (14F to 104F). All other conditions may result in extreme sadness and early death of the bulb. 8. Product intended for indoor use ONLY. Exploration of the bulb in other environments are strongly unrecommended and discouraged, but please let us know the results if you choose to take the path less taken. 9. Emergency exit lights or fixtures are not ideal homes for the Nanoleaf bulbs, they will be hopelessly unhappy there. 10. The Nanoleaf bulb is extremely bright... and shy...please refrain from staring directly at it when it is turned on. If you cannot resist, please admire it while wearing sunglasses, or your eyes may be upset with you. 11. The Nanoleaf IVY bulb is meant to be out in the open and admired, so it will lash out if placed into a fully enclosed fixture. 12. Once the Nanoleaf bulb is damaged, it will be polluted with evil thoughts. Stop using immediately if the bulb becomes damaged or open, or experience its terrible wrath and mood swings. 13 Nanoleaf Ivy Warnings Fun Warning: 1. Electrical shocks are not as fun as they sound, please avoid getting one by powering off the Nanoleaf bulb/light switch before inspecting, installing, or removing the bulb. 2. Though the Nanoleaf bulb is cute and dainty, please ensure that the lighting fixture can support the weight of this lovable invention prior to installation, to prevent any property damage or injury from a falling bulb. 3. Please resist from touching the Nanoleaf bulb when it is on. However, if you must, do so at your own risk. 4. The Nanoleaf bulb, or any other bulbs, should never be installed by children or pets. 5. The Nanoleaf bulb is not designed to be dissected. Please do not disassemble or open the bulb. Once disassembled, the bulb will no longer function and may expose you to electrical shock as punishment for murdering it. 6. The Nanoleaf bulb is suitable for reasonable damp locations but not for use where directly exposed to water/liquids. Like a cat, the www.nanoleaf.me 1615 Safety Warnings: Risk of Electric Shock – Do not use where directly exposed to water. Do not insert nail, straw, thread or other object into holes on the device surface. Do not open or attempt to open device. To prevent property damage and injuries, ensure that the light fixture can support the weight of the bulb. This device is not intended for use with emergency exit fixtures. Before replacing device, turn off power and let device cool in order to avoid burn or electric shock. Discontinue use if damaged. Product enhancements are constantly worked on; therefore appearance and outlook may vary and are subject to change without notic e. Operate in environments of -20C to 45C (-4F to 113F) only. Intended st rictly for indoor use. Do not stare directly at the light for long periods of time, for risk of damages to the eyes. For lamps with a weight significantly higher than that of the lamps for which they are a replacement, attention should be drawn to the fact that the increased weight may reduce the mechanical stability of certain luminaires and lampholders and may impair contact making and lamp retention.This lamp is not suitable for totally enclosed fixtures or insulated air-tight (ICAT) recessed down lights. Warranty: Limited Warranty: 3-year free replacement limited warranty. The warranty period is 30,000 hours or 3 years whatever comes first. If a Product fails to operate in accordance with this limited Warranty, Nanoleaf will, at its sole option, replace the Product with the same or a functionally equivalent Product or grant purchaser a credit for a future Product purchase. For avoidance of doubt, "to replace the Product" does not include any removal or reinstallation costs or expenses, including without limitation labor costs or expenses, shipping costs to return non-conforming Products or any damages that may occur during the return of Product to Nanoleaf. This limited Warranty is subj…

Text truncated - open the document above for the full version.

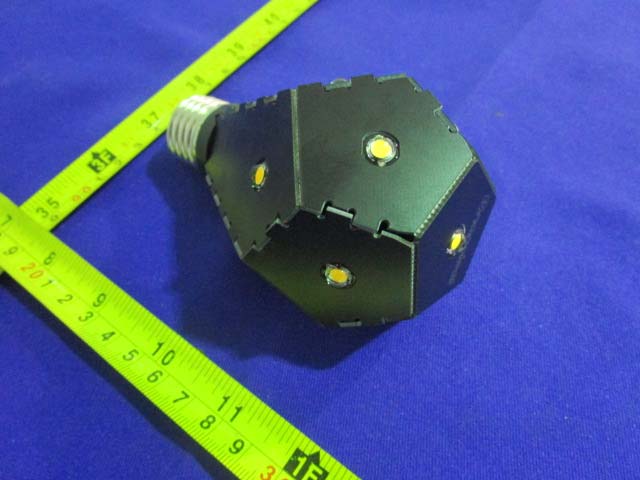

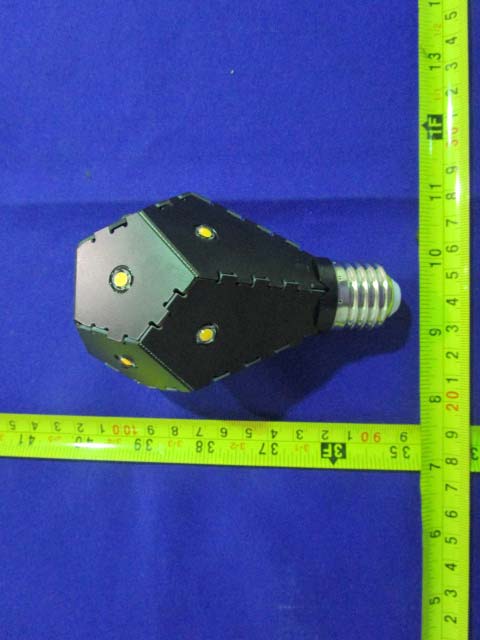

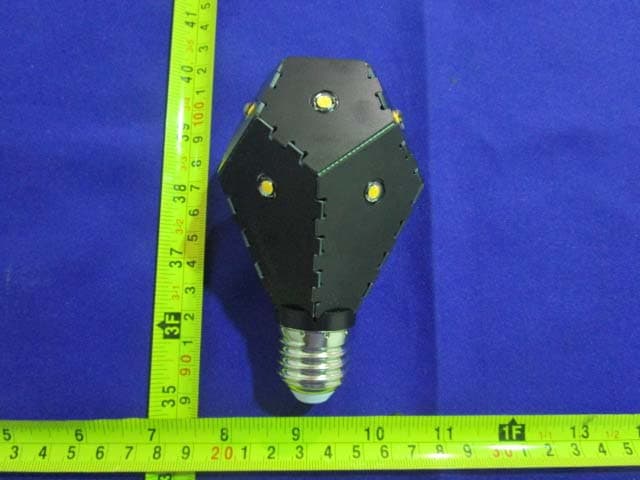

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT— Top View EUT- Bottom View EUT- Side View EUT- Side View

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label Proposed FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925) Label Here

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT- Uncover View EUT- LED Board Top View EUT- LED Board Bottom View EUT- PCB Board View EUT- PCB Board Uncover View EUT- Power Board Top view EUT- Power Board Bottom View EUT- RF Module Top View Antenna EUT- RF Module Bottom View EUT- RF Chip View

Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG150428051-00A FCC Part 15.247 Page 8 of 32 FCC §15.247 (i) & §1.1307 & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to subpart 15.247(i) and subpart §1.1307, systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Maximum Permissible Exposure (MPE) (§1.1310, §2.1091) (B) Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f²) 30 30–300 27.5 0.073 0.2 30 300–1500 / / f/1500 30 1500–100,000 / / 1.0 30 f = frequency in MHz; * = Plane-wave equivalent power density; According to §1.1310 and §2.1091 RF exposure is calculated. Calculated Formulary: Predication of MPE limit at a given distance S = PG/4πR² = power density (in appropriate units, e.g. mW/cm 2 ); P = power input to the antenna (in appropriate units, e.g., mW); G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain; R = distance to the center of radiation of the antenna (appropriate units, e.g., cm); Calculated Data: Mode Frequency (MHz) Antenna Gain Conducted Power Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) (dBi) (numeric)(dBm)(mW) Zigbee 2440 2.0 1.58 18.5271.1220 0.022 1.0 Result: The device meet FCC MPE at 20 cm distance.

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (Dongguan). This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. FCC PART 15.247 TEST REPORT For NANOGRID LIMITED ROOM 1405, 135 BONHAM STRAND TRADE CENTRE, 135 BONHAM STRAND, SHEUNG WAN, HONG KONG FCC ID: 2AEWYNL08-0800 Report Type: Original Report Product Type: LED Light Bulb Test En gineer: Lion Xiao Re port Number: RDG150428051-00A Re port Date: 2015-05-29 Reviewed By: Sula Huang RF Leader Test Laboratory: Bay Area Compliance Laboratories Corp. (Dongguan) No.69 Pulongcun, Puxinhu Industrial Zone, Tangxia, Dongguan, Guangdong, China Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG150428051-00A FCC Part 15.247 Page 2 of 32 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 4 TEST FACILITY ............................................................................................................................................................. 4 SYSTEM TEST CONFIGURATION .......................................................................................................................... 5 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 5 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 5 EUT EXERCISE SOFTWARE .......................................................................................................................................... 5 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS ........................................................................................................ 5 SUPPORT CABLE LIST AND DETAILS ............................................................................................................................ 5 CONFIGURATION OF TEST SETUP ................................................................................................................................. 6 SUMMARY OF TEST RESULTS ............................................................................................................................... 7 FCC §15.247 (i) & §1.1307 & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) ......................................... 8 APPLICABLE STANDARD .............................................................................................................................................. 8 FCC §15.203 - ANTENNA REQUIREMENT ............................................................................................................. 9 APPLICABLE STANDARD .............................................................................................................................................. 9 ANTENNA CONNECTOR CONSTRUCTION ...................................................................................................................... 9 FCC §15.207 (a) – AC LINE CONDUCTED EMISSIONS ..................................................................................... 10 APPLICABLE STANDARD ............................................................................................................................................ 10 MEASUREMENT UNCERTAINTY .................................................................................................................................. 10 EUT SETUP ................................................................................................................................................................ 10 EMI TEST RECEIVER SETUP ....................................................................................................................................... 11 TEST PROCEDURE ...................................................................................................................................................... 11 CORRECTED AMPLITUDE & MARGIN CALCULATION ................................................................................................. 11 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 12 TEST RESULTS SUMMARY .......................................................................................................................................... 12 TEST DATA ................................................................................................................................................................ 12 FCC §15.209, §15.205 & §15.247(d) - SPURIOUS EMISSIONS ............................................................................. 15 APPLICABLE STANDARD ............................................................................................................................................ 15 MEASUREMENT UNCERTAINTY ......................................................................…
