2AFDGBT-BH021TRUE WIRELESS STEREO EARBUDS

www.boltune.net MODEL: BT-BH021 TRUE WIRELESS STEREO EARBUDS User Guide 11-18-2019 BT-BH021_V1.1 EUROPE E-mail: [email protected] EU Importer: ZBT International Trading GmbH Address: Halstenbeker Weg 98C, 25462 Rellingen, Deutschland NORTH AMERICA E-mail: [email protected] MANUFACTURER Shenzhen NearbyExpress Technology Development Co.,Ltd. Address: 333 Bulong Road, Shenzhen, China, 518129 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. ASIA PACIFIC E-mail: [email protected] JP Importer: SUNVALLEY JAPAN Address: 104-0032 318-6 PMO9F MADE IN CHINA www.boltune.net M I C I D a n d L o g o c a n b e f o u n d o n t h e p a c k i n g . P r o d u c t n a m e , t r a d e m a r k a n d m o MIC ID and Logo and FCC ID can be found on the Charging Box Product name, trademark and model can be found on the first page of the manual. FCC ID: 2AFDGBT-BH021 CONTENTS English Deutsch Français Español Italiano 01-11 12-23 24-36 37-51 52-63 64-74 PACKAGE CONTENTS (Fig. 1) Boltune True Wireless Stereo Earbuds (BT-BH021) 6 x Ear Tips (two are equipped on the earbuds) 1 x USB-C Charging Cable 1 x User Manual 1 x Quick Start Guide EN 1 Boltune True Wireless Stereo-Kopfhörer (BT-BH021) 6 x Ohrstöpsel (zwei sind bereits an den Ohrhörern angebracht) 1 x USB-C Ladekabel 1 x Bedienungsanleitung 1 x Schnellstart-Anleitung DE Boltune Écouteurs Bluetooth Sans Fil (BT-BH021) 6 x Embouts d’Oreillette (deux sont déjà installés sur les écouteurs) 1 x Câble de Charge USB-C 1 x Manuel de l'Utilisateur 1 x Guide de Démarrage Rapide FR Auriculares Inalámbricos Estéreo Boltune (BT-BH021) 6 x Puntas de Goma para Oídos (dos están equipados en los auriculares) 1 x Cable de Carga USB-C 1 x Manual de Usuario 1 x Guía de Inicio Rápido ES Auricolari Stereo True Wireless Stereo Boltune (BT-BH021) 6 Puntali Auricolari (due già montati sugli auricolari) 1 x Cavo di Ricarica USB-C 1 x Manuale Utente 1 x Manuale di Avvio Rapido IT BoltuneBT-BH021 JP USER GUIDE QUICK START GUIDE PRODUCT DIAGRAM (Fig. 2) 2 ENDE FRES IT JP ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ Multifunction Touch Control LED Indicator Microphone Charging Contacts Charging Case USB-C Charging Port Charging Slot Charging Indicator ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ Multifunktions-Touch-Steuerung LED-Anzeige Mikrofon Ladekontakte Ladehülle USB-C-Ladeanschluss Ladeschacht Ladeanzeige ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ Multifonction Touche Tactile Voyant à LED Microphone Contacts de Charge Boîtier de Charge Port de Charge USB-C Slot de Charge Voyant de Charge ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ Control Táctil Multifunción Indicador LED Micrófono Contactos de Carga Estuche de Carga Puerto de Carga USB-C Ranura de Carga Indicador de Carga ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ Controllo Touch Multifunzione Indicatore LED Microfono Contatti per la Ricarica Custodia per la Ricarica Porta di Ricarica USB-C Slot per la Ricarica Indicatore di Ricarica ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ L R 0102 EN IMPORTANT SAFETY INSTRUCTIONS Please read the instructions thoroughly before using this product and retain it for future reference. Hearing Safety • Do not wear earbuds with high volume for a long time to avoid damaging your hearing. • Set the earbuds to low volume before you put them on, then increase the volume gradually as per your preference. • Do not set volume too high to stay aware of your surroundings. • Please refer to local laws and regulations if you want to answer phone calls via this device during driving. • For your safety, avoid distraction from music or phone calls when you are driving or doing other activities with potential dangers. Warning: Please set the volume to proper level to avoid hearing damages. Caution • Do not expose this product to high temperatures. • Do not immerse the earbuds into water or expose them to humidity for a long time. • Do not clean the product with detergent containing alcohol, ammonia, benzene or abrasives. • Avoid dropping. • Place the earbuds back into the charging case when not in use and keep it away from children and pets to avoid choking hazard. • Unauthorized disassembly of any parts of this product is forbidden, which may cause fire hazard, warranty voidance, and/or property loss. • Close attention is needed when using near children. • Keep the charging case away from water, rain or any other liquid. • Don’t use the product in thunderstorm to avoid malfunction or electric shock. • Always ask a professional technician or authorized personnel for repair. This product contains lithium battery. Never expose it to excessive heat such as direct sunlight or fire to avoid explosion. HOW TO WEAR Choose the Right Tips (Fig. 3) Ear tips with different sizes are included in the package, try all sizes and choose the ones fitting you best. 3 0304 Wear the Earbuds (Fig. 4) Please wear the earbuds as shown below. Pictures only for reference. Bluetooth Caution • When the device is connected wirelessly to another device, place the two devices close to each other to achieve their normal functionalities and avoid possible signal interference. • When using a wireless connection, make sure there are no obstacles between the two devices. Obstacles including walls and fences may shorten the effective range. USING YOUR EARBUDS Charging Charging the Earbuds 1. Put the earbuds into the charging case as per the L (left) and R (right) marks (Fig. 5). 2. Cover the lid and charging will start automatically (Fig. 6). Note: • Please fully charge the earbuds when using them for the first time. • When battery is low, a “Battery low” voice prompt will be heard (if you are wearing the earbuds). Please charge it in time or the earbuds will turn off automatically around 10 minutes later. • Charge the earbuds at least once every 3 months when not using for a long time. Charging the Charging Case 1. Connect the charging port with any USB charging adapter or…

Text truncated - open the document above for the full version.

SUNVALLEYTEK INTERNATIONAL, INC. 46724 Lakeview Blvd, Fremont, CA 94538-6529 Dec. 31, 2019 Federal Communications Commission 445 12 th Street SW Washington, DC 20554 Subject: Limited Agency Agreement SUNVALLEYTEK INTERNATIONAL, INC. FCC ID: 2AFDGBT-BH021 To Whom It May Concern: We, SUNVALLEYTEK INTERNATIONAL, INC. hereby authorized Intertek Testing Services to act as our Agent for the purpose of preparing application for FCC ID number (2AFDGBT-BH021) under all applicable parts of the FCC rules and regulations. The effective date of this limited agency agreement is (2019-12-31). The Limited Agency Agreement expires until further notice, unless sooner terminated or extended by written notice to Intertek Testing Services and the Federal Communications Commission. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. The applicant is not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 U.S.C. 862, and no party to the application is subject to a denial of federal benefits pursuant to that section. If you have any questions or comments, please do not hesitate to contact me. Sincerely, [Signature] SUNVALLEYTEK INTERNATIONAL, INC. Contact person: kent peng Title: General Manager

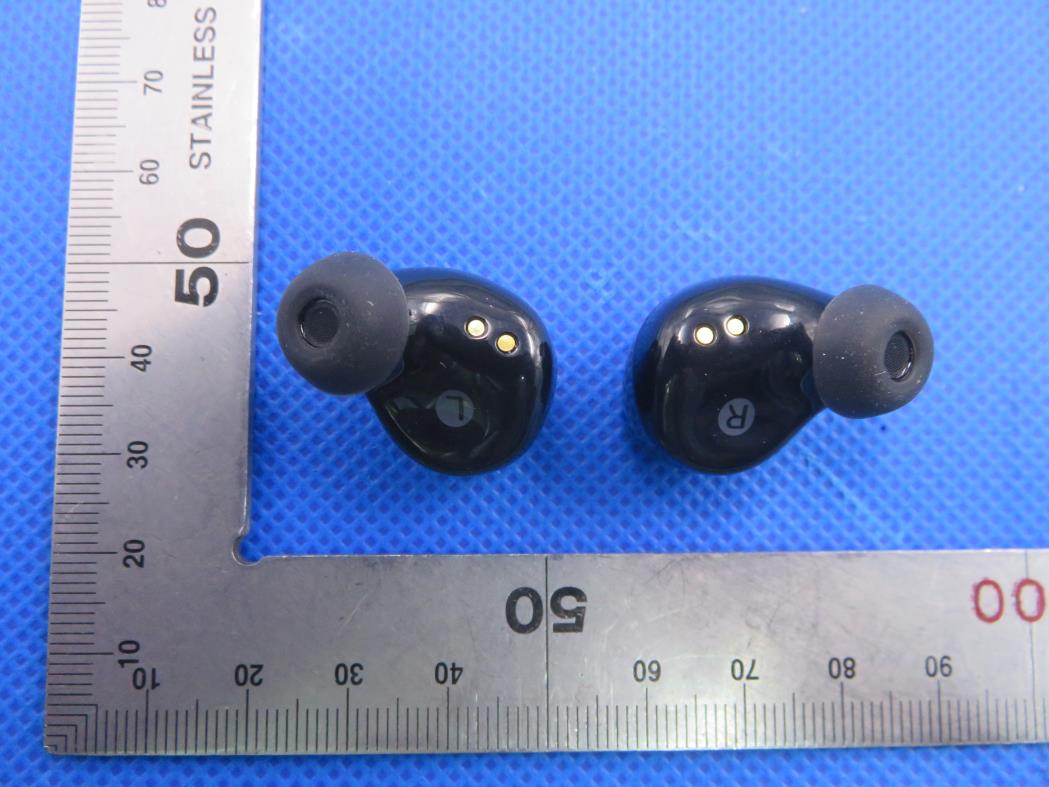

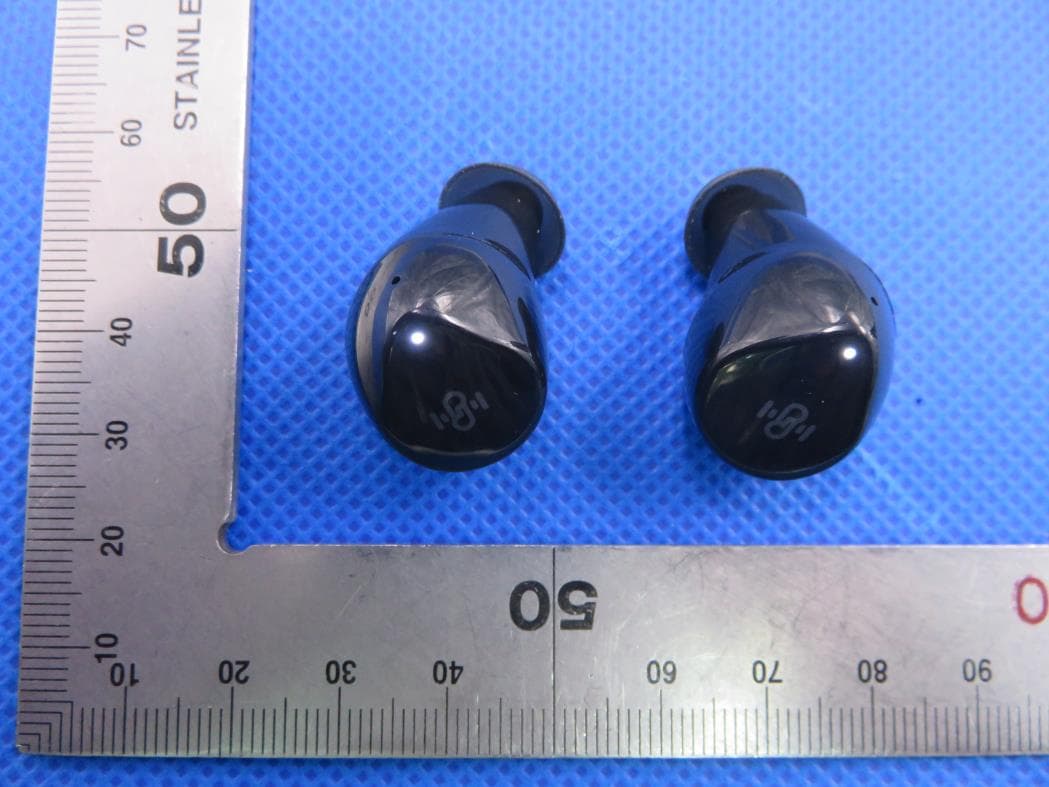

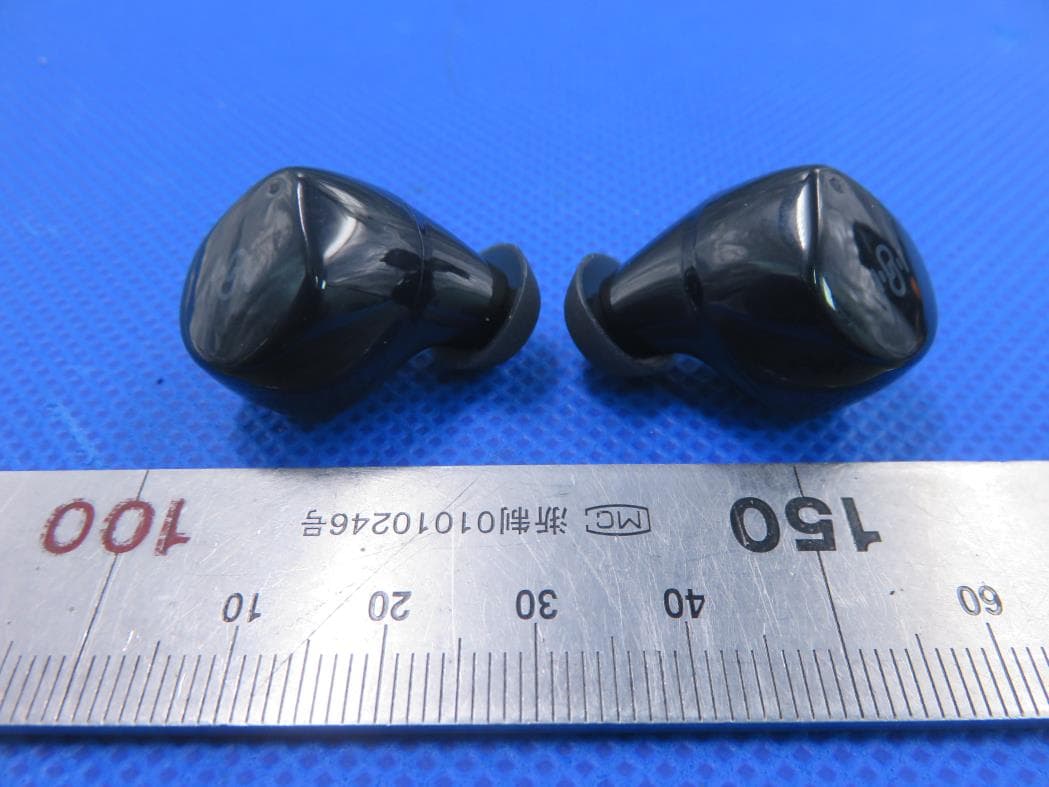

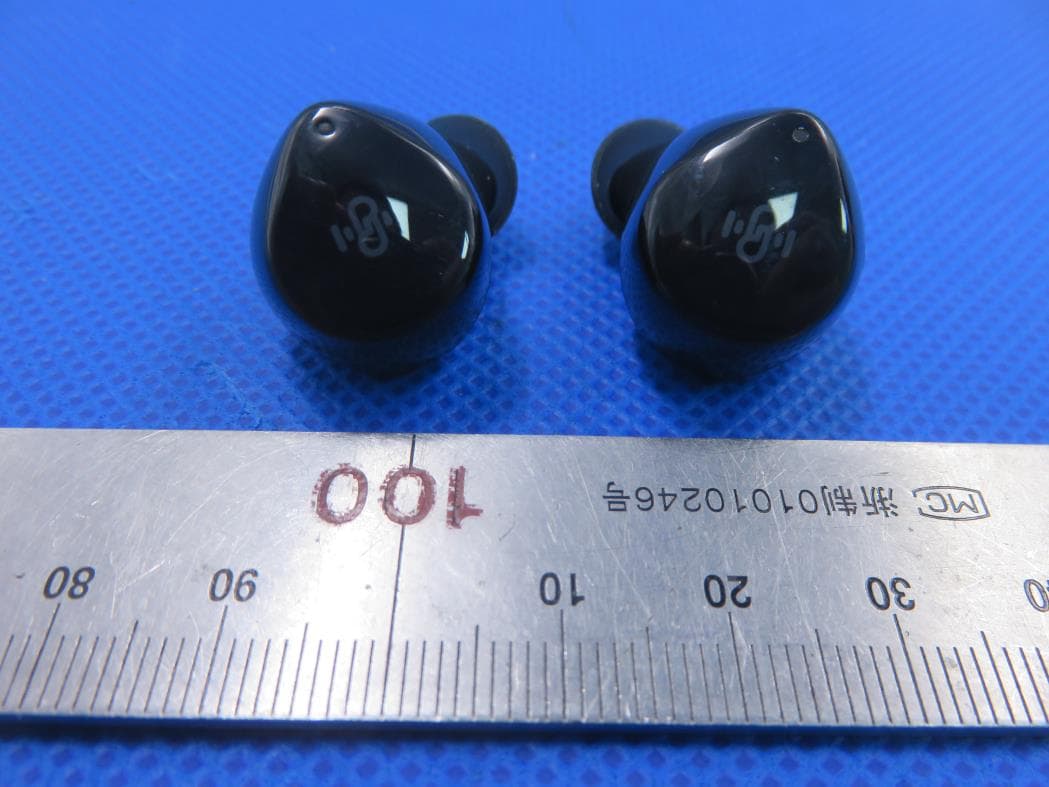

External Photos Test Model: BT-BH021 TOTAL VIEW OF EUT Headset TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT VIEW OF EUT (PORT) Charging Dock TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT VIEW OF EUT (PORT)-1 VIEW OF EUT (PORT)-2

www.boltune.net www.boltune.net BT-BH021 包装盒 TRUE WIRELESS STEREO EARBUDS TRUE WIRELESS STEREO EARBUDS BT-BH021 EU Importer: ZBT International Trading GmbH Address: Halstenbeker Weg 98C, 25462 Rellingen, Deutschland JP Importer: Address: Manufacturer: Shenzhen NearbyExpress Technology Development Co.,Ltd. Address: 333 Bulong Road, Shenzhen, China, 518129 FCC ID:2AFDGBT-BH021 FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must withstand any interference received, including interference that may cause undesired operation. The Bluet ooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Sunvalleytek International Inc. is under license. Other trademarks and trade names are those of their respective owners. Made in China 材质：350g单粉卡 尺寸：90x36.5x105 mm 公差：+/- 1mm 工艺：2专，覆哑膜 刀模：外轧 BT-BH021 包海绵纸托 材质：350g单粉卡 尺寸：88.5x103 mm 公差：+/- 1mm 工艺：1专，覆哑膜 刀模：外轧 PANRONE Cool Gray 8C BT-BH021 黑色高密度海绵 尺寸：88x77.5x28.5 mm 公差：+/- 1mm PANRONE 1805CPANRONE 1805C

Internal Photos Test Model: BT-BH021 Right OPEN VIEW OF EUT VIEW OF BATTERY INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 BT Antenna Left OPEN VIEW OF EUT VIEW OF BATTERY INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 BT Antenna Charging Dock OPEN VIEW OF EUT VIEW OF BATTERY INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2

RF EXPOSURE EVALUATION 1. PRODUCT INFORMATION Product Description TRUE WIRELESS STEREO EARBUDS Model Name BT-BH021 FCC ID 2AFDGBT-BH021 2. EVALUATION METHOD According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 3. CALCULATION P t =2.468dBm=1.77mW The value of the Maximum output power P t is referred to the test report of the CFR47 §15.247. The result for RF exposure evaluation SAR=(1.77mW /5mm) .[√2.402(GHz)]= 0.55<3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. 4. CONCLUSION The SAR evaluation is not required.

Page 1 of 75 FCC Test Report Report No.: AGC00210191203FE03 FCC ID : 2AFDGBT-BH021 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : TRUE WIRELESS STEREO EARBUDS BRAND NAME : Boltune MODEL NAME : BT-BH021 APPLICANT : SUNVALLEYTEK INTERNATIONAL, INC. DATE OF ISSUE : Dec. 30, 2019 STANDARD(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC00210191203FE03 Page 2 of 75 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Dec. 30, 2019 Valid Initial Release Report No.: AGC00210191203FE03 Page 3 of 75 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY .............................................................................................................. 5 2. GENERAL INFORMATION .......................................................................................................................... 6 2.1. PRODUCT DESCRIPTION .................................................................................................................... 6 2.2. TABLE OF CARRIER FREQUENCYS .................................................................................................... 6 2.3. RECEIVER INPUT BANDWIDTH ........................................................................................................... 7 2.4. EXAMPLE OF A HOPPING SEQUENCY IN DATA MODE ....................................................................... 7 2.5. EQUALLY AVERAGE USE OF FREQUENCIES AND BEHAVIOUR ........................................................ 7 2.6. RELATED SUBMITTAL(S) / GRANT (S) ................................................................................................. 8 2.7. TEST METHODOLOGY ......................................................................................................................... 8 2.8. SPECIAL ACCESSORIES ..................................................................................................................... 8 2.9. EQUIPMENT MODIFICATIONS ............................................................................................................. 8 3. MEASUREMENT UNCERTAINTY ............................................................................................................... 9 4. DESCRIPTION OF TEST MODES ............................................................................................................. 10 5. SYSTEM TEST CONFIGURATION ............................................................................................................ 11 5.1. CONFIGURATION OF EUT SYSTEM .................................................................................................. 11 5.2. EQUIPMENT USED IN TESTED SYSTEM .......................................................................................... 11 5.3. SUMMARY OF TEST RESULTS .......................................................................................................... 11 6. TEST FACILITY ......................................................................................................................................... 12 7. PEAK OUTPUT POWER ........................................................................................................................... 13 7.1. MEASUREMENT PROCEDURE.......................................................................................................... 13 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................. 13 7.3. LIMITS AND MEASUREMENT RESULT .............................................................................................. 14 8. 20DB BANDWIDTH ................................................................................................................................... 20 8.1. MEASUREMENT PROCEDURE.......................................................................................................... 20 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................. 20 8.3. LIMITS AND MEASUREMENT RESULTS ............................................................................................ 20 9. CONDUCTED SPURIOUS EMISSION ....................................................................................................... 27 9.1. MEASUREMENT PROCEDURE.......................................................................................................... 27 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................. 27 9.3. MEASUREMENT EQUIPMENT USED ................................................................................................. 27 9.4. LIMITS AND MEASUREMENT RESULT .............................................................................................. 27 Report No.: AGC00210191203FE03 Page 4 of 75 10. RADIATED EMISSION ............................................................................................................................. 37 10.1. MEASUREMENT PROCEDURE ........................................................................................................ 37 10.2. TEST SETUP ..................................................................................................................................... 39 10.3. LIMITS AND MEASUREMENT RESULT ............................................................................................ 40 10.4. TEST RESULT ................................................................................................................................... 40 11. NUMBER OF HOPPING FREQUENCY .................................................................................................... 50 11.1. MEASUREMENT PROCEDURE ............................................…

Text truncated - open the document above for the full version.

Report No.: AGC00210191203FE03 Page 41 of 75 RADIATED EMISSION BELOW 1GHZ EUT TRUE WIRELESS STEREO EARBUDS Model Name BT-BH021 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 7 Antenna Horizontal RESULT: PASS Report No.: AGC00210191203FE03 Page 42 of 75 EUT TRUE WIRELESS STEREO EARBUDS Model Name BT-BH021 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 7 Antenna Vertical RESULT: PASS Note: 1. Factor=Antenna Factor + Cable loss, Margin=Measurement-Limit. 2. All test modes had been pre-tested. The mode 7 is the worst case and recorded in the report. Report No.: AGC00210191203FE03 Page 43 of 75 RADIATED EMISSION ABOVE 1GHZ EUT TRUE WIRELESS STEREO EARBUDS Model Name BT-BH021 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 7 Antenna Horizontal FrequencyMeter ReadingFactorEmission LevelLimitsMargin (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) 4804.00052.710.0852.7974-21.21 peak 4804.00046.150.0846.2354-7.77 AVG 7206.00047.852.2150.0674-23.94 peak 7206.00041.912.2144.1254-9.88 AVG Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. Value Type EUT TRUE WIRELESS STEREO EARBUDS Model Name BT-BH021 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 7 Antenna Vertical FrequencyMeter ReadingFactorEmission LevelLimitsMargin (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) 4804.00050.620.0850.774-23.3 peak 4804.00045.450.0845.5354-8.47 AVG 7206.00046.322.2148.5374-25.47 peak 7206.00040.392.2142.654-11.4 AVG Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. Value Type Report No.: AGC00210191203FE03 Page 44 of 75 EUT TRUE WIRELESS STEREO EARBUDS Model Name BT-BH021 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 8 Antenna Horizontal FrequencyMeter ReadingFactorEmission LevelLimitsMargin (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) 4882.00052.320.1452.4674-21.54 peak 4882.00046.250.1446.3954-7.61 AVG 7323.00047.342.3649.774-24.3 peak 7323.00042.612.3644.9754-9.03 AVG Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. Value Type EUT TRUE WIRELESS STEREO EARBUDS Model Name BT-BH021 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 8 Antenna Vertical FrequencyMeter ReadingFactorEmission LevelLimitsMargin (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) 4882.00049.460.1449.674-24.4 peak 4882.00044.790.1444.9354-9.07 AVG 7323.00045.362.3647.7274-26.28 peak 7323.00039.942.3642.354-11.7 AVG Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. Value Type Report No.: AGC00210191203FE03 Page 45 of 75 EUT TRUE WIRELESS STEREO EARBUDS Model Name BT-BH021 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 9 Antenna Horizontal FrequencyMeter ReadingFactorEmission LevelLimitsMargin (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) 4960.00051.560.2251.7874-22.22 peak 4960.00045.240.2245.4654-8.54 AVG 7440.00046.212.6448.8574-25.15 peak 7440.00040.772.6443.4154-10.59 AVG Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. Value Type EUT TRUE WIRELESS STEREO EARBUDS Model Name BT-BH021 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 9 Antenna Vertical FrequencyMeter ReadingFactorEmission LevelLimitsMargin (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) 4960.00050.340.2250.5674-23.44 peak 4960.00043.760.2243.9854-10.02 AVG 7440.00046.542.6449.1874-24.82 peak 7440.00040.132.6442.7754-11.23 AVG Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. Value Type RESULT: PASS Note: Other emissions from 1G to 25 GHz are considered as ambient noise. No recording in the test report. Factor = Antenna Factor + Cable loss - Amplifier gain, Over=Measure-Limit. The “Factor” value can be calculated automatically by software of measurement system. All test modes had been tested. The 8DPSK modulation is the worst case and recorded in the report. Report No.: AGC00210191203FE03 Page 46 of 75 TEST RESULT FOR RESTRICTED BANDS REQUIREMENTS EUT TRUE WIRELESS STEREO EARBUDS Model Name BT-BH021 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 7 Antenna Horizontal PK AV RESULT: PASS Report No.: AGC00210191203FE03 Page 47 of 75 EUT TRUE WIRELESS STEREO EARBUDS Model Name BT-BH021 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 7 Antenna Vertical PK AV RESULT: PASS Report No.: AGC00210191203FE03 Page 48 of 75 EUT TRUE WIRELESS STEREO EARBUDS Model Name BT-BH021 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 9 Antenna Horizontal PK AV RESULT: PASS Report No.: AGC00210191203FE03 Page 49 of 75 EUT TRUE WIRELESS STEREO EARBUDS Model Name BT-BH021 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 9 Antenna Vertical PK AV RESULT: PASS Note: The factor had been edited in the “Input Correction” of the Spectrum Analyzer. So the Amplitude of test plots is equal to Reading level plus the Factor in dB. Use the A dB(μV) to represent the Amplitude. Use the F dB(μV/m) to represent the Field Strength. So A=F. All test modes had been pre-tested. The 8DPSK modulation is the worst case and recorded in the report. Report No.: AGC00210191203FE03 Page 50 of 75 11. NUMBER OF HOPPING FREQUENCY 11.1. MEASUREMENT PROCEDURE The EUT shall have its hopping function enabled. Use the following spectrum analyzer settings: 1. Span: The frequency band of operation. Depending on the number of channels the device supports, it may be necessary to divide the frequency range of operation across multiple spans, to allow the individual channels to be clearly seen. 2. RBW: To identify clearly the individual channels, set the RBW to less than 30% of the channel spacing or the 20 dB bandwidth, whicheve…

Text truncated - open the document above for the full version.

Test Setup Photos RADIATED EMISSION TEST SETUP BELOW 1GHZ RADIATED EMISSION TEST SETUP ABOVE 1GHZ CONDUCTED TEST SETUP
