2AFDGVA-VD009VAVA 2K DUAL DASH CAM

ASIA PACIFIC E-mail: [email protected](JP) JP Importer: SUNVALLEY JAPAN Address: 104-0032 318-6 PMO9F EUROPE E-mail: [email protected](UK) [email protected](DE) [email protected](FR) [email protected](ES) [email protected](IT) EU Importer: ZBT International Trading GmbH Address: Halstenbeker Weg 98C, 25462 Rellingen, Deutschland NORTH AMERICA E-mail: [email protected] Tel: 1-888-456-8468 (Monday-Friday: 9:00 – 17:00 PST) MANUFACTURER Manufacturer: Shenzhen NearbyExpress Technology Development Co.,Ltd. Address: 333 Bulong Road, Shenzhen, China, 518129 Learn more about the EU Declaration of Conformity: https://www.vava.com/pages/user-manual 11-27-2019 VA-VD009_V1.1_EN-JP www.vava.com MADE IN CHINA Model: VA-VD009 VAVA 2K DUAL DASH CAM User Guide VAVA Dash Download on the App Store Get it on Google Play Language English 01-18 19-35 EN/01EN/01 What is in the Box Product overview Product Diagram LED Indicator Recording Screen Icon Product Specification Getting Started Memory Card Installation Dash Cam Installation VAVA Dash APP Download Basic Operation Video Resolution Rear Camera ON / OFF Wi-Fi Setting Viewing Video/Photos on the Camera Dash Cam and Snapshot Button Pairing Senior Setting - IR LED Auto Firmware Upgrade via Memory Card Restore to Factory Settings FAQ Customer Service Contents 02 04 04 05 05 06 06 07 08 10 11 11 11 12 13 13 14 15 16 17 17 What’s in the BoxWhat’s in the Box 1 x VAVA Dash Cam 1 x Car Mount 1 x Car Charger 1 x Snapshot Button 1 x Charging Cable with GPS Module 1 x Crowbar 5 x Cable Clips 1 x User Guide EN/03 EN/02 Product OverviewProduct Overview EN/05 EN/04 Product DiagramLED IndicatorRecording Screen Icon 1. Car Mount 2. Micro USB Port 3. SD Card Slot 4. Front Camera 5. Power / Working Status LED 6. Wi-Fi Status LED 7. Menu Button 8. Previous 9. Next 12 3 4 5 6 7 8 9 101112 13 LED Indicator Slowly flashes blue Flashes red Solid on white Solid on green Status Working Recording an emergency video clip / abnormal working Mobile phone connected to Wi-Fi Rear camera working Microphone ON / OFF Emergency Recording Stop Recording RecordingRecording Rear Camera Screen 10. OK Button 11. Rear Camera OFF Button 12. Rear Camera Working Status LED 13. Rear Camera Rear Camera ON / OFF LCD ON / OFF Product OverviewGetting Started 1. Insert the Micro SD card into the SD card slot. 2. To remove the card, gently push it until it clicks and pull it out of the slot. EN/07 EN/06 Product SpecificationMemory Card Installation CPU Video Resolution COMS Sensor Screen USB TF Card GPS Built-in Battery Capacity Wi-Fi Operating Temperature Ambarella H22A55 Front Camera: 2560*1600P @30fps Rear Camera: 1920*1080P @30fps Front Camera: IMX335 Rear Camera: IMX307 2" LCD USB2.0 Micro SD Card U3, 16GB-128GB Supported 320mAh 2.4GHz 802.11b/g/n -20°C~50°C / -4°F~122°F Getting StartedGetting Started 3. The Micro SD card shall be formatted before using. To format the card, you can insert it into PC or connect with Dash Cam via APP. Note: · The Dash Cam supports a Micro SD card U3 16GB - 128GB. · Do not remove or insert the Micro SD card when the camera is working. · Suggested Micro SD card brands: Samsung, Sandisk. EN/09 EN/08 Dash Cam Installation 1. Turn off the car engine. 2. Stick the car mount onto your car windshield (ideally right in the middle). 3. Fix the VAVA ① Dash Cam onto the mount via the magnet. 4. Connect the USB cable to the micro USB port of the ① Dash Cam. Run the cable along the edge of the windshield, tuck it away in the seams, and extend it all the way to the USB port of the ② Car Charger. Be sure to keep it away from the airbag area. 5. Insert the ② Car Charger into your cigarette lighter, connect the ① Dash Cam to the Car Charger. 6. Adjust the ① Dash Cam to keep the lens level with the ground. 7. Start the car engine to check if the ① Dash Cam is working properly. ② ① Getting StartedBasic Operation EN/11 EN/10 VAVA Dash APP Download 1. Before using the device, please download the “VAVA Dash” APP from the App Store (iOS devices) or Google Play (Android devices). 2. Connect your Android / iOS smartphone with the VAVA Dash Cam through Wi-Fi: Settings > WLAN > Select “VAVA Wi-Fi” > Enter password (default: 12345678) > Open the VAVA Dash App. 1) Select “Resolution” to manually set the resolutions for both front and rear cameras. Front camera supports 2560*1600p 30fps Max. Rear camera supports 1920*1080P 30fps Max. 2) Resolutions for both front and rear cameras running at the same time: 2560*1600P @30fps+1920*1080P @30fps 1920*1080P @30fps+1920*1080P @30fps Video Resolution 1) Select “Rear Lens” to turn on/off the rear camera. 2) You can turn off the rear camera individually with the front camera working normally to protect your privacy. Rear Camera ON / OFF Basic OperationBasic Operation Dash Cam and Snapshot Button Pairing 1) Once the Dash Cam is turned on, press and hold the Snapshot Button for 5 - 30 seconds until beep sounds are heard indicating that they are synced. The Snapshot Button enters standby mode if there is no operation in 1 minute. Press again to restart and take a photo. EN/13 EN/12 1) Select “Wi-Fi” to turn on/off the Dash Cam Wi-Fi. 2) Select “Wi-Fi Info” to check the Wi-Fi SSID and the password. 3) You can change the Wi-Fi SSID and password after connecting with VAVA Dash APP. Exit video mode, select by pressing “ ” button to preview the videos and photos recorded. Note: · Loop Record: Videos recorded during normal driving. The videos will be shown in chronological order. · Event Record: Videos recorded in case of emergency or videos recorded in Parking Mode. · Snapshot: Videos and photos captured via Bluetooth button or VAVA Dash APP. Wi-Fi Setting Viewing Video/Photos on the Camera Note: Wi-Fi is off by default, please connect after turning it on. Basic OperationBasic Operation 2) Using the Snapshot Button Press once to take photos Press and hold for 3 seconds with a beep sound to take videos EN/15 EN/14 Senior Setting - IR LED Auto Note: · After th…

Text truncated - open the document above for the full version.

SUNVALLEYTEK INTERNATIONAL, INC. 46724 Lakeview Blvd, Fremont, CA 94538-6529 [Mar. 31, 2020] Federal Communications Commission 445 12 th Street SW Washington, DC 20554 Subject: Limited Agency Agreement SUNVALLEYTEK INTERNATIONAL, INC. FCC ID: 2AFDGVA-VD009 To Whom It May Concern: We, SUNVALLEYTEK INTERNATIONAL, INC. hereby authorized Intertek Testing Services to act as our Agent for the purpose of preparing application for FCC ID number (2AFDGVA-VD009) under all applicable parts of the FCC rules and regulations. The effective date of this limited agency agreement is (2020-03-31). The Limited Agency Agreement expires until further notice, unless sooner terminated or extended by written notice to Intertek Testing Services and the Federal Communications Commission. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. The applicant is not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 U.S.C. 862, and no party to the application is subject to a denial of federal benefits pursuant to that section. If you have any questions or comments, please do not hesitate to contact me. Sincerely, [Signature] SUNVALLEYTEK INTERNATIONAL, INC. Contact person: kent peng Title: General Manager

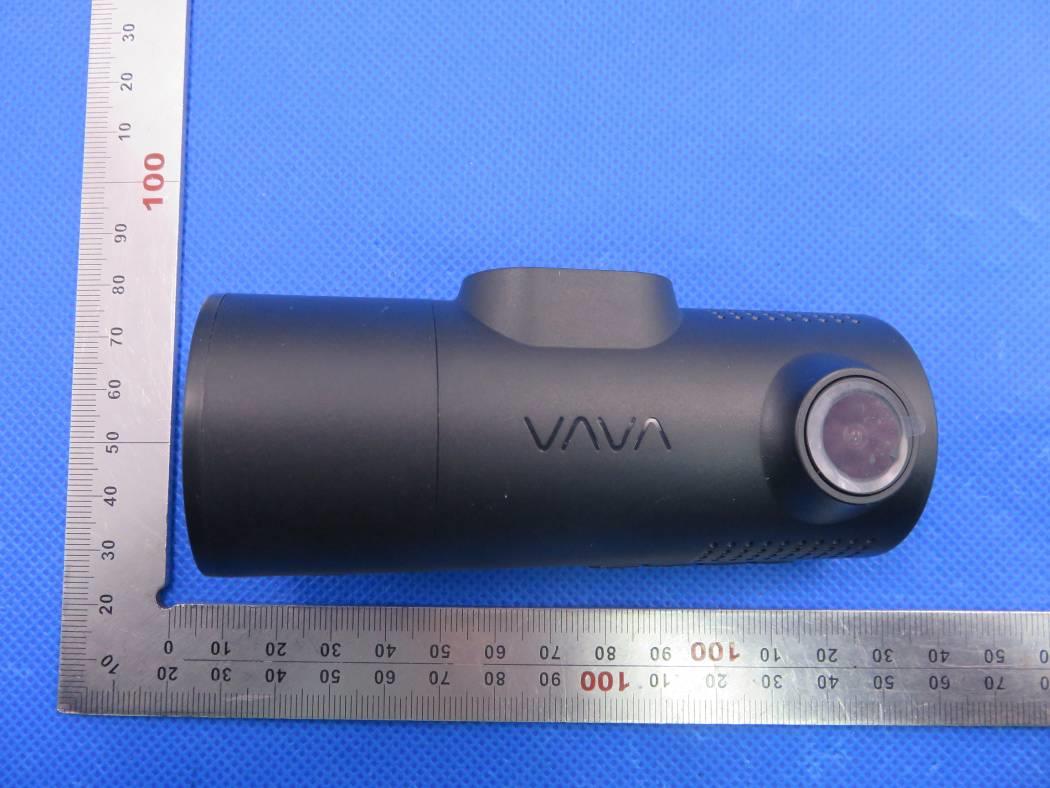

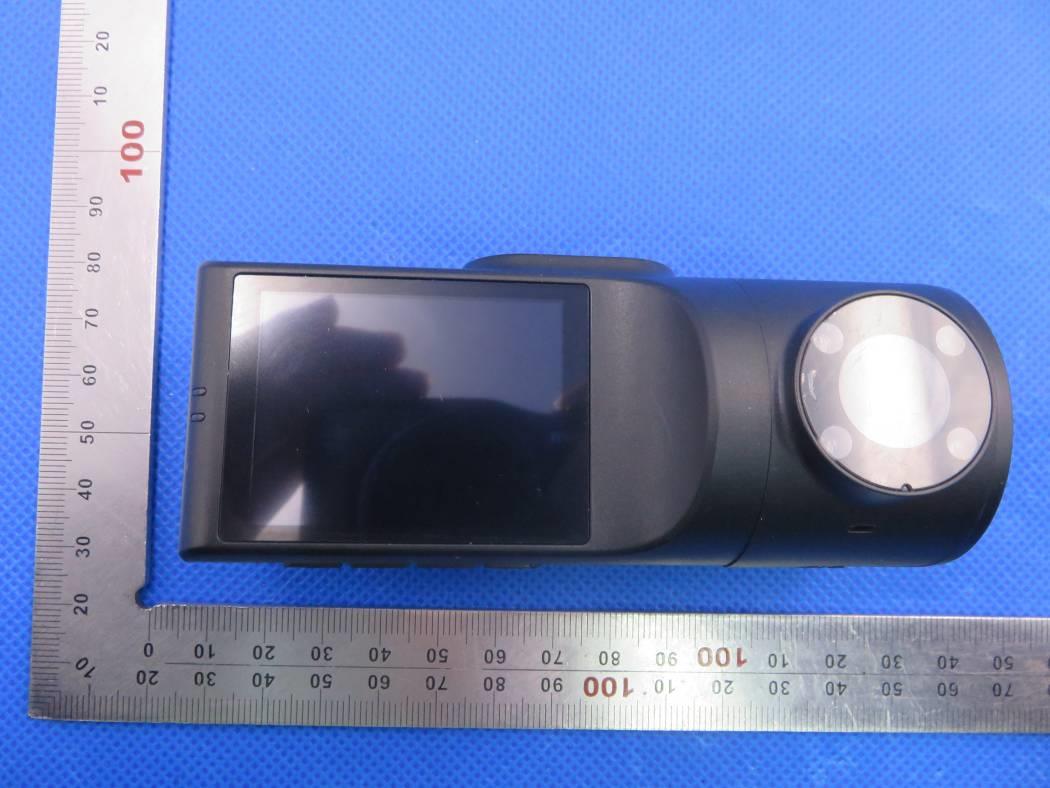

External Photos Test Model: VA-VD009 ALL VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT VIEW OF EUT(PORT)

FCC ID Label Location 40mm*10mm

Internal Photos Test Model: VA-VD009 OPEN VIEW OF EUT-1 OPEN VIEW OF EUT-2 OPEN VIEW OF EUT-3 INTERNAL VIEW-1 OF EUT BT/WIFI Antenna INTERNAL VIEW-2 OF EUT INTERNAL VIEW-3 OF EUT INTERNAL VIEW-4 OF EUT INTERNAL VIEW-5 OF EUT INTERNAL VIEW-6 OF EUT INTERNAL VIEW-7 OF EUT INTERNAL VIEW-8 OF EUT INTERNAL VIEW-9 OF EUT INTERNAL VIEW-10 OF EUT INTERNAL VIEW-11 OF EUT INTERNAL VIEW-12 OF EUT INTERNAL VIEW-13 OF EUT INTERNAL VIEW-14 OF EUT VIEW OF BATTERY

RF EXPOSURE EVALUATION 1. PRODUCT INFORMATION Product Description VAVA 2K DUAL DASH CAM Model Name VA-VD009 FCC ID 2AFDGVA-VD009 2. EVALUATION METHOD AND LIMIT Human exposure to RF emissions from mobile devices (47 CFR §2.1091) may be evaluated based on the MPE limits adopted by the FCC for electric and magnetic field strength and/or power density, as appropriate, since exposures are assumed to occur at distances of 20 cm or more from persons. LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE Frequency Range (MHz) E-field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Time |E| 2 , |H| 2 or S (Minutes) 0.3 -- 1.34 614 1.63 (100)* 30 1.34 -- 30 824/f 2.19/f (180/f 2 )* 30 30 -- 300 27.5 0.073 0.2 30 300 -- 1500 -- -- f/1500 30 1500 -- 100,000 -- -- 1.0 30 *Note: 1. f= Frequency in MHz * Plane-wave Equivalent Power Density 2. The averaging time for General Population/Uncontrolled exposure to fixed transmitters is not applicable for mobile and portable transmitters. See 47 CFR §§2.1091 and 2.1093 on source-based time-averaging requirement for mobile and portable transmitters. S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 3. CALCULATION A minimum test separation distance ≥ 20 cm is required between the antenna and radiating structures of the device and nearby persons to apply mobile device exposure limits. The distance must be at least 20 cm and fully supported by the operating and installation configurations of the transmitter and its antenna(s), according to the source-based time-averaged maximum power requirements of § 2.1091(d)(2). In cases where cable losses or other attenuations are applied to determine compliance, the most conservative operating configurations and exposure conditions must be evaluated. WIFI PART(Can not transmit at different band simultaneously ) Antenna Gain=2.69dBi (Numeric 1.86), π=3.14 802.11b Single mode(Worst case) BT PART(BLE) Antenna Gain=2.4dBi (Numeric 1.74), π=3.14 Note: 1. Only the worst case recorded. 2. The WIFI and BT can transmit simultaneously. 3. 0.011/1+0.002/1=0.013<1 Frequency Output Power Output Power Power Density Power Density Limit MHz dBm mW mW/cm 2 mW/cm 2 2412 14.63 29.04 0.011 1 Frequency Output Power Output Power Power Density Power Density Limit MHz dBm mW mW/cm 2 mW/cm 2 2480 6.992 5.00 0.002 1

Page 1 of 50 FCC Test Report Report No.: AGC00210191154FE02 FCC ID : 2AFDGVA-VD009 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : VAVA 2K DUAL DASH CAM BRAND NAME : VAVA MODEL NAME : VA-VD009 CLIENT : SUNVALLEYTEK INTERNATIONAL, INC. DATE OF ISSUE : Mar. 30, 2020 STANDARD(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC00210191154FE02 Page 2 of 50 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Mar. 30, 2020 Valid Initial Release Report No.: AGC00210191154FE02 Page 3 of 50 TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE ..............................................................................................................5 2.GENERAL INFORMATION ...........................................................................................................................6 2.1PRODUCT DESCRIPTION ......................................................................................................................6 2.2. TABLE OF CARRIER FREQUENCYS ....................................................................................................6 2.3 RELATED SUBMITTAL(S)/GRANT(S) ....................................................................................................7 2.4TEST METHODOLOGY ...........................................................................................................................7 2.5 SPECIAL ACCESSORIES ......................................................................................................................7 2.6 EQUIPMENT MODIFICATIONS ..............................................................................................................7 3. MEASUREMENT UNCERTAINTY ...............................................................................................................8 4. DESCRIPTION OF TEST MODES ...............................................................................................................9 5. SYSTEM TEST CONFIGURATION ............................................................................................................ 10 5.1 CONFIGURATION OF TESTED SYSTEM ............................................................................................ 10 5.2 EQUIPMENT USED IN TESTED SYSTEM ............................................................................................ 10 5.3. SUMMARY OF TEST RESULTS .......................................................................................................... 10 6. TEST FACILITY ......................................................................................................................................... 11 7. PEAK OUTPUT POWER ........................................................................................................................... 12 7.1. MEASUREMENT PROCEDURE .......................................................................................................... 12 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................. 12 7.3. LIMITS AND MEASUREMENT RESULT .............................................................................................. 13 8. 6 DB BANDWIDTH .................................................................................................................................... 15 8.1. MEASUREMENT PROCEDURE .......................................................................................................... 15 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................. 15 8.3. LIMITS AND MEASUREMENT RESULTS ............................................................................................ 15 9. CONDUCTED SPURIOUS EMISSION ....................................................................................................... 17 9.1. MEASUREMENT PROCEDURE .......................................................................................................... 17 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................. 17 9.3. MEASUREMENT EQUIPMENT USED ................................................................................................. 17 9.4. LIMITS AND MEASUREMENT RESULT .............................................................................................. 17 10. MAXIMUM CONDUCTED OUTPUT POWER SPECTRAL DENSITY ....................................................... 22 Report No.: AGC00210191154FE02 Page 4 of 50 10.1 MEASUREMENT PROCEDURE ......................................................................................................... 22 10.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................. 22 10.3 MEASUREMENT EQUIPMENT USED ................................................................................................ 22 10.4 LIMITS AND MEASUREMENT RESULT ............................................................................................. 22 11. RADIATED EMISSION ............................................................................................................................. 24 11.1. MEASUREMENT PROCEDURE ........................................................................................................ 24 11.2. TEST SETUP ..................................................................................................................................... 25 11.3. LIMITS AND MEASUREMENT RESULT ............................................................................................ 26 11.4. TEST RESULT ..............................................................................................................…

Text truncated - open the document above for the full version.

Report No.: AGC00210191154FE02 Page 26 of 50 11.3. LIMITS AND MEASUREMENT RESULT 15.209 Limit in the below table has to be followed Frequencies (MHz) Field Strength (micorvolts/meter) Measurement Distance (meters) 0.009~0.490 2400/F(KHz) 300 0.490~1.705 24000/F(KHz) 30 1.705~30.0 30 30 30~88 100 3 88~216 150 3 216~960 200 3 Above 960 500 3 Note: All modes were tested For restricted band radiated emission, the test records reported below are the worst result compared to other modes. 11.4. TEST RESULT RADIATED EMISSION BELOW 30MHZ No emission found between lowest internal used/generated frequencies to 30MHz. Report No.: AGC00210191154FE02 Page 27 of 50 RADIATED EMISSION BELOW 1GHZ EUT VAVA 2K DUAL DASH CAM Model Name VA-VD009 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 1 Antenna Horizontal RESULT: PASS Report No.: AGC00210191154FE02 Page 28 of 50 EUT VAVA 2K DUAL DASH CAM Model Name VA-VD009 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 1 Antenna Vertical RESULT: PASS Note: 1. Factor=Antenna Factor + Cable loss, Margin=Measurement-Limit. 2. All test modes had been tested. The mode 1 is the worst case and recorded in the report. Report No.: AGC00210191154FE02 Page 29 of 50 RADIATED EMISSION ABOVE 1GHZ EUT VAVA 2K DUAL DASH CAM Model Name VA-VD009 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 1 Antenna Horizontal FrequencyMeter ReadingFactor Emission LevelLimitsMargin (MHz)(dBμV) (dB)(dBμV/m)(dBμV/m)(dB) Value Type 4804.000 43.3374-30.67 peak 4804.000 38.2754-15.73 AVG 7206.000 41.3574-32.65 peak 7206.000 38.6854-15.32 AVG 43.250.08 38.190.08 39.142.21 36.472.21 Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. EUT VAVA 2K DUAL DASH CAM Model Name VA-VD009 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 1 Antenna Vertical FrequencyMeter ReadingFactor Emission LevelLimitsMargin (MHz)(dBμV) (dB)(dBμV/m)(dBμV/m)(dB) Value Type 4804.000 41.474-32.6 peak 4804.000 37.6454-16.36 AVG 7206.000 41.1574-32.85 peak 7206.000 37.4954-16.51 AVG 41.320.08 37.560.08 38.942.21 35.282.21 Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. Report No.: AGC00210191154FE02 Page 30 of 50 EUT VAVA 2K DUAL DASH CAM Model Name VA-VD009 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 2 Antenna Horizontal FrequencyMeter ReadingFactor Emission LevelLimitsMargin (MHz)(dBμV) (dB)(dBμV/m)(dBμV/m)(dB) Value Type 4880.000 43.6574-30.35 peak 4880.000 38.5854-15.42 AVG 7320.000 41.7874-32.22 peak 7320.000 37.1254-16.88 AVG 43.510.14 38.440.14 39.422.36 34.762.36 Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. EUT VAVA 2K DUAL DASH CAM Model Name VA-VD009 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 2 Antenna Vertical FrequencyMeter ReadingFactor Emission LevelLimitsMargin (MHz)(dBμV) (dB)(dBμV/m)(dBμV/m)(dB) Value Type 4880.000 40.4374-33.57 peak 4880.000 35.3254-18.68 AVG 7320.000 38.8174-35.19 peak 7320.000 33.5854-20.42 AVG 40.290.14 35.180.14 36.452.36 31.222.36 Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. Report No.: AGC00210191154FE02 Page 31 of 50 EUT VAVA 2K DUAL DASH CAM Model Name VA-VD009 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 3 Antenna Horizontal FrequencyMeter ReadingFactor Emission LevelLimitsMargin (MHz)(dBμV) (dB)(dBμV/m)(dBμV/m)(dB) Value Type 4960.000 42.8174-31.19 peak 4960.000 36.3454-17.66 AVG 7440.000 40.2274-33.78 peak 7440.000 35.0954-18.91 AVG 42.590.22 36.120.22 37.582.64 32.452.64 Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. EUT VAVA 2K DUAL DASH CAM Model Name VA-VD009 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 3 Antenna Vertical FrequencyMeter ReadingFactor Emission LevelLimitsMargin (MHz)(dBμV) (dB)(dBμV/m)(dBμV/m)(dB) Value Type 4960.000 43.8174-30.19 peak 4960.000 38.6754-15.33 AVG 7440.000 42.674-31.4 peak 7440.000 37.9754-16.03 AVG 43.590.22 38.450.22 39.962.64 35.332.64 Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. RESULT: PASS Note: Other emissions from 1G to 25 GHz are considered as ambient noise. No recording in the test report. Factor = Antenna Factor + Cable loss - Amplifier gain, Over=Measure-Limit. The “Factor” value can be calculated automatically by software of measurement system. Report No.: AGC00210191154FE02 Page 32 of 50 TEST RESULT FOR RESTRICTED BANDS REQUIREMENTS EUT VAVA 2K DUAL DASH CAM Model Name VA-VD009 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 1 Antenna Horizontal PK AV RESULT: PASS Report No.: AGC00210191154FE02 Page 33 of 50 EUT VAVA 2K DUAL DASH CAM Model Name VA-VD009 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 1 Antenna Vertical PK AV RESULT: PASS Report No.: AGC00210191154FE02 Page 34 of 50 EUT VAVA 2K DUAL DASH CAM Model Name VA-VD009 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 3 Antenna Horizontal PK AV RESULT: PASS Report No.: AGC00210191154FE02 Page 35 of 50 EUT VAVA 2K DUAL DASH CAM Model Name VA-VD009 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 3 Antenna Vertical PK AV RESULT: PASS Note: The factor had been edited in the “Input Correction” of the Spectrum Analyzer. So the Amplitude of test plots is equal to Reading level plus the Factor in dB. Use the A dB(μV) to represent the Amplitude. Use the F dB(μV/m) to represent the Field Strength. So A=F. Report No.: AGC00210191154FE02 Page 36 of 50 APPENDIX A: PHOTOGRAPHS OF TEST SETUP RADIATED EMISSION TEST SETUP BELOW 1GHZ RADIATED EMISSION TEST SETUP ABOVE 1GHZ Report No.: AGC…

Text truncated - open the document above for the full version.

Page 1 of 78 Report No.: AGC00210191154FE05 FCC ID : 2AFDGVA-VD009 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : VAVA 2K DUAL DASH CAM BRAND NAME : VAVA MODEL NAME : VA-VD009 APPLICANT : SUNVALLEYTEK INTERNATIONAL, INC. DATE OF ISSUE : Mar. 30, 2020 STANDARD(S) TEST PROCEDURE(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. FCC Test Report Report No.: AGC00210191154FE05 Page 2 of 78 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Mar. 30, 2020 Valid Initial Release Report No.: AGC00210191154FE05 Page 3 of 78 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ..............................................................................................................5 2. GENERAL INFORMATION ..........................................................................................................................6 2.1. PRODUCT DESCRIPTION ....................................................................................................................6 2.2. TABLE OF CARRIER FREQUENCYS ....................................................................................................6 2.3. IEEE 802.11N MODULATION SCHEME ................................................................................................7 2.4. RELATED SUBMITTAL(S) / GRANT (S) .................................................................................................7 2.5. TEST METHODOLOGY .........................................................................................................................7 2.6. SPECIAL ACCESSORIES .....................................................................................................................7 2.7. EQUIPMENT MODIFICATIONS .............................................................................................................7 3. MEASUREMENT UNCERTAINTY ...............................................................................................................8 4. DESCRIPTION OF TEST MODES ...............................................................................................................9 5. SYSTEM TEST CONFIGURATION ............................................................................................................ 10 5.1. CONFIGURATION OF EUT SYSTEM .................................................................................................. 10 5.2. EQUIPMENT USED IN EUT SYSTEM ................................................................................................. 10 5.3. SUMMARY OF TEST RESULTS .......................................................................................................... 10 6. TEST FACILITY ......................................................................................................................................... 11 7. OUTPUT POWER ...................................................................................................................................... 12 7.1. MEASUREMENT PROCEDURE.......................................................................................................... 12 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................. 12 7.3. LIMITS AND MEASUREMENT RESULT .............................................................................................. 13 8. 6 DB BANDWIDTH .................................................................................................................................... 14 8.1. MEASUREMENT PROCEDURE.......................................................................................................... 14 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................. 14 8.3. LIMITS AND MEASUREMENT RESULTS ............................................................................................ 15 9. CONDUCTED SPURIOUS EMISSION ....................................................................................................... 21 9.1. MEASUREMENT PROCEDURE.......................................................................................................... 21 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................. 21 9.3. MEASUREMENT EQUIPMENT USED ................................................................................................. 21 9.4. LIMITS AND MEASUREMENT RESULT .............................................................................................. 21 10. MAXIMUM CONDUCTED OUTPUT POWER SPECTRAL DENSITY ....................................................... 36 Report No.: AGC00210191154FE05 Page 4 of 78 10.1 MEASUREMENT PROCEDURE......................................................................................................... 36 10.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................. 36 10.3 MEASUREMENT EQUIPMENT USED ................................................................................................ 36 10.4 LIMITS AND MEASUREMENT RESULT ............................................................................................. 36 11. RADIATED EMISSION ............................................................................................................................. 43 11.1. MEASUREMENT PROCEDURE ........................................................................................................ 43 11.2. TEST SETUP ..................................................................................................................................... 44 11.3. LIMITS AND MEASUREMENT RESULT ...........................................................…

Text truncated - open the document above for the full version.

Report No.: AGC00210191154FE05 Page 51 of 78 12. BAND EDGE EMISSION 12.1. MEASUREMENT PROCEDURE Radiated restricted band edge measurements The radiated restricted band edge measurements are measured with an EMI test receiver connected to the receive antenna while the EUT is transmitting 12.2. TEST SET-UP same as 11.2 Note: 1. Factor=Antenna Factor + Cable loss - Amplifier gain. Field Strength=Factor + Reading level 2. The factor had been edited in the “Input Correction” of the Spectrum Analyzer. So the Amplitude of test plots is equal to Reading level plus the Factor in dB. Use the A dB(μV) to represent the Amplitude. Use the F dB(μV/m) to represent the Field Strength. So A=F. Report No.: AGC00210191154FE05 Page 52 of 78 12.3. Test Result EUT VAVA 2K DUAL DASH CAM Model Name VA-VD009 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode 802.11b with data rate 1 2412MHZ Antenna Horizontal PK AV RESULT: PASS Report No.: AGC00210191154FE05 Page 53 of 78 EUT VAVA 2K DUAL DASH CAM Model Name VA-VD009 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode 802.11b with data rate 1 2412MHZ Antenna Vertical PK AV RESULT: PASS Report No.: AGC00210191154FE05 Page 54 of 78 EUT VAVA 2K DUAL DASH CAM Model Name VA-VD009 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode 802.11b with data rate 1 2462MHZ Antenna Horizontal PK AV RESULT: PASS Report No.: AGC00210191154FE05 Page 55 of 78 EUT VAVA 2K DUAL DASH CAM Model Name VA-VD009 Temperature 25°C Relativ…

Text truncated - open the document above for the full version.
