2AFF6-AMIDLMixing Amplifier

USER ́S MANUAL BEDIENUNGSANLEITUNG More languages online at: ld-systems.com IMA 60 INSTALLATION MIXING AMPLIFIER 65 W @ 4 OHMS / 100 V / 70 V LDIMA60 CONTENTS / INHALTSVERZEICHNIS ENGLISH SAFETY INFORMATION 3 INTRODUCTION 5 CONNECTIONS, CONTROLS AND DISPLAY ELEMENTS 5 CONNECTION EXAMPLES 9 TERMINAL BLOCK CONNECTIONS 10 JUMPER FOR EMERGENCY SIGNAL ON AUX OUT 12 RACK INSTALLATION 13 UNDER-TABLE INSTALLATION 14 TECHNICAL DATA 15 MANUFACTURER ́S DECLARATIONS 18 DEUTSCH SICHERHEITSHINWEISE 19 EINLEITUNG 21 ANSCHLÜSSE, BEDIENUNG UND ANZEIGEELEMENTE 21 ANSCHLUSSBEISPIELE 25 KLEMMLEISTEN-ANSCHLÜSSE 26 JUMPER FÜR NOTFALLSIGNAL AN AUX OUT 28 RACK-MONTAGE 29 UNTERTISCH-MONTAGE 30 TECHNISCHE DATEN 31 HERSTELLERERKLÄRUNGEN 33 3 DEUTSCH ENGLISH ENGLISH YOU HAVE MADE THE RIGHT CHOICE! This device was developed and manufactured subject to high quality requirements in order to guarantee trouble-free operation for many years. LD Systems is synonymous with extensive experience as a manufacturer of high-quality audio products. Please read these operating instructions carefully so that you can use your new LD Systems product in optimal conditions. More information on LD SYSTEMS can be found on our website WWW.LD-SYSTEMS.COM SAFETY INFORMATION 1. Please read these instructions carefully. 2. Keep all information and instructions in a safe place. 3. Follow the instructions. 4. Consider all warnings. Do not remove any safety instructions or other information from the device. 5. Only use the device as intended. 6. Only use stable and suitable stands or mountings (for permanent installations). Make sure wall brackets are properly installed and secured. Make sure that the device is installed securely and cannot fall over. 7. Follow any safety provisions for the installation applicable in your country. 8. Do not install or operate the device in the vicinity of radiators, heat accumulators, stoves or other heat sources. Make sure that the device is always installed such that it can be cooled sufficiently and does not overheat. 9. Do not place any sources of ignition, e.g. burning candles, on the device. 10. Ventilation slots must not be blocked. 11. Maintain a minimum distance of 20 cm at the sides and above the device. 12. Do not operate the device in the vicinity of water. Do not allow the device to come into contact with flammable materials, liquids or gases. Avoid direct sunlight! Do not allow the device to come into contact with flammable materials, liquids or gases. Do not place any containers filled with liquids such as vases or drinking vessels on the device. 14. Make sure that no objects can fall onto the device. 15. Only operate the device with the accessories recommended and intended by the manufacturer. 16. Do not open the device or modify it. 17. After connecting the device, check all cable paths to avoid damage or accidents, e.g. to avoid tripping hazards. 18. During transport, make sure that the device cannot fall over as this may cause bodily injury or material damage. 19. If your device no longer functions properly, if liquids or objects have fallen into the device, or if the device has been damaged in any way, switch it off immediately and unplug it from the power outlet (if the device is active). This device must only be repaired by approved specialists. 20. Use a dry cloth to clean the device. 21. Follow the disposal laws in your country. For disposing of the packaging, please separate plastics from paper and cardboard. 22. Plastic bags must be kept out of the reach of children. 23. All changes and modifications made by the user, to which the party responsible for compliance with the guidelines has not expressly consented, can lead to the withdrawal of the operating license for the device. FOR DEVICES WITH GRID CONNECTION 24. WARNING If the device’s power cable is equipped with a protective contact, it must be connected to an outlet with a protective conductor. Never deactivate a power cable’s protective conductor. 25. Do not switch the device on immediately if it has been exposed to significant temperature fluctuations (e.g. after transport). Humidity and condensation could damage the device. Only turn the device on when it has reached room temperature. 26. Before connecting the device to the outlet, first check whether the voltage and frequency of the power supply correspond to the values specified on the device. If the device has a voltage selector switch, only connect the device to the outlet if the device values match the values of the power supply. If the supplied power cable or adapter does not fit your electrical outlet, contact your electrician. 27. Do not tread on the power cable. Make sure that live cables are not kinked, especially at the mains outlet or the mains adapter and the device socket. 28. When wiring the device, make sure that the power cable or power adapter is always freely accessible. Always unplug the device if it is not being used or if the device requires cleaning. Always pull the power cable and power adapter out of the outlet by the plug or adapter and not by the cable. Never touch the power cable and power adapter with wet hands. 29. If possible, do not switch the device on and off in quick succession, as this could affect its service life. 30. CAUTION: Only replace the fuse with a fuse of the same type and rating. If the fuse blows repeatedly, please contact an authorized service center. 31. To fully disconnect the device from the mains, remove the power cable or power adapter from the outlet. 32. If your device is equipped with a locking power cable, the appropriate device plug must be unlocked before it can be removed. However, this will also mean that if you pull the power cable, the device can slip and fall, injuring people and/or causing other damage. Always position your cable carefully. 33. Remove the power cable and power adapter from the power outlet if there is a risk of lightning strikes or if you will not be using the device for a long period of time. 34…

Text truncated - open the document above for the full version.

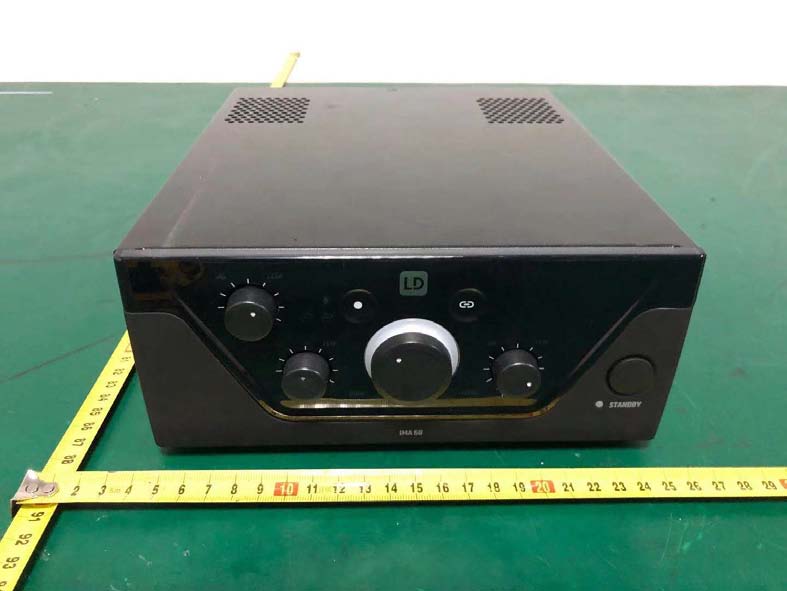

External photos M/N: LDIMA60 External photos M/N: LDIMA60 External photos M/N: LDIMA60 External photos M/N: LDIMA60

LD-IMA 系列标签贴纸 2019.12.13 Mk201468 B 苏晓辉 广东飞胜电子有限公司 Fashion Electronics Ltd. 背景:黑色底 字体内容:Pantone 430C PP 合成纸 40.5x10.5mm贴纸边框 A4 98.7 mm 8 0 . 5 m m 47.3 mm 6 . 8 m m 5 6 . 4 m m 6 . 3 m m 1 3 . 6 m m 3.4 mm 6 . 9 m m 6 . 9 m m 1 0 . 1 m m 1 1 2020.08.11B版本FFC编码删除“03”，IMA系列共用此标签苏晓辉

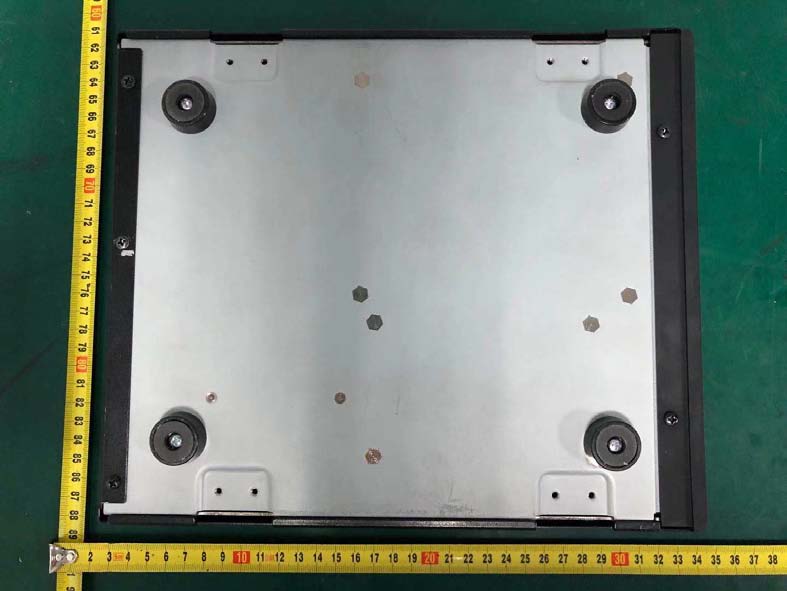

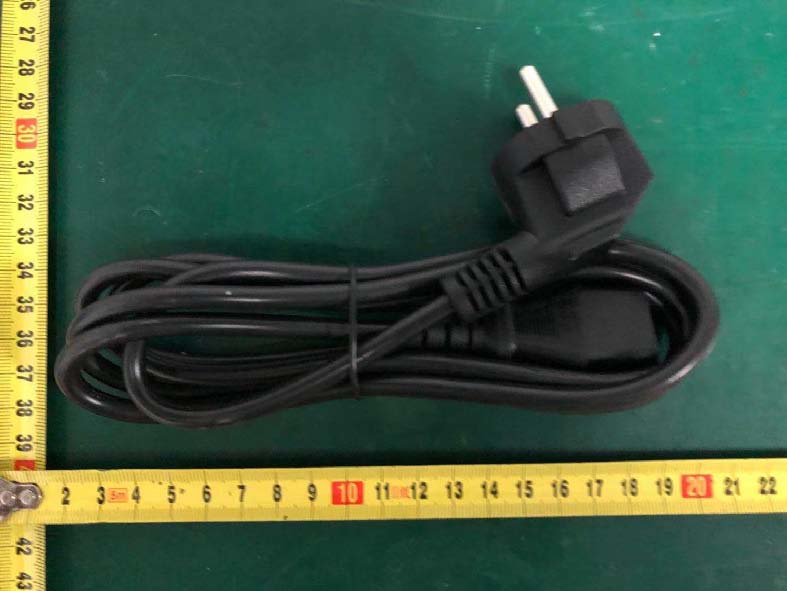

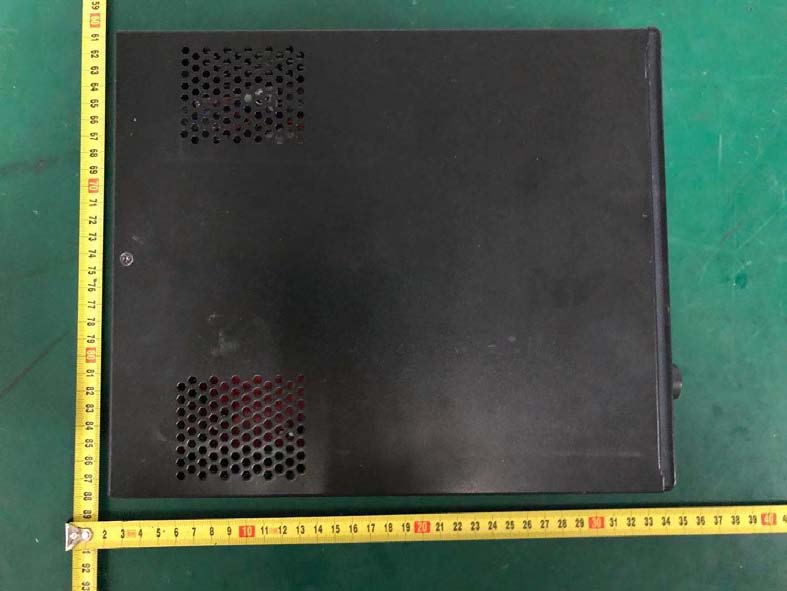

Internal photos M/N: LDIMA60 Internal photos M/N: LDIMA60 Internal photos M/N: LDIMA60 Internal photos M/N: LDIMA60 Internal photos M/N: LDIMA60 Internal photos M/N: LDIMA60 Internal photos M/N: LDIMA60

FCC ID: 2AFF6-AMIDL EST Technology Co. ,Ltd Report No. ESTE-R2011160 Page 1 of 4 FCC 47 CFR MPE REPORT Adam Hall GmbH Mixing Amplifier Model Number: LDIMA60 Additional Model: LDIMA30 FCC ID: 2AFF6-AMIDL Prepared for: Adam Hall GmbH Adam-Hall-Str. 1,Neu-Anspach,61267,Germany Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2011160 Date of Test: Jul. 27~Nov. 17, 2020 Date of Report: Nov. 19, 2020 FCC ID: 2AFF6-AMIDL EST Technology Co. ,Ltd Report No. ESTE-R2011160 Page 2 of 4 Maximum Permissible Exposure 1. Applicable Standards Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2m normally can be maintained between the user and the device. 1.1. Limits for Maximum Permissible Exposure (MPE) (a) Limits for Occupational/Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 ,︱H︱ 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-10000 5 6 (b) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 ,︱H︱ 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-10000 1.o 30 Note: f=frequency in MHz; *Plane-wave equivalent power density FCC ID: 2AFF6-AMIDL EST Technology Co. ,Ltd Report No. ESTE-R2011160 Page 3 of 4 1.2. MPE Calculation Method E (V/m) = d G×P×30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric Field (V/m) P = Peak RF output Power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d×377 G×P×30 From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained FCC ID: 2AFF6-AMIDL EST Technology Co. ,Ltd Report No. ESTE-R2011160 Page 4 of 4 2. Calculated Result and Limit Mode Target power (dBm) Antenna gain Power Density (S) (mW/cm 2 ) Limited of Power Density (S) (mW/cm 2 ) Test Result (dBi) (Linear) 2.4G Band GFSK 3.46 0 1 0.00044 1 Compiles 8-DPSK 2.36 0 1 0.00034 1 Compiles End of Test Report

FCC ID: 2AFF6-AMIDL EST Technology Co., Ltd Report No. ESTE-R2011159 Page 1 of 80 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of Adam Hall GmbH Mixing Amplifier Model Number: LDIMA60 Additional Model: LDIMA30 FCC ID: 2AFF6-AMIDL Prepared for: Adam Hall GmbH Adam-Hall-Str. 1,Neu-Anspach,61267,Germany Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2011159 Date of Test: Jul. 27~Nov. 17, 2020 Date of Report: Nov. 19, 2020 FCC ID: 2AFF6-AMIDL EST Technology Co., Ltd Report No. ESTE-R2011159 Page 2 of 80 TABLE OF CONTENTS Description Page TEST REPORT VERIFICATION......................................................................................................................... 3 1. GENERAL INFORMATION ................................................................................................................. 5 1.1. Description of Device (EUT) ........................................................................................................... 5 1.2. Antenna Information ........................................................................................................................ 5 2. SUMMARY OF TEST ......................................................................................................................... 6 2.1. Summary of test result ...................................................................................................................... 6 2.2. Test Facilities ................................................................................................................................... 7 2.3. Measurement uncertainty ................................................................................................................. 8 2.4. Assistant equipment used for test ..................................................................................................... 8 2.5. Block Diagram ................................................................................................................................. 8 2.6. Test mode ......................................................................................................................................... 9 2.7. Channel List ................................................................................................................................... 10 2.8. Power Setting of Test Software ...................................................................................................... 10 2.9. Test Equipmen ................................................................................................................................ 11 3. MAXIMUM PEAK OUTPUT POWER ................................................................................................. 12 3.1. Limit ............................................................................................................................................... 12 3.2. Test Setup ....................................................................................................................................... 12 3.3. Spectrum Analyzer Setting ............................................................................................................. 12 3.4. Test Procedure ................................................................................................................................ 12 3.5. Test Result ...................................................................................................................................... 14 4. 20 DB BANDWIDTH ....................................................................................................................... 19 4.1. Limit ............................................................................................................................................... 19 4.2. Test Setup ....................................................................................................................................... 19 4.3. Spectrum Analyzer Setting ............................................................................................................. 19 4.4. Test Procedure ................................................................................................................................ 19 4.5. Test Result ...................................................................................................................................... 20 5. CARRIER FREQUENCY SEPARATION .............................................................................................. 25 5.1. Limit ............................................................................................................................................... 25 5.2. Test Setup ....................................................................................................................................... 25 5.3. Spectrum Analyzer Setting ............................................................................................................. 25 5.4. Test Procedure ................................................................................................................................ 25 5.5. Test Result ...................................................................................................................................... 26 6. NUMBER OF HOPPING CHANNEL .................................................................................................. 31 6.1. Limit ............................................................................................................................................... 31 6.2. Test Setup ....................................................................................................................................... 31 6.3. Spectrum Analyzer Setting ............................................................................................................. 31 …

Text truncated - open the document above for the full version.

Radiated test: Below 1GHz Radiated test: Above 1GHz Conducted test:
