2AFF6-LDU5047IEMUHF In Ear Monitor System

UHF In Ear Monitor System CONTENTS / INHALTSVERZEICHNIS / CONTENU / CONTENIDO / TREŚĆ / CONTENUTO ENGLISH SAFETY INSTRUCTIONS 3 INTRODUCTION 5 CONNECTIONS, OPERATING AND DISPLAY ELEMENTS 5 TRANSMITTER5 POCKET RECEIVER 7 TRANSMITTER OPERATION 8 POCKET RECEIVER OPERATION 13 TROUBLESHOOTING16 RECOMMENDATIONS FOR ERROR PREVENTION 16 TECHNICAL DATA 17 MANUFACTURER’S DECLARATIONS 19 DEUTSCH SICHERHEITSHINWEISE20 EINFÜHRUNG21 ANSCHLÜSSE, BEDIEN- UND ANZEIGEELEMENTE 22 SENDER22 TASCHENEMPFÄNGER 23 BEDIENUNG SENDER 25 BEDIENUNG TASCHENEMPFÄNGER 29 FEHLERSUCHE32 EMPFEHLUNGEN FÜR DIE FEHLERVERMEIDUNG 33 TECHNISCHE DATEN 33 HERSTELLERERKLÄRUNGEN 36 FRANCAIS MESURES PRÉVENTIVES37 INTRODUCTION38 RACCORDEMENTS, ÉLÉMENTS DE COMMANDE ET D’AFFICHAGE 39 ÉMETTEUR 39 RÉCEPTEUR DE POCHE 40 MODE D’EMPLOI DE L’ÉMETTEUR 42 MODE D’EMPLOI DU RÉCEPTEUR DE POCHE 46 DIAGNOSTIC DES PANNES 49 RECOMMANDATIONS POUR ÉVITER LES PANNES 50 CARACTÉRISTIQUES TECHNIQUES 50 DÉCLARATIONS 53 ESPAÑOL INSTRUCCIONES DE SEGURIDAD 54 INTRODUCCIÓN 55 CONEXIONES, ELEMENTOS DE MANEJO Y ELEMENTOS DE VISUALIZACIÓN 56 TRANSMISOR56 RECEPTOR DE PETACA 57 MANEJO DEL TRANSMISOR 58 MANEJO DEL RECEPTOR DE PETACA 63 BÚSQUEDA DE ERRORES 66 RECOMENDACIONES PARA EVITAR FALLOS 66 DATOS TÉCNICOS 67 DECLARACIONES DEL FABRICANTE 70 POLSKI ŚRODKI OSTROŻNOŚCI 71 WPROWADZENIE72 GNIAZDA, ELEMENTY OBSŁUGI I WSKAŹNIKI 73 NADAJNIK73 KIESZONKOWY ODBIORNIK 74 OBSŁUGA NADAJNIKA 76 OBSŁUGA KIESZONKOWEGO ODBIORNIKA 80 ZNAJDOWANIE BŁĘDU 83 ZALECENIA DOTYCZĄCE ZAPOBIEGANIA BŁĘDOM 84 SPECYFIKACJE84 DEKLARACJE PRODUCENTA 87 ITALIANO INDICAZIONI SULLA SICUREZZA 88 INTRODUZIONE89 CONNETTORI, ELEMENTI DI COMANDO E DI VISUALIZZAZIONE 90 TRASMETTITORE 90 RICEVITORE PORTATILE 91 USO DEL TRASMETTITORE 93 USO DEL RICEVITORE PORTATILE 97 RICERCA ERRORI 100 CONSIGLI PER LA PREVENZIONE DEGLI ERRORI 101 DATI TECNICI 101 DICHIARAZIONI DEL PRODUTTORE 104 E NGLISH YOU‘VE MADE THE RIGHT CHOICE! We have designed this produc t to operate reliably over many year s. LD Systems stands for this with it s name and many year s of experience as a manufac turer of high-qualit y audio produc t s. Please read this User ‘s Manual carefully, so that you can begin making optimum use of your LD Systems produc t quickly. You can find more information about LD-SYSTEMS at our Internet site W W W.LD-SYSTEMS.COM S AFETY INFORMATION 1. Please read these instruc tions carefully. 2. Keep all information and instruc tions in a safe place. 3. Follow the instruc tions. 4. Obser ve all safet y warnings. Never remove safet y warnings or other information from the equipment . 5. Use the equipment only in the intended manner and for the intended purpose. 6. Use only suf ficiently stable and compatible stands and/or mounts (for fixed installations). Make cer tain that wall mounts are properly installed and secured. Make cer tain that the equipment is installed securely and cannot fall down. 7. During installation, obser v e the applicable safet y regulations for your countr y. 8. Never install and operate the equipment near radiator s, heat register s, ovens or other sources of heat . Make cer tain that the equipment is always installed so that is cooled suf ficiently and cannot overheat. 9. Never place sources of ignition, e.g., burning candles, on the equipment . 10. Ventilation slit s must not be blocked. 11. Keep a minimum distance of 20 cm around and above the device. 12. Do not use this equipment in the immediate vicinity of water (does not apply to special outdoor equipment - in this case, obser ve the special instructions noted below. Do not expose this equipment to flammable materials, fluids or gases. Avoid direct sunlight! 13. Make cer tain that dripping or splashed water cannot enter the equipment. Do not place container s filled with liquids, such as vases or drinking vessels, on the equipment . 14. Make cer tain that objec t s cannot fall into the device. 15. Use this equipment only with the accessories recommended and intended by the manufac turer. 16. Do not open or modif y this equipment . 17. Af ter connec ting the equipment , check all cables in order to prevent damage or accident s, e.g., due to tripping hazards. 18. During transpor t , make cer tain that the equipment cannot fall down and possibly cause proper t y damage and per sonal injuries. 19. If your equipment is no longer functioning properly, if fluids or objects have got ten inside the equipment or if it has been damaged in anot her way, switch it of f immediately and unplug it from the mains outlet (if it is a powered device). This equipment may only be repaired by authorized, qualified per sonnel. 20. Clean the equipment using a dr y cloth. 21. Comply with all applicable disposal laws in your countr y. During disposal of packaging, please separate plastic and paper/cardboard. 22. Plastic bags must be kept out of reach of children. 23. Please note that changes or modifications not expressly approved by the par ty responsible for compliance could void the user ́s authorit y to operate the equipment . FOR EQUIPMENT THAT CONNECTS TO THE POWER MAINS 24. CAUTION: If the power cord of the device is equipped with an ear thing contac t , then it must be connec ted to an outlet with a protec tive ground. Never deac tivate the protec tive ground of a power cord. 25. If the equipment has been exposed to strong fluctuations in temperature (for example, af ter transpor t), do not switch it on immediately. Moisture and condensation could damage the equipment . Do not switch on the equipment until it has reached room temperature. 26. Before connecting the equipment to the power outlet, fir st verif y that the mains voltage and frequency match the values specified on the equipment . If the equipment has a voltage selec tion switch, connec t the equipment to the power outlet only if the equipment values and the mains power values match. If the included power cord or power adapter does not fit in your wall outlet, contact your electrician. 27. Do not step…

Text truncated - open the document above for the full version.

Adam Hall GmbH Agent Authorization Company: Adam Hall GmbH Address: Adam-Hall-Str.1, Neu-Anspach, 61267, Germany Product Name: UHF In Ear Monitor System Model Number(s): LDU5047IEM Product Description: UHF In Ear Monitor System We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature Name:Michael Roesch Title: Manager Company: Adam Hall GmbH Address: Adam-Hall-Str.1, Neu-Anspach, 61267, Germany Date: 2020/12/08

Adam Hall GmbH Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020/12/10 Subject; Request for Confidentiality FCC ID: 2AFF6-LDU5047IEM To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature Name: Michael Roesch Title: Manager Company: Adam Hall GmbH Address: Adam-Hall-Str.1, Neu-Anspach, 61267, Germany

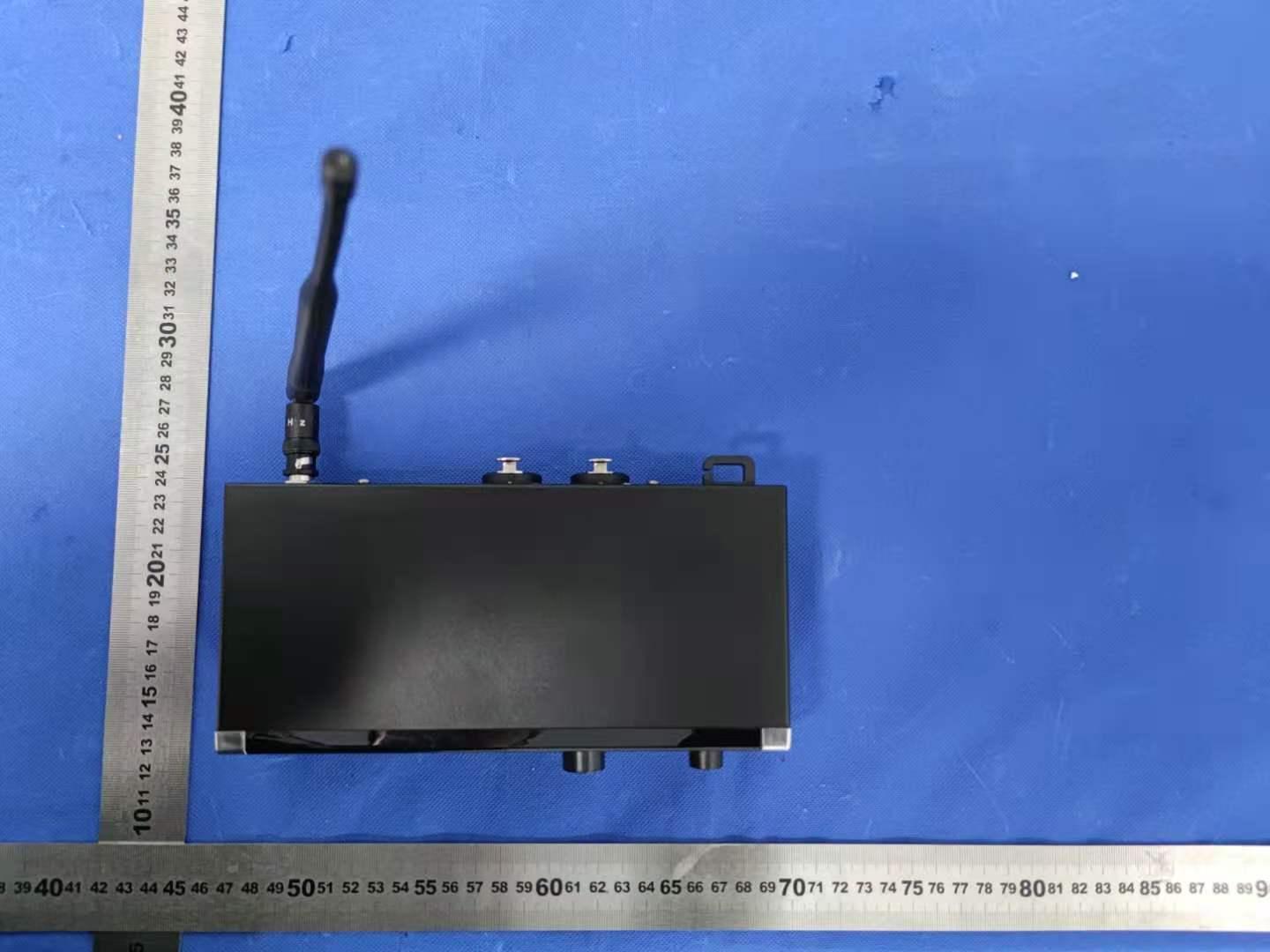

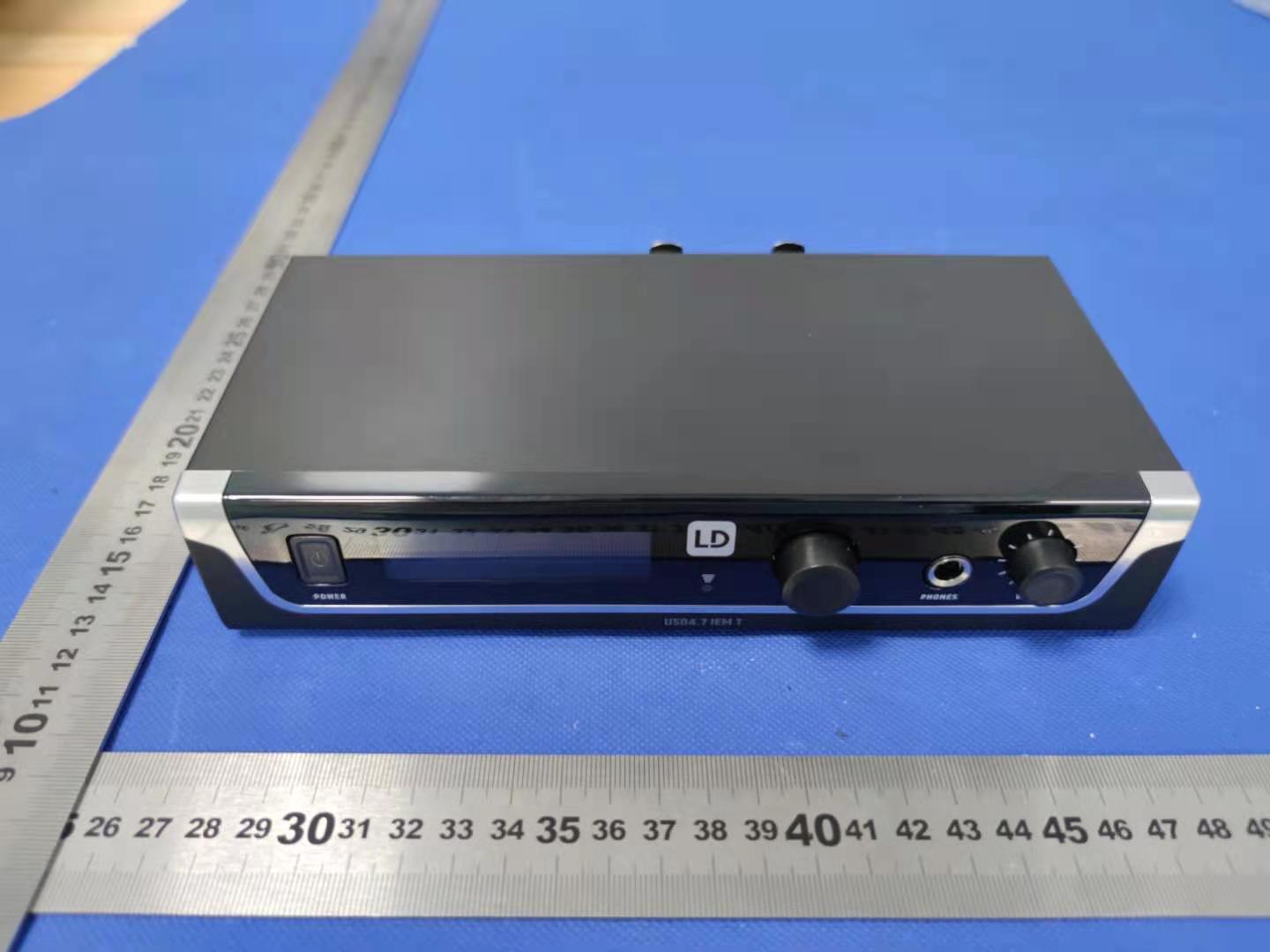

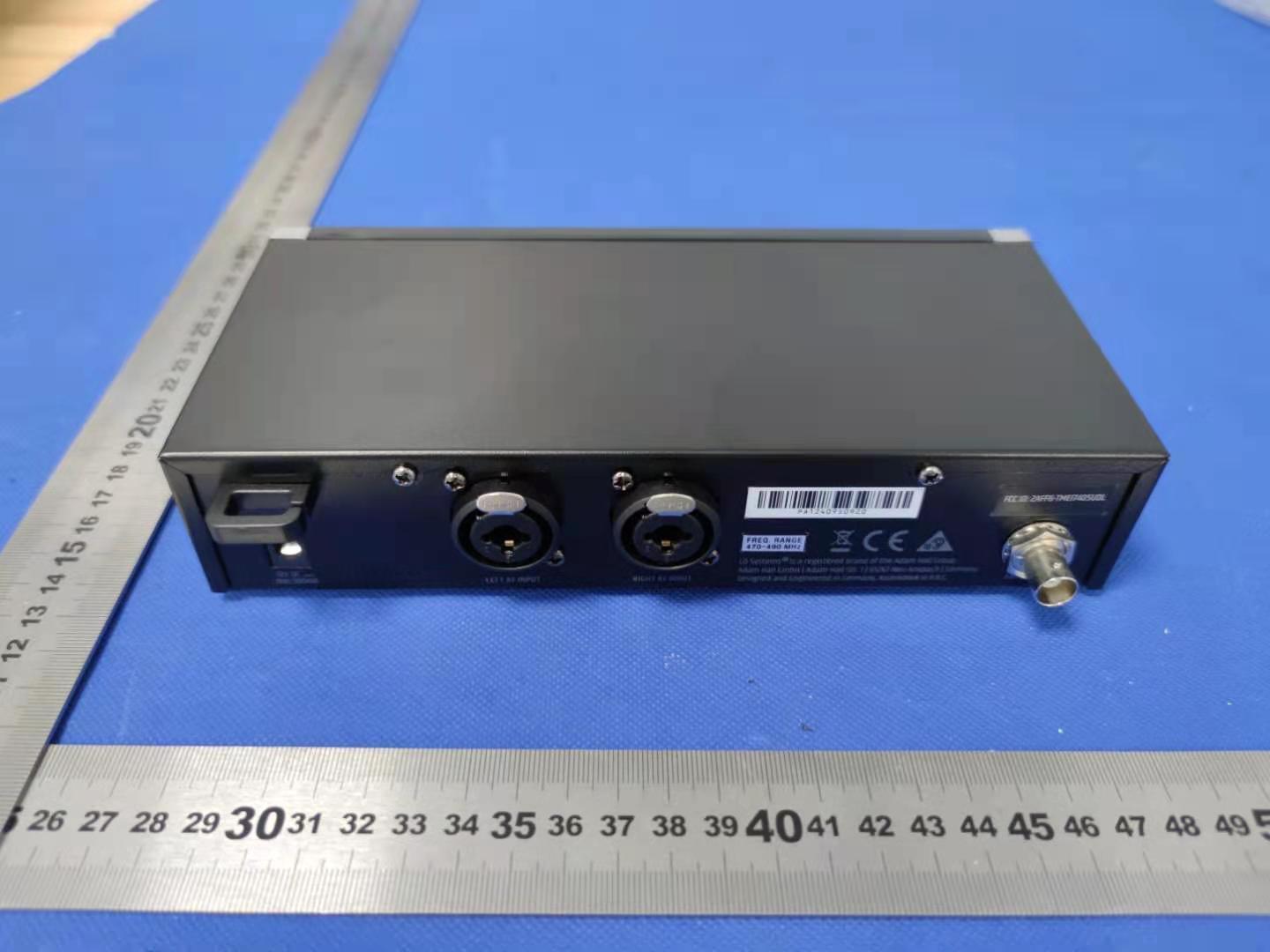

Page 1 of 3 Report No.:FCS202011015 External photos Photo 1 Antenna Photo 2 Page 2 of 3 Report No.:FCS202011015 Photo 3 Photo 4 Page 3 of 3 Report No.:FCS202011015 Photo 5 Photo 6

Label and Label Location FCC ID:2AFF6-LDU5047IEM L*W: 10mm*5mm Black label and white font

Page 1 of 6 Report No.:FCS202011015 Internal photos Photo 1 Photo 2 Page 2 of 6 Report No.:FCS202011015 Photo 3 Photo 4 Page 3 of 6 Report No.:FCS202011015 Photo 5 Photo 6 Page 4 of 6 Report No.:FCS202011015 Photo 7 Photo 8 Page 5 of 6 Report No.:FCS202011015 Photo 9 Photo 10 Page 6 of 6 Report No.:FCS202011015 Photo 11 Photo 12

Page 1 of 82 Report No.: FCS202011015W01 Flux Compliance Service Laboratory Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27280901 http://www.FCS-lab.com FCC RF Exposure EUT Description: UHF In Ear Monitor System Model No.: LDU5047IEM FCC ID: 2AFF6-LDU5047IEM Equipment type: Fixed Device 1. Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) F = frequency in MHz Formula: Pd = (Pout*G)/(4*π*r 2 ) Where : Pd = power density in mW/cm 2 , Pout = output power to antenna in mW; G = gain of antenna in linear scale, π= 3.14; R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm2. If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Page 2 of 82 Report No.: FCS202011015W01 Flux Compliance Service Laboratory Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27280901 http://www.FCS-lab.com 2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 3. Test Result of RF Exposure Evaluation Turn-up power Mode Peak power range(dBm) 470MHz- 490MHz 6.00-8.00 470MHz- 490MHz Output power （dBm/ mW） Antenna Gain(dBi) Gain-numeral Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result 8.00/6.31 1.0 1.259 0.00158 0.31 Pass Conclusion: No SAR is required

FCC Test Report Report No: FCS202011015W01 Issued for Applicant: Adam Hall GmbH Address: Adam-Hall-Str.1, Neu-Anspach, 61267, Germany Product Name: UHF In Ear Monitor System Brand Name: LD SYSTEMS Model Name: LDU5047IEM Series Model: N/A FCC ID: 2AFF6-LDU5047IEM Issued By: Flux Compliance Service Laboratory Add: Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27280901 http://www.fcs-lab.com Page 2 of 29 Report No.:FCS202011015W01 Flux Compliance Service Laboratory Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27280901 http://www.fcs-lab.com TEST RESULT CERTIFICATION Applicant’s Name ...................: Adam Hall GmbH Address ..................................: Adam-Hall-Str.1, Neu-Anspach, 61267, Germany Manufacture's Name ..............: Adam Hall GmbH Address ..................................: Adam-Hall-Str.1, Neu-Anspach, 61267, Germany Product Description Product Name ........................: UHF In Ear Monitor System Brand Name .........................: LD SYSTEMS Model Name ...........................: LDU5047IEM Series Model ..........................: N/A Test Standards .......................: FCC Rules and Regulations Part 15 Subpart C section 15.236 Test Procedure .......................: ANSI C63.10:2013 This device described above has been tested FCS, the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of FCS, this document may be altered or revised by FCS, personal only, and shall be noted in the revision of the document.. Date of Test ............................. : Date (s) of performance of tests : Nov 20, 2020 ~ Nov 30, 2020 Date of Issue ............................ : Nov 30, 2020 Test Result ................................ : Pass Testing Engineer : (Duke Qian) Technical Manager : (Jack Wang) Authorized Signatory : (Andy Yue) Page 3 of 29 Report No.:FCS202011015W01 Flux Compliance Service Laboratory Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27280901 http://www.fcs-lab.com Table of Contents Page 1. SUMMARY OF TEST RESULTS 5 1.1 TEST FACTORY 6 1.2 MEASUREMENT UNCERTAINTY 6 2. GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF THE EUT 7 2.2 DESCRIPTION OF THE TEST MODES 9 2.3 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 10 2.4 EQUIPMENTS LIST 11 3 MAXIMUM RADIATED POWER 12 3.1 LIMIT 12 3.3 TEST SETUP 12 3.4 TEST RESULTS 12 4. OCCUPIED BANDWIDTH 13 4.1 LIMIT 13 4.2 TEST PROCEDURE 13 4.3 TEST SETUP 13 4.4 TEST RESULTS 14 5 NECESSARY BANDWITH 15 5.1 LIMIT 15 5.2 TEST PROCEDURE 15 5.3 TEST SETUP 15 6. TRANSMITTER UNWANTED EMISSIONS 17 6.1 LIMIT 17 5.2 TEST PROCEDURE 17 5.3 TEST SETUP 17 6.4 TEST RESULTS 18 7. FREQUENCY STABILITY 22 7.1 LIMIT 22 7.2 TEST PROCEDURE 22 7.3 TEST SETUP 22 7.4 TEST RESULTS 23 Page 4 of 29 Report No.:FCS202011015W01 Flux Compliance Service Laboratory Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27280901 http://www.fcs-lab.com Table of Contents Page 8 CONDUCTED EMISSION MEASUREMENT 26 8.1 LIMIT 26 8.2 TEST PROCEDURE 26 8.3 TEST SETUP 27 8.4 TEST RESULTS 27 Revision History Rev. Issue Date Effect Page Contents 00 Nov 30, 2020 All Initial Issue Page 5 of 29 Report No.:FCS202011015W01 Flux Compliance Service Laboratory Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27280901 http://www.fcs-lab.com 1. SUMMARY OF TEST RESULTS FCC Part 15 Subpart C section 15.236 Standard Section Test Item Judgment Remark FCC Part 15.236(d) Maximum Radiated Power PASS -- FCC Part 15.236(f)(2) Occupied Bandwidth PASS -- FCC Part 15.236(g) Necessary bandwidth PASS -- FCC Part 15.236(f)(3) Frequency stability PASS -- FCC Part 15.236(g) Emission within the band and outside this band PASS -- FCC Part 15.207 Conducted Emission PASS -- NOTE: (1)” N/A” denotes test is not applicable in this Test Report (2) All tests are according to ANSI C63.10:2013 Page 6 of 29 Report No.:FCS202011015W01 Flux Compliance Service Laboratory Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27280901 http://www.fcs-lab.com 1.1 TEST FACTORY Company Name: Flux Compliance Service Laboratory Address: Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Telephone: +86-769-27280901 Fax: +86-769-27280901 FCC Test Firm Registration Number: 514908 Designation number: CN0127 A2LA accreditation number：5545.01 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ±U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 RF output power, conducted ±0.71dB 2 Unwanted Emissions, conducted ±2.98 dB 3 Conducted Emission (9KHz-150KHz) ±4.13 dB 4 Conducted Emission (150KHz-30MHz) ±4.74 dB 5 All emissions,radiated(<1G) 30MHz-1000MHz ±3.2 dB 6 All emissions,radiated (1GHz -18GHz) ±3.66 dB 7 All emissions,radiated (18GHz -40GHz) ±4.31 dB Page 7 of 29 Report No.:FCS202011015W01 Flux Compliance Service Laboratory Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27280901 http://www.fcs-lab.com 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF THE EUT Product Name UHF In Ear Monitor System Model Name LD SYSTEMS Series Model LDU5047IEM Channel List Please refer to the Note 2. Opera…

Text truncated - open the document above for the full version.

Page 1 of 2 Report No.:FCS202011015 Blow 1GHz for radiated emission test setup Above 1GHz for radiated emission test setup Page 2 of 2 Report No.:FCS202011015 Conducted emission test setup
