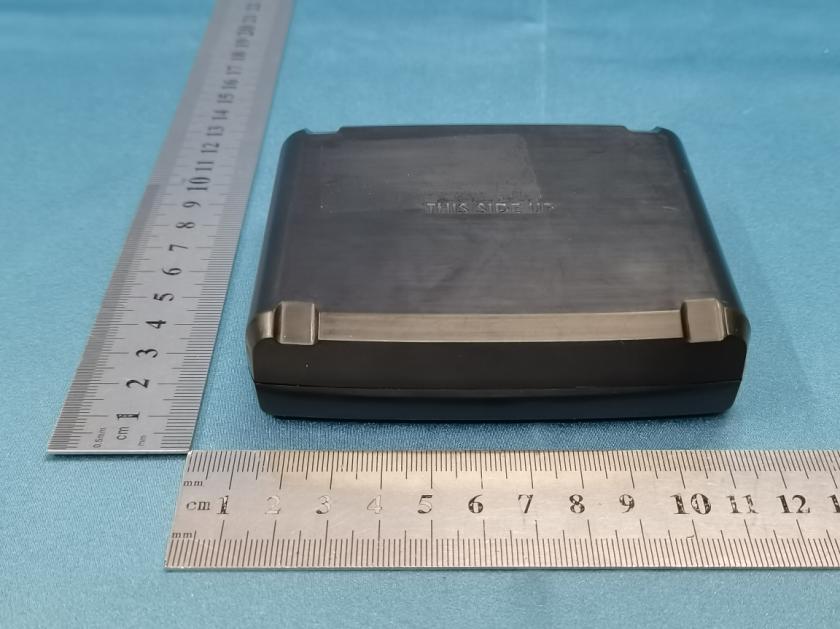

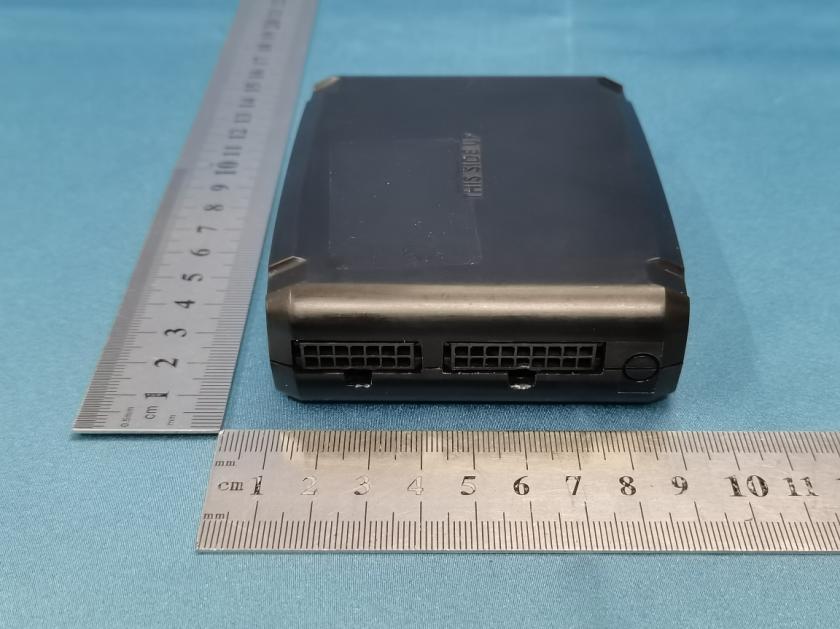

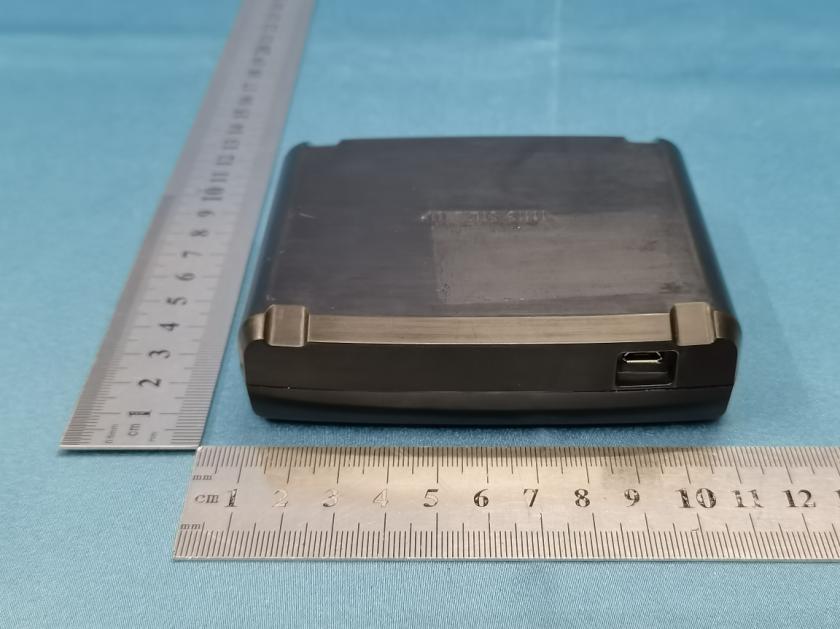

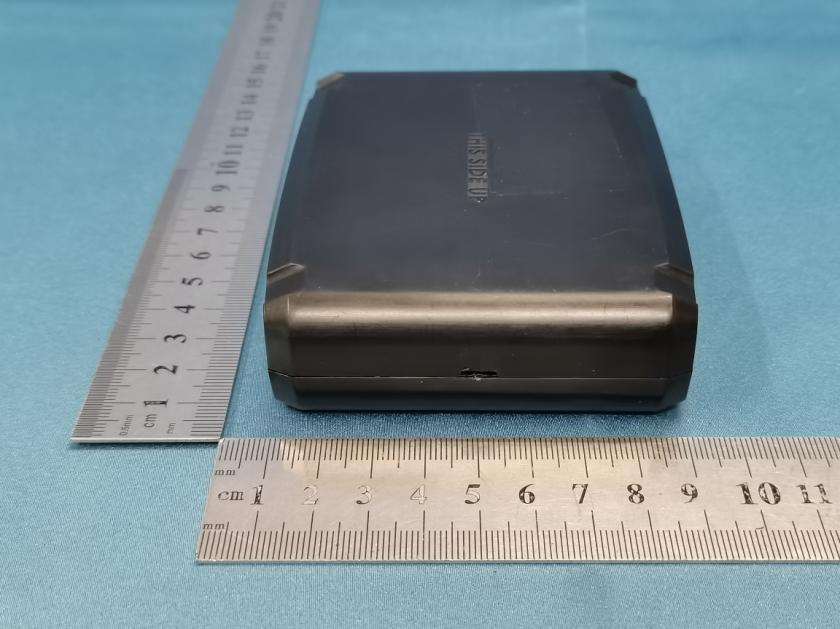

2AG69CELLOMCelloCANiQ-M

Copyright ©2022 PowerFleet Inc. Cello-CANiQ-M™ Product Overview CELLOCATOR - A POWERFLEET® BRAND. 14 HAMELACHA ST. ROSH HA'AYIN 4809133, ISRAEL ● TEL: 972-3-5723111 ● WWW.CELLOCATOR.COM Legal Notices Proprietary an d Confidential V ersi on 1. 0 d: Revised and Update 30 may 2022 Cello-CANiQ-M Product Overview Cello-CANiQ-M Product Overview Page 2 of 47 Copyright ©2022 PowerFleet Inc. IMPORTANT 1. All legal terms and safety and operating instructions should be read thoroughly before the product accompanying this document is installed and operated. 2. This document should be retained for future reference. 3. Attachments, accessories or peripheral devices not supplied or recommended in writing by PowerFleet Inc. May be hazardous and/or may cause damage to the product and should not, in any circumstances, be used or combined with the product. General The product accompanying this document is not designated for and should not be used in life support appliances, devices, machines or other systems of any sort where any malfunction of the product can reasonably be expected to result in injury or death. Customers of PowerFleet Inc. using, integrating, and/or selling the product for use in such applications do so at their own risk and agree to fully indemnify PowerFleet Inc. For any resulting loss or damages. Warranty Exceptions and Disclaimers PowerFleet Inc. shall bear no responsibility and shall have no obligation under the foregoing limited warranty for any damages resulting from normal wear and tear, the cost of obtaining substitute products, or any defect that is (i) discovered by purchaser during the warranty period but purchaser does not notify PowerFleet Inc. until after the end of the warranty period, (ii) caused by any accident, force majeure, misuse, abuse, handling or testing, improper installation or unauthorized repair or modification of the product, (iii) caused by use of any software not supplied by PowerFleet Inc., or by use of the product other than in accordance with its documentation, or (iv) the result of electrostatic discharge, electrical surge, fire, flood or similar causes. Unless otherwise provided in a written agreement between the purchaser and PowerFleet Inc., the purchaser shall be solely responsible for the proper configuration, testing and verification of the product prior to deployment in the field. POWERFLEET INC.’S SOLE RESPONSIBILITY AND PURCHASER’S SOLE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE TO REPAIR OR REPLACE THE PRODUCT HARDWARE, SOFTWARE OR SOFTWARE MEDIA (OR IF REPAIR OR REPLACEMENT IS NOT POSSIBLE, OBTAIN A REFUND OF THE PURCHASE PRICE) AS PROVIDED ABOVE. POWERFLEET INC. EXPRESSLY DISCLAIMS ALL OTHER WARRANTIES OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION ANY IMPLIED WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY, SATISFACTORY PERFORMANCE AND FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL POWERFLEET INC. BE LIABLE FOR ANY INDIRECT, SPECIAL, EXEMPLARY, INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING WITHOUT LIMITATION LOSS OR INTERRUPTION OF USE, DATA, REVENUES OR PROFITS) Cello-CANiQ-M Product Overview Cello-CANiQ-M Product Overview Page 3 of 47 Copyright ©2022 PowerFleet Inc. RESULTING FROM A BREACH OF THIS WARRANTY OR BASED ON ANY OTHER LEGAL THEORY, EVEN IF POWERFLEET INC. HAS BEEN ADVISED OF THE POSSIBILITY OR LIKELIHOOD OF SUCH DAMAGES. Intellectual Property Copyright in and to this document is owned solely by PowerFleet Inc. Nothing in this document shall be construed as granting you any license to any intellectual property rights subsisting in or related to the subject matter of this document including, without limitation, patents, patent applications, trademarks, copyrights or other intellectual property rights, all of which remain the sole property of PowerFleet Inc. Subject to applicable copyright law, no part of this document may be reproduced, stored in or introduced into a retrieval system, or transmitted in any form or by any means (electronic, mechanical, photocopying, recording or otherwise), or for any purpose, without the express written permission of PowerFleet Inc. © Copyright 2021. All rights reserved. FCC & IC Compliance Statement The FCC Wants You to Know This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: a) Reorient or relocate the receiving antenna. b) Increase the separation between the equipment and receiver. c) Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. d) Consult the dealer or an experienced radio/TV technician. CAN ICES-3 (B) / NMB-3 (B) This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de classe B est conforme à la norme canadienne ICES-003. Cello-CANiQ-M Product Overview Cello-CANiQ-M Product Overview Page 4 of 47 Copyright ©2022 PowerFleet Inc. If shielded cables were used for testing include: “ <<< In order to maintain compliance with FCC regulations, shielded cables must be used with this equipment. Operation with non-approved equipment or unshielded cables is likely to result in interference to radio and TV reception. >>>> © Copyright 2020. All rights reserved. Part 18 warning For devices approved under Part 18, information on the following shall be provided to the user in t…

Text truncated - open the document above for the full version.

PowerFleet Inc. DATE : 2022-06-27 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mi lls Road Columbia, MD 21046 FCC ID: 2AG69CELLOM Product Name: Cello CANiQ-M Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  Schematics  Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Pursuant to Sections 0.457 and 0.459 of the commission rules, and in accordance with the FCC Public notice dated June 15, 2004 (DA 04-1705), we hereby request short-term confidentiality for the following items prior to marketing the device.:  Test Setup Photos  External Photos  Internal Photos  User Manual The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Signature: Name: Lior Musi Title: V.P R&D Company: PowerFleet Inc.

DATE : 2022-06-27 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint Jason Wu of Global United Technology Services Co., Ltd.and No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with PowerFleet Inc. and 123 Tice Boulevard Suite 101, Woodcliff Lake, NJ, Ne w Jersey 07677, United States Signature: Name: Lior Musi Title: V.P R&D Company: PowerFleet Inc.

FCC ID: 2AG69CELLOM RF Exposure Evaluation Limits The criteri a listed in the following table shall be used to eval uate the environm ent impact of hum an exposure to radio frequency (RF) radi ation as specifi ed in 1. 1307(b) Limits for Maxim um Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) A veragi ng time (minutes ) (A) Limits for Occupational/ Controlled Exposures 0.3–3. 0 614 1.63 *(100) 6 3.0–30 1842/f 4.89/f *(900/f 2 ) 6 30–300 61.4 0.163 1.0 6 300–1500 f/300 6 1500–100,000 5 6 (B) Limits for General Population/Uncontroll ed Exposure 0.3–1. 34 614 1.63 *(100) 30 1.34–30 824/ f 2.19/f *(180/f 2 ) 30 30–300 27.5 0.073 0.2 30 300–1500 f/1500 30 1500–100,000 1.0 30 f = frequency in MHz Friis transmission form ula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 , Pout = output power to antenna in mW; G = gain of antenna in linear scale, Pi = 3.1416; R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calcul ation, we will know the distance r where the MPE limit is reached. Te st Procedure Software provi ded by client enabled the EUT to transmit and rec ei ve data at lowest, middle and hi ghest channel indi vidually. Te st Result of RF Exposure Ev aluation BLE mode Frequency Range (MHz) Output power to antenna (dBm) Output power to antenna (mW ) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result 2402~2480 1.03 1.27 0.00039 1.0 PASS Rem ark: antenna gain=1. 88dBi Rem ark: The max power density is less than SAR exempt limit, so SAR eval uation is not required.

Global United Technology Services Co., Ltd. Report No.: GTS202204000149F01 Authorized Signature: Robinson Luo Laboratory Manager This results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Page 1 of 30 TEST REPORT Applicant: Power Fleet Inc. Address of Applicant: 123 Tice Boulevard Suite 101, Woodcliff Lake, NJ, New Jersey 07677, United States Manufacturer/Factory: Power Fleet Inc. Address of Manufacturer/Factory: 123 Tice Boulevard Suite 101, Woodcliff Lake, NJ, New Jersey 07677, United States Equipment Under Test (EUT) Product Name: CelloCANiQ-M Model No.: CelloCANiQ-M Trade Mark: Powerfleet FCC ID: 2AG69CELLOM Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of sample receipt: April 13, 2022 Date of Test: April 14, 2022-May 07, 2022 Date of report issued: May 07, 2022 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No.: GTS202204000149F01 Page 2 of 30 2 Version Version No. Date Description 00 May 07, 2022 Original Prepared By: Date: May 07, 2022 Project Engineer Check By: Date: May 07, 2022 Reviewer Report No.: GTS202204000149F01 Page 3 of 30 3 Contents Page 1 COVER PAGE .................................................................................................................................1 2 VERSION ....................................................................................................................................... 2 3 CONTENTS .................................................................................................................................... 3 4 TEST SUMMARY ............................................................................................................................ 4 5 GENERAL INFORMATION............................................................................................................... 5 5.1 GENERAL DESCRIPTION OF EUT ................................................................................................... 5 5.2 TEST MODE .............................................................................................................................. 7 5.3 DESCRIPTION OF SUPPORT UNITS................................................................................................. 7 5.4 DEVIATION FROM STANDARDS ..................................................................................................... 7 5.5 ABNORMALITIES FROM STANDARD CONDITIONS .............................................................................. 7 5.6 TEST FACILITY ......................................................................................................................... 7 5.7 TEST LOCATION........................................................................................................................ 7 5.8 ADDITIONAL INSTRUCTIONS......................................................................................................... 7 6 TEST INSTRUMENTS LIST ............................................................................................................. 8 7 TEST RESULTS AND MEASUREMENT DATA .................................................................................10 7.1 ANTENNA REQUIREMENT.............................................................................................................10 7.2 CONDUCTED OUTPUT POWER .....................................................................................................11 7.3 CHANNEL BANDWIDTH ...............................................................................................................12 7.4 POWER SPECTRAL DENSITY .......................................................................................................13 7.5 SPURIOUS EMISSION IN NON-RESTRICTED & RESTRICTED BANDS .......................................................14 7.5.1 Conducted Emission Method ...............................................................................................14 7.5.2 Radiated Emission Method ..................................................................................................15 8 TEST SETUP PHOTO ....................................................................................................................30 9 EUT CONSTRUCTIONAL DETAILS.................................................................................................30 Report No.: GTS202204000149F01 Page 4 of 30 4 Test Summary Test Item Section in CFR 47 Result Antenna requirement 15.203/15.247 (c) Pass AC Power Line Conducted Emission 15.207 N/A Conducted Output Power 15.247 (b)(3) Pass Channel Bandwidth 15.247 (a)(2) Pass Power Spectral Density 15.247 (e) Pass Band Edge 15.247(d) Pass Spurious Emission 15.205/15.209 Pass Remark s: 1. Pass: The EUT complies with the essential requirements in the standard. 2. N/A: Not applicable. 3. Test according to ANSI C63.10:2013 Measurement Uncertainty Test Item Frequency Range Measurement Uncertainty Notes Radiated Emission 9kHz-30MHz 3.1dB (1) Radiated Emission 30MHz-200MHz 3.8039dB (1) Radiated Emission 200MHz-1GHz 3.9679dB (1) Radiated Emission 1GHz-18GHz 4.29dB (1) Radiated Emission 18GHz-40GHz 3.30dB (1) AC Power Line Conducted Emission 0.15MHz ~ 30MHz 3.44dB (1) Note (1): The measurement uncertainty is for coverage factor of k=2 and a level of confidence of 95%. Report No.: GTS202204000149F01 Page 5 of 30 5 General Information 5.1 General Description of EUT Product Name: CelloCANiQ-M Model No.: CelloCANiQ-M Test sample(s) ID: GTS202204000149-1 Sample(s) Status: Engineer sample S/N: N/A Hardware Version: B Software Version: 81 Operation Frequency: 2402MHz~2480MHz Channel Numbers: 40 Channel Separation: 2MHz Modulation Type: GFSK Antenna Type: Integral Antenna Ant…

Text truncated - open the document above for the full version.

GTS202204000149F01 Page 1 of 13 Appendix for 15.247 1. Duty Cycle 1.1 Test Result Test Mode Channel Frequency(M Hz) TX Type ANT No. T_on (ms) Period (ms) Duty Cycle (%) Duty Cycle Correction Factor (dB) GFSK 2402 SISO 1 100.000 100.000 100.00 0.00 2440 SISO 1 100.000 100.000 100.00 0.00 2480 SISO 1 100.000 100.000 100.00 0.00 1.2 Test Graph GTS202204000149F01 Page 2 of 13 GTS202204000149F01 Page 3 of 13 2. Bandwidth 2.1 Test Result Test Mode Frequency (MHz) TX Type ANT No. 6dB Bandwidth Verdict Test Result (MHz) Limits (MHz) GFSK 2402 SISO 1 1.373 ≥0.5 PASS 2440 SISO 1 1.380 ≥0.5 PASS 2480 SISO 1 1.283 ≥0.5 PASS Test Mode Frequency (MHz) TX Type ANT No. 99% Occupied Bandwidth Test Result (MHz) GFSK 2402 SISO 1 2.054 Only for Report Use 2440 SISO 1 2.053 Only for Report Use 2480 SISO 1 2.050 Only for Report Use 2.2 Test Graph - 6dB Bandwidth GTS202204000149F01 Page 4 of 13 GTS202204000149F01 Page 5 of 13 2.3 Test Graph - 99% Occupied Bandwidth GTS202204000149F01 Page 6 of 13 3. Maximum Conducted Output Power 3.1 Test Result Test Mode Frequency (MHz) Tx Type Measured Peak Output Power (dBm) Limits (dBm) Verdict GFSK 2402 SISO 0.97 30 PASS 2440 SISO 1.03 30 PASS 2480 SISO 0.21 30 PASS Test Mode Frequency (MHz) Tx Type EIRP (dBm) Limits (dBm) Verdict GFSK 2402 SISO 2.85 30 PASS 2440 SISO 2.91 30 PASS 2480 SISO 2.09 30 PASS 3.2 Test Graph GTS202204000149F01 Page 7 of 13 GTS202204000149F01 Page 8 of 13 4. Maximum Power Spectral Density (PSD) 4.1 Test Result Test Mode Frequency (MHz) Tx Type Maximum Power Spectral Density (dBm/3KHz) Limits (dBm/3kHz) Verdict GFSK 2402 SISO -13.52 ≤8 PASS 2440 SISO -14.24 ≤8 PASS 2480 SISO -14.88 ≤8 PASS 4.2 Test Graph GTS202204000149F01 Page 9 of 13 GTS202204000149F01 Page 10 of 13 5. Unwanted Emissions in Non-restricted Frequency Bands 5.1 Test Result Test Mode Frequency (MHz) TX Type ANT No. Spurious Conducted Emission (dBm) Limits (dBm) Verdict GFSK 2402 SISO 1 Refer to test graph -19.76 PASS 2440 SISO 1 Refer to test graph -19.76 PASS 2480 SISO 1 Refer to test graph -19.76 PASS 5.2 Test Graph GTS202204000149F01 Page 11 of 13 GTS202204000149F01 Page 12 of 13 GTS202204000149F01 Page 13 of 13 ------End------

Radi ated Emission
