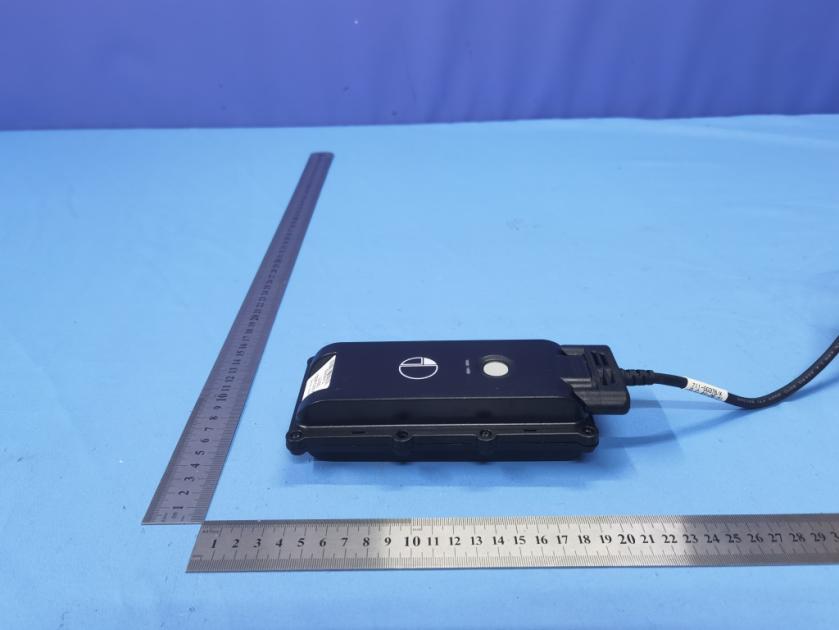

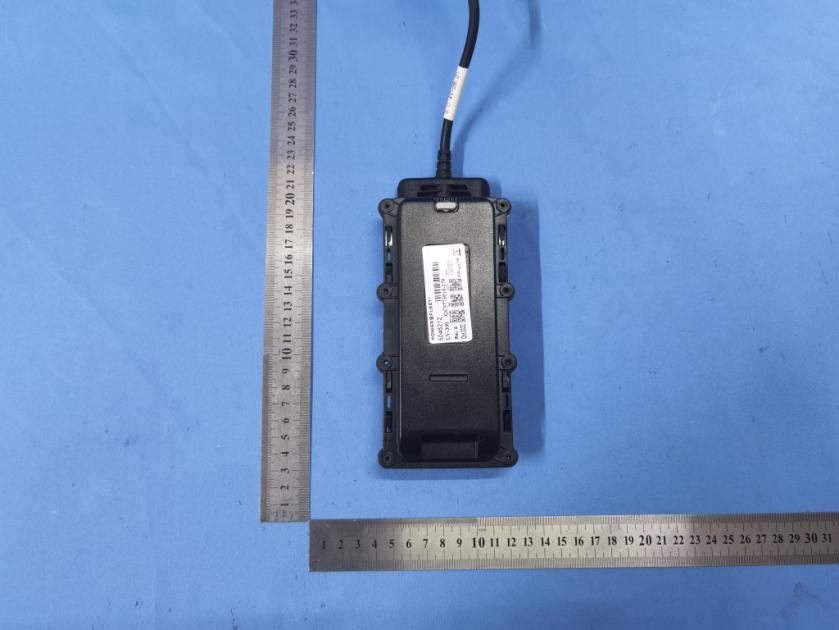

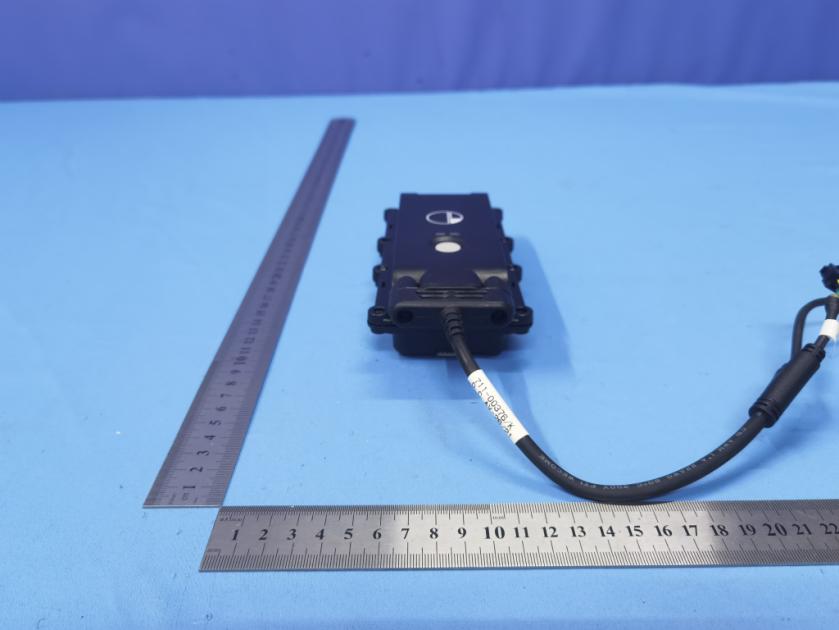

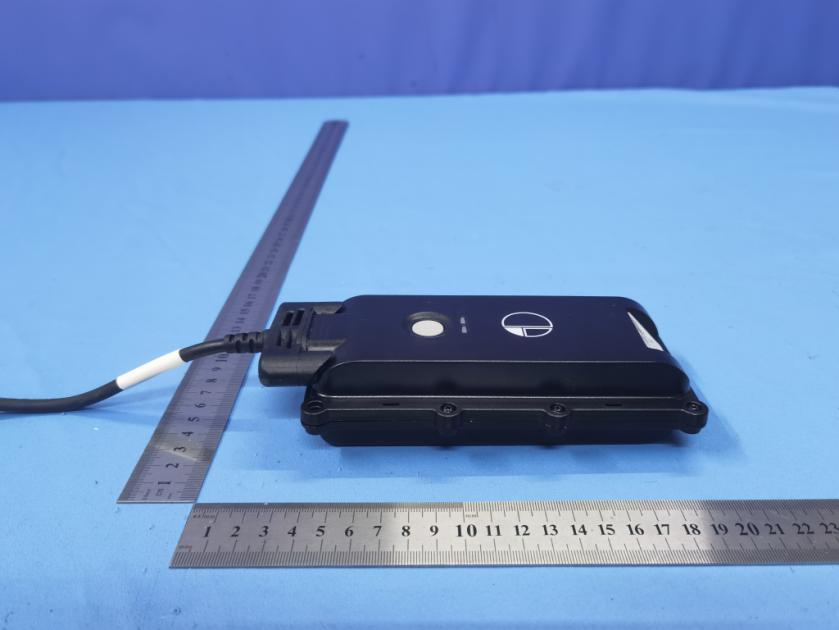

2AG69LV300NLV300\Cellotrack Power LTE

Copyright © 2020 by Pointer Telocation, Ltd. LV300 Overview Proprietary and Confidential Version 1.0 Revised and Updated: September 14, 2022 LV300 Overview LV300_LV300PS Overview_Itamar.docx Page 2 of 41 Copyright © 2020 by Pointer Telocation, Ltd. Legal Notices IMPORTANT 1. All legal terms and safety and operating instructions should be read thoroughly before the product accompanying this document is installed and operated. 2. This document should be retained for future reference. 3. Attachments, accessories or peripheral devices not supplied or recommended in writing by Pointer Telocation Ltd. May be hazardous and/or may cause damage to the product and should not, in any circumstances, be used or combined with the product. General The product accompanying this document is not designated for and should not be used in life support appliances, devices, machines or other systems of any sort where any malfunction of the product can reasonably be expected to result in injury or death. Customers of Pointer Telocation Ltd. using, integrating, and/or selling the product for use in such applications do so at their own risk and agree to fully indemnify Pointer Telocation Ltd. for any resulting loss or damages. Warranty Exceptions and Disclaimers Pointer Telocation Ltd. Shall bear no responsibility and shall have no obligation under the foregoing limited warranty for any damages resulting from normal wear and tear, the cost of obtaining substitute products, or any defect that is (i) discovered by purchaser during the warranty period but purchaser does not notify Pointer Telocation Ltd. Until after the end of the warranty period, (ii) caused by any accident, force majeure, misuse, abuse, handling or testing, improper installation or unauthorized repair or modification of the product, (iii) caused by use of any software not supplied by Pointer Telocation Ltd., or by use of the product other than in accordance with its documentation, or (iv) the result of electrostatic discharge, electrical surge, fire, flood or similar causes. Unless otherwise provided in a written agreement between the purchaser and Pointer Telocation Ltd., the purchaser shall be solely responsible for the proper configuration, testing and verification of the product prior to deployment in the field. POINTER TELOCATION LTD.’S SOLE RESPONSIBILITY AND PURCHASER’S SOLE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE TO REPAIR OR REPLACE THE PRODUCT HARDWARE, SOFTWARE OR SOFTWARE MEDIA (OR IF REPAIR OR REPLACEMENT IS NOT POSSIBLE, OBTAIN A REFUND OF THE PURCHASE PRICE) AS PROVIDED ABOVE. POINTER TELOCATION LTD. EXPRESSLY DISCLAIMS ALL OTHER WARRANTIES OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION ANY IMPLIED WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY, SATISFACTORY PERFORMANCE AND FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL POINTER TELOCATION LTD. BE LIABLE FOR ANY INDIRECT, SPECIAL, EXEMPLARY, INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING WITHOUT LIMITATION LOSS OR INTERRUPTION OF USE, DATA, REVENUES OR PROFITS) RESULTING FROM A BREACH OF THIS WARRANTY OR BASED ON ANY OTHER LEGAL THEORY, EVEN IF POINTER TELOCATION LTD. HAS BEEN ADVISED OF THE POSSIBILITY OR LIKELIHOOD OF SUCH DAMAGES. LV300 Overview LV300_LV300PS Overview_Itamar.docx Page 3 of 41 Copyright © 2020 by Pointer Telocation, Ltd. Intellectual Property Copyright in and to this document is owned solely by Pointer Telocation Ltd. Nothing in this document shall be construed as granting you any license to any intellectual property rights subsisting in or related to the subject matter of this document including, without limitation, patents, patent applications, trademarks, copyrights or other intellectual property rights, all of which remain the sole property of Pointer Telocation Ltd. Subject to applicable copyright law, no part of this document may be reproduced, stored in or introduced into a retrieval system, or transmitted in any form or by any means (electronic, mechanical, photocopying, recording or otherwise), or for any purpose, without the express written permission of Pointer Telocation Ltd. FCC & IC Compliance Statement The FCC Wants You to Know This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Class B device: NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. CAN ICES-3 (B) / NMB-3 (B) This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept an…

Text truncated - open the document above for the full version.

PowerFleet Inc. Section 2.911(d)(5)(i) Certification – Equipment Type Company name: PowerFleet Inc. Address: 123 Tice Boulevard Suite 101, Woodcliff Lake, NJ 07677, United States Product Name: LV300\Cellotrack Power LTE FCC ID: 2AG69LV300N Model(s): LV300 2.911(d)(5)(i) Equipment Type We, [PowerFleet Inc.] certify that the equipment for which authorization is sought through certification is not:  Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules.  Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Signature: Name: Lior Musi Date: 2023-02-23 Title and Company name: V.P R&D and PowerFleet Inc. NOTE 1 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

PowerFleet Inc. Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: PowerFleet Inc. Address: 123 Tice Boulevard Suite 101, Woodcliff Lake, NJ 07677, United States Product Name: LV300\Cellotrack Power LTE FCC ID: 2AG69LV300N Model(s): LV300 2.911(d)(5)(ii) Applicant filing We, [PowerFleet Inc.] certify that, as of the date of the filing of the application, the applicant is not identified NOTE 1 on the “Covered List” NOTE 2 ,established pursuant to §1.50002 of this chapter, as an entity producing covered communications equipment. Yours sincerely, Signature: Name: Lior Musi Date: 2023-02-23 Title and Company name: V.P R&D and PowerFleet Inc. NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Agent Authorization Company: PowerFleet Inc. Address: 123 Tice Boulevard Suite 101, Woodcliff Lake, NJ 07677, United States Product Name: LV300\Cellotrack Power LTE Model Number(s): LV300 Product Description: LV300\Cellotrack Power LTE We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2023-02-23 Name: Lior Musi Title: V.P R&D Company: PowerFleet Inc.

PowerFleet Inc. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD21046 Date: 2023-02-23 Subject; Request for Confidentiality FCC ID: 2AG69LV300N To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description Pursuant to Public Notice DA 04-1705 of the Commission' s policy, in order to comply with the marketing regulations in 47 CFT §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuanttoKDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Lior Musi Title: V.P R&D

Label size: 24.4X56.5 mm

FCC ID: 2AG69LV300N Contains FCC ID:QIPELS61-US RF Exposure Evaluation Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.0 614 1.63 *(100) 6 3.0–30 1842/f 4.89/f *(900/f 2 ) 6 30–300 61.4 0.163 1.0 6 300–1500 f/300 6 1500–100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f 2 ) 30 30–300 27.5 0.073 0.2 30 300–1500 f/1500 30 1500–100,000 1.0 30 f = frequency in MHz Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 , Pout = output power to antenna in mW; G = gain of antenna in linear scale, Pi = 3.1416; R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. FCC ID: 2AG69LV300N Contains FCC ID:QIPELS61-US Test Result of RF Exposure Evaluation Mode Antenna gain (dBi) Output power to antenna (dBm) Output power to antenna (mW) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm2) Result LTE-B2 2.15 25 316.23 0.1032 1.0 PASS LTE-B4 2.15 25 316.23 0.1032 1.0 PASS LTE-B5 2.15 25 316.23 0.1032 0.55 PASS LTE-B12 2.15 25 316.23 0.1032 0.47 PASS WCDMA-B2 2.15 25 316.23 0.1032 1.0 PASS WCDMA-B4 2.15 25 316.23 0.1032 1.0 PASS WCDMA-B5 2.15 25 316.23 0.1032 0.55 PASS BLE 1.88 5.62 3.65 0.0011 1.0 PASS BLE and cellular Simultaneous Transmission: BLE + LTE =(0.0011/1)+(0.1032/0.47)=0.0011+0.2196=0.2207<1 BLE + WCDMA=(0.0011/1)+(0.1032/0.55)=0.0011+0.1876=0.1887<1 The max power density is less than MPE exempt limit, so it is compliance.

DATASHEET PartNo.1001312 Product: Wi-Fi/Bluetooth orUWBCeramicAntenna PartNo.1001312 Wi-Fi / BT/ Zigbeeor UWB CeramicAntenna 2.4GHzor6.0– 8.5GHz Supports:Wi-Fiapplications,Agriculture,Automotive,Bluetooth,Zigbee,WLAN,SmartHome,Healthcare,DigitalSignage,UWB 9/27/2021Proprietary www.KYOCERA-AVX.com Layouts: 1001312-01:SingleBand2.4GHzlayout 1001312-04:UWB6.0- 8.5GHzlayout(Appendix1) Electrical Specifications Typicalperformanceon55x 25mmPCB MechanicalSpecifications& OrderingPartNumber *UWBlayoutofferedin Appendix1 CeramicWi-FiorUWB CeramicAntenna 2400– 2485MHz; 6.0– 8.5GHz •Embedded design •Cellular, Headsets, Tablets •Gateway, Access Point •Handheld •Telematics •Tracking •Healthcare •M2M, Industrial devices •SmartGrid •OBD-II •UWB KEYBENEFITS Stay-in-Tune IMD antenna technology provides superior RF field containment, resulting in less interaction with surrounding components. Quicker Time-to-Market Byoptimizingantennasize, performance and emissions, customer and regulatoryspecifications aremoreeasilymet. Reliability Products are the latest RoHSversioncompliant. APPLICATIONS OrderingPartNumber1001312 Size(mm)2.00x 1.20x 0.55 MountingSMT Weight(grams)0.003 Packaging Tape& Reel, 1001312– 1,000piecesper reel DemoBoard 1001312-01(2.400- 2.485GHz) 1001312-04(UWB6.000- 8.500GHz) KYOCERA AVXseries of ceramic Isolated Magnetic Dipole™(IMD) antennas deliver on the key needs of device designers for higher functionality and performancein smaller/thinnerdesigns. Real-WorldPerformanceandImplementation Ceramic antennas may look alike on the outside, but the important differenceis inside.Otherantennasmaycontainsimple PIFAor monopole designsthatinteractwiththeirsurroundings,complicatinglayout orchanging performancewithuseposition.KYOCERA AVXantennas utilize patented IMD technology to deliver a unique size and performance combination. Frequency2400– 2485MHz6.0– 8.5GHz PeakGain1.88dBi AverageEfficiency62% VSWR Match1.8:1max FeedPointImpedance50ohmsunbalanced PolarizationLinear PowerHandling0.5WattCW Downloaded fromArrow.com. TopView BottomView Pin#1 PinDescription 1 Feed 2 Ground PartNumberA (mm)B (mm)C (mm) 10013122.0± 0.31.2± 0.30.55± 0.2 Height DATASHEET|PartNo. 1001312 C Pin#2 2.4GHz KYOCERA AVXEmbeddedAntennaSpecifications KYOCERA AVXproducesa widevarietyofstandardandcustomantennastomeetuserneeds. AntennaDimensions Typicalantennadimensions(mm) A B *Pin #1 and Pin #2 are interchangeable. © 2021KYOCERA AVX tel+(1)858.550.3820 email: [email protected] Downloaded fromArrow.com.Downloaded fromArrow.com. VSWR Efficiency AntennaRadiationPatterns Typicalperformanceon55x 25mmPCB Measured@2440MHz Frequency(MHz)Frequency(MHz) Effi ciency (%) VSW R Y X Y Z X Z DATASHEET|PartNo. 1001312 2.4GHz KYOCERA AVXEmbeddedAntennaSpecifications KYOCERA AVXproducesa widevarietyofstandardandcustomantennastomeetuserneeds. VSWR,EfficiencyPlots Typicalperformanceon55x 25mmPCB © 2021KYOCERA AVX tel+(1)858.550.3820 email: [email protected] Downloaded fromArrow.com.Downloaded fromArrow.com.Downloaded fromArrow.com. Antenna Outline DATASHEET|PartNo. 1001312 Pin#1 Pin#2 Pin#Description 1 Feed 2 Ground MatchingPiNetwork(DemoBoard) ComponentValueTolerance P1 4.7nH±0.1nH P2 DNIN/A S1 0ΩN/A R1 0ΩN/A R2– R8 DNIN/A 50Ω Transmission line S1 Antenna Outline P1 P2 Pin#2 *Actualmatchingvalues dependon customerdesign *0Ωmaybeaddedto shift frequencyhigher Pin#1 2.4GHz KYOCERA AVXEmbeddedAntennaSpecifications KYOCERA AVXproducesa widevarietyofstandardandcustomantennastomeetuserneeds. AntennaLayout(1001312-01) Typicallayoutdimensions(mm) R1 R2 50ohm P1 S1 P2 R3 R4 R5 R6 R7 R8 •AdditionalVIAS: Diam.0.2mmto beplacedaroundantenna, (novias ontransmissionlines). •Viaholesmustbecoveredbysolder mask PinDescriptions R1 R2R3R4R5R6 R7 R8 © 2021KYOCERA AVX tel+(1)858.550.3820 email: [email protected] Downloaded fromArrow.com.Downloaded fromArrow.com.Downloaded fromArrow.com.Downloaded fromArrow.com. DATASHEET|PartNo. 1001312 ShortingpinFeedpin Antennatuningloop: Figure1 Typicalantennalayout Figure 2 KYOCERA AVXantenna layout (required) •Theantennatuningloopis formedbythe PCBlayout. •The feed pin and shorting pin are combinedbecauseit requiresveryclose proximitytoachievemoreband-width. Shortingpinandfeedpinaresharedin KYOCERA AVXceramic antennas 2.4GHz KYOCERA AVXEmbeddedAntennaSpecifications KYOCERA AVXproducesa widevarietyofstandardandcustomantennastomeetuserneeds. AntennaLayoutTips(Generalreference) Important layout guidelines for correct operation of KYOCERA AVXCeramic Antennas. Please read guidelines below beforelayingouttheantennain a device.Figure1 showsthetypicalantennalayout.Figure2 shows KYOCERA AVXantenna layout. OtherKYOCERA AVX © 2021KYOCERA AVX tel+(1)858.550.3820 email: [email protected] Downloaded fromArrow.com.Downloaded fromArrow.com.Downloaded fromArrow.com.Downloaded fromArrow.com.Downloaded fromArrow.com. PartNumberA (mm)B (mm)C (mm) 1001312-0155.025.026.0 DATASHEET|PartNo. 1001312 A B C 2.4GHz KYOCERA AVXEmbeddedAntennaSpecifications KYOCERA AVXproducesa widevarietyofstandardandcustomantennastomeetuserneeds. AntennaDemoBoard Typicallayoutdimensions(mm) © 2021KYOCERA AVX tel+(1)858.550.3820 email: [email protected] Downloaded fromArrow.com.Downloaded fromArrow.com.Downloaded fromArrow.com.Downloaded fromArrow.com.Downloaded fromArrow.com.Downloaded fromArrow.com. DATASHEET|PartNo. 1001312 Appendix1 UWBCeramicKYOCERA AVXEmbeddedAntennaSpecifications KYOCERA AVXproducesa widevarietyofstandardandcustomantennastomeetuserneeds. Frequency(GHz)6.0– 8.5 PeakGain4.8dBi AverageEfficiency84% VSWR Match2.0:1max FeedPointImpedance50ohmsunbalanced PolarizationLinear PowerHandling2 WattCW Appendix1 Appendix 1 gives instructions on how to achieve UWB performances through layout and impedance matchingnetwork. (6.0– 8.5GHz) *Datashownabovehas Appendix1 matchingappliedon 26.0 x25.0mm PCB, UsingUWB1001312-04layout © 2021KYOCERA AVX tel+(1)858.550.3820 email: [email protected] Downloaded fromArrow.com.Downloaded fromArrow…

Text truncated - open the document above for the full version.

Report No.: GTS202211000167F01 Page 1 of 13 1. Bandwidth 1.1 OBW 1.1.1 Test Result Mode TX Type Frequency (MHz) ANT 99% Occupied Bandwidth (MHz) Verdict Result 1M SISO 2402 1 1.071 Pass 2440 1 1.068 Pass 2480 1 1.059 Pass 1.1.2 Test Graph 1M_LCH_2402MHz_Ant1_NTNV Report No.: GTS202211000167F01 Page 2 of 13 1M_MCH_2440MHz_Ant1_NTNV 1M_HCH_2480MHz_Ant1_NTNV Report No.: GTS202211000167F01 Page 3 of 13 1.2 6dB BW 1.2.1 Test Result Mode TX Type Frequency (MHz) ANT 6dB Bandwidth (MHz) Verdict Result Limit 1M SISO 2402 1 0.715 >=0.5 Pass 2440 1 0.751 >=0.5 Pass 2480 1 0.745 >=0.5 Pass 1.2.2 Test Graph 1M_LCH_2402MHz_Ant1_NTNV Report No.: GTS202211000167F01 Page 4 of 13 1M_MCH_2440MHz_Ant1_NTNV 1M_HCH_2480MHz_Ant1_NTNV Report No.: GTS202211000167F01 Page 5 of 13 2. Maximum Conducted Output Power 2.1 Power 2.1.1 Test Result Mode TX Type Frequency (MHz) Maximum Peak Conducted Output Power (dBm) Verdict ANT1 Limit 1M SISO 2402 4.90 <=30 Pass 2440 5.20 <=30 Pass 2480 5.62 <=30 Pass 2.1.2 Test Graph 1M_LCH_2402MHz_Ant1_NTNV Report No.: GTS202211000167F01 Page 6 of 13 1M_MCH_2440MHz_Ant1_NTNV 1M_HCH_2480MHz_Ant1_NTNV Report No.: GTS202211000167F01 Page 7 of 13 3. Maximum Power Spectral Density 3.1 PSD 3.1.1 Test Result Mode TX Type Frequency (MHz) Maximum PSD (dBm/3kHz) Verdict ANT1 Limit 1M SISO 2402 -5.34 <=8 Pass 2440 -6.79 <=8 Pass 2480 -7.54 <=8 Pass 3.1.2 Test Graph 1M_LCH_2402MHz_Ant1_NTNV Report No.: GTS202211000167F01 Page 8 of 13 1M_MCH_2440MHz_Ant1_NTNV 1M_HCH_2480MHz_Ant1_NTNV Report No.: GTS202211000167F01 Page 9 of 13 4. Unwanted Emissions In Non-restricted Frequency Bands 4.1 Ref 4.1.1 Test Result Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) 1M SISO 2402 1 4.19 2440 1 4.18 2480 1 4.75 Note1: Refer to RSS-247 Issue 2 section 5.5 and ANSI C63.10-2013, the channel contains the maximum PSD level was used to establish the reference level. 4.1.2 Test Graph 1M_LCH_2402MHz_Ant1_NTNV Report No.: GTS202211000167F01 Page 10 of 13 1M_MCH_2440MHz_Ant1_NTNV 1M_HCH_2480MHz_Ant1_NTNV Report No.: GTS202211000167F01 Page 11 of 13 4.2 CSE 4.2.1 Test Result Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) Limit (dBm) Verdict 1M SISO 2402 1 4.75 -15.25 Pass 2440 1 4.75 -15.25 Pass 2480 1 4.75 -15.25 Pass Note1: Refer to RSS-247 Issue 2 section 5.5 and ANSI C63.10-2013, the channel contains the maximum PSD level was used to establish the reference level. 4.2.2 Test Graph 1M_LCH_2402MHz_Ant1_NTNV Report No.: GTS202211000167F01 Page 12 of 13 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV 1M_HCH_2480MHz_Ant1_NTNV Report No.: GTS202211000167F01 Page 13 of 13 1M_HCH_2480MHz_Ant1_NTNV ------End------

Global United Technology Services Co., Ltd. Report No.: GTS202211000167F01 Authorized Signature: Robinson Luo Laboratory Manager This results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Page 1 of 30 TEST REPORT Applicant: PowerFleet Inc. Address of Applicant: 123 Tice Boulevard Suite 101, Woodcliff Lake, NJ 07677, United States Manufacturer/Factory: PowerFleet Inc. Address of Manufacturer/Factory: 123 Tice Boulevard Suite 101, Woodcliff Lake, NJ 07677, United States Equipment Under Test (EUT) Product Name: LV300\Cellotrack Power LTE Model No.: LV300 FCC ID: 2AG69LV300N Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of sample receipt: November 21, 2022 Date of Test: November 22, 2022-February 22, 2023 Date of report issued: February 23, 2023 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No.: GTS202211000167F01 Page 2 of 30 2 Version Version No. Date Description 00 February 23, 2023 Original Prepared By: Date: February 23, 2023 Project Engineer Check By: Date: February 23, 2023 Reviewer Report No.: GTS202211000167F01 Page 3 of 30 3 Contents Page 1 COVER PAGE ........................................................................................................................................... 1 2 VERSION .................................................................................................................................................. 2 3 CONTENTS .............................................................................................................................................. 3 4 TEST SUMMARY ..................................................................................................................................... 4 5 GENERAL INFORMATION ...................................................................................................................... 5 5.1 GENERAL DESCRIPTION OF EUT ......................................................................................................... 5 5.2 TEST MODE ........................................................................................................................................ 7 5.3 DESCRIPTION OF SUPPORT UNITS ....................................................................................................... 7 5.4 DEVIATION FROM STANDARDS ............................................................................................................. 7 5.5 ABNORMALITIES FROM STANDARD CONDITIONS ................................................................................... 7 5.6 TEST FACILITY .................................................................................................................................... 7 5.7 TEST LOCATION ................................................................................................................................. 7 5.8 ADDITIONAL INSTRUCTIONS ................................................................................................................. 7 6 TEST INSTRUMENTS LIST ..................................................................................................................... 8 7 TEST RESULTS AND MEASUREMENT DATA .................................................................................... 10 7.1 ANTENNA REQUIREMENT ................................................................................................................... 10 7.2 CONDUCTED OUTPUT POWER ........................................................................................................... 11 7.3 CHANNEL BANDWIDTH ...................................................................................................................... 12 7.4 POWER SPECTRAL DENSITY ............................................................................................................. 13 7.5 SPURIOUS EMISSION IN NON-RESTRICTED & RESTRICTED BANDS ....................................................... 14 7.5.1 Conducted Emission Method ..................................................................................................... 14 7.5.2 Radiated Emission Method ........................................................................................................ 15 8 TEST SETUP PHOTO ............................................................................................................................ 30 9 EUT CONSTRUCTIONAL DETAILS ..................................................................................................... 30 Report No.: GTS202211000167F01 Page 4 of 30 4 Test Summary Test Item Section in CFR 47 Result Antenna requirement 15.203/15.247 (c) Pass AC Power Line Conducted Emission 15.207 N/A Conducted Output Power 15.247 (b)(3) Pass Channel Bandwidth 15.247 (a)(2) Pass Power Spectral Density 15.247 (e) Pass Band Edge 15.247(d) Pass Spurious Emission 15.205/15.209 Pass Remarks: 1. Pass: The EUT complies with the essential requirements in the standard. 2. N/A: The device is charged via the asset (trailer) power supply (12 / 24 V). 3. Test according to ANSI C63.10 Measurement Uncertainty Test Item Frequency Range Measurement Uncertainty Notes Radiated Emission 9kHz-30MHz 3.1dB (1) Radiated Emission 30MHz-200MHz 3.8039dB (1) Radiated Emission 200MHz-1GHz 3.9679dB (1) Radiated Emission 1GHz-18GHz 4.29dB (1) Radiated Emission 18GHz-40GHz 3.30dB (1) AC Power Line Conducted Emission 0.15MHz ~ 30MHz 3.44dB (1) Note (1): The measurement uncertainty is for coverage factor of k=2 and a level of confidence of 95%. Report No.: GTS202211000167F01 Page 5 of 30 5 General Information 5.1 General Description of EUT Product Name: LV300\Cellotrack Power LTE Model No.: LV300 Test sample(s) ID: GTS2022…

Text truncated - open the document above for the full version.

Radiated Emission
