2AG69LV5XXNLV500\Cellotrack Solar

Copyright © 2020 by Pointer Telocation, Ltd. LV500 Overview Proprietary and Confidential Version 1.1 Revised and Updated: September14, 2022 CelloTrack Solar/ LV500 Overview Manual Page 2 of 33 Copyright © 2020 by Pointer Telocation, Ltd. Legal Notices IMPORTANT 1. All legal terms and safety and operating instructions should be read thoroughly before the product accompanying this document is installed and operated. 2. This document should be retained for future reference. 3. Attachments, accessories or peripheral devices not supplied or recommended in writing by Pointer Telocation Ltd. May be hazardous and/or may cause damage to the product and should not, in any circumstances, be used or combined with the product. General The product accompanying this document is not designated for and should not be used in life support appliances, devices, machines or other systems of any sort where any malfunction of the product can reasonably be expected to result in injury or death. Customers of Pointer Telocation Ltd. using, integrating, and/or selling the product for use in such applications do so at their own risk and agree to fully indemnify Pointer Telocation Ltd. for any resulting loss or damages. Warranty Exceptions and Disclaimers Pointer Telocation Ltd. Shall bear no responsibility and shall have no obligation under the foregoing limited warranty for any damages resulting from normal wear and tear, the cost of obtaining substitute products, or any defect that is (i) discovered by purchaser during the warranty period but purchaser does not notify Pointer Telocation Ltd. Until after the end of the warranty period, (ii) caused by any accident, force majeure, misuse, abuse, handling or testing, improper installation or unauthorized repair or modification of the product, (iii) caused by use of any software not supplied by Pointer Telocation Ltd., or by use of the product other than in accordance with its documentation, or (iv) the result of electrostatic discharge, electrical surge, fire, flood or similar causes. Unless otherwise provided in a written agreement between the purchaser and Pointer Telocation Ltd., the purchaser shall be solely responsible for the proper configuration, testing and verification of the product prior to deployment in the field. POINTER TELOCATION LTD.’S SOLE RESPONSIBILITY AND PURCHASER’S SOLE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE TO REPAIR OR REPLACE THE PRODUCT HARDWARE, SOFTWARE OR SOFTWARE MEDIA (OR IF REPAIR OR REPLACEMENT IS NOT POSSIBLE, OBTAIN A REFUND OF THE PURCHASE PRICE) AS PROVIDED ABOVE. POINTER TELOCATION LTD. EXPRESSLY DISCLAIMS ALL OTHER WARRANTIES OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION ANY IMPLIED WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY, SATISFACTORY PERFORMANCE AND FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL POINTER TELOCATION LTD. BE LIABLE FOR ANY INDIRECT, SPECIAL, EXEMPLARY, INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING WITHOUT LIMITATION LOSS OR INTERRUPTION OF USE, DATA, REVENUES OR PROFITS) RESULTING FROM A BREACH OF THIS WARRANTY OR BASED ON ANY OTHER LEGAL THEORY, EVEN IF POINTER TELOCATION LTD. HAS BEEN ADVISED OF THE POSSIBILITY OR LIKELIHOOD OF SUCH DAMAGES. CelloTrack Solar/ LV500 Overview Manual Page 3 of 33 Copyright © 2020 by Pointer Telocation, Ltd. Intellectual Property Copyright in and to this document is owned solely by Pointer Telocation Ltd. Nothing in this document shall be construed as granting you any license to any intellectual property rights subsisting in or related to the subject matter of this document including, without limitation, patents, patent applications, trademarks, copyrights or other intellectual property rights, all of which remain the sole property of Pointer Telocation Ltd. Subject to applicable copyright law, no part of this document may be reproduced, stored in or introduced into a retrieval system, or transmitted in any form or by any means (electronic, mechanical, photocopying, recording or otherwise), or for any purpose, without the express written permission of Pointer Telocation Ltd. FCC & IC Compliance Statement The FCC Wants You to Know This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: a) Reorient or relocate the receiving antenna. b) Increase the separation between the equipment and receiver. c) Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. d) Consult the dealer or an experienced radio/TV technician. CANICES-3 (B) / NMB-3 (B) This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de classe B est conforme à la norme canadienne ICES-003. If shielded cables were used for testing include: “ <<< In order to maintain compliance with FCC regulations, shielded cables must be used with this equipment. Operation with non-approved equipment or unshielded cables is likely to result in interference to radio and TV reception. >>>> © Copyright 2020. All rights reserved. Part 18 warning For devices approved under Part 18, information on the following shall be provided to the user in the instruction manual, or on the packaging if an instruction manual is not provided CelloTrack Solar/ LV500 Overview Manual Page 4 of 33 Copyright © 2020 by Pointer Telocation, L…

Text truncated - open the document above for the full version.

PowerFleet Inc. 2.911 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.911(d)(5)(i) Certification – Equipment Type Company name: PowerFleet Inc. Address: 123 Tice Boulevard Suite 101, Woodcliff Lake, NJ 07677, United States Product Name: LV500\Cellotrack Solar FCC ID: 2AG69LV5XXN Model(s): LV500 2.911(d)(5)(i) Equipment Type We, [PowerFleet Inc.] certify that the equipment for which authorization is sought through certification is not:  Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules.  Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Signature: Name: Lior Musi Date: 2023-02-09 Title and Company name: V.P R&D PowerFleet Inc. NOTE 1 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the- communications-supply-chain-through-the

PowerFleet Inc. 2.911 (d)(5)(ii) Applicant Attestation v1.2 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: PowerFleet Inc. Address: 123 Tice Boulevard Suite 101, Woodcliff Lake, NJ 07677, United States Product Name: LV500\Cellotrack Solar FCC ID: 2AG69LV5XXN Model(s): LV500 2.911(d)(5)(ii) Applicant filing We, [PowerFleet Inc.] certify that, as of the date of the filing of the application, the applicant is not identified NOTE 1 on the “Covered List” NOTE 2 ,established pursuant to §1.50002 of this chapter, as an entity producing covered communications equipment. Yours sincerely, Signature: Name: Lior Musi Date: 2023-02-09 Title and Company name: V.P R&D PowerFleet Inc. NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

PowerFleet Inc. Section 2.911(d)(7) USA Agent for Service of Process Company name: PowerFleet Inc. Address: 123 Tice Boulevard Suite 101, Woodcliff Lake, NJ 07677, United States Product Name: LV500\Cellotrack Solar FCC ID: 2AG69LV5XXN Model(s): LV500 2.911(d)(7) USA Designated Agent for Service of Process We, [PowerFleet Inc.] designate [PowerFleet Inc.] NOTE1 for the purpose of accepting service of process on behalf of the applicant. Applicant consent:We Acknowledge our consent to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address of the designated agent and acknowledge our acceptance of our obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. Agent obligation:We Acknowledge our obligation to accept service of process in the United States for matters related to the applicable equipment at our physical U.S. address and email add ress for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. PowerFleet Inc. USA Agent Company name: PowerFleet Inc. Address: 2601 Network Boulevard Suite 680 Hall Park C1 Frisco Texas, 75034, United States FRN:0033457136 Contact Name: Todd Celinski Telephone No: (972) 398-7348 Email: [email protected] Applicant Company name: PowerFleet Inc. Address: 123 Tice Boulevard Suite 101, Woodcliff Lake, NJ 07677, United States FCC Grantee Code: 2AG69 Contact Name: Lior Musi Telephone No: +972-73-2622330 Email: [email protected] Signature: Title: Director US Engineering Signature: Title: V. P R & D Date: 2023-02-17 Date: 2023-02-09 NOTE 1: An applicant located in the United States may designate itself as the agent for service of process. Reference; Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against- national-security-threats-to-the-communications-supply-chain-through-the

Agent Authorization Company: PowerFleet Inc. Address: 123 Tice Boulevard Suite 101, Woodcliff Lake, NJ 07677, United States Product Name: LV500\Cellotrack Solar Model Number(s): LV500 Product Description: LV500\Cellotrack Solar We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2022-11-24 Name: Lior Musi Title: V.P R&D Company: PowerFleet Inc.

PowerFleet Inc. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD21046 Date: 2022-11-24 Subject; Request for Confidentiality FCC ID: 2AG69LV5XXN To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description Pursuant to Public Notice DA 04-1705 of the Commission' s policy, in order to comply with the marketing regulations in 47 CFT §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuanttoKDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Lior Musi Title: V.P R&D

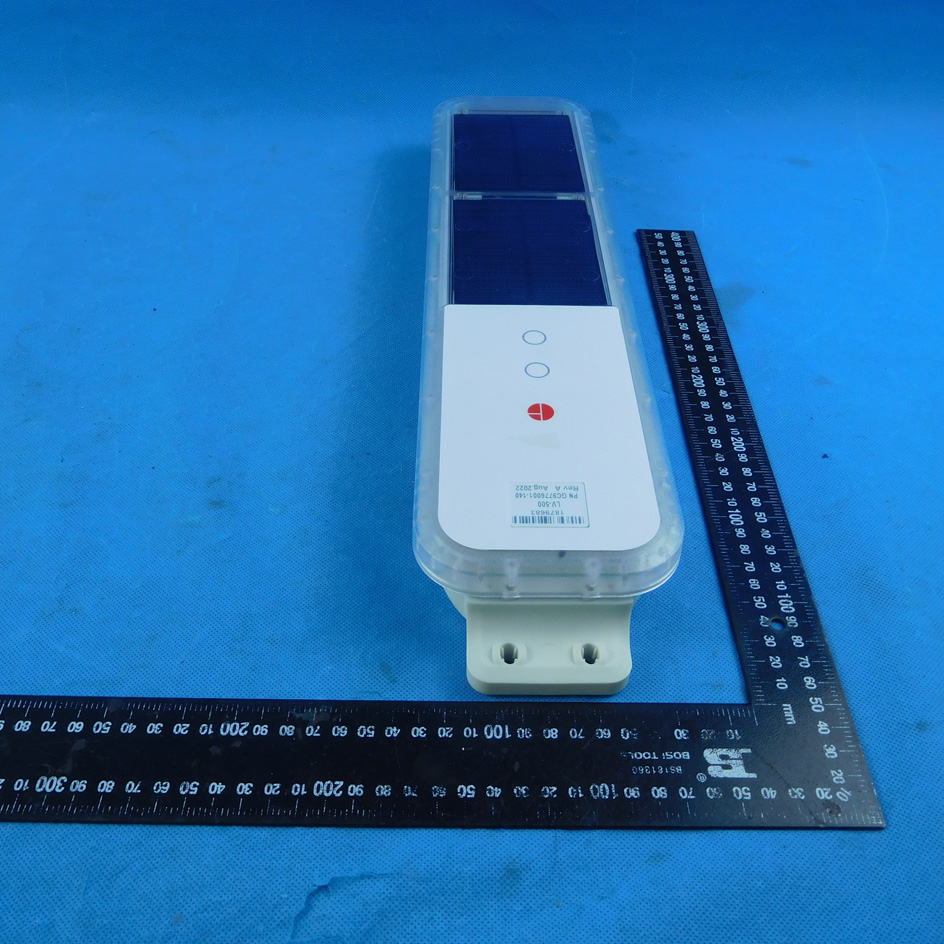

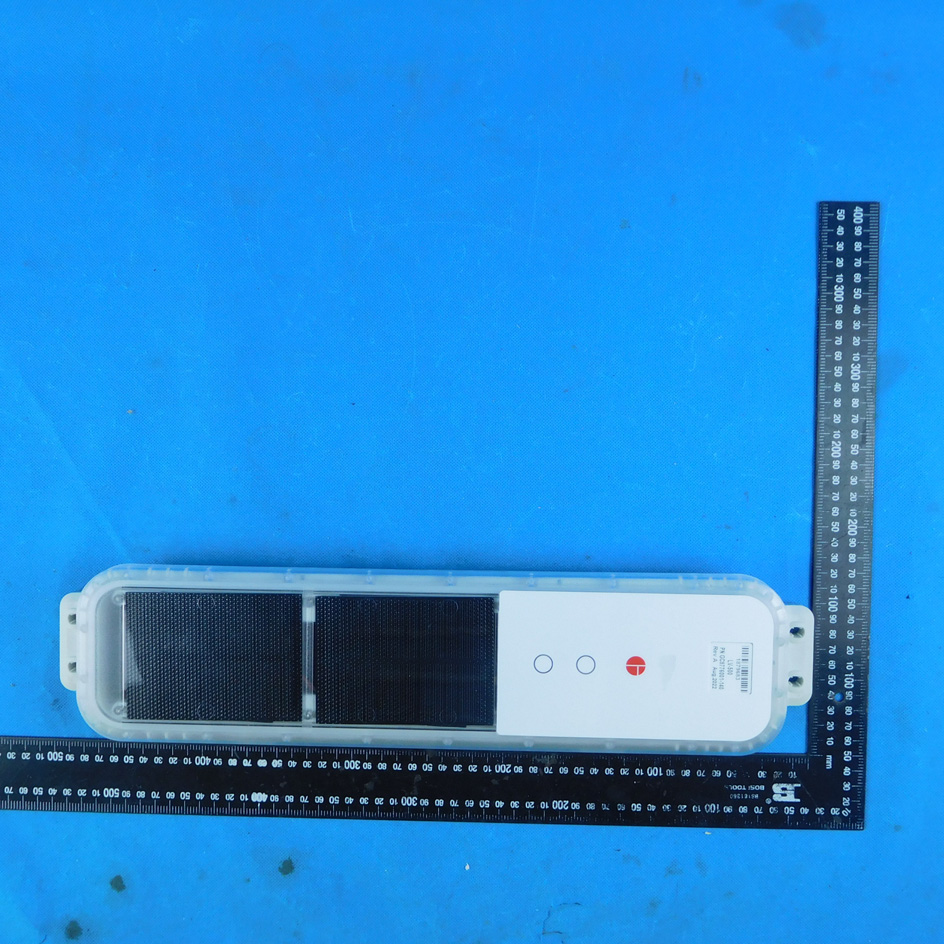

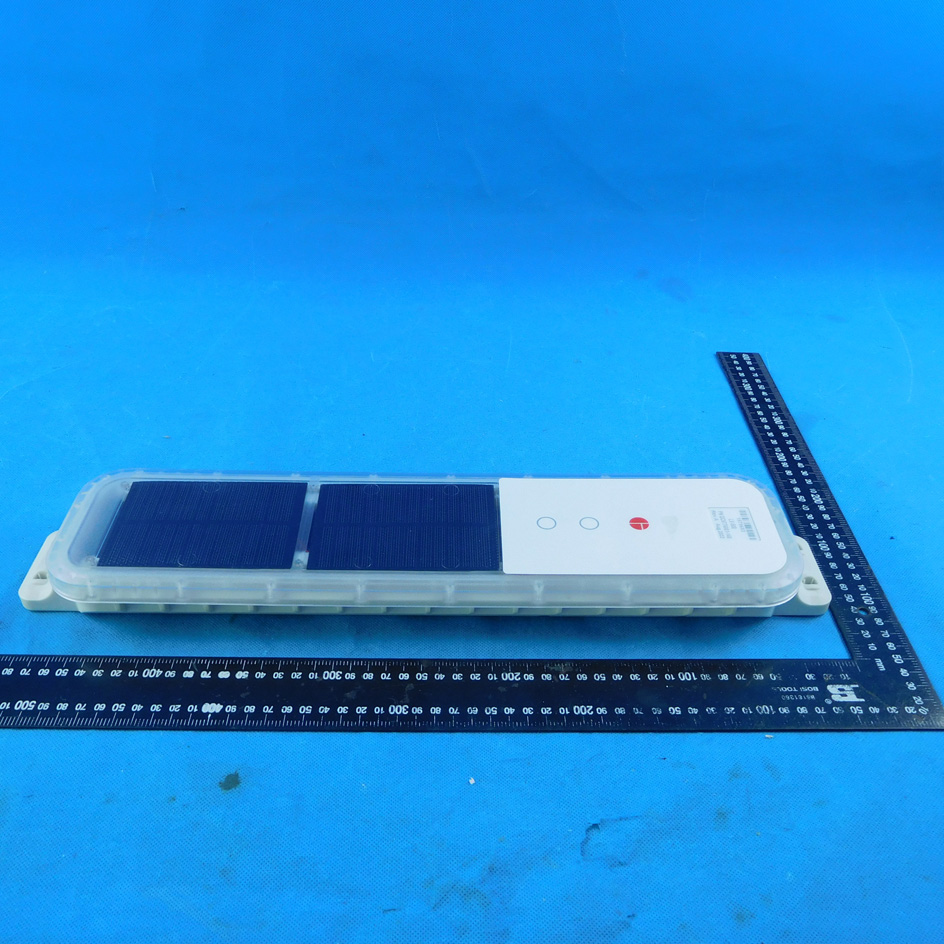

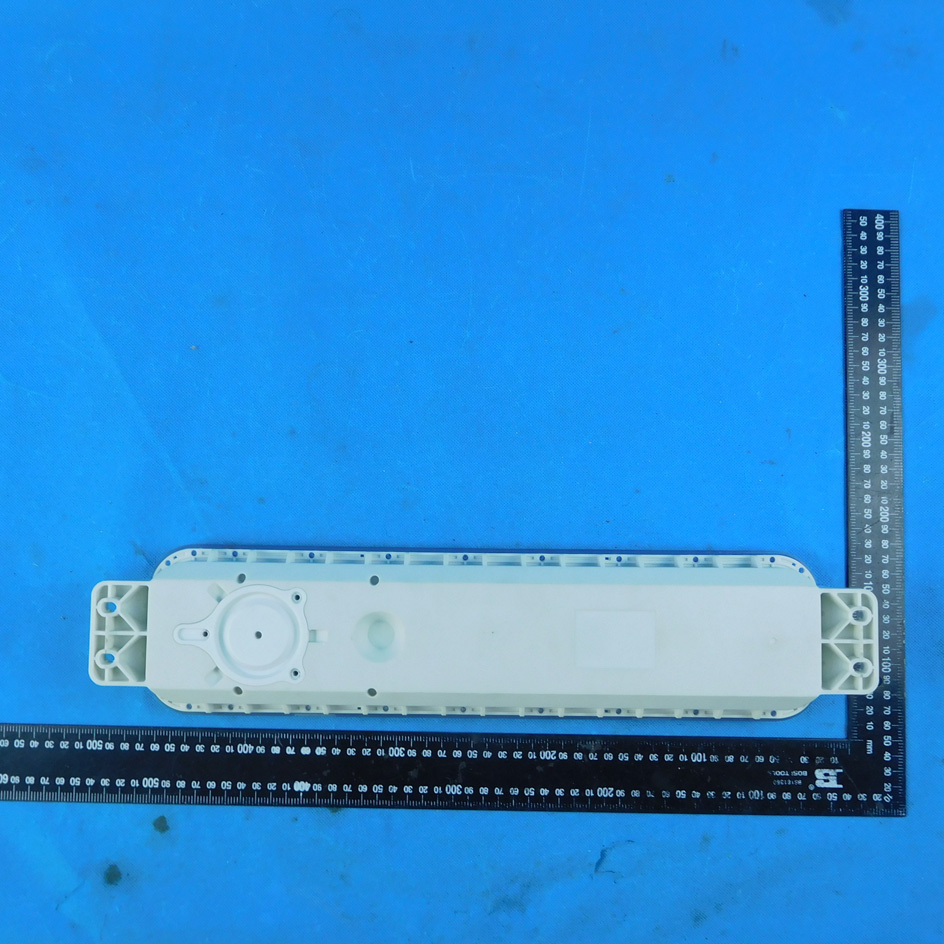

Test Model No.: LV500

Size: 5x3.5 cm Label location

Test Model No.: LV500

FCC ID: 2AG69LV5XXN Contains FCC ID:QIPELS61-US RF Exposure Evaluation Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.0 614 1.63 *(100) 6 3.0–30 1842/f 4.89/f *(900/f 2 ) 6 30–300 61.4 0.163 1.0 6 300–1500 f/300 6 1500–100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f 2 ) 30 30–300 27.5 0.073 0.2 30 300–1500 f/1500 30 1500–100,000 1.0 30 f = frequency in MHz Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 , Pout = output power to antenna in mW; G = gain of antenna in linear scale, Pi = 3.1416; R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. FCC ID: 2AG69LV5XXN Contains FCC ID:QIPELS61-US Test Result of RF Exposure Evaluation Mode Antenna gain (dBi) Output power to antenna (dBm) Output power to antenna (mW) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm2) Result LTE-B2 2.15 25 316.23 0.1032 1.0 PASS LTE-B4 2.15 25 316.23 0.1032 1.0 PASS LTE-B5 2.15 25 316.23 0.1032 0.55 PASS LTE-B12 2.15 25 316.23 0.1032 0.47 PASS WCDMA-B2 2.15 25 316.23 0.1032 1.0 PASS WCDMA-B4 2.15 25 316.23 0.1032 1.0 PASS WCDMA-B5 2.15 25 316.23 0.1032 0.55 PASS BLE 0.53 5.95 3.94 0.0009 1.0 PASS BLE and cellular Simultaneous Transmission: BLE + LTE =(0.0009/1)+(0.1032/0.47)=0.0009+0.2196=0.2205<1 BLE + WCDMA=(0.0009/1)+(0.1032/0.55)=0.0009+0.1876=0.1885<1 The max power density is less than MPE exempt limit, so it is compliance.

ReportNo.:RFI-LAB-RF-202302-BB06 QP030-E41 Page1of10 TestingReport CustomerName:PowerfleetInc. ProductName:LV500\CellotrackSolar SampleModel:LV500 ReferenceStandard:GB/T9410-2008;ANSI/IEEEStd149-1979 IssueDate:2023.02.07 Engineer:Date: Auditor:Date: Approver:Date: ReportNo.:RFI-LAB-RF-202302-BB06 QP030-E41 Page2of10 Version VersionNo.DateDescriptionFormulateApproval A02023.02.07Forthefirsttime,formulateJacksonEason Contents 1.GeneralInformation.........................................................................................................................3 1.1Generalinformationoftestinginstitutions...........................................................................3 1.2Testingprinciple...................................................................................................................3 1.3Testequipment......................................................................................................................4 1.4Testenvironment...................................................................................................................4 1.5Statement..............................................................................................................................4 2.SampleInformation.........................................................................................................................5 2.1Clientinformation.................................................................................................................5 2.2DescriptionofEUT(S)..........................................................................................................5 2.3EUTappearance....................................................................................................................6 2.4EUTsetupphotooffreespaceOTAtesting.........................................................................6 3.TestResults.....................................................................................................................................7 3.1Teststandard.........................................................................................................................7 3.2Testuncertainty.....................................................................................................................7 3.3Testdata..............................................................................................................................8 3.3.1VSWRparameters.....................................................................................................8 3.3.2VSWRdata................................................................................................................8 3.3.3Typicalfreespaceefficiencyandgain......................................................................9 3.3.4Typicalfreespaceradiationpattern...........................................................................9 （Thefollowingisblank）..............................................................................................................10 ReportNo.:RFI-LAB-RF-202302-BB06 QP030-E41 Page3of10 1.GeneralInformation 1.1Generalinformationoftestinginstitutions Name ShenzhenRFI-LABCommunicationTechnologyCo.,Ltd. Address 10/FA,LingyunBld,LiufangRd,BaoanDistrict,SZ Tel 13682621346 E-mail [email protected] Equipment AlltheequipmentusedinthereportisfixedinZoneB,WestSideof1/F,Building1, TingweiIndustrialPark,No.6LiufangRoad,Bao'anDistrict,Shenzhen 1.2Testingprinciple ReportNo.:RFI-LAB-RF-202302-BB06 QP030-E41 Page4of10 1.3Testequipment EquipmentModelNo.SerialNo.Manufacturer Calibration date Next calibration date OTATest System RayZone-5000 RFI-LAB-RF -D00 GTS2021.3.152023.3.14 Network Analyzer E5071C RFI-LAB-RF -D01 KEYSIGHT2022.5.132023.5.12 1.4Testenvironment Temperature 22.8°C Humidity 58%RH Pressure 100.35kPa 1.5Statement (1)Thetestresultsinthereportareonlyapplicabletothetestedsamplesandthetestedsamples workundertheenvironmentdescribedinthereport. (2)OnlyShenzhenRFI-LABCommunicationTechnologyCo.,Ltd.havetherighttomodifythe report,andthemodificationinformationshallbeannotatedintherevisionform. (3)Anyobjectiontothisreportshallberaisedwithin30daysafterformalconfirmationofthe report. (4)Thisreportisinvalidifthereisanyevidencethatthesampleinformationprovidedisfalsified. (5)Thereportisinvalidwithoutthesignatureoftheauditorandapprover. ReportNo.:RFI-LAB-RF-202302-BB06 QP030-E41 Page5of10 2.SampleInformation 2.1Clientinformation Name PowerfleetInc. Address / Contacts LiorMusi Tel / E-mail [email protected] Manufacturer 123TiceBoulevard,Suite101,WoodcliffLake,NJ07677 2.2DescriptionofEUT(S) ProductName LV500\CellotrackSolar SampleModel LV500 AntennaSize / SerialNo. / AntennaType PCBAntenna TestItem VSWR;Antennagain;Efficiency;Radiationpattern FrequencyRange 2400-2500MHz ReceivedDate 2023.02.07 TestDate 2023.02.07 Remark ThelengthoftheRFcableis50mm ReportNo.:RFI-LAB-RF-202302-BB06 QP030-E41 Page6of10 2.3EUTappearance 2.4EUTsetupphotooffreespaceOTAtesting Planform Frontview ReportNo.:RFI-LAB-RF-202302-BB06 QP030-E41 Page7of10 3.TestResults 3.1Teststandard NameParameterMethodStandardno. Mobile communication antenna Antennagain Genericspecification forantennasusedinthe mobilecommunications GB/T 9410-2008 Radiationpattern VSWR Antenna Radiationefficiency IEEEStandardTest ProceduresforAntennas ANSI/IEEEStd 149-1979 Gainanddirectivity 3.2Testuncertainty TheuncertaintywascalculatedonthebasisoftheGUMpublishedbyISO,usingthe inclusionfactorofK=2andthe95%confidenceleveltoexpresstheextended uncertainty. ItemUncertainty VSWR±0.3 Antennagain±1dB Radiationefficiency ± 10% ReportNo.:RFI-LAB-RF-202302-BB06 QP030-E41 Page8of10 3.3Testdata 3.3.1VSWRparameters 3.3.2VSWRdata Frequency/MHz 240024502500 VSWR 4.18743.29282.0277 ReportNo.:RFI-LAB-RF-202302-BB06 QP030-E41 Page9of10 3.3.3Typicalfreespaceefficiencyandgain 3.3.4Typicalfreespaceradiationpattern (1)X-ZPlane(unit：dBi): (2)Y-ZPlane(unit：dBi): Frequency/MHz 24002410242024302440245024602470248024902500 Peak…

Text truncated - open the document above for the full version.

Report No.: GTS202211000051F01 Page 1 of 19 Appendix for 15.247 1. Bandwidth 1.1 OBW 1.1.1 Test Result Mode TX Type Frequency (MHz) ANT 99% Occupied Bandwidth (MHz) Verdict Result GFSK SISO 2402 1 1.063 Pass 2440 1 1.065 Pass 2480 1 1.059 Pass Report No.: GTS202211000051F01 Page 2 of 19 1.1.2 Test Graph GFSK_LCH_2402MHz_Ant1_NTNV GFSK_MCH_2440MHz_Ant1_NTNV Report No.: GTS202211000051F01 Page 3 of 19 GFSK_HCH_2480MHz_Ant1_NTNV Report No.: GTS202211000051F01 Page 4 of 19 1.2 6dB BW 1.2.1 Test Result Mode TX Type Frequency (MHz) ANT 6dB Bandwidth (MHz) Verdict Result Limit GFSK SISO 2402 1 0.729 >=0.5 Pass 2440 1 0.722 >=0.5 Pass 2480 1 0.744 >=0.5 Pass Report No.: GTS202211000051F01 Page 5 of 19 1.2.2 Test Graph GFSK_LCH_2402MHz_Ant1_NTNV GFSK_MCH_2440MHz_Ant1_NTNV Report No.: GTS202211000051F01 Page 6 of 19 GFSK_HCH_2480MHz_Ant1_NTNV Report No.: GTS202211000051F01 Page 7 of 19 2. Maximum Conducted Output Power 2.1 Test Result Mode TX Type Frequency (MHz) Maximum Peak Conducted Output Power (dBm) Verdict ANT1 Limit GFSK SISO 2402 5.00 <=30 Pass 2440 5.36 <=30 Pass 2480 5.95 <=30 Pass Report No.: GTS202211000051F01 Page 8 of 19 2.2 Test Graph GFSK_LCH_2402MHz_Ant1_NTNV GFSK_MCH_2440MHz_Ant1_NTNV Report No.: GTS202211000051F01 Page 9 of 19 GFSK_HCH_2480MHz_Ant1_NTNV Report No.: GTS202211000051F01 Page 10 of 19 3. Maximum Power Spectral Density 3.1 Test Result Mode TX Type Frequency (MHz) Maximum PSD (dBm/3kHz) Verdict ANT1 Limit GFSK SISO 2402 -8.55 <=8 Pass 2440 -8.21 <=8 Pass 2480 -7.37 <=8 Pass Report No.: GTS202211000051F01 Page 11 of 19 3.2 Test Graph GFSK_LCH_2402MHz_Ant1_NTNV GFSK_MCH_2440MHz_Ant1_NTNV Report No.: GTS202211000051F01 Page 12 of 19 GFSK_HCH_2480MHz_Ant1_NTNV Report No.: GTS202211000051F01 Page 13 of 19 4. Unwanted Emissions In Non-restricted Frequency Bands 4.1 Ref 4.1.1 Test Result Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) GFSK SISO 2402 1 4.35 2440 1 4.72 2480 1 5.26 Note1: Refer to FCC Part 15.247 (d) and ANSI C63.10-2013, the channel contains the maximum PSD level was used to establish the reference level. Report No.: GTS202211000051F01 Page 14 of 19 4.1.2 Test Graph GFSK_LCH_2402MHz_Ant1_NTNV GFSK_MCH_2440MHz_Ant1_NTNV Report No.: GTS202211000051F01 Page 15 of 19 GFSK_HCH_2480MHz_Ant1_NTNV Report No.: GTS202211000051F01 Page 16 of 19 4.2 CSE 4.2.1 Test Result Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) Limit (dBm) Verdict GFSK SISO 2402 1 5.26 -14.74 Pass 2440 1 5.26 -14.74 Pass 2480 1 5.26 -14.74 Pass Note1: Refer to FCC Part 15.247 (d) and ANSI C63.10-2013, the channel contains the maximum PSD level was used to establish the reference level. Report No.: GTS202211000051F01 Page 17 of 19 4.2.2 Test Graph GFSK_LCH_2402MHz_Ant1_NTNV GFSK_LCH_2402MHz_Ant1_NTNV Report No.: GTS202211000051F01 Page 18 of 19 GFSK_MCH_2440MHz_Ant1_NTNV GFSK_HCH_2480MHz_Ant1_NTNV Report No.: GTS202211000051F01 Page 19 of 19 GFSK_HCH_2480MHz_Ant1_NTNV ------End------

Global United Technology Services Co., Ltd. Report No.: GTS202211000051F01 Authorized Signature: Robinson Luo Laboratory Manager This results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Page 1 of 30 TEST REPORT Applicant: PowerFleet Inc. Address of Applicant: 123 Tice Boulevard Suite 101, Woodcliff Lake, NJ 07677, United States Manufacturer: PowerFleet Inc. Address of Manufacturer: 123 Tice Boulevard Suite 101, Woodcliff Lake, NJ 07677, United States Equipment Under Test (EUT) Product Name: LV500\Cellotrack Solar Model No.: LV500 FCC ID: 2AG69LV5XXN Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of sample receipt: November 07, 2022 Date of Test: November 08-24, 2022 Date of report issued: November 24, 2022 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No.: GTS202211000051F01 Page 2 of 30 2 Version Version No. Date Description 00 November 24, 2022 Original Prepared By: Date: November 24, 2022 Project Engineer Check By: Date: November 24, 2022 Reviewer Report No.: GTS202211000051F01 Page 3 of 30 3 Contents Page 1 COVER PAGE ........................................................................................................................................... 1 2 VERSION .................................................................................................................................................. 2 3 CONTENTS .............................................................................................................................................. 3 4 TEST SUMMARY ..................................................................................................................................... 4 5 GENERAL INFORMATION ...................................................................................................................... 5 5.1 GENERAL DESCRIPTION OF EUT ......................................................................................................... 5 5.2 TEST MODE ........................................................................................................................................ 7 5.3 DESCRIPTION OF SUPPORT UNITS ....................................................................................................... 7 5.4 DEVIATION FROM STANDARDS ............................................................................................................. 7 5.5 ABNORMALITIES FROM STANDARD CONDITIONS ................................................................................... 7 5.6 TEST FACILITY .................................................................................................................................... 7 5.7 TEST LOCATION ................................................................................................................................. 7 5.8 ADDITIONAL INSTRUCTIONS ................................................................................................................. 7 6 TEST INSTRUMENTS LIST ..................................................................................................................... 8 7 TEST RESULTS AND MEASUREMENT DATA .................................................................................... 10 7.1 ANTENNA REQUIREMENT ................................................................................................................... 10 7.2 CONDUCTED OUTPUT POWER ........................................................................................................... 11 7.3 CHANNEL BANDWIDTH ...................................................................................................................... 12 7.4 POWER SPECTRAL DENSITY ............................................................................................................. 13 7.5 SPURIOUS EMISSION IN NON-RESTRICTED & RESTRICTED BANDS ....................................................... 14 7.5.1 Conducted Emission Method ..................................................................................................... 14 7.5.2 Radiated Emission Method ........................................................................................................ 15 8 TEST SETUP PHOTO ............................................................................................................................ 30 9 EUT CONSTRUCTIONAL DETAILS ..................................................................................................... 30 Report No.: GTS202211000051F01 Page 4 of 30 4 Test Summary Test Item Section in CFR 47 Result Antenna requirement 15.203/15.247 (c) Pass AC Power Line Conducted Emission 15.207 N/A Conducted Output Power 15.247 (b)(3) Pass Channel Bandwidth 15.247 (a)(2) Pass Power Spectral Density 15.247 (e) Pass Band Edge 15.247(d) Pass Spurious Emission 15.205/15.209 Pass Remarks: 1. Pass: The EUT complies with the essential requirements in the standard. 2. Test according to ANSI C63.10:2013 Measurement Uncertainty Test Item Frequency Range Measurement Uncertainty Notes Radiated Emission 9kHz-30MHz 3.1dB (1) Radiated Emission 30…

Text truncated - open the document above for the full version.
