2AGA5-M23Bluetooth Speaker

Bluetooth Speaker FCC Warning Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ϋϋ Reorient or relocate the receiving antenna. ϋϋ Increase the separation between the equipment and re ceiver. ϋϋ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ϋϋ Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SHENZHEN UGOOD TECHNOLOGY CO., LIMITED Agent Authorization C ompany: SHENZHEN UGOOD TECHNOLOGY CO., LIMITED A ddress: 4/F, Building 25, Phase II, Lianchuang Technology Park, Bulan Rd, Nanwan St., Longgang District, Shenzhen, China P roduct Name: Bluetooth Speaker M odel Number(s): M23 P roduct Description: Bluetooth Speaker We author ize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We dec lare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Jan. 17, 2020 Name: Junxing Qiu Title: CEO Company: SHENZHEN UGOOD TECHNOLOGY CO., LIMITED

SHENZHEN UGOOD TECHNOLOGY CO., LIMITED Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Jan. 17, 2020 Subject; Request for Confidentiality FCC ID: 2AGA5-M23 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Junxing Qiu Title: CEO

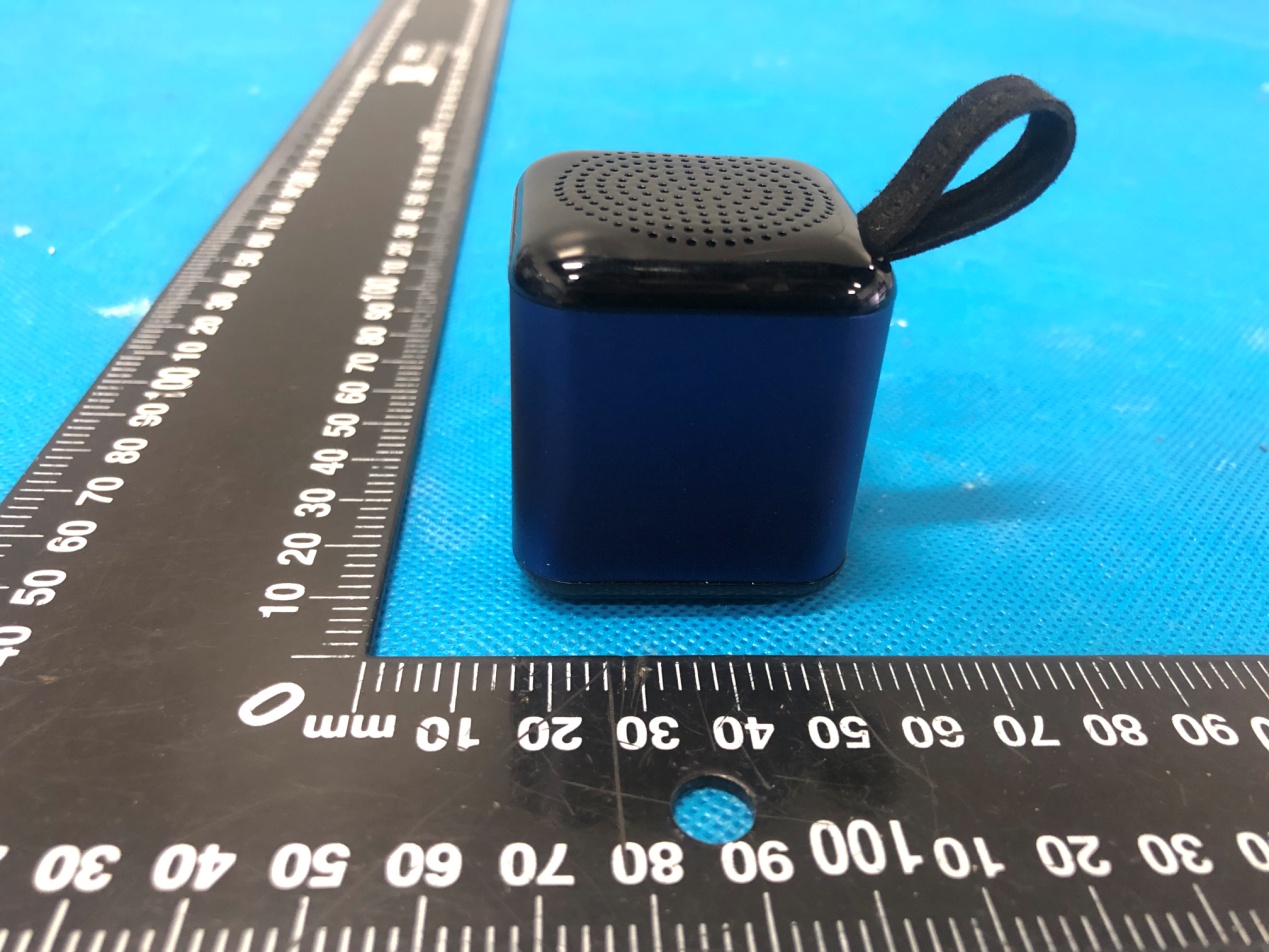

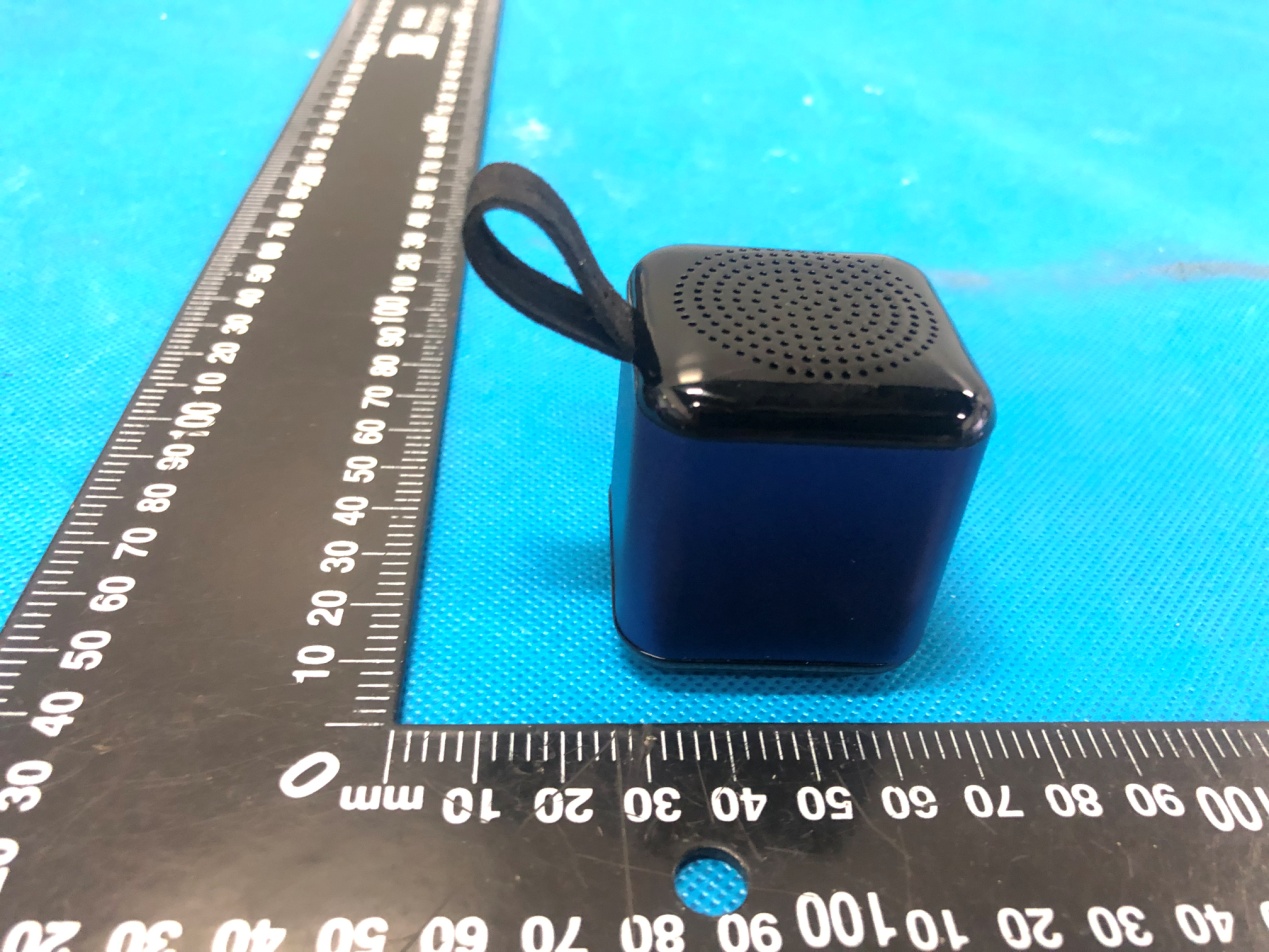

Annex A External Photos Report No.: HK2001140139-E Page 1 of 3 Report No.: HK2001140139-E Page 2 of 3 Report No.: HK2001140139-E Page 3 of 3

FCC ID LABEL: Ca. 5mm x 10mm Include in manual: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Label Location FCC ID: 2AGA5-M23

Annex B Internal Photo Report No.: HK2001140139-E Page 1 of 3 Antenna Report No: HK2001140139-E Page 2 of 3 Report No: HK2001140139-E Page 3 of 3

MPE ESTIMATION FCC ID: 2AGA5-M23 1, Limit for General Population/ Uncontrolled Exposures Frequency Power density (mW/ cm 2 ) Averaging time(minutes) 300MHz----1.5GHz F/1500 30 1.5GHz---100GHz 1.0 30 Note: F= Frequency in MHz 2, Estimation Result 2.4G WIFI Mode Frequency (MHz) Max PK Output power(dBm) Tune Up Power(dBm) Max Tune Up power(mW) Antenna Gain(dBi) Antenna Gain (linear) MPE ( mW/cm²) BT 2402 2.882 2±1(3) 2 0 1.00 0.0004 Note: Note: The estimation distance is 20cm Note: PK Output power= conducted power. Conducted power see the test report HK2001140139-E, antenna gain=0dBi when the minimum test separation distance is >20 cm, a distance of 20 cm is applied to determine RF Exposure test exclusion. The test exclusion threshold is 0.0004 mW/cm² which is< 1.0mW/cm², RF Exposure testing is not required. -------The End-------

Page 1 of 42 Report No.: HK2001140139-E TEST REPORT FCC PART 15 SUBPART C 15.247 Test report On Behalf of SHENZHEN UGOOD TECHNOLOGY CO., LIMITED For Bluetooth Speaker Model No.: M23 FCC ID: 2AGA5-M23 Prepared for : SHENZHEN UGOOD TECHNOLOGY CO., LIMITED 4/F, Building 25, Phase II, Lianchuang Technology Park, Bulan Rd, Nanwan St., Longgang District, Shenzhen, China Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1F, B2 Building, Junfeng Zhongcheng Zhizao Innovation Park, Fuhai Street, Bao'an District, Shenzhen City, China Date of Test: Jan. 10, 2020 ~ Jan. 16, 2020 Date of Report: Jan. 16, 2020 Report Number: HK2001140139-E Page 2 of 42 Report No.: HK2001140139-E TEST RESULT CERTIFICATION Applicant’s name ................. : SHENZHEN UGOOD TECHNOLOGY CO., LIMITED Address ................................. : 4/F, Building 25, Phase II, Lianchuang Technology Park, Bulan Rd, Nanwan St., Longgang District, Shenzhen, China Manufacture's Name ............ : SHENZHEN UGOOD TECHNOLOGY CO., LIMITED Address ................................. : 4/F, Building 25, Phase II, Lianchuang Technology Park, Bulan Rd, Nanwan St., Longgang District, Shenzhen, China Product description Trade Mark: MIABOO Product name ........................... : Bluetooth Speaker Model and/or type reference : M23 Standards ............................. : 47 CFR FCC Part 15 Subpart C 15.247 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ............................................ : Date (s) of performance of tests ............. : Jan. 10, 2020 ~ Jan. 16, 2020 Date of Issue ........................................... : Jan. 16, 2020 Test Result ............................................... : Pass Prepared by: Project Engineer Reviewed by: Project Supervisor Approved by: Technical Director Page 3 of 42 Report No.: HK2001140139-E Table of Contents Page 1. SUMMARY ...................................................................................................................................................... 4 1.1. TEST STANDARDS ................................................................................................................................. 4 1.2. TEST DESCRIPTION .................................................................................................................................... 4 1.3. TEST FACILITY ........................................................................................................................................... 5 1.4. STATEMENT OF THE MEASUREMENT UNCERTAINTY ........................................................................................ 5 2. GENERAL INFORMATION ............................................................................................................................. 6 2.1. ENVIRONMENTAL CONDITIONS ..................................................................................................................... 6 2.2. GENERAL DESCRIPTION OF EUT ................................................................................................................. 6 2.3. DESCRIPTION OF TEST MODES AND TEST FREQUENCY................................................................................. 7 2.4. EQUIPMENTS USED DURING THE TEST ......................................................................................................... 8 2.5. RELATED SUBMITTAL(S) / GRANT (S) ........................................................................................................... 9 2.6. MODIFICATIONS .......................................................................................................................................... 9 2.7. DESCRIPTION OF TEST SETUP ............................................................................................................ 9 3. TEST CONDITIONS AND RESULTS ............................................................................................................ 10 3.1. CONDUCTED EMISSIONS TEST .................................................................................................................. 10 3.2. RADIATED EMISSIONS AND BAND EDGE ..................................................................................................... 13 3.3. MAXIMUM PEAK CONDUCTED OUTPUT POWER .......................................................................................... 24 3.4. 20DB BANDWIDTH .................................................................................................................................... 25 3.5. FREQUENCY SEPARATION ......................................................................................................................... 28 3.6. NUMBER OF HOPPING FREQUENCY ............................................................................................................ 30 3.7. TIME OF OCCUPANCY (DWELL TIME) ......................................................................................................... 32 3.8. OUT-OF-BAND EMISSIONS ......................................................................................................................... 35 3.9. PSEUDORANDOM FREQUENCY HOPPING SEQUENCE .................................................................................. 39 3.10. ANTENNA REQUIREMENT .................................................................................................................. 40 4. TEST SETUP PHOTOS OF THE EUT .......................................................................................................... 41 5. PHOTOS OF THE EUT .........................................................…

Text truncated - open the document above for the full version.

Test Model：M23 Radiated Emission Conducted Emission
