2AGA5-M35WBluetooth speaker 5W+wireless charging 15W

5W Speaker Output: Item No.: QC935G QC935G 15W-10W-7.5W-5W 12V 2.25A 9V 3A 5V 3A 1000mAhBattery Capacity: Wireless Charging Output: Type-C Input: 3. Using the Ring Light 1) To turn ring light on or off, press and hold the ring light switch along the top for 3 seconds. 2) To adjust light intensity, tap the ring light switch along the top. 1. Keep product dry to avoid short circuits or other damage to electronical components. 2. Avoid placing metal or magnetic items on the charging area which could result in overheating and product failure. 3. Keep device away from high heat and flammable liquids and gasses. Avoid using in environments above 45 and below 0. 4. We strongly recommend using a high quality, certified wall adapter to provide power to this device. Failure to do so may result in slow charging speeds or product failure. 5. Do not disassemble the product or replace any parts. In case of the damage to this item, please stop using the product immediately. 6. Wireless speaker stop working if operating temperature exceed 45°C. It will work again once less than 45°C. 7. Wireless charging stop working if temperature of the foreign object exceed 70. It will charge again once less than 70. Precautions This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However. there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help NOTE: This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter RF Exposure Statement To maintain compliance with FCC's RF Exposure guidelines, this equipment should be installed and operated with minimum distance of 20cm the radiator your body. This deviceand its antenna(s) must not be co-located or operation in conjunction with any other antenna nr transmitter. a) Ensure the Bluetooth speaker is charged and turned on. b) Ensure the Bluetooth speaker isn’t connected to another phone or device. 1. My phone won’t charge a) Ensure your phone is Qi enabled. b) Ensure the cable is plugged into a reliable wall adapter. The wireless charging function only works when plugged into a source of power. c) If wireless charging speeds seem slow we recommend ensuring that thew all adapter you’re using can reach speeds upwards of 10 watts. 2. The Bluetooth speaker won’t work Troubleshooting 日期/Design Date: 2023.8.2/9.9/9.14/12.5 2) To fully utilize 15W fast charging, please use a PD/QC 27W wall adapter. Bluetooth speaker 5W + wireless charging 15W

SHENZHENUGOODTECHNOLOGYCO.,LIMITED 2.911(d)(5)(i)EquipmentTypeAttestationv1.2 Section2.911(d)(5)(i)Certification– EquipmentType Companyname:SHENZHENUGOODTECHNOLOGYCO.,LIMITED Address:4/F, Building25, PhaseII, LianchuangTechnology,Park,BulanRd,NanwanSt., Longgang District,Shenzhen, China ProductName:Bluetoothspeaker5W+wirelesscharging15W FCCID: 2AGA5-M35W Model(s):M35W, QC935G 2.911(d)(5)(i)EquipmentType We, [SHENZHENUGOODTECHNOLOGYCO.,LIMITED](“the applicant”) certifythat the equipment for whichauthorizationis soughtthroughcertificationis not:  Prohibitedfrom receivingan equipmentauthorizationpursuantto § 2.903;of the FCC rules.  Identifiedas an equipmenttype in the “CoveredList ” NOTE1 Yourssincerely, Name:JunxingQiuDate:Oct. 18, 2023 Title : CEO Companyname:SHENZHENUGOODTECHNOLOGYCO.,LIMITED Signature: NOTE1 “CoveredList”; is the List of Equipmentand ServicesCoveredBy Section2 of The SecureNetworksAct, availableat https://www.fcc.gov/supplychain/coveredlist References; 1) 986446D01 CoveredEquipmentv01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) FederalRegisterdocument2022-28263publishedon 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

SHENZHENUGOODTECHNOLOGYCO.,LIMITED 2.911(d)(5)(ii)ApplicantAttestationv1.3 Section2.911(d)(5)(ii)Certification– Applicant(CoveredList ) Companyname:SHENZHENUGOODTECHNOLOGYCO.,LIMITED Address:4/F, Building25, PhaseII, LianchuangTechnology,Park,BulanRd,NanwanSt., Longgang District,Shenzhen,China ProductName:Bluetoothspeaker5W+wirelesscharging15W FCCID: 2AGA5-M35W Model(s):M35W,QC935G 2.911(d)(5)(ii)Applicantfiling We, [SHENZHENUGOODTECHNOLOGYCO.,LIMITED](“the applicant”) certifythat, as of the date of the filing of the application,the applicantis not identified NOTE1 on the “CoveredList ” NOTE2 , establishedpursuantto §1.50002of this chapter,as an entityproducingcoveredcommunications equipment. Yourssincerely, Name:JunxingQiuDate:Oct. 18, 2023 Title : CEO Companyname:SHENZHENUGOODTECHNOLOGYCO.,LIMITED Signature: NOTE1 Deleteoptionnot applicableto this application. NOTE2 “CoveredList”; is the List of Equipmentand ServicesCoveredBy Section2 of The SecureNetworksAct, availableat https://www.fcc.gov/supplychain/coveredlist References; 1) 986446D01 CoveredEquipmentv01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) FederalRegisterdocument2022-28263publishedon 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

SHENZHENUGOODTECHNOLOGYCO.,LIMITED AgentAuthorization Company:SHENZHENUGOODTECHNOLOGYCO.,LIMITED Address:4/F, Building25, PhaseII, LianchuangTechnology,Park, BulanRd,Nanwan St., LonggangDistrict,Shenzhen,China ProductName:Bluetoothspeaker5W+wirelesscharging15W ModelNumber(s):M35W,QC935G ProductDescription:Bluetoothspeaker5W+wirelesscharging15W WeauthorizeMiCOMLabsInc.,575BoulderCourt,Pleasanton,California94566,USA,to actonourbehalfonallmattersconcerningthecertificationofabovenamedequipment. WedeclarethatMiCOMLabsInc.is allowedtoforwardallinformationrelatedtotheapproval andcertificationofequipmenttotheregulatoryagenciesasrequiredandtodiscussany issuesconcerningtheapprovalapplication.AnyandallactscarriedoutbyMiCOMLabson ourbehalfshallhavethesameeffectasactsofourown. Signature:Date: Oct.18,2023 Name:JunxingQiu Title:CEO Company:SHENZHENUGOODTECHNOLOGYCO.,LIMITED

SHENZHENUGOODTECHNOLOGYCO.,LIMITED Office of EngineeringTechnology FederalCommunicationsCommission 7435 OaklandMills Road Columbia,MD 21046 USA Date: Oct. 18, 2023 Subject;Requestfor Confidentiality FCC ID:2AGA5-M35W To WhomIt May Concern, Pursuantto the provisionsof the Commission’s rules Title 47 Sections§0.457 and §0.459,we are requestingthe Commissionto withholdthe followingattachment(s)as confidential documentsfrom publicdisclosureindefinitely. Thesedocumentscontaindetailedsystemand equipmentdescriptionsand are consideredas proprietaryinformationin operationof the equipment.The publicdisclosureof these documents might be harmfulto our companyand wouldgive competitorsan unfair advantagein the market. SchematicDiagram Block Diagram Parts List OperationalDescription Tune-upProcedure In additionalto abovementioneddocuments,in order to complywith the marketingregulations in Title 47 CFR §2.803 and the importationrules in Title 47 CFR §2.1204,while ensuringthat businesssensitiveinformationremainsconfidentialuntil the actualmarketingof newly authorizeddevices,we requestShort Term Confidentialityof the followingattachment(s); ExternalPhotos Test SetupPhotos InternalPhotos User Manual For 45 days, pursuantto PublicNoticeDA 04-1705. OR For 180 days pursuanttoKDB 726920D01. It is our understandingthat all measurementtest reports,FCC ID label formatand correspondenceduringthe certificationreviewprocesscannotbe grantedas confidential documentsand this informationwill be availablefor publicreviewonce the grant of equipment authorizationis issued. Sincerely, Signature: Name: JunxingQiu Title: CEO

SHENZHENUGOODTECHNOLOGYCO.,LIMITED ModelDifferenceDeclaration To WhomIt May Concern, We, SHENZHENUGOODTECHNOLOGYCO.,LIMITED(Bluetoothspeaker5W+wirelesscharging 15W ); ModelNumber:M35W,QC935G ModelDifference:All model ’s the function,softwareand electriccircuitare the same,only with a productmodelnameddifferent.Test samplemodel:M35W Pleasecontactme if you have any question. Signature:Date:Oct.18,2023 Name:JunxingQiu Title:CEO

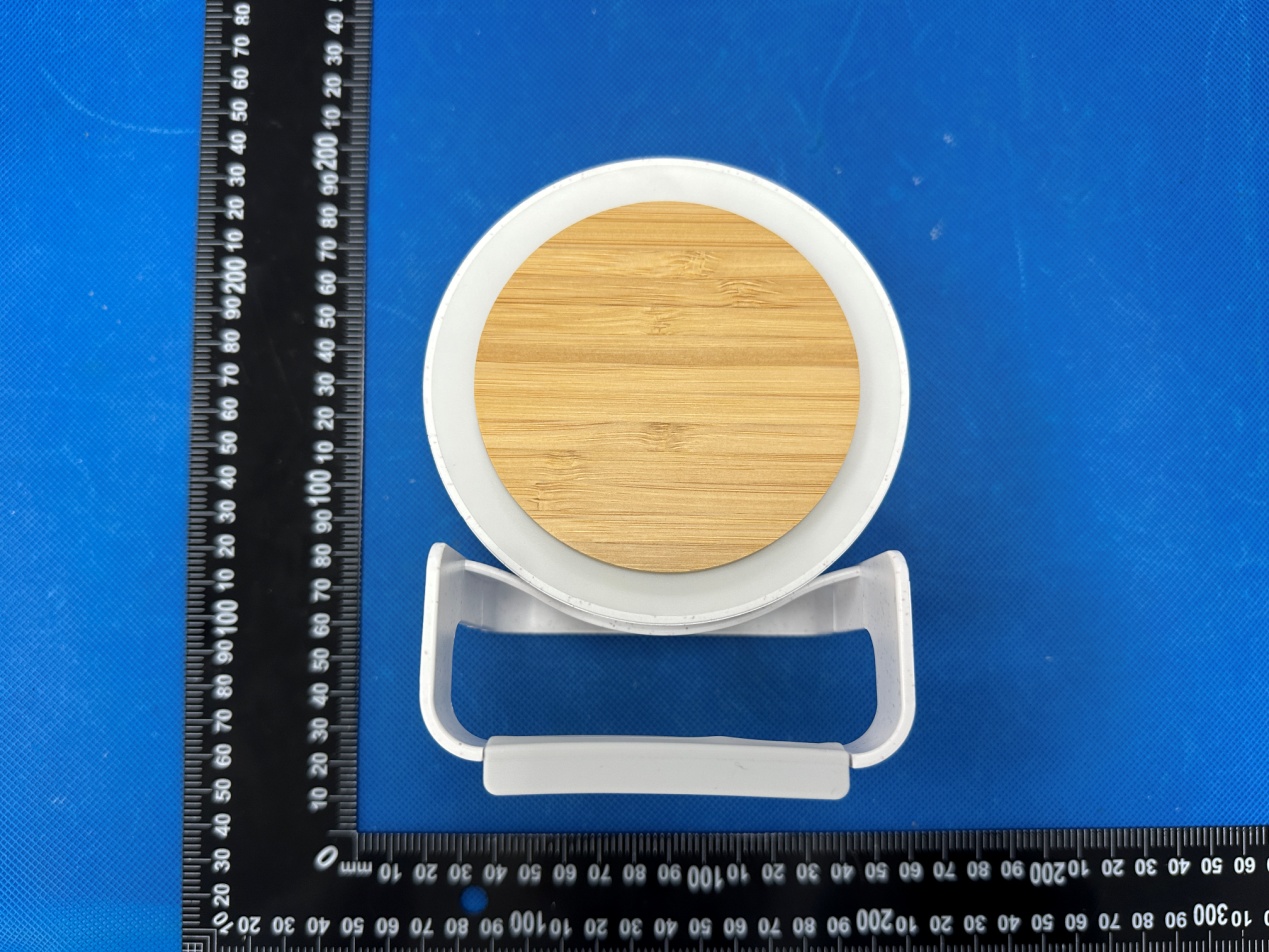

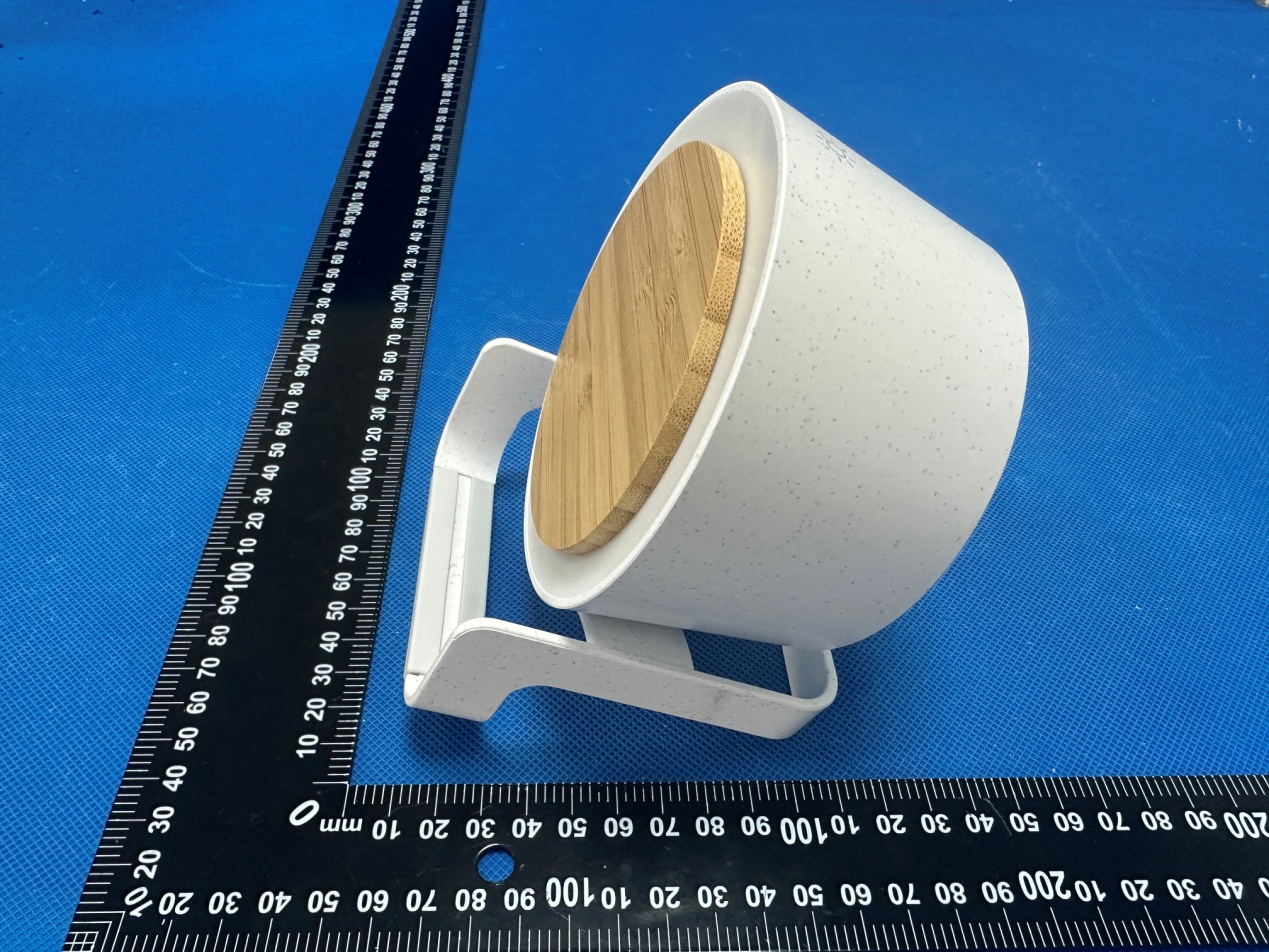

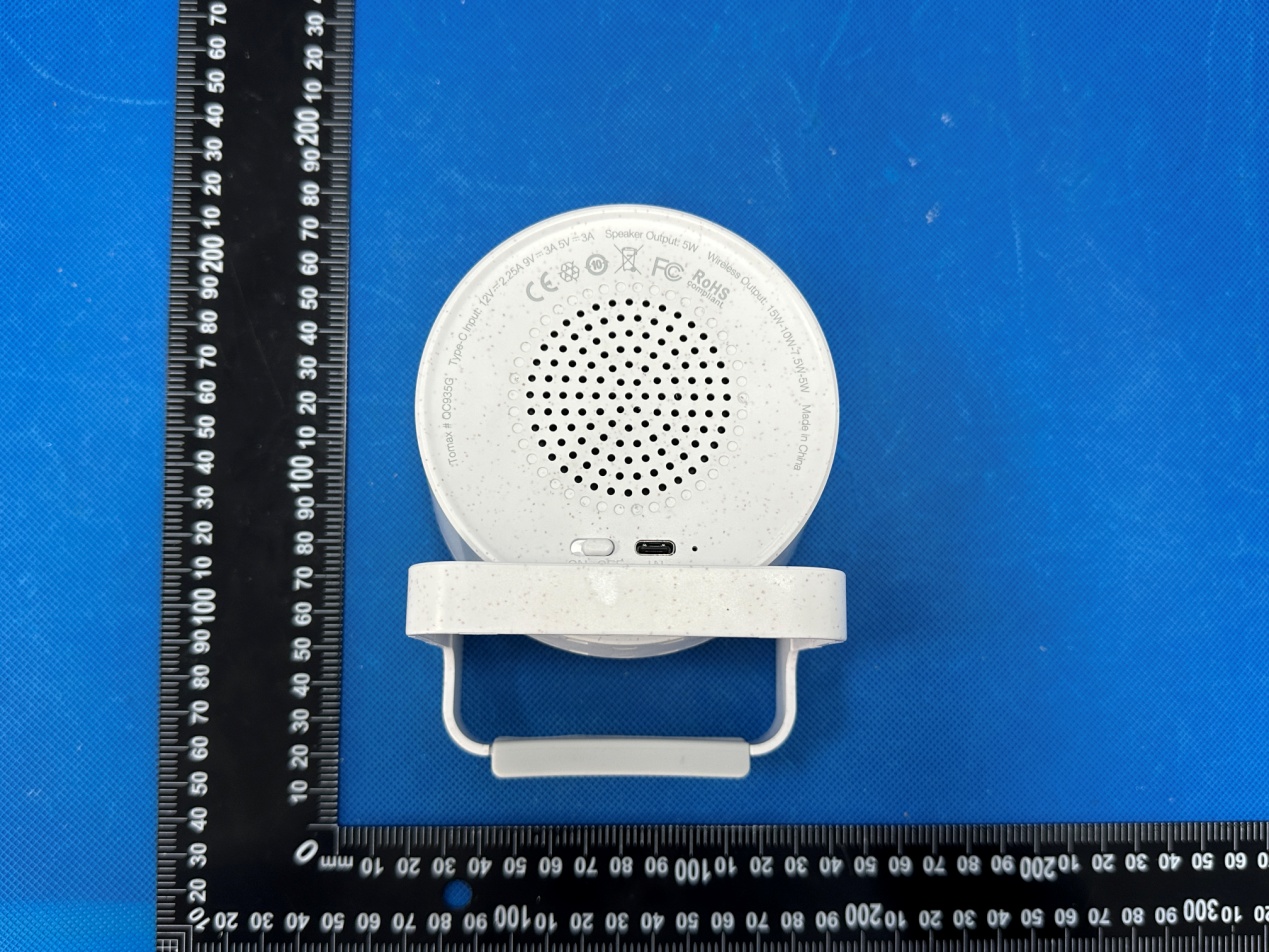

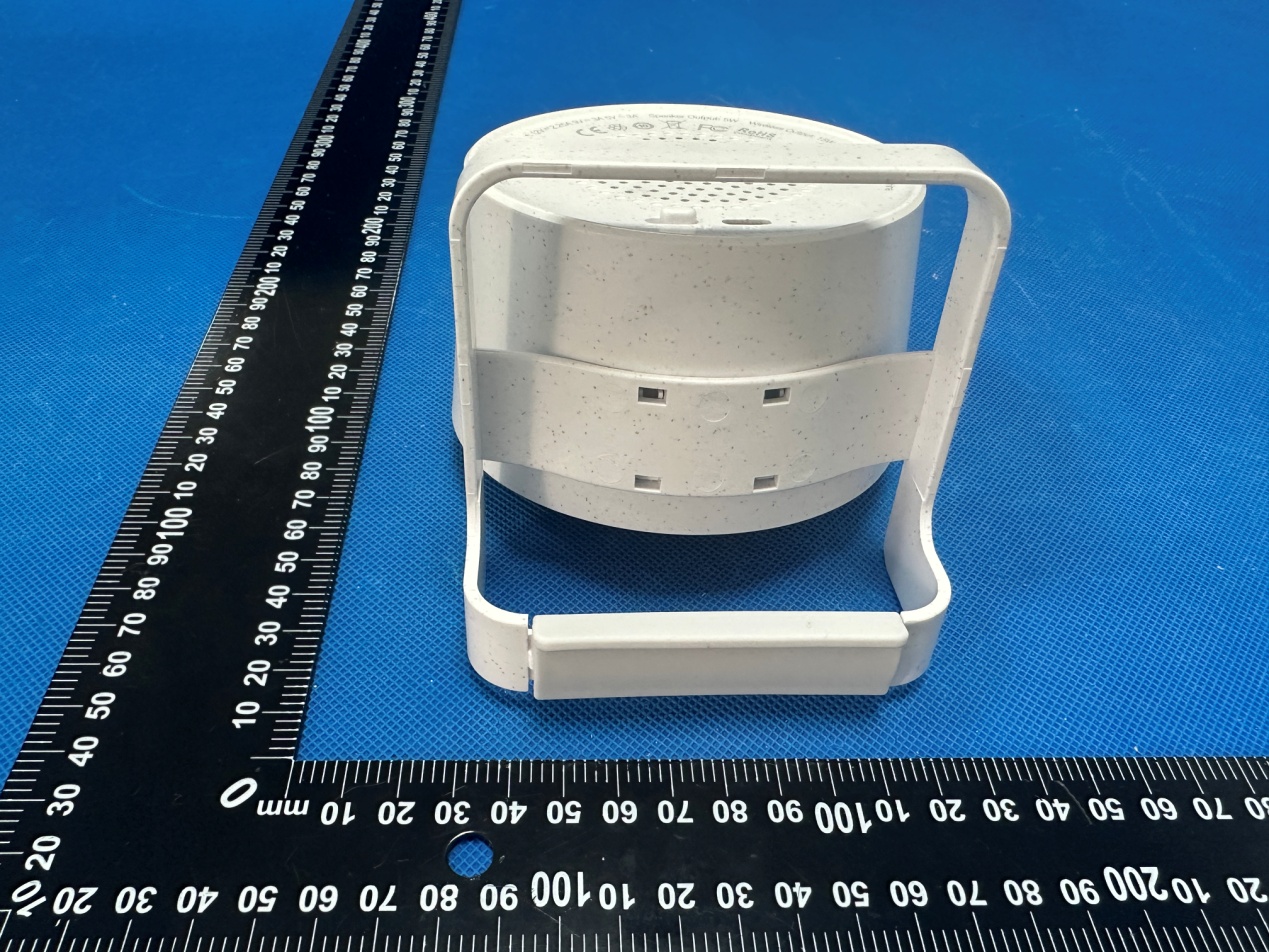

Annex A External Photos Report No.: HK2310174824-1E/2E/3E Page 1 of 4 Report No.: HK2310174824-1E/2E/3E Page 2 of 4 Report No.: HK2310174824-1E/2E/3E Page 3 of 4 Report No.: HK2310174824-1E/2E/3E Page 4 of 4

FCC ID LABEL: Ca. 10mm x 25mm label location FCC ID: 2AGA5‐M35W

Annex B Internal Photo Report No.: HK2310174824-1E/2E/3E Page 1 of 5 Report No.: HK2310174824-1E/2E/3E Page 2 of 5 Antenna Report No.: HK2310174824-1E/2E/3E Page 3 of 5 BT Antenna Report No.: HK2310174824-1E/2E/3E Page 4 of 5 Report No.: HK2310174824-1E/2E/3E Page 5 of 5

MPE ESTIMATION FCC ID: 2AGA5-M35W 1, Limit for General Population/ Uncontrolled Exposures Frequency Power density (mW/ cm 2 ) Averaging time(minutes) 300MHz----1.5GHz F/1500 30 1.5GHz---100GHz 1.0 30 2, Estimation Result Mode Max PK Output power(dBm) Tune Up Power(dBm) Max Tune Up power(mW) Antenna Gain(dBi) Antenna Gain (linear) MPE (mW/cm²) BT -1.52 -2±1(-1) 0.79 1.2 1.32 0.00021 Note: Note: The estimation distance is 20cm Note: PK Output power= conducted power. Conducted power see the test report HK2310174824-1E. When the minimum test separation distance is >20 cm, a distance of 20 cm is applied to determine RF Exposure test exclusion. The test exclusion threshold is 0.00021mW/cm² which is< 1.0mW/cm², RF Exposure testing is not required. -------The End-------

Product specification Quick Reference Date Antenna module on the system board Frequenc Range 2400 ~ 2500MHz Ant. Port Input Pwr. (dBm) 0 (Typ. BT class 2 output power) Tot. Rad. Pwr. (dBm) -1.2 (Input pwr – loss pwr) Peak EIRP(d Bm) 1.2 Directivity (dBi) 1 (all direction antenna) Efficiency (dB) 6 0.2 % Gain (dBi) 1.2 (Avg Gain XY-plane) Maximum Power (dBm) 1.7 (XY-plane) Minimum Power (dBm) -4(XY-plane) Avg. Power (dBm) -0.5(XY-plane) Input Impendence(ohm) 50 Polarization Type V ertical & Horizontal V . S .W . R < 1.4 All the technical data and information contained herein are subject to change without prior notice Antenna Layout & module on the system board Antenna Gain Gain Table Unit in dBi @2.44GHz XY-plane XZ-plane YZ-plane Efficiency Peak Avg. Peak Avg. Peak Avg. Module Board 1.2 -0.5 -1.9 -3.6 1.1 -3.0 6 0.2 % Retum Loss The Environment of Antenna Radiation Pattem 3D radiation pattern diagram XY-plane XZ-plane YZ-plane

Page 1 of 48 Report No.: HK2310174824-1E FCC Test Report FCC PART 15 SUBPART C 15.247 Test report On Behalf of SHENZHEN UGOOD TECHNOLOGY CO.,LIMITED For Bluetooth speaker 5W+wireless charging 15W Model No.: M35W, QC935G FCC ID: 2AGA5-M35W Prepared For : SHENZHEN UGOOD TECHNOLOGY CO.,LIMITED 4/F, Building 25, Phase II, Lianchuang Technology, Park, Bulan Rd,Nanwan St., Longgang District, Shenzhen, China Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1-2/F., Building B2, Junfeng Zhongcheng Zhizao Innovation Park, Heping, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Date of Test: Oct. 16, 2023 ~ Oct. 26, 2023 Date of Report: Oct. 26, 2023 Report Number: HK2310174824-1E Page 2 of 48 Report No.: HK2310174824-1E Test Result Certification Applicant’s Name .................. : SHENZHEN UGOOD TECHNOLOGY CO.,LIMITED Address .................................. : 4/F, Building 25, Phase II, Lianchuang Technology, Park, Bulan Rd,Nanwan St., Longgang District, Shenzhen, China Manufacture's Name ............. : SHENZHEN UGOOD TECHNOLOGY CO.,LIMITED Address .................................. : 4/F, Building 25, Phase II, Lianchuang Technology, Park, Bulan Rd,Nanwan St., Longgang District, Shenzhen, China Product Description Trade Mark ............................. : MIABOO Product Name ........................... : Bluetooth speaker 5W+wireless charging 15W Model and/or type reference...: M35W, QC935G Standards .............................. : 47 CFR FCC Part 15 Subpart C 15.247 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test .................................... . Date (s) of Performance of Tests .... . Oct. 16, 2023 ~ Oct. 26, 2023 Date of Issue .................................... Oct. 26, 2023 Test Result ........................................ Pass Prepared by: Project Engineer Reviewed by: Project Supervisor Approved by: Technical Director Page 3 of 48 Report No.: HK2310174824-1E Table of Contents Page 1. Summary .............................................................................................................................................................. 5 1.1. Test Standards ......................................................................................................................................................... 5 1.2. Test Description ....................................................................................................................................................... 5 1.3. Information of the Test Laboratory ......................................................................................................................... 6 1.4. Statement of the Measurement Uncertainty .......................................................................................................... 6 2. General Information ............................................................................................................................................. 7 2.1. Environmental Conditions ....................................................................................................................................... 7 2.2. General Description of EUT ..................................................................................................................................... 7 2.3. Description of Test Modes and Test Frequency ....................................................................................................... 8 2.4. Equipments Used during the Test ............................................................................................................................ 9 2.5. Related Submittal(s) / Grant (s) ............................................................................................................................. 10 2.6. Modifications ........................................................................................................................................................ 10 2.7. Description of Test Setup ....................................................................................................................................... 10 2.8. Description of support units .................................................................................................................................. 11 3. Test Conditions and Results ................................................................................................................................. 12 3.1. Conducted Emissions Test ..................................................................................................................................... 12 3.2. Radiated Emissions and Band Edge ....................................................................................................................... 15 3.3. Maximum Peak Conducted Output Power ............................................................................................................ 26 3.4. 20dB Bandwidth .................................................................................................................................................... 27 3.5. Frequency Separation ........................................................................................................................................... 30 3.6. Number of Hopping Frequency ............................................................................................................................. 32 3.7. Time of Occupancy (Dwell Time) .......................................................................................................................... 34 3.8. Out‐of…

Text truncated - open the document above for the full version.

Model: M35W Radiated Emissions Conducted Emission
