SHENZHEN UGOOD TECHNOLOGY CO., LIMITED Agent Authorization Company: SHENZHEN UGOOD TECHNOLOGY CO., LIMITED Address: 4/F, Building 25, Phase II, Lianchuang Technology Park, Bulan Rd, Nanwan St., Longgang District, Shenzhen, China Product Name: Wireless Charging Power Bank Model Number(s): PW01 Product Description: Wireless Charging Power Bank We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Apr. 07, 2020 Name: Junxing Qiu Title: CEO Company: SHENZHEN UGOOD TECHNOLOGY CO., LIMITED

SHENZHEN UGOOD TECHNOLOGY CO., LIMITED Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Apr. 07, 2020 Subject; Request for Confidentiality FCC ID: 2AGA5-PW01 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Junxing Qiu Title: CEO

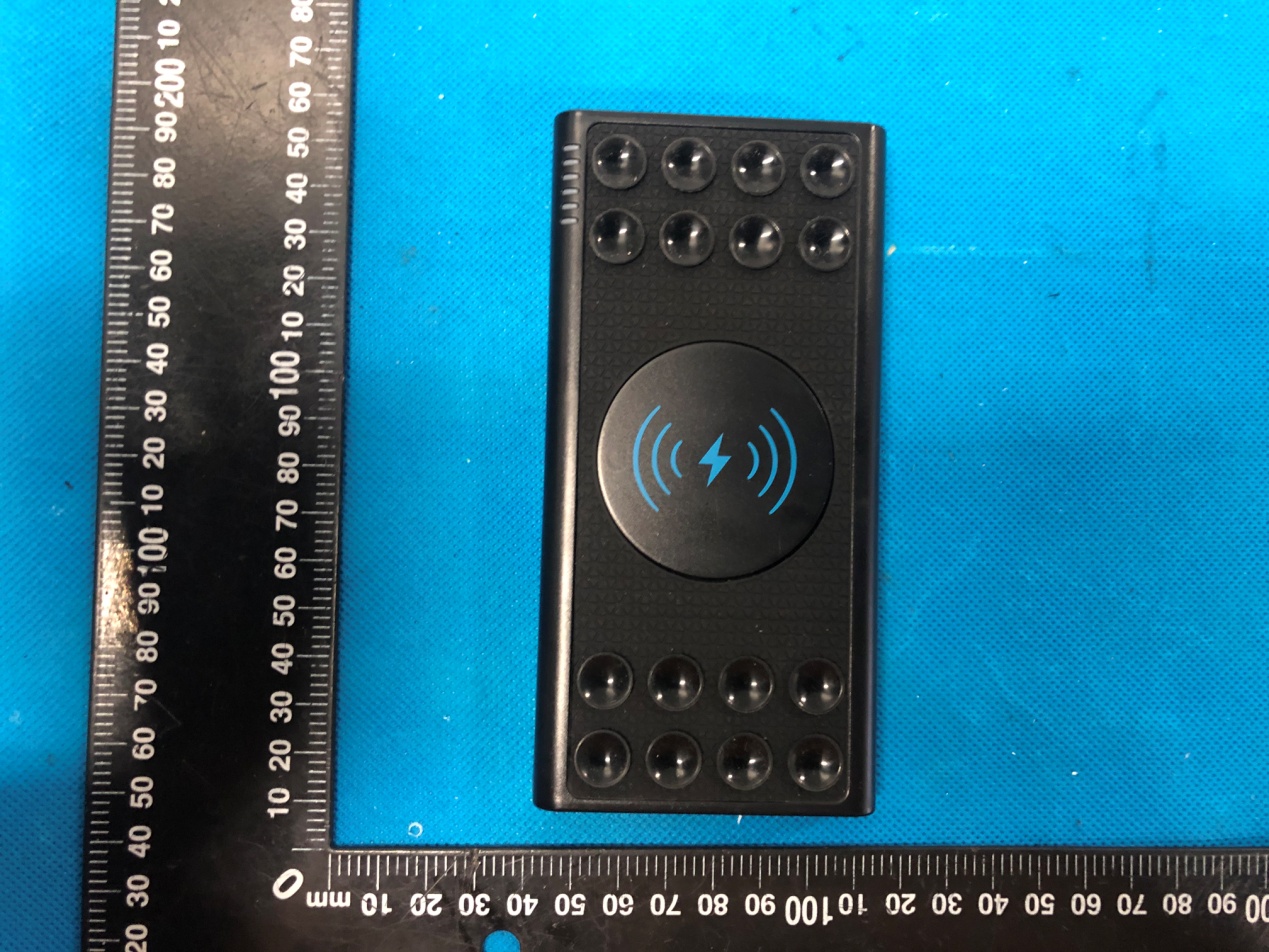

Annex A External Photos Report No.:HK2003310532-1E/2E Page 1 of 3 Report No.:HK2003310532-1E/2E Page 2 of 3 Report No.:HK2003310532-1E/2E Page 3 of 3

FCC ID LABEL: Ca. 10mm x 15mm Label Location FCC ID: 2AGA5-PW01

Annex B Internal Photo Report No.:HK2003310532-1E/2E Page 1 of 3 Antenna Report No.HK2003310532-1E/2E Page 2 of 3 Report No.HK2003310532-1E/2E Page 3 of 3

Page 1 of 11 Report No.: HK2003310532-2E RF Exposure Evaluation Report Test report On Behalf of SHENZHEN UGOOD TECHNOLOGY CO., LIMITED For Wireless Charging Power Bank Model No.: PW01 FCC ID: 2AGA5-PW01 Prepared for : SHENZHEN UGOOD TECHNOLOGY CO., LIMITED 4/F, Building 25, Phase II, Lianchuang Technology Park, Bulan Rd, Nanwan St., Longgang District, Shenzhen, China Standards FCC CFR 47 part1 1.1310 FCC KDB publication 680106 D01 OET Bulletin 65 Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1F, B2 Building, Junfeng Zhongcheng Zhizao Innovation Park, Fuhai Street, Bao'an District, Shenzhen City, China Date of Test: Mar. 27, 2020 ~ Jun. 04, 2020 Date of Report: Jun. 04, 2020 Report Number: HK2003310532-2E Page 2 of 11 Report No.: HK2003310532-2E Table of Contents Page 1 . TEST SUMMARY 3 1.1 Refer Evaluation Method 3 1.2 TEST PROCEDURES AND RESULTS 3 2. GENERAL INFORMATION 4 2.1 General Description of EUT 4 2.3 Operation of EUT during testing 5 2.4 Description of Test Setup 5 2.2. Measurement Instruments List 6 3. MAXIMUM PERMISSIBLE EXPOSURE 7 3.1 MAXIMUM PERMISSIBLE EXPOSURE 7 3.2 TEST SETUP 8 3.3. TEST PROCEDURE 8 3.4 RESULT OF MAXIMUM PERMISSIBLE EXPOSURE 9 5. PHOTOGRAPH OF TEST 11 Page 3 of 11 Report No.: HK2003310532-2E 1. TEST SUMMARY 1.1 Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 680106 D01 RF Exposure Wireless Charging Apps v03: RF Exposure Considerations for Low Power Consumer Wireless Power Transfer Applications FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices FCC CFR 47 part 15.C:Indusial, Scientific, and Medical Equipment OET Bulletin 65 Edition 97-01: Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields 1.2 TEST PROCEDURES AND RESULTS DESCRIPTION OF TEST section number RESULT Electric Field Strength (E) (V/m) FCC CFR 47 part1, 1.1310 KDB680106 D01v03 (3)(3) PASS Magnetic Field Strength (H) (A/m) FCC CFR 47 part1, 1.1310 KDB680106 D01v03 (3)(3) PASS Note: 1. PASS: Test item meets the requirement. 2. Fail: Test item does not meet the requirement. 3. N/A: Test case does not apply to the test object. 4. The test result judgment is decided by the limit of test standard. Page 4 of 11 Report No.: HK2003310532-2E 2. GENERAL INFORMATION 2.1 General Description of EUT Equipment Wireless Charging Power Bank Model Name PW01 Serial No. N/A Model Difference N/A Trade Mark MIABOO FCC ID 2AGA5-PW01 Antenna Type Coil Antenna Antenna Gain 0dBi BT Operation frequency 125KHz Number of Channels 1 Modulation Type ASK Power Source Built-in DC3.7V bettery Input: DC 5V from Micro USB Wireless Output: DC5V Power Rating Built-in DC3.7V bettery Input: DC 5V from Micro USB Wireless Output: DC5V Page 5 of 11 Report No.: HK2003310532-2E 2.3 Operation of EUT during testing Test Mode charging conditions Mode 1 90% Mode 2 50% Mode 3 10% 2.4 Description of Test Setup Operation of EUT during testing AC Main ● Mobile phones information Model: S6 Input: 5VDC ● Adapter information Model: UP0920 Input: AC100-240V, 50/60Hz, 0.5A Output: DC5V, 5V/9V, 2 A Adapter EUT Mobile phones Page 6 of 11 Report No.: HK2003310532-2E 2.2. Measurement Instruments List Description Brand Model No. Frequency Range Calibrated Date Calibrated Until Broadband Field Meter NARDA NBM-550- Dec. 26, 2019 Dec. 25, 2020 Magnetic Field Meter NARDA ELT-4001 – 400kHz Dec. 26, 2019 Dec. 25, 2020 Magnetic Probe NARDA HF-3061 300kHz – 30MHz Dec. 26, 2019 Dec. 25, 2020 Magnetic Probe NARDA HF-0191 27 – 1000MHz Dec. 26, 2019 Dec. 25, 2020 Broadband Field Meter NARDA NBM-550- Dec. 26, 2019 Dec. 25, 2020 Electric Field Meter COMBINOVA EFM 200 5Hz – 400kHz Dec. 26, 2019 Dec. 25, 2020 E-Field Probe NARDA EF-0391 100kHz – 3GHz Dec. 26, 2019 Dec. 25, 2020 E-Field Probe NARDA EF-6091 100MHz – 60GHz Dec. 26, 2019 Dec. 25, 2020 NOTE: 1. The calibration interval of the above test instruments is 12 months . Page 7 of 11 Report No.: HK2003310532-2E 3. MAXIMUM PERMISSIBLE EXPOSURE 3.1 MAXIMUM PERMISSIBLE EXPOSURE Limit of Maximum Permissible Exposure Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S(minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180 / f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1 30 Note 1: f = frequency in MHz ; *Plane-wave equivalent power density Note 2: For the applicable limit, see FCC 1.1310, 680106 D01 RF Exposure Wireless Charging Apps v03 Note 3: Per KDB 680106 D01 Section 3. RF Exposure Requirements; 1) According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. 2) According to §1.1310 and §2.1091 RF exposure is calculated. Page 8 of 11 Report No.: HK2003310532-2E 3.2 TEST SETUP 3.3. TEST PROCEDURE a. For devices designed for typical desktop applications, such a wireless charging pads, RF exposure evaluation should be conducted assuming a user separation distance of (H-field & E- field strengths for all sides is 10cm, H-field strengths of top side is 10cm). E and H field strength measurements or numerical modeling may be used to demonstrate compliance. Measurements should be made from all sides and the top of the primary/client pair, with the 10cm measured from the cente…

Text truncated - open the document above for the full version.

Page 1 of 20 Report No.: HK2003310532-1E FCC TEST REPORT Test report On Behalf of SHENZHEN UGOOD TECHNOLOGY CO., LIMITED For Wireless Charging Power Bank Model No.: PW01 FCC ID: 2AGA5-PW01 Prepared for : SHENZHEN UGOOD TECHNOLOGY CO., LIMITED 4/F, Building 25, Phase II, Lianchuang Technology Park, Bulan Rd, Nanwan St., Longgang District, Shenzhen, China Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1F, B2 Building, Junfeng Zhongcheng Zhizao Innovation Park, Fuhai Street, Bao'an District, Shenzhen City, China Date of Test: Mar. 27, 2020 ~ Apr. 03, 2020 Date of Report: Apr. 03, 2020 Report Number: HK2003310532-1E Page 2 of 20 Report No.: HK2003310532-1E TEST RESULT CERTIFICATION Applicant’s name ................. : SHENZHEN UGOOD TECHNOLOGY CO., LIMITED Address ................................. : 4/F, Building 25, Phase II, Lianchuang Technology Park, Bulan Rd, Nanwan St., Longgang District, Shenzhen, China Manufacture's Name ............ : SHENZHEN UGOOD TECHNOLOGY CO., LIMITED Address ................................. : 4/F, Building 25, Phase II, Lianchuang Technology Park, Bulan Rd, Nanwan St., Longgang District, Shenzhen, China Product description Trade Mark: MIABOO Product name ........................... : Wireless Charging Power Bank Model and/or type reference : PW01 Standards ............................. : FCC Rules and Regulations Part 15 Subpart C (Section 15.209), ANSI C63.10: 2013 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ............................................ : Date (s) of performance of tests ............. : Mar. 27, 2020 ~ Apr. 03, 2020 Date of Issue ........................................... : Apr. 03, 2020 Test Result ............................................... : Pass Testing Engineer : (Gary Qian) Technical Manager : (Eden Hu) Authorized Signatory : (Jason Zhou) Page 3 of 20 Report No.: HK2003310532-1E Table of Contents Page 1 . TEST SUMMARY 4 1.1 Test Procedures and Results 4 1.2 Test Facility 4 1.3 Measurement Uncertainty 4 2. GENERAL INFORMATION 5 2.1 General Description of EUT 5 2.2. Carrier Frequency of Channels 6 2.3 Operation of EUT during testing 6 2.4 Description of Test Setup 6 2.5 Measurement Instruments List 7 3. CONDUCTED EMISSION TEST 8 3.1 Block Diagram of Test Setup 8 3.2 Conducted Power Line Emission Limit 8 3.3 Test Procedure 8 3.4 Test Result 8 4. OCCUPIED BANDWIDTH 11 4.1 Block Diagram of Test Setup 11 4.2 Rules and specifications 11 4.3 Test Procedure 11 4.4 Test Result 12 5. RADIA TED EMISSIONS 13 5.1 Block Diagram of Test Setup 13 5.2 Rules and specifications 14 5.3 Test Procedure 15 5.4 Test Result 15 6 ANTENNA REQUIREMENT 18 7. PHOTOGRAPH OF TEST 19 7.1 Radiated Emission 19 7.2 Conducted Emission 20 8. PHOTOGRAPH OF TEST 20 Page 4 of 20 Report No.: HK2003310532-1E 1. TEST SUMMARY 1.1 Test Procedures and Results DESCRIPTION OF TEST section number RESULT CONDUCTED EMISSIONS TEST 15.207 COMPLIANT RADIATED EMISSION TEST 15.209 COMPLIANT OCCUPIED BANDWIDTH MEASUREMENT 15.215 COMPLIANT ANTENNA REQUIREMENT 15.203 COMPLIANT Note: 1. PASS: Test item meets the requirement. 2. Fail: Test item does not meet the requirement. 3. N/A: Test case does not apply to the test object. 4. The test result judgment is decided by the limit of test standard. 1.2 Test Facility Test Firm : Shenzhen HUAK Testing Technology Co., Ltd. Address 1F, B2 Building, Junfeng Zhongcheng Zhizao Innovation Park, Fuhai Street, Bao'an District, Shenzhen City, China 1.3 Measurement Uncertainty Measurement Uncertainty Conducted Emission Expanded Uncertainty =2.23dB, k=2 Radiated emission expanded uncertainty(9kHz-30MHz) = 3.08dB, k=2 Radiated emission expanded uncertainty(30MHz-1000MHz)= 4.42dB, k=2 Radiated emission expanded uncertainty(Above 1GHz) = 4.06dB, k=2 Page 5 of 20 Report No.: HK2003310532-1E 2. GENERAL INFORMATION 2.1 General Description of EUT Equipment Wireless Charging Power Bank Model Name PW01 Serial No. N/A Model Difference N/A Trade Mark MIABOO FCC ID 2AGA5-PW01 Antenna Type Coil Antenna Antenna Gain 0dBi BT Operation frequency 125KHz Number of Channels 1 Modulation Type ASK Power Source Built-in DC3.7V bettery Input: DC 5V from Micro USB Wireless Output: DC5V Power Rating Built-in DC3.7V bettery Input: DC 5V from Micro USB Wireless Output: DC5V Page 6 of 20 Report No.: HK2003310532-1E 2.2. Carrier Frequency of Channels Operation Frequency each of channel Channel Frequency 1 125KHz 2.3 Operation of EUT during testing Operating Mode The mode is used: Transmitting mode 2.4 Description of Test Setup Operation of EUT during testing AC Main ● Mobile phones information Model: S6 Input: 5VDC ● Adapter information Model: UP0920 Input: AC100-240V, 50/60Hz, 0.5A Output: DC5V, 5V/9V, 2 A ● Resistance information Model: R99 Input: 50W 5Ω The sample was placed 0.8m height above the ground plane of 3m chamber. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigated all operating modes, rotated about all 3 axis (X, Y & Z) and considered typical configuration to obtain worst position, manipulating interconnecting cables, rotating the turntable, varying antenna height from 1m to 4m in both horizontal and vertical polarizations. The emissions worst-case are shown in Test Results of the following pages. The worst case is X position Adapter EUT Mobile phones Resistance Page 7 of 20 Report No.: HK2003310532-1E 2.5 Measurement Instruments List Item Equipment Manufacturer Model No.Serial No. Last Cal. Cal. Interval 1. L.I.S.N. Artificial Mains Network R&S ENV216 HKE-002 Dec.…

Text truncated - open the document above for the full version.

Test Model：PW01 Radiated Emission Conducted Emission
