2AGA5-PW201Power Bank

② Capacity 8000mAh Dimension 138x71x16mm Input 5V/2A(max) Output1/2 5V/2.1A(max) Wireless charger(optional) 5W Portable Power Bank Specification Package contents Power Bank x1 Charging cable x1 User Manual x1 Product Layout ⑥ 1 Micro USB Input ⑤ 2 Type-C Input 3 USB Output1 ④ ① 4 USB Output2 ③ 5 LCD Display ⑧ 6 Light up Logo Area 7 Power Button ⑦ 8 Wireless charger area（optional） Operating Introduction 1. Charging Power Bank The AC power adapter 110V-220V USB output DC 5V Computer USB port 1). Connect the Micro usb connector or Type-C connector of a USB charging cable into the input port of power bank, and connect the USB connector to a power supply with USB output(not included). We recommend power supply with a DC 5V 1-2A USB output. 2). When charging Power Bank,the LCD display is on, and the symbol ‘IN’ starts flashing, It shows the battery power percentage at the same time. When fully charged, It shows the battery power 100%. 3). Note: Fully charging the power bank before using the power bank at the first time. Recharge the power bank once every three months when not in use or seldom used. USER MANUAL 2. Charging Mobile devices A B 1). Wired Charging Connect the USB connector into the USB output of Power bank, and connect the other end connector into the charging port of your device which needs to be charged. When charging mobile device, the LCD display is on, and It shows 'out' and battery power percentage. 2). Wireless charging (Optional) Press the power button, LCD display is on. Put your smartphone on the center of the wireless charger area and the symbol ' ' is on. Note: Make sure your smartphone is fit for Qi standard receiving equipment. Troubleshooting 1. Press the power button, If the power percentage is low,battery is running out soon, please recharge. 2. This power bank can automatically identify equipment that need to charge, If there is no equipment on it, the power bank will be turned off after 30 seconds. 3. For wireless charging, your mobile device must be equipped with a Qi wireless receiver. The device can automatically identify a Qi-compatible device placed on it. 4. If the center point of the receiving terminal is deflected over 10mm from the center point of transmitting terminal, the power bank will be turned off automatically. 5. If wired charging is not working properly, please try a different charging cable, since the connector may become loose due to wearing. 6. During charging, the device may become warm due to high currents and resistance, especially during wireless charging. To reduce temperature, avoid running intensive applications or using GPS on your mobile device when charging. Cautions: Read all the instructions and warnings carefully prior to using this product. · The power bank will generate heat when charging. Always charge in a well-ventilated and open-air area. Do not charge under pillows, blankets, clothing or on flammable surfaces. · Keep the power bank away from heat sources, direct sunlight, combustible gas, humidity, water or other liquids. · Do not disassemble, open, microwave, incinerate, paint or insert foreign objects into the power bank. · Do not subject the power bank to mechanical shock such as crushing, bending, puncturing or shredding. Avoid dropping or placing heavy objects on the power bank. · Do not short-circuit the power bank or store it in a receptacle where it may be short-circuited by other metallic or conductive objects. · Do not operate the power bank if it has been wet or otherwise damaged, to prevent against electric shock, explosion and/or injury. Contact the dealer or authorized agent. · Power bank usage by children should be supervised. • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. The equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. During the operation of device a distance of 15 cm surrounding the device and 20 cm above the top surface of the device must be respected. This device complies with Part 18 of the FCC Rules. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ● Increase the separation between the equipment and any other radio device. ● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. FCC Statement This device complies with part 15 and part 18 of the FCC Rules. Operation is Subject To the following two conditions: (1) This device may not cause harmful interference, and (2) this devicemust accept any interference received, including interference that may cause undesired operation. Changes or modifications not explicitly approved by the partyresponsible for compliance could void the user's authority tooperate this equipment. Note: this equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 and part 18 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and canradiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However…

Text truncated - open the document above for the full version.

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 <2020-07-08> TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AGA5-PW201 PW201 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, (Signed) Name/Title: Junxing Qiu / CEO Company: SHENZHEN UGOOD TECHNOLOGY CO.,LIMITED Address: 4/F, Building 25, Phase II, Lianchuang Technology Park, Bulan Rd,Nanwan St., Longgang District, Shenzhen, China Phone: +86-755-89959209 Fax: +86-755-89959209 E-Mail: [email protected]

SHENZHEN UGOOD TECHNOLOGY CO.,LIMITED 4/F, Building 25, Phase II, Lianchuang Technology Park, Bulan Rd,Nanwan St., Longgang District, Shenzhen, China FCC ID: 2AGA5-PW201 Model Number: PW201 DATE: 2020-07-08 To: Federal Communication Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21048 To Whom It May Concern, We, SHENZHEN UGOOD TECHNOLOGY CO.,LIMITED hereby declare that our product (PAD AND BANK) Model Number: PW201 cannot meet item 5.2 of KDB 680106v02 as follow; Requirements of KDB 680106 D01 Yes / No Description Power transfer frequency is less than 1 MHz Yes The device operate in the frequency range 110.0 KHz - 205.0 KHz Output power from each primary coil is less than 15 watts Yes The maximum output power of the primary coil is 5W. The transfer system includes only single primary and secondary coils. This includes charging systems that may have multiple primary coils and clients that are able to detect and allow coupling only between individual pairs of coils. Yes The transfer system includes only single coil that is able to detect receiver device. Client device is placed directly in contact with the transmitter. Yes Client device is placed directly in contact with the transmitter. Mobile exposure conditions only (portable exposure conditions are not covered by this exclusion). No Mixed mobile and portable exposure conditions The aggregate H-field strengths at 15 cm surrounding the device and 20 cm above the top surface from all simultaneous transmitting coils are demonstrated to be less than 50% of the MPE limit. No Just for mobile exposure condition, this sample used at mixed mobile and portable exposure condition. Per KDB 680106 section 5 c); in all other cases, unless excluded by 5. b) above, an RF exposure evaluation report must be reviewed and accepted through a KDB inquiry to enable authorization of the equipment. When evaluation is required to show compliance; for example, using field strength, power density, SAR measurements or computational modeling etc., the specific authorization requirements will be determined based on the results of the RF exposure evaluation. SHENZHEN UGOOD TECHNOLOGY CO.,LIMITED 4/F, Building 25, Phase II, Lianchuang Technology Park, Bulan Rd,Nanwan St., Longgang District, Shenzhen, China Please contact me if you have any question. Best Regards! (Signed) Name / Title: Junxing Qiu / CEO Company: SHENZHEN UGOOD TECHNOLOGY CO.,LIMITED Address: 4/F, Building 25, Phase II, Lianchuang Technology Park, Bulan Rd,Nanwan St., Longgang District, Shenzhen, China Phone: +86-755-89959209 Fax: +86-755-89959209 E-Mail: [email protected]

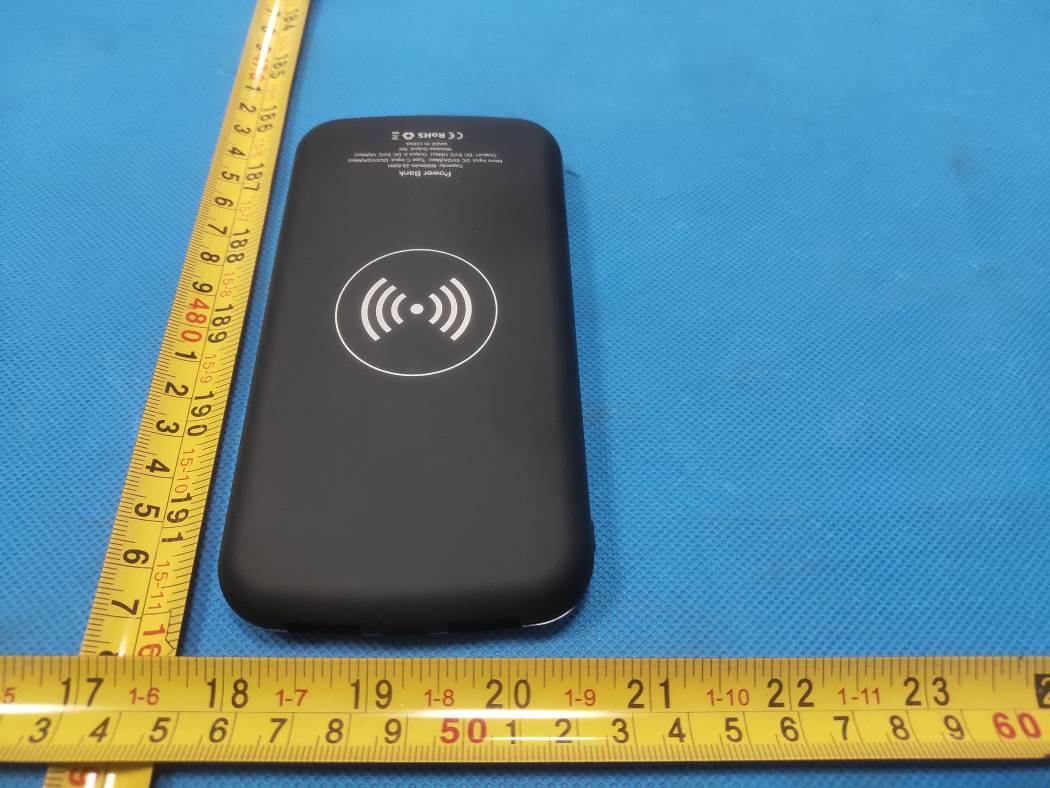

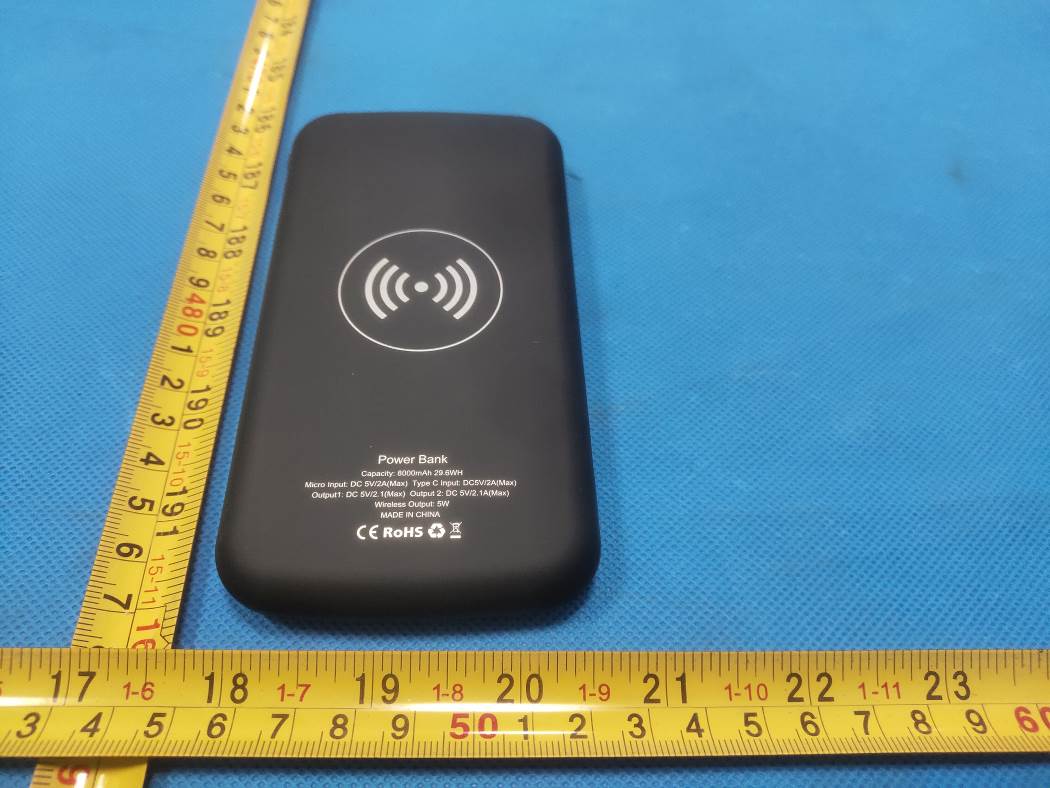

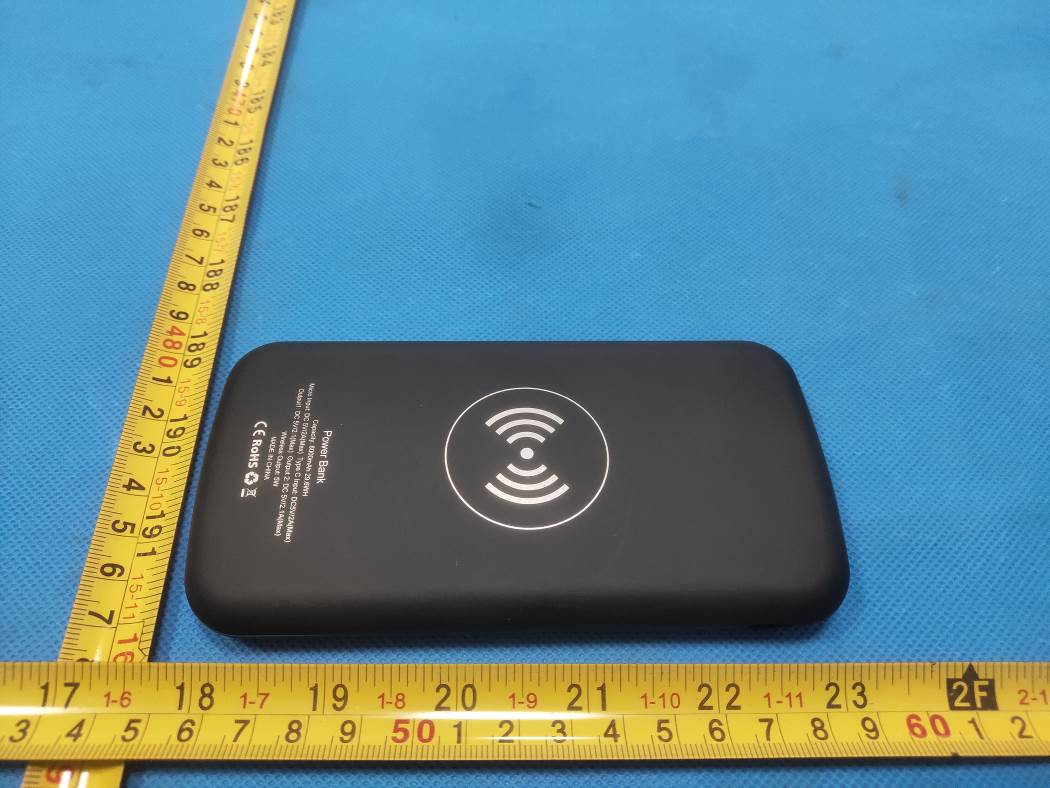

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AGA5-PW201 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 4 External Photos of the EUT Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AGA5-PW201 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 4 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AGA5-PW201 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 4 Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AGA5-PW201 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 4 Fig. 7

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AGA5-PW201 Report No.: LCS200618078AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L: 4.0cm*W: 2.0cm Material: silk-screen Font color: White Label color: Black Power Bank Model No.: PW201 FCC ID : 2AGA5-PW201 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Label Location

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AGA5-PW201 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 3 Internal Photos of the EUT Fig. 1 Fig. 2 Coil Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AGA5-PW201 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 3 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AGA5-PW201 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 3 Fig. 5

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AGA5-PW201 Report No.: LCS200618078AEA ___________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 32 RF Exposure Evaluation Report 1. Product Information FCC ID: 2AGA5-PW201 Product Name Power Bank Model Number PW201 Power Supply Capacity: 8000mAh Micro Input: DC 5V/2A, Type-C Input: DC 5V/2A Output 1: DC 5V/2.1A(Max), Output 2: DC 5V/2.1A(Max) Wireless Output: 5W Modulation Type Continuous Wave Frequency Range 110.0 - 205.0 KHz Maximum Power WPT 5W Operation Frequency 121.5 KHz Antenna Type Coil Antenna Hardware version / Software version / Accessories iPhone X Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Mixed Mobile and Portable Device 2. Evaluation Method Per KDB 680106 D01 Section 3. RF Exposure Requirements; 1) Consumer wireless power transfer devices approved under Part 18 in some cases have to demonstrate compliance with RF exposure requirements. The potential for exposure must be assessed according to the operating configurations of the wireless system and the exposure conditions of users and bystanders. RF exposure must be evaluated with the client device(s) being charged by the primary at maximum output power. The RF exposure requirements must be determined in conjunction with the device operating characteristics, according to the mobile and portable exposure requirements in Section 2.1091 and Section 2.1093 of the rules. SAR and MPE limits do not cover the frequency range for wireless power transfer applications which operate below 100 kHz and 300 kHz respectively; therefore, RF exposure compliance needs to be determined with respect to 1.1307 (c) and (d) of the FCC rules. 2) Based on the design and implementation of the power transfer application, it must be clearly identified if mobile or portable RF exposure conditions apply. Devices that are installed to provide separation of at least 20 cm from users and bystanders may qualify for mobile exposure conditions. For some conditions where users and bystanders may be exposed at closer than 20 cm, section 2.1091(d) (4) of the rules may apply. 3) For devices designed for typical desktop applications, such a wireless charging pads, RF exposure evaluation should be conducted assuming a user separation distance of 15 cm. E and H field strength measurements or numerical modeling may be used to demonstrate compliance. Measurements should be made from all sides and the top of the primary/client pair, with the 15 cm measured from the center of the probe(s) to the edge of the device. Emissions between 100 kHz to 300 kHz should be assessed versus the limits at 300 kHz in Table 1 of Section 1.1310: 614 V/m and 1.63 A/m. A KDB SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AGA5-PW201 Report No.: LCS200618078AEA ___________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 32 inquiry is required to determine the applicable exposure limits below 100 kHz 4) Portable exposure conditions from 100 kHz to 6 GHz are determined with respect to SAR requirements. Existing SAR systems and test procedures are generally intended for measurements above 100 MHz. While numerical modeling can be an alternative, the constraints of substantial computational resources at low frequencies could introduce further limitations. Under these circumstances, including operations below 100 kHz, the Commission may consider a combination of analytical analysis, field strength, radiated and conducted power measurements, in conjunction with some limited numerical modeling to assess compliance. 5) Depending on the operating frequency, existing SAR and MPE measurement procedures may be adapted to evaluate wireless power transfer devices for compliance with respect to mobile or portable exposure conditions. If the grantee or its test lab have any questions regarding RF exposure evaluation they should contact the FCC Laboratory with sufficient system operating configuration details to determine if RF exposure evaluation is necessary and, if required, how to apply specific test procedures. Below 100 MHz, when SAR testing is required and the device is operating at close proximity to persons, information on device design, implementation, operating configurations, exposure conditions of users and bystanders are needed to determine the evaluation and testing requirements. In addition, the influence of nearby objects may also need consideration according to the wireless power transfer system implementation; for example, the effects of placing the device, its coils or radiating elements on or near metallic surfaces 6) According to April 2018 TCB Workshop, No need to report E-field measurements. Only H-field required. 3. Evaluation Limit 3.1 Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 680106 D01 RF Exposure Wireless Charging Apps v03: RF Exposure Considerations for Low Power Consumer Wireless Power Transfer Applications FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices FCC CFR 47 part 18.107: Indusial, Scientific, and Medical Equipment 3.2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3-3.0 614 1.63 *100 6 3.0-30 1842/f 4.89/f *900/f 2 6 30-300 61.4 0.163 1.0 6 300-1,500 / / f/300 6 1,500-100,000 / / 5 6 Limits for Maximum P…
