2AHRDEP-9619Wireless Adapter

FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment . This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with minimum distance 20cm between the radiator &you body.

Shenzhen EDUP Electronics Technology Co.,Ltd. Add: 6 Floor, #6 Building, No.48, Kangzheng Road Liantang Industrial Area, Buji Town Shenzhen, China Tel: 0755-83648350 Fax: 0755-83582587 E-mail: [email protected] Date: 2021-05-20 To: FEDERAL COMMUNICATIONS COMMISSION Authorization an d Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Declaration Subject: FCC TD: 2AHRDEP-9619 declaration of frequency bands restriction Dear Sir or Madam: We, Shenzhen EDUP Electronics Technology Co.,Ltd., hereby declare that our product Wireless Adap ter, Model Number: EP-9619, RN X-AC600PCEv4, EP-9619GS, EP-9620, EP-9620GS have the ability to work in 2.4G and 5G 4 frequency bands: 5150 MHz-5250 MHz, 5250 MHz-5350MHz, 5470 MHz-5725 MHz, 5725 MHz-5850 MHz. For the purpose of marketing, the frequency of the product sold in U.S. are programmed and locked to work only in 5725 MHz-5850 MHz, The other frequency bands 5150 MHz-5250 MHz, 5250 MHz-5350 MHz, 5470 MHz-5725 MHz are disabled by firmware in factory. The end user or any other parties cannot have the capability to activate the other frequency bands. We applied for testing only frequency bands: 2.4G and 5745 MHz -5825 MHz for the United States this time in BACL. Please contact me if you have any question. Signature: Printed Name: Zhou Chunping Title: Manager

Shenzhen EDUP Electronics Technology Co.,Ltd. ADD: 6 Floor, #6 Building, No.48, Kangzheng Road Liantang Indu strial Area, Buji Town, Shenzhen, China Tel.: 0755-83648350 FAX: 0755-83582587 E-mail: [email protected] DECLARATION OF SIMILARITY Date: 2021-05-20 FEDERAL COMMUNICATIONS COMMISSION Authorization an d Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir or Madam: We, Shenzhen EDUP Electronics Technology Co.,Ltd., hereby declare that product: Wireless Adapter, FCC ID: 2AHRDEP-9619, mod el numbers: RNX-AC600PCEv4, EP-9619GS, EP-9620, EP-9620GS are electrically identical with the model number EP-9619 which was tested by BACL. They have the same electromagnetic emissions and electromagnetic compatibility characteristics. A description of the difference among those models and those that are declared similar are as follows: Due to marketing, they are the same product, and just have the different model name, the rest are the same. Please contact me should there be need for any additional clarification or information. Best Regards, Printed Name: Zhou Chunping Title: Manager

FCC Confidential Authorization In accordance with Sections 0.457 and 0.459 of the Commission's Rules, Shenzhen EDUP Electronics Technolog y Co.,Ltd. hereb y requests long-term confidential treatment of information accompan y ing this application as outlined below: • Block Diagram • Schematics • Operation Description The above materials contain proprietar y and confidential information not customaril y released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerel y , Signature: Printed Name: Titl e : Manager QA-FR-171-A Date: 2021-05-20 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for ce1tification of FCC ID: 2AHRDEP-9619 Shenzhen EDUP Electronics Technolog y Co.,Ltd. Add: 6 Floor, #6 Building, No.48, Kangzheng Road Liantang Industrial Area, Buji T own Shenzhen, Chin a Tel: 0755-83648350 Fax: 0755-83582587 E mail: [email protected] Zhou Chunping

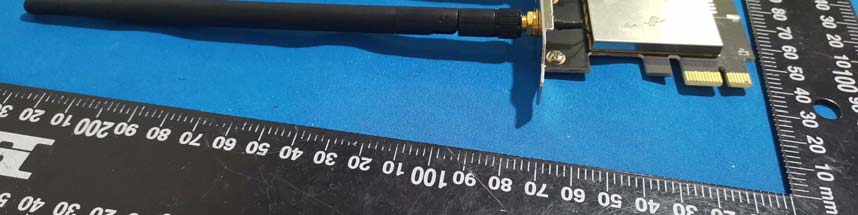

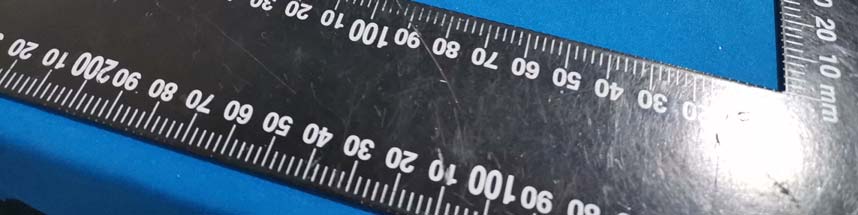

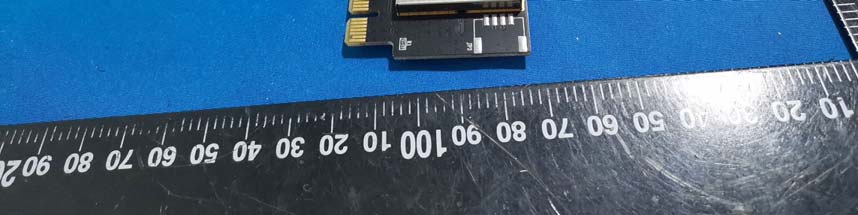

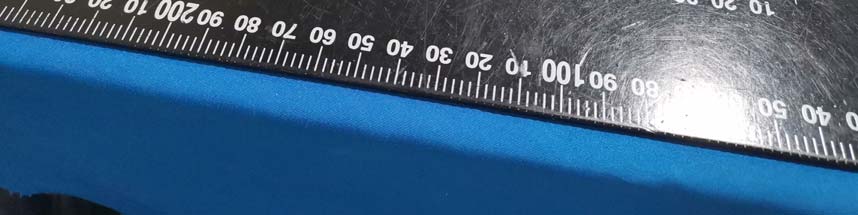

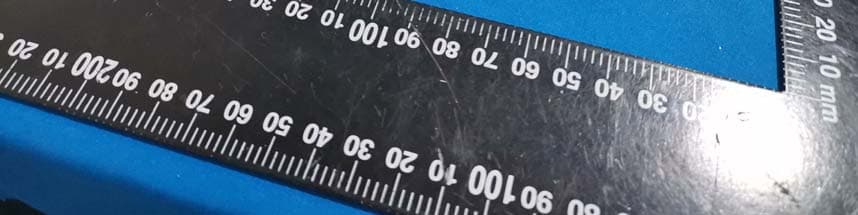

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS Ant 1 Ant 0 ANT

FCC ID: 2AHRDEP-9619 FCC ID: 2AHRDEP-9619

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS

Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG210409035-00B Page 11 of 58 FCC §15.247 (i) & §1.1310 & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to subpart 15.247(i)and subpart §1.1310, systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Maximum Permissible Exposure (MPE) (§1.1310, §2.1091) (B) Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f²) 30 30–300 27.5 0.073 0.2 30 300–1500 / / f/1500 30 1500–100,000 / / 1.0 30 f = frequency in MHz; * = Plane-wave equivalent power density; According to §1.1310 and §2.1091 RF exposure is calculated. Calculation formula: Prediction of power density at the distance of the applicable MPE limit S = PG/4R² = power density (in appropriate units, e.g. mW/cm 2 ); P = power input to the antenna (in appropriate units, e.g., mW); G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain; R = distance to the center of radiation of the antenna (appropriate units, e.g., cm); Calculated Data: Frequency (MHz) Antenna Gain Conducted output power including Tune- up Tolerance Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) (dBi) (numeric) (dBm)(mW) 5725-5850 2 1.58 1425.1220.00 0.008 1.0 Note: the 2.4G and 5G can`t transmitting simultenuously. Result: The device meet FCC MPE at 20 cm distance

FCC PART 15.407 TEST REPORT For Shenzhen EDUP Electronics Technology Co.,Ltd. 6 Floor, #6 Building, No.48, Kangzheng Road Liantang Industrial Area, Buji Town, Shenzhen, china Report Type: Original Report Product Name: Wireless Adapter Report Number: RDG210409035-00B Re port Date: 2021-05-13 Reviewed By: Ivan Cao Assistant Mana ger Test Laboratory: Bay Area Compliance Laboratories Corp. (Dongguan) No.12, Pulong East 1 st Road, Tangxia Town, Dongguan, Guangdong, China Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn FCC ID: 2AHRDEP-9619 Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG210409035-00B Page 2 of 58 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 TEST METHODOLOGY .................................................................................................................................................. 4 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 TEST FACILITY ............................................................................................................................................................. 5 DECLARATIONS ............................................................................................................................................................ 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 9 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 9 SUPPORT CABLE LIST AND DETAILS ............................................................................................................................ 9 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 9 SUMMARY OF TEST RESULTS ............................................................................................................................. 10 FCC §15.247 (i) & §1.1310 & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) ....................................... 11 APPLICABLE STANDARD ............................................................................................................................................ 11 FCC §15.203- ANTENNA REQUIREMENT ............................................................................................................ 12 APPLICABLE STANDARD ............................................................................................................................................ 12 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 12 FCC §15.207(a)– CONDUCTED EMISSIONS ......................................................................................................... 13 APPLICABLE STANDARD ............................................................................................................................................ 13 EUT SETUP ................................................................................................................................................................ 13 EMI TEST RECEIVER SETUP ....................................................................................................................................... 13 CORRECTED AMPLITUDE & MARGIN CALCULATION ................................................................................................. 14 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 14 TEST PROCEDURE ...................................................................................................................................................... 14 TEST DATA ................................................................................................................................................................ 15 FCC §15.209, §15.205 , §15.407(b) –UNWANTED EMISSION .............................................................................. 17 APPLICABLE STANDARD ............................................................................................................................................ 17 EUT SETUP ................................................................................................................................................................ 18 EMI TEST RECEIVER & SPECTRUM ANALYZER SETUP .............................................................................................. 19 TEST PROCEDURE ...................................................................................................................................................... 19 CORRECTED AMPLITUDE & MARGIN CALCULATION ...................................................................................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions Front View Conducted Emissions Side View Radiated Emission Below 1GHz View Radiated Emission Above 1GHz View
