2AKAR-AMRFIDNFC Module

company address：1004 Room, 3 block B, Tian-an-Yun-Gu, Ban Tian Longgang,Shenzhen,China phone call：0755-29062099 Factory address：Floor 4, Building A, Zhongjin Industrial Park, No.3 South Pusha Road, Shahu Village, Tangxia Town, Dongguan city Website Address： www.zkradio.com Guangdong ZK Radio Electronic Tech Co., Ltd APPROVAL SHEET Doc. No.： 202011040002 Customer Name: AKUVOX (XIAMEN) NETWORKS CO., LTD Material Code： R03050002403 Product Name： AM-SMRTCP-RFID Supplier： Guangdong ZK RFID Electronic Technology Co.,Ltd Specification: AM-SMRTCP-RFID IC Module 39*19mm Test Date: Quantity： Contact：陈洪妮 QQ:3002957370 Phone：15813398220 Mailbox：[email protected] Address：Room 1004, 10th Floor, Block B, Building 3, Tiananyungu, Xuegang North Road, Supplier Confirmed Editor Software Engineer Hardware Engineer Testing Engineer Project Manager Customer Confirmed Tested by Checked by Approved by company address：1004 Room, 3 block B, Tian-an-Yun-Gu, Ban Tian Longgang,Shenzhen,China phone call：0755-29062099 Factory address：Floor 4, Building A, Zhongjin Industrial Park, No.3 South Pusha Road, Shahu Village, Tangxia Town, Dongguan city Website Address： www.zkradio.com Guangdong ZK Radio Electronic Tech Co., Ltd Bantian Street, Longgang District, Shenzhen, China Remarks： Non-Touched Radio Frequency IC Card Reader Module AM-SMRTCP-RFID I、Introduction AM-SMRTCP-RFID is the reader module specialized for non-touched radio frequency IC card with operating frequency 13.56MHZ.The reader module for non-touched smart card was developed based on ISO/IEC14443 international standard protocol.It uses high integration card reading chips,which NXP OM966302HN product.It has these advantages of high integration, strong anti-interference ability, small volume, better stable performance, also with high reception sensitivity, low operation electricity, single DC power supply, low price, high performance and other characteristics. II、Application This specification is applied to the requirements for access control attendance, file management, electronic ticket, product anti-counterfeiting, public traffic card system, etc. III、Technical Parameters Model AM-SMRTCP-RFID ISO ISO/IEC 14443A Cards Support S50 Card/S70 Card/Ultralight Card/NTAG Card/FM11RF08 Card/FM1208 Card/DESfire EV1 Card /FeliCa Card /15693 Card OperatingFrequency 13.56MHz Baud Rate 9600 bit/s by default The machine voltage DC 24V communication interface UART，8N1 Electricity Standby electricity is less than 90mA, and swipe electricity is less than 90mA Conditions Operating Temperature and Hunidity Range： -10°C—70°C，20%—80% Storage Temperature and Hunidity Range：-20°C—80°C， 20%—80% company address：1004 Room, 3 block B, Tian-an-Yun-Gu, Ban Tian Longgang,Shenzhen,China phone call：0755-29062099 Factory address：Floor 4, Building A, Zhongjin Industrial Park, No.3 South Pusha Road, Shahu Village, Tangxia Town, Dongguan city Website Address： www.zkradio.com Guangdong ZK Radio Electronic Tech Co., Ltd IV、Outline drawing and Pin Definition Remark：Outline drawing actually has the UL mark Module size 39mm*19mm(deviation±1mm) Swipe Distance S50 Card：0~5cm,S70 Card：0~5cm,Ultralight Card:0~1.5cm,NTAG Card:0~2cm,FM11RF08 Card:0~4cm,FM1208 Card:0~4cm,DESfire EV1 Card:0~0.8cm, 15693 Card:0~5cm 。Remark： 0~L(L≥Lmm)(The actual distance depends on the type of cards and the application environment） Firmware Version V1.11 Hardware Version V1.00 company address：1004 Room, 3 block B, Tian-an-Yun-Gu, Ban Tian Longgang,Shenzhen,China phone call：0755-29062099 Factory address：Floor 4, Building A, Zhongjin Industrial Park, No.3 South Pusha Road, Shahu Village, Tangxia Town, Dongguan city Website Address： www.zkradio.com Guangdong ZK Radio Electronic Tech Co., Ltd P1 is 7 pin connectors，its pitch is 2.54mm： P2 is 4 pin connectors，its pitch is 2.54mm： p1-1 GND p1-2 RX p1-3 TX p1-4 GND p1-5 3.3V p1-6 NC p1-7 NC ANT TVSS NC NC company address：1004 Room, 3 block B, Tian-an-Yun-Gu, Ban Tian Longgang,Shenzhen,China phone call：0755-29062099 Factory address：Floor 4, Building A, Zhongjin Industrial Park, No.3 South Pusha Road, Shahu Village, Tangxia Town, Dongguan city Website Address： www.zkradio.com Guangdong ZK Radio Electronic Tech Co., Ltd V、Pictures of Real Products Pic 1：Front View of Module Pic 2：Reversed View of Module VI、Package 1.Past the beauty grain adhesive on pearl cotton and fix the labeled product above the beauty grain adhesive,pack them with the way of 4*6 pieces of cotton (refer to Pic 1). 2.Put the pearl cotton into the packing box and pack it in 4 cotton/box (refer to Pic 2). Pic 1： company address：1004 Room, 3 block B, Tian-an-Yun-Gu, Ban Tian Longgang,Shenzhen,China phone call：0755-29062099 Factory address：Floor 4, Building A, Zhongjin Industrial Park, No.3 South Pusha Road, Shahu Village, Tangxia Town, Dongguan city Website Address： www.zkradio.com Guangdong ZK Radio Electronic Tech Co., Ltd Pic 2： company address：1004 Room, 3 block B, Tian-an-Yun-Gu, Ban Tian Longgang,Shenzhen,China phone call：0755-29062099 Factory address：Floor 4, Building A, Zhongjin Industrial Park, No.3 South Pusha Road, Shahu Village, Tangxia Town, Dongguan city Website Address： www.zkradio.com Guangdong ZK Radio Electronic Tech Co., Ltd VII、Contact Information If Any Technical Matters Name:曹剑宝 Tel:18681498379 QQ:2853815392 Name:黄宇凯 Tel:13066865845 QQ:3005371972 company address：1004 Room, 3 block B, Tian-an-Yun-Gu, Ban Tian Longgang,Shenzhen,China phone call：0755-29062099 Factory address：Floor 4, Building A, Zhongjin Industrial Park, No.3 South Pusha Road, Shahu Village, Tangxia Town, Dongguan city Website Address： www.zkradio.com Guangdong ZK Radio Electronic Tech Co., Ltd FCC Warning Integration instructions for host product manufacturers according to KDB 996369 D03 OEM Manual v01 2.2 List of applicable FCC rules FCC Part 15.225 2.3 Specific operational use conditions This transmitter/module and its antenna(s) must not be co-located or operating in conjunction with any transmitter. This information also e…

Text truncated - open the document above for the full version.

Guangdong ZK Radio Electronic Tech Co., Ltd 1004 Room, 3 block B, Tian-an-Yun-Gu, Ban Tian Longgang, Shenzhen, China Agent Authorization Company: Guangdong ZK Radio Electronic Tech Co., Ltd Address: 1004 Room, 3 block B, Tian-an-Yun-Gu, Ban Tian Longgang, Shenzhen, China Product Name: Module Model Number(s): AM-SMRTCP-RFID Product Description: NFC Module We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Jan. 04, 2021 Name: lixue lan Title: General Manager Company: Guangdong ZK Radio Electronic Tech Co., Ltd

Guangdong ZK Radio Electronic Tech Co., Ltd 1004 Room, 3 block B, Tian-an-Yun-Gu, Ban Tian Longgang, Shenzhen, China RE FCC ID: 2AKAR-AMRFID To the certification reviewer: We are hereby applying for [Limited] modular approval of the above-referenced FCC ID, based on compliance with [all] of the criteria as detailed below. Sincerely, [lixue lan] [General Manager] Part 15 Unlicensed Limited Modular Transmitter Approval Justification per 15.212 Requirement per 15.212 reference Comply (Y/N) (i) The radio elements of the modular transmitter must have their own RF shielding. The module has been installed in the host device and does not have its own shielding case for Limited Modular Approval, please see exhibition external photos. N (ii) The modular transmitter must have buffered modulation/data inputs (if such inputs are provided. All modulation and data inputs are buffered by circuitry on the transmitter chip. Y (iii) The modular transmitter must have its own power supply regulation. Power supply regulation is provided by circuitry on the transmitter chip. Y (iv) The modular transmitter must comply with the antenna and transmission system requirements of §§ 15.203, 15.204(b) and 15.204(c). The antenna is fixed. Y (v) The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with Part 15 parameters. The module was tested in the host device because this is limited modular approval with the mentioned equipment. N (vi) The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. If the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. The modular was labeled with its own FCC ID. The outside of device in to which the module is installed will be labeled FCC ID: 2AKAR- AMRFID, Please refers to User Manual. N Guangdong ZK Radio Electronic Tech Co., Ltd 1004 Room, 3 block B, Tian-an-Yun-Gu, Ban Tian Longgang, Shenzhen, China (vii) The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. The modular is comply with all applicable FCC rules. Any modifications, not expressly approved by the manufacturer could void the authority to operate in these regions. Y (viii) The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. This module operates under Part 15 .247 which is exempt from RF exposure evaluation owing to the very low operating power. Y

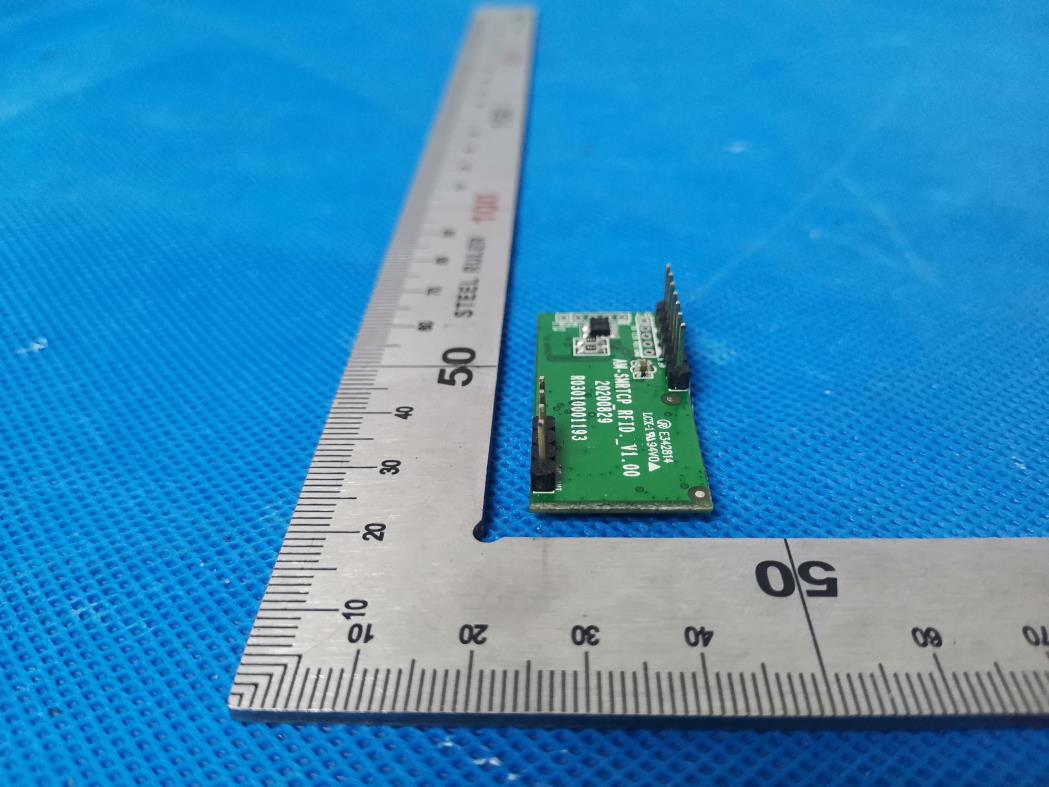

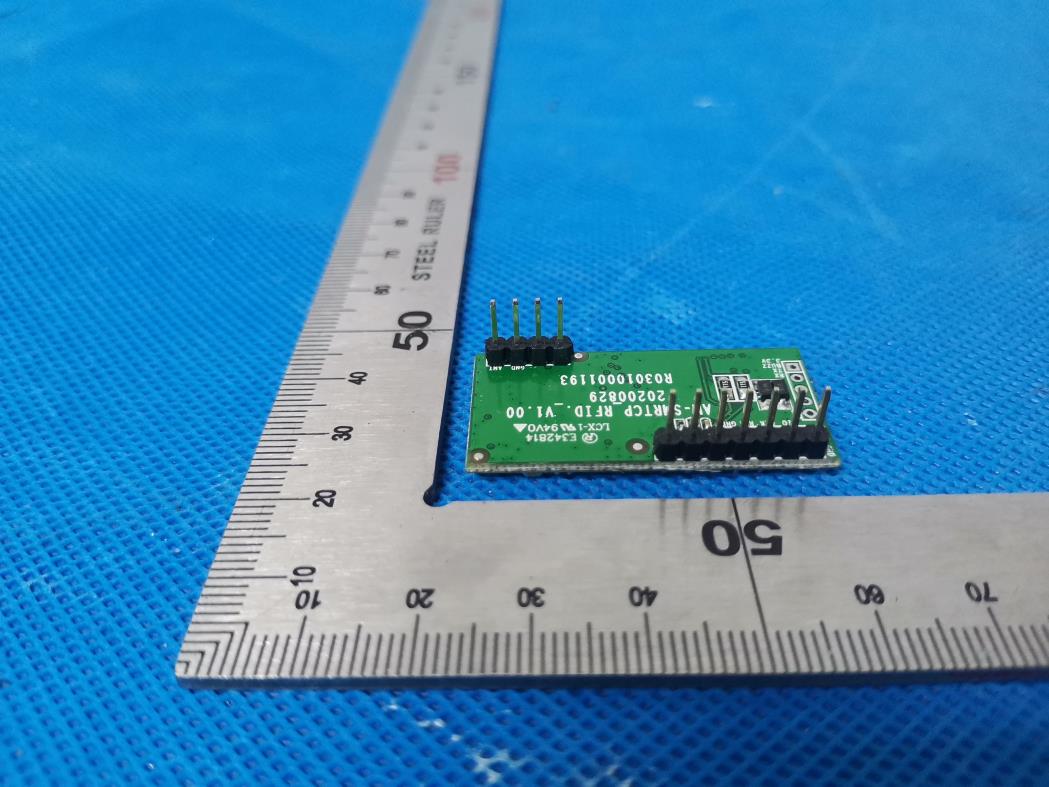

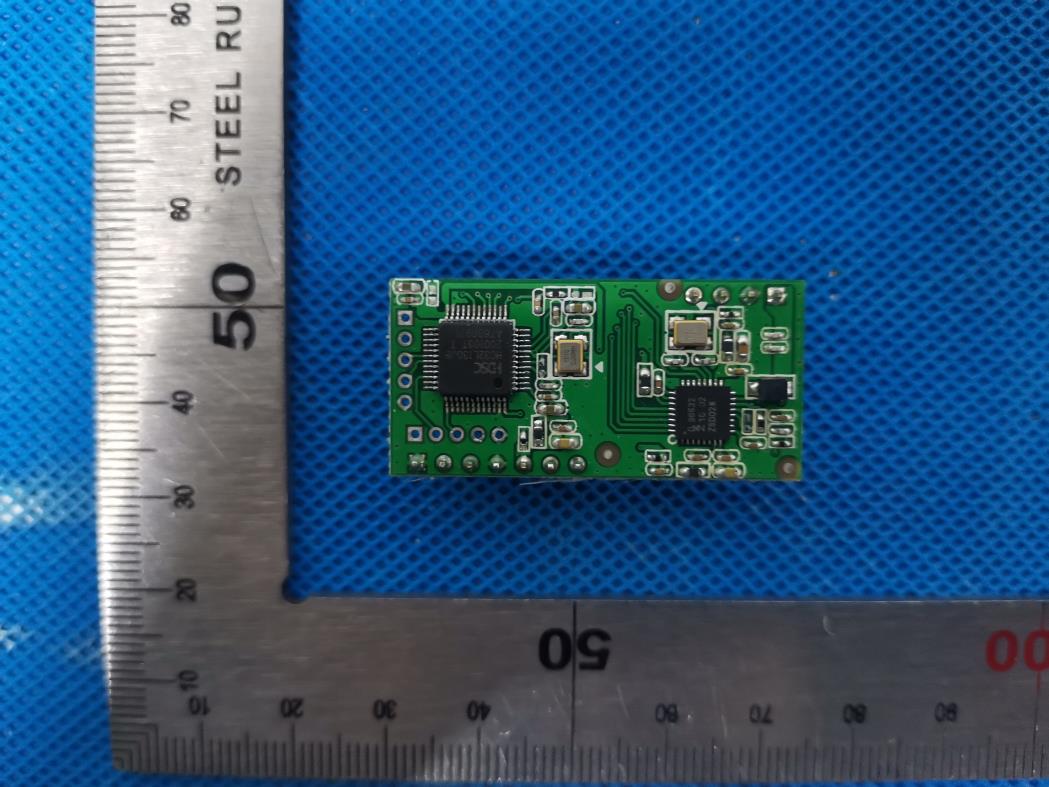

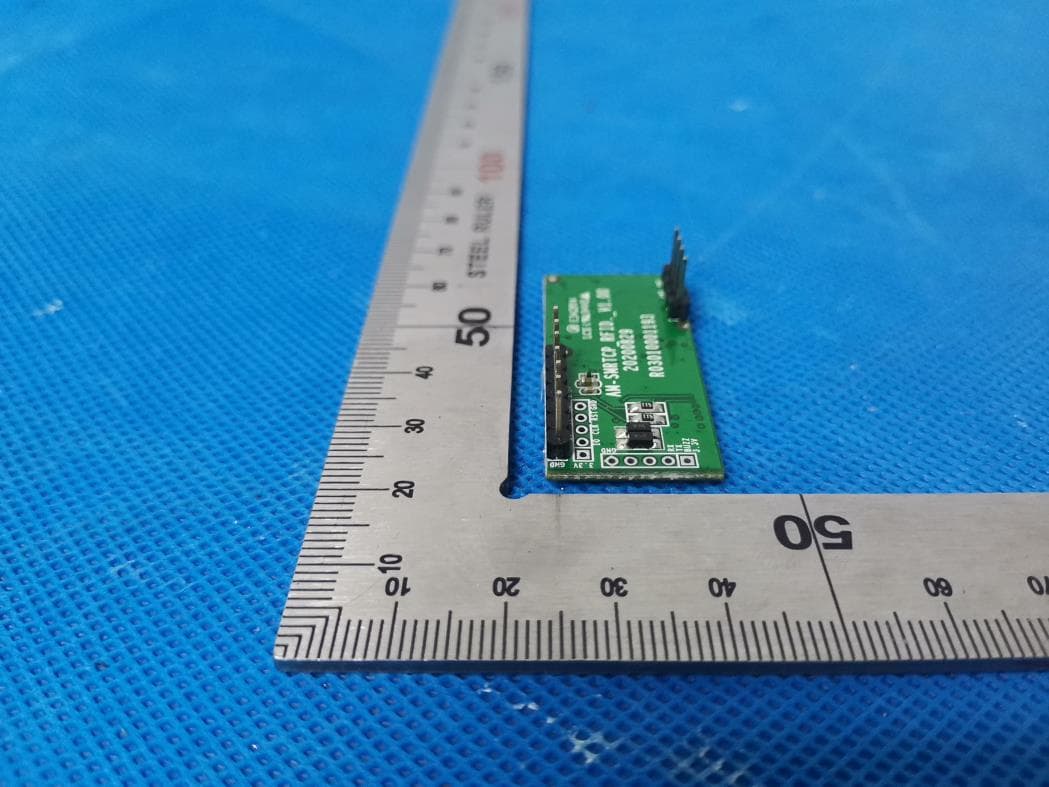

External Photos TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID and IC Label Location 15mm*10mm FCC ID: 2AKAR-AMRFID IC: 26721-AMRFID AM-SMRTCP-RFID

Internal Photos INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2

Page 1 of 31 FCC Test Report Report No.: AGC00927201105FE06 FCC ID : 2AKAR-AMRFID APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Module BRAND NAME : ZKRADIO MODEL NAME : AM-SMRTCP-RFID APPLICANT : Guangdong ZK Radio Electronic Tech Co., Ltd DATE OF ISSUE : Jan. 04, 2021 STANDARD(S) : FCC Rules and Regulations Part 15 Subpart C Section 15.225 ANSI C63.10: 2013 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC00927201105FE06 Page 2 of 31 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Jan. 04, 2021 Valid Initial Release Report No.: AGC00927201105FE06 Page 3 of 31 TABLE OF CONTENTS 1 . GENERAL INFORMATION ............................................................................................................................. 4 1.1 . GENERAL DESCRIPTION OF EUT ......................................................................................................... 4 1.2. ANTENNA REQUIREMENT....................................................................................................................... 5 2 . OPERATION OF EUT DURING TESTING ...................................................................................................... 6 2.1 . DESCRIPTION OF TEST SETUP ............................................................................................................ 6 2.2. EQUIPMENT USED IN TESTED SYSTEM ............................................................................................... 6 2.3. SUMMARY OF TEST RESULTS ............................................................................................................... 6 2.4. MEASUREMENT INSTRUMENTS LIST ................................................................................................... 7 3. RADIATED EMISSION ..................................................................................................................................... 8 3.1. TEST LIMIT ................................................................................................................................................ 8 3.2. MEASUREMENT PROCEDURE ............................................................................................................... 9 3.3. TEST SETUP ........................................................................................................................................... 11 3.4. TEST RESULT ......................................................................................................................................... 12 4. FREQUENCY STABILITY .............................................................................................................................. 16 4.1. MEASUREMENT PROCEDURE ............................................................................................................. 16 4.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 16 4.3. MEASUREMENT RESULTS .................................................................................................................... 17 5. BANDWIDTH .................................................................................................................................................. 18 5.1. TEST LIMIT .............................................................................................................................................. 18 5.2. MEASUREMENT PROCEDURE ............................................................................................................. 18 9.3. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 18 5.3. MEASUREMENT RESULTS .................................................................................................................... 19 6. LINE CONDUCTED EMISSION TEST ........................................................................................................... 20 6.1. LIMITS OF LINE CONDUCTED EMISSION TEST ................................................................................. 20 6.2. BLOCK DIAGRAM OF LINE CONDUCTED EMISSION TEST............................................................... 20 6.3. PRELIMINARY PROCEDURE OF LINE CONDUCTED EMISSION TEST ............................................ 21 6.4. FINAL PROCEDURE OF LINE CONDUCTED EMISSION TEST .......................................................... 21 6.5. TEST RESULT OF LINE CONDUCTED EMISSION TEST ..................................................................... 22 APPENDIX A: PHOTOGRAPHS OF TEST SETUP .......................................................................................... 24 APPENDIX B: PHOTOGRAPHS OF EUT ......................................................................................................... 28 Report No.: AGC00927201105FE06 Page 4 of 31 1. GENERAL INFORMATION 1.1. GENERAL DESCRIPTION OF EUT Applicant Guangdong ZK Radio Electronic Tech Co., Ltd Address 1004 Room, 3 block B, Tian-an-Yun-Gu, Ban Tian Longgang, Shenzhen, China Manufacturer Guangdong ZK Radio Electronic Tech Co., Ltd Address 1004 Room, 3 block B, Tian-an-Yun-Gu, Ban Tian Longgang, Shenzhen, China Factory Guangdong ZK Radio Electronic Tech Co., Ltd Address 1004 Room, 3 block B, Tian-an-Yun-Gu, Ban Tian Longgang, Shenzhen, China Product Designation Module Brand Name ZKRADIO Test Model AM-SMRTCP-RFID Date of test Dec. 08, 2020 to Jan. 04, 2021 Operating Frequency(NFC) 13.56MHz Max Output Power 62.79dBuV/m (Peak) Modulation(NFC) ASK Auxiliary Antenna (NFC) Coil antenna(Comply with requirements of the FCC part 15.203) Auxiliary Antenna Gain(NFC) 0dBi Hardware Version V1.00 Software Version V1.11 Power Supply: DC 24V by adapter Test Result Pass Prepared By Sky Dong (Project Engineer) Jan. 04, 2021 Reviewed By Max Zhang ( Reviewer ) Jan. 04, 2021 Approved By Forrest Lei (Authorized Officer) Jan. 04, 2021 Report No.: AGC009272…
