2AKARUHF6FPROUHF Card Reader

Quick Start Guide UHF 6Pro Series Reader Version: 1.0 Date: August 2018 1 1.Product Summary UHF 6Pro series is a new generation of RFID UHF series product of our company's independent research and development of the long distance card reader system for parking lots. The product adapts Impinj R2000 card reader chip, and the card reader part adapts module integrated design. It has stable card reading performance, good card reading performance consistency, long service span, minimized external interference, and the product adapts waterproof casing design. The product also fully meets the CE, FCC technology requirements of the product, and has obtained CE, FCC and other security certifications. 2. Overview Front View Lateral View and Interface NOTE: Antenna Working Frequency: UHF 6F Pro: 920MHz ~925MHz Read Range: Handheld stable 18 meters Mounting Bracket Cable Definition NO Color Function 1 Red +12V 2 Black GND 3 Purple Trigger Point (Active-low) 4 Green Wiegand D0 5 White Wiegand D1 6 USB Connector Cables USB 2 1)In "Trigger Read" work mode, the reader will not read cards before a low level signal to "Trigger Point" is delivered. "Trigger Point" is mainly used for working with the ground sensor of vehicle parking system. 2)In "Always Read" work mode, once the card is in the effective range, the reader will output the card number via Wiegand continually. 3.Technical Parameter Working Voltage DC9V ~ 12V Working Current 1.2A +/-10% Working Temperature -20 °C ~ +60 °C Working Humidity <95%(+25°C) Interface Protocol EPC global UHF Class 1Gen2/ ISO 18000-6C,ISO 18000-6B Working Frequency 865MHz~868MHz;920MHz~925MHz Output Power 10dBm ~ 33dBm Communication Interface Wiegand 26/34; USB Reading Distance Stable 18 meters Atenna Gain 9dBI Dimension 310mm*310mm*90mm(±5mm) Length of cable 1400±50mm 4. Safety Precautions 1)The reader working voltage ranges from DC9V to DC16V, it is recommended to use DC12V /3A power supply. 2) Please wire according to the cable definition. 5. Modifying Setting via Demo 3 1) USB Connection 2) Sof tware Introduction Our company provides Demo, used to set the working parameters of the reader. Demo interface is as shown below: The default configuration of the reader is as follows: 4 Demo Using Instructions Connect the USB port of the reader to the USB port of the computer. It is recommended to use power adapter with DC12V/3A specifications. To play Demo in computer, click “Connect”, on the right side of the middle will show “Successfully Connected”. Wiegand Output Time: Sets the time interval between adjacent wiegand data. Reader Indicate: Set whether the buzzer rings when the machine is on the electricity and brush the card. Work Mode: Set the working mode of the machine, and including always read mode, trigger mode. Under trigger mode, time of reading card can be set when it is triggered once. RF Setting: Set the RF parameters of the machine, including power, spectrum. Power range is 10~33dBm. Wiegand Format: Set the machine's wiegand output format. Wiegand Output Settings: Sets the forward or reverse output of the machine's Wiegand Data, and start output from the first few bytes. Tag Reading Interval: Set the machine to read the card interval. Read card interval is the time when from the card is read within the scope of the card to the card is left out of the scope of the card to read the second time card. Work Mode Read Always Communication Interface Wiegand26 Output Power 33dBm Working Frequency UHF 6E Pro: 865MHz ~ 868MHz; UHF 6F Pro: 920MHz ~925MHz 5 6. Access Control Panels Connection 7. Installation  Please install the directional antenna with lower elevation angle of 60~75 to suit the correct line of sight. NOTE:  Please install the reader as shown in the above picture. The reader is facing the direction and the direction of travel of the vehicle is in a straight line.  The distance between the reading head and the parking barrier is maintained at 50cm or more. UHF Reader 6  Avoid installing the reader against to another.  The position of the tag/card in the vehicle is as follows:  The reader detection distance may vary depending on rain, snow or wind.  The Reader should be away from strong magnetic field when working. 7 © Copyright 2014. ZKTeco Inc. ZKTeco Logo is a registered trademark of ZKTeco or a related company. All other product and company names mentioned are used for. ZK Building, Wuhe Road, Gangtou, Bantian, Buji Town, Longgang District, Shenzhen China 518129 Tel: +86 755-89602345 Fax: +86 755-89602394 www.zkteco.com NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including…

Text truncated - open the document above for the full version.

[2019-10-17] Federal Communications Commission 445 12 th Street SW Washington, DC 20554 Subject: Limited Agency Agreement Guangdong ZK Radio Electronic Tech co. Ltd FCC ID: 2AKARUHF6FPRO To Whom It May Concern: We, Guangdong ZK Radio Electronic Tech co. Ltd hereby authorized Intertek Testing Services to act as our Agent for the purpose of preparing application for FCC ID number (2AKARUHF6FPRO) under all applicable parts of the FCC rules and regulations. The effective date of this limited agency agreement is (2019-10-17). The Limited Agency Agreement expires until further notice, unless sooner terminated or extended by written notice to Intertek Testing Services and the Federal Communications Commission. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. The applicant is not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 U.S.C. 862, and no party to the application is subject to a denial of federal benefits pursuant to that section. If you have any questions or comments, please do not hesitate to contact me. Sincerely, [Signature] Guangdong ZK Radio Electronic Tech co. Ltd Contact person: lixue lan

Sep. 02, 2019 Federal Communication Commission Authorization and Evaluation Division FCC ID: 2AKARUHF6FPRO Re: Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1: Block Diagram 2: Schematics 3: Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rules 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Guangdong ZK Radio Electronic Tech co. Ltd Contact person: lixue lan

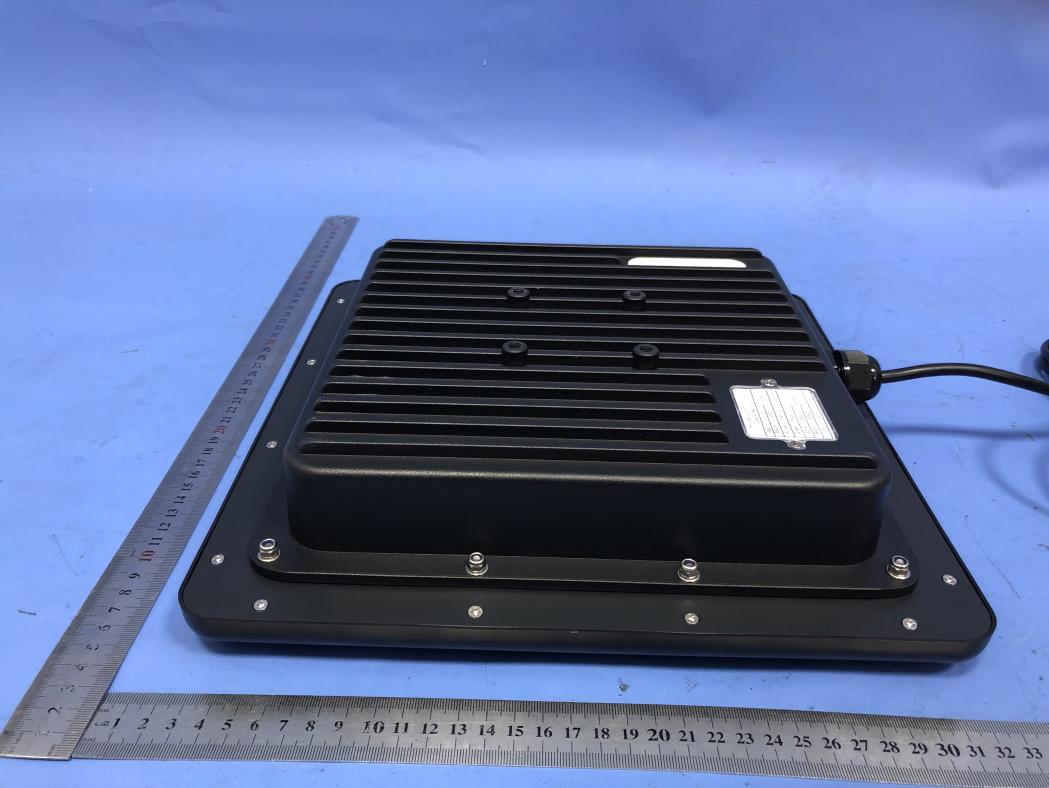

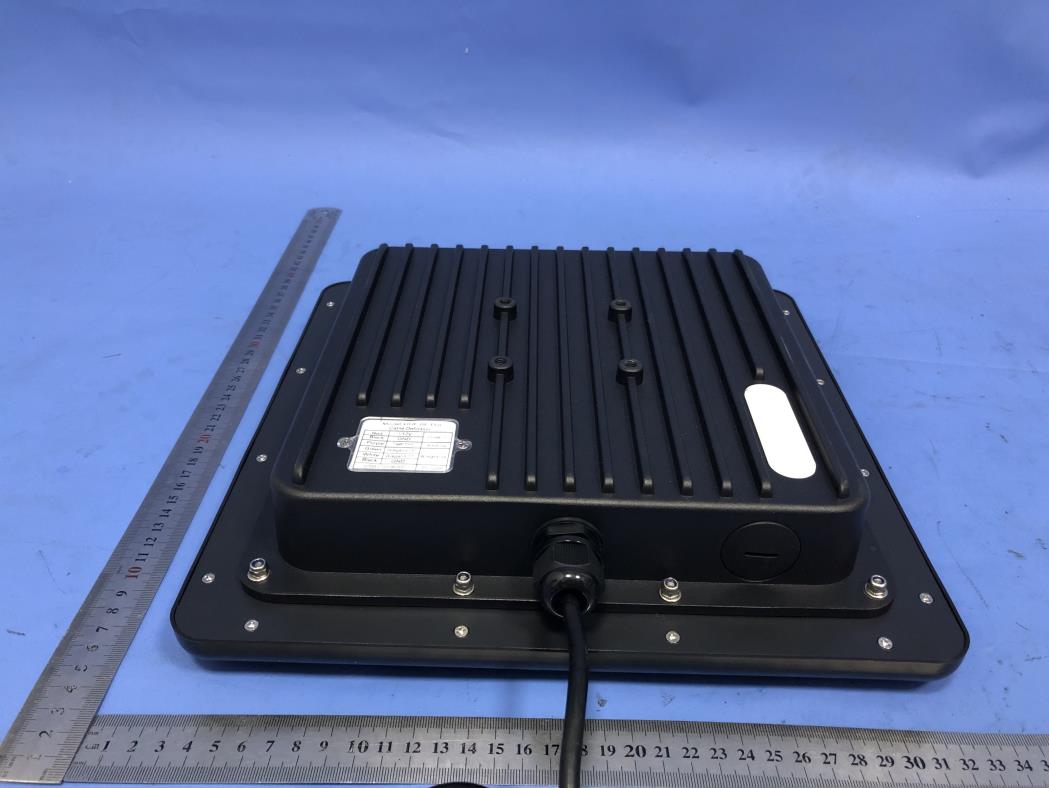

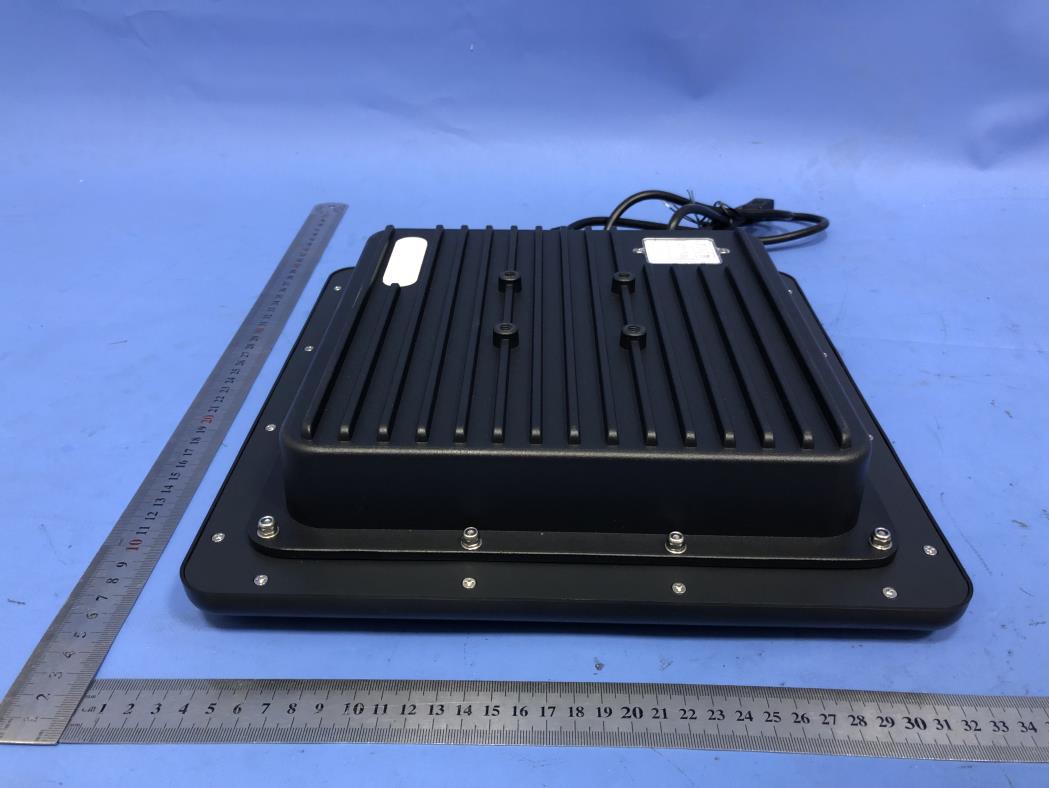

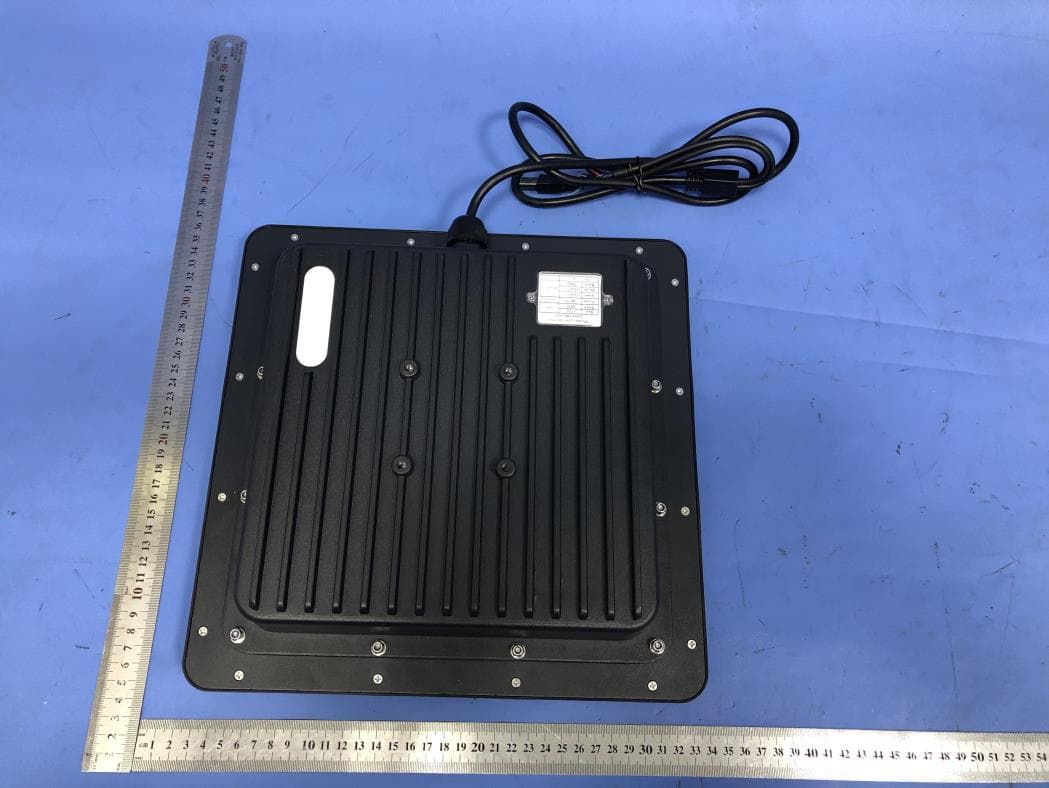

External Photos TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location 20mm*30mm FCC ID: 2AKARUHF6FPRO This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Internal Photos OPEN VIEW – 1 OF EUT OPEN VIEW - 2 OF EUT INTERNAL VIEW-1 OF EUT INTERNAL VIEW-2 OF EUT Antenna INTERNAL VIEW-3 OF EUT INTERNAL VIEW-4 OF EUT INTERNAL VIEW-5 OF EUT INTERNAL VIEW-6 OF EUT INTERNAL VIEW-7 OF EUT INTERNAL VIEW-8 OF EUT INTERNAL VIEW-9 OF EUT

RF EXPOSURE EVALUATION 1. PRODUCT INFORMATION Product Description UHF Card Reader Model Name UHF6F Pro FCC ID 2AKARUHF6FPRO 2. EVALUATION METHOD AND LIMIT Human exposure to RF emissions from mobile devices (47 CFR §2.1091) may be evaluated based on the MPE limits adopted by the FCC for electric and magnetic field strength and/or power density, as appropriate, since exposures are assumed to occur at distances of 20 cm or more from persons. LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE Frequency Range (MHz) E-field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Time |E| 2 , |H| 2 or S (Minutes) 0.3 -- 1.34 614 1.63 (100)* 30 1.34 -- 30 824/f 2.19/f (180/f 2 )* 30 30 -- 300 27.5 0.073 0.2 30 300 -- 1500 -- -- f/1500 30 1500 -- 100,000 -- -- 1.0 30 *Note: 1. f= Frequency in MHz * Plane-wave Equivalent Power Density 2. The averaging time for General Population/Uncontrolled exposure to fixed transmitters is not applicable for mobile and portable transmitters. See 47 CFR §§2.1091 and 2.1093 on source-based time-averaging requirement for mobile and portable transmitters. S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 3. CALCULATION A minimum test separation distance ≥ 20 cm is required between the antenna and radiating structures of the device and nearby persons to apply mobile device exposure limits. The distance must be at least 20 cm and fully supported by the operating and installation configurations of the transmitter and its antenna(s), according to the source-based time-averaged maximum power requirements of § 2.1091(d)(2). In cases where cable losses or other attenuations are applied to determine compliance, the most conservative operating configurations and exposure conditions must be evaluated. Antenna Gain=9dBi (Numeric 7.94), π=3.14 Note: 1. Only the worst case recorded. Frequency Output Power Output Power Power Density Power Density Limit MHz dBm mW mW/cm 2 mW/cm 2 920.0 23.191 208.50 0.330 1

Page 1 of 51 FCC Test Report Report No.: AGC00927190702FE03 FCC ID : 2AKARUHF6FPRO APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : UHF Card Reader BRAND NAME : ZK Radio MODEL NAME : UHF6F Pro APPLICANT : Guangdong ZK Radio Electronic Tech co. Ltd DATE OF ISSUE : Aug. 30, 2019 STANDARD(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC00927190702FE03 Page 2 of 51 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Aug. 30, 2019 Valid Initial Release Report No.: AGC00927190702FE03 Page 3 of 51 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ............................................................................................................... 5 2. GENERAL INFORMATION ............................................................................................................................ 6 2.1. PRODUCT DESCRIPTION ..................................................................................................................... 6 2.2. TABLE OF CARRIER FREQUENCYS ..................................................................................................... 6 2.3. RECEIVER INPUT BANDWIDTH ............................................................................................................ 7 2.4. EXAMPLE OF A HOPPING SEQUENCY IN DATA MODE ....................................................................... 7 2.5. EQUALLY AVERAGE USE OF FREQUENCIES AND BEHAVIOUR ........................................................ 7 2.6. RELATED SUBMITTAL(S) / GRANT (S) .................................................................................................. 7 2.7. TEST METHODOLOGY .......................................................................................................................... 7 2.8. SPECIAL ACCESSORIES ....................................................................................................................... 7 2.9. EQUIPMENT MODIFICATIONS .............................................................................................................. 7 3. MEASUREMENT UNCERTAINTY ................................................................................................................. 8 4. DESCRIPTION OF TEST MODES ................................................................................................................. 9 5. SYSTEM TEST CONFIGURATION ............................................................................................................. 10 5.1. CONFIGURATION OF EUT SYSTEM ................................................................................................... 10 5.2. EQUIPMENT USED IN EUT SYSTEM ................................................................................................... 10 5.3. SUMMARY OF TEST RESULTS ............................................................................................................ 10 6. TEST FACILITY ........................................................................................................................................... 11 7. PEAK OUTPUT POWER ............................................................................................................................. 12 7.1. MEASUREMENT PROCEDURE ........................................................................................................... 12 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 12 7.3. LIMITS AND MEASUREMENT RESULT ............................................................................................... 13 8. 20DB BANDWIDTH ..................................................................................................................................... 15 8.1. MEASUREMENT PROCEDURE ........................................................................................................... 15 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 15 8.3. LIMITS AND MEASUREMENT RESULTS ............................................................................................. 15 9. CONDUCTED SPURIOUS EMISSION ........................................................................................................ 17 9.1. MEASUREMENT PROCEDURE ........................................................................................................... 17 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 17 9.3. MEASUREMENT EQUIPMENT USED .................................................................................................. 17 Report No.: AGC00927190702FE03 Page 4 of 51 9.4. LIMITS AND MEASUREMENT RESULT ............................................................................................... 17 10. RADIATED EMISSION ............................................................................................................................... 22 10.1. MEASUREMENT PROCEDURE ......................................................................................................... 22 10.2. TEST SETUP ....................................................................................................................................... 24 10.3. LIMITS AND MEASUREMENT RESULT ............................................................................................. 25 10.4. TEST RESULT ..................................................................................................................................... 25 11. NUMBER OF HOPPING FREQUENCY ..................................................................................................... 31 11.1. MEASUREMENT …

Text truncated - open the document above for the full version.

Test Setup Photos FCC RADIATED EMISSION TEST SETUP CONDUCTED EMISSION TEST SETUP
