2AKAR-UHF6FPROUHF READER

QuickStartGuide UHF6ProSeriesReader Version:1.0 Date:August2018 1 CableDefinition Mounting Bracket Cables USB 1.ProductSummary UHF6ProseriesisanewgenerationofRFIDUHFseriesproductofour company'sindependentresearchanddevelopmentofthelongdistancecard readersystemforparkinglots. TheproductadaptsImpinjR2000cardreaderchip,andthecardreaderpart adaptsmoduleintegrateddesign.Ithasstablecardreadingperformance,good cardreadingperformanceconsistency,longservicespan,minimizedexternal interference,andtheproductadaptswaterproofcasingdesign. TheproductalsofullymeetstheCE,FCCtechnologyrequirementsofthe product,andhasobtainedCE,FCCandothersecuritycertifications. 2.Overview FrontView LateralViewandInterface NOColorFunction 1Red+12V 2BlackGND 3PurpleTriggerPoint (Active-low) 4GreenWiegandD0 5WhiteWiegandD1 6USBConnector NOTE: Antenna WorkingFrequency: UHF6EPro:865MHz~868MHz UHF6FPro:902MHz~928MHz ReadRange: Handheldstable18meters 2 1)In"TriggerRead"workmode,thereaderwillnotreadcardsbeforealowlevel signalto"TriggerPoint"isdelivered."TriggerPoint"ismainlyusedfor workingwiththegroundsensorofvehicleparkingsystem. 2)In"AlwaysRead"workmode,oncethecardisintheeffectiverange,the readerwilloutputthecardnumberviaWiegandcontinually. 3.TechnicalParameter WorkingVoltage DC9V~12V WorkingCurrent 1.2A+/-10% WorkingTemperature -20°C~+60°C WorkingHumidity <95%(+25°C) InterfaceProtocol EPCglobalUHFClass1Gen2/ISO18000-6C,ISO 18000-6B WorkingFrequency 865MHz~868MHz;902MHz~928MHz OutputPower 10dBm~33dBm CommunicationInterface Wiegand26/34;USB ReadingDistance Stable18meters AtennaGain 9dBI Dimension 310mm*310mm*90mm(±5mm) Lengthofcable 1400±50mm 4.SafetyPrecautions 1)ThereaderworkingvoltagerangesfromDC9VtoDC16V,itisrecommended touseDC12V/3Apowersupply. 2)Pleasewireaccordingtothecabledefinition. 5.ModifyingSettingviaDemo 3 1)USBConnection 2)SoftwareIntroduction OurcompanyprovidesDemo,usedtosettheworkingparametersofthereader. Demointerfaceisasshownbelow: Thedefaultconfigurationofthereaderisasfollows: 4 WorkMode ReadAlways CommunicationInterface Wiegand26 OutputPower 33dBm WorkingFrequency UHF6EPro:865MHz~868MHz; UHF6FPro:902MHz~928MHz DemoUsingInstructions ConnecttheUSBportofthereadertotheUSBportofthecomputer. ItisrecommendedtousepoweradapterwithDC12V/3Aspecifications. ToplayDemoincomputer,click“Connect”,ontherightsideofthemiddle willshow“SuccessfullyConnected”. WiegandOutputTime:Setsthetimeintervalbetweenadjacentwiegand data. ReaderIndicate:Setwhetherthebuzzerringswhenthemachineison theelectricityandbrushthecard. WorkMode:Settheworkingmodeofthemachine,andincludingalways readmode,triggermode.Undertriggermode,timeofreadingcardcanbe setwhenitistriggeredonce. RFSetting:SettheRFparametersofthemachine,includingpower, spectrum.Powerrangeis10~33dBm. WiegandFormat:Setthemachine'swiegandoutputformat. WiegandOutputSettings:Setstheforwardorreverseoutputofthe machine'sWiegandData,andstartoutputfromthefirstfewbytes. TagReadingInterval:Setthemachinetoreadthecardinterval.Readcard intervalisthetimewhenfromthecardisreadwithinthescopeofthecard tothecardisleftoutofthescopeofthecardtoreadthesecondtimecard. 5 6.AccessControlPanelsConnection 7.Installation Pleaseinstallthedirectionalantennawithlowerelevationangleof60~75 tosuitthecorrectlineofsight. NOTE: Pleaseinstallthereaderasshownintheabovepicture.Thereaderis facingthedirectionandthedirectionoftravelofthevehicleisina straightline. Thedistancebetweenthereadingheadandtheparkingbarrieris maintainedat50cmormore. UHFReader 6 Avoidinstallingthereaderagainsttoanother. Thepositionofthetag/cardinthevehicleisasfollows: Thereaderdetectiondistancemayvarydependingonrain,snoworwind. TheReadershouldbeawayfromstrongmagneticfieldwhenworking. 15.19“ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjectto thefollowingtwoconditions: (1)thisdevicemaynotcauseharmfulinterference,and (2)thisdevicemustacceptanyinterferencereceived,includinginterferencethat may causeundesiredoperation.” NOTE:Thisequipmenthasbeentestedandfoundtocomplywiththelimitsfora ClassBdigitaldevice,pursuanttopart15oftheFCCRules.Theselimitsare designedtoprovidereasonableprotectionagainstharmfulinterferenceina residentialinstallation.Thisequipmentgeneratesusesandcanradiateradio 7 frequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions, maycauseharmfulinterferencetoradiocommunications.However,thereisno guaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthis equipmentdoescauseharmfulinterferencetoradioortelevisionreception,which canbedeterminedbyturningtheequipmentoffandon,theuserisencouragedto trytocorrecttheinterferencebyoneormoreofthefollowingmeasures: -Reorientorrelocatethereceivingantenna. -Increasetheseparationbetweentheequipmentandreceiver. -Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthe receiverisconnected. -Consultthedealeroranexperiencedradio/TVtechnicianforhelp Changesormodificationsnotexpresslyapprovedbythepartyresponsiblefor compliance couldvoidtheuser'sauthoritytooperatetheequipment. ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothe following twoconditions: (1)thisdevicemaynotcauseharmfulinterference,and (2)thisdevicemustacceptanyinterferencereceived,includinginterferencethat may causeundesiredoperation. 7 ZKBuilding,Wuhe Road,Gangtou,Bantian,BujiTown, Longgang District, Shenzhen China518129 Tel: +86 755-89602345 Fax: +86 755-89602394 www.zkteco.com © Copyright 2014. ZKTeco Inc. ZKTeco Logo is a registered trademark of ZKTeco or a related company. All other product and company names mentioned are usedfor. RF Exposure Warning Statements: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment shall be installed and operated with minimum distance 20cm between the radiator & body.

Guangdong ZK Radio Electronic Tech Co., Ltd Agent Authorization Company: Guangdong ZK Radio Electronic Tech Co., Ltd Address: 1004 Room, 3 block B, Tian-an-Yun-Gu, Ban Tian Longgang,Shenzhen,China Product Name: UHF READER Model Number(s): UHF 6F Pro Product Description: UHF READER We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020-11-16 Name: lixue lan Company: Guangdong ZK Radio Electronic Tech Co., Ltd

Guangdong ZK Radio Electronic Tech Co., Ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020-11-12 Subject; Request for Confidentiality FCC ID: 2AKAR-UHF6FPRO To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely Guangdong ZK Radio Electronic Tech Co., Ltd Contact person: lixue lan

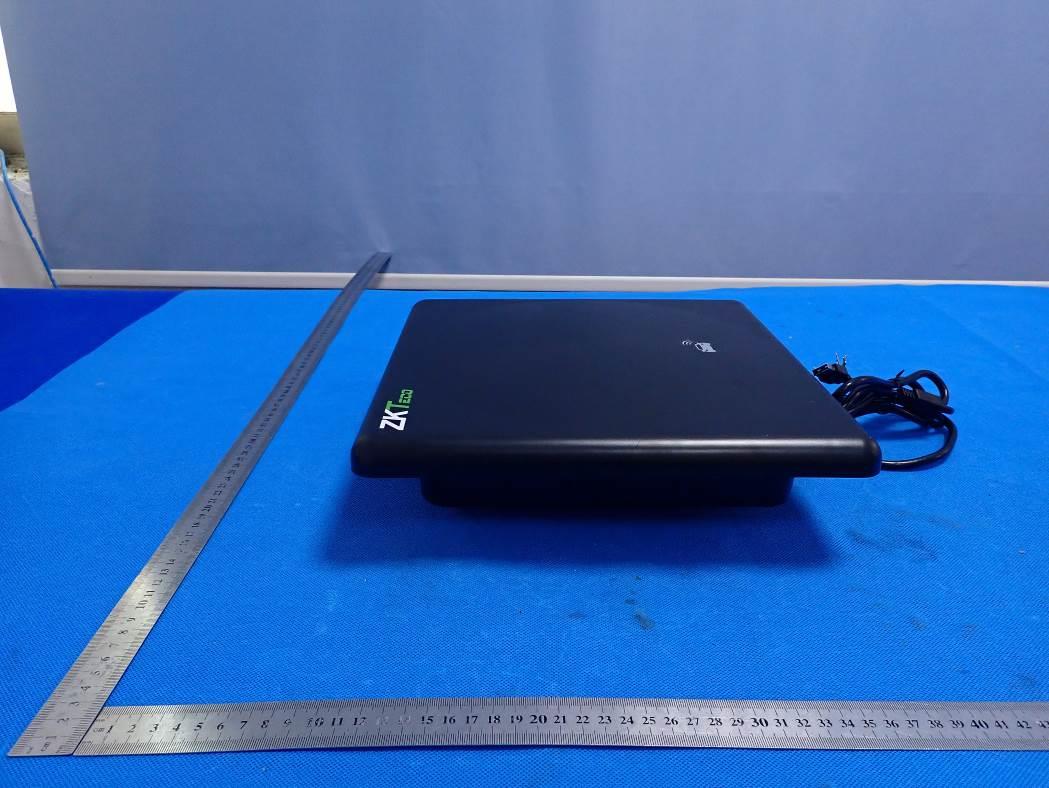

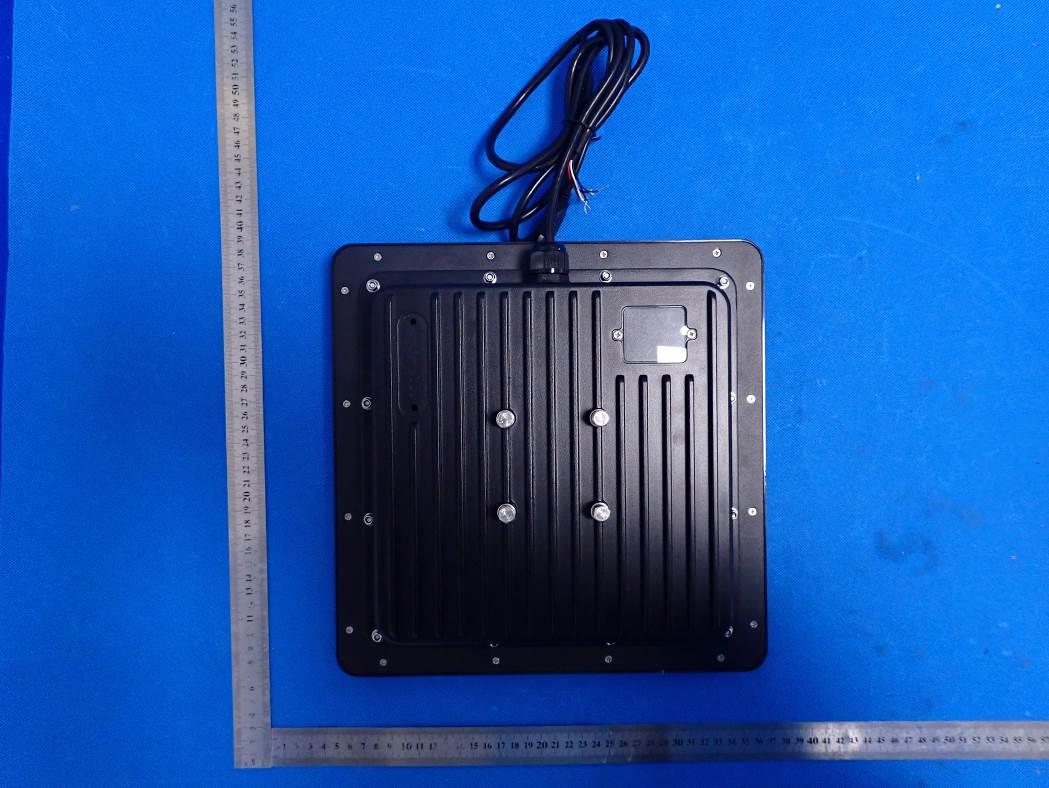

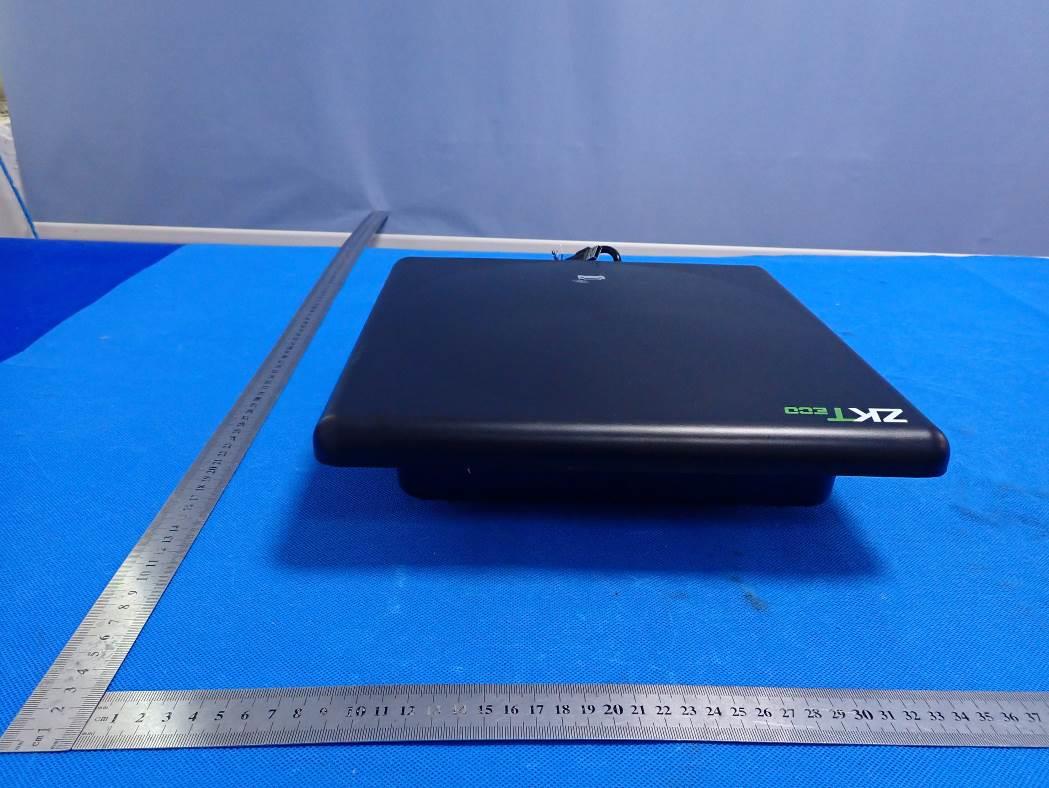

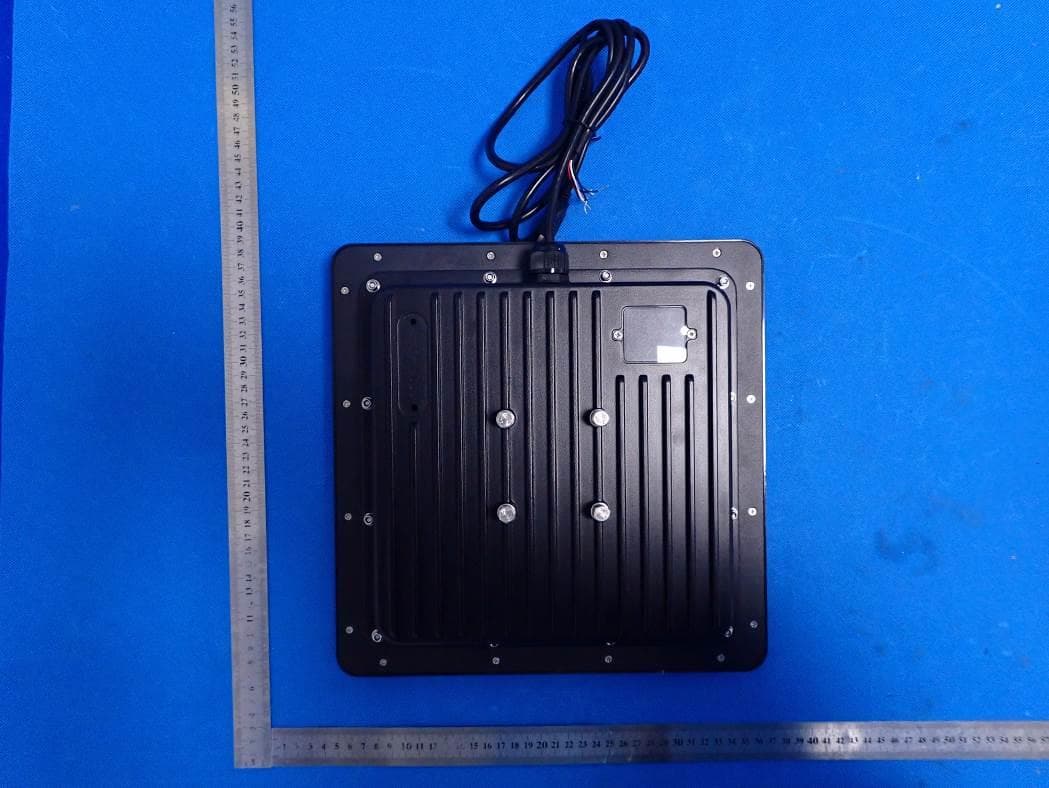

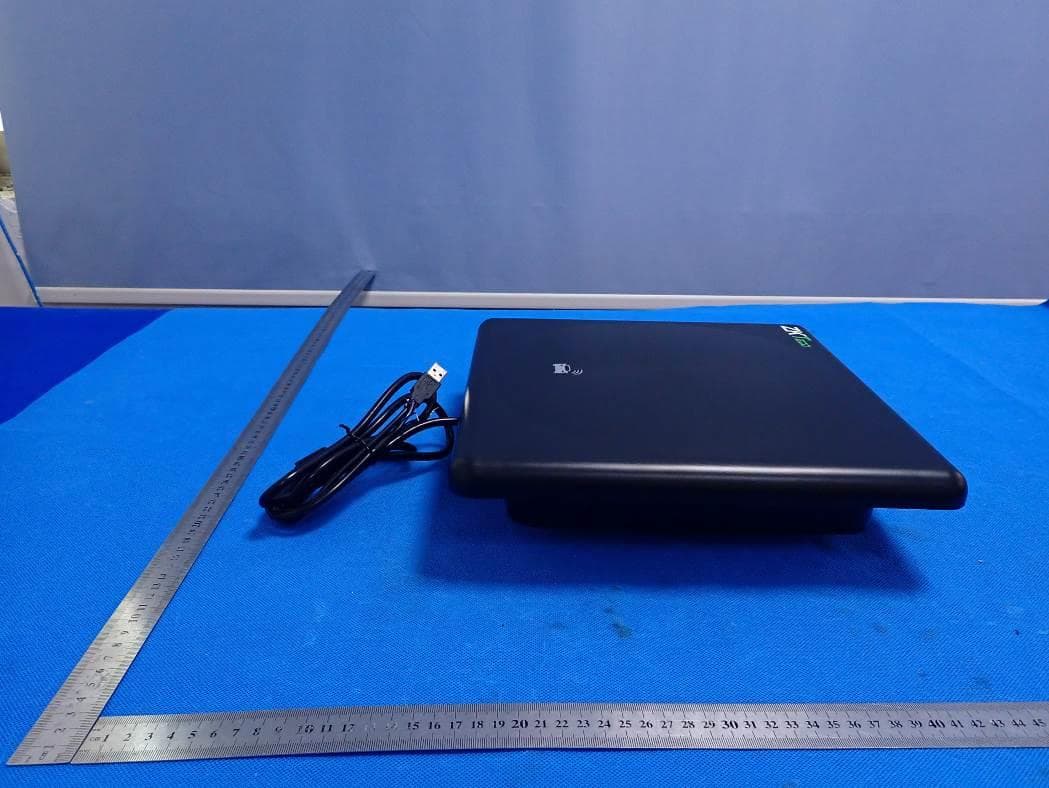

External Photos TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location FCC ID: 2AKAR-UHF6FPRO

Internal Photos OPEN VIEW-1 OF EUT OPEN VIEW-2 OF EUT Antenna INTERNAL VIEW-1 OF EUT INTERNAL VIEW-2 OF EUT INTERNAL VIEW-3 OF EUT INTERNAL VIEW-4 OF EUT INTERNAL VIEW-5 OF EUT INTERNAL VIEW-6 OF EUT INTERNAL VIEW-7 OF EUT INTERNAL VIEW-8 OF EUT

RF EXPOSURE EVALUATION 1. PRODUCT INFORMATION Product Description UHF READER Model Name UHF 6F Pro FCC ID 2AKAR-UHF6FPRO 2. EVALUATION METHOD AND LIMIT Human exposure to RF emissions from mobile devices (47 CFR §2.1091) may be evaluated based on the MPE limits adopted by the FCC for electric and magnetic field strength and/or power density, as appropriate, since exposures are assumed to occur at distances of 20 cm or more from persons. LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE Frequency Range (MHz) E-field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Time |E| 2 , |H| 2 or S (Minutes) 0.3 -- 1.34 614 1.63 (100)* 30 1.34 -- 30 824/f 2.19/f (180/f 2 )* 30 30 -- 300 27.5 0.073 0.2 30 300 -- 1500 -- -- f/1500 30 1500 -- 100,000 -- -- 1.0 30 *Note: 1. f= Frequency in MHz * Plane-wave Equivalent Power Density 2. The averaging time for General Population/Uncontrolled exposure to fixed transmitters is not applicable for mobile and portable transmitters. See 47 CFR §§2.1091 and 2.1093 on source-based time-averaging requirement for mobile and portable transmitters. S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 3. CALCULATION A minimum test separation distance ≥ 20 cm is required between the antenna and radiating structures of the device and nearby persons to apply mobile device exposure limits. The distance must be at least 20 cm and fully supported by the operating and installation configurations of the transmitter and its antenna(s), according to the source-based time-averaged maximum power requirements of § 2.1091(d)(2). In cases where cable losses or other attenuations are applied to determine compliance, the most conservative operating configurations and exposure conditions must be evaluated. Antenna Gain=0dBi (Numeric 1), π=3.14 Note: 1. Only the worst case recorded. 4. conclusion Compliance the RF exposure requirement Frequency Output Power Output Power Power Density Power Density Limit MHz dBm mW mW/cm 2 mW/cm 2 902.4 20.793 120.03 0.024 0.6016

Page 1 of 51 FCC Test Report Report No.: AGC00927200902FE03 FCC ID : 2AKAR-UHF6FPRO APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : UHF READER BRAND NAME : ZKRADIO MODEL NAME : UHF 6F Pro APPLICANT : Guangdong ZK Radio Electronic Tech Co., Ltd DATE OF ISSUE : Nov. 11, 2020 STANDARD(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC00927200902FE03 Page 2 of 51 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Nov. 11, 2020 Valid Initial Release Report No.: AGC00927200902FE03 Page 3 of 51 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ............................................................................................................... 5 2. GENERAL INFORMATION ............................................................................................................................ 6 2.1. PRODUCT DESCRIPTION ..................................................................................................................... 6 2.2. TABLE OF CARRIER FREQUENCYS ..................................................................................................... 6 2.3. RECEIVER INPUT BANDWIDTH ............................................................................................................ 7 2.4. EXAMPLE OF A HOPPING SEQUENCY IN DATA MODE ....................................................................... 7 2.5. EQUALLY AVERAGE USE OF FREQUENCIES AND BEHAVIOUR ........................................................ 7 2.6. RELATED SUBMITTAL(S) / GRANT (S) .................................................................................................. 7 2.7. TEST METHODOLOGY .......................................................................................................................... 7 2.8. SPECIAL ACCESSORIES ....................................................................................................................... 7 2.9. EQUIPMENT MODIFICATIONS .............................................................................................................. 7 2.10. ANTENNA REQUIREMENT .................................................................................................................. 7 3. MEASUREMENT UNCERTAINTY ................................................................................................................. 8 4. DESCRIPTION OF TEST MODES ................................................................................................................. 9 5. SYSTEM TEST CONFIGURATION ............................................................................................................. 10 5.1. CONFIGURATION OF EUT SYSTEM ................................................................................................... 10 5.2. EQUIPMENT USED IN EUT SYSTEM ................................................................................................... 10 5.3. SUMMARY OF TEST RESULTS ............................................................................................................ 10 6. TEST FACILITY ........................................................................................................................................... 11 7. PEAK OUTPUT POWER ............................................................................................................................. 12 7.1. MEASUREMENT PROCEDURE ........................................................................................................... 12 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 12 7.3. LIMITS AND MEASUREMENT RESULT ............................................................................................... 13 8. 20DB BANDWIDTH ..................................................................................................................................... 15 8.1. MEASUREMENT PROCEDURE ........................................................................................................... 15 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 15 8.3. LIMITS AND MEASUREMENT RESULTS ............................................................................................. 15 9. CONDUCTED SPURIOUS EMISSION ........................................................................................................ 17 9.1. MEASUREMENT PROCEDURE ........................................................................................................... 17 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 17 9.3. MEASUREMENT EQUIPMENT USED .................................................................................................. 17 9.4. LIMITS AND MEASUREMENT RESULT ............................................................................................... 17 10. RADIATED EMISSION ............................................................................................................................... 23 10.1. MEASUREMENT PROCEDURE ......................................................................................................... 23 10.2. TEST SETUP ....................................................................................................................................... 25 Report No.: AGC00927200902FE03 Page 4 of 51 10.3. LIMITS AND MEASUREMENT RESULT ............................................................................................. 26 10.4. TEST RESULT ..................................................................................................................................... 26 11. NUMBER OF HOPPING FREQUENCY ..................................................................................................... 32 11.1. MEASUREMENT PROCEDURE ....…

Text truncated - open the document above for the full version.

Report No.: AGC00927200902FE03 Page 42 of 51 APPENDIX A: PHOTOGRAPHS OF TEST SETUP FCC RADIATED EMISSION TEST SETUP-BELOW 1GHz FCC RADIATED EMISSION TEST SETUP-ABOVE 1GHz Report No.: AGC00927200902FE03 Page 43 of 51 CONDUCTED EMISSION TEST SETUP Report No.: AGC00927200902FE03 Page 44 of 51 APPENDIX B: PHOTOGRAPHS OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT Report No.: AGC00927200902FE03 Page 45 of 51 FRONT VIEW OF EUT BACK VIEW OF EUT Report No.: AGC00927200902FE03 Page 46 of 51 LEFT VIEW OF EUT RIGHT VIEW OF EUT Report No.: AGC00927200902FE03 Page 47 of 51 OPEN VIEW-1 OF EUT OPEN VIEW-2 OF EUT Antenna Report No.: AGC00927200902FE03 Page 48 of 51 INTERNAL VIEW-1 OF EUT INTERNAL VIEW-2 OF EUT Report No.: AGC00927200902FE03 Page 49 of 51 INTERNAL VIEW-3 OF EUT INTERNAL VIEW-4 OF EUT Report No.: AGC00927200902FE03 Page 50 of 51 INTERNAL VIEW-5 OF EUT INTERNAL VIEW-6 OF EUT Report No.: AGC00927200902FE03 Page 51 of 51 INTERNAL VIEW-7 OF EUT INTERNAL VIEW-8 OF EUT ----END OF REPORT---- Conditions of Issuance of Test Reports 1. All samples and goods are accepted by the Attestation of Global Compliance (Shenzhen) Co., Ltd (the “Company”) solely for testing and reporting in accordance with the following terms and conditions. The company provides its services on the basis that such terms and conditions constitute express agreement between the company and any person, firm or company requesting its services (the “Clients”). 2. Any report issued by Company as a result of this application for testing services (the “Report”) shall be issued in confidence to the Clients and the Report will be strictly treated as such by the Company. It may not be reproduced either in its entirety or in part and it may not be used for advertising or other unauthorized purposes without the written consent of the Company. The Clients to whom the Report is issued may, however, show or send it, or a certified copy thereof prepared by the Company to its customer, supplier or other persons directly concerned. The Company will not, without the consent of the Clients, enter into any discussion or correspondence with any third party concerning the contents of the Report, unless required by the relevant governmental authorities, laws or court orders. 3.The Company shall not be called or be liable to be called to give evidence or testimony on the Report in a court of law without its prior written consent, unless required by the relevant governmental authorities, laws or court orders. 4. The non-CMA report issued by AGC is only permitted to be used by the client as internal reference use and shall not be used for public demonstration purpose. 5. In the event of the improper use of the report as determined by the Company, the Company reserves the right to withdraw it, and to adopt any other additional remedies which may be appropriate. 6. Samples submitted for testing are accepted on the understanding that the Report issued cannot form the basis of, or be the instrument for, any legal action against the Company. 7. The Company will not be liable for or accept responsibility for any loss or damage however arising from the use of information contained in any of its Reports or in any communication whatsoever about its said tests or investigations. 8.Clients wishing to use the Report in court proceedings or arbitration shall inform the Company to that effect prior to submitting the sample for testing. 9. The Company is not responsible for recalling the electronic version of the original report when any revision is made to them. The Client assumes the responsibility to providing the revised version to any interested party who uses them. 10. Subject to the variable length of retention time for test data and report stored hereinto as otherwise specifically required by individual accreditation authorities, the Company will only keep the supporting test data and information of the test report for a period of six years. The data and information will be disposed of after the aforementioned retention period has elapsed. Under no circumstances shall we provide any data and information which has been disposed of after retention period. Under no circumstances shall we be liable for damage of any kind, including (but not limited to) compensatory damages, lost profits, lost data, or any form of special, incidental, indirect, consequential or punitive damages of any kind, whether based on breach of contract of warranty, tort (including negligence), product liability or otherwise, even if we are informed in advance of the possibility of such damages.

Test Setup Photos FCC RADIATED EMISSION TEST SETUP-BELOW 1GHz FCC RADIATED EMISSION TEST SETUP-ABOVE 1GHz CONDUCTED EMISSION TEST SETUP
