2AKARUD18RW-FUHF Card Issuer

UHF Desktop Card Issuer User Guide Version: 1.0 Date：2019.12.12 File Number：191021001 2 Change History Version Date Description V1.0 2019-12-12 The first official release. File Number：191021001 3 Contents 一、Installation Diagram ............................................................................................... 5 三、Product Description ............................................................................................... 7 3.1 Product Picture ................................................................................................ 7 3.2 Product Introduction ........................................................................................ 7 3.3 Product Feature................................................................................................ 8 3.4 Product Parameter ........................................................................................... 8 File Number：191021001 4 FCC ID: 2AKARUD18RW-F NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. File Number：191021001 5 一、Installation Diagram 1) Connect the UD18RW-F card issuer to the computer via a USB cable. 2) Open DEMO software, Click Connect. 3) Click Read Configuration to read the current configuration parameter information of the card issuer. File Number：191021001 6 4) In the RF Settings region, modify the dimensional root and start byte, and click Save Changes. 5) Support factory reset function. 6) The password of the new card is 00000000, users can set the password of the card by themselves. 7) Put the label in the reader area of the card issuer, read and write the EPC area. 8) Put the label in the reader area of the card reader, and read and write in the User area. File Number：191021001 7 9) Read the TID information of the label. 三、Product Description 3.1 Product Picture 3.2 Product Introduction UD18RW-F is a UHF card issuer that supports the American standard frequency band. It reads and writes the EPC area and user area through DEMO software. It combines UHF non-contact RF circuits and various encoding and decoding algorithms. EPCglobal UHF Class 1Gen 2 / ISO 18000-6C / Label / Card. Adopt advanced plug-and-play USB communication interface without driver core technology, and realize connection with PC and related equipment through USB port. File Number：191021001 8 3.3 Product Feature  Card reader comes with a card reader antenna, working frequency is 902MHz-926MHz.  Effective distance 0 ~ 8cm (different according to different working environments and different cards).  The data receiving time within the effective distance is less than 90ms.  USB interface power + 5V power supply, working current is less than 150mA.  USB format data output. 3.4 Product Parameter Product Type UD18RW-E Product Standard EPCglobal UHF Class 1Gen 2/ISO 18000-6C Support Card EPCglobal UHF Class 1Gen 2/ISO 18000-6c/915MHz card/ label Frequency Band American standard: 902MHz-926MHz Power Supply DC 5V（±5%） Standby Current less than 70 mA Working Current less than 150 mA Read Card Distance 0--8cm (Related to different work environments and different cards.) Communication Interface USB analog keyboard output Operating Temperature -10°C~+50°C Storage Temperature -20°C~+80°C Product Size 107mm*107mm*23mm（Deviation±3mm） Cable length 1500MM

Guangdong ZK Radio Electronic Tech Co., Ltd Oct.13, 2020 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Explanation of differences between product types FCC ID : 2AKARUD18RW-F Model Number: UD18RW-F, UR20RW-F To Whom It May Concern: We, The Guangdong ZK Radio Electronic Tech Co., Ltd hereby declare that the model : UR20RW-F is identical with the model : UD18RW-F, except the model name. Except for the different above, no other modification is performed. Sincerely, Signature: Guangdong ZK Radio Electronic Tech Co., Ltd Contact person: lixue lan

Guangdong ZK Radio Electronic Tech Co., Ltd Agent Authorization Company: Guangdong ZK Radio Electronic Tech Co., Ltd Address: 1004 Room, 3 block B, Tian-an-Yun-Gu, Ban Tian Longgang,Shenzhen,China Product Name: UHF Card Issuer Model Number(s): UD18RW-F, UR20RW-F Product Description: UHF Card Issuer We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020-10-13 Name: lixue Company: Guangdong ZK Radio Electronic Tech Co., Ltd

Guangdong ZK Radio Electronic Tech Co., Ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020-09-22 Subject; Request for Confidentiality FCC ID: 2AKARUD18RW-F To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely Guangdong ZK Radio Electronic Tech Co., Ltd Guangdong ZK Radio Electronic Tech Co., Ltd Contact person: lixue

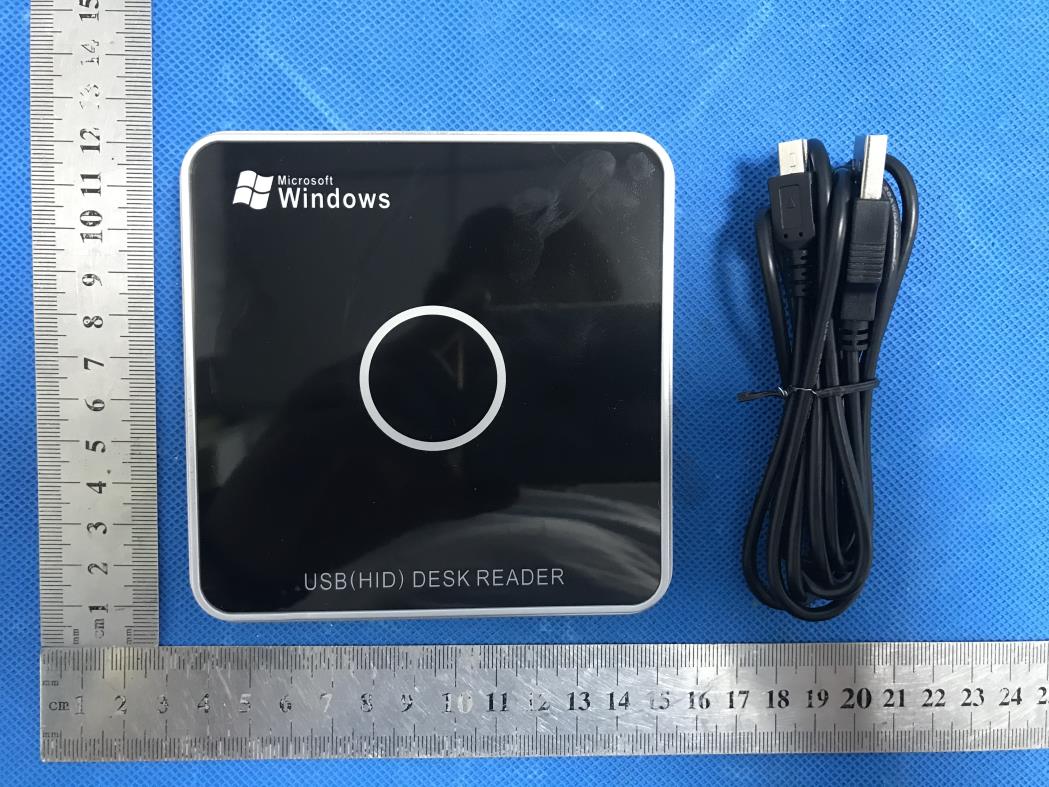

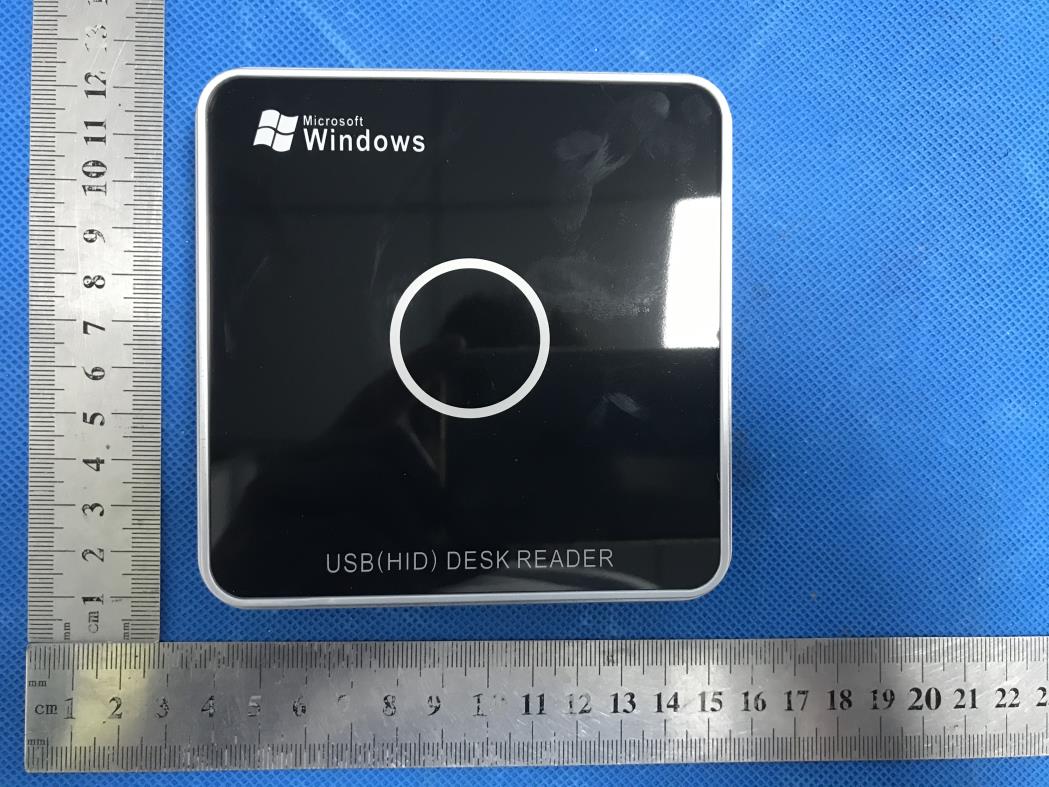

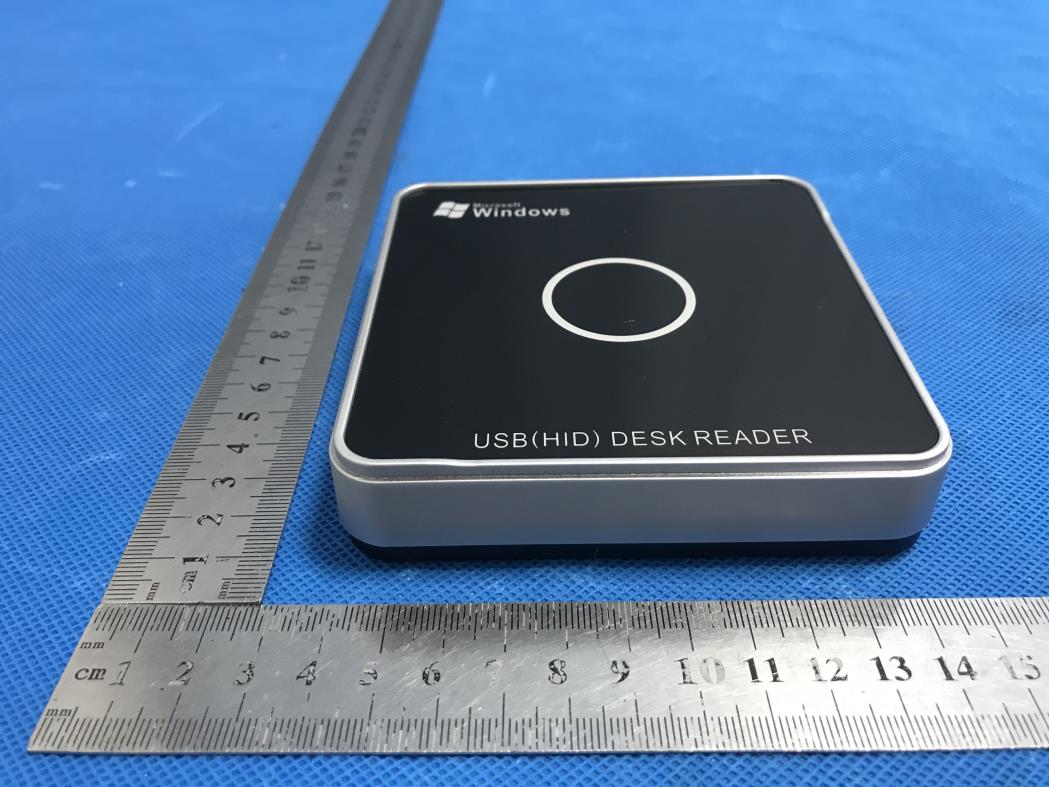

External Photos ALL VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location FCC ID: 2AKARUD18RW-F

Internal Photos OPEN VIEW-1 OF EUT OPEN VIEW-1 OF EUT INTERNAL VIEW-1 OF EUT INTERNAL VIEW-2 OF EUT INTERNAL VIEW-3 OF EUT INTERNAL VIEW-4 OF EUT Antenna

RF EXPOSURE EVALUATION 1. PRODUCT INFORMATION Product Description UHF Card Issuer Model Name UD18RW-F, UR20RW-F FCC ID 2AKARUD18RW-F 2. EVALUATION METHOD AND LIMIT Human exposure to RF emissions from mobile devices (47 CFR §2.1091) may be evaluated based on the MPE limits adopted by the FCC for electric and magnetic field strength and/or power density, as appropriate, since exposures are assumed to occur at distances of 20 cm or more from persons. LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE Frequency Range (MHz) E-field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Time |E| 2 , |H| 2 or S (Minutes) 0.3 -- 1.34 614 1.63 (100)* 30 1.34 -- 30 824/f 2.19/f (180/f 2 )* 30 30 -- 300 27.5 0.073 0.2 30 300 -- 1500 -- -- f/1500 30 1500 -- 100,000 -- -- 1.0 30 *Note: 1. f= Frequency in MHz * Plane-wave Equivalent Power Density 2. The averaging time for General Population/Uncontrolled exposure to fixed transmitters is not applicable for mobile and portable transmitters. See 47 CFR §§2.1091 and 2.1093 on source-based time-averaging requirement for mobile and portable transmitters. S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna CALCULATION A minimum test separation distance ≥ 20 cm is required between the antenna and radiating structures of the device and nearby persons to apply mobile device exposure limits. The distance must be at least 20 cm and fully supported by the operating and installation configurations of the transmitter and its antenna(s), according to the source-based time-averaged maximum power requirements of § 2.1091(d)(2). In cases where cable losses or other attenuations are applied to determine compliance, the most conservative operating configurations and exposure conditions must be evaluated. Antenna Gain=10dBi (Numeric 10), π=3.14 Note: 1. Only the worst case recorded. 3.conclusion Compliance the RF exposure requirement Frequency Output Power Output Power Power Density Power Density Limit MHz dBm mW mW/cm 2 mW/cm 2 902.4 22.016 159.07 0.3166 0.6016

Page 1 of 50 FCC Test Report Report No.: AGC00927191202FE03 FCC ID : 2AKARUD18RW-F APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : UHF Card Issuer BRAND NAME : ZKRADIO MODEL NAME : UD18RW-F, UR20RW-F APPLICANT : Guangdong ZK Radio Electronic Tech Co., Ltd DATE OF ISSUE : Nov. 24, 2020 STANDARD(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC00927191202FE03 Page 2 of 50 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Nov. 24, 2020 Valid Initial Release Report No.: AGC00927191202FE03 Page 3 of 50 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ............................................................................................................... 5 2. GENERAL INFORMATION ............................................................................................................................ 5 2.1. PRODUCT DESCRIPTION ..................................................................................................................... 6 2.2. TABLE OF CARRIER FREQUENCYS .................................................................................................... 6 2.3. RECEIVER INPUT BANDWIDTH ............................................................................................................ 7 2.4. EXAMPLE OF A HOPPING SEQUENCY IN DATA MODE ...................................................................... 7 2.5. EQUALLY AVERAGE USE OF FREQUENCIES AND BEHAVIOUR ....................................................... 7 2.6. RELATED SUBMITTAL(S) / GRANT (S) ................................................................................................. 7 2.7. TEST METHODOLOGY .......................................................................................................................... 7 2.8. SPECIAL ACCESSORIES ....................................................................................................................... 7 2.9. EQUIPMENT MODIFICATIONS .............................................................................................................. 7 2.10. ANTENNA REQUIREMENT .................................................................................................................. 7 3. MEASUREMENT UNCERTAINTY ................................................................................................................. 8 4. DESCRIPTION OF TEST MODES ................................................................................................................. 9 5. SYSTEM TEST CONFIGURATION ............................................................................................................. 10 5.1. CONFIGURATION OF EUT SYSTEM ................................................................................................... 10 5.2. EQUIPMENT USED IN EUT SYSTEM .................................................................................................. 10 5.3. SUMMARY OF TEST RESULTS ........................................................................................................... 10 6. TEST FACILITY ........................................................................................................................................... 11 7. PEAK OUTPUT POWER ............................................................................................................................. 12 7.1. MEASUREMENT PROCEDURE ........................................................................................................... 12 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................. 12 7.3. LIMITS AND MEASUREMENT RESULT ............................................................................................... 13 8. 20DB BANDWIDTH ..................................................................................................................................... 15 8.1. MEASUREMENT PROCEDURE ........................................................................................................... 15 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................. 15 8.3. LIMITS AND MEASUREMENT RESULTS ............................................................................................ 15 9. CONDUCTED SPURIOUS EMISSION ........................................................................................................ 17 9.1. MEASUREMENT PROCEDURE ........................................................................................................... 17 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................. 17 9.3. MEASUREMENT EQUIPMENT USED ................................................................................................. 17 9.4. LIMITS AND MEASUREMENT RESULT ............................................................................................... 17 Report No.: AGC00927191202FE03 Page 4 of 50 10. RADIATED EMISSION ............................................................................................................................... 22 10.1. MEASUREMENT PROCEDURE ......................................................................................................... 22 10.2. TEST SETUP ...................................................................................................................................... 24 10.3. LIMITS AND MEASUREMENT RESULT ............................................................................................. 25 10.4. TEST RESULT .................................................................................................................................... 25 11. NUMBER OF HOPPING FREQUENCY ..................................................................................................... 31 11.1. MEASUREMENT PROCEDURE ........…
