UR10RUHFCardIssuer ProductInstruction Product Overview UR10R UHF card issuer which can read data for User Area and EPC Area of UHF tags. Combined with UHF non-contact radio frequency circuits and various coding and decoding algorithms, this card issuer can read the labels and cards which support EPC global UHF Class1 Gen 2 and ISO18000-6C standard. Lt’s USB interface adopts the advanced plug and play interface without driver core technology to connect computer and other equipment. The card issuer control chip is provided with a watchdog and a voltage detection circuit, and has the advantage of stable reading performance. Features  Wiegand 26 output(Default); Wiegand 34 (Optional)  USB power supply, no drive  With antenna, active card search mode  Data Reception Time: less than 90ms  USB data format output Specifications ParameterDescription ModelUR10R-1E、UR10R-1F Support CardUHF Tags, UHF Cards Frequency Band920MHz-925 MHz Reading Distance20~40CM Effective distance is related to card reading environment and tags ProtocolEPC global UHF Class1 Gen 2, ISO 18000-6C Communication InterfaceUSB analog keyboard output Support Working UR10R-1E :Supporting Europe standard UHF reader UR10R-1F :Supporting American standard UHF reader Working VoltageDC 5V（±4%） Working Current50~300mA Working Temperature-10°C~+50°C StorageTemperature-20°C~+80°C ProductSize107mmx107mmx23mm(±1mm)(wirelength:1500mm) DEMOConfiguration Viathedemo,usercansetReadArea,outputFormat,WiegandOutputbytesparametersfor cardissuer,alsocanreaddatainformationofUHFcards. Notes 1.ThedemocanreadEPCAreaandUserAreadataofUHFcard. 2.AftertheDEMOsettingsarecompleted,disconnectthedemo,thenyouneedtowaitfor 1stousethetextordocumenttoobtaindata. 3.Inordertopreventduplicationofreadingcard,youshouldleavethecardareaabout 1stoswipeagain. 4.Readingcardsuccessfullyonce,theproptonealarmsonceandflashinggreenlight. 5.Openinganytextortakingatypewritingwindowasthecurrentwindow,thecardsnumber willbedisplayedinthewindow. 6.Whenthepowerison,thebuzzerringsabout400ms,whileswipingcards,thebuzzerrings about200ms. 7.ThecardissueroutputstheEPCbyte.(TID/USER(initialaddress)implementedlaterin theupgrade. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

[2019-10-17] Federal Communications Commission 445 12 th Street SW Washington, DC 20554 Subject: Limited Agency Agreement Guangdong ZK Radio Electronic Tech co. Ltd FCC ID: 2AKARUR10R-1F To Whom It May Concern: We, Guangdong ZK Radio Electronic Tech co. Ltd hereby authorized Intertek Testing Services to act as our Agent for the purpose of preparing application for FCC ID number (2AKARUR10R-1F) under all applicable parts of the FCC rules and regulations. The effective date of this limited agency agreement is (2019-10-17). The Limited Agency Agreement expires until further notice, unless sooner terminated or extended by written notice to Intertek Testing Services and the Federal Communications Commission. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. The applicant is not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 U.S.C. 862, and no party to the application is subject to a denial of federal benefits pursuant to that section. If you have any questions or comments, please do not hesitate to contact me. Sincerely, [Signature] Guangdong ZK Radio Electronic Tech co. Ltd Contact person: lixue lan

Sep. 02, 2019 Federal Communication Commission Authorization and Evaluation Division FCC ID: 2AKARUR10R-1F Re: Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1: Block Diagram 2: Schematics 3: Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rules 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Guangdong ZK Radio Electronic Tech co. Ltd Contact person: lixue lan

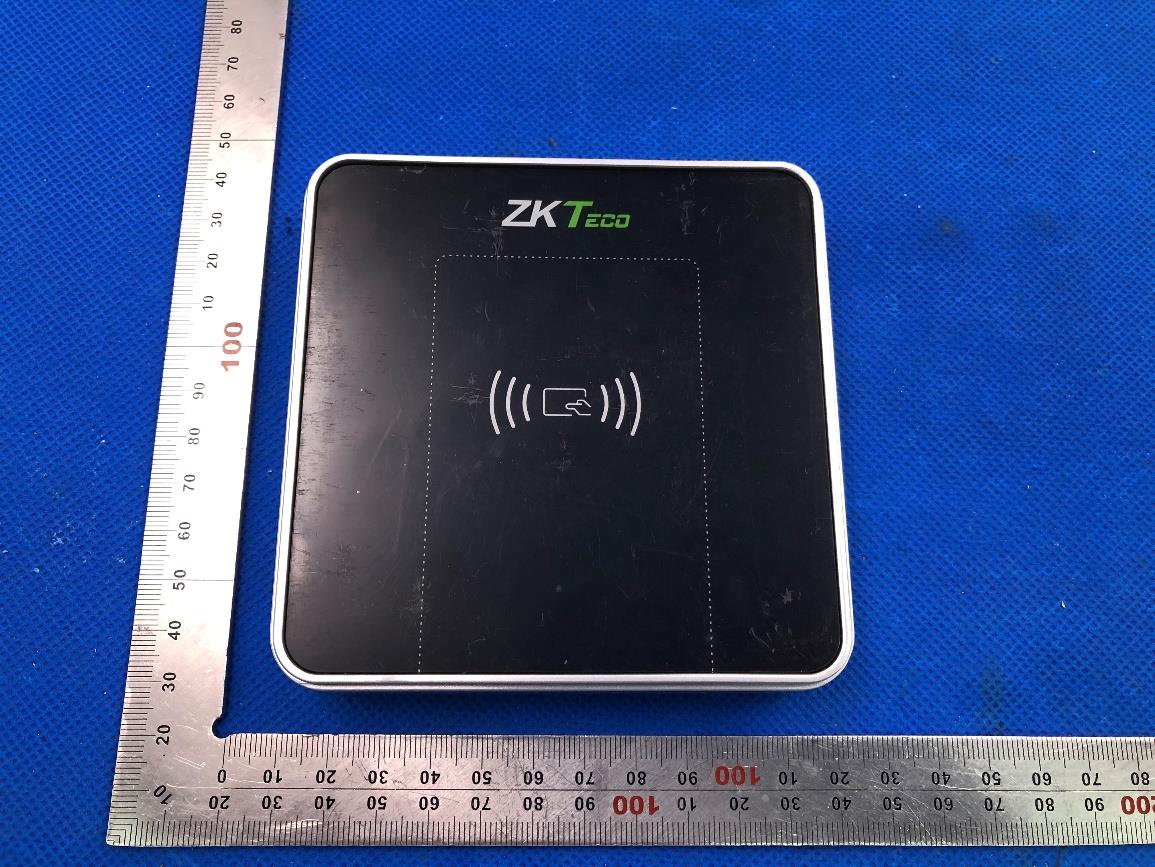

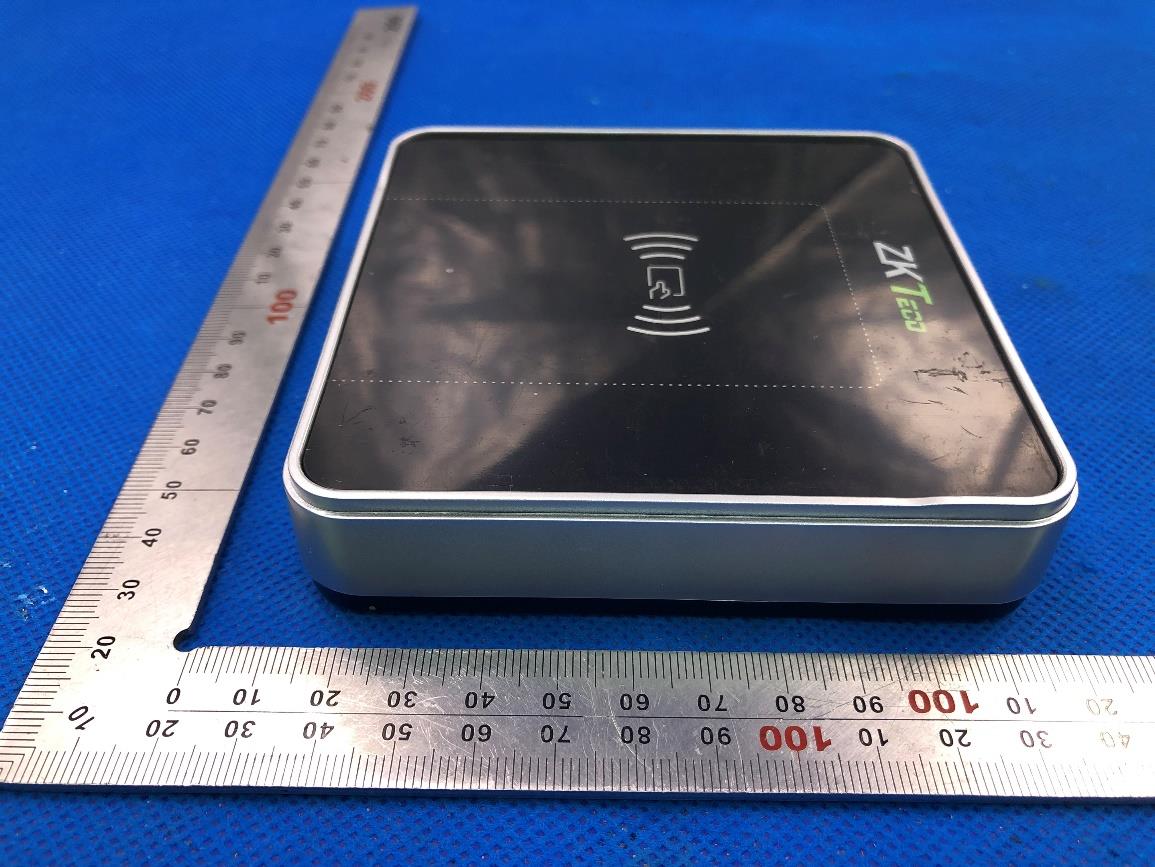

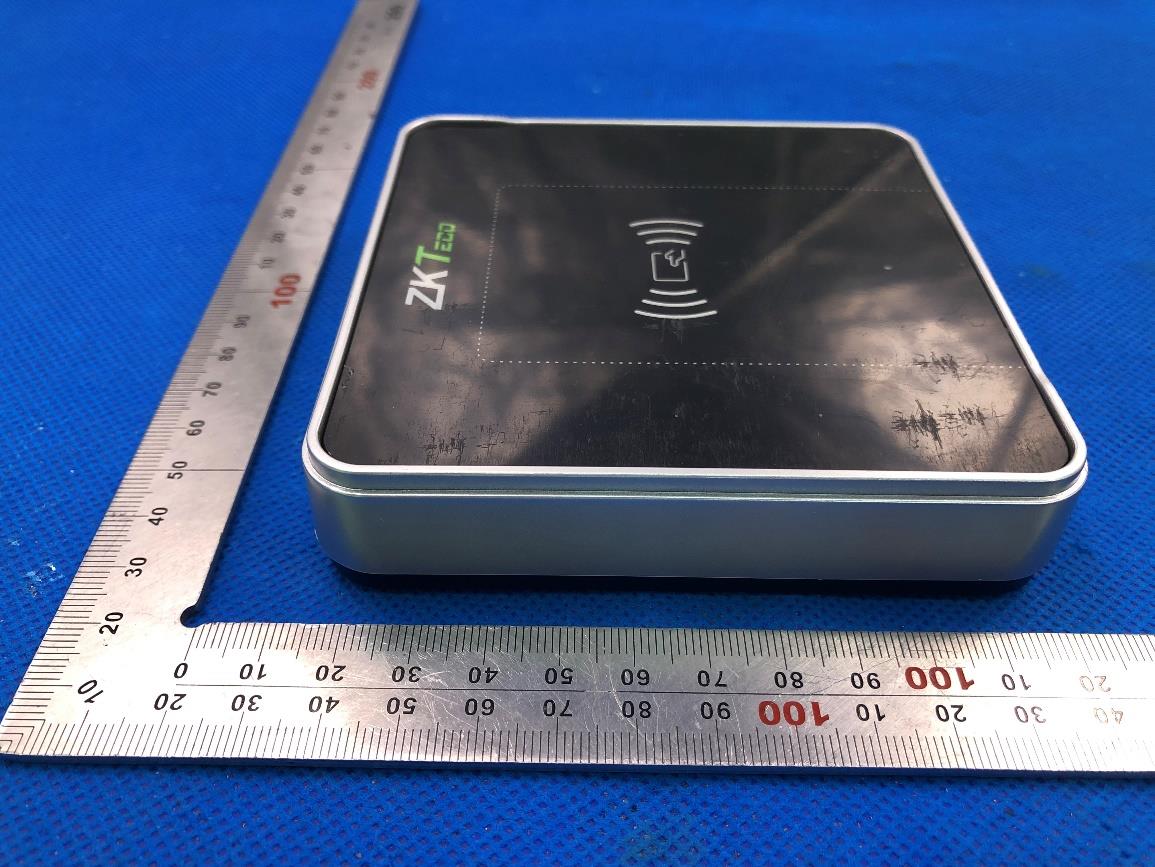

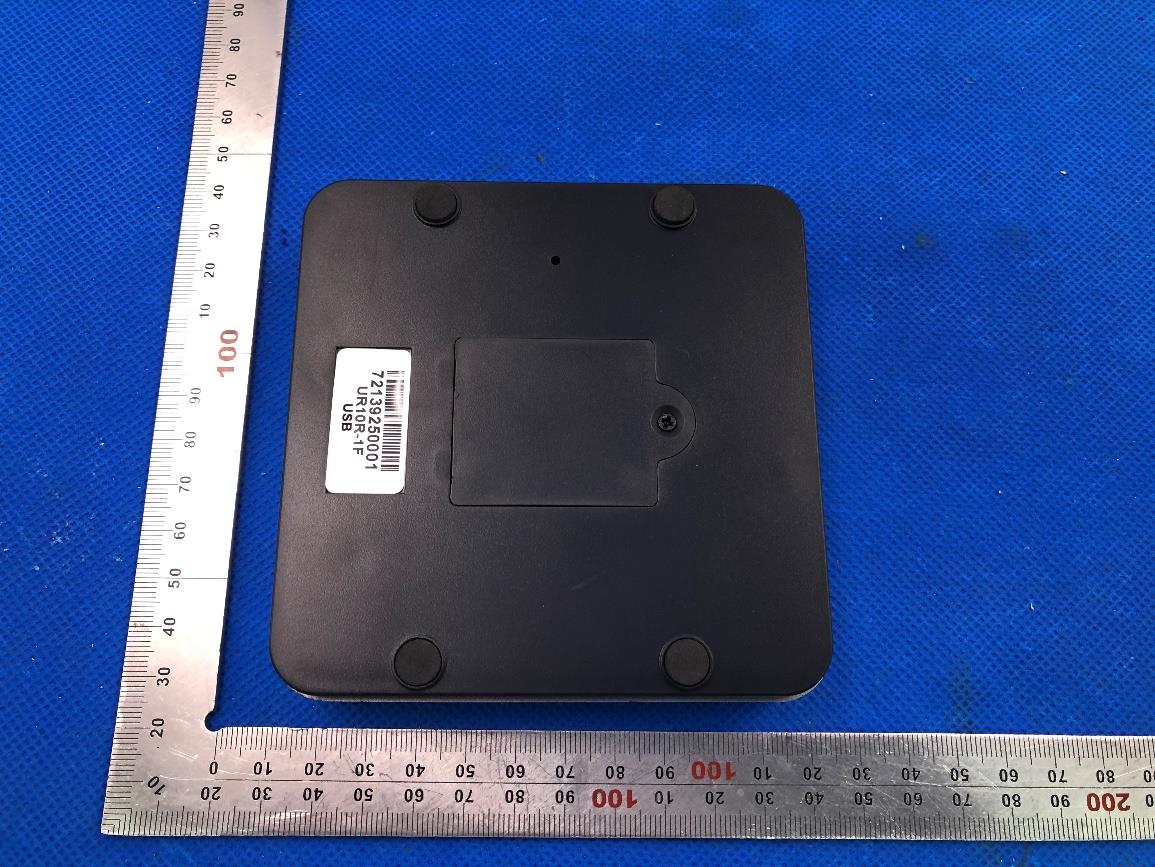

External Photos ALL VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location 20mm*20mm FCC ID: 2AKARUR10R-1F This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Internal Photos OPEN VIEW – 1 OF EUT INTERNAL VIEW-1 OF EUT INTERNAL VIEW-2 OF EUT INTERNAL VIEW-3 OF EUT INTERNAL VIEW-4 OF EUT INTERNAL VIEW-5 OF EUT Antenna INTERNAL VIEW-6 OF EUT

RF EXPOSURE EVALUATION 1. PRODUCT INFORMATION Product Description UHF Card Issuer Model Name UR10R-1F, UR10R-2F, UD11R-F, UD10R-F FCC ID 2AKARUR10R-1F 2. EVALUATION METHOD AND LIMIT Human exposure to RF emissions from mobile devices (47 CFR §2.1091) may be evaluated based on the MPE limits adopted by the FCC for electric and magnetic field strength and/or power density, as appropriate, since exposures are assumed to occur at distances of 20 cm or more from persons. LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE Frequency Range (MHz) E-field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Time |E| 2 , |H| 2 or S (Minutes) 0.3 -- 1.34 614 1.63 (100)* 30 1.34 -- 30 824/f 2.19/f (180/f 2 )* 30 30 -- 300 27.5 0.073 0.2 30 300 -- 1500 -- -- f/1500 30 1500 -- 100,000 -- -- 1.0 30 *Note: 1. f= Frequency in MHz * Plane-wave Equivalent Power Density 2. The averaging time for General Population/Uncontrolled exposure to fixed transmitters is not applicable for mobile and portable transmitters. See 47 CFR §§2.1091 and 2.1093 on source-based time-averaging requirement for mobile and portable transmitters. S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 3. CALCULATION A minimum test separation distance ≥ 20 cm is required between the antenna and radiating structures of the device and nearby persons to apply mobile device exposure limits. The distance must be at least 20 cm and fully supported by the operating and installation configurations of the transmitter and its antenna(s), according to the source-based time-averaged maximum power requirements of § 2.1091(d)(2). In cases where cable losses or other attenuations are applied to determine compliance, the most conservative operating configurations and exposure conditions must be evaluated. Antenna Gain=2dBi (Numeric 1.58), π=3.14 Note: 1. Only the worst case recorded. Frequency Output Power Output Power Power Density Power Density Limit MHz dBm mW mW/cm 2 mW/cm 2 920.0 25.650 367.28 0.116 1

Page 1 of 50 FCC Test Report Report No.: AGC00927190703FE03 FCC ID : 2AKARUR10R-1F APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : UHF Card Issuer BRAND NAME : ZK Radio MODEL NAME : UR10R-1F, UR10R-2F, UD11R-F, UD10R-F APPLICANT : Guangdong ZK Radio Electronic Tech Co., Ltd DATE OF ISSUE : Aug. 30, 2019 STANDARD(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC00927190703FE03 Page 2 of 50 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Aug. 30, 2019 Valid Initial Release Report No.: AGC00927190703FE03 Page 3 of 50 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ............................................................................................................... 5 2. GENERAL INFORMATION ............................................................................................................................ 6 2.1. PRODUCT DESCRIPTION ..................................................................................................................... 6 2.2. TABLE OF CARRIER FREQUENCYS ..................................................................................................... 6 2.3. RECEIVER INPUT BANDWIDTH ............................................................................................................ 7 2.4. EXAMPLE OF A HOPPING SEQUENCY IN DATA MODE ....................................................................... 7 2.5. EQUALLY AVERAGE USE OF FREQUENCIES AND BEHAVIOUR ........................................................ 7 2.6. RELATED SUBMITTAL(S) / GRANT (S) .................................................................................................. 7 2.7. TEST METHODOLOGY .......................................................................................................................... 7 2.8. SPECIAL ACCESSORIES ....................................................................................................................... 7 2.9. EQUIPMENT MODIFICATIONS .............................................................................................................. 7 3. MEASUREMENT UNCERTAINTY ................................................................................................................. 8 4. DESCRIPTION OF TEST MODES ................................................................................................................. 9 5. SYSTEM TEST CONFIGURATION ............................................................................................................. 10 5.1. CONFIGURATION OF EUT SYSTEM ................................................................................................... 10 5.2. EQUIPMENT USED IN EUT SYSTEM ................................................................................................... 10 5.3. SUMMARY OF TEST RESULTS ............................................................................................................ 10 6. TEST FACILITY ........................................................................................................................................... 11 7. PEAK OUTPUT POWER ............................................................................................................................. 12 7.1. MEASUREMENT PROCEDURE ........................................................................................................... 12 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 12 7.3. LIMITS AND MEASUREMENT RESULT ............................................................................................... 13 8. 20DB BANDWIDTH ..................................................................................................................................... 15 8.1. MEASUREMENT PROCEDURE ........................................................................................................... 15 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 15 8.3. LIMITS AND MEASUREMENT RESULTS ............................................................................................. 15 9. CONDUCTED SPURIOUS EMISSION ........................................................................................................ 17 9.1. MEASUREMENT PROCEDURE ........................................................................................................... 17 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 17 9.3. MEASUREMENT EQUIPMENT USED .................................................................................................. 17 Report No.: AGC00927190703FE03 Page 4 of 50 9.4. LIMITS AND MEASUREMENT RESULT ............................................................................................... 17 10. RADIATED EMISSION ............................................................................................................................... 22 10.1. MEASUREMENT PROCEDURE ......................................................................................................... 22 10.2. TEST SETUP ....................................................................................................................................... 24 10.3. LIMITS AND MEASUREMENT RESULT ............................................................................................. 25 10.4. TEST RESULT ..................................................................................................................................... 25 11. NUMBER OF HOPPING FREQUENCY ...............................................................................................…
