2AL8S-0211C5L1Wireless Moudle

Smart Interactive Display (Wireless Module) Quick Guide V1.00 1 1 Safety Instructions The device must be installed, serviced and maintained by a trained professional with necessary safety knowledge and skills. Before installation, be sure to carefully read and implement the safety instructions specified in this manual.  The device shall use an 100V to 240V AC, 50Hz/60Hz power supply. Non-compliant power supplies may cause device failure.  The power supply of the display system shall be in phase with that of the image controller and PC, but not in phase with high-power devices (such as high-power air conditioner).  All the grounding devices must be securely grounded, and the grounding wire of all the devices must be connected to an equipotential socket. The ground bus shall use multi-core copper wires. The ground bus must not be short circuited with the neutral wire of the power grid and must not be connected to the same socket with other devices. All the grounding points must be connected to the same grounding bar, and the voltage difference between devices must be zero.  The operating temperature for the device is 0°C to 50°C. Operation out of this range may cause device failure. The operating humidity is 10% to 90%. Use a dehumidifier if necessary.  Take effective measures to protect the power cord from being tramped or pressed.  Keep the device away from fire and water.  Do not open the cabinet as there are high voltage components inside.  Handle with care during transportation and installation. Do not knock, squeeze or carve the device with hard objects. User shall assume total responsibility for damages caused by improper user operations.  Use the device in a clean environment. The dust concentration shall meet the office environment requirements.  Installing or moving the device shall be done by more than two people. Avoid placing the device on uneven surfaces to prevent personal injury and device damage from tip-over.  Unplug the power cord before leaving this device unused for long periods. Do not turn on and off frequently. Wait at least 3 minutes before turning on/off again.  Do not insert objects of any kind into the device via the vent or input/output ports. It may cause short circuit, device failure, or electric shock.  When the device is moved from a cold environment to a warm environment, condensation may occur inside the device. Please wait for a while for the condensation to fully dissipate before powering on the device. 2 2 Packing List The package contents may vary with device model. No. Name Qty Unit 1 Smart interactive display 1 PCS 2 Wireless module 1 PCS 3 Power cable 1 PCS 4 Touch pen 2 PCS 5 Remote control 1 PCS 6 Wall mount bracket 1 Set 7 Product documents 1 Set 3 Product Overview The appearance and interfaces may vary with device model. 3.1 Appearance Figure 3-1 Front View 324321 3 Figure 3-2 Rear View 1. Front interfaces 2. Touch pen slot 3. Speaker 4. Front buttons 5. Module connector 6. OPS slot 7. Side interfaces 8. Bottom interfaces 9. Mount bracket hole 10. wireless module slot 11. Power interface, power switch 12. Handle 3.2 Interfaces/Buttons Figure 3-3 Front Interfaces 6 7 11 12 5 89 910 IR IN/Photosensitive sensor 4 Figure 3-4 Front Buttons Figure 3-5 Side Interfaces Figure 3-6 Bottom Interfaces Figure 3-7 Power Interface Interfaces/Buttons Description IR IN/Photosensitive sensor  IR IN: Infrared receiver for receiving infrared signals from the remote control.  Photosensitive sensor: Used to adjust the screen brightness automatically based on the ambient light intensity. RESET OPS reset button, when the device runs in Windows, press the button to restore the Windows settings to factory defaults. USB USB interface, connects to a USB device such as USB flash drive (used to receive upgrade packages and files), keyboard and mouse (used to control the device). Power interface Power switch 5 Interfaces/Buttons Description HDMI HDMI input interface, connects to a video source device for video signal input. TOUCH OUT Touch output interface, connects to the same video source device with video input interfaces, such as PC, for touch control to the video source device. TYPE-C Type-C interface, supports video input, data transmission, TOUCH output, fast charging, etc. OPS OPS switch button, when an OPS module is installed on this device and the device is using other signal sources, press the button to switch to Windows system; if no OPS module is installed, the screen shows no signal. Input source, press to switch signal input sources. Fn Custom button (reserved). Power button, when the device is powered on but not started, press the button to start the device; when the device is operating, press the button to select the power status. You can check the device status through the indicator.  Red: The device is powered on but not started.  White: The device is starting/running normally.  Off: The device is powered off. / Used to adjust the volume. Used to configure the device, such as network. DP DP input interface, connects to a video source device for video signal input. HDMI OUT HDMI video output interface, connects to a display device for video signal output. TF CARD TF card slot for storage expansion. COAX/OPT Audio output interface, connects to an audio playing device for audio signal output. RS232 RS232 serial port, connects to an RS232 device such as PC for control signal input. 6 Interfaces/Buttons Description AV IN AV input interface, connects to a video source device for video signal input. AV OUT AV output interface, connects to a display device for video signal output. EAR OUT Audio output interface, connects to an audio playing device such as earphone for audio signal output. MIC IN Audio input interface, connects to an audio collection device such as microphone for audio signal input. LAN IN Gigabit Ethernet port, connects to a LAN device such as switch for Ethernet access. This interface supports network penetration. Android and Wi…

Text truncated - open the document above for the full version.

1 Regulatory Compliance The regulatory compliance information on this sheet shall prevail over any inconsistent contents on the quick guide. FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Visit http://en.uniview.com/Support/Download_Center/Product_Installation/Declar ation/ for SDoC Caution: The user is cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. RF Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated 2 with a minimum distance of 20cm between the radiator and any part of your body. LVD/EMC/RE Directive This product complies with the European Low Voltage Directive 2014/35/EU, EMC Directive 2014/30/EU and RE Directive 2014/53/EU. WEEE Directive–2012/19/EU The product this manual refers to is covered by the Waste Electrical & Electronic Equipment (WEEE) Directive and must be disposed of in a responsible manner. Battery Directive-2013/56/EU Battery in the product complies with the European Battery Directive 2013/56/EU. For proper recycling, return the battery to your supplier or to a designated collection point. IC Statement This device complies with Innovation, Science and Economic Development Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Innovation, Sciences et Dé- veloppement économique Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Cet équipement est conforme aux limitedevraits d'exposition aux rayonnements CNR-102 établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec une distance minimale de 20 cm entre le radiateur et votre corps.

ZHEJIANG UNIVIEW TECHNOLOGIES CO LTD Date: 3/23/2023 Federal Communications Commissions Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 RE: CFR 47 §2.911 (d)(5) Attestation FCC ID: 2AL8S-0211C5L1 1. ZHEJIANG UNIVIEW TECHNOLOGIES CO LTD (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. 2. ZHEJIANG UNIVIEW TECHNOLOGIES CO LTD (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment and is not an affiliate or subsidiary of an entity identified on the Covered List. Sincerely yours, Name: Feng Xu Company Name: ZHEJIANG UNIVIEW TECHNOLOGIES CO LTD Address：88 JIANG LING ROAD BINJIANG DISTRICT HANGZHOU China

ZHEJIANG UNIVIEW TECHNOLOGIES CO LTD Date: 3/23/2023 Federal Communications Commissions Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 RE: CFR 47 §2.911 (d)(7) Agent Designation Attestation FCC ID: 2AL8S-0211C5L1 ZHEJIANG UNIVIEW TECHNOLOGIES CO LTD (“the applicant”) as required by section 2.911(d)(7), designates the following agent, located in the United States, for purposes of acting as the applicant’s agent for service of process. The applicant acknowledges that they will maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility under CFR 47 §2.929(c) to inform the FCC whenever the agent information changes. U.S. Agent Information: Agent Company Name：VISHTEC LLC FCC FRN: 0033407131 Agent Contact Name：Alan Graham Agent US Address：9888 W Belleview Ave Ste 2142 Denver, CO 80123 United States Agent Email Address：[email protected] Sincerely yours, Name: Feng Xu Company Name:ZHEJIANG UNIVIEW TECHNOLOGIES CO LTD Address：88 JIANG LING ROAD BINJIANG DISTRICT HANGZHOU China

VISHTECLLC Date: 3/27/2023 Federal Communications Commissions Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 RE: CFR 47 §2.911 (d)(7) FCC US Agent Letter of Attestation Grantee Code: 2AL8S To whom it may concern: FCC US Agent Agent Company Name：VISHTEC LLC FCC FRN: 0033407131 Agent Contact Name ： Alan Graham Agent US Address ： 9888 W Belleview Ave Ste 2142 Denver, CO 80123 United States Agent Email Address：[email protected] This letter is to confirm that we have accepted the responsibility to act as US Agent on behalf of ZHEJIANG UNIVIEW TECHNOLOGIES CO LTD (“the applicant”) We are aware of the requirements and responsibilities of the applicant’s agent for service of process as outlined in the FCC section 2.911(d)(7) and Report and Order FCC 22-84 paragraph 63. Sincerely, Signature AuthorizedAgent ContactPersonName：Alan Graham Agent contactJob Title: ComplianceManager Agent Companyname :VISHTECLLC

ZHEJIANG UNIVIEW TECHNOLOGIES CO LTD Date: 03/23/2023 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 To whom it may concern: I, the undersigned, hereby authorize UL Verification Services Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Verification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Verification Services Inc. as our representative, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signed by: Name: Feng Xu Company Name:ZHEJIANG UNIVIEW TECHNOLOGIES CO LTD Address：88 JIANG LING ROAD BINJIANG DISTRICT HANGZHOU China

ZHEJIANG UNIVIEW TECHNOLOGIES CO LTD Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: 2AL8S-0211C5L1 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Name: Feng Xu Company Name:ZHEJIANG UNIVIEW TECHNOLOGIES CO LTD Address：88 JIANG LING ROAD BINJIANG DISTRICT HANGZHOU China Date:03/23/2023

ZHEJIANG UNIVIEW TECHNOLOGIES CO LTD DATE : 03/23/2023 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Request for Short-Term Confidentiality Company name: FCC ID: 2AL8S-0211C5L1 FCC Part 15 Certification Pursuant to Sections 0.457 and 0.459 of the commission rules, and in accordance with the FCC Public notice dated June 15, 2004 (DA 04-1705), we hereby request short-term confidentiality for the following items prior to marketing the device.: (1) Test Setup Photos (2) External Photos (3) Internal Photos (4) User Manual The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Sincerely, Name: Feng Xu Company Name: ZHEJIANG UNIVIEW TECHNOLOGIES CO LTD Address：88 JIANG LING ROAD BINJIANG DISTRICT HANGZHOU China Date:03/23/2023

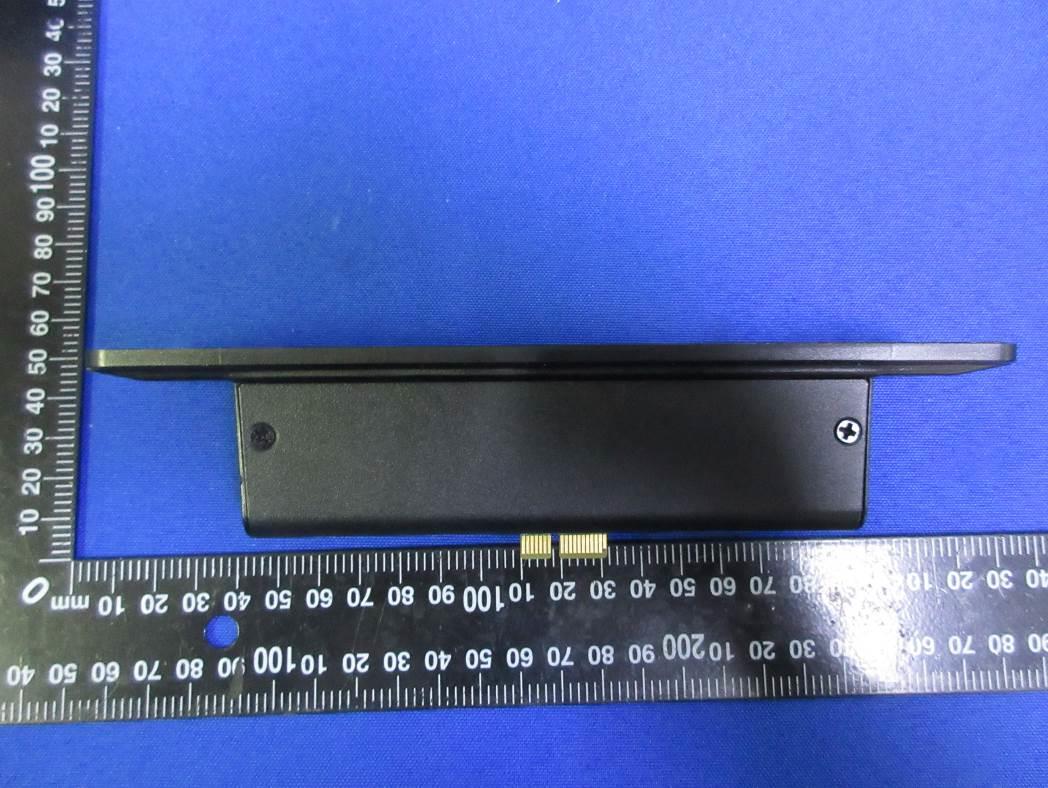

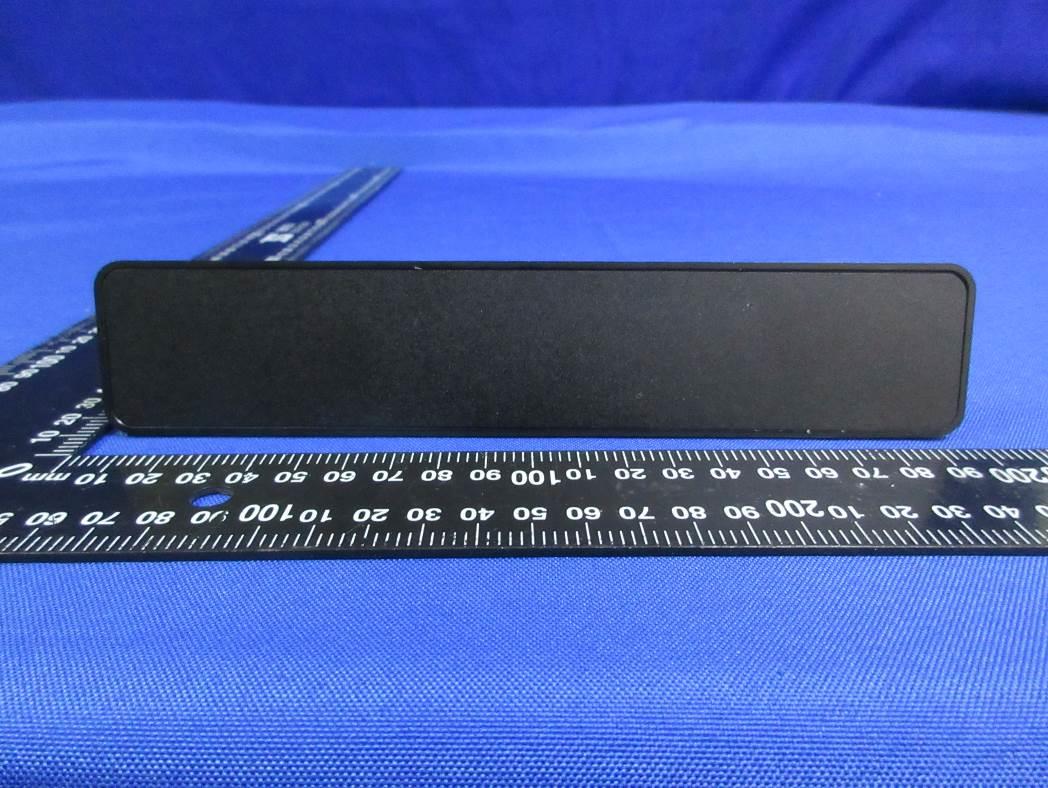

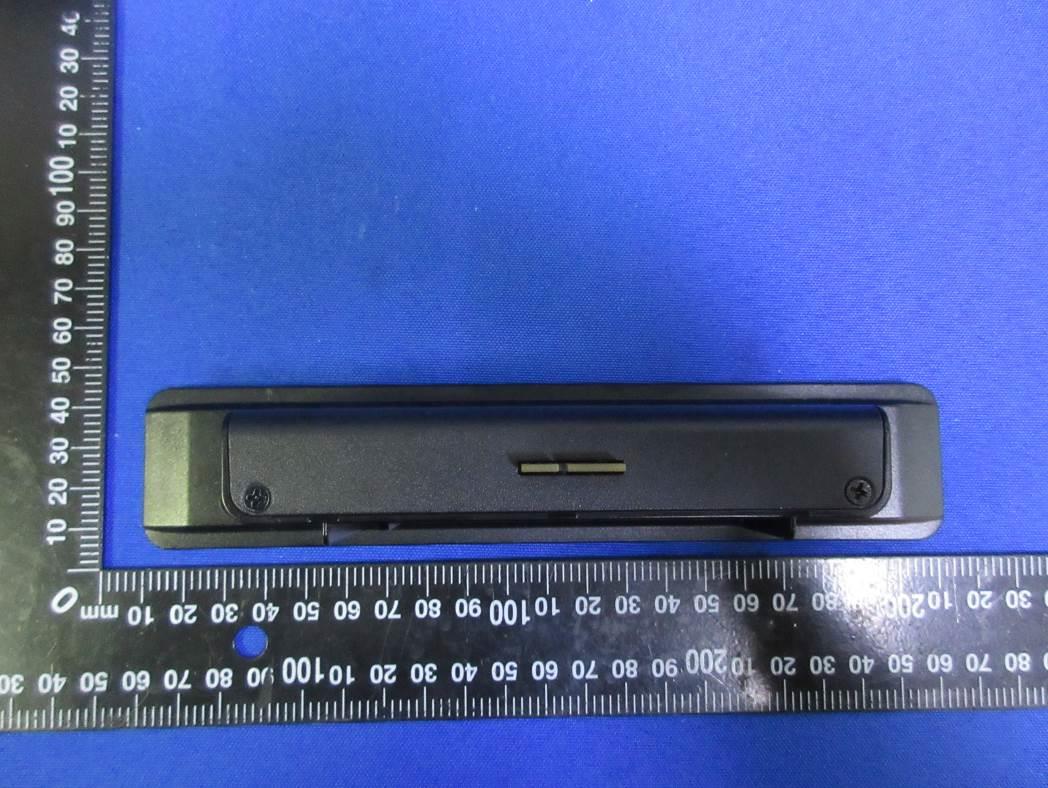

Appendix I External Photographs Page 2 of 5 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. All View of EUT Page 3 of 5 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Top View of EUT Bottom View of EUT Page 4 of 5 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Front View of EUT Back View of EUT Page 5 of 5 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Left View of EUT Right View of EUT

Label: Locate on the bottom surface. The label is attached to the surface of the product with a permanent adhesive. The label is attached to the surface of the product with a permanent adhesive.

Appendix II Internal Photographs Page 2 of 5 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Open View of EUT Internal View of EUT-1 Page 3 of 5 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-2 Internal View of EUT-3 Page 4 of 5 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-4 Internal View of EUT-5 Page 5 of 5 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Location of RF Module and RF Antenna_1 Location of RF Antenna_2

Form-ULID-008536-13 V3.0 The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. FCC RF EXPOSURE REPORT For Wireless Moudle MODEL NUMBER: VS0B9MW3565UE PROJECT NUMBER: 4790751248 REPORT NUMBER: 4790751248-15 FCC ID: 2AL8S-0211C5L1 ISSUE DATE: Apr. 12, 2023 Prepared for ZHEJIANG UNIVIEW TECHNOLOGIES CO., LTD Prepared by UL-CCIC COMPANY LIMITED No. 2, Chengwan Road, Suzhou Industrial Park, Suzhou 215122, China Tel: + 86-512-6808 6400 Fax: + 86-512-6808 4099 Website: www.ul.com REPORT NO: 4790751248-1 Page 2 of 9 Form-ULID-008536-13 V3.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Revision History Rev. Issue Date Revisions Revised By V0 04/12/2023 Initial Issue REPORT NO: 4790751248-1 Page 3 of 9 Form-ULID-008536-13 V3.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS .................................................................................... 4 2. TEST METHODOLOGY ........................................................................................................ 5 3. FACILITIES AND ACCREDITATION .................................................................................... 5 4. MEASUREMENT UNCERTAINTY ........................................................................................ 6 5. REQUIREMENT .................................................................................................................... 7 REPORT NO: 4790751248-1 Page 4 of 9 Form-ULID-008536-13 V3.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. 1. ATTESTATION OF TEST RESULTS Applicant Information Company Name: ZHEJIANG UNIVIEW TECHNOLOGIES CO., LTD Address: 88 JIANGLING RD BINJIANG DISTRICT HANGZHOU ZHEJIANG 310051 CHINA Manufacturer Information Company Name: ZHEJIANG UNIVIEW TECHNOLOGIES CO., LTD Address: 88 JIANGLING RD BINJIANG DISTRICT HANGZHOU ZHEJIANG 310051 CHINA EUT Description Product Name: Wireless Moudle Model Name: VS0B9MW3565UE Sample Number: 5811281 Data of Receipt Sample: Feb. 21, 2023 Test Date: Feb. 23, 2023~ Apr. 11, 2023 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC 47CFR§2.1091 KDB-447498 D01 V06 Complies Prepared By: Reviewed By: Tom Tang Leon Wu Authorized By: Chris Zhong EMC&RF Lab Operations Manager REPORT NO: 4790751248-1 Page 5 of 9 Form-ULID-008536-13 V3.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. 2. TEST METHODOLOGY The tests documented in this report were performed in accordance with KDB 447498 D01 General RF Exposure Guidance v06. 3. FACILITIES AND ACCREDITATION Accreditation Certificate A2LA (Certificate No.: 4829.01) UL-CCIC COMPANY LIMITED has been assessed and proved to be in compliance with A2LA. FCC (FCC Designation No.: CN1247) UL-CCIC COMPANY LIMITED has been recognized to perform compliance testing on equipment subject to the Commission's Declaration of Conformity (DoC) and Certification rules. IC (IC Designation No.: 25056; CAB No.: CN0073) UL-CCIC COMPANY LIMITED has been recognized to perform compliance testing on equipment subject to the Commission's Declaration of Conformity (DoC) and Certification rules. Note 1: All tests measurement facilities use to collect the measurement data are located at No. 2, Chengwan Road, Suzhou Industrial Park, Suzhou 215122, China Note 2: For below 30MHz, lab had performed measurements at test anechoic chamber and comparing to measurements obtained on an open field site. These measurements below 30MHz had been correlated to measurements performed on an OFS. Note 3: The test anechoic chamber in UL-CCIC COMPANY LIMITED had been calibrated and compared to the open field sites and the test anechoic chamber is shown to be equivalent to or worst case from the open field site. REPORT NO: 4790751248-1 Page 6 of 9 Form-ULID-008536-13 V3.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. 4. MEASUREMENT UNCERTAINTY Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the apparatus: Test Item Uncertainty Maximum Conducted Output Power ± 0.69 dB Note: This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. REPORT NO: 4790751248-1 Page 7 of 9 Form-ULID-008536-13 V3.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. 5. REQUIREMENT LIMIT Limits for General Population/Uncontrolled Exposure Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) PowerDensity (S) (mW/cm 2 ) Averaging Time |E| 2 , |H| 2 or S (minutes) 0.3-1.34 614 1.63 (100) * 30 1.34-30 824/f 2.19/f (180/f2) * 30 30-300 27.5 0.073 0.2 30 300-1500 -- -- f/150 30 1500-100,000 -- -- 1.0 30 Note 1: f = frequency in MHz, * means Plane-wave equivalent power density Note 2: General population/uncontrolled exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or cannot exercise control over their exposure. Note 3: The limit value 1.0mW/cm 2 is available for this EUT. MPE CALCULATION METHOD S =PG/(4πR2) where: S = power density (…
