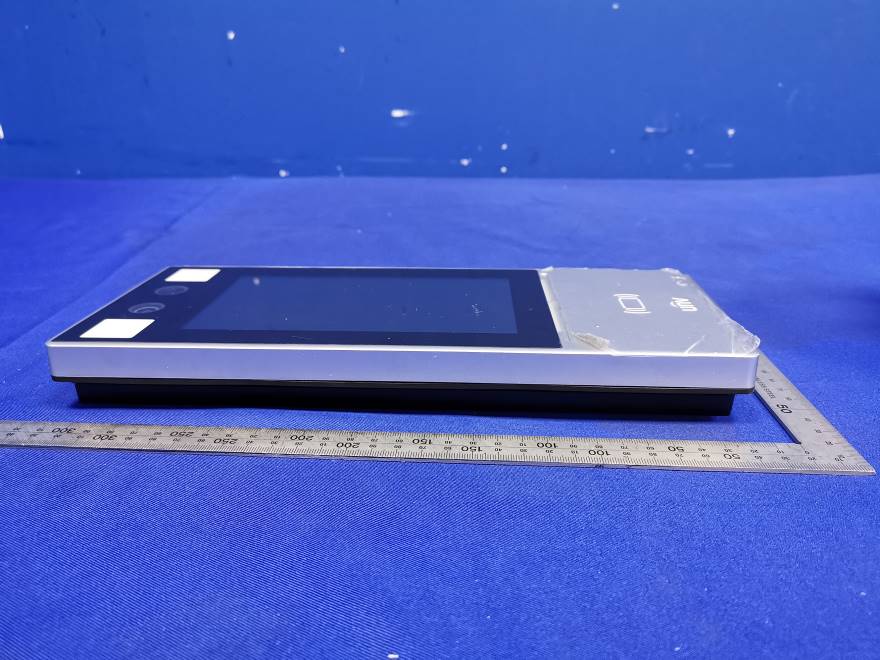

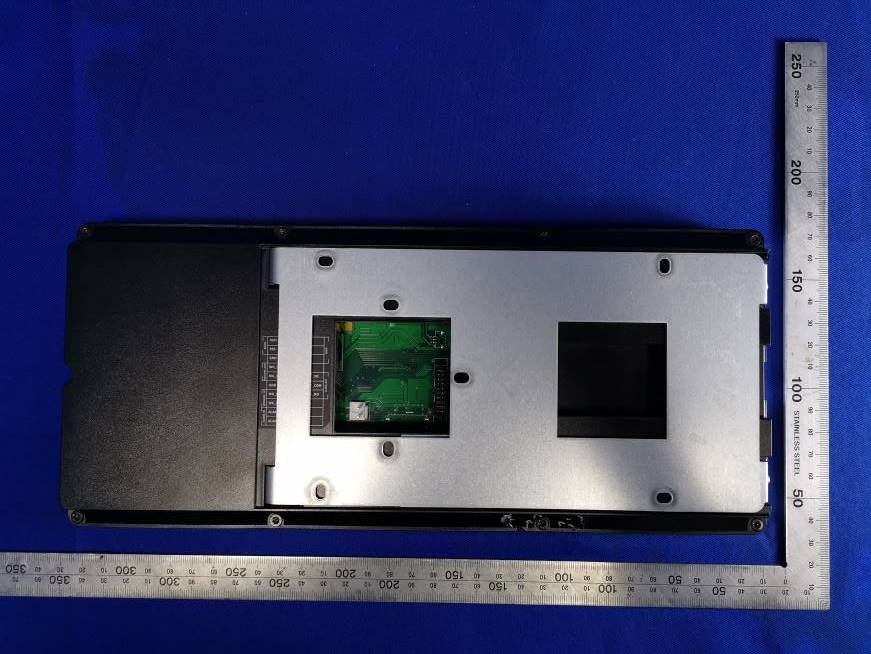

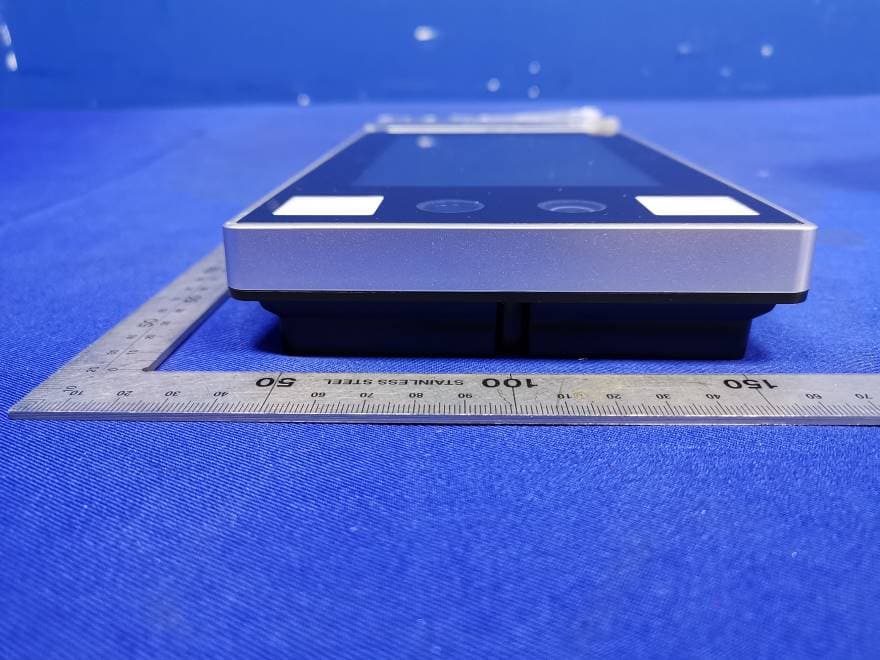

2AL8S-0235C4CFFace Recognition Access Control Terminal

V1.00 Face Recognition Access Control Terminal Quick Guide Contents 1 Packing List ······················································································································ 1 2 Product Overview ············································································································ 1 2.1 Appearance and Dimension ··············································································· 2 2.2 Structure Description··························································································· 3 3 Device Installation ··········································································································· 4 3.1 Installation Environment ····················································································· 4 3.2 Device Wiring ····································································································· 4 3.3 Tools Preparations ······························································································· 6 3.4 Installation Steps ································································································· 6 4 Device Startup ················································································································· 8 5 Web Login ························································································································ 9 6 Personnel Management ·································································································· 9 7 Appendix ························································································································ 10 7.1 Face Recognition Precautions ············································································ 10 7.1.1 Face Photo Collection Requirements ···················································· 10 7.1.2 Face Match Position ·············································································· 11 7.1.3 Face Match Posture ··············································································· 11 Disclaimer and Safety Warnings ······················································································· 13 1 1 Packing List No. Name Qty Unit 1 Face recognition access control terminal 1 PCS 2 Screw component 1 Set 3 Bracket 1 PCS 4 T10 box-end wrench with hole-L shape 1 PCS 5 Installation sticker 1 PCS 6 20-pin cable 1 PCS 7 2- pin power cable 1 PCS 8 User manual 1 PCS 2 Product Overview The face recognition access control terminal OET-213H series features high performance and high reliability. It perfectly integrates UNV face recognition technology, and supports face scanning-based verification and door opening by relying on the deep learning algorithm, thereby implementing accurate control of personnel access. Visitors can call the indoor unit of a resident so that the resident opens the door remotely. The product is highlighted by high recognition rate, large storage capacity, and fast recognition. The access control terminal also supports attendance, and other functions. It can be widely applied in building systems in smart communities, public security, campuses, and other similar scenes. 2 2.1 Appearance and Dimension The actual device appearance shall prevail. The figure below shows the dimension of the device. A waterproof hood is required in waterproof installation. The figure below shows the dimensions of the waterproof hood. 3 2.2 Structure Description The figure below shows the structure of the device. The actual device shall prevail. Figure 2-1 Device Structure 1.Light supplement lamp 1 2.Infrared camera 3.Infrared light supplement lamp 4.Visible light camera 5.Light supplement lamp 2 6.Display screen 7.Pass-through indicator 8.Microphone 9.Card reading area 10.Loudspeaker 11.Reset button 12.USB2.0 13.Network interface 14.Power input (DC 12V±25%) 15.20-pin interface 16.Tamper proof button 1 2 3 4 5 6 7 9 13 14 15 16 8 10 11 12 4 3 Device Installation 3.1 Installation Environment Try to avoid intense direct light and intense backlighting scenes when installing the device. Please keep the ambient light bright. 3.2 Device Wiring 1 Wiring Embedding Before installing the face recognition access control terminal, plan the layout of cables, including the power cable (for the diameter selection for the extension power cable, see Ta b l e 3-1), network cable, door lock cable, Wiegand cable, alarm cable, and RS485 (RS232) cable. The number of cables depends on the actual networking conditions. For details, see Wiring Description. Table 3-1 Diameter Selection Table for Extension Power Cables DC 12V/2A for power supply; the lower limit for the operating voltage is DC 9V (12V-25%) Wire Diameter (mm) 0.8mm 1mm 1.25mm 1.63mm (20AWG) (18AWG) (16AWG) (14AWG) Transmission Distance (m) 18 37 58 99 2 Wiring Description The figures below show the wiring between the access control terminal and different devices. For the wiring terminal of each device, see the operation manual of the device or consult related manufacturers. NOTE! In the wiring schematic diagrams, input devices and output devices are defined as follows: • Input devices refer to devices that send signals to the access control terminal. • Output devices refer to devices that receive output signals from the access control terminal. 5 Figure 3-1 Wiring Schematic Diagrams (without Security Module) The face recognition access control terminal can be also connected to a security module. The figure below shows the wiring of the security module. Figure 3-2 Wiring Schematic Diagrams (with Security Module) Power input Alarm input Alarm output RS485 Wiegandoutput Wiegandinput Door lock VDD12V RED GND BLACK +12V GND GND BLACK ALARM_IN1 WHITE/BLUE ALARM_IN0 WHITE/GREEN ALARM_OUT_NO WHITE/ORANGE ALARM_OUT_NC GREEN ALARM_OUT_COM WHITE/PURPLE RS485_P ORANGE RS485_N PURPLE GND BLACK WG_IN_D0 WHITE/BLACK WG_IN_D1 WHITE/RED GND BLACK WG_OUT_D0 BL…

Text truncated - open the document above for the full version.
