2AL8S-0235C4PXIP Camera

Mini PTZ Network Fixed Dome Cameras Quick Guide V2.01 1 Waterproof Requirements Please waterproof cables in accordance with the following instructions. User shall assume all responsibility for device damage caused by water due to improper waterproof measures. NOTE! ⚫ Before you start, connect all the needed cables and cut off the copper wires for the cables that you don't use. ⚫ Please use self-adhesive waterproof tape (supplied with some products) to protect the cables. ⚫ Use waterproof components to protect the network cable. Waterproof the power cable separately if you don’t use it. The video cable does not need waterproof treatment. 1. Use insulation tape (not included in the package) to insulate the connection part of each cable. 2. Waterproof the cables with self-adhesive waterproof tape. (1) Fully stretch the waterproof tape at both ends. (2) Wrap the connection part and the cable ends tightly with waterproof tape. Make sure the tape is fully stretched during the process. (3) Tighten the tape at both ends to prevent water leakage. Connection part Insulation tape Wrap the unused cables together into a bundle TightenTighten Waterproof tape Tighten 2 3. Install the supplied waterproof components to the network cable in sequence. CAUTION! You need to mount the rubber ring onto the network cable interface first. 4. If your camera has a DC cable and you will not use it, insert the plug into the interface. 5. (Optional) After the waterproof treatment is completed, put the cables into a waterproof junction box (purchased separately). CAUTION! ⚫ The cable connector must not be exposed and must be kept away from water. ⚫ Restore and fasten the device after dismounting. ⚫ Place the power adapter in a power distribution box. DC interface Plug 3 1 Packing List Contact your local dealer if the package is damaged or incomplete. The attachments may vary with models, please see the actual model for details. Item Quantity Camera 1 User document 1 Accessory pack 1 2 Safety and Compliance Information 2.1 Installation ⚫ Make sure the camera operates in an environment where the temperature and humidity meet requirements. Keep the camera from excessive pressure, vibration, moisture, dust, and intensive electromagnetic radiation. ⚫ Use a power adapter or a PoE device that meets requirements. Otherwise, the device may be damaged. ⚫ Make sure the length of the power cable between the power adapter and the camera is not too long, otherwise the voltage of the camera is lowered, causing the camera to work abnormally. If it is required to lengthen the power cable, lengthen the cable between the power adapter and the mains. ⚫ Do not hold the tail cable by hand for weight bearing. Otherwise, the cable connector of the camera could be loosened. ⚫ When connecting to an external interface, use an existing connection terminal, and ensure that the cable terminal (latch or clamp) is in good condition and properly fastened. Ensure that the cable is not tense during mounting, with a proper margin reserved to avoid poor port contact or loosening caused by shock or shake. ⚫ During the process of transportation, special attention is required for the protection of the glass window to prevent friction, scratch and contamination, etc. In order to keep the cover clean, do not remove the protective film on the cover during mounting. After mounting is finished, remove the film before the device is powered on. 4 ⚫ Contact professionals for maintenance information. Do not attempt to dismantle the device by yourself. We shall not assume any responsibility for problems caused by unauthorized repair or maintenance. 2.2 Maintenance ⚫ Caution: There will be risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. ⚫ If there is dust on the glass window surface, remove the dust gently using an oil- free brush or a rubber dust blowing ball. ⚫ If there is grease or a dust stain on the glass window surface, clean the glass window surface gently from the center outward using lens cleaning cloth. If the grease or the stain still cannot be removed, use lens cleaning cloth dipped with detergent and clean the glass window surface gently until it is removed. ⚫ Do not use organic solvents, such as benzene or ethanol when cleaning the transparent dome cover. ⚫ Make sure the lens cleaning cloth is clean itself. ⚫ Never look at the transmit laser while the power is on. Never look directly at the fiber ports and the fiber cable ends when they are powered on. ⚫ Use of controls or adjustments to the performance or procedures other than those specified herein may result in hazardous laser emissions. 3 Appearance 3.1 Dimensions The figures in the manual are for your reference only. The actual appearance may vary with the product model. 5 3.2 Cable Connection The appearance and tail cable may vary with device model. NOTE! For specifications, see the latest product datasheet. 4 Mount Your Camera 4.1 (Optional) Insert Micro SD Card To use the local storage function, you need to install a Micro SD card into the camera. The SD card is installed inside the camera. To install the SD card, you need to remove the back cover of the camera first. Do not hot plug the Micro SD card after it is inserted. Otherwise the camera or the SD card might be damaged. Contact your dealer for the recommended specifications of the Micro SD card. ∅129.0mm (5.1") S100.0mm (3.9") 1 4 3 . 6 m m ( 5 . 7 " ) ø 108 . 5 mm ( 4 . 3 ") 3 - 4 . 0 mm ( 0 . 16 ") 1 /4 - UNC - 2B ø Third - party device co nnected through RS 485 interface ALM _ OU T _ P / ALM _ OU T _ N / ALM _ INPU T / GN D Power ad apter IP Network 6 4.2 Ceiling Mount You may adopt ceiling mount or wall mount as needed. Prepare hardware accessories by yourself. The following part takes ceiling mount as an example. Wall mount is similar to ceiling mount and therefore is omitted here. Make sure that the wall is capable of supporting the weight of the camera. 1. Uninst…

Text truncated - open the document above for the full version.

Zhejiang Uniview Technologies Co., Ltd. Date: 2020-11-19 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 To whom it may concern: I, the undersigned, hereby authorize UL-CCIC COMPANY LIMITED to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL-CCIC COMPANY LIMITED on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL-CCIC COMPANY LIMITED as our representative, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signed by: Company Name: Zhejiang Uniview Technology Co., Ltd. Contact Name: Xu Feng Title of Person：Certification Engineer Address: 88 JIANGLING RD，BINJIANG DISTRICT，HANGZHOU，ZHEJIANG 310051 CHINA

Zhejiang Uniview Technologies Co., Ltd. Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: FCC ID: Request for Confidentiality 2AL8S-0235C4PX To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Company Name: Zhejiang Uniview Technologies Co., Ltd. Contact Name: Xu Feng Title of Person： Certification Engineer Address: 88 JIANGLING RD, BINJIANG DISTRICT, HANGZHOU, ZHEJIANG 310051 CHINA Date:2020/11/19

Company name: Zhejiang Uniview Technologies Co., Ltd. Address: 88 JIANGLING RD, BINJIANG DISTRICT, HANGZHOU, ZHEJIANG 310051, CHINA Confirmation Letter We, Zhejiang Uniview Technologies Co., Ltd. The product: IP Camera And model No.: IPC6415SR-X5UPW-VG, IPC6415SR-X5UPW-VG-NB, IPC6412LR-X5UPW-VG, IPC6412LR-X5UPW-VG-NB IPC6415SR-X5UPW-VG-NB, IPC6412LR-X5UPW-VG, IPC6412LR-X5UPW-VG-NB have the same technical construction including circuit diagram, PCB Layout, components and component layout, all electrical construction and mechanical construction with IPC6415SR-X5UPW-VG.The difference lies only the model number and software. (Signature) On behalf of: Lv xiaodong

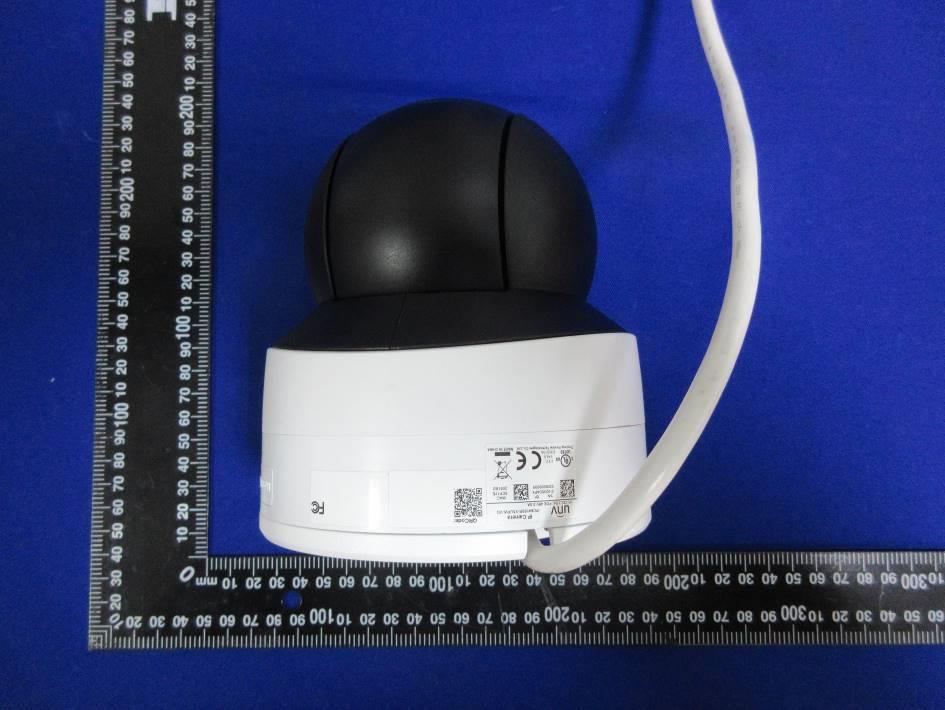

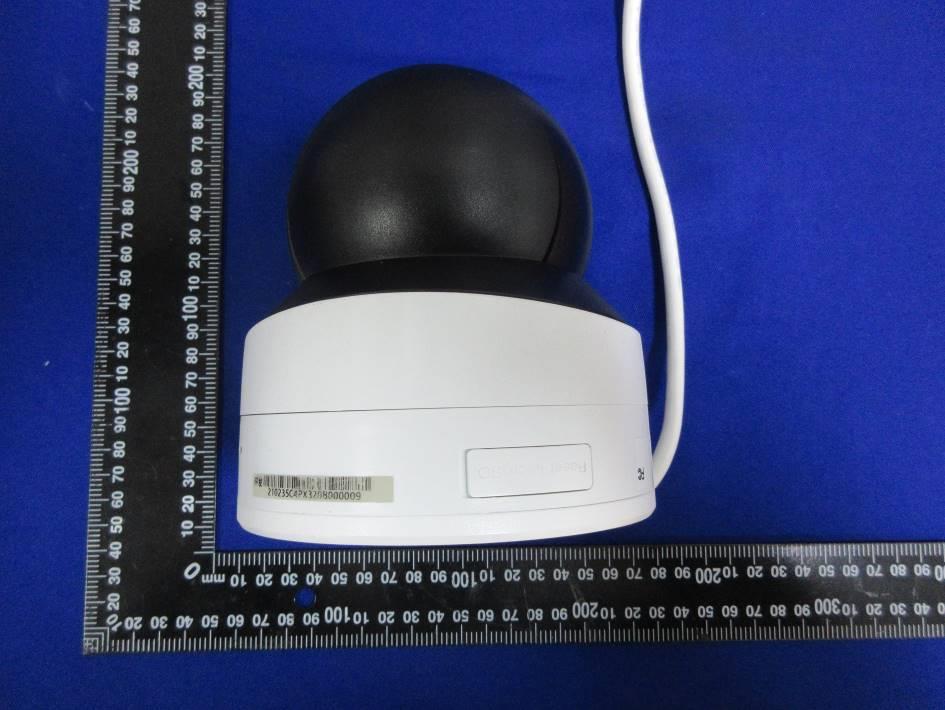

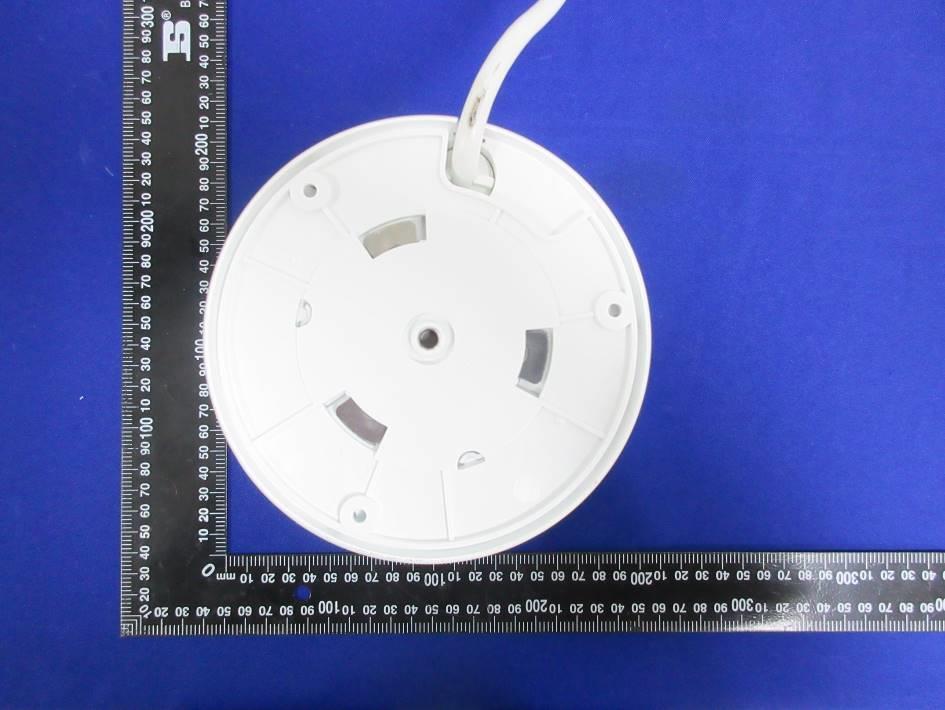

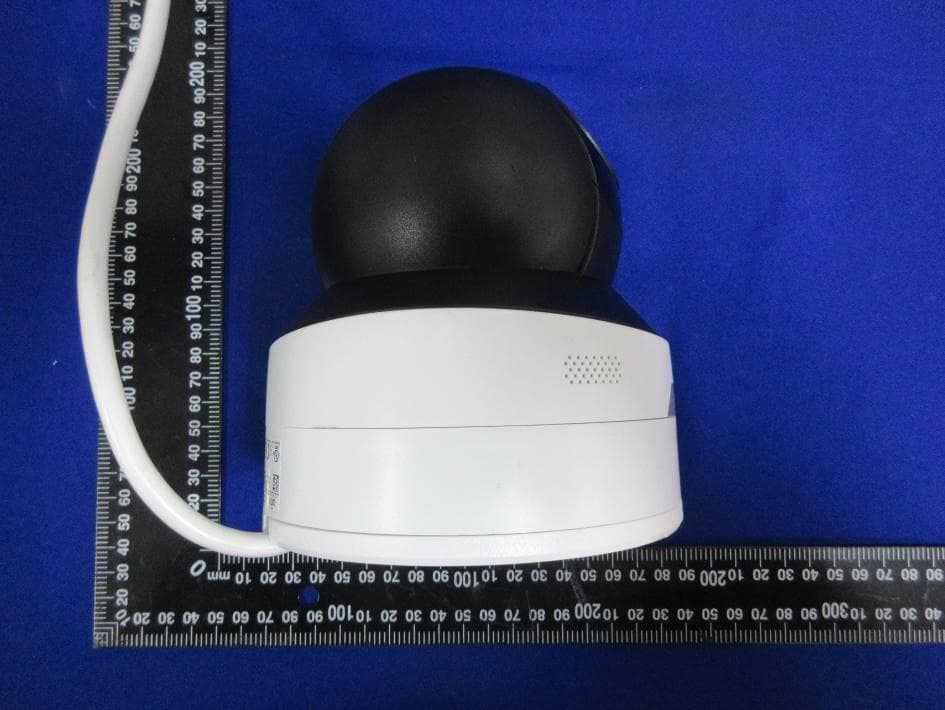

Appendix I External Photographs Page 2 of 5 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. All View of EUT Top View of EUT Page 3 of 5 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Bottom View of EUT Front View of EUT Page 4 of 5 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Back View of EUT Left View of EUT Page 5 of 5 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Right View of EUT

Zhejiang Uniview Technologies Co.,Ltd. declares that the radio equipment type IP Camera is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://sgcdn.uniview.com/Support/Download_Center/Product_Installation/Declaration/

Appendix II Internal Photographs Page 2 of 8 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Open View of EUT Internal View of EUT-1 Page 3 of 8 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-2 Internal View of EUT-3 Page 4 of 8 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-4 Internal View of EUT-5 Page 5 of 8 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-6 Internal View of EUT-7 Page 6 of 8 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-8 Internal View of EUT-9 Page 7 of 8 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-10 Internal View of EUT-11 Page 8 of 8 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-12 Antenna and RF Model location

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. FCC RF EXPOSURE REPORT For IP Camera MODEL NUMBER: IPC6415SR-X5UPW-VG ADDITIONAL MODEL NUMBER: IPC6415SR-X5UPW-VG-NB, IPC6412LR-X5UPW-VG, IPC6412LR-X5UPW-VG-NB PROJECT NUMBER: 4789729351 REPORT NUMBER: 4789729351-2 FCC ID: 2AL8S-0235C4PX ISSUE DATE: Jan. 06, 2021 Prepared for Zhejiang Uniview Technologies Co., Ltd. Prepared by UL-CCIC COMPANY LIMITED No. 2, Chengwan Road, Suzhou Industrial Park, People’s Republic of China Tel: +86 512-6808 6400 Fax: +86 512-6808 4099 Website: www.ul.com REPORT No.: 4789729351-2 Page 2 of 8 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED.. Revision History Rev. Issue Date Revisions Revised By V0 01/06/2020 Initial Issue REPORT No.: 4789729351-2 Page 3 of 8 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED.. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 4 2. TEST METHODOLOGY ..................................................................................................... 6 3. FACILITIES AND ACCREDITATION ................................................................................. 6 4. REQUIREMENT ................................................................................................................. 7 REPORT No.: 4789729351-2 Page 4 of 8 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED.. 1. ATTESTATION OF TEST RESULTS Applicant Information Company Name: Zhejiang Uniview Technologies Co., Ltd. Address: 88 JIANGLING RD, BINJIANG DISTRICT, HANGZHOU, ZHEJIANG 310051, CHINA Manufacturer Information Company Name: Zhejiang Uniview Technologies Co., Ltd. Address: 88 JIANGLING RD, BINJIANG DISTRICT, HANGZHOU, ZHEJIANG 310051, CHINA Factory Information-1 Company Name: Zhejiang Uniview Systems Technology Co., Ltd. Address: NO.1277, QINGFENG SOUTH ROAD (SOUTH), TONGXIANG ECONOMIC DEVELOPMENT ZONE, TONGXIANG CITY, JIAXING, ZHEJIANG 310000, CHINA Factory Information-2 Company Name: TDG Technology Co., Ltd. Address: YATAI ROAD NO.1, NANHU DISTRICT, JIAXING, ZHEJIANG 314050, CHINA Factory Information-3 Company Name: DBG TECHNOLOGY (INDIA) PRIVATE LIMITED Address: PLOT NO. 2, SECTOR-8, IMT BAWAL REWARI HARYANA 123501, INDIA EUT Description Product Name IP Camera Model Name IPC6415SR-X5UPW-VG Additional No. IPC6415SR-X5UPW-VG-NB, IPC6412LR-X5UPW-VG, IPC6412LR-X5UPW-VG-NB Sample Number 3476622 Data of Receipt Sample Dec. 06, 2020 Date Tested Dec. 10, 2020 ~ Dec. 30, 2020 REPORT No.: 4789729351-2 Page 5 of 8 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED.. APPLICABLE STANDARDS STANDARD TEST RESULTS FCC Guidelines for Human Exposure IEEE C95.1 Complies Prepared By: Reviewed By: Jason Yang Tom Tang Engineer Engineer Project Associate Authorized By: Chris Zhong Laboratory Leader REPORT No.: 4789729351-2 Page 6 of 8 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED.. 2. TEST METHODOLOGY The tests documented in this report were performed in accordance with KDB 447498 D01 General RF Exposure Guidance v06 and FCC Guidelines for Human Exposure IEEE C95.1. 3. FACILITIES AND ACCREDITATION Accreditation Certificate A2LA (Certificate No.: 4829.01) UL-CCIC COMPANY LIMITED has been assessed and proved to be in compliance with A2LA. FCC (FCC Designation No.: CN1247) UL-CCIC COMPANY LIMITED has been recognized to perform compliance testing on equipment subject to the Commission's Declaration of Conformity (DoC) and Certification rules. IC (IC Designation No.: 25056) UL-CCIC COMPANY LIMITED has been recognized to perform compliance testing on equipment subject to the Commission's Declaration of Conformity (DoC) and Certification rules. Note 1: All tests measurement facilities use to collect the measurement data are located at No. 2, Chengwan Road, Suzhou Industrial Park, Suzhou 215122, People’s Republic of China Note 2: For below 30MHz, lab had performed measurements at test anechoic chamber and comparing to measurements obtained on an open field site. These measurements below 30MHz had been correlated to measurements performed on an OFS. Note 3: The test anechoic chamber in UL-CCIC COMPANY LIMITED had been calibrated and compared to the open field sites and the test anechoic chamber is shown to be equivalent to or worst case from the open field site. REPORT No.: 4789729351-2 Page 7 of 8 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED.. 4. REQUIREMENT LIMIT Limits for General Population/Uncontrolled Exposure Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Time |E| 2 , |H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f2)* 30 30-300 27.5 0.073 0.2 30 300-1500 -- -- f/150 30 1500-100,000 -- -- 1.0 30 Note 1: f = frequency in MHz, * means Plane-wave equivalent power density Note 2: General population/uncontrolled exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or cannot exercise control over their exposure. Note 3…

Text truncated - open the document above for the full version.

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. FCC 47 CFR PART 15 SUBPART C CERTIFICATION TEST REPORT For IP Camera MODEL NUMBER: IPC6415SR-X5UPW-VG ADDITIONAL MODEL NUMBER: IPC6415SR-X5UPW-VG-NB, IPC6412LR-X5UPW-VG, IPC6412LR-X5UPW-VG-NB PROJECT NUMBER: 4789729351 REPORT NUMBER: 4789729351-1 FCC ID: 2AL8S-0235C4PX ISSUE DATE: Jan. 06, 2021 Prepared for Zhejiang Uniview Technologies Co., Ltd. Prepared by UL-CCIC COMPANY LIMITED No. 2, Chengwan Road, Suzhou Industrial Park, People’s Republic of China Tel: +86 512-6808 6400 Fax: +86 512-6808 4099 Website: www.ul.com REPORT No.: 4789729351-1 Page 2 of 150 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Revision History Rev. Issue Date Revisions Revised By V0 01/06/2020 Initial Issue REPORT No.: 4789729351-1 Page 3 of 150 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 4 2. TEST METHODOLOGY ..................................................................................................... 6 3. FACILITIES AND ACCREDITATION ................................................................................. 6 4. CALIBRATION AND UNCERTAINTY ................................................................................ 7 4.1. MEASURING INSTRUMENT CALIBRATION .............................................................. 7 4.2. MEASUREMENT UNCERTAINTY ............................................................................... 7 5. EQUIPMENT UNDER TEST ............................................................................................... 8 5.1. DESCRIPTION OF EUT .............................................................................................. 8 5.2. MAXIMUM OUTPUT POWER...................................................................................... 9 5.3. CHANNEL LIST ........................................................................................................... 9 5.4. TEST CHANNEL CONFIGURATION ..........................................................................10 5.5. THE WORSE CASE POWER SETTING PARAMETER ..............................................10 5.6. DESCRIPTION OF AVAILABLE ANTENNAS .............................................................11 5.7. THE WORSE CASE CONFIGURATIONS ..................................................................11 5.8. TEST ENVIRONMENT ...............................................................................................12 5.9. DESCRIPTION OF TEST SETUP ...............................................................................13 5.10. MEASURING INSTRUMENT AND SOFTWARE USED ..........................................15 6. MEASUREMENT METHODS ............................................................................................16 7. ANTENNA PORT TEST RESULTS ...................................................................................17 7.1. ON TIME AND DUTY CYCLE .....................................................................................17 7.2. 6 dB BANDWIDTH ......................................................................................................20 7.3. CONDUCTED OUTPUT POWER ...............................................................................28 7.4. POWER SPECTRAL DENSITY ..................................................................................30 7.5. CONDUCTED BANDEDGE AND SPURIOUS EMISSIONS ........................................38 7.6. RADIATED TEST RESULTS ......................................................................................68 7.6.1. LIMITS AND PROCEDURE .................................................................................68 7.6.2. TEST ENVIRONMENT ........................................................................................74 7.6.3. RESTRICTED BANDEDGE .................................................................................74 7.6.4. SPURIOUS EMISSIONS .....................................................................................91 8. AC POWER LINE CONDUCTED EMISSIONS ................................................................ 147 9. ANTENNA REQUIREMENTS .......................................................................................... 150 REPORT No.: 4789729351-1 Page 4 of 150 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. 1. ATTESTATION OF TEST RESULTS Applicant Information Company Name: Zhejiang Uniview Technologies Co., Ltd. Address: 88 JIANGLING RD, BINJIANG DISTRICT, HANGZHOU, ZHEJIANG 310051, CHINA Manufacturer Information Company Name: Zhejiang Uniview Technologies Co., Ltd. Address: 88 JIANGLING RD, BINJIANG DISTRICT, HANGZHOU, ZHEJIANG 310051, CHINA Factory Information-1 Company Name: Zhejiang Uniview Systems Technology Co., Ltd. Address: NO.1277, QINGFENG SOUTH ROAD (SOUTH), TONGXIANG ECONOMIC DEVELOPMENT ZONE, TONGXIANG CITY, JIAXING, ZHEJIANG 310000, CHINA Factory Information-2 Company Name: TDG Technology Co., Ltd. Address: YATAI ROAD NO.1, NANHU DISTRICT, JIAXING, ZHEJIANG 314050, CHINA Factory Information-3 Company Name: DBG TECHNOLOGY (INDIA) PRIVATE LIMITED Address: PLOT NO. 2, SECTOR-8, IMT BAWAL REWARI HARYANA 123501, INDIA EUT Description Product Name IP Camera Model Name IPC6415SR-X5UPW-VG Additional No. IPC6415SR-X5UPW-VG-NB, IPC6412LR-X5UPW-VG, IPC6412LR-X5UPW-VG-NB Sa…

Text truncated - open the document above for the full version.

REPORT No.: 4789729351-1 Page 51 of 150 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Puw test Plot LCH SPURIOUS EMISSION_30MHz~10GHz LCH SPURIOUS EMISSION_10GHz~26GHz REPORT No.: 4789729351-1 Page 52 of 150 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Verdict 11G MCH PASS Pref test Plot MCH SPURIOUS EMISSION REPORT No.: 4789729351-1 Page 53 of 150 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Puw test Plot MCH SPURIOUS EMISSION_30MHz~10GHz MCH SPURIOUS EMISSION_10GHz~26GHz REPORT No.: 4789729351-1 Page 54 of 150 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Verdict 11G HCH PASS Pref test Plot HCH SPURIOUS EMISSION REPORT No.: 4789729351-1 Page 55 of 150 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Puw test Plot HCH SPURIOUS EMISSION_30MHz~10GHz HCH SPURIOUS EMISSION_10GHz~26GHz REPORT No.: 4789729351-1 Page 56 of 150 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Verdict 11N HT20 LCH PASS Pref test Plot LCH SPURIOUS EMISSION REPORT No.: 4789729351-1 Page 57 of 150 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Puw test Plot LCH SPURIOUS EMISSION_30MHz~10GHz LCH SPURIOUS EMISSION_10GHz~26GHz REPORT No.: 4789729351-1 Page 58 of 150 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Verdict 11N HT20 MCH PASS Pref test Plot MCH SPURIOUS EMISSION REPORT No.: 4789729351-1 Page 59 of 150 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Puw test Plot MCH SPURIOUS EMISSION_30MHz~10GHz MCH SPURIOUS EMISSION_10GHz~26GHz REPORT No.: 4789729351-1 Page 60 of 150 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Verdict 11N HT20 HCH PASS Pref test Plot HCH SPURIOUS EMISSION REPORT No.: 4789729351-1 Page 61 of 150 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Puw test Plot HCH SPURIOUS EMISSION_30MHz~10GHz HCH SPURIOUS EMISSION_10GHz~26GHz REPORT No.: 4789729351-1 Page 62 of 150 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Verdict 11N HT40 LCH PASS Pref test Plot LCH SPURIOUS EMISSION REPORT No.: 4789729351-1 Page 63 of 150 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Puw test Plot LCH SPURIOUS EMISSION_30MHz~10GHz LCH SPURIOUS EMISSION_10GHz~26GHz REPORT No.: 4789729351-1 Page 64 of 150 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Verdict 11N HT40 MCH PASS Pref test Plot MCH SPURIOUS EMISSION REPORT No.: 4789729351-1 Page 65 of 150 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Puw test Plot MCH SPURIOUS EMISSION_30MHz~10GHz MCH SPURIOUS EMISSION_10GHz~26GHz REPORT No.: 4789729351-1 Page 66 of 150 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Verdict 11N HT40 HCH PASS Pref test Plot HCH SPURIOUS EMISSION REPORT No.: 4789729351-1 Page 67 of 150 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Puw test Plot HCH SPURIOUS EMISSION_30MHz~10GHz HCH SPURIOUS EMISSION_10GHz~26GHz REPORT No.: 4789729351-1 Page 68 of 150 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. 7.6. RADIATED TEST RESULTS 7.6.1. LIMITS AND PROCEDURE LIMITS Please refer to FCC §15.205 and §15.209 Please refer to FCC KDB 558074 Radiation Disturbance Test Limit for FCC (Class B)(9KHz-1GHz) Frequency (MHz) Field Strength (microvolts/meter) Measurement Distance (meters) 0.009~0.490 …

Text truncated - open the document above for the full version.
